1956 Passenger Assembly Manual

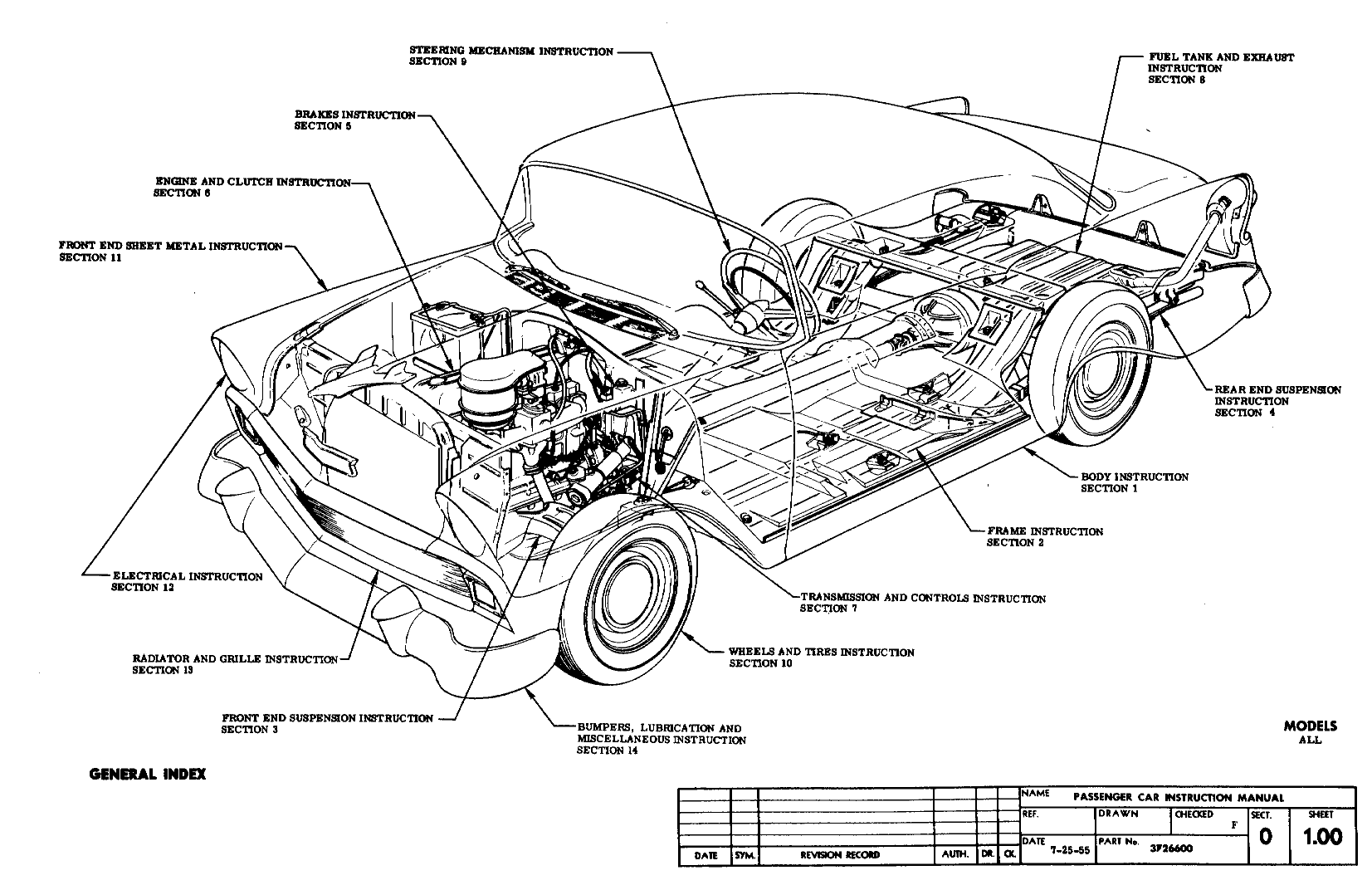

Section 0 - Index
Section 1 - Body Instruction

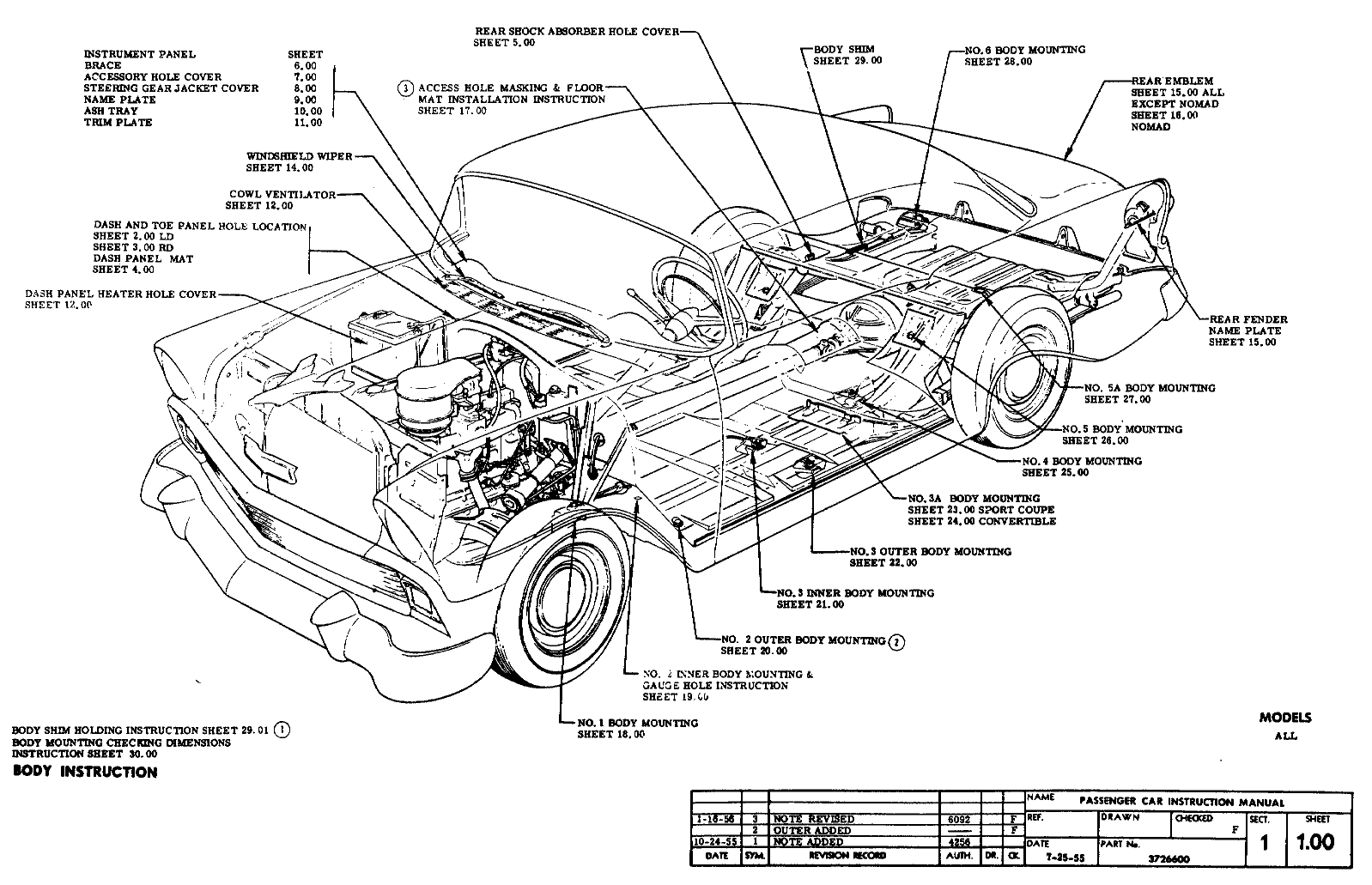

Body Instruction Index Sheet 1.00

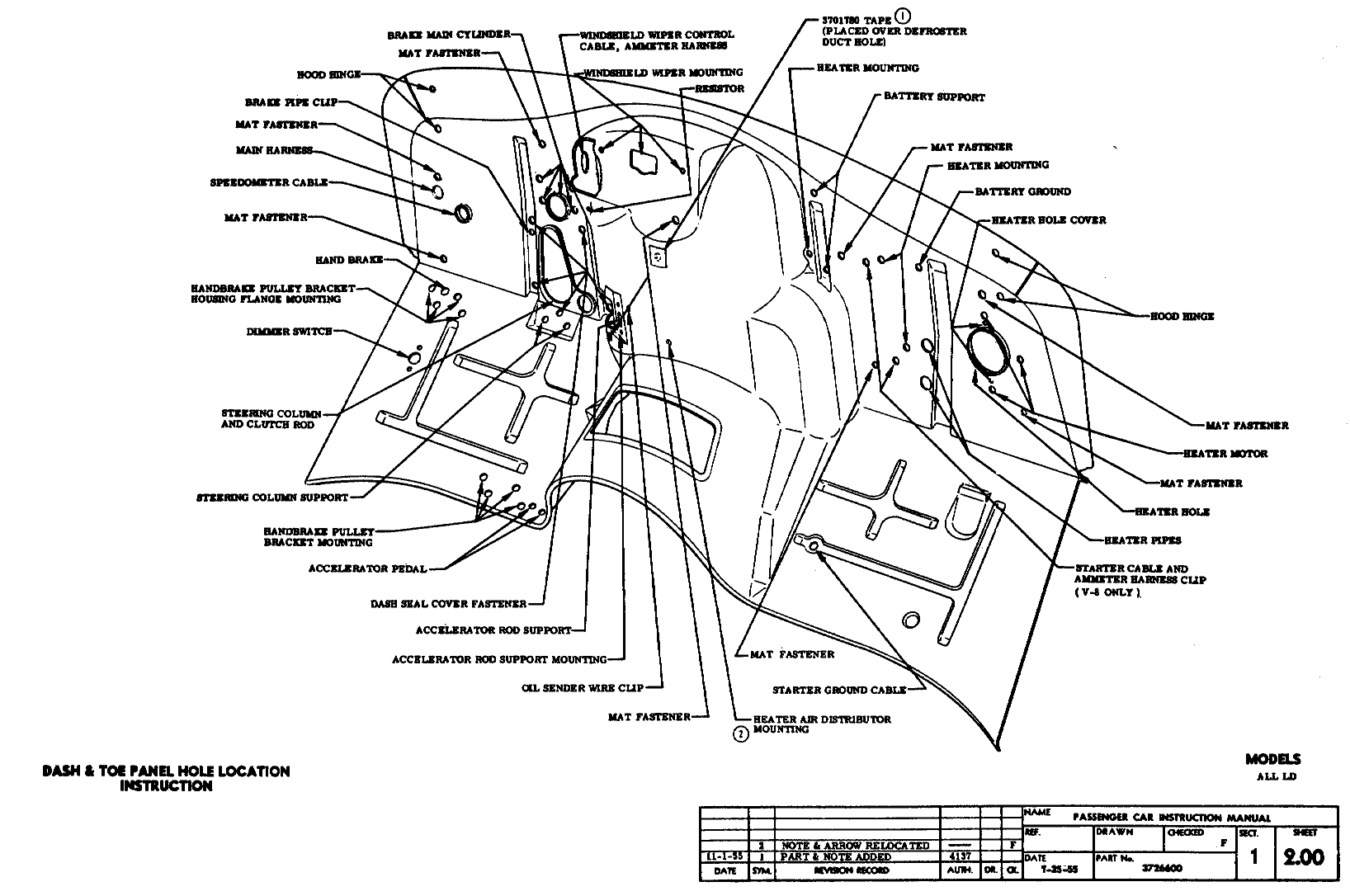

Dash and Toe Panel Hole Location Sheet 2.00

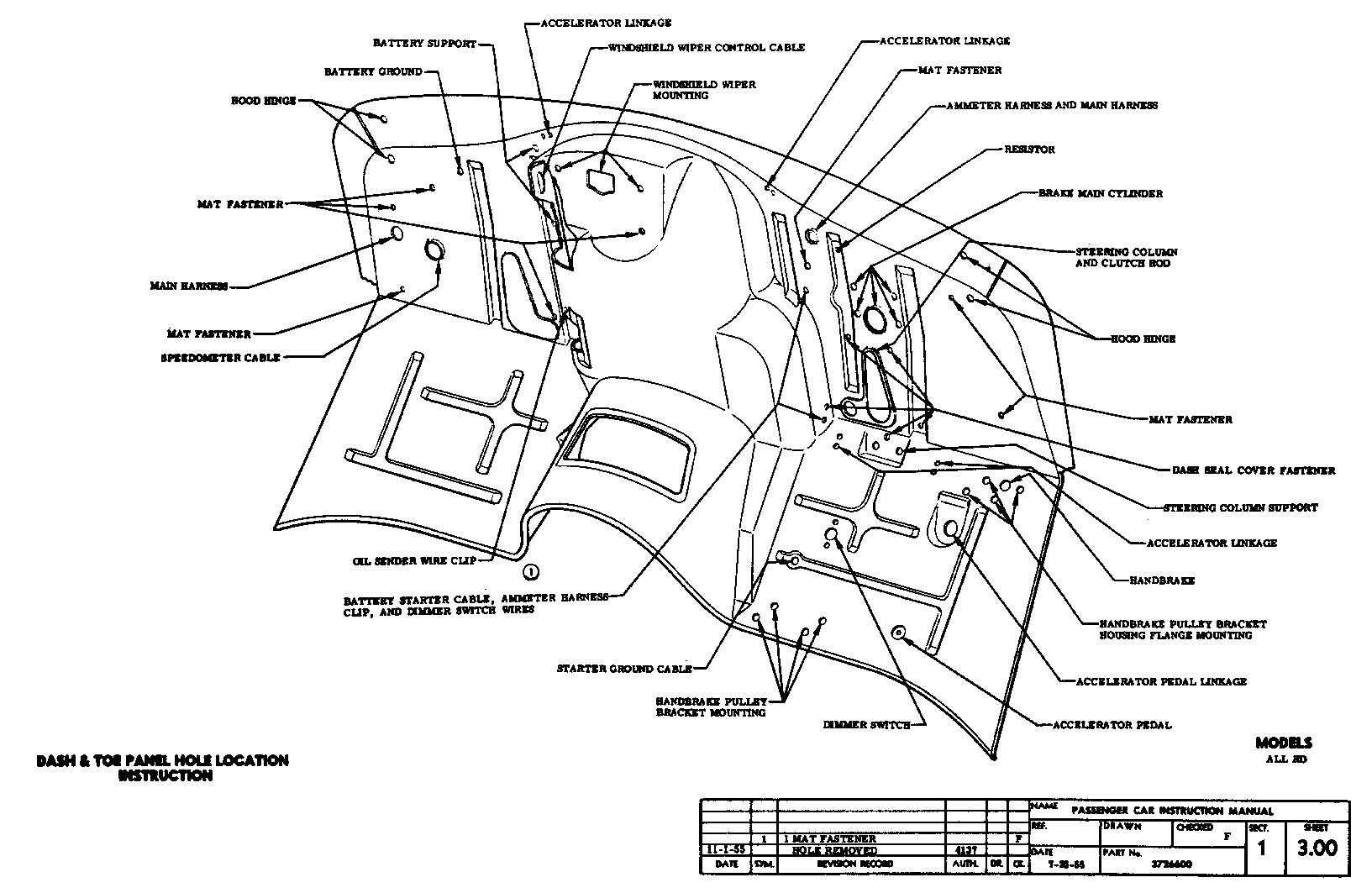

Dash and Toe Panel Hole Location Sheet 3.00

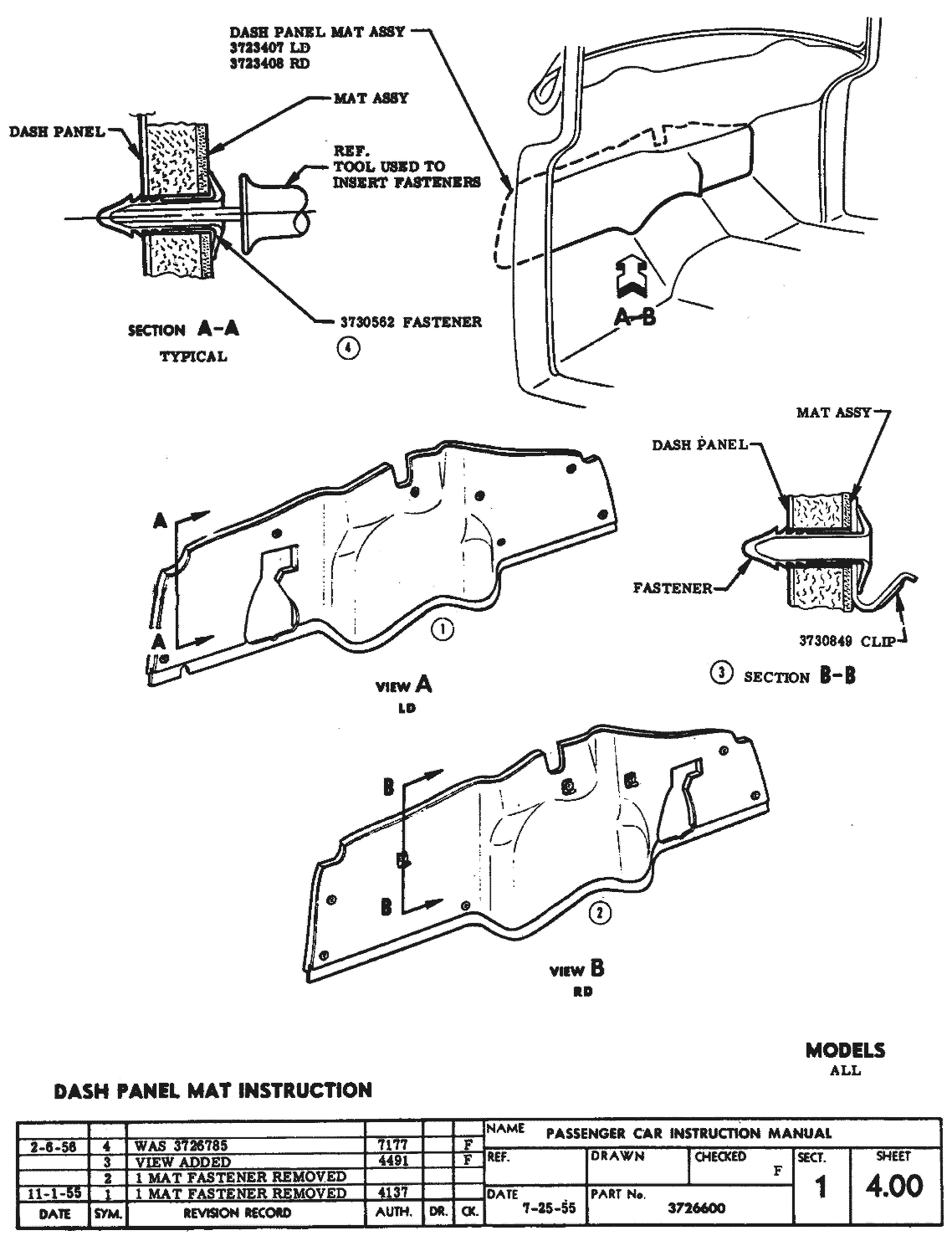

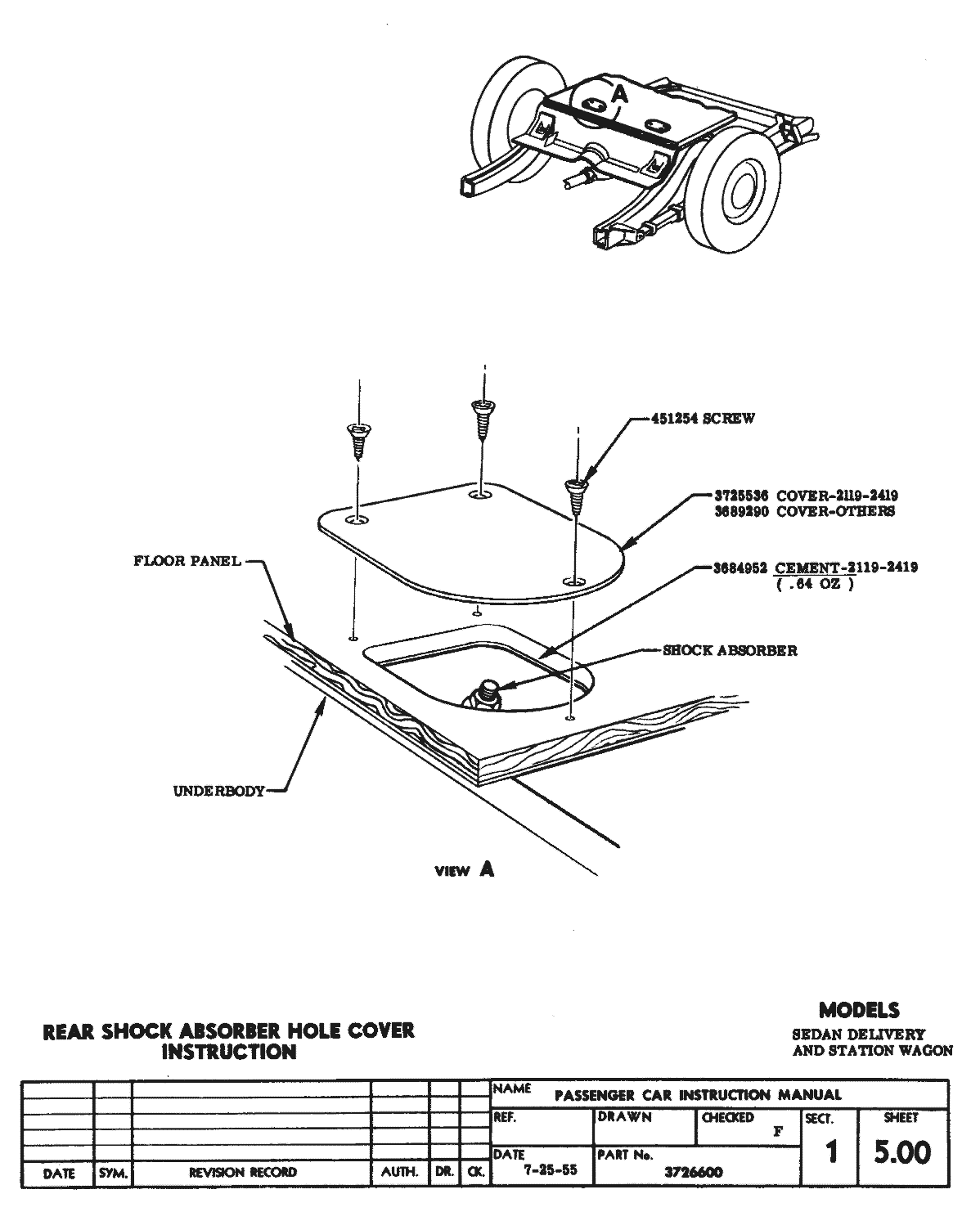

Rear Shock Absorber Hole Cover (Wagon & Sedan Delivery) Sheet 5.00

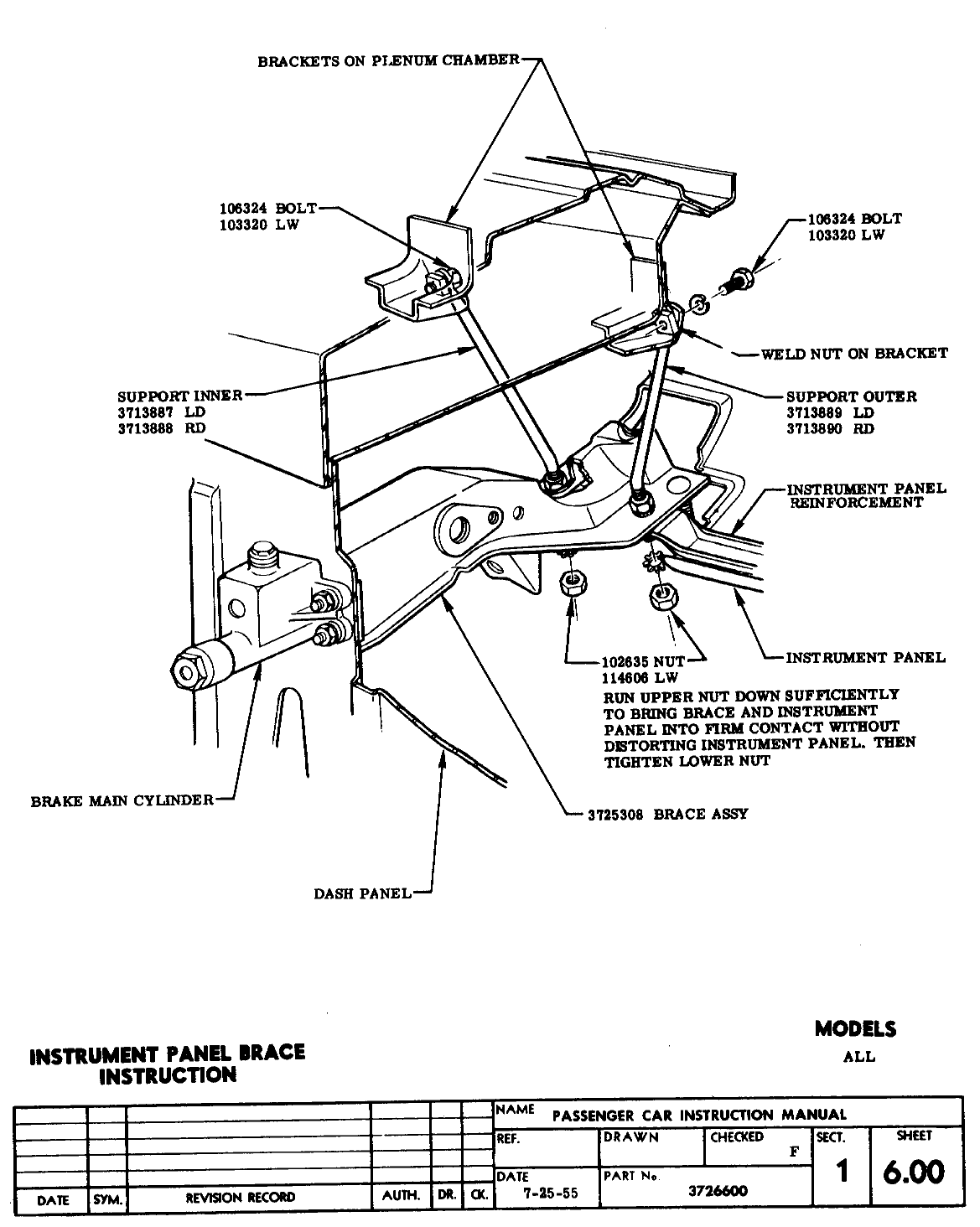

Instrument Panel Brace Sheet 6.00

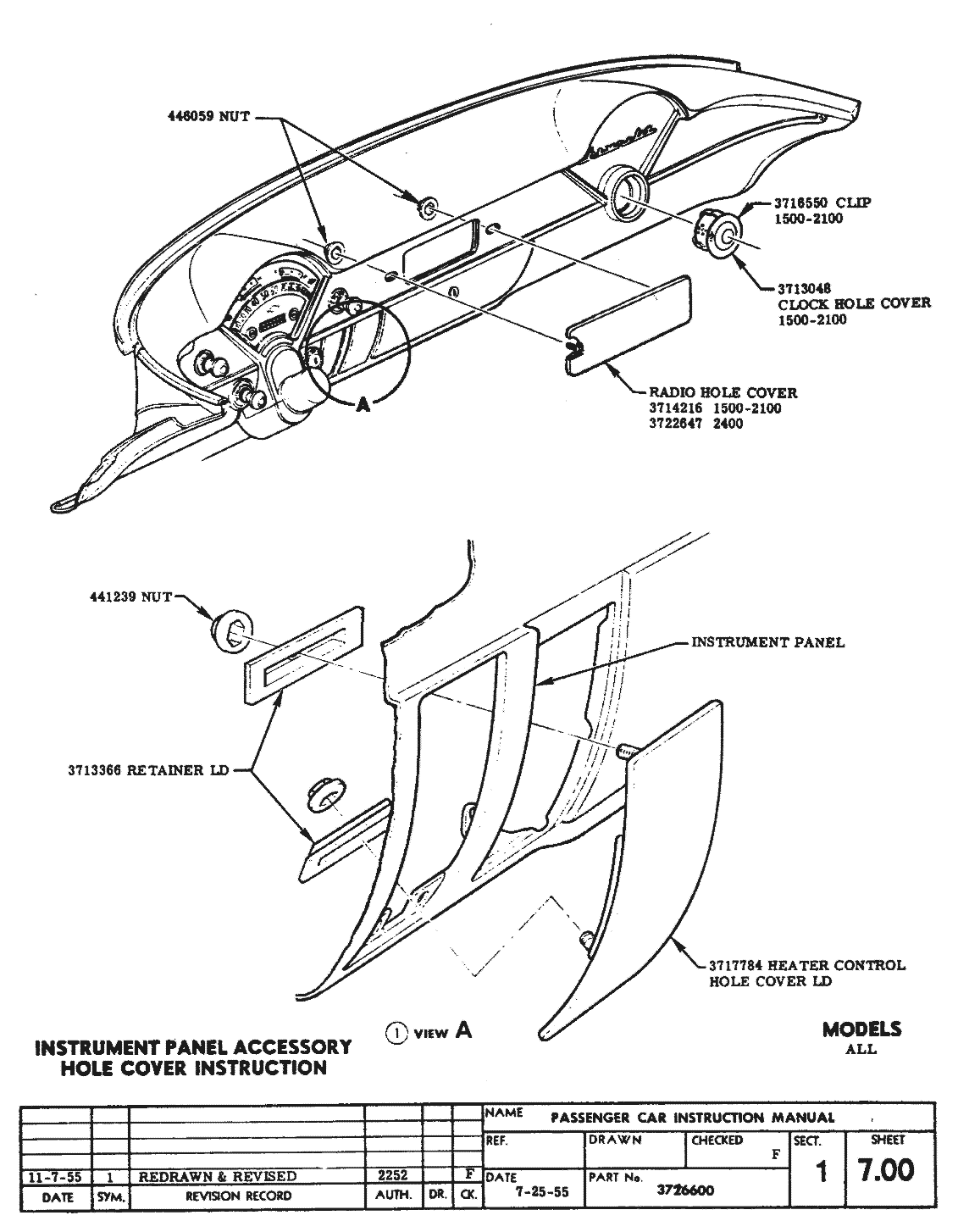

Instrument Panel Accessory Hole Cover Sheet 7.00

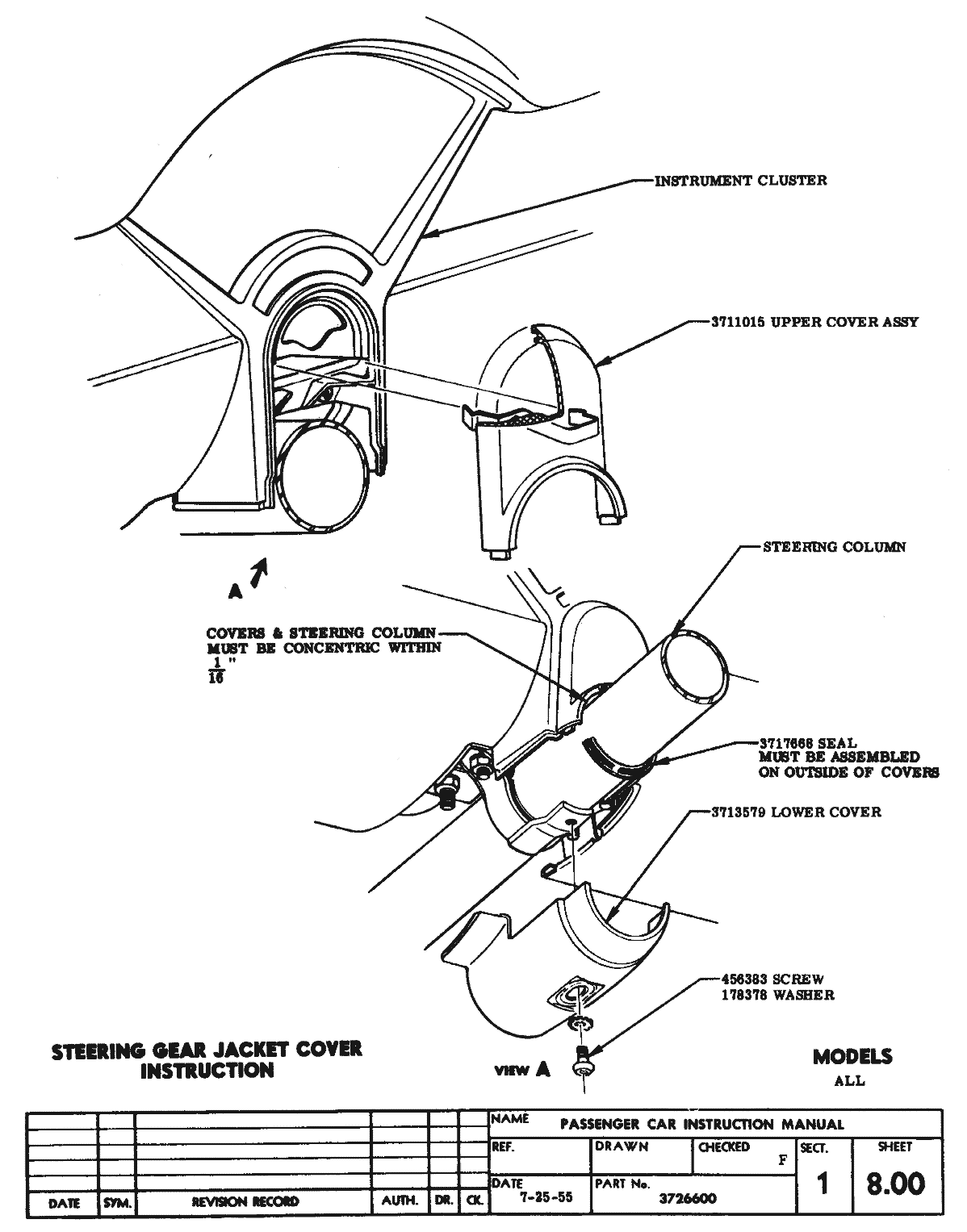

Steering Gear Jacket Cover Sheet 8.00

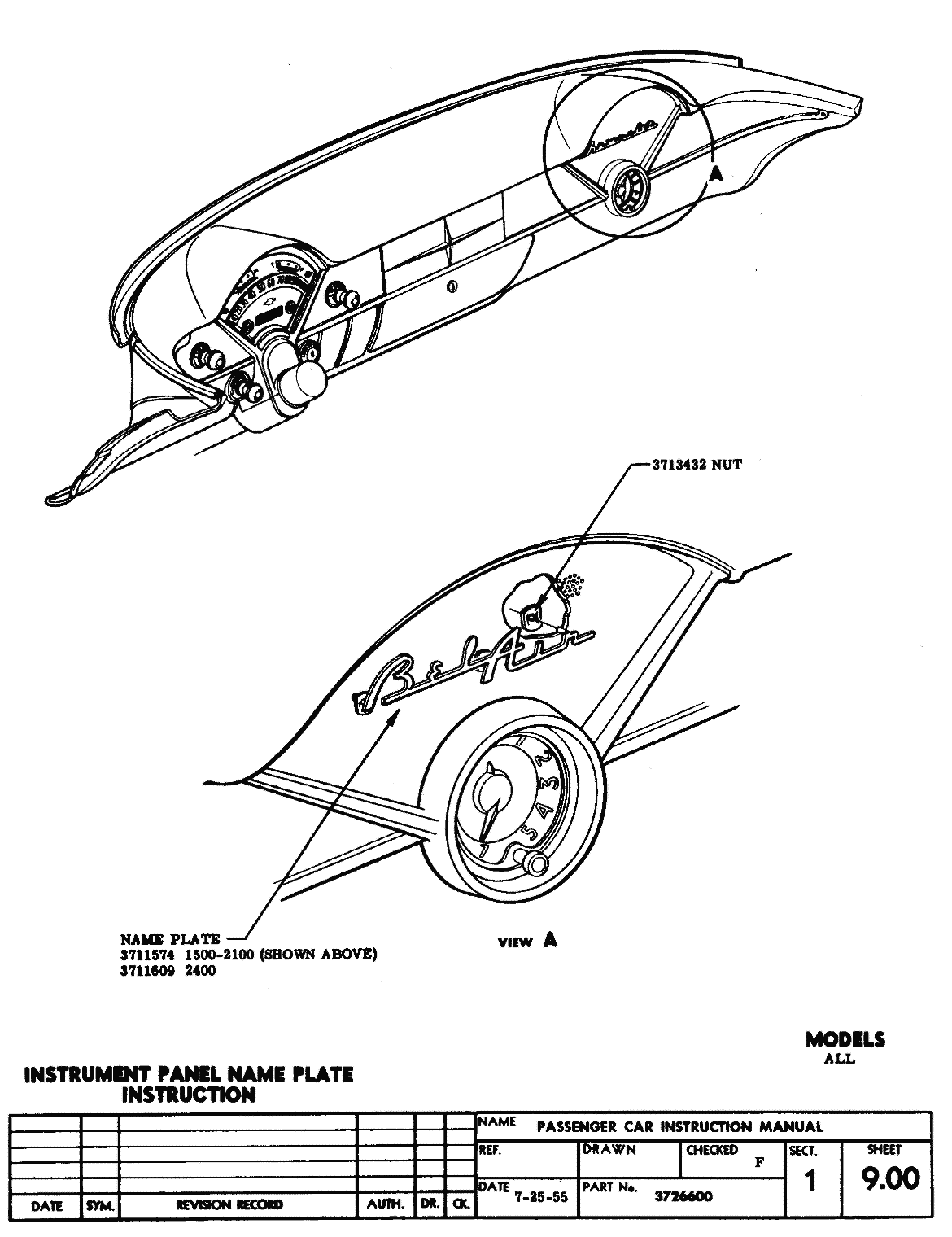

Instrument Panel Name Plate Sheet 9.00

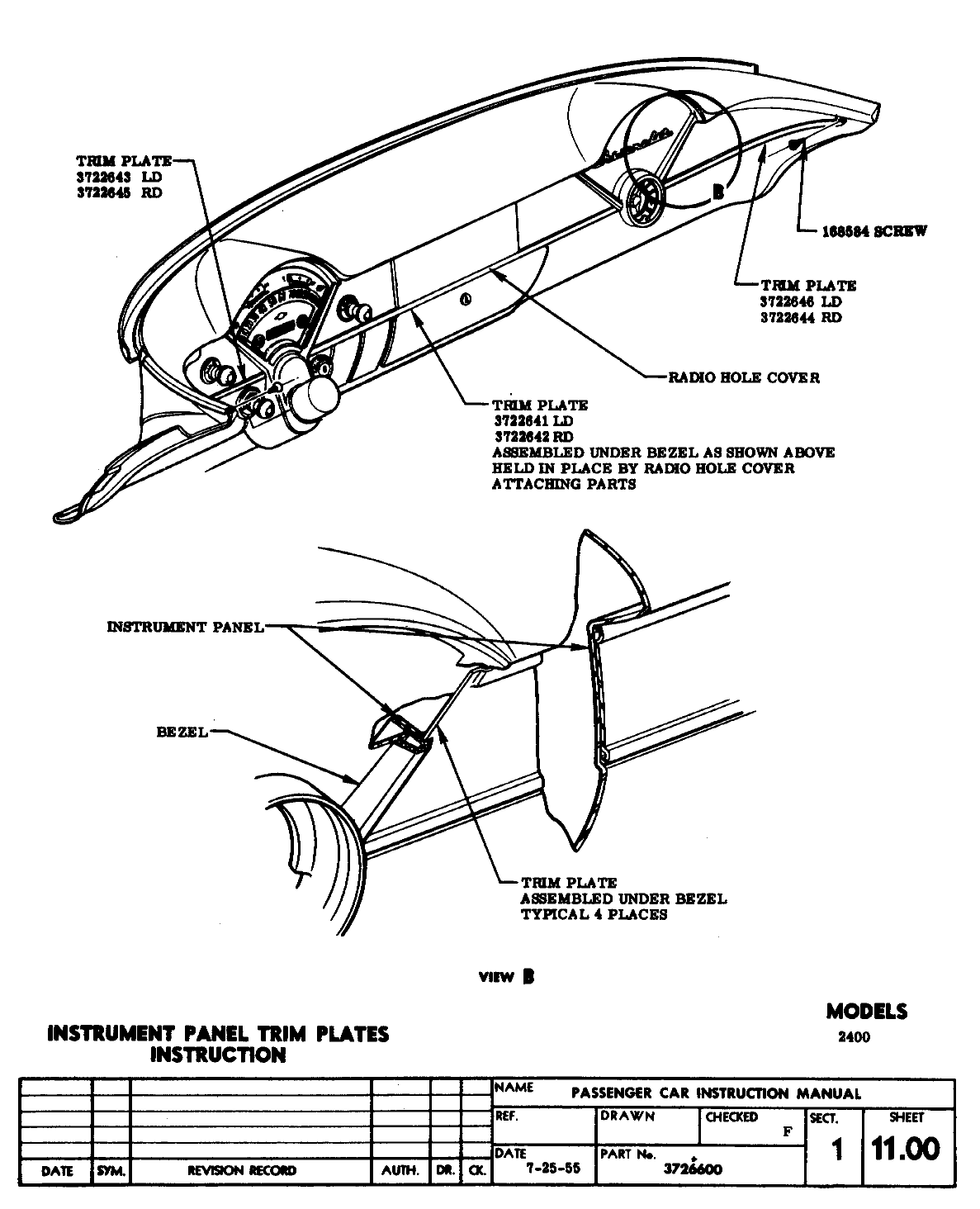

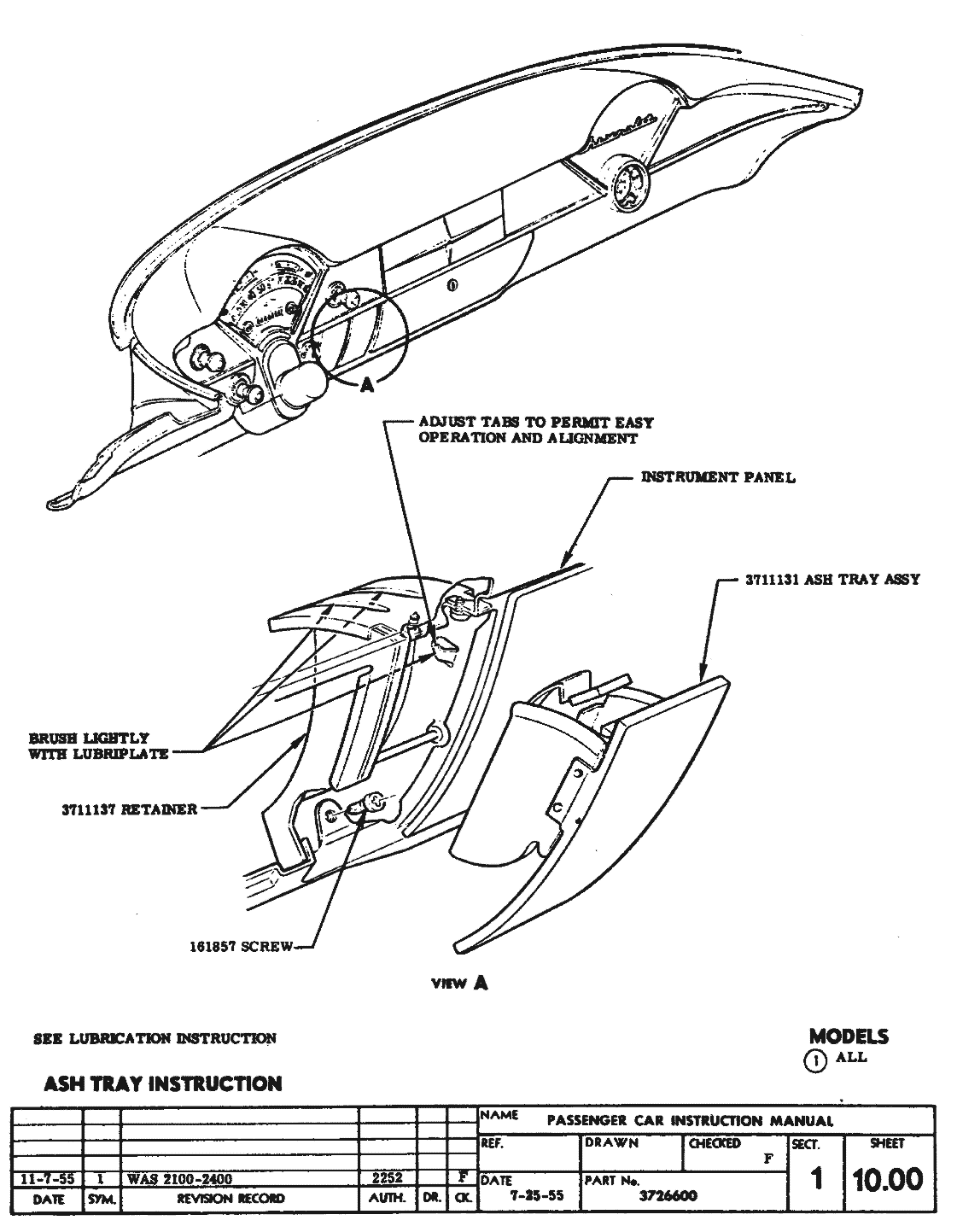

Instrument Panel Trim Plates Sheet 11.00

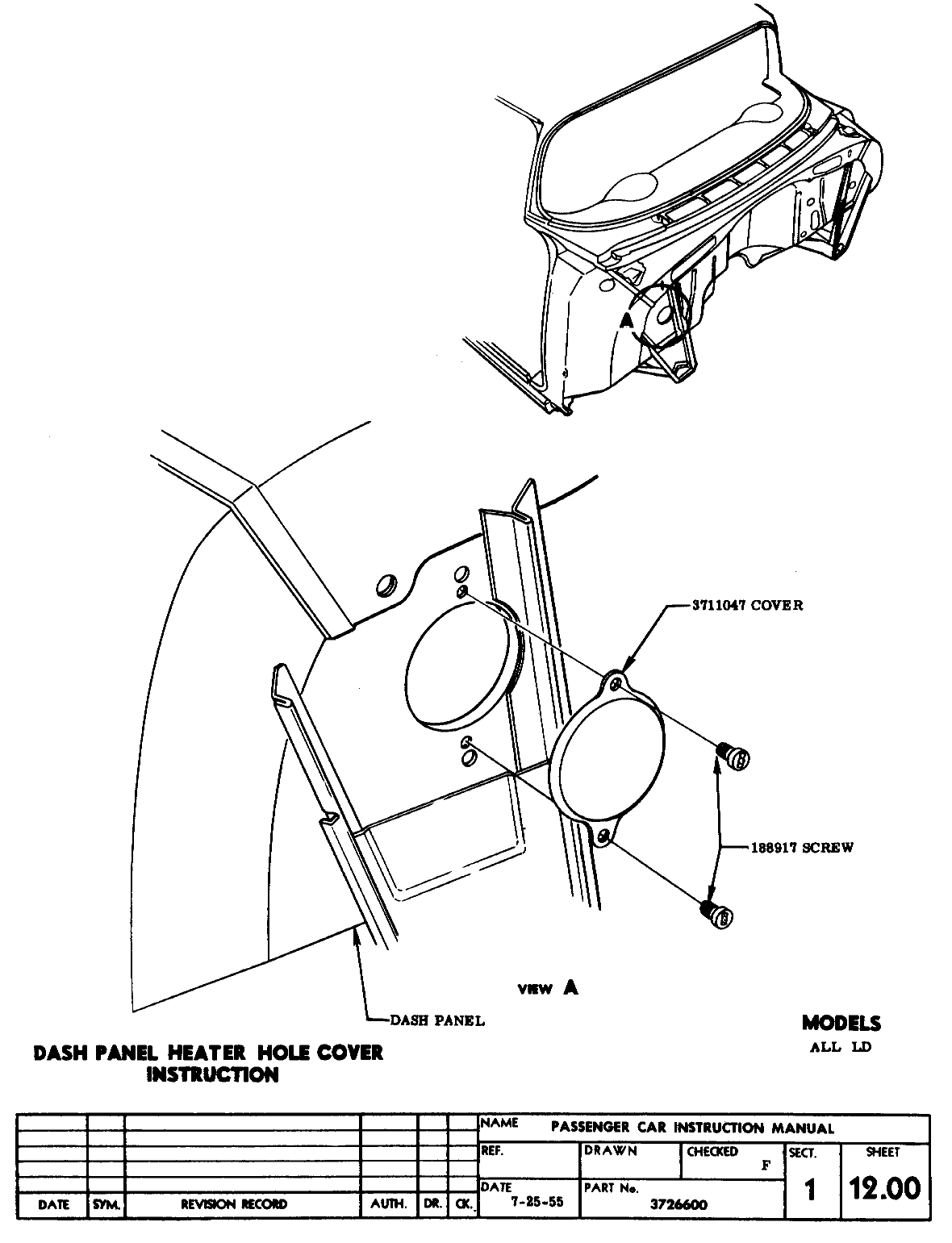

Dash Panel Heater Hole Cover Sheet 12.00

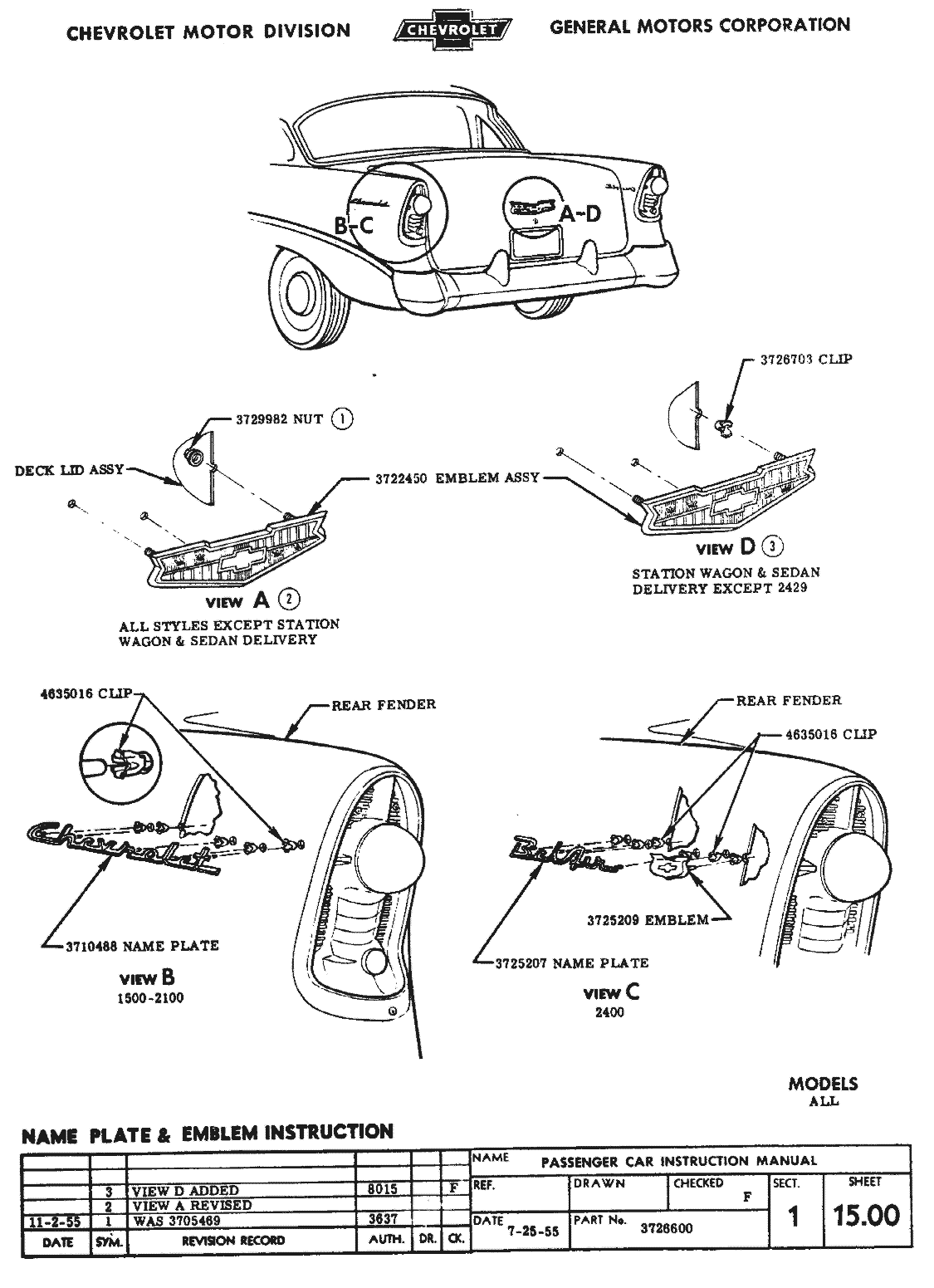

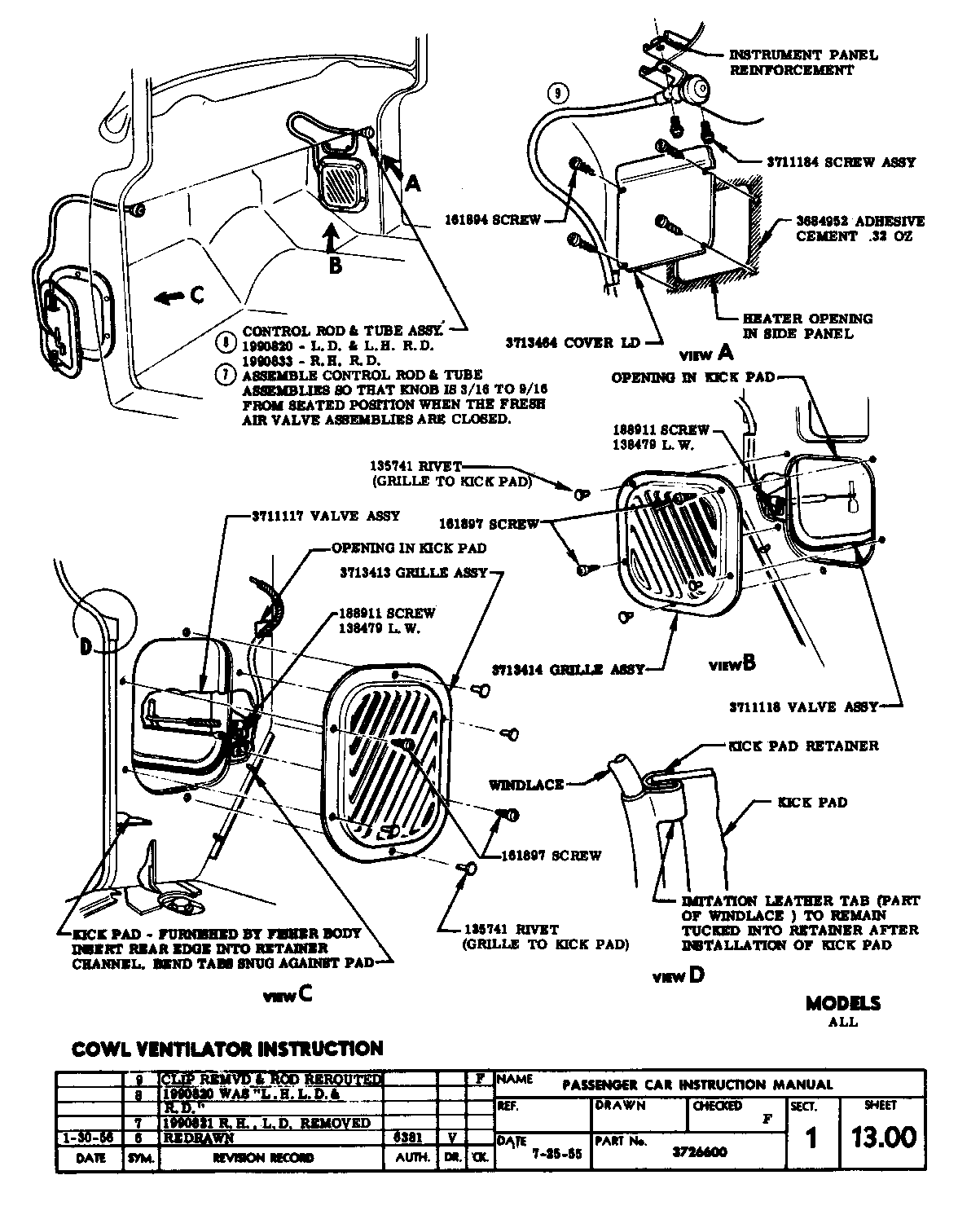

Name Plate & Emblem (except Nomad) Sheet 15.00

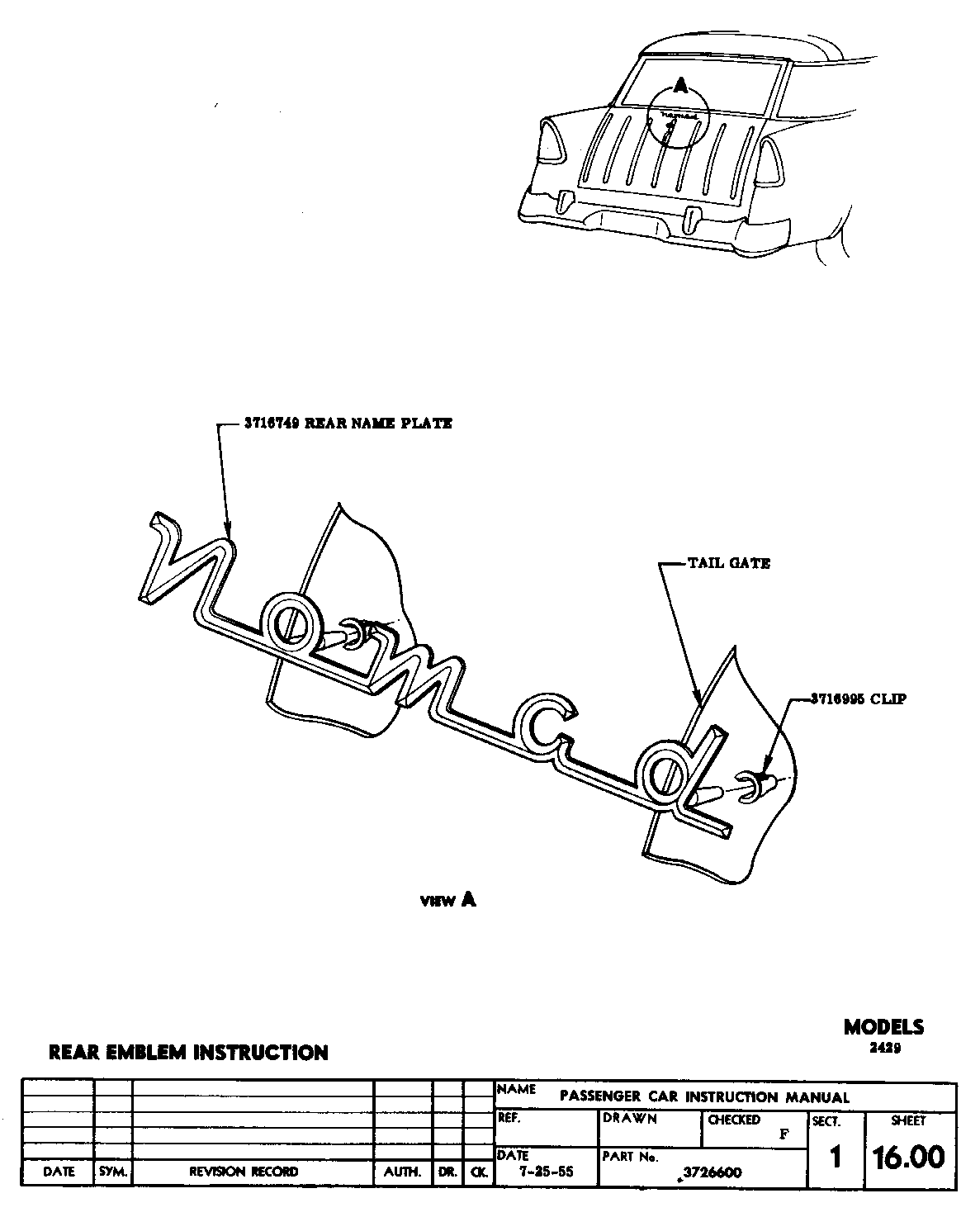

Rear Emblem (Nomad) Sheet 16.00

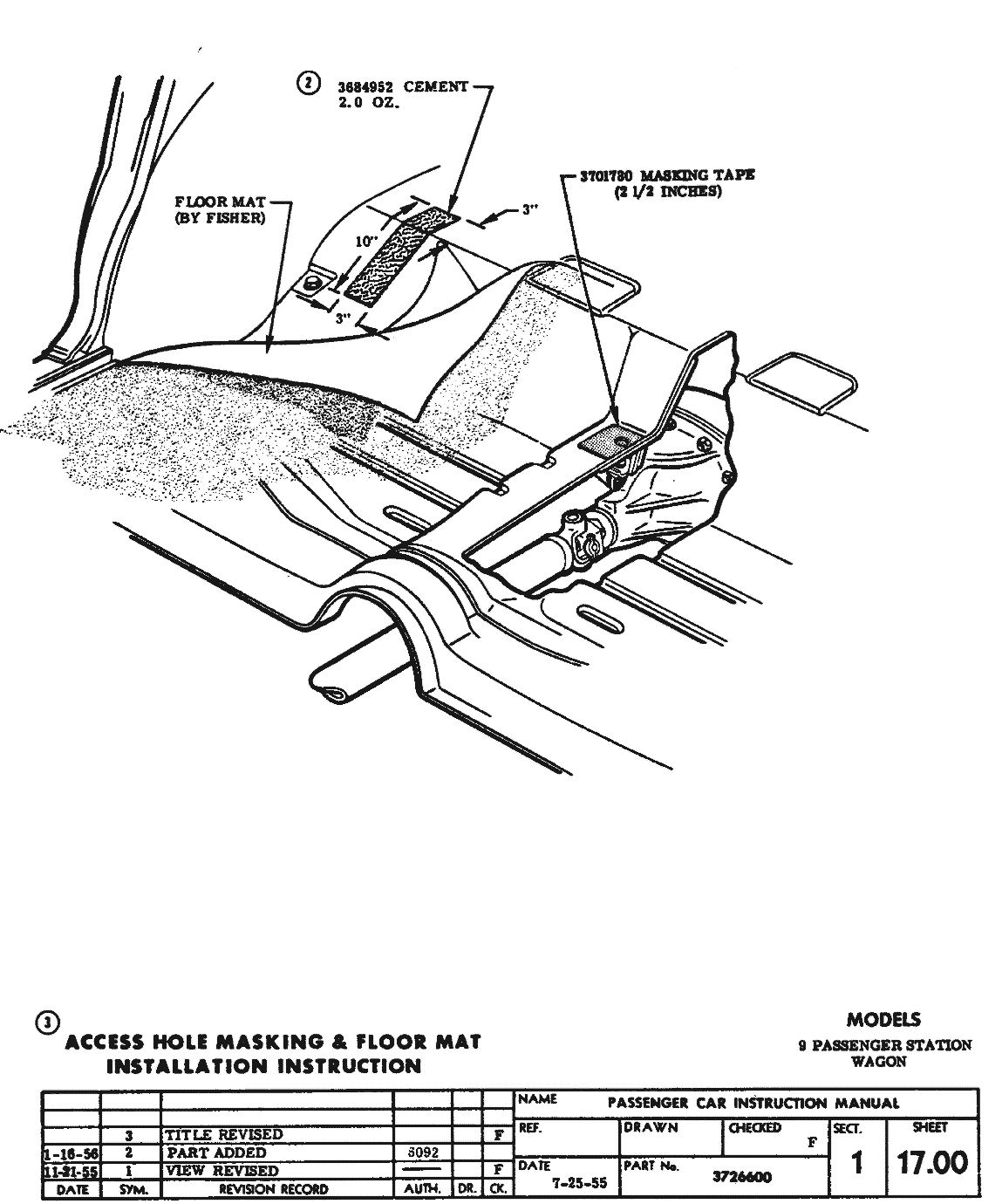

Access Hole Masking & Floor Mat (9 Passenger Station Wagon) Sheet 17.00

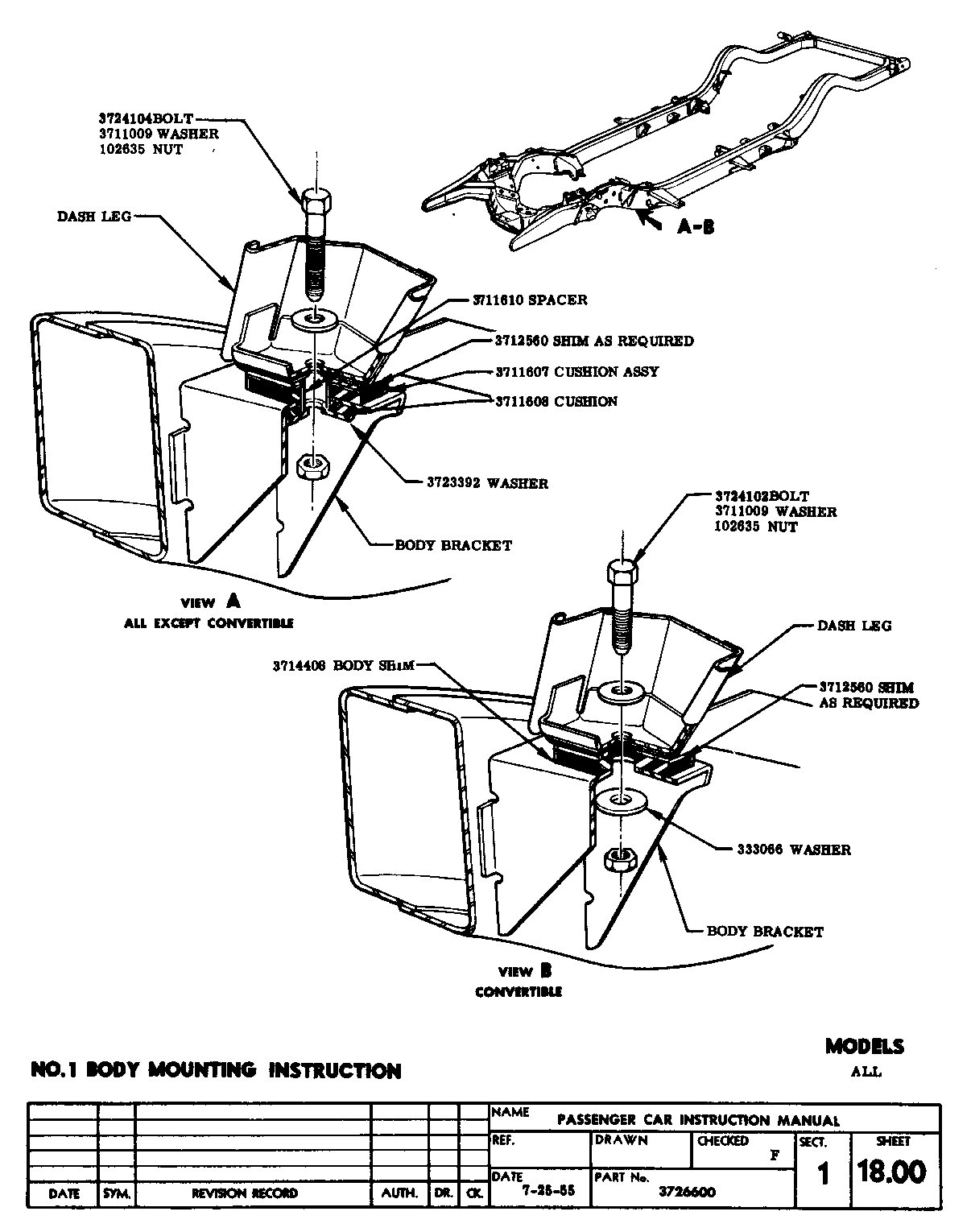

No. 1 Body Mounting Sheet 18.00

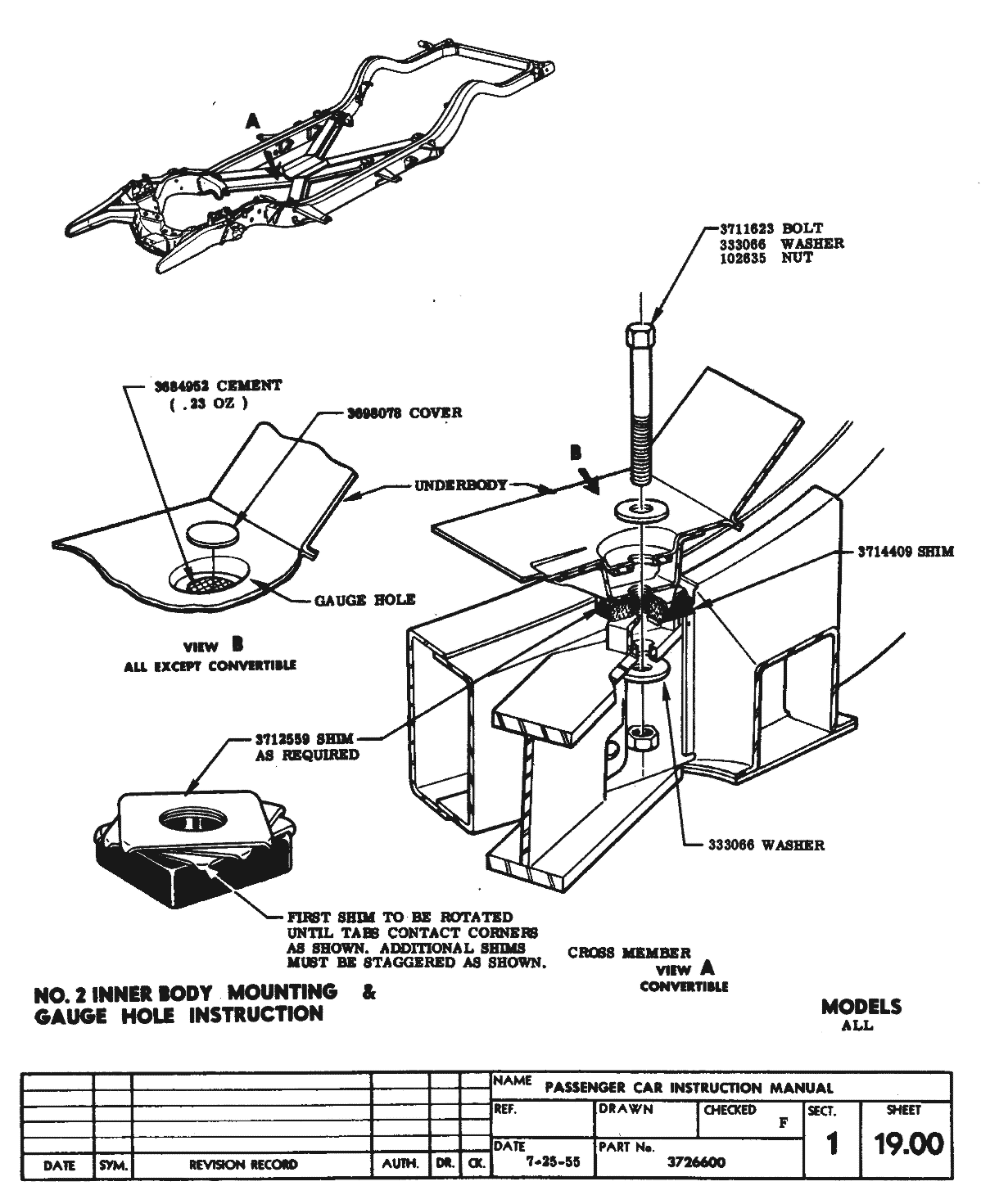

No. 2 Inner Body Mounting and Gauge Hole Sheet 19.00

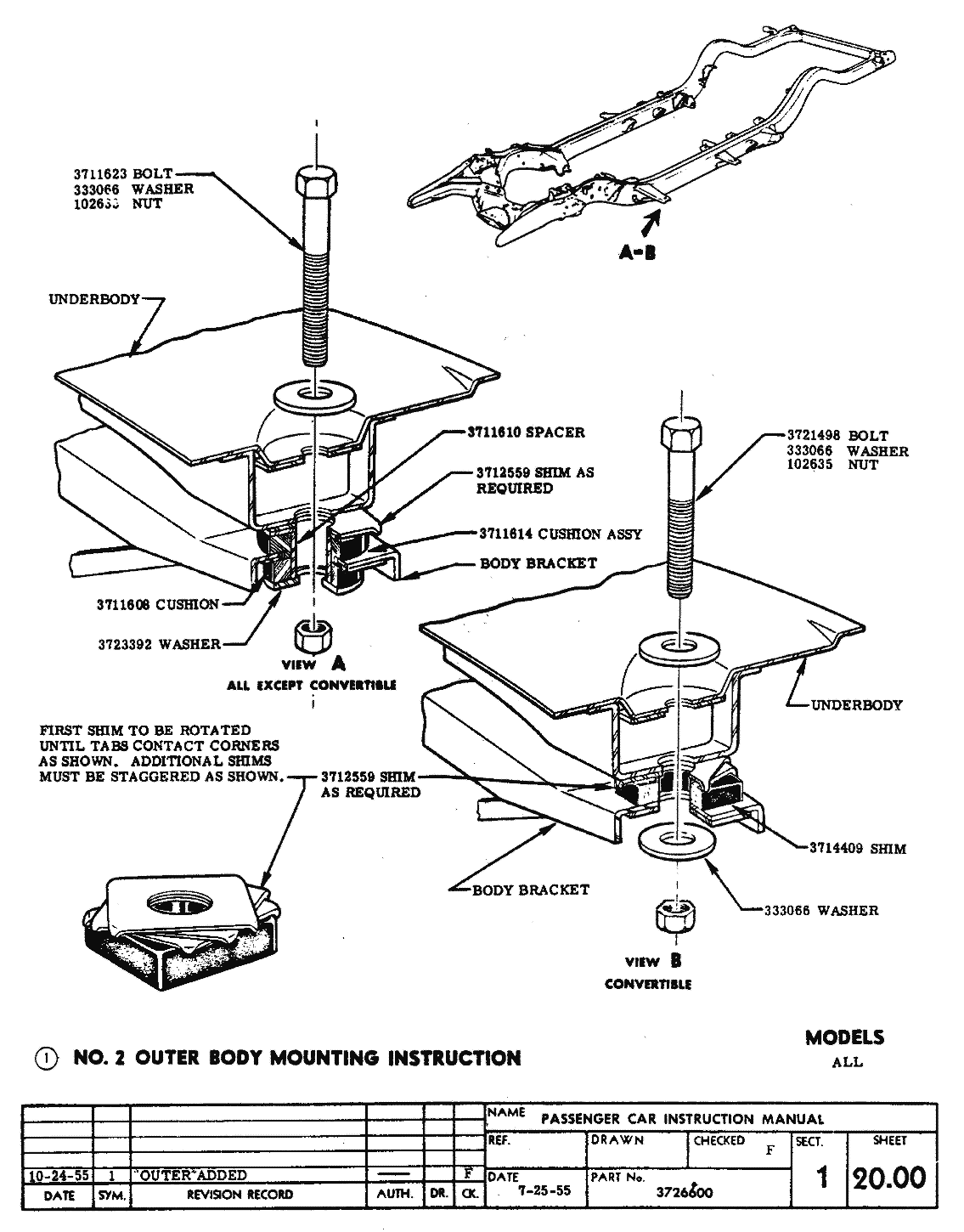

No. 2 Outer Body Mounting Sheet 20.00

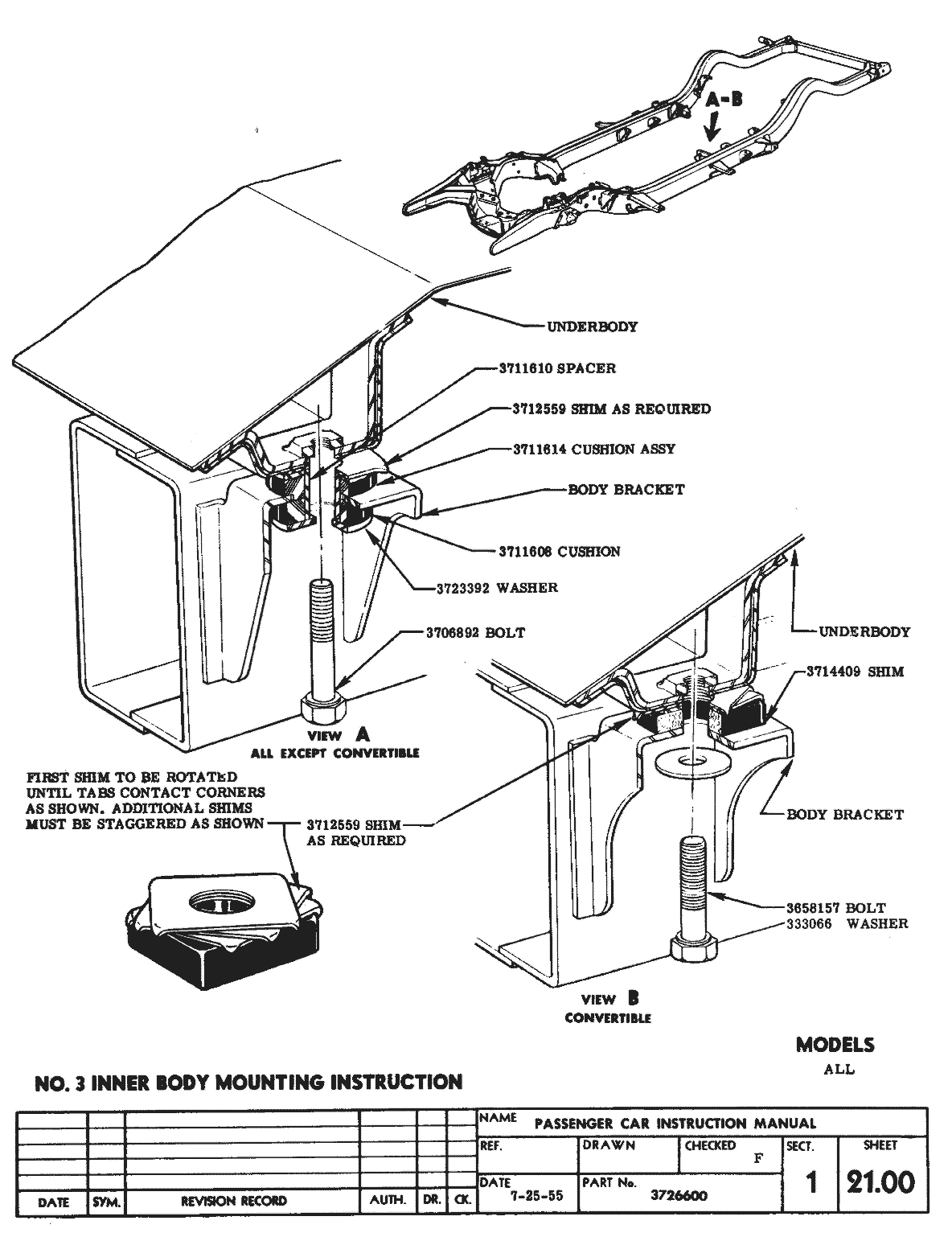

No. 3 Inner Body Mounting Sheet 21.00

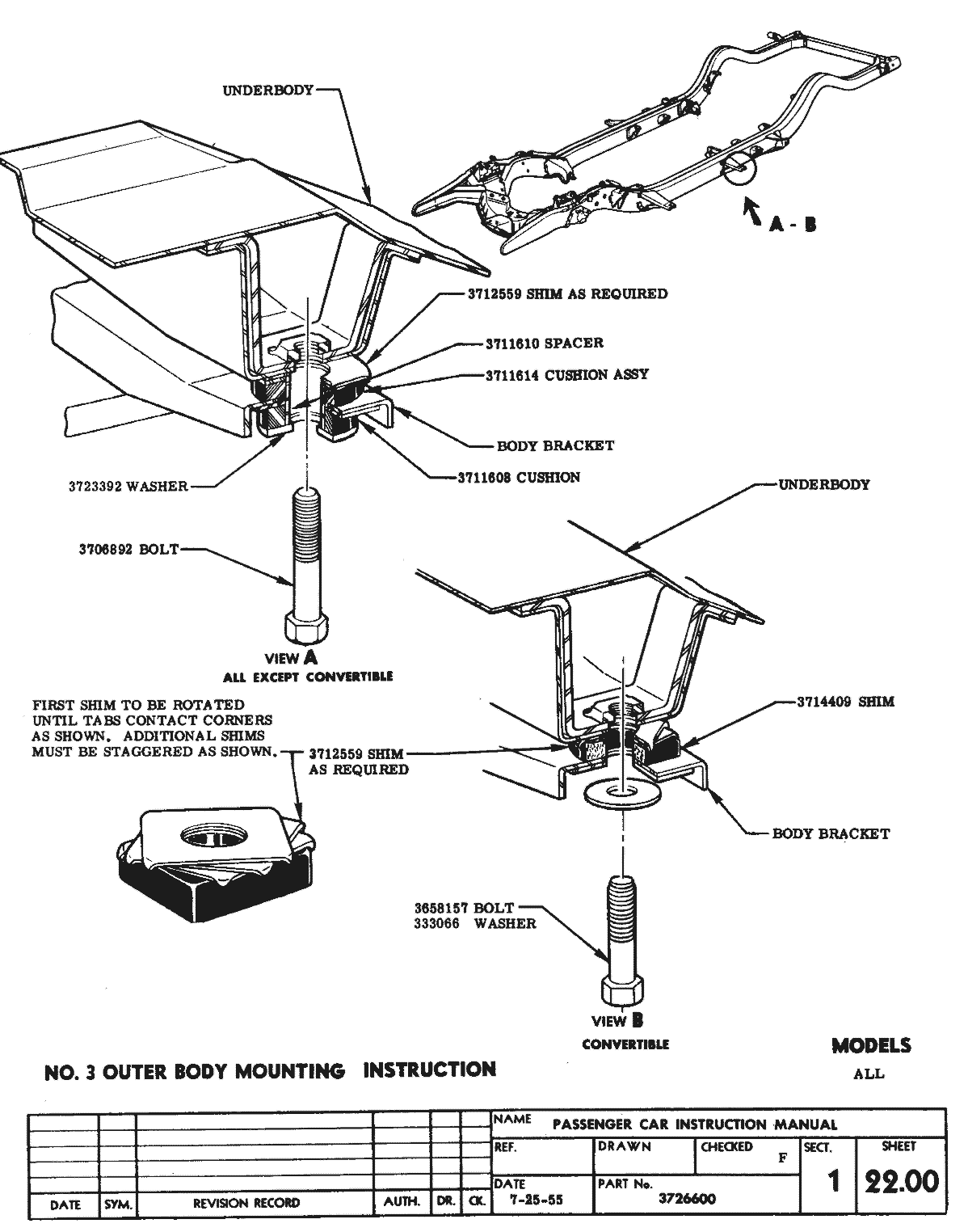

No. 3 Outer body Mounting Sheet 22.00

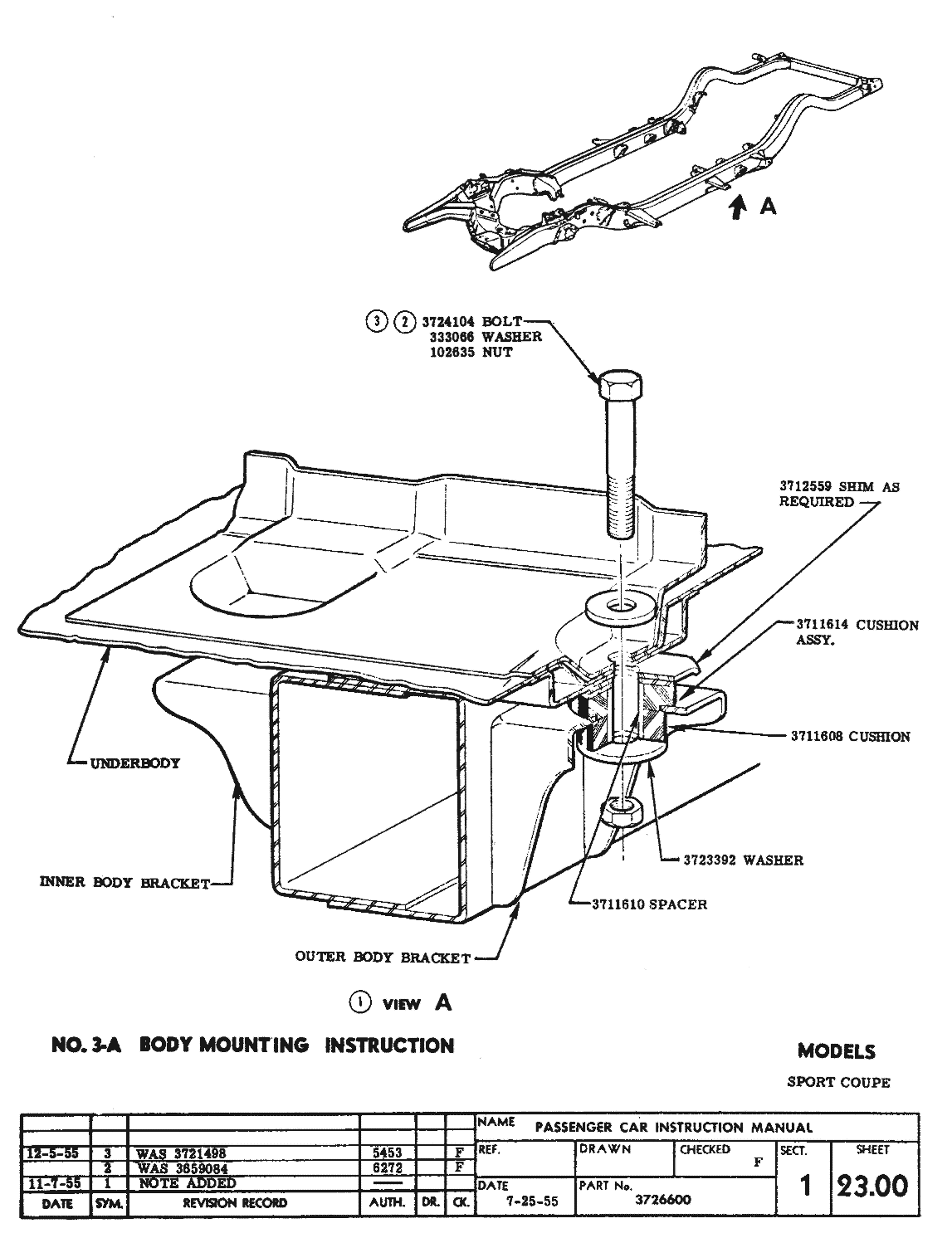

No. 3-A Body Mounting (Sport Coupe) Sheet 23.00

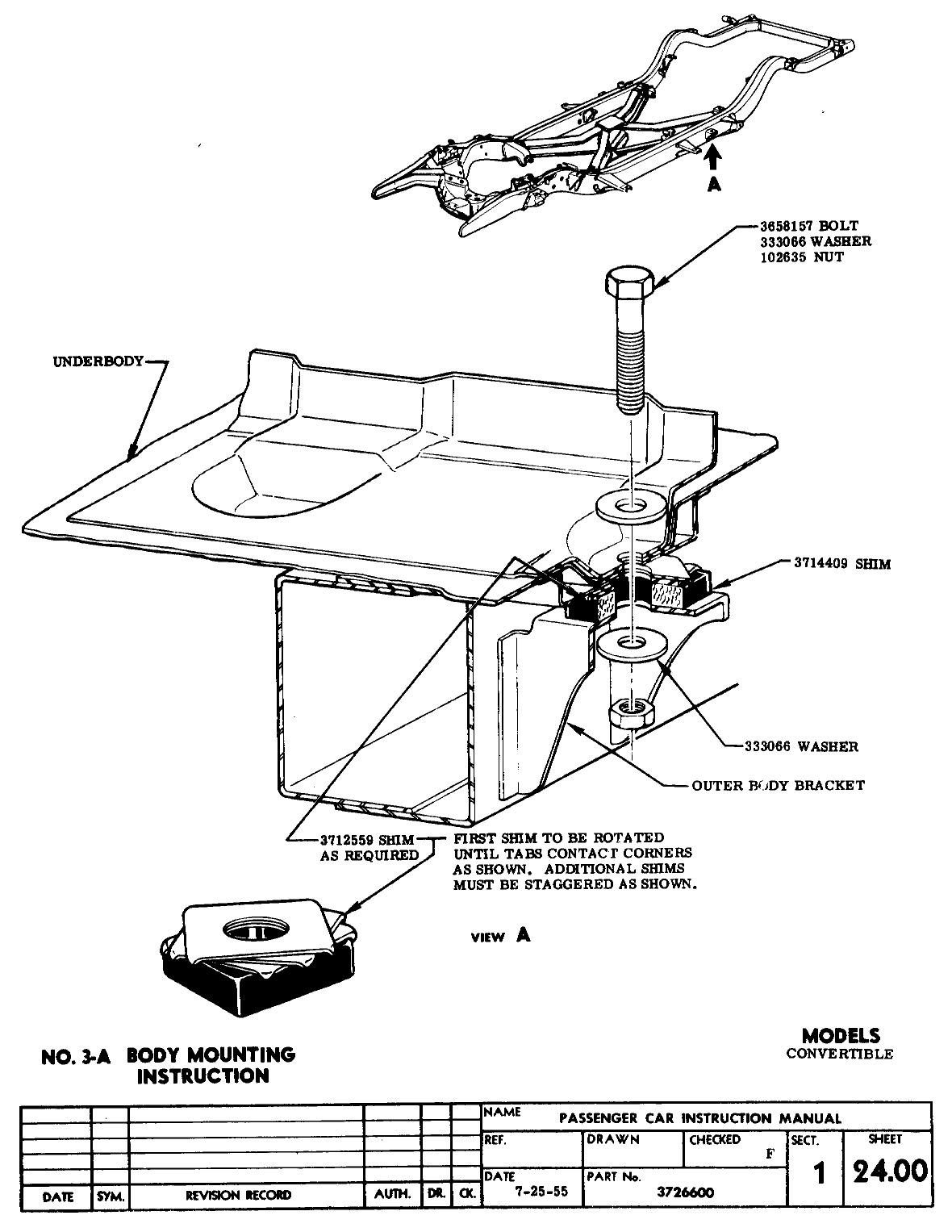

No. 3-A Body Mounting (Convertible) Sheet 24.01

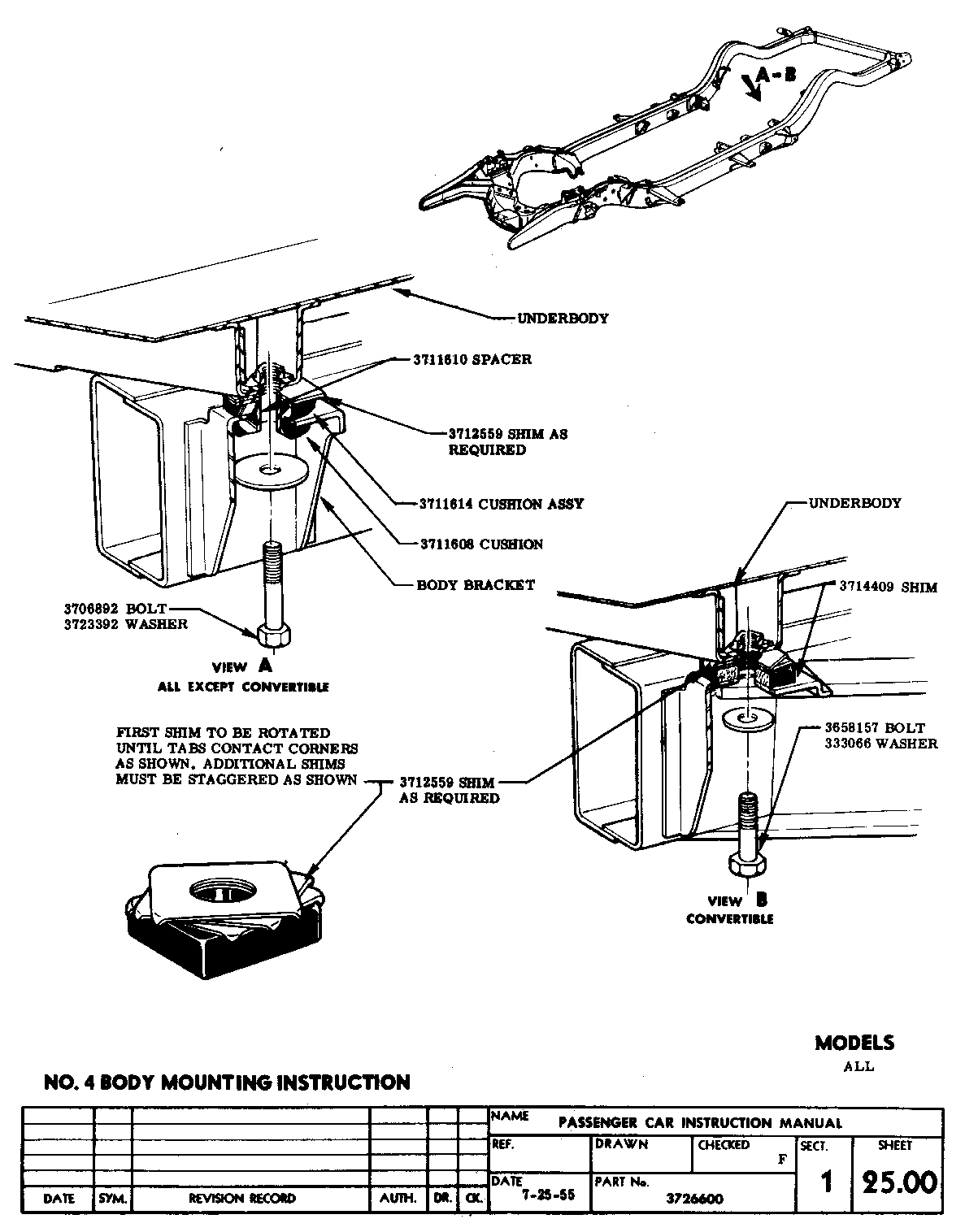

No. 4 Body Mounting Sheet 25.00

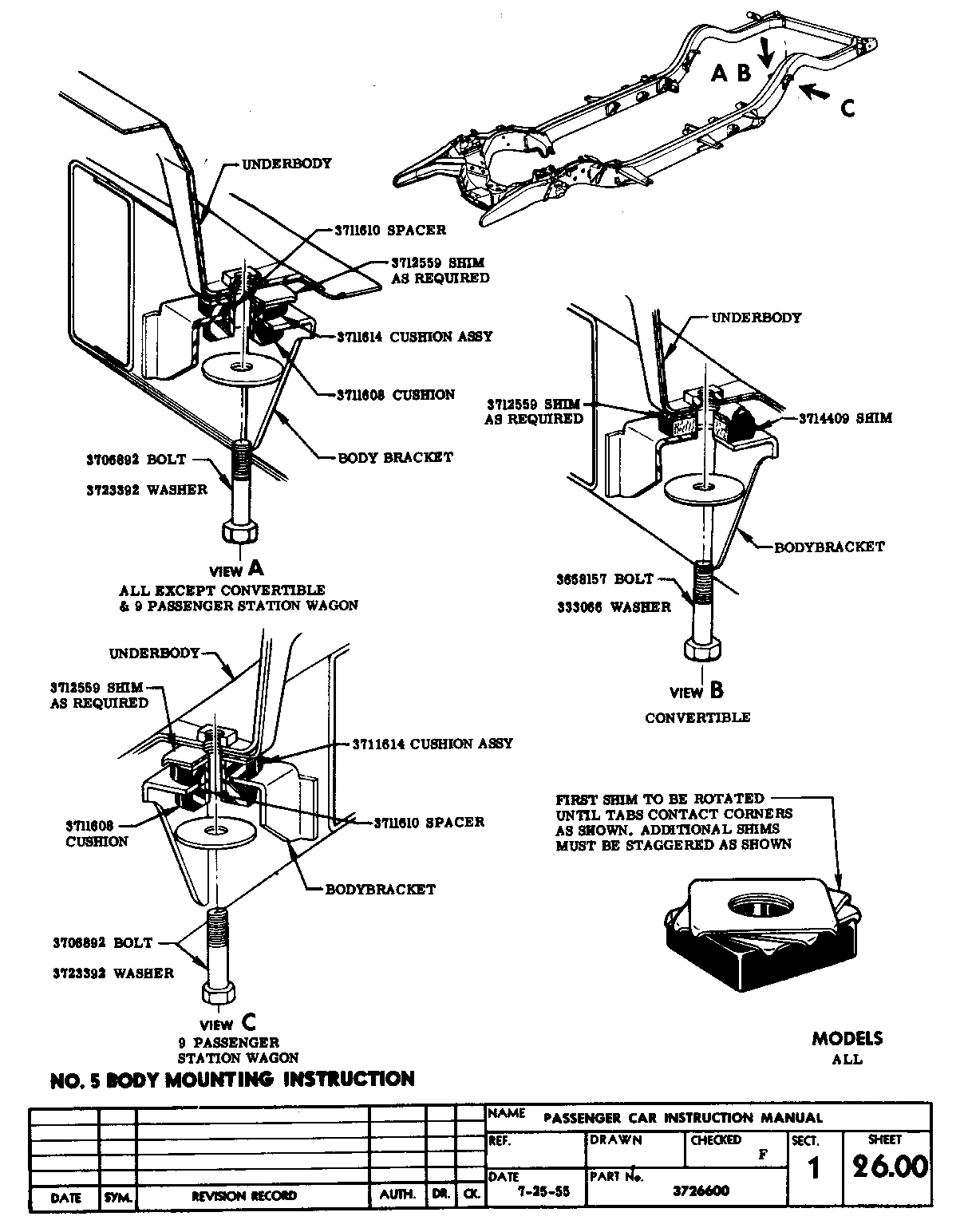

No. 5 Body Mounting Sheet 26.00

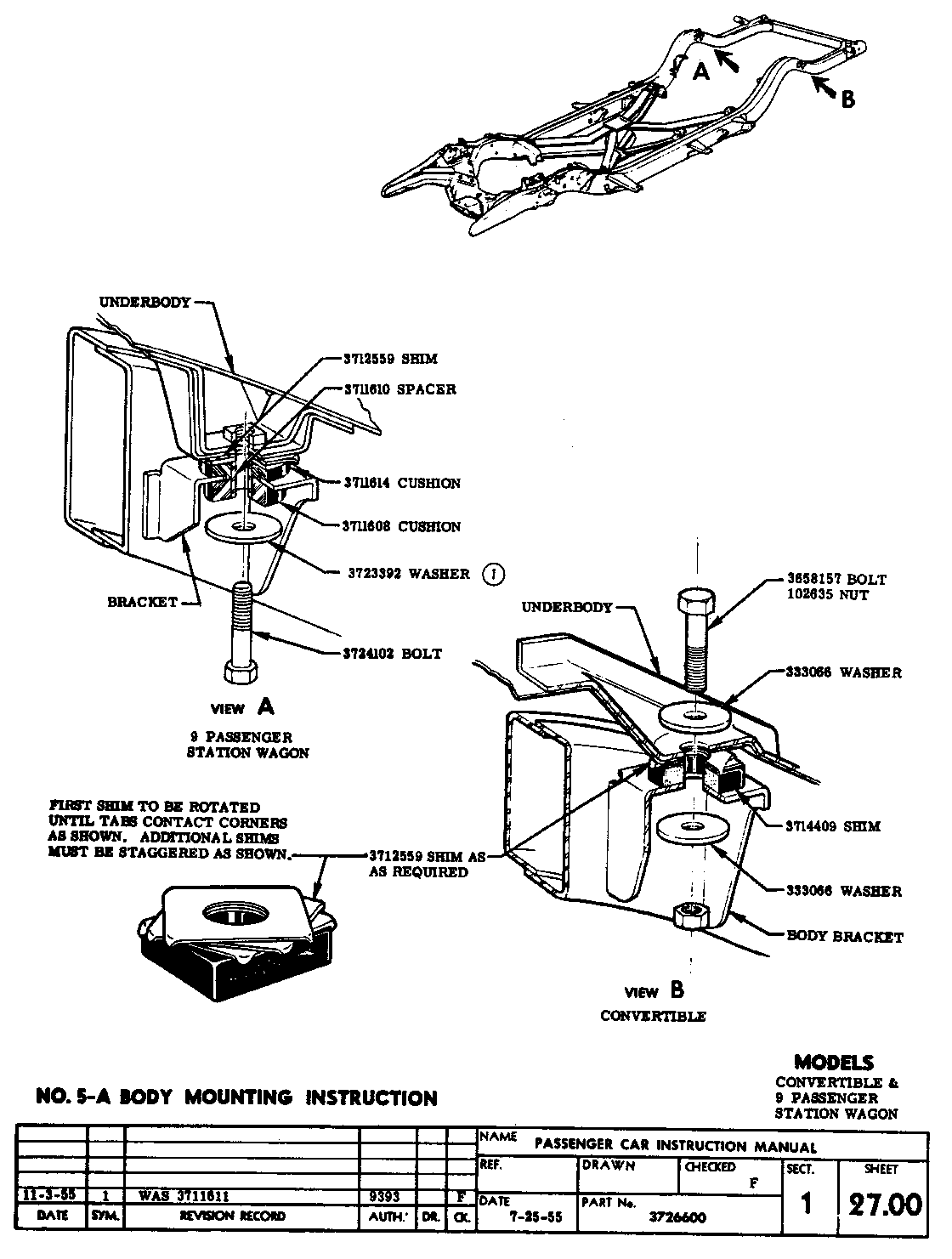

No. 5A Body Mounting (Convertible & 9 Pass. Station Wagon) Sheet 27.00

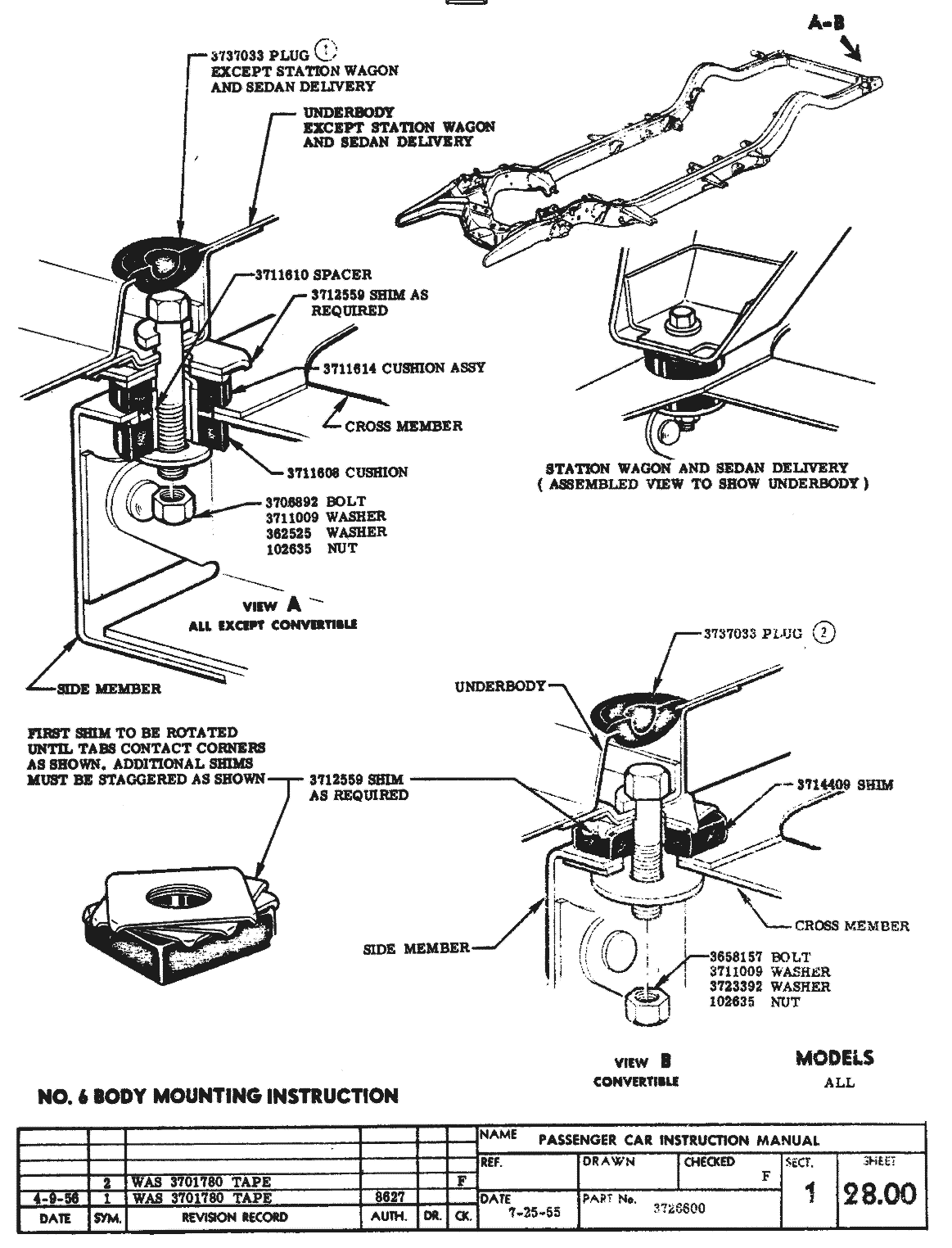

No. 6 Body Mounting Sheet 28.00

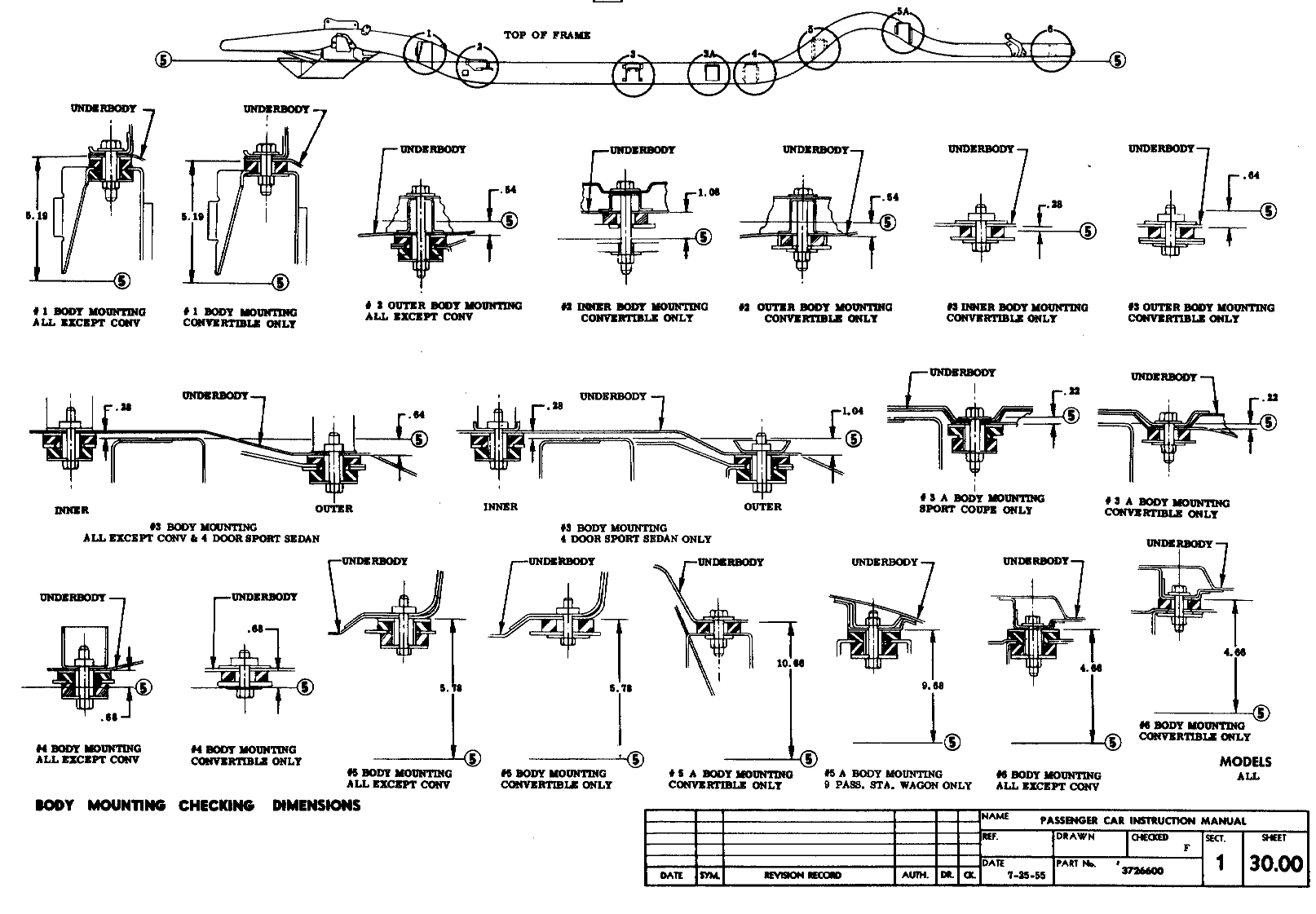

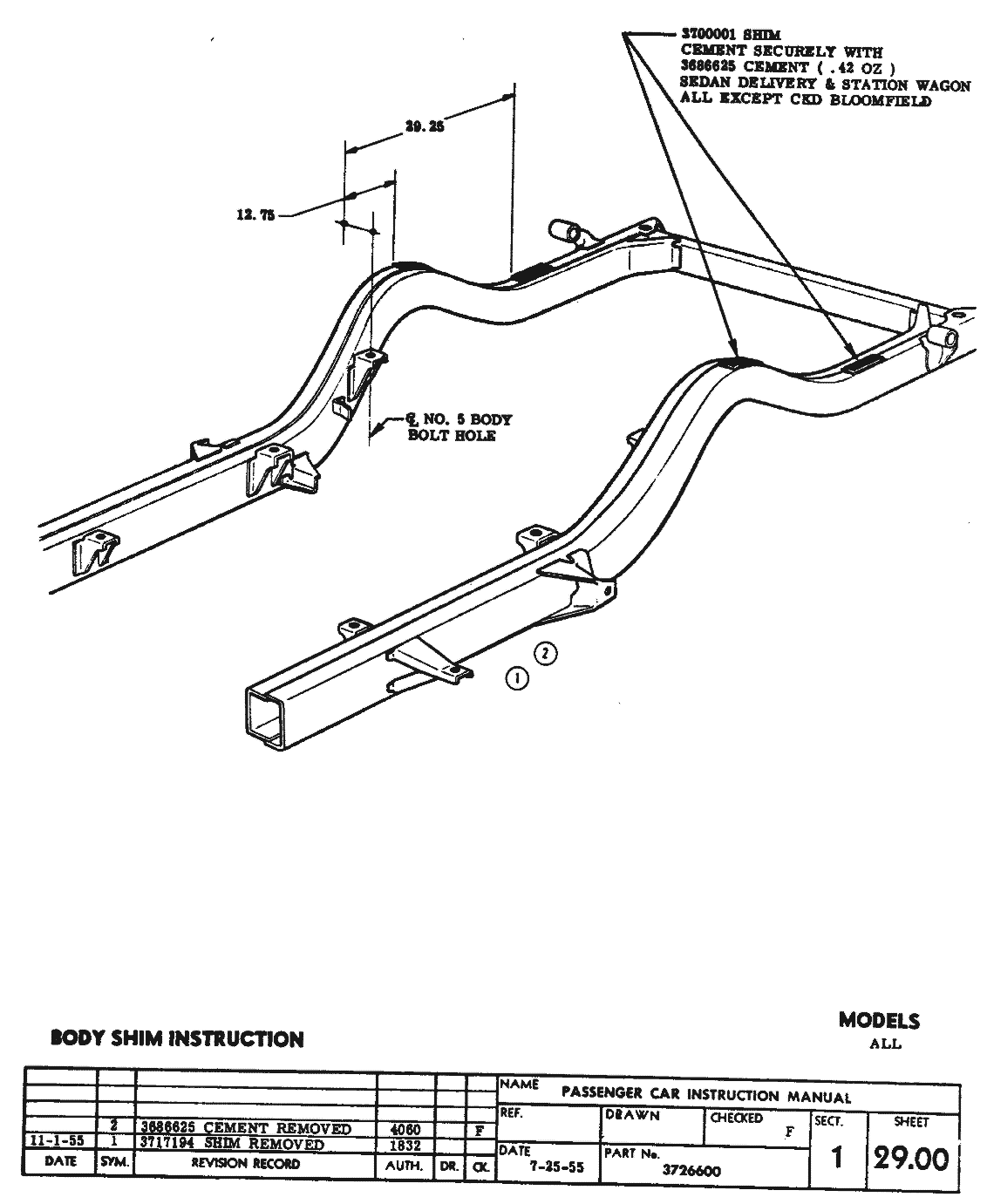

Body Mounting Checking Dimensions Sheet 30.00
Section 2 – Frame Instruction

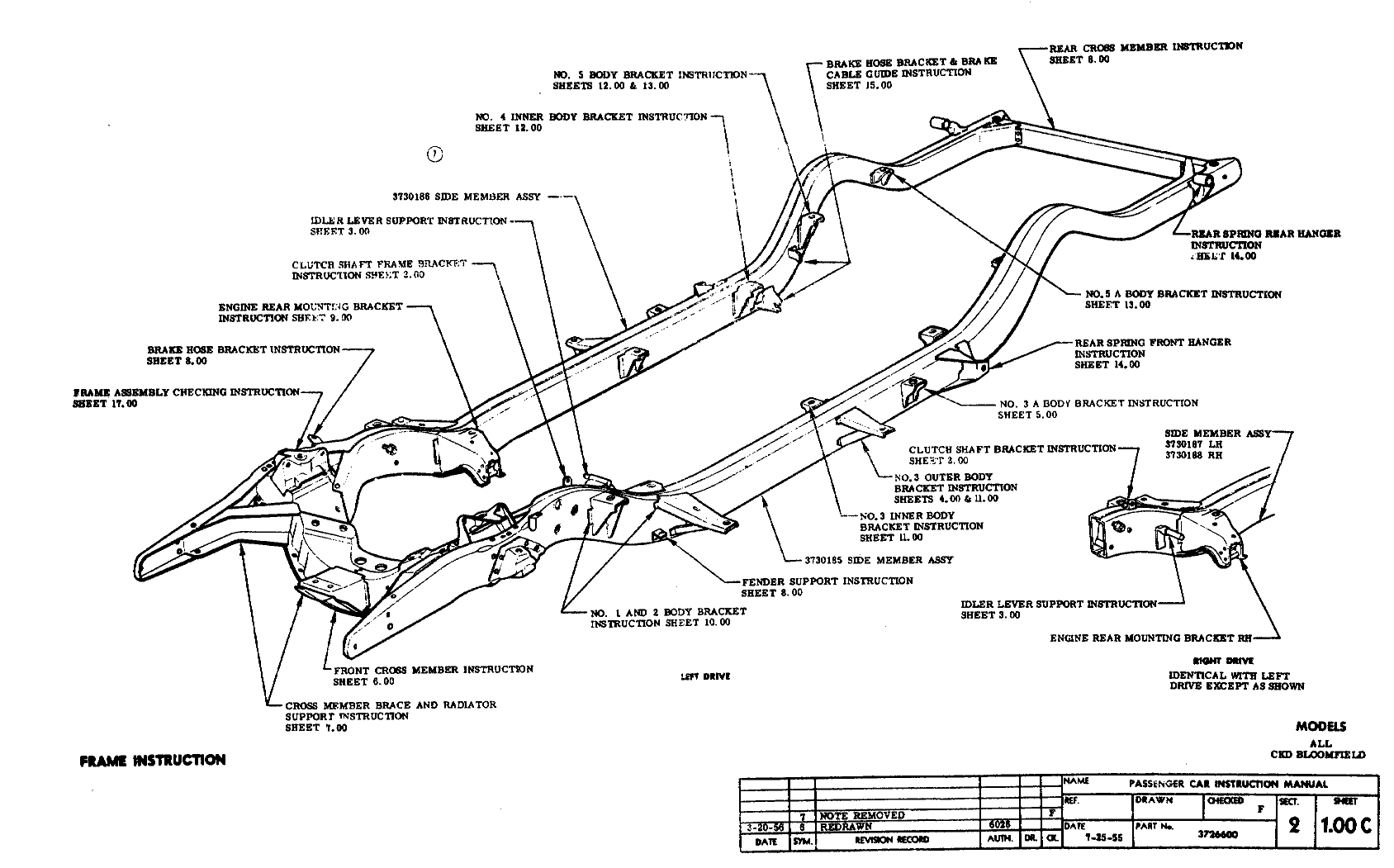

Frame Instruction (all except 2434 and Ckd Bloomfield) Sheet 1.00A
Frame Instruction (Model 2434) Sheet 1.00B
Frame Instruction (Ckd Bloomfield) Sheet 1.00C

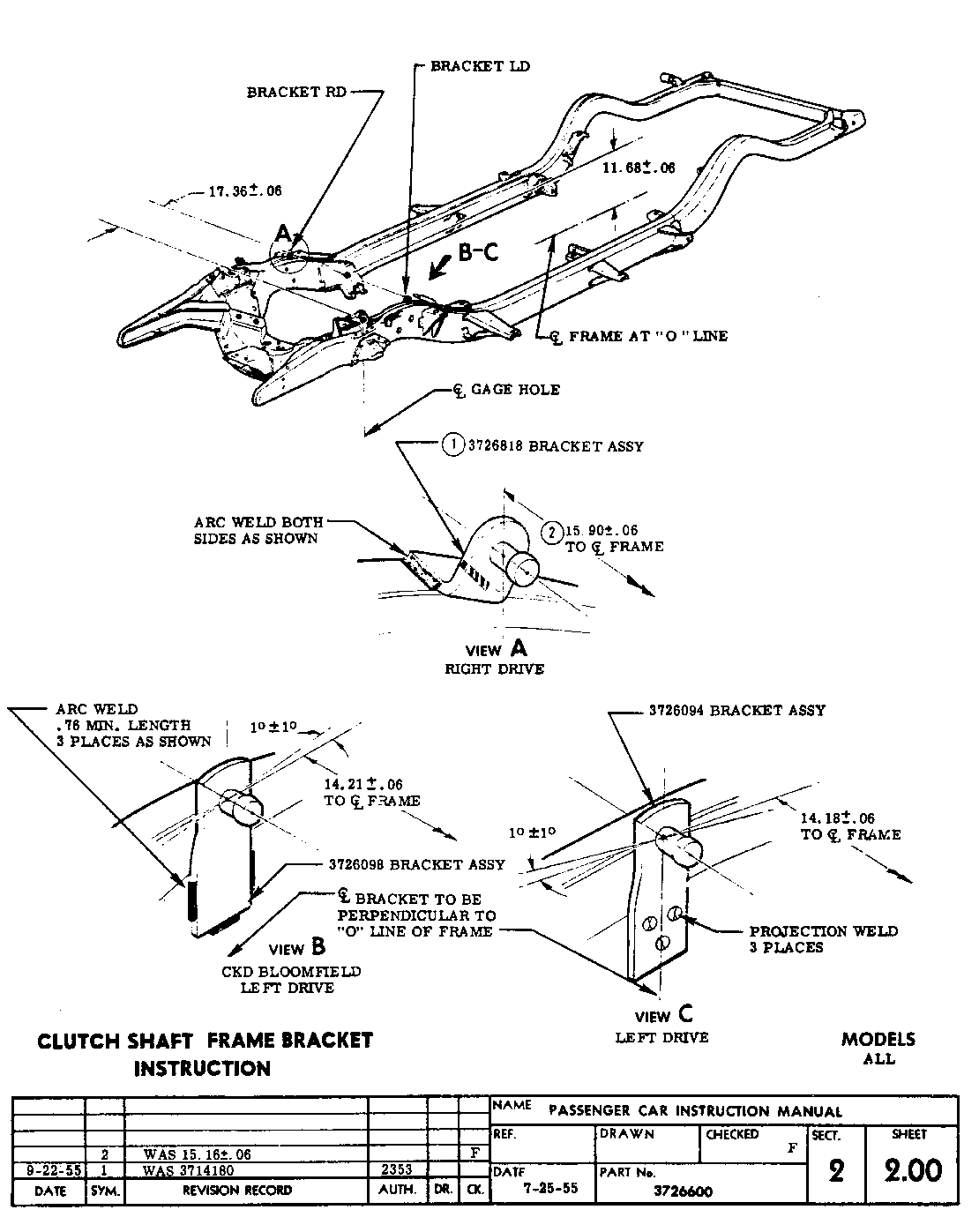

Clutch Shaft Frame Bracket Sheet 2.00

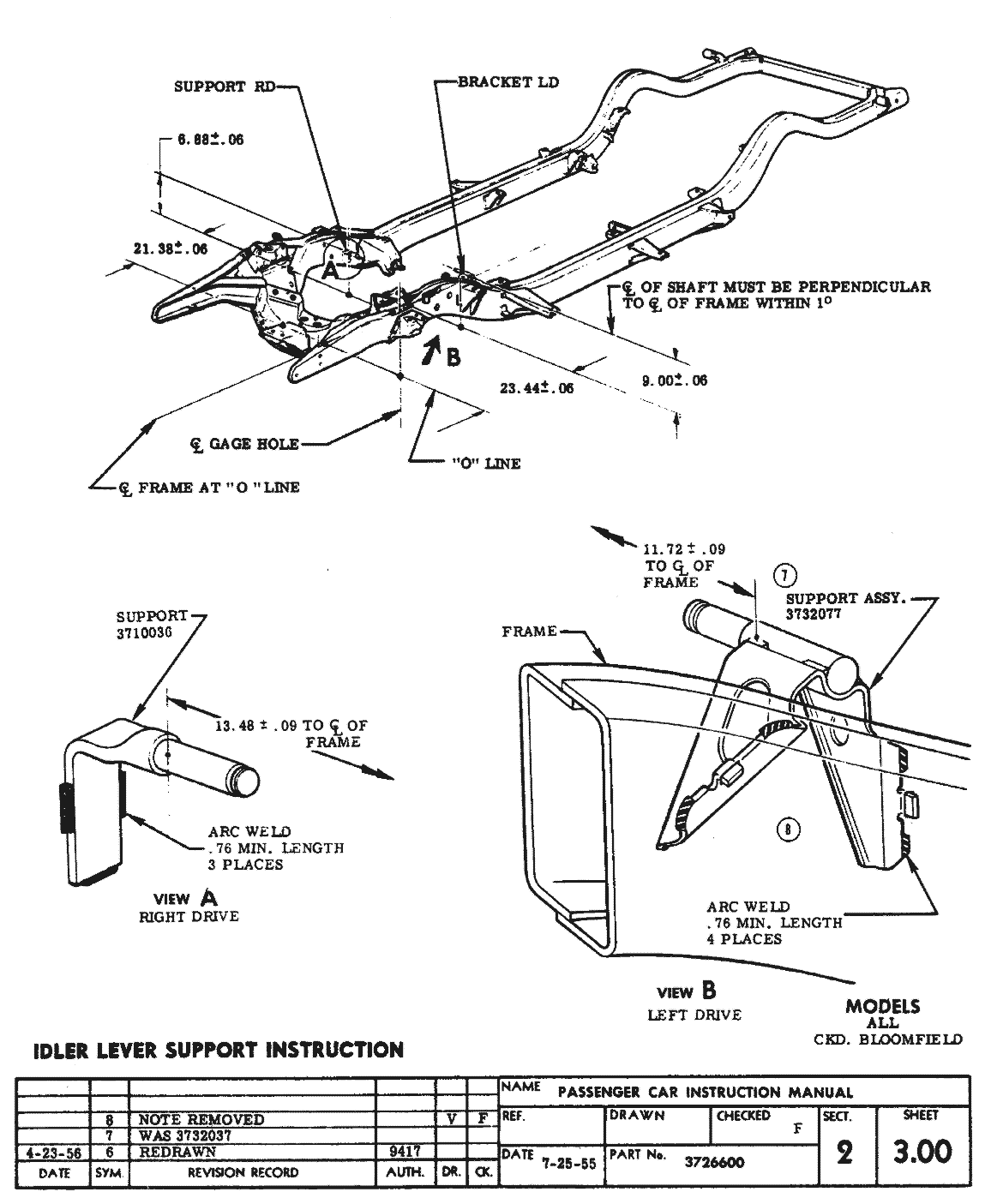

Idler Lever Support Sheet 3.00

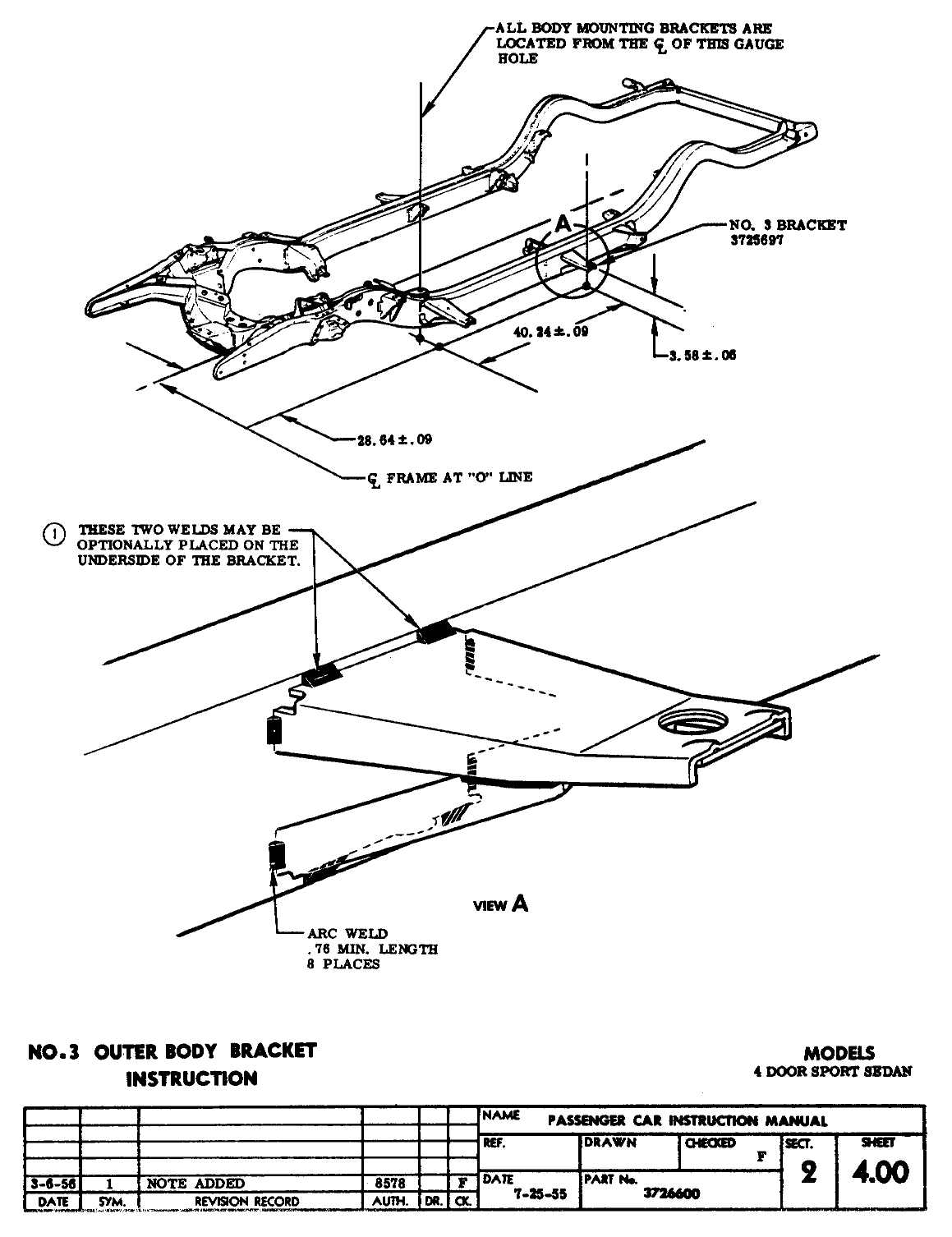

No. 3 outer Body Bracket (4 door Sport Sedan) Sheet 4.00

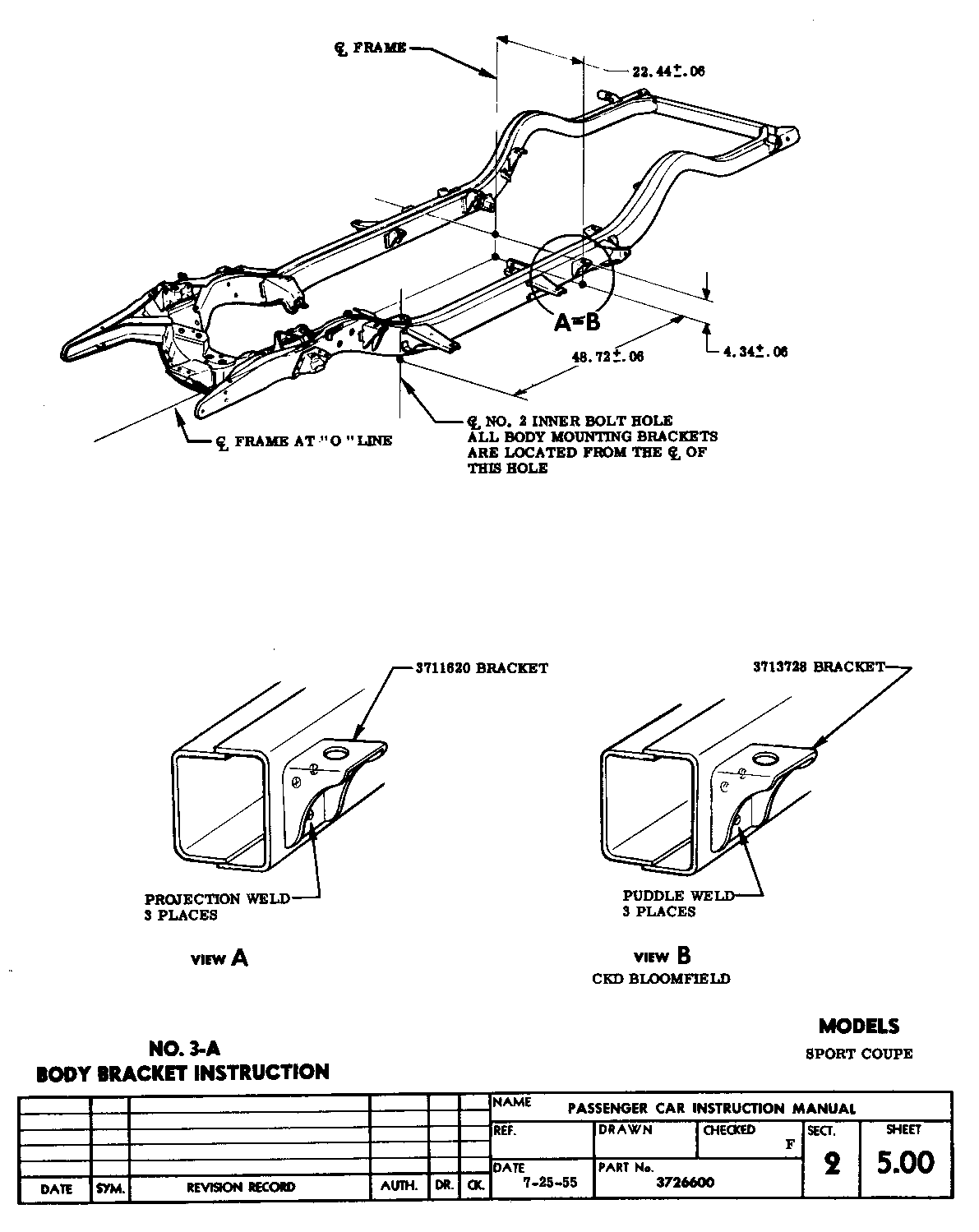

No. 3-A Body Bracket (Sport Coupe) Sheet 5.00

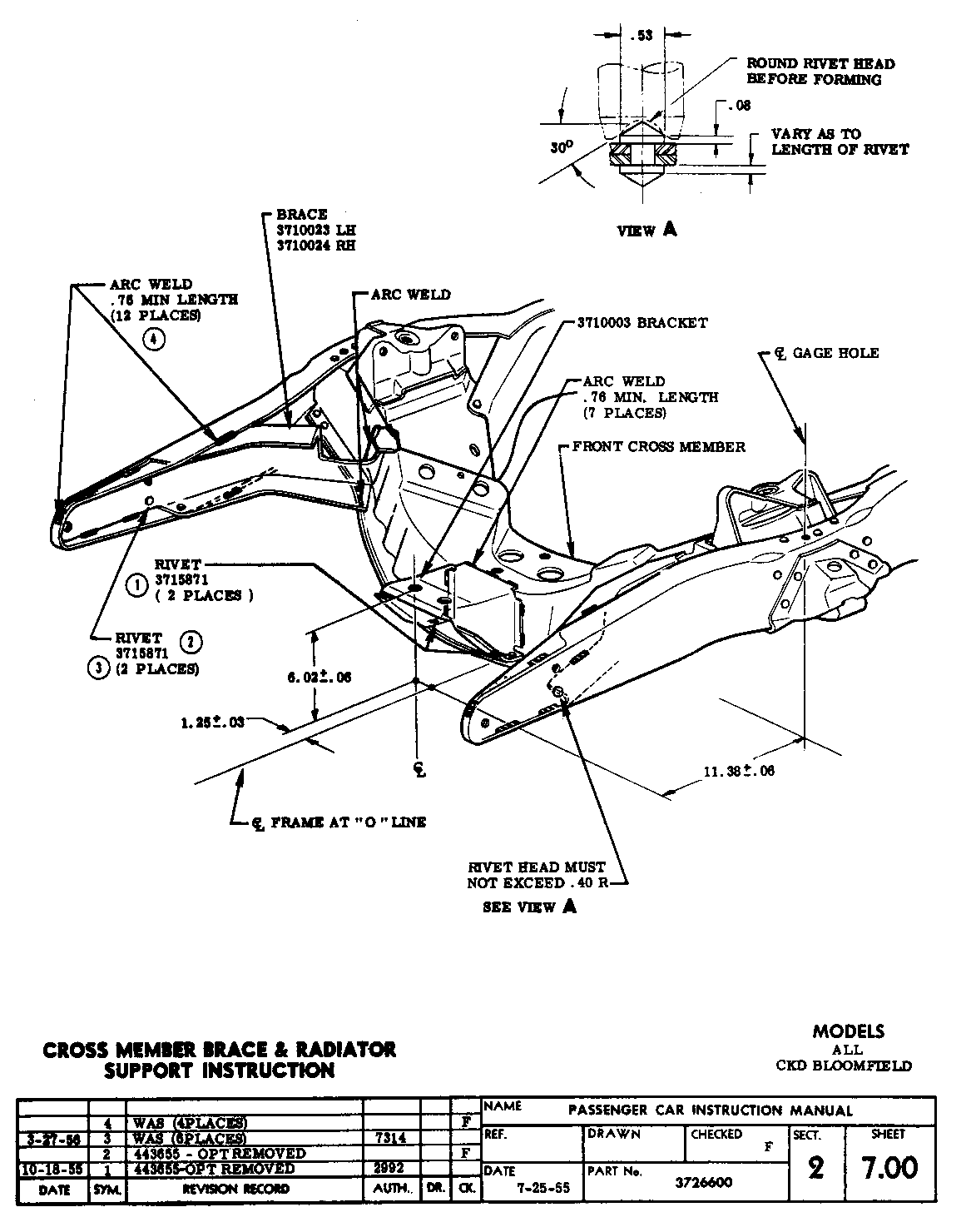

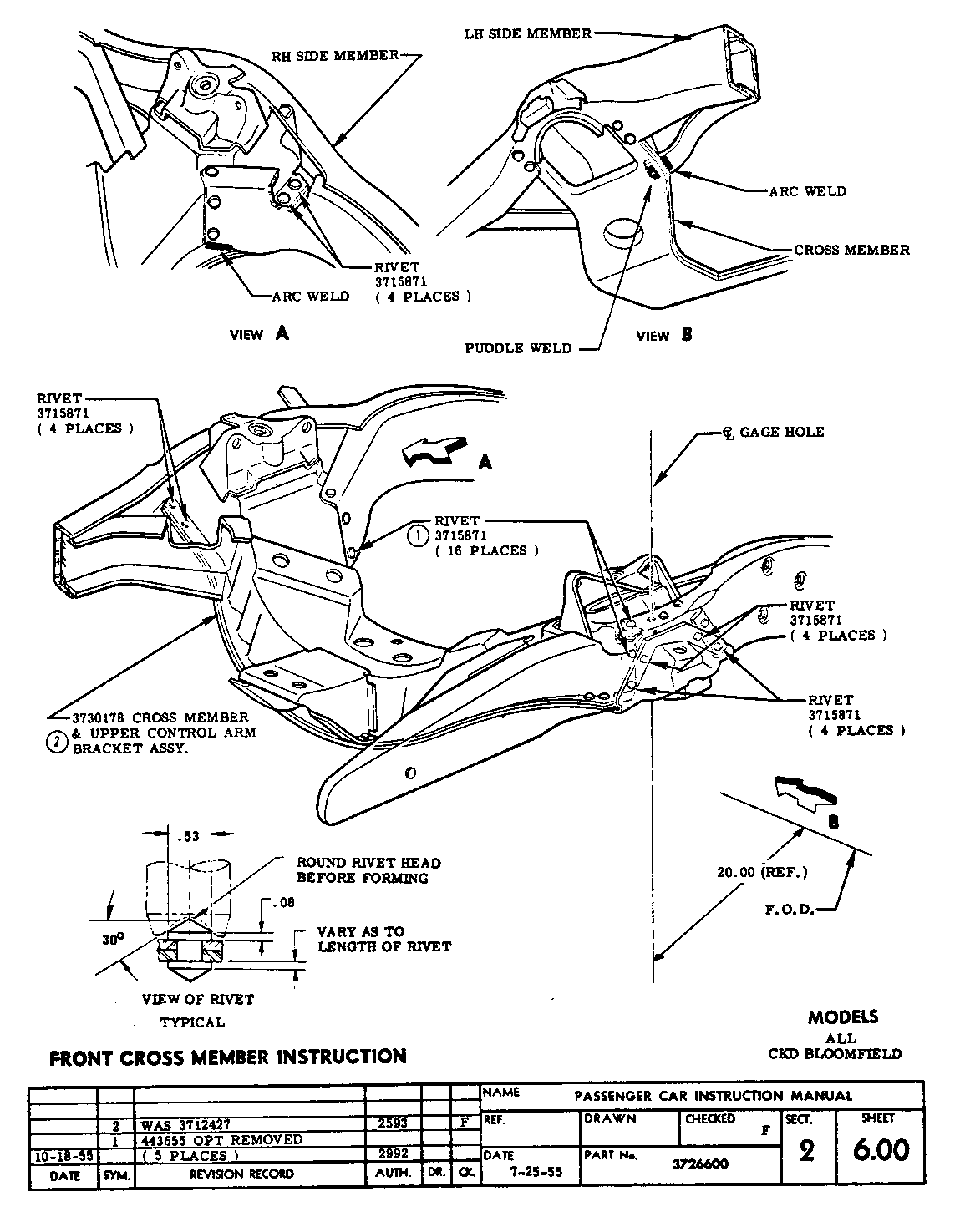

Cross Member Brace and Radiator Support Sheet 7.00

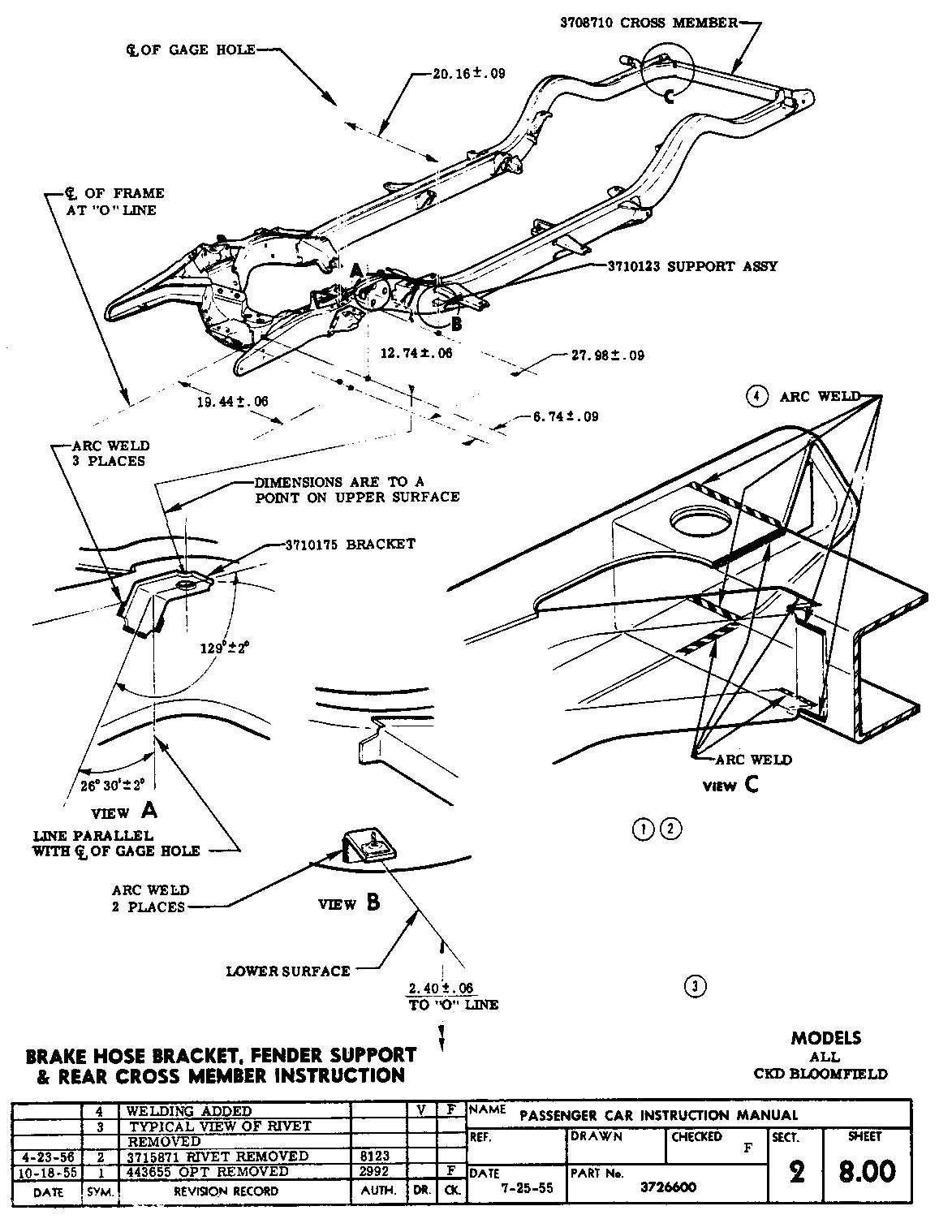

Brake Hose Bracket, Fender Support & Rear Cross Member Sheet 8.00

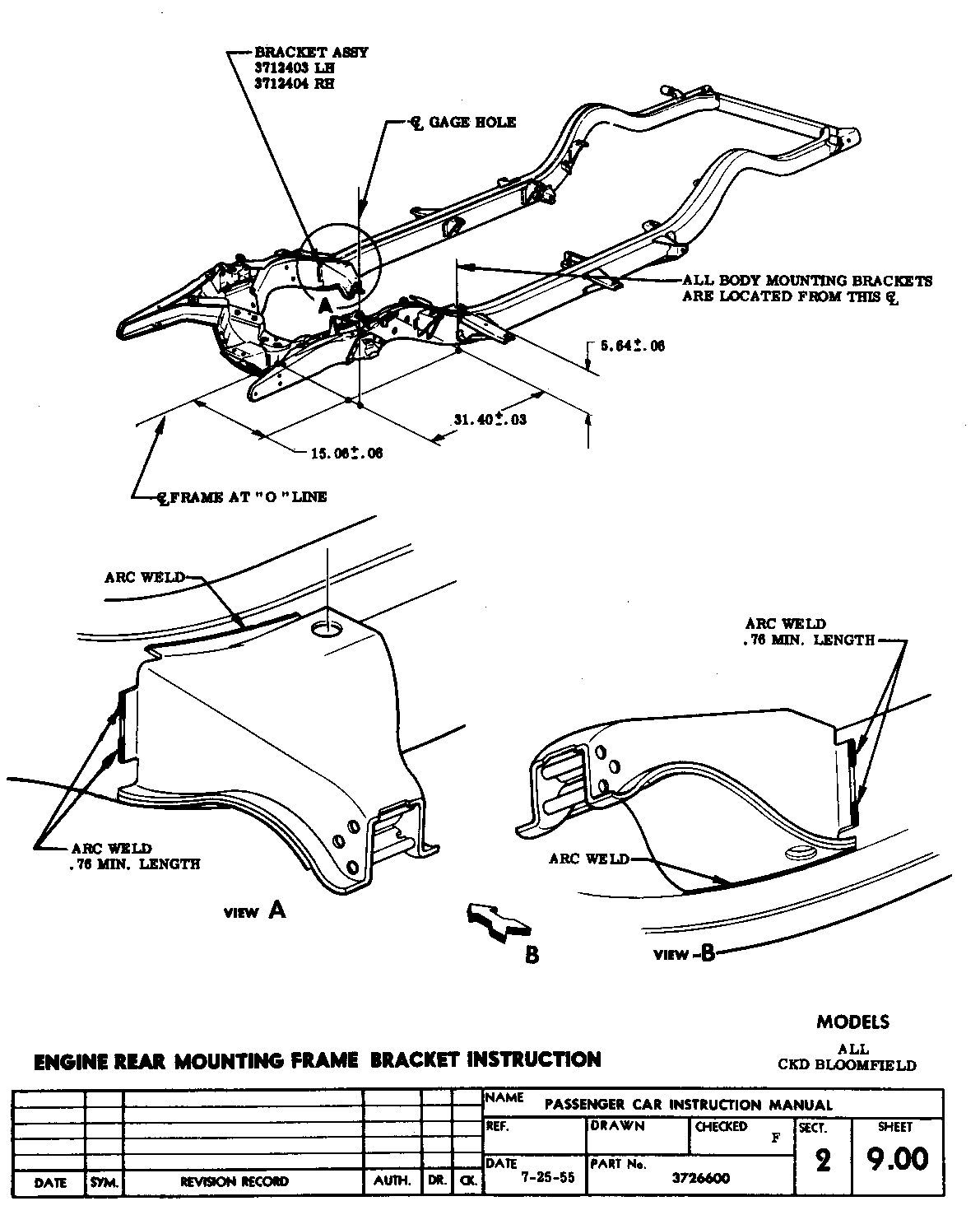

Engine Rear Mounting Frame Bracket Sheet 9.00

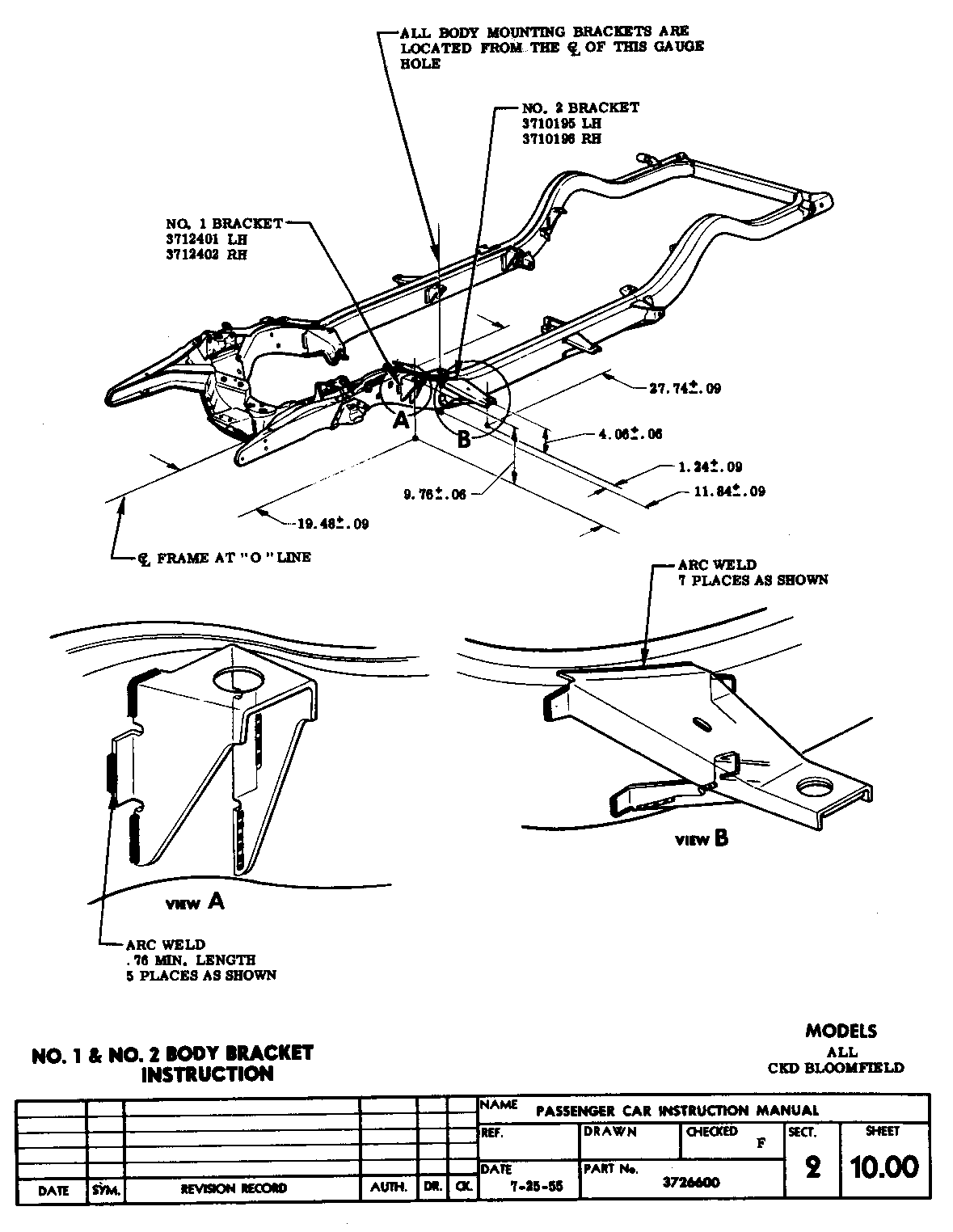

No. 1 & No. 2 Body Bracket Sheet 10.00

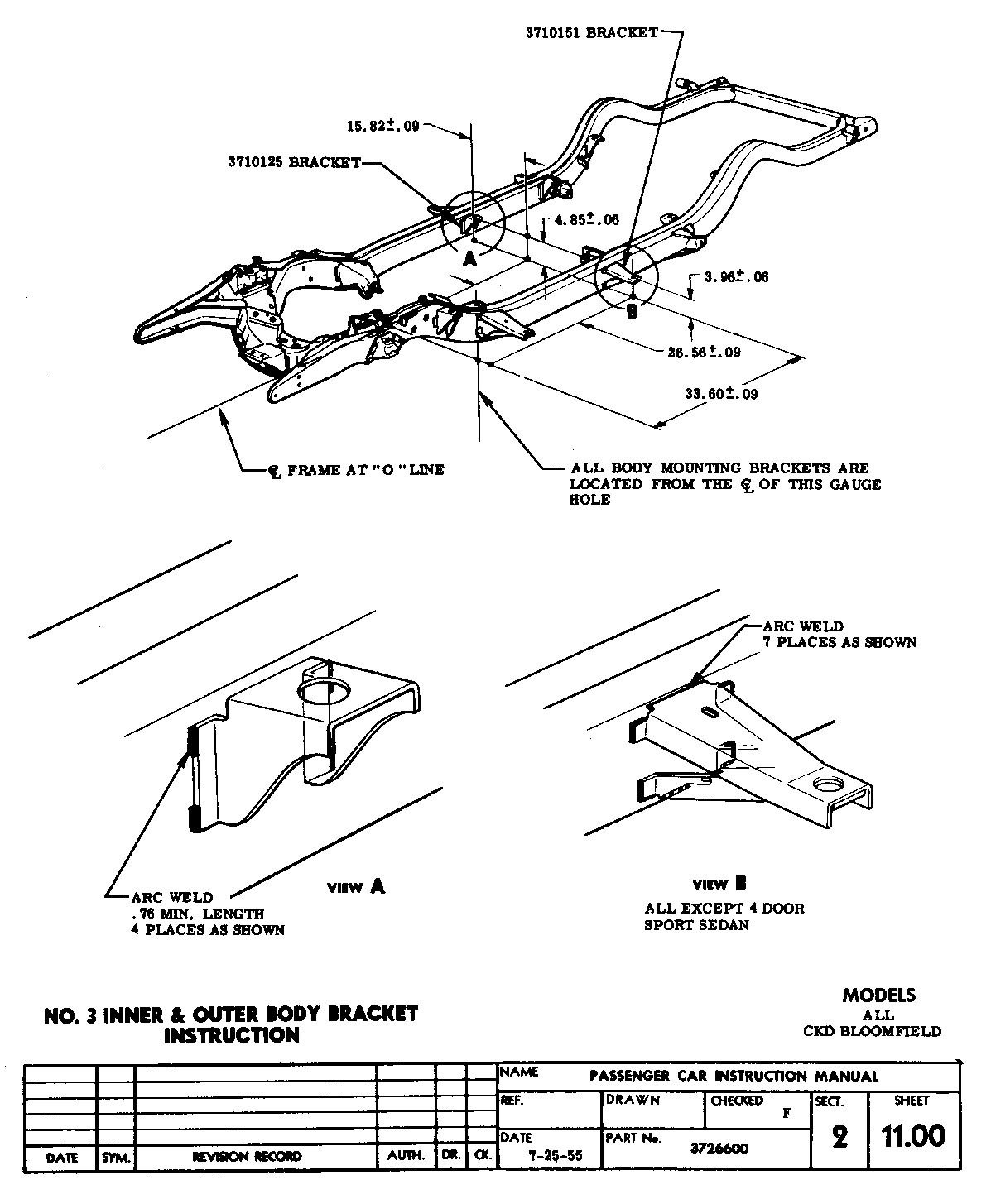

No. 3 Inner & Outer Body Bracket Sheet 11.00

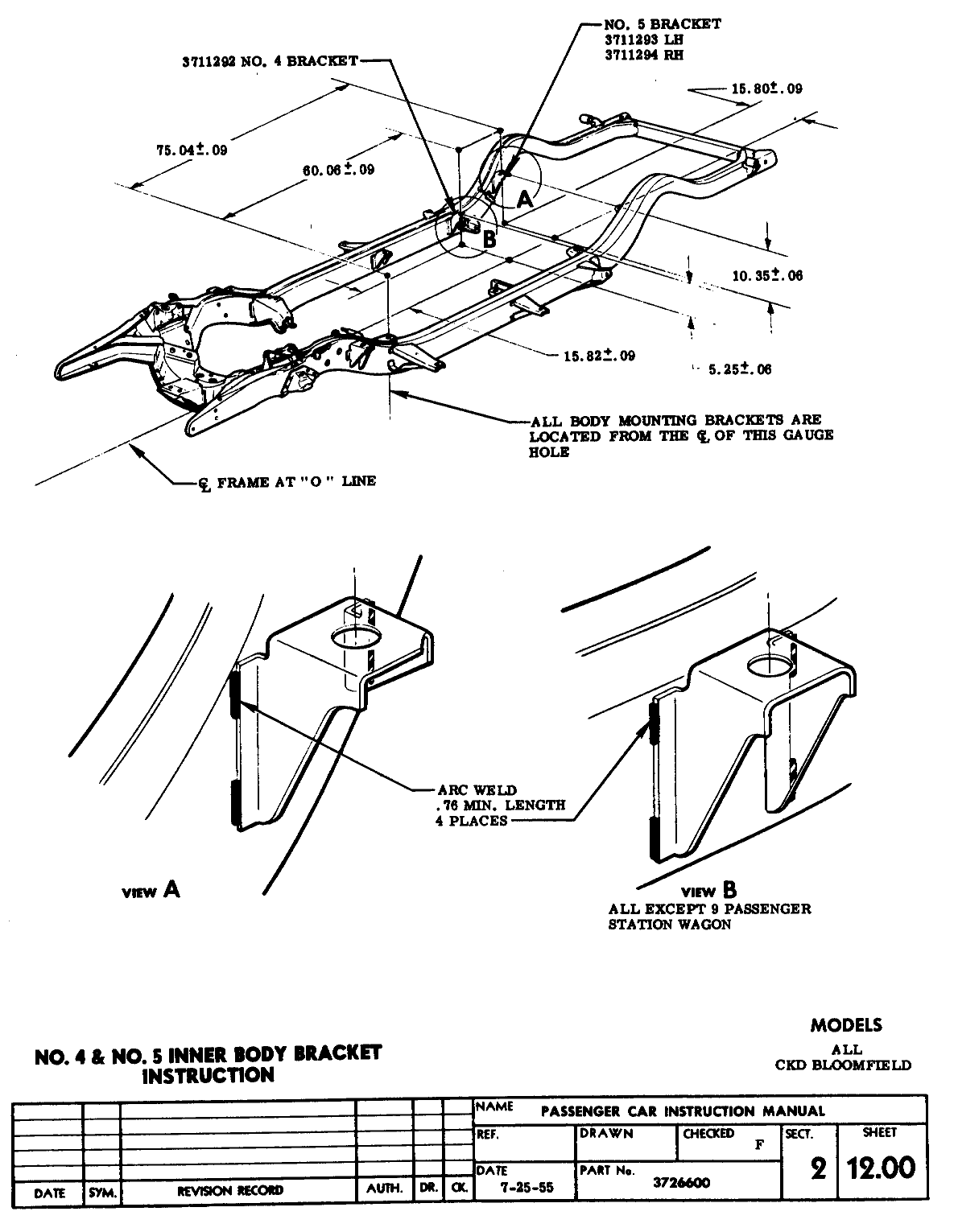

No. 4 & No. 5 Inner Body Bracket Sheet 12.00

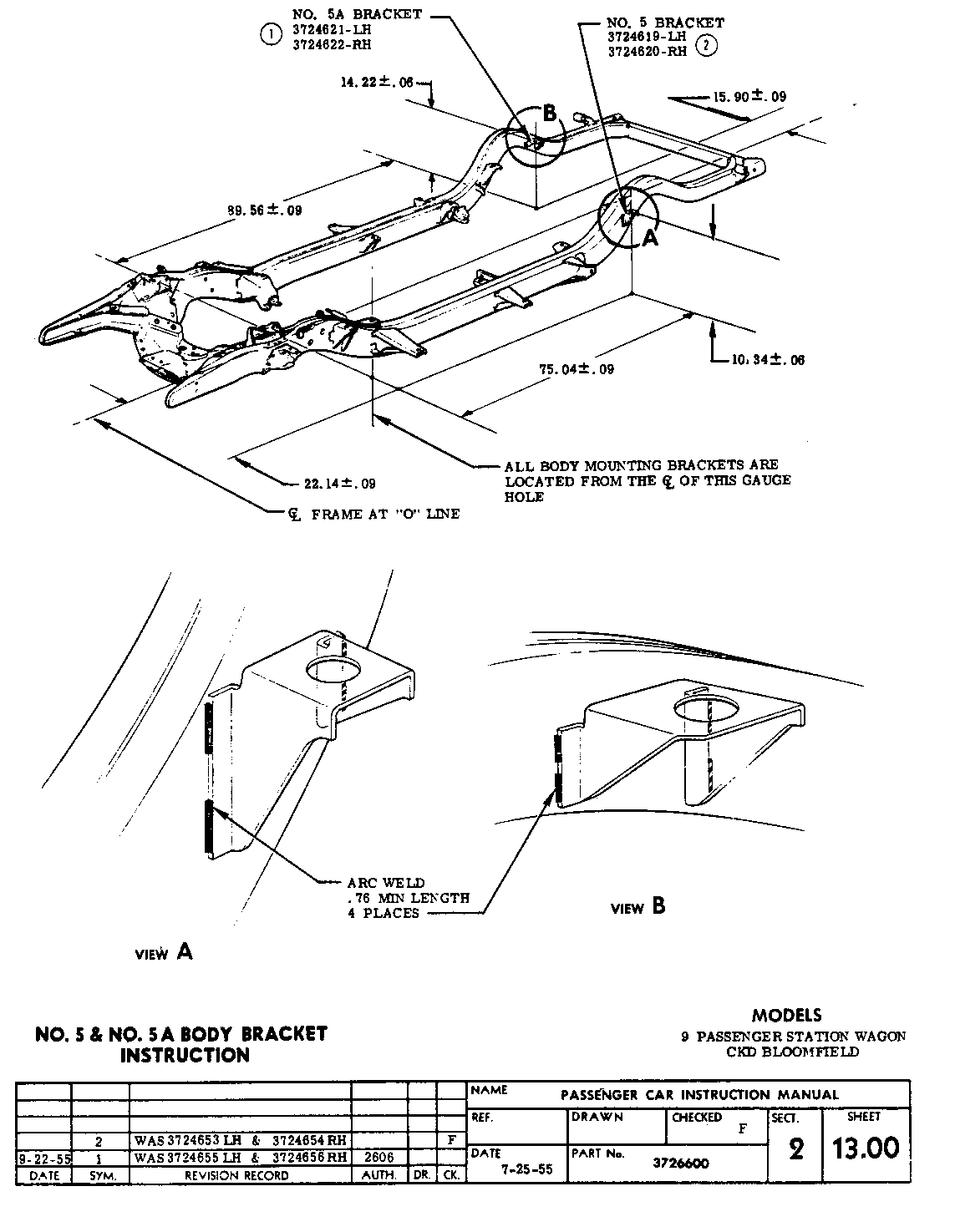

No. 5 & No. 5A Body Bracket (9 Passenger Station Wagon) Sheet 13.00

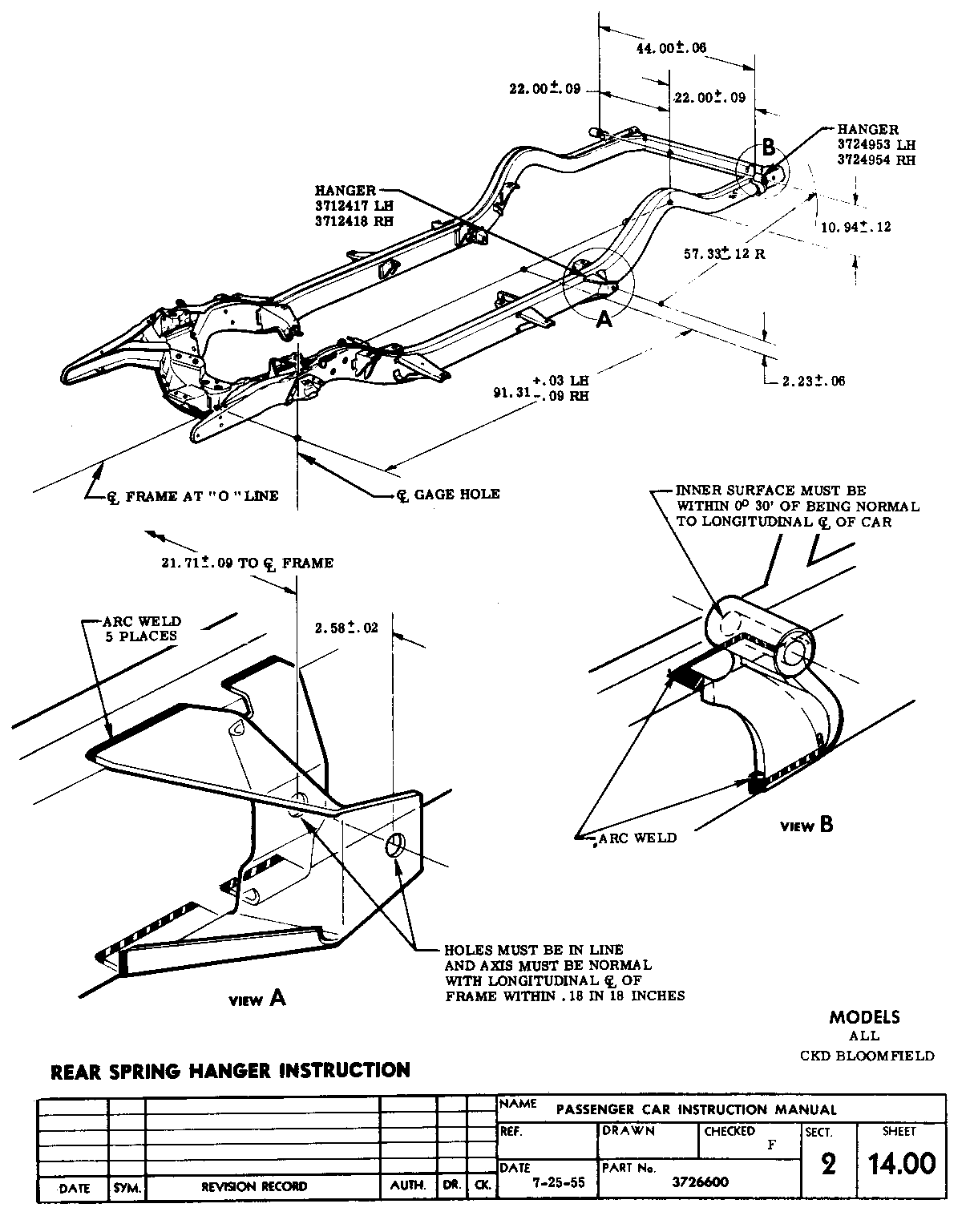

Rear Spring Hanger Sheet 14.00

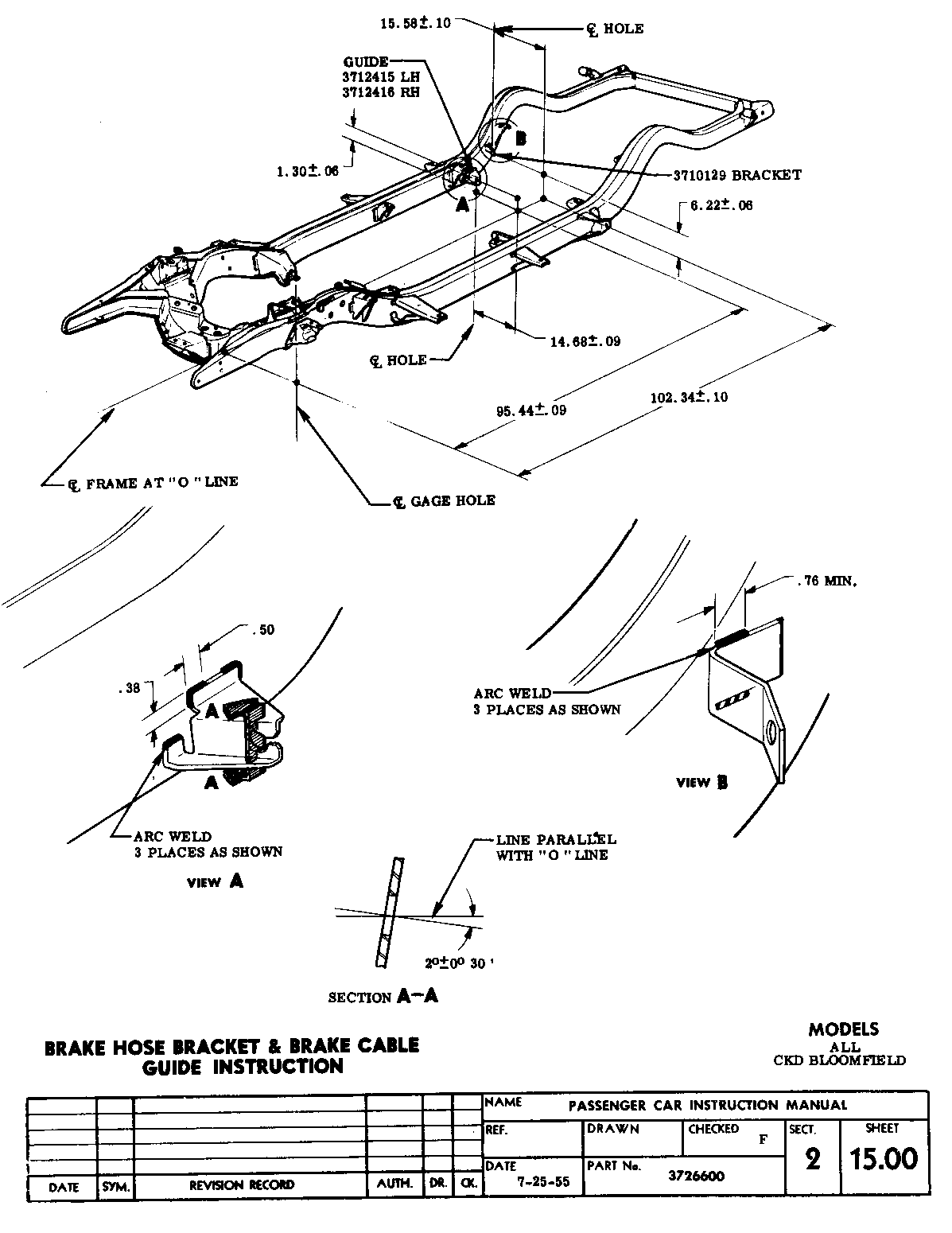

Brake Hose Bracket & Brake Cable Guide Sheet 15.00

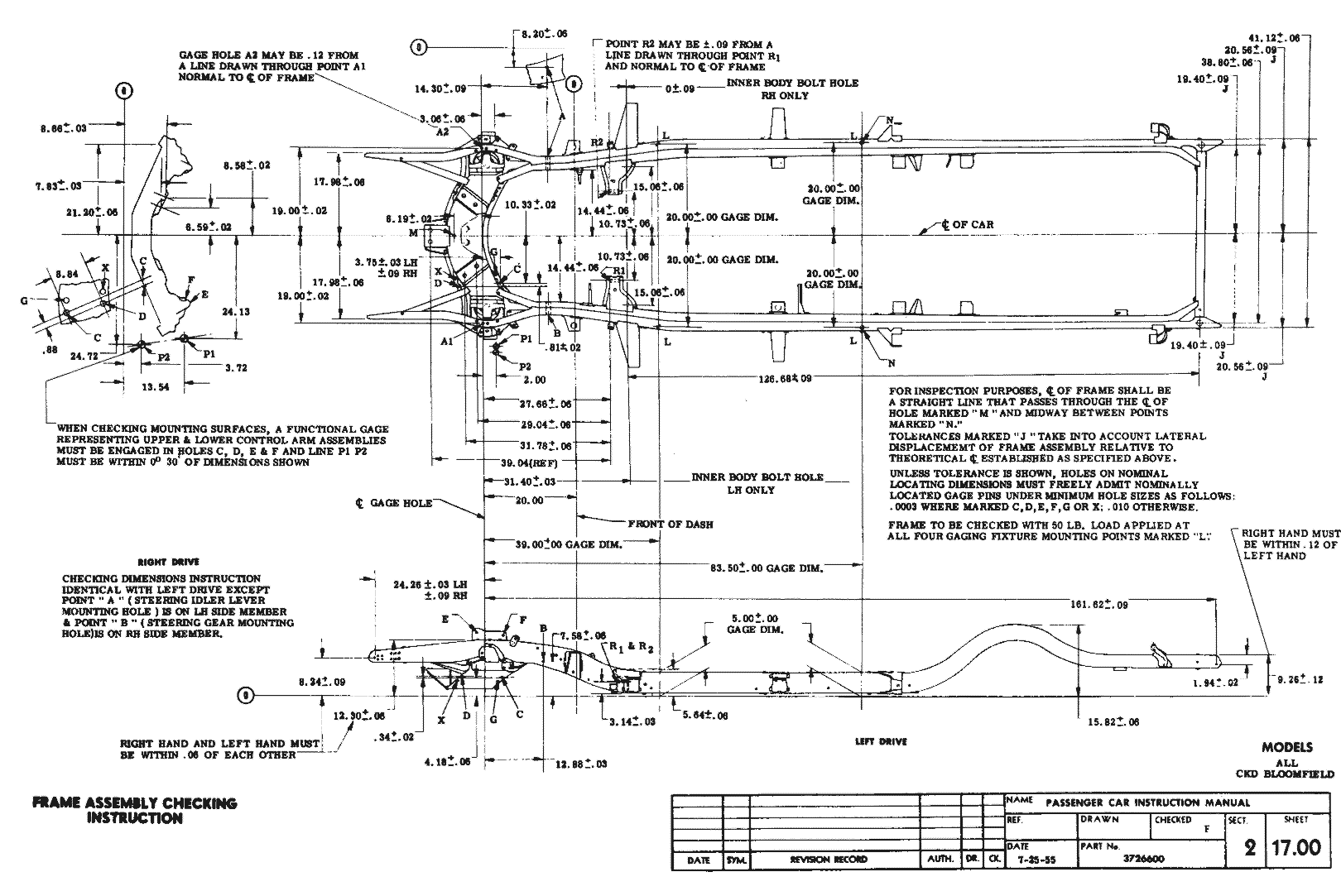

Frame Assembly Checking Sheet 17.00
Section 3 – Front End Suspension Instruction
Front End Suspension Index Sheet 1.00

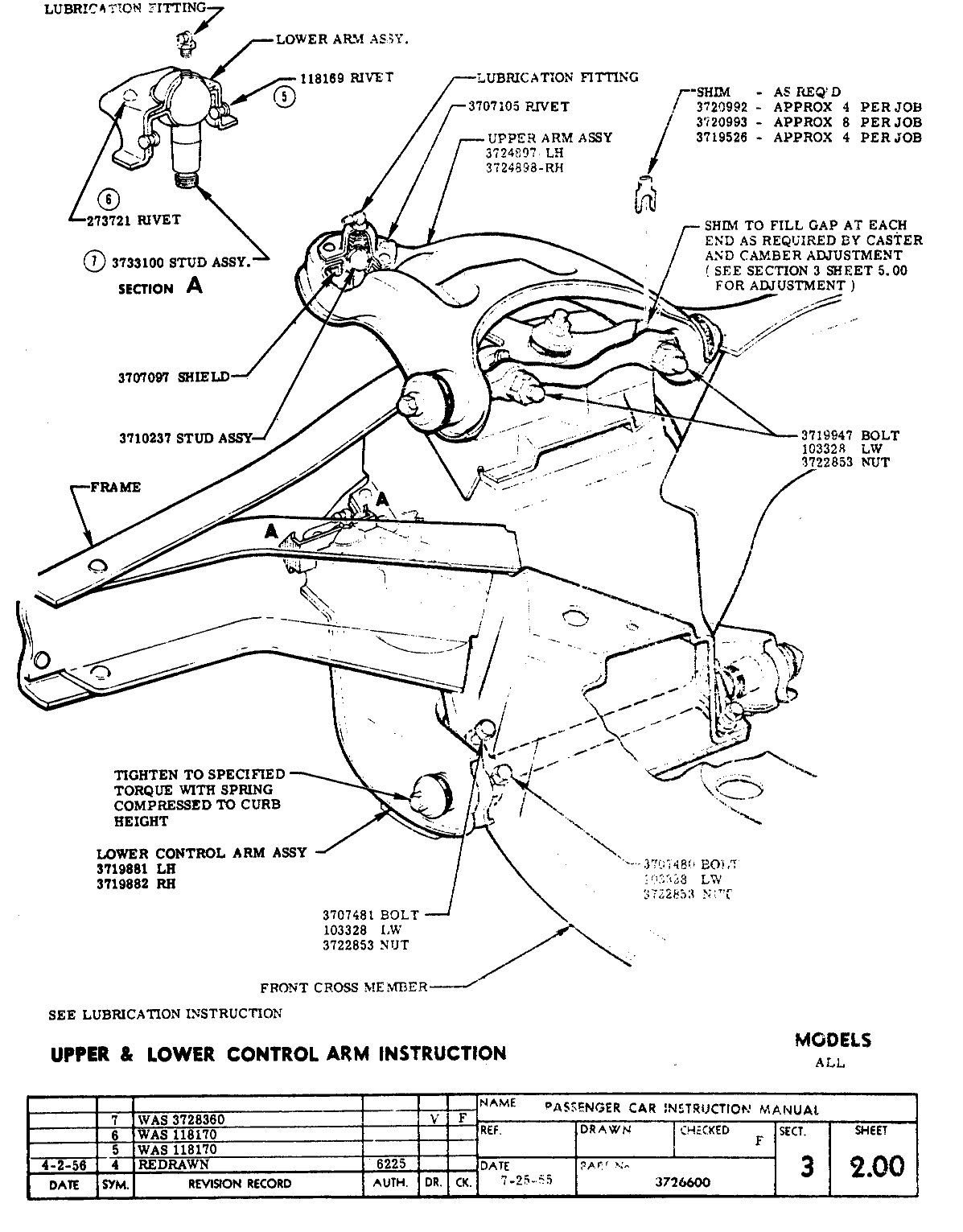

Upper and Lower Control Arm Sheet 2.00

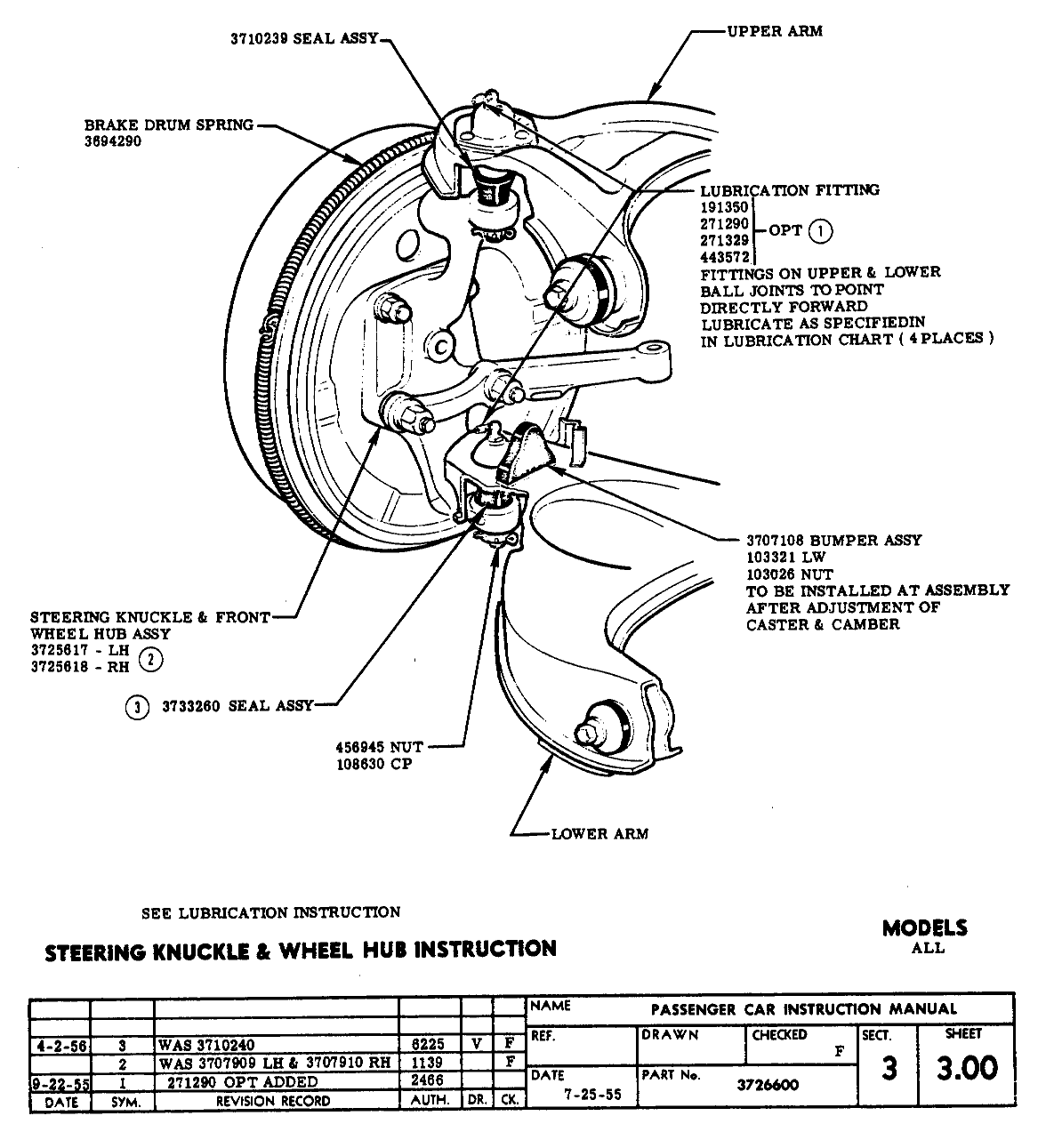

Steering Knuckle and Wheel Hub Sheet 3.00

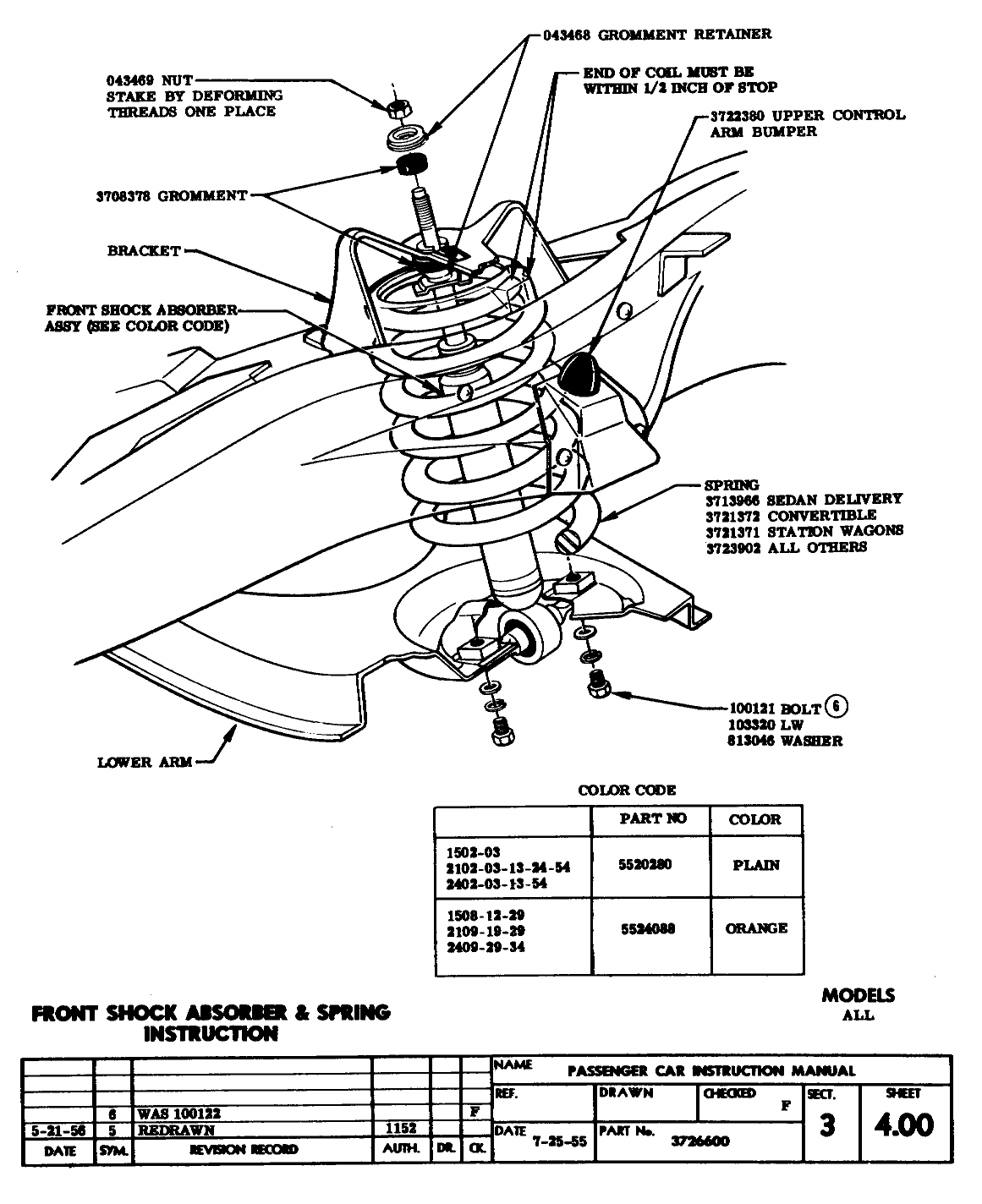

Front Shock Absorber and Spring Sheet 4.00
Front Suspension Geometry Sheet 5.00

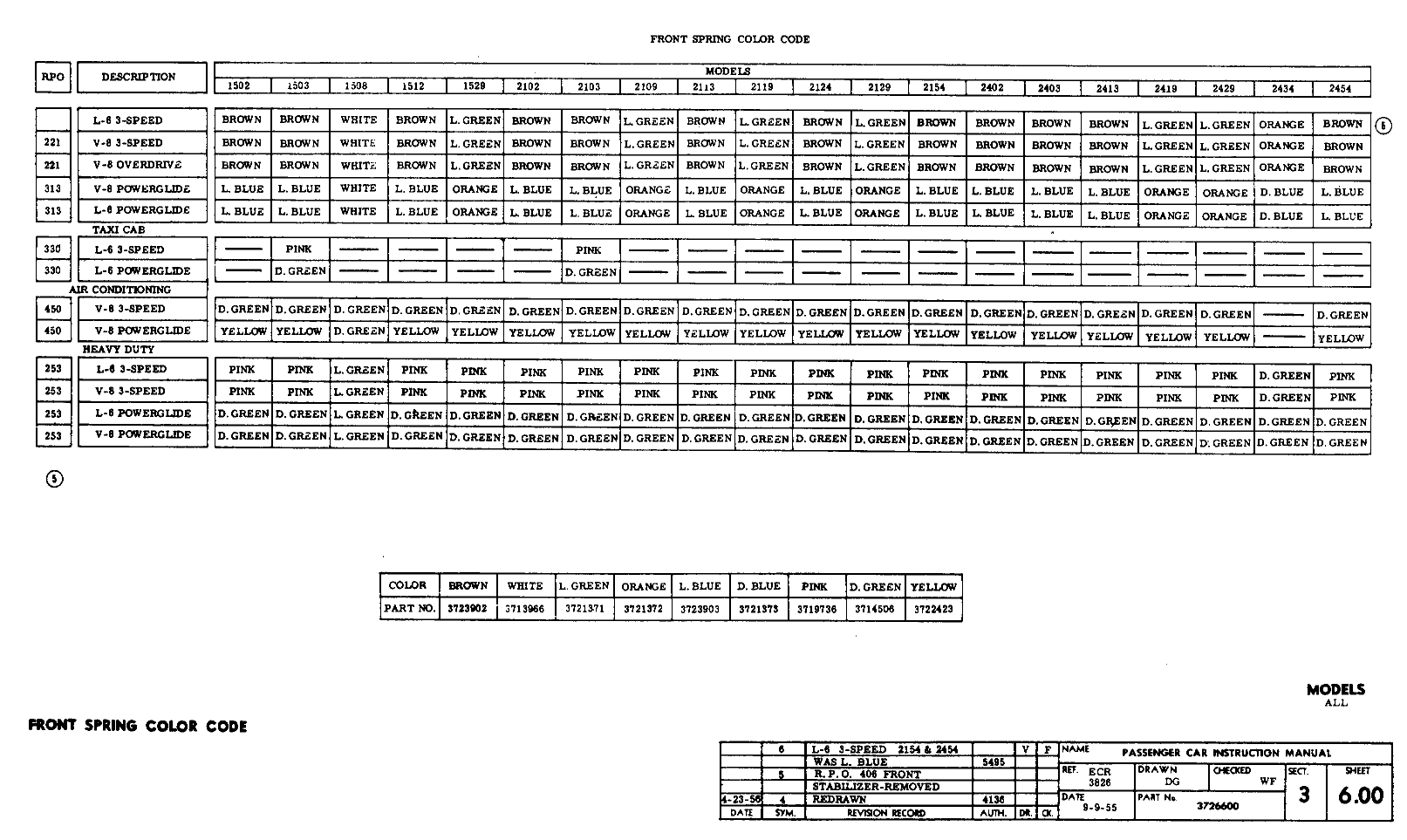

Section 4 – Rear End Suspension Instruction

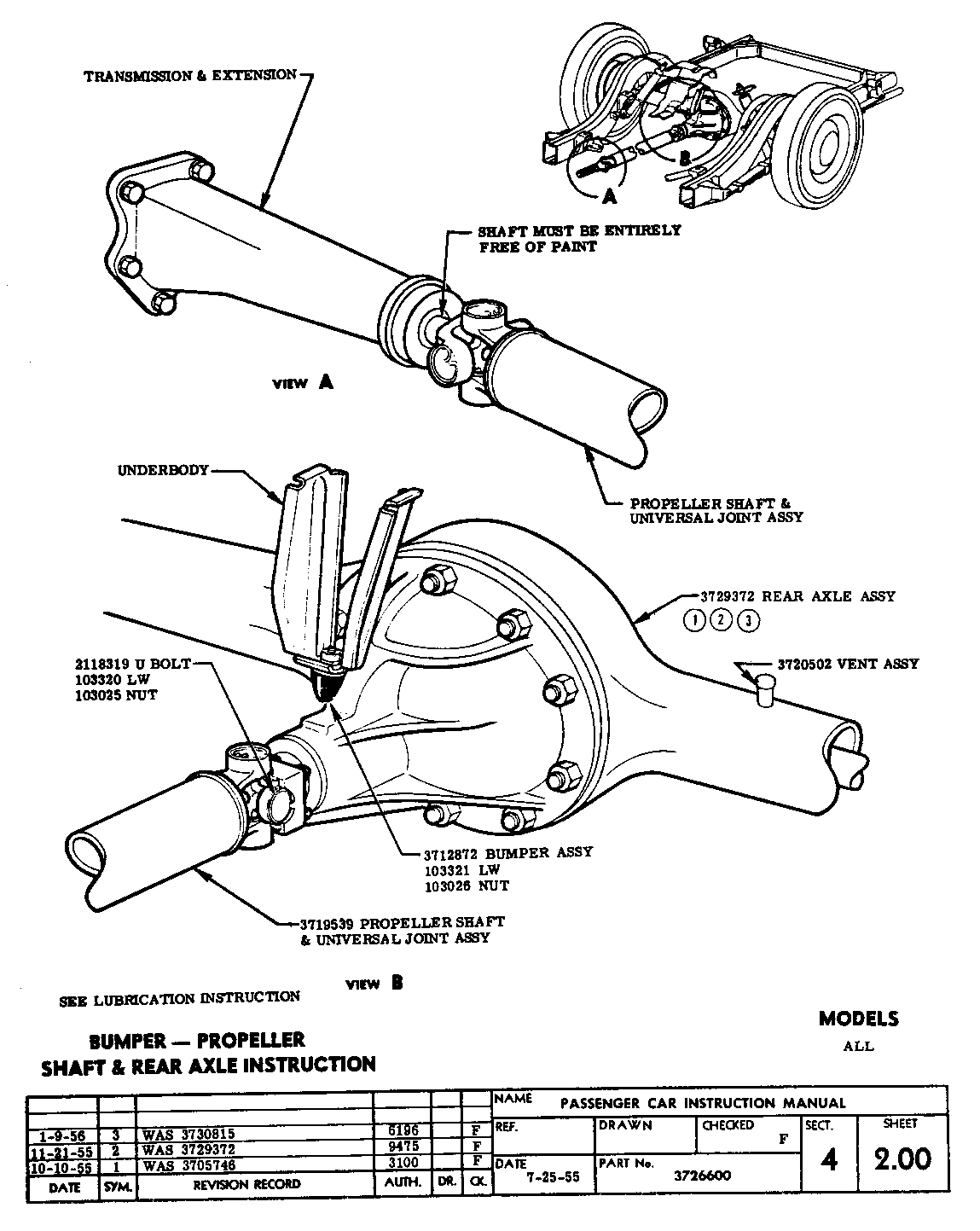

Propeller Shaft Bumper & Rear Axle Sheet 2.00

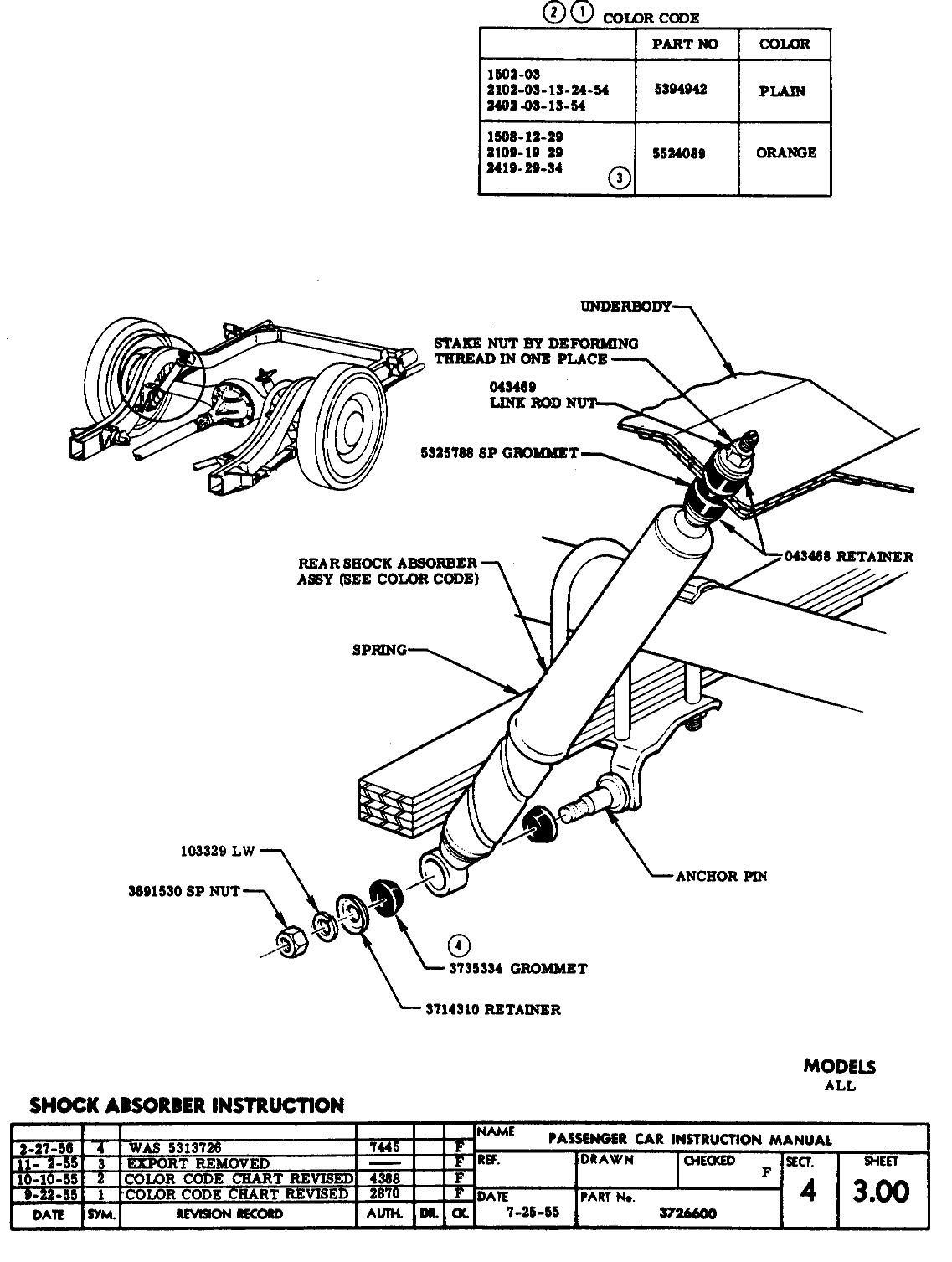

Axle Bumper and Rear Spring Sheet 4.00

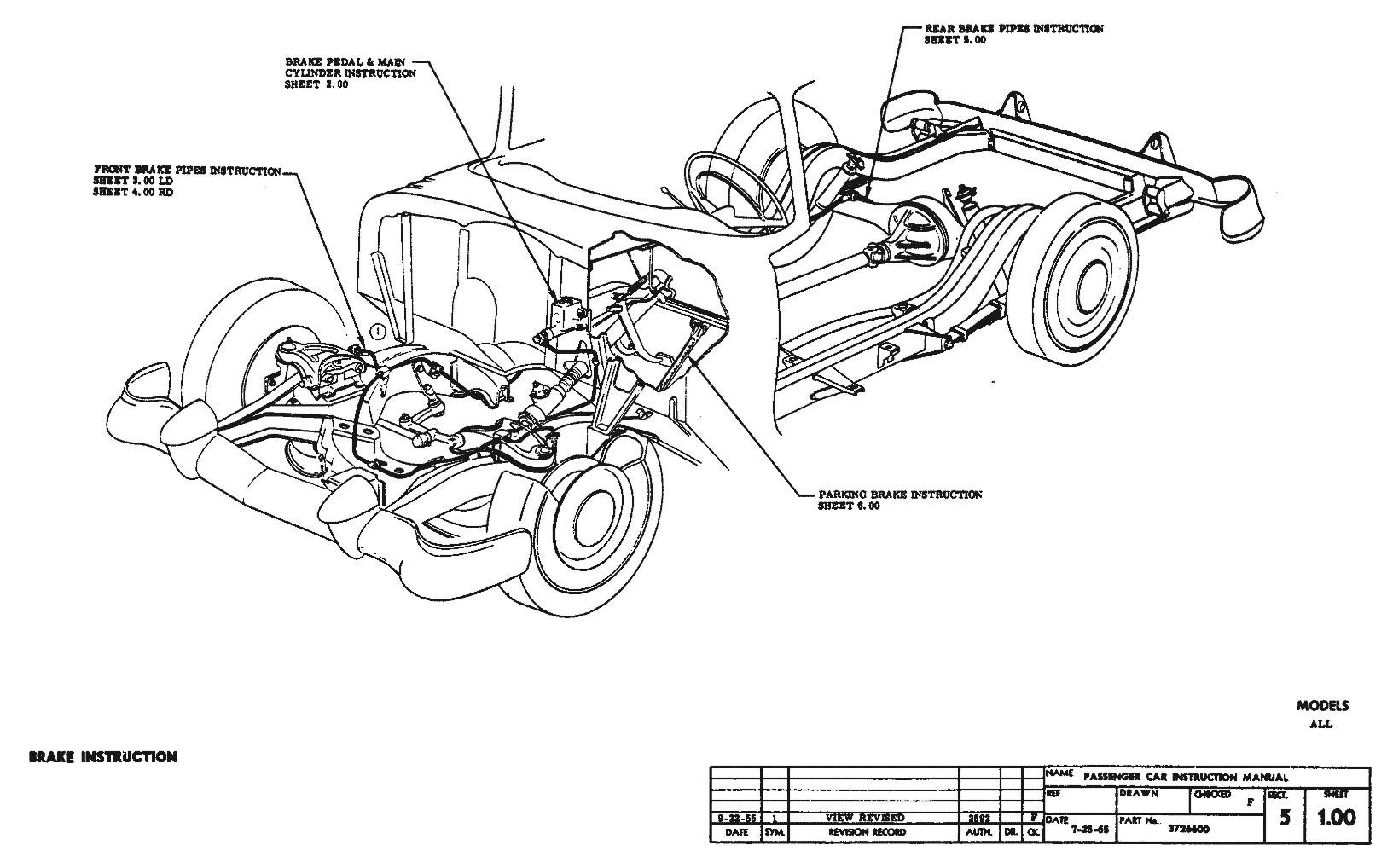

Section 5 – Brake Pedal & Main Cylinder Instruction

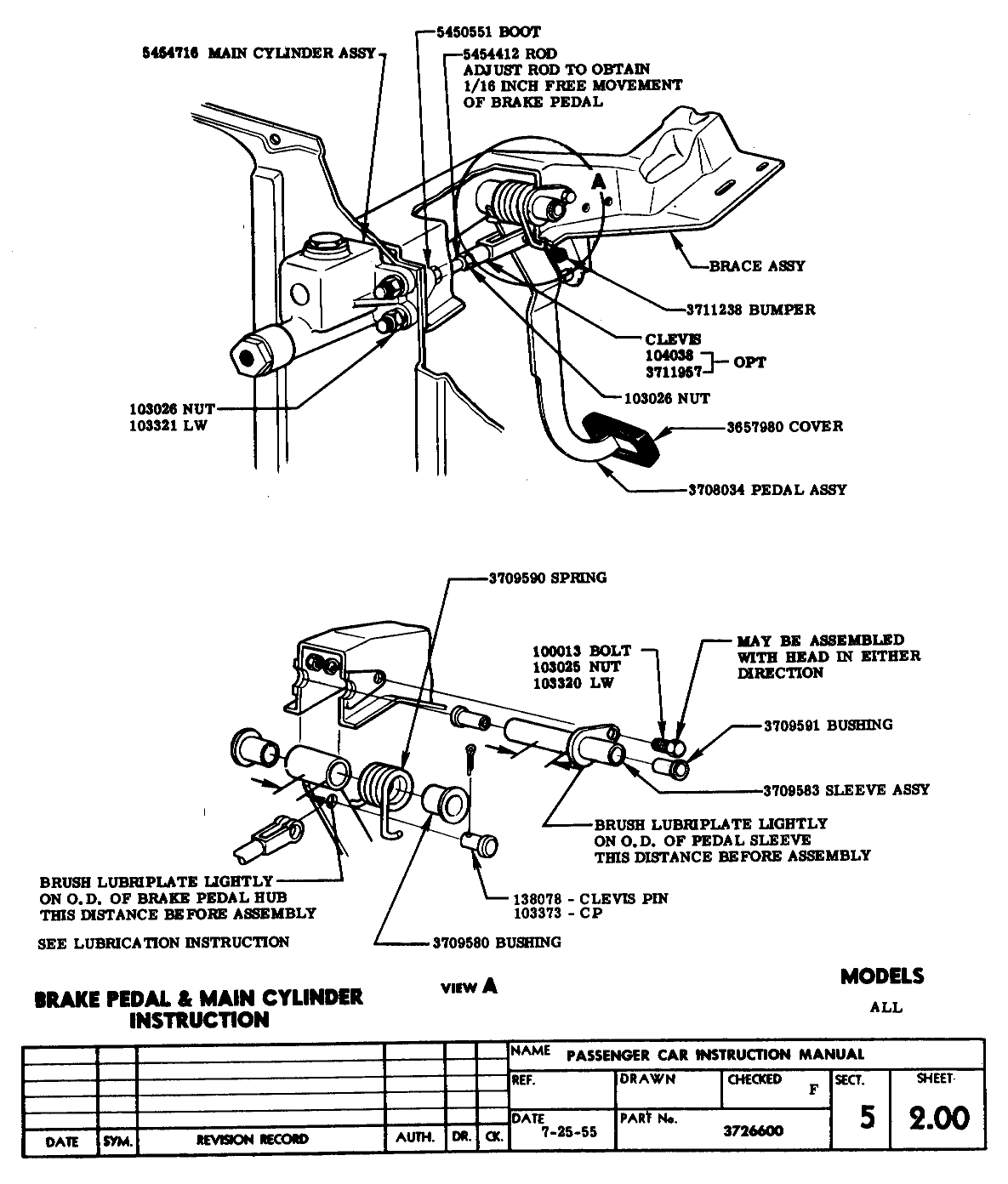

Brake Pedal & Main Cylinder Index Sheet 2.00

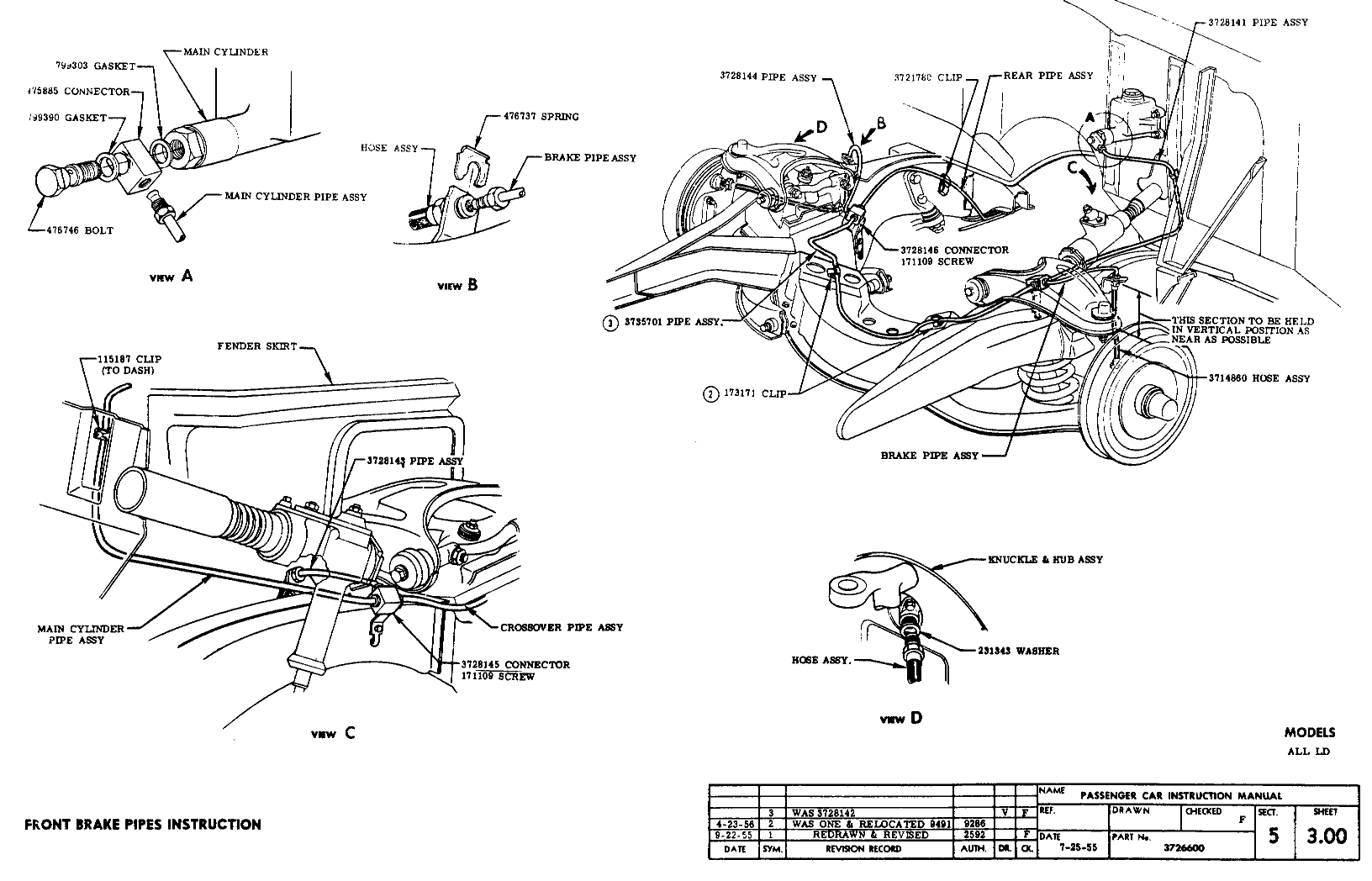

Front Brake Pipes (Left Drive) Sheet 3.00

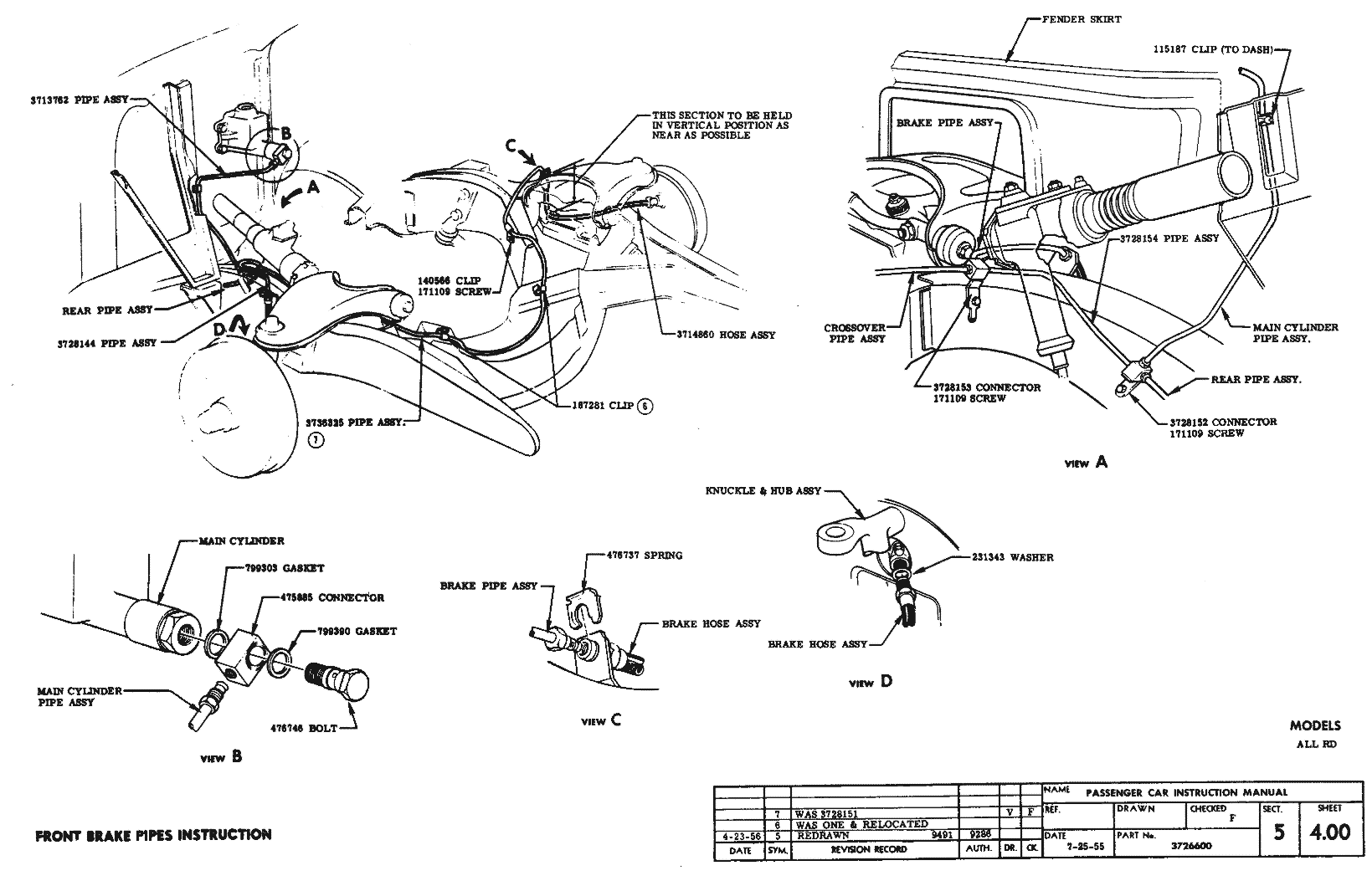

Front Brake Pipes (Right Drive) Sheet 4.00

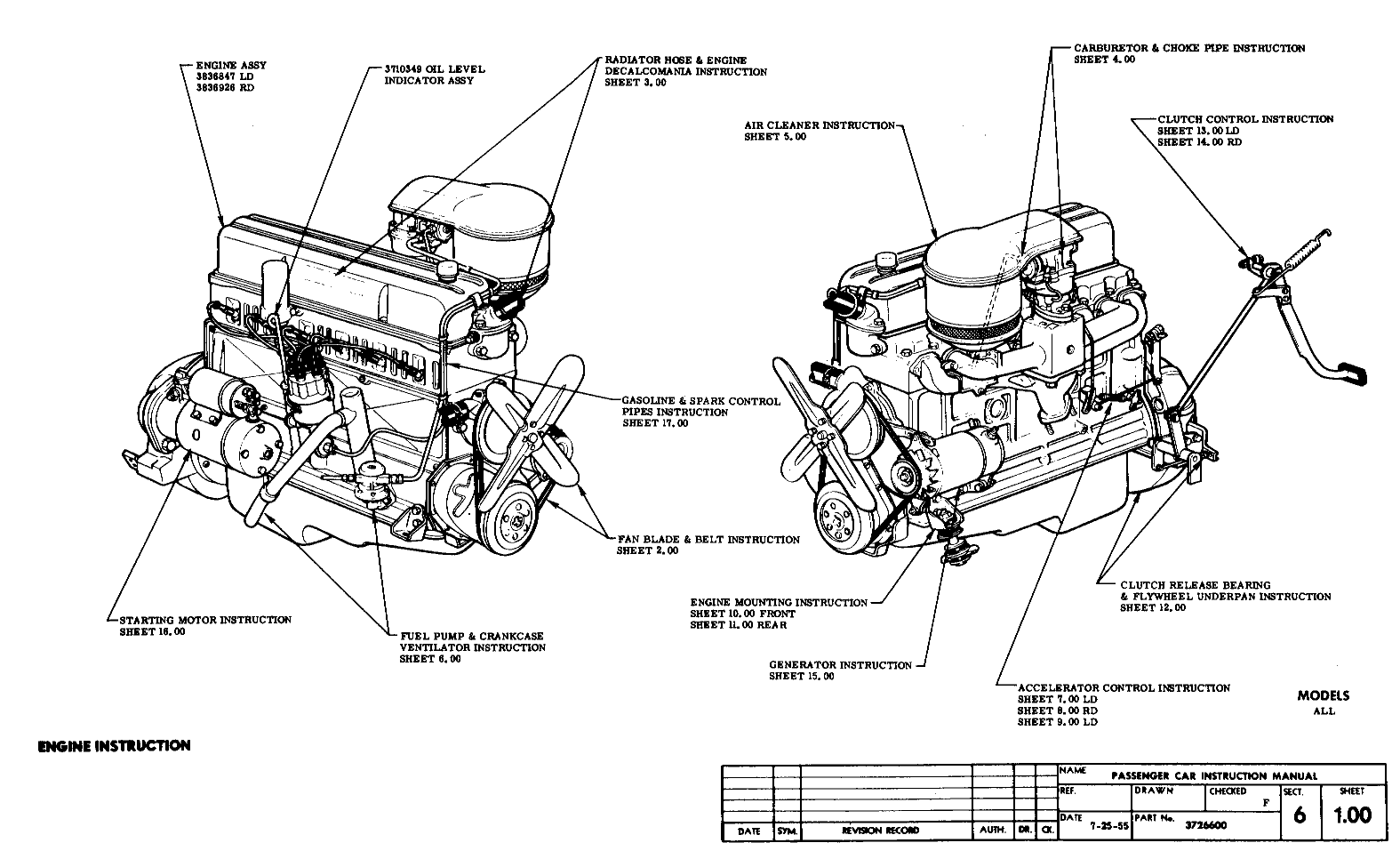

Section 6 – Engine Instruction

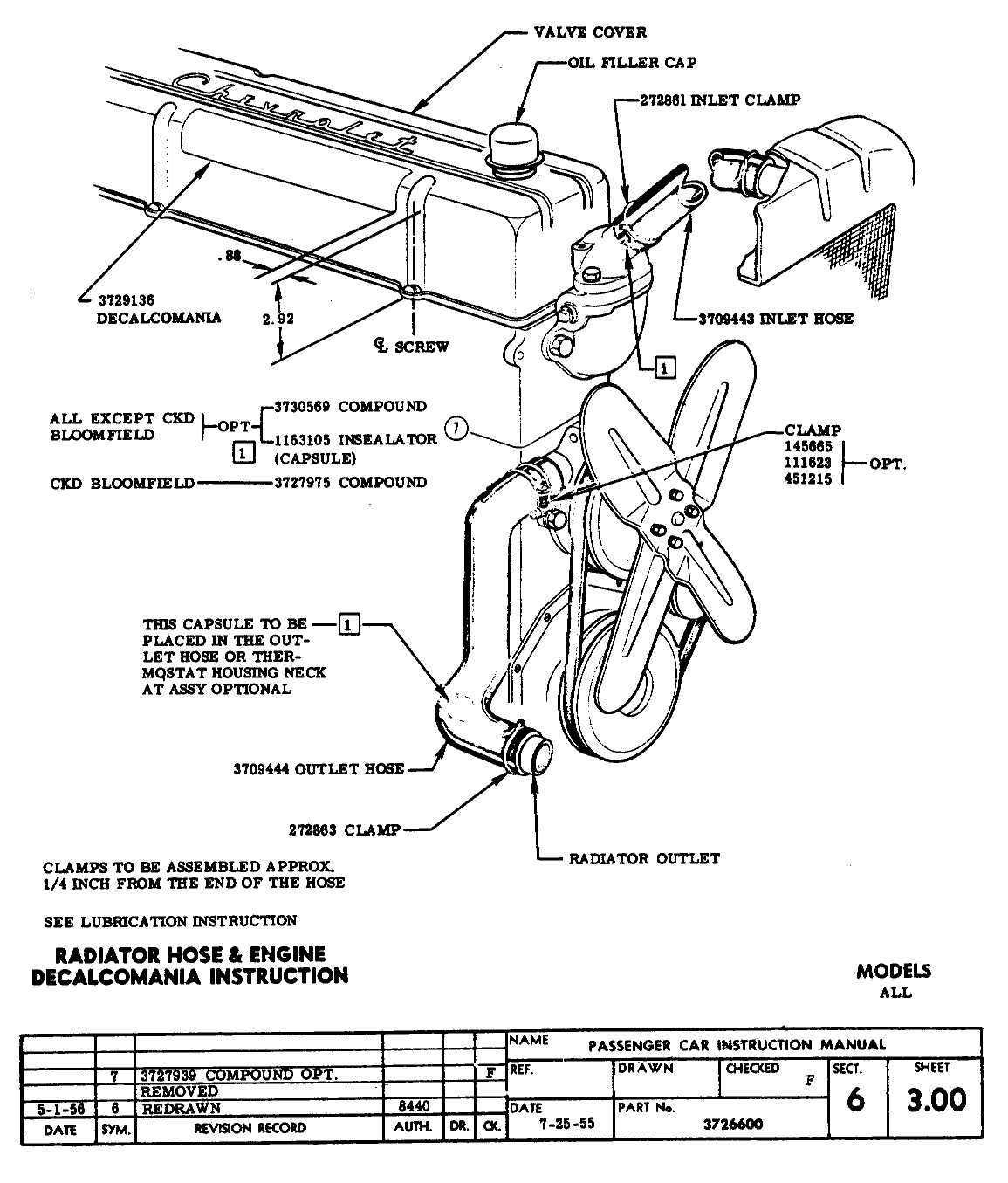

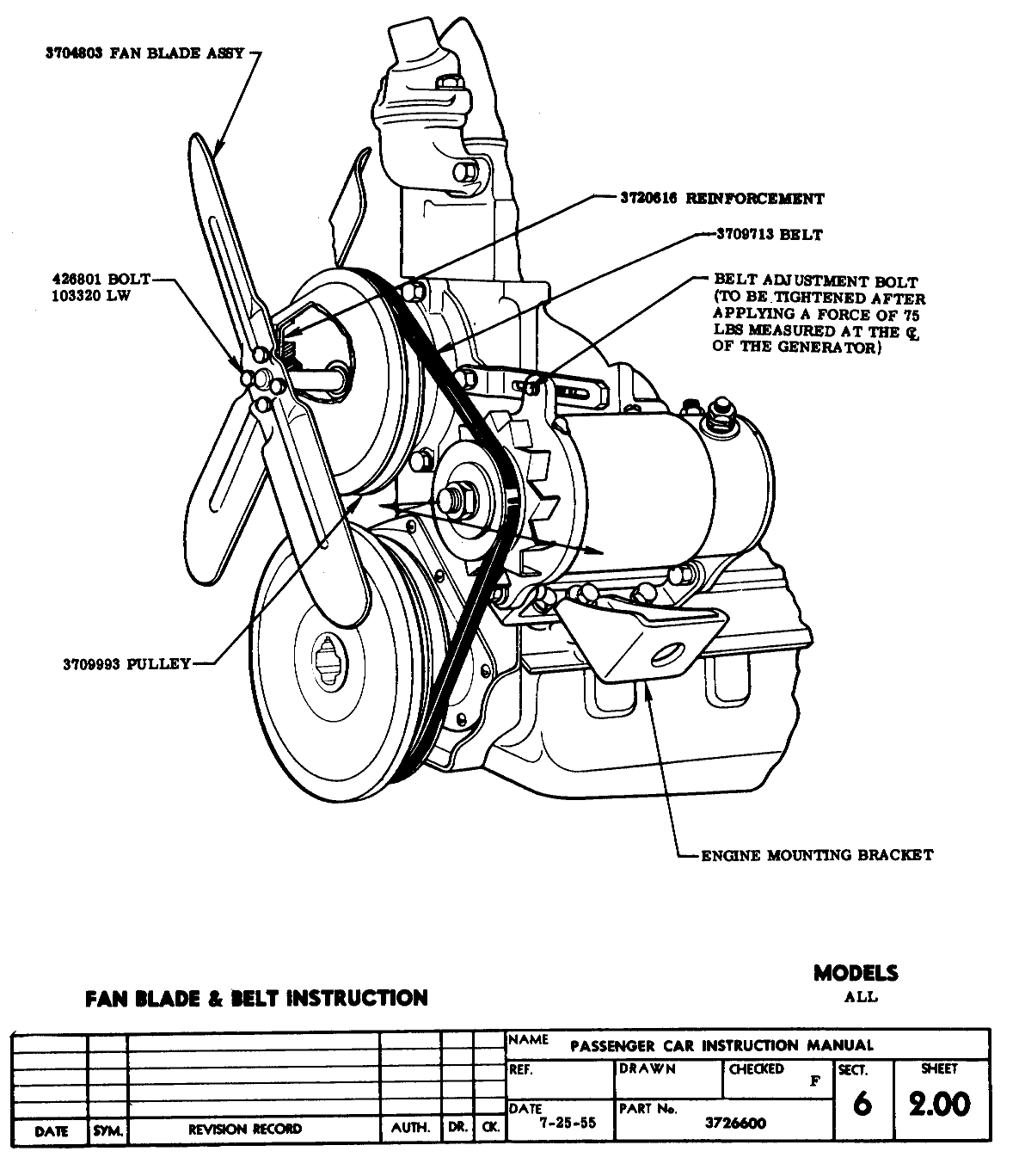

Radiator Hose & Engine Decalcomania Sheet 3.00

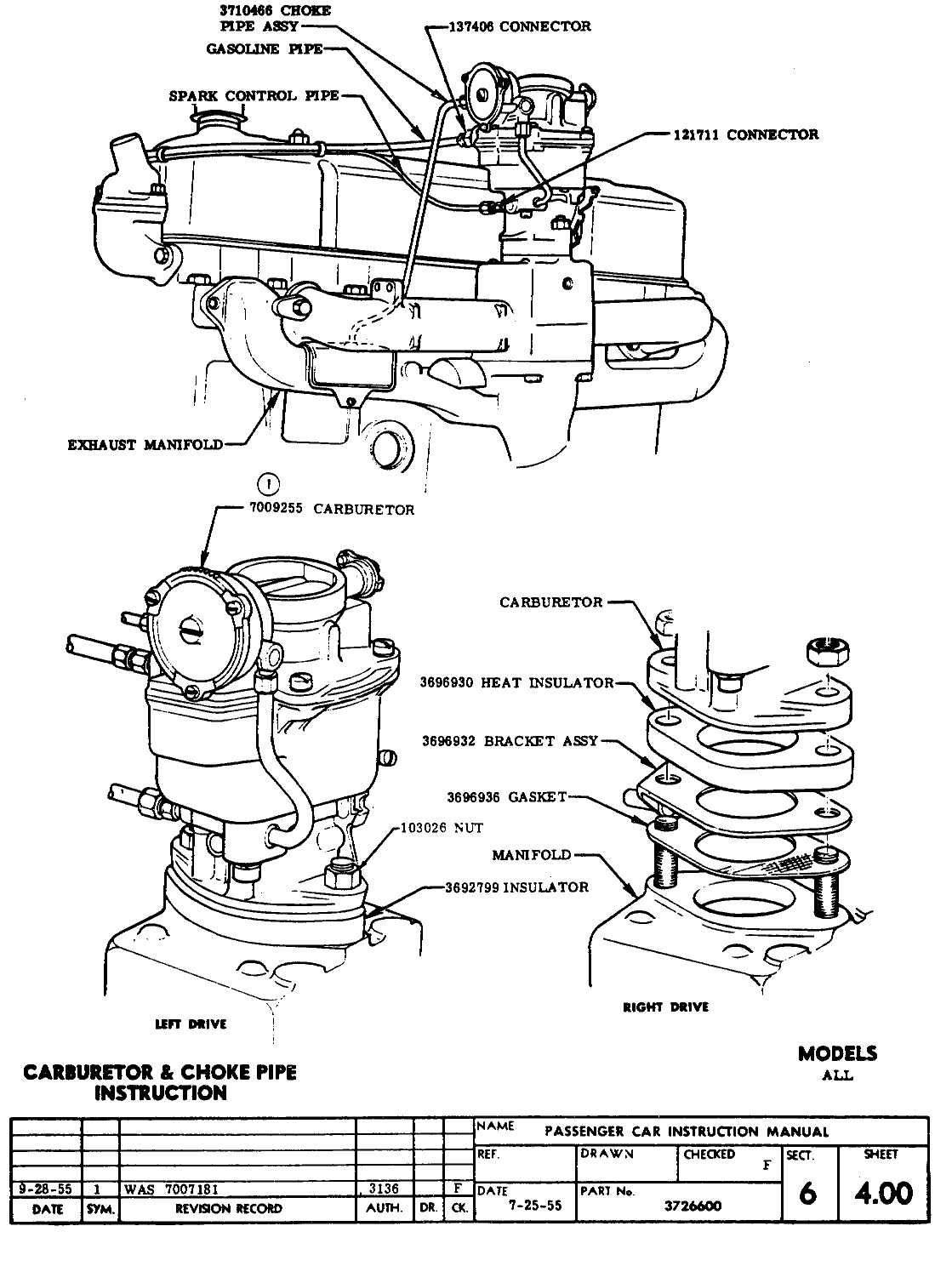

Carburetor & Choke Pipe Sheet 4.00

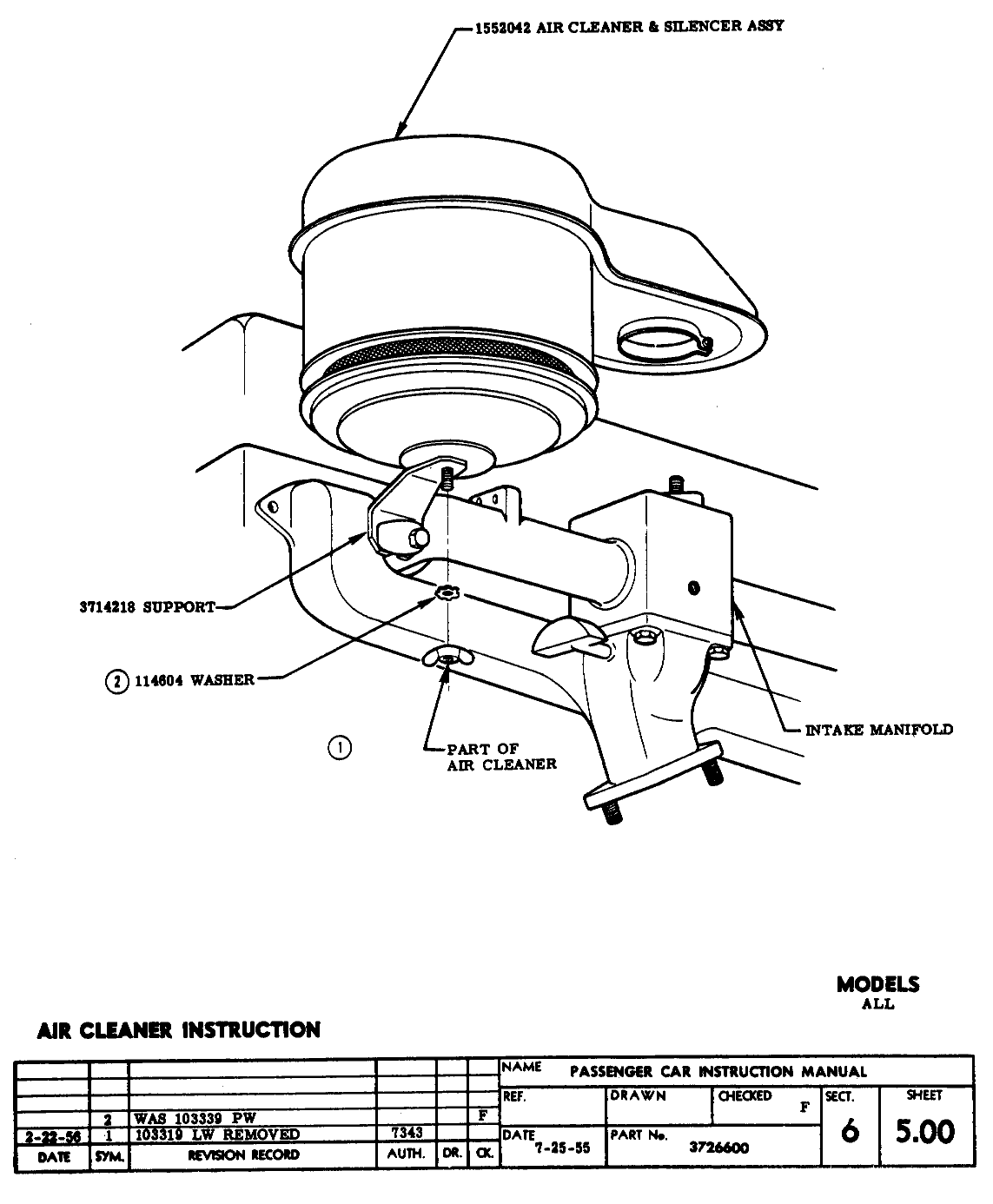

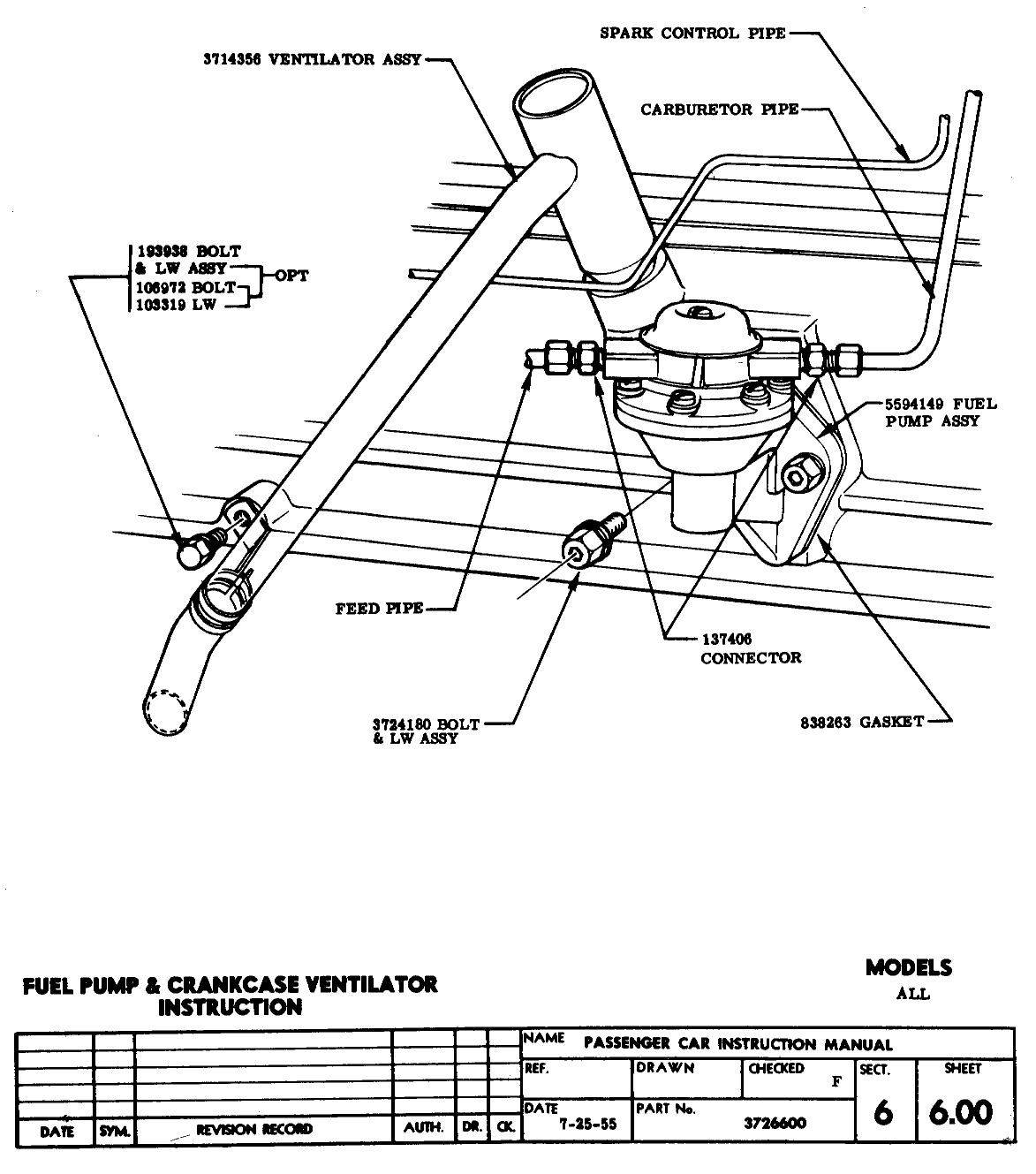

Fuel Pump & Crankcase Ventilator Sheet 6.00

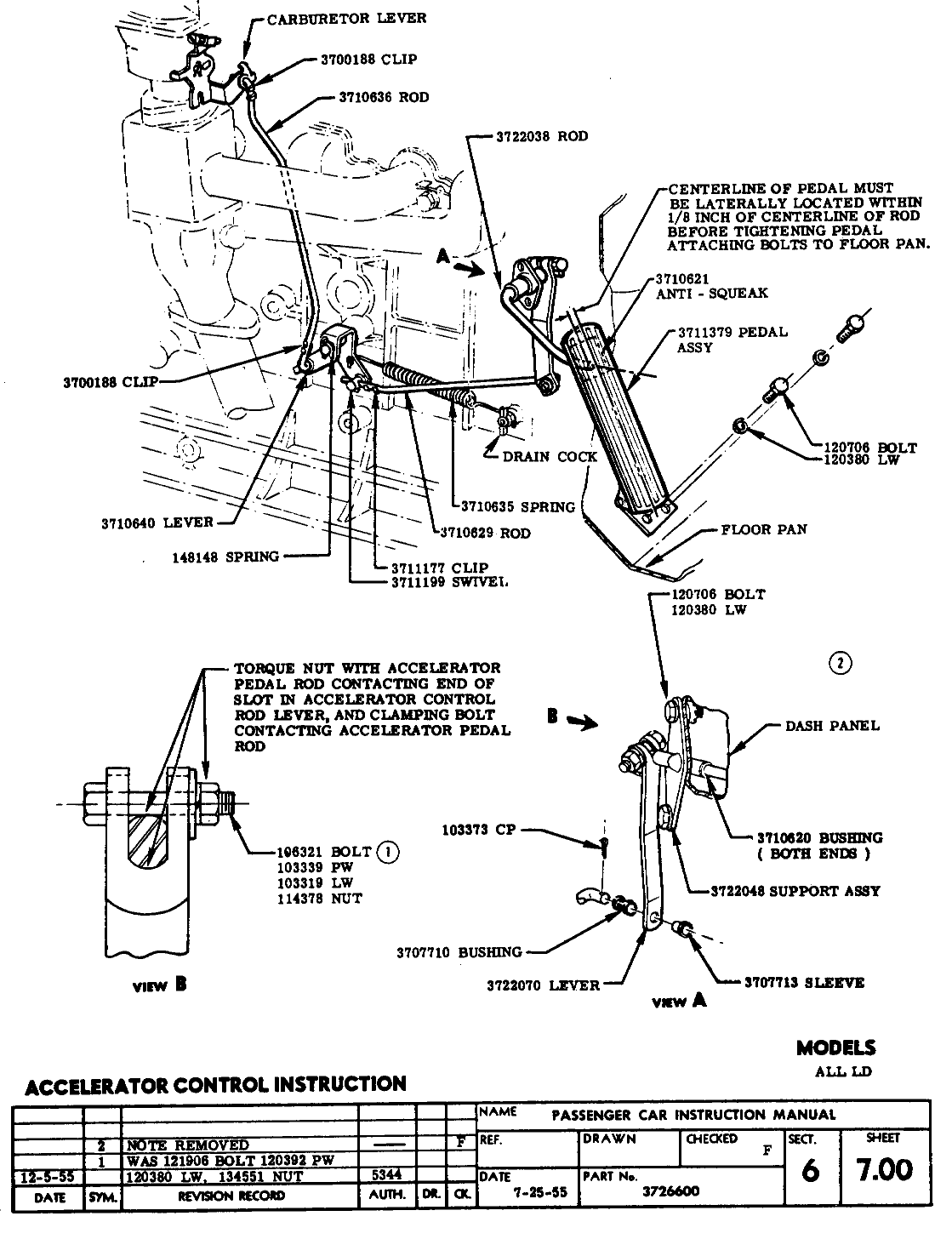

Accelerator Control (Left Drive) Sheet 7.00

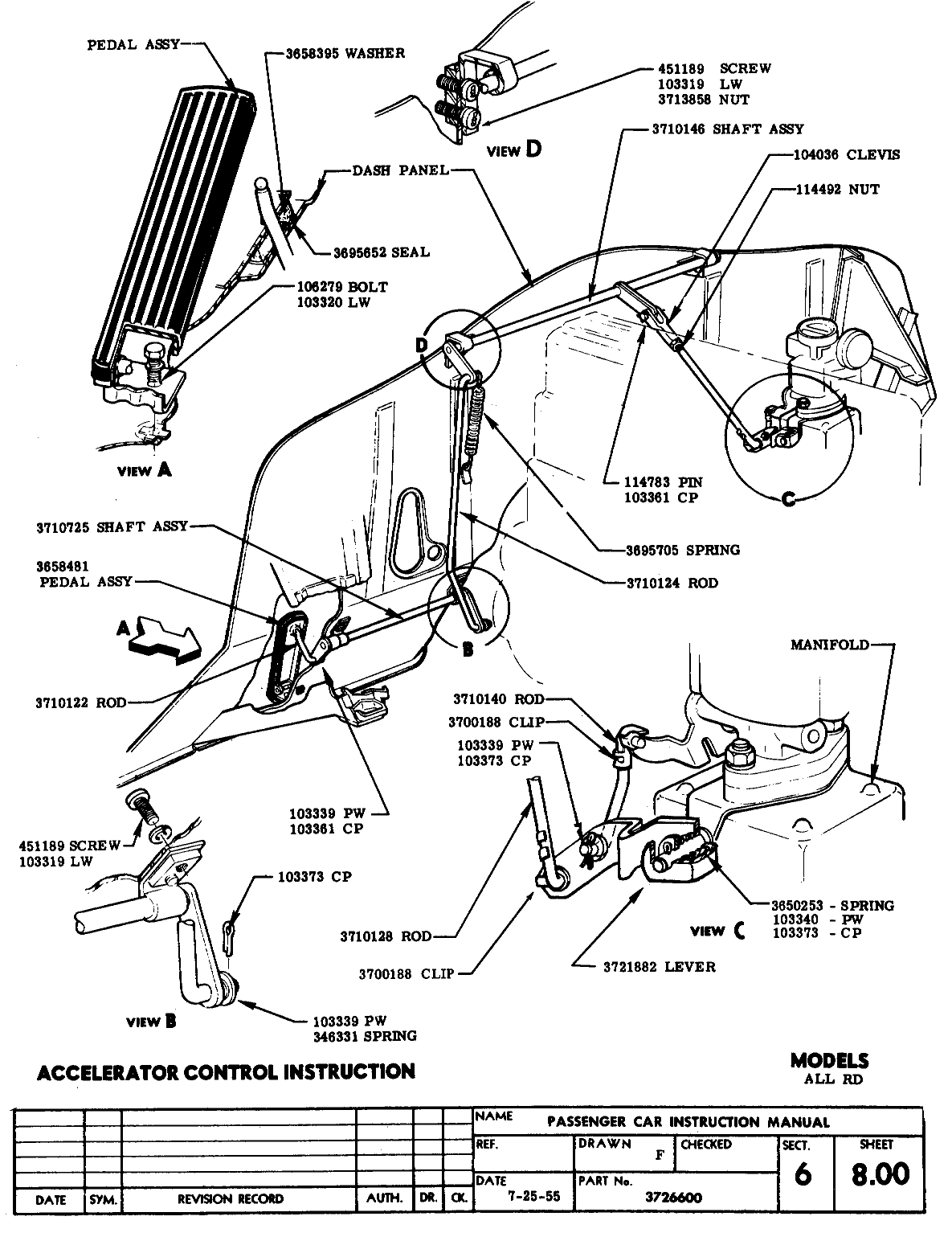

Accelerator Control (Right Drive) Sheet 8.00

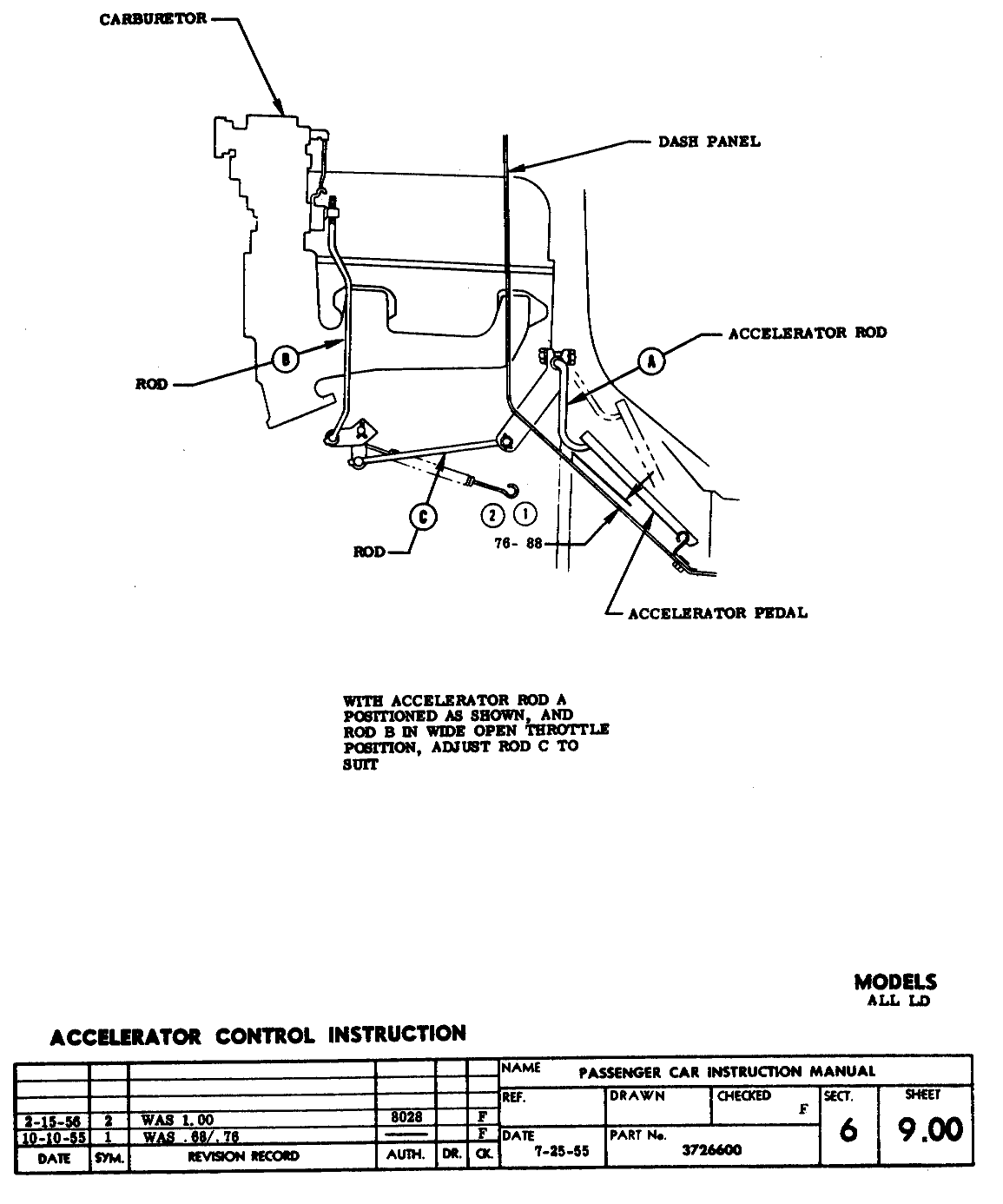

Accelerator Control (Left Drive) Sheet 9.00
Engine Front Mounting Sheet 10.00

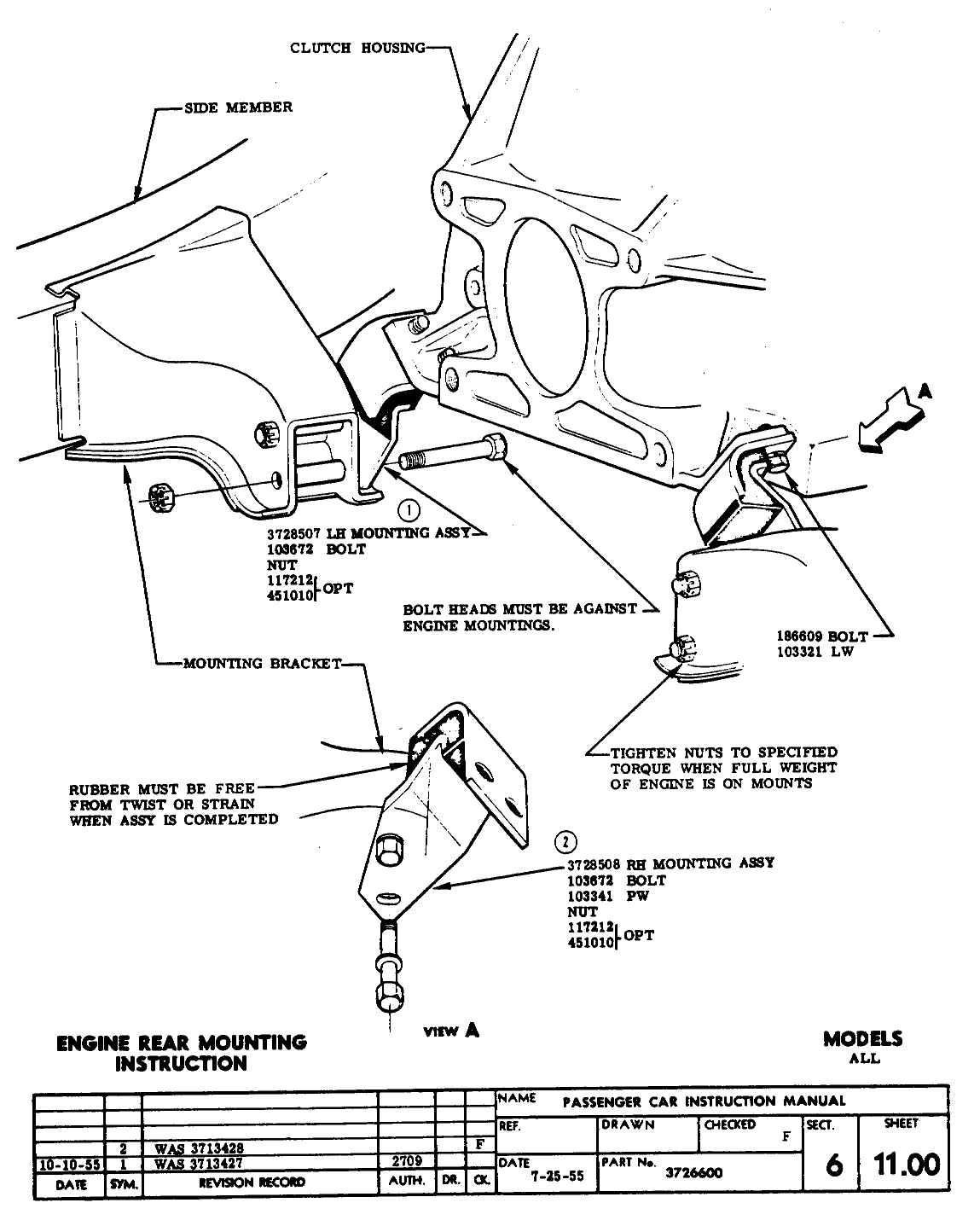

Engine Rear Mounting Sheet 11.00

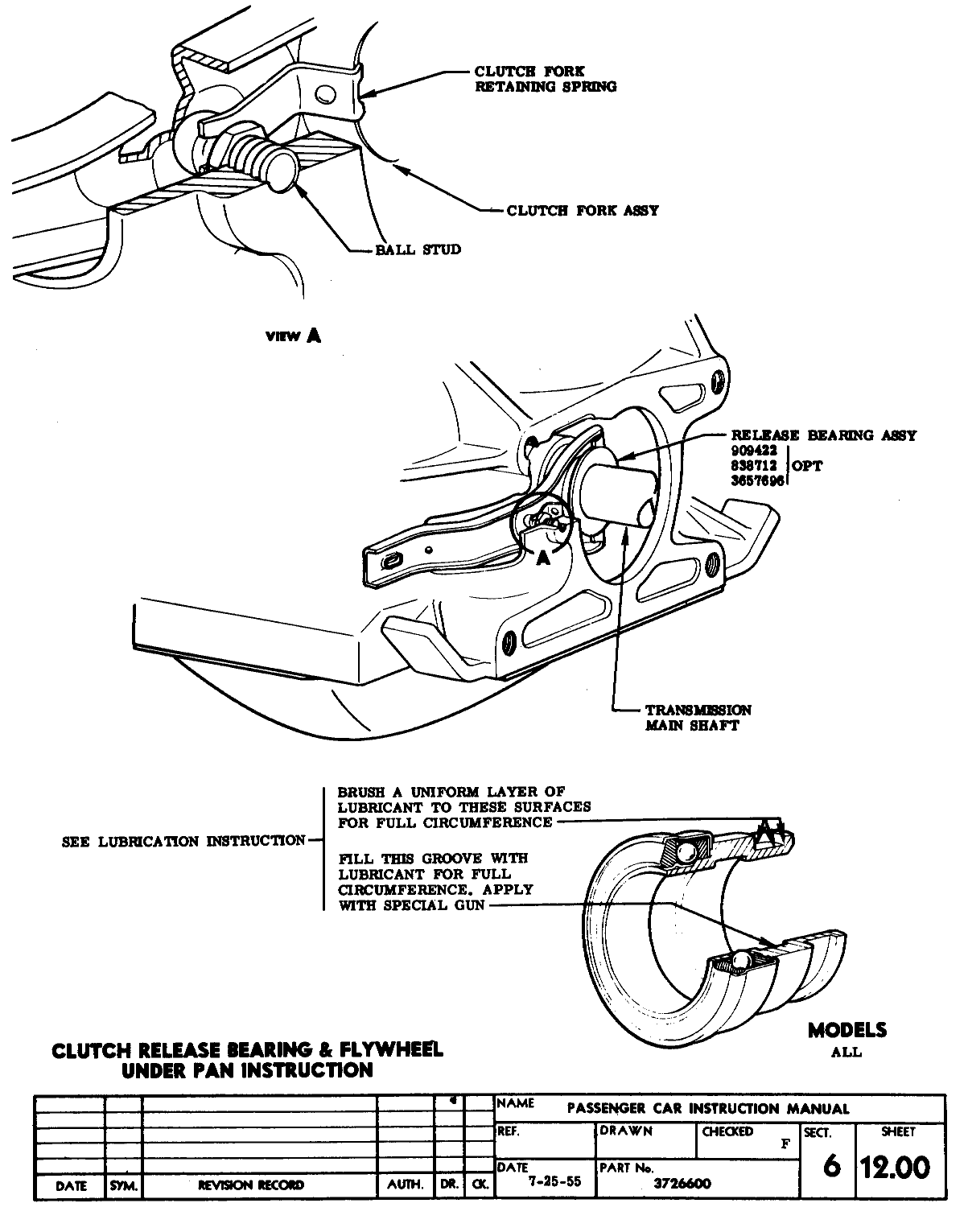

Clutch Release Bearing & Flywheel Under Pan Sheet 12.00

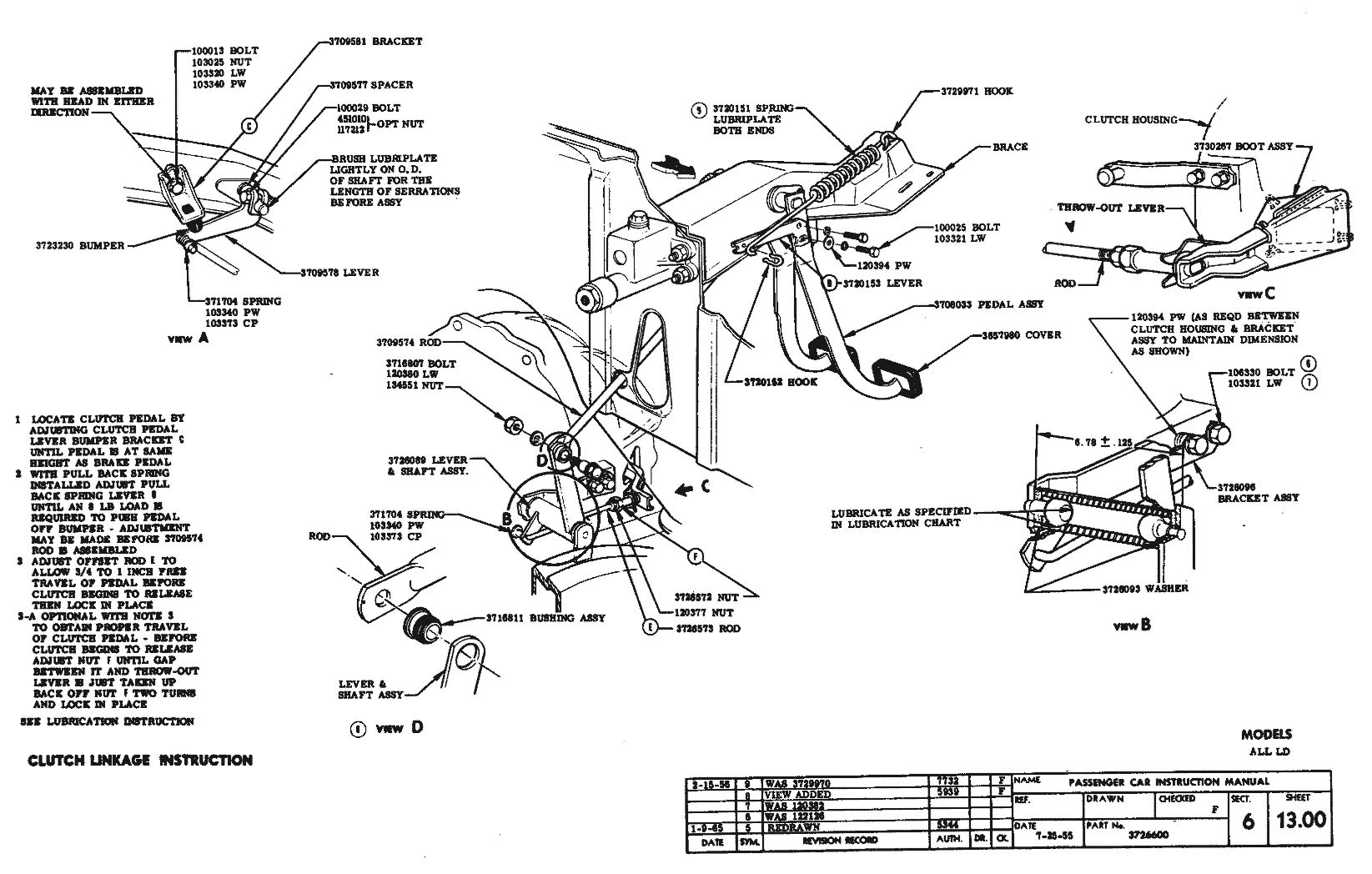

Clutch Linkage (Left Drive) Sheet 13.00

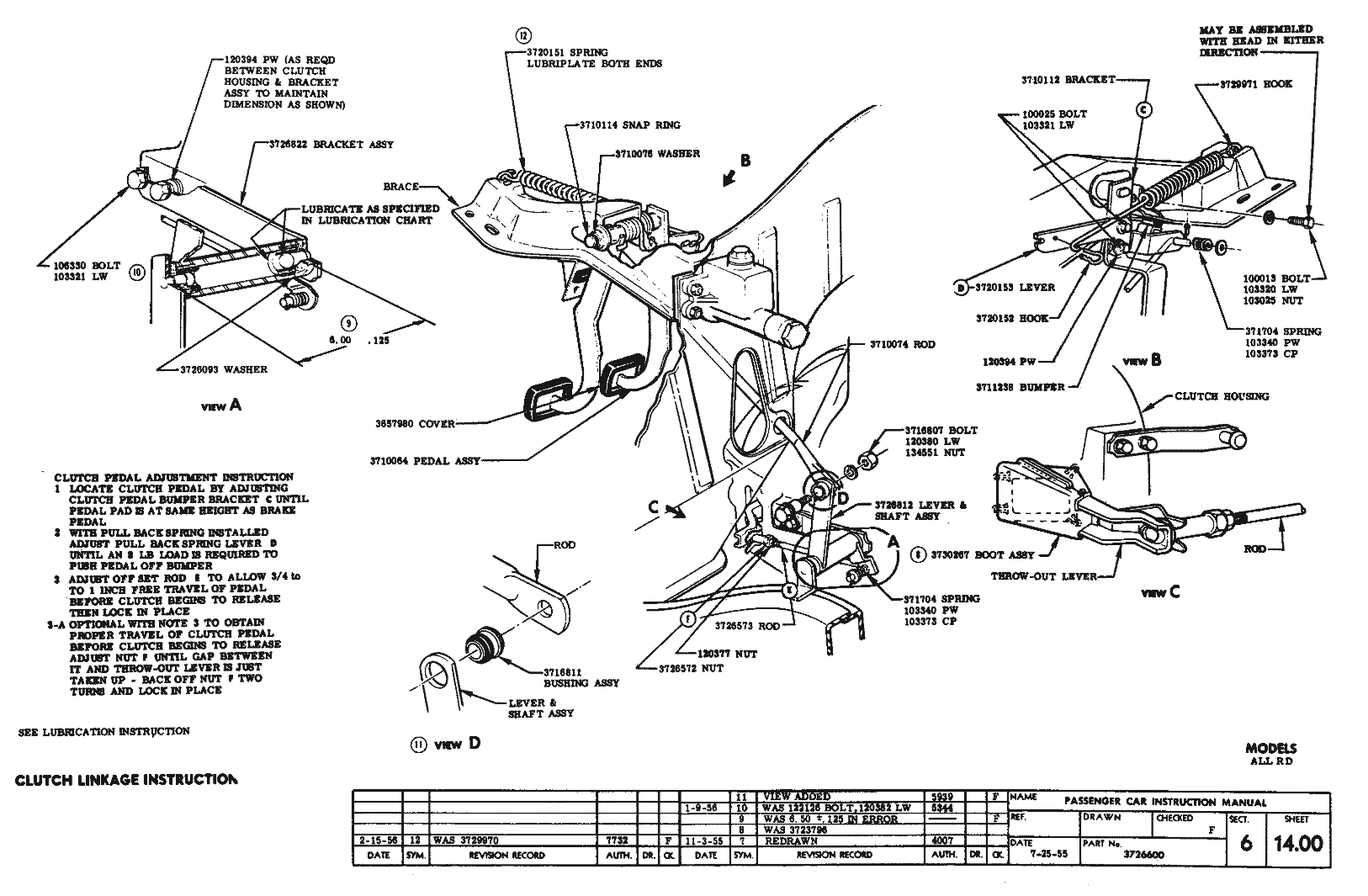

Clutch Linkage (Right Drive) Sheet 14.00

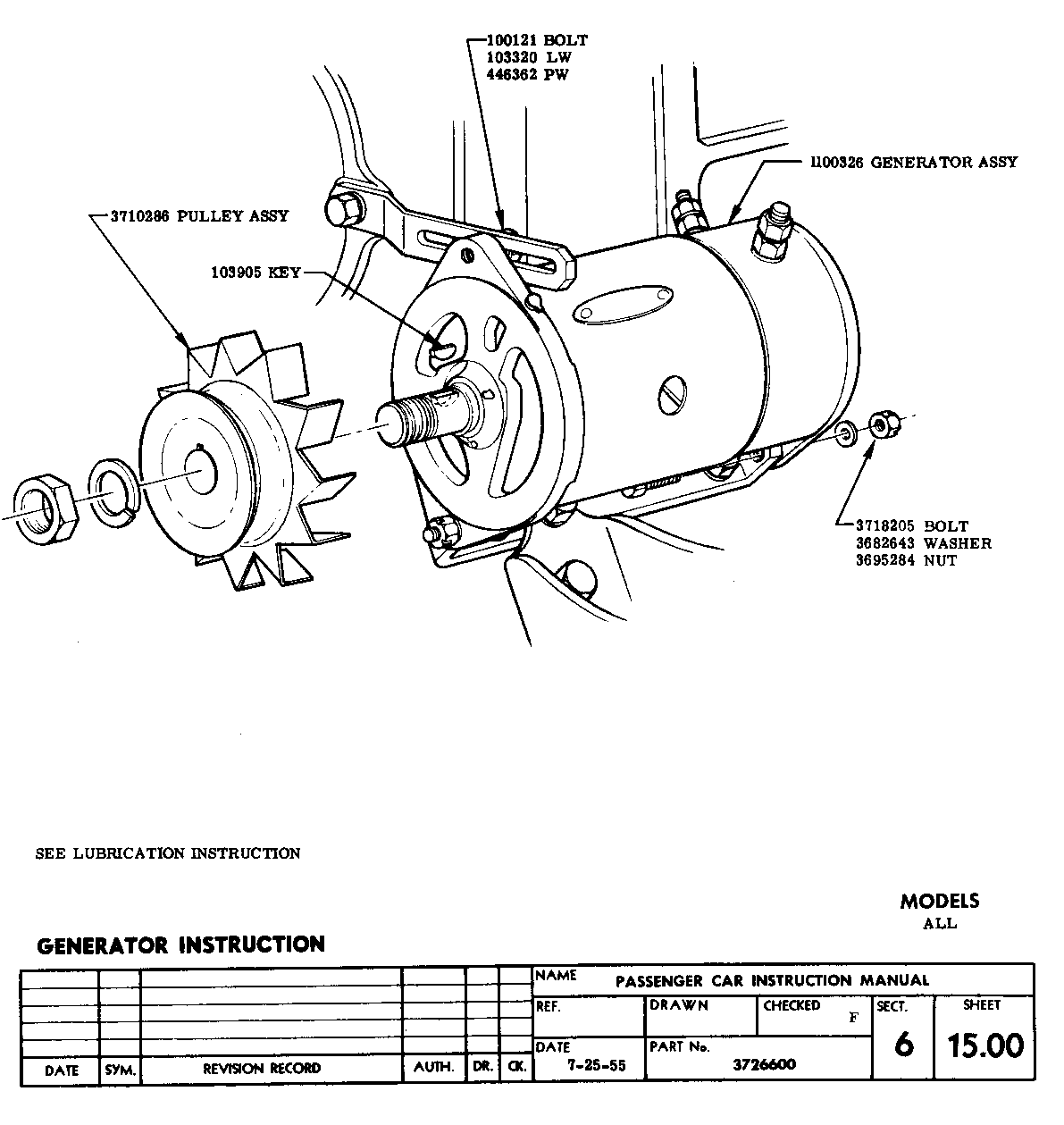

Gasoline & Spark Control Pipes Sheet 17.00
Section 7 – Transmission & Controls Instruction

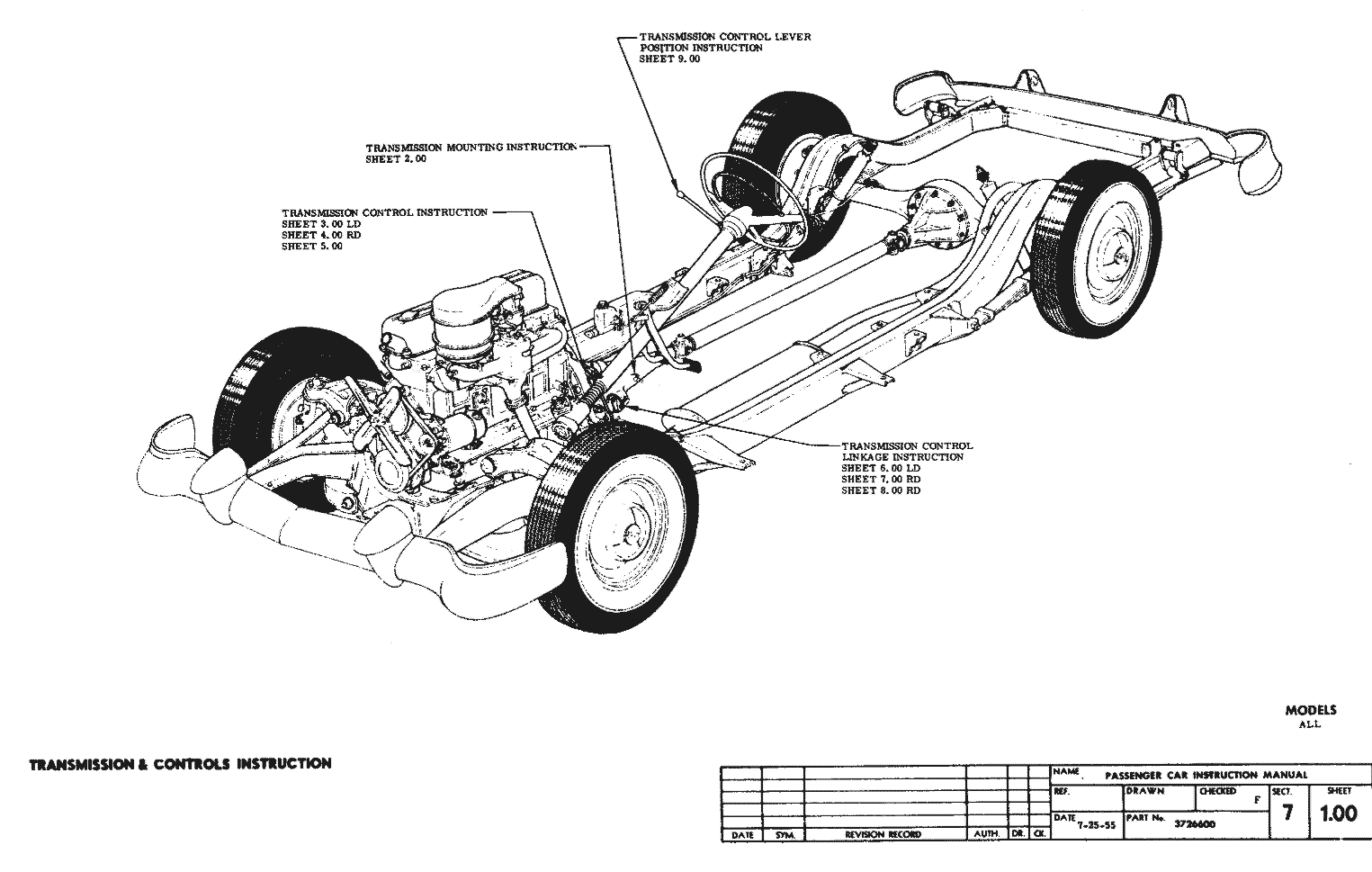

Transmission & Controls Index Sheet 1.00

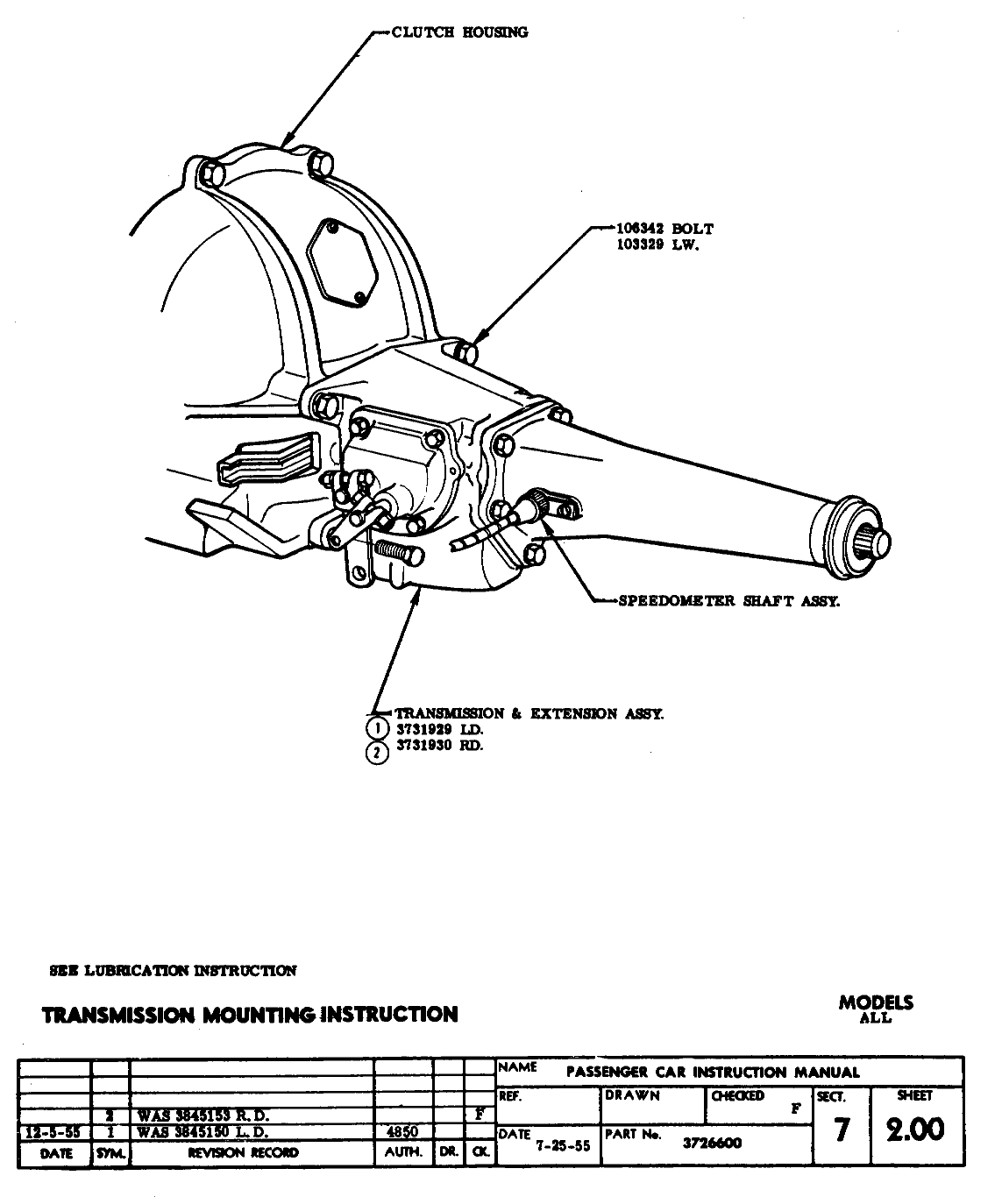

Transmission Mounting Sheet 2.00

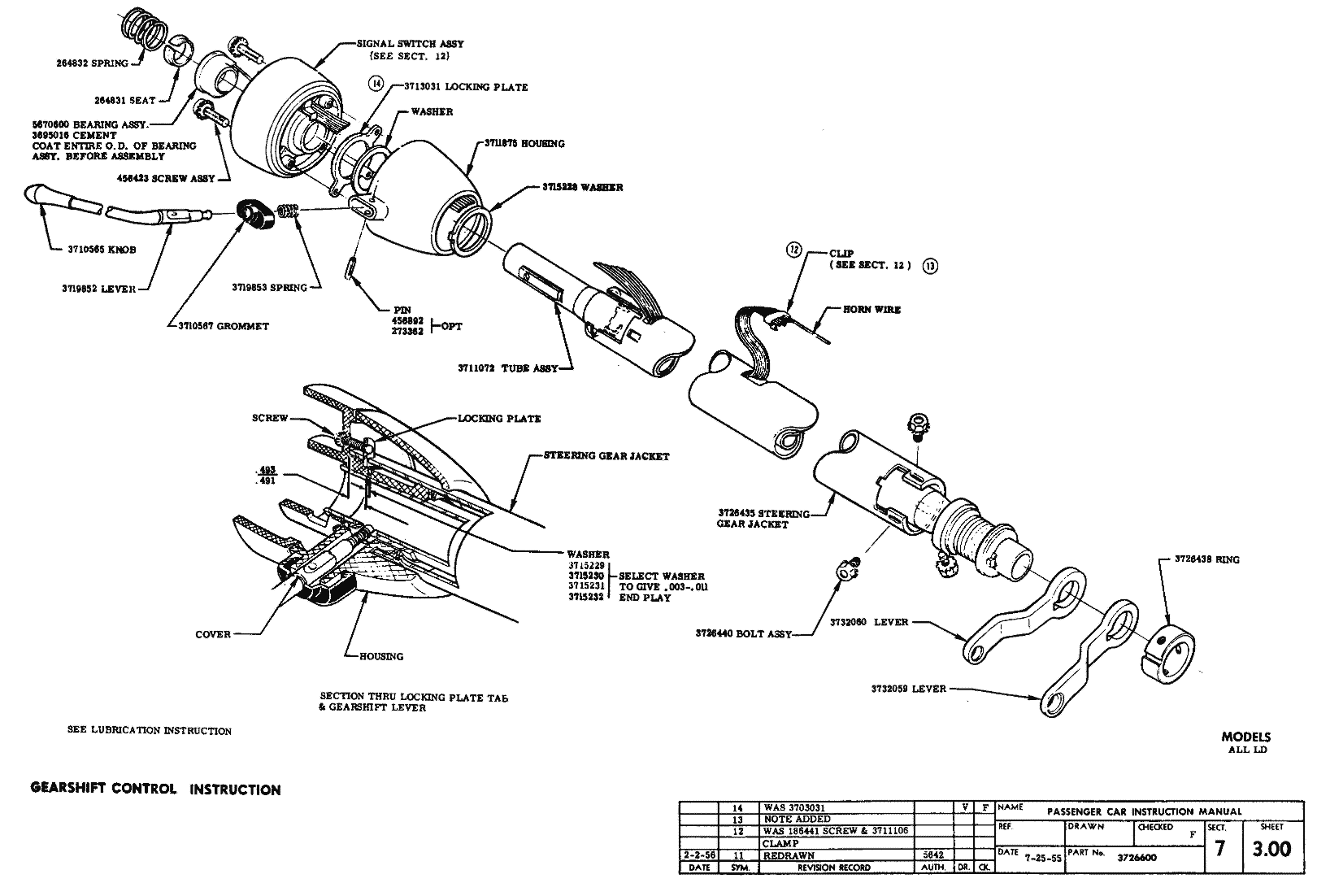

Gearshift Control (Left Drive) Sheet 3.00

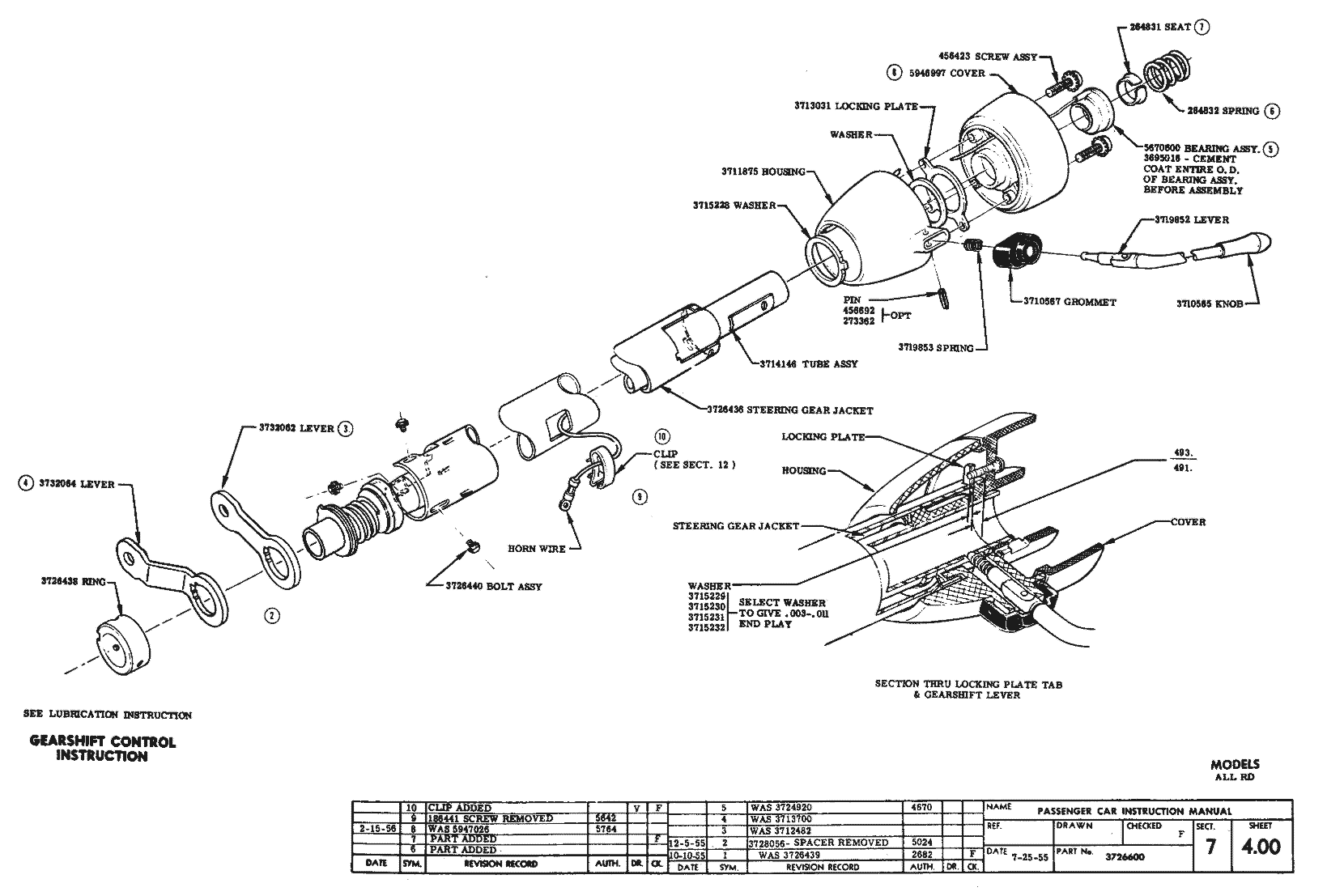

Gearshift Control (Right Drive) Sheet 4.00

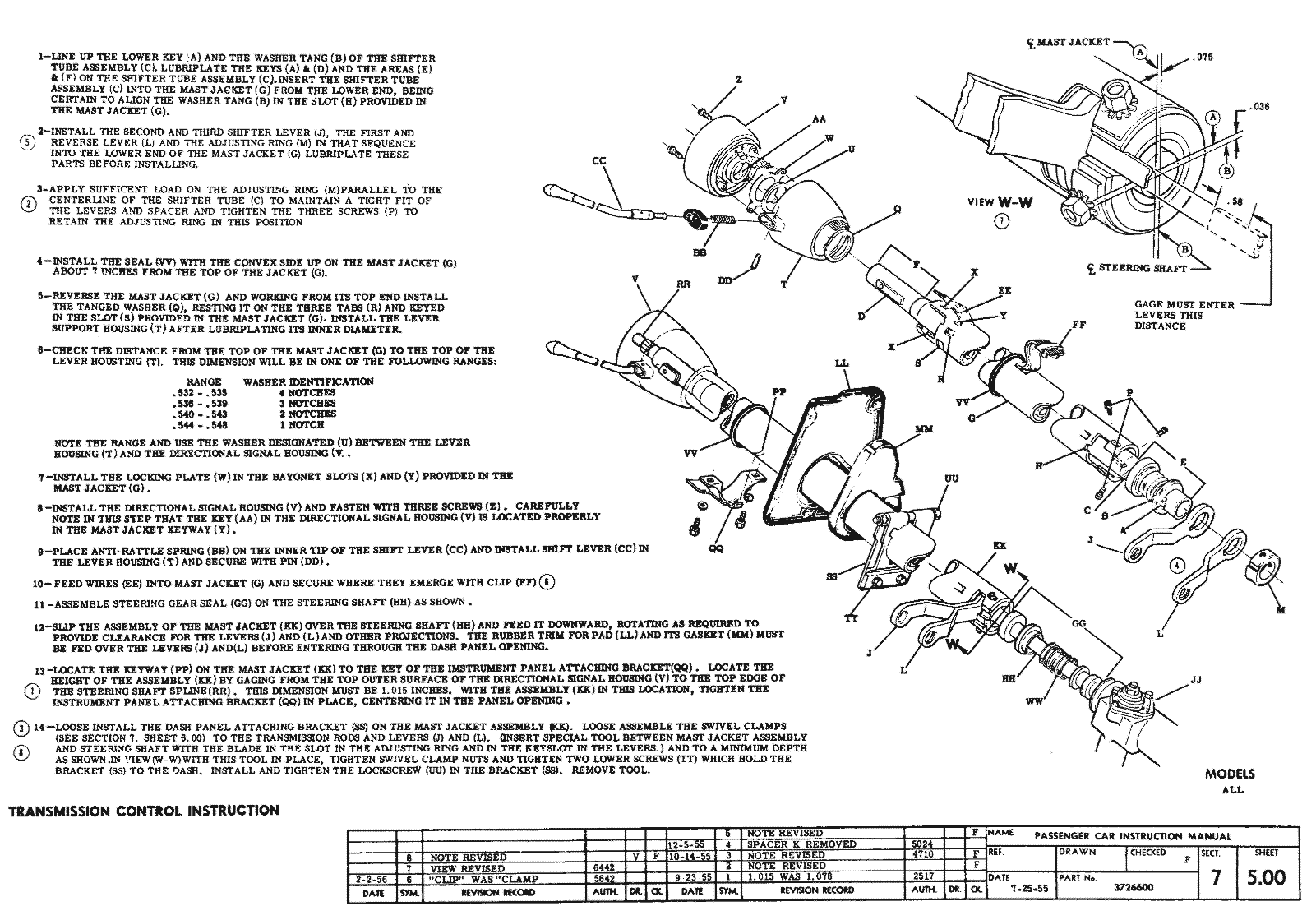

Transmission Control Sheet 5.00

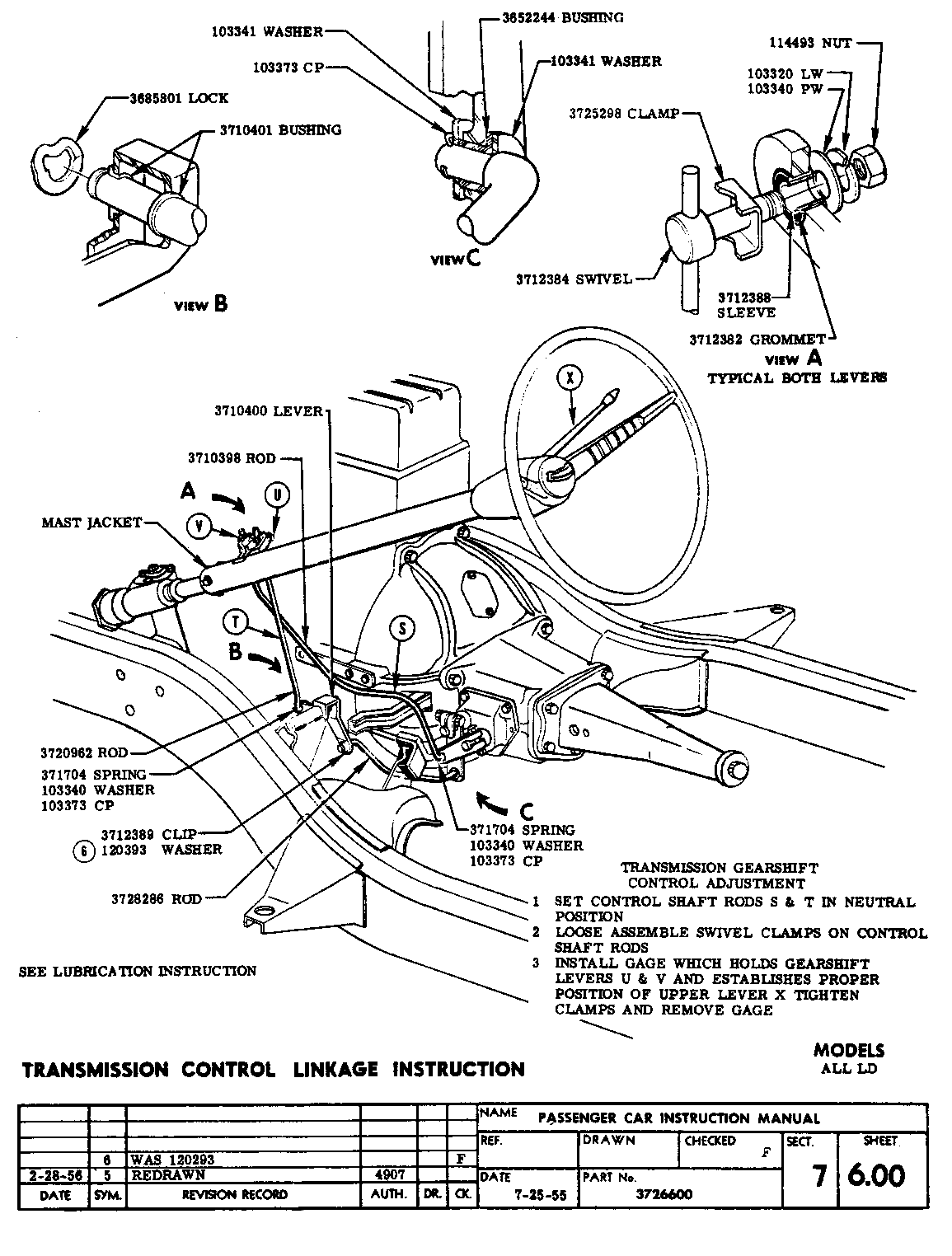

Transmission Control Linkage (Left Drive) Sheet 6.00

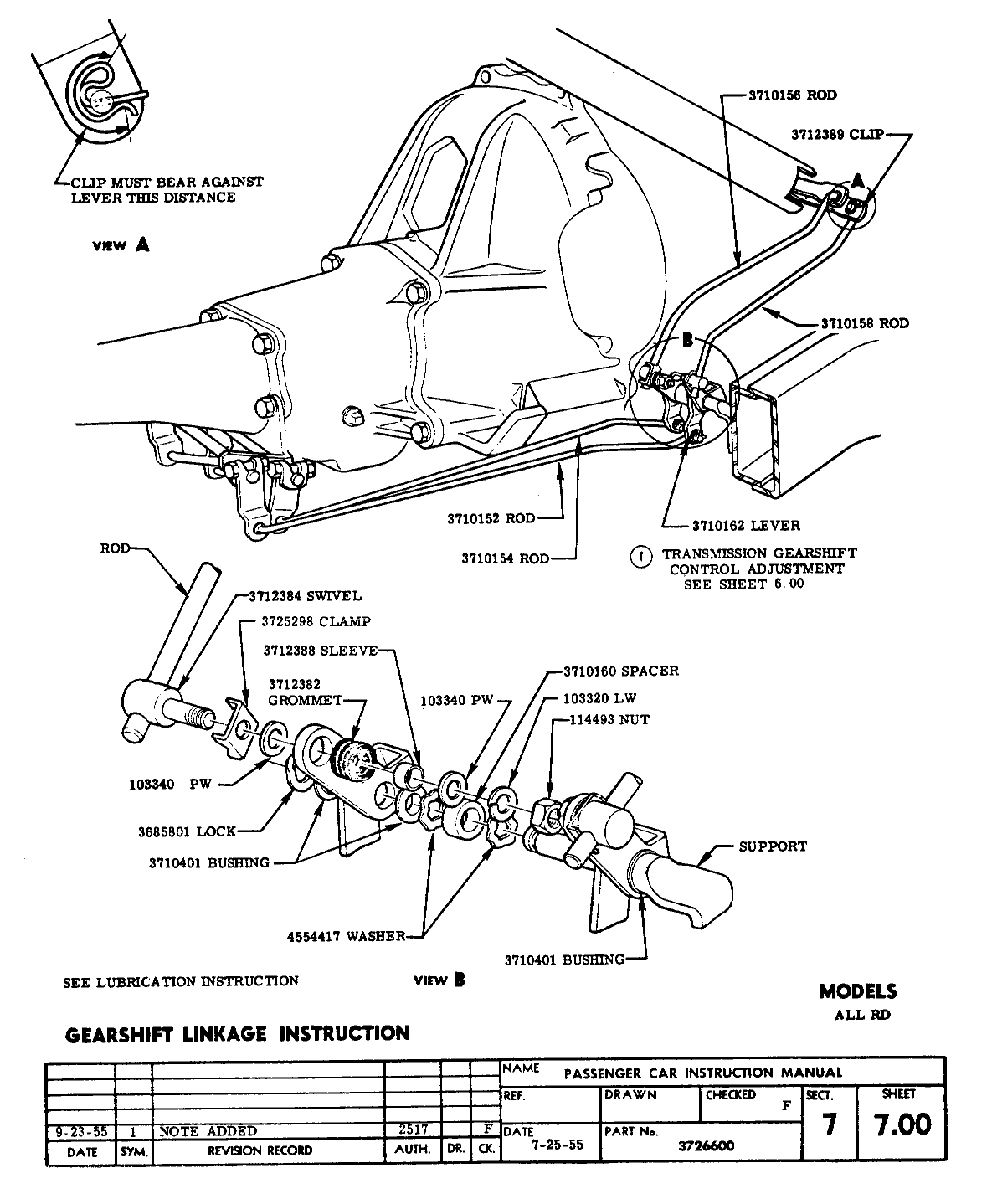

Transmission Control Linkage (Right Drive) Sheet 7.00

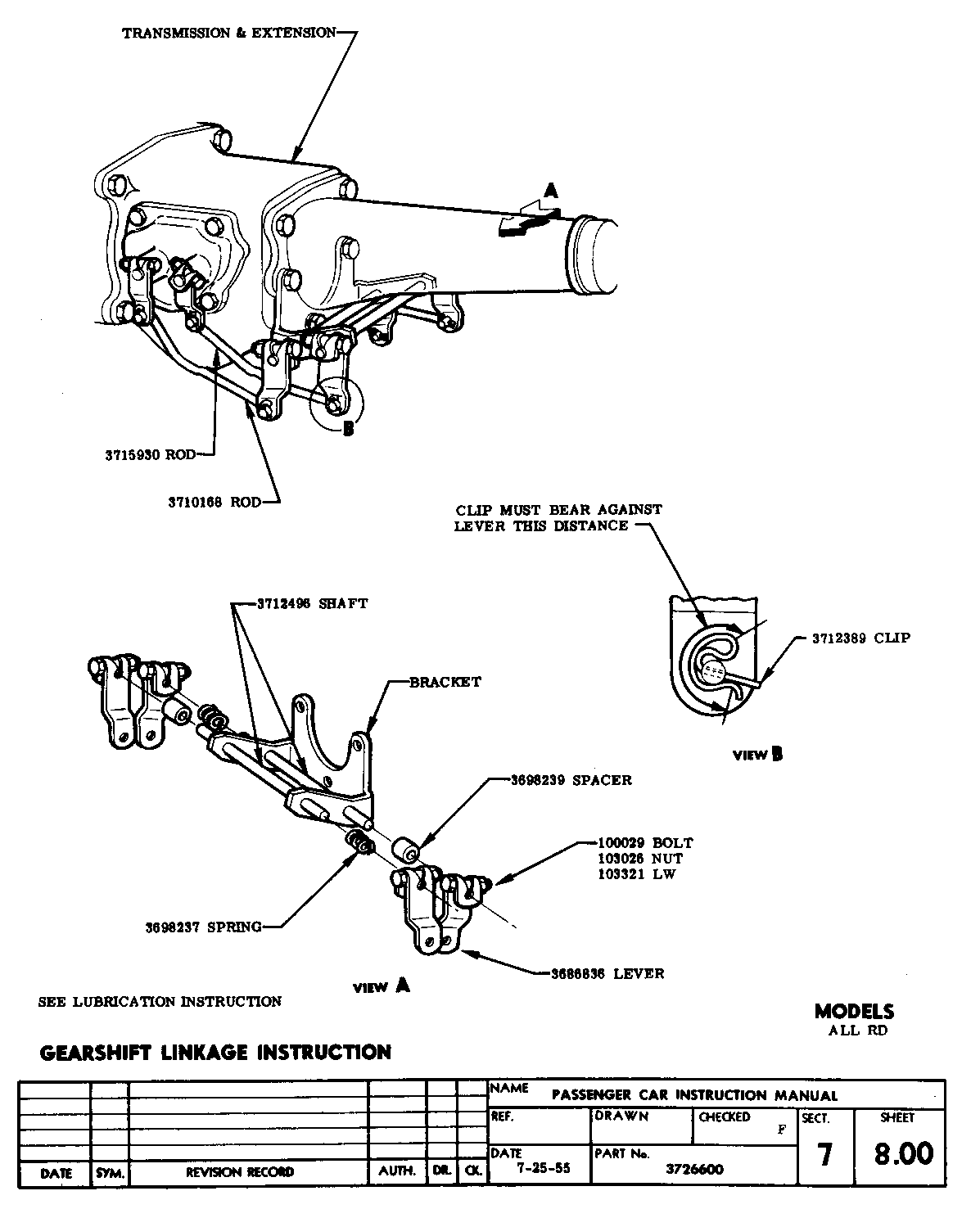

Transmission Control Linkage (Right Drive) Sheet 8.00

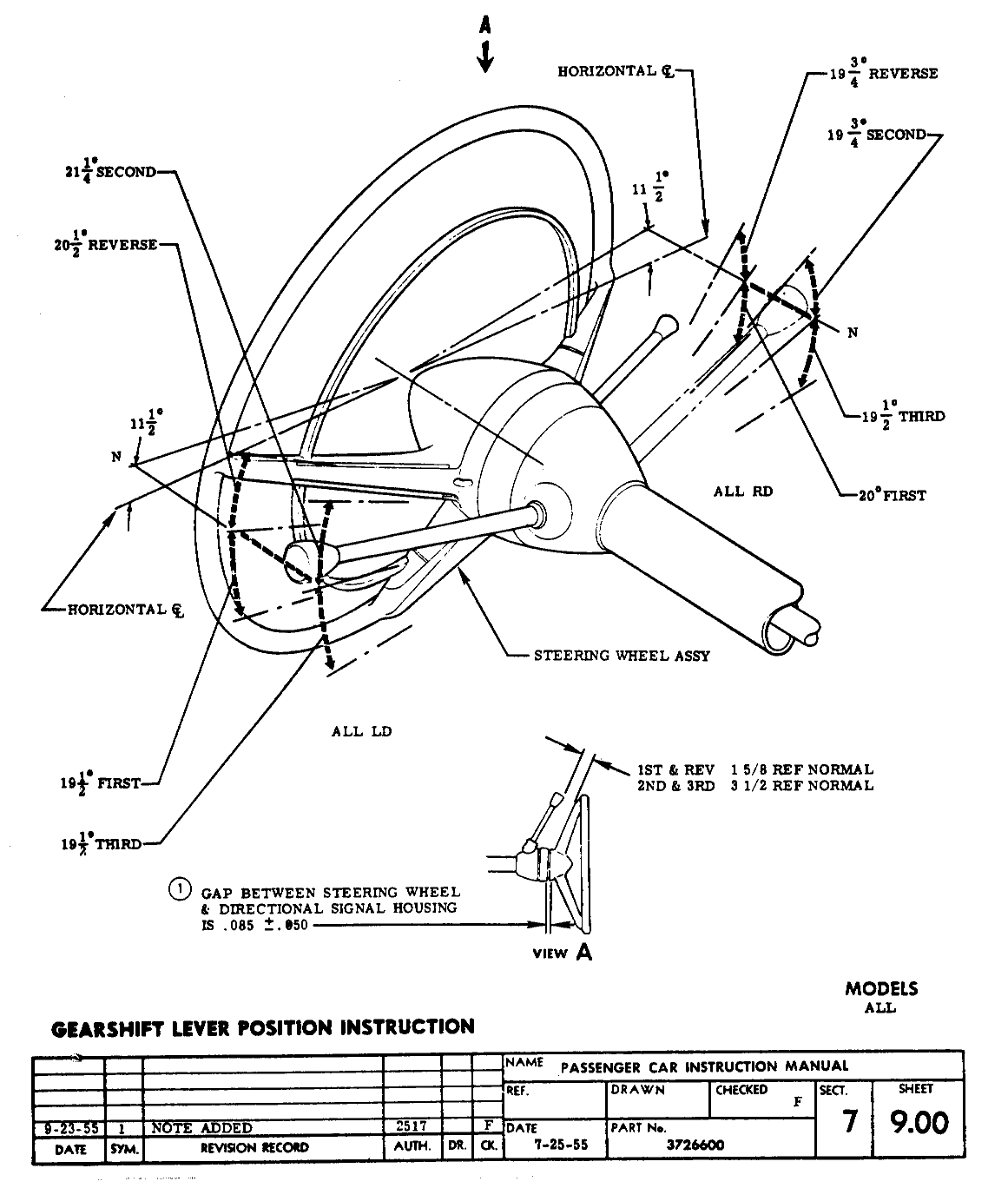

Gearshift Lever Position Sheet 9.00
Section 8 – Fuel and Exhaust Instruction

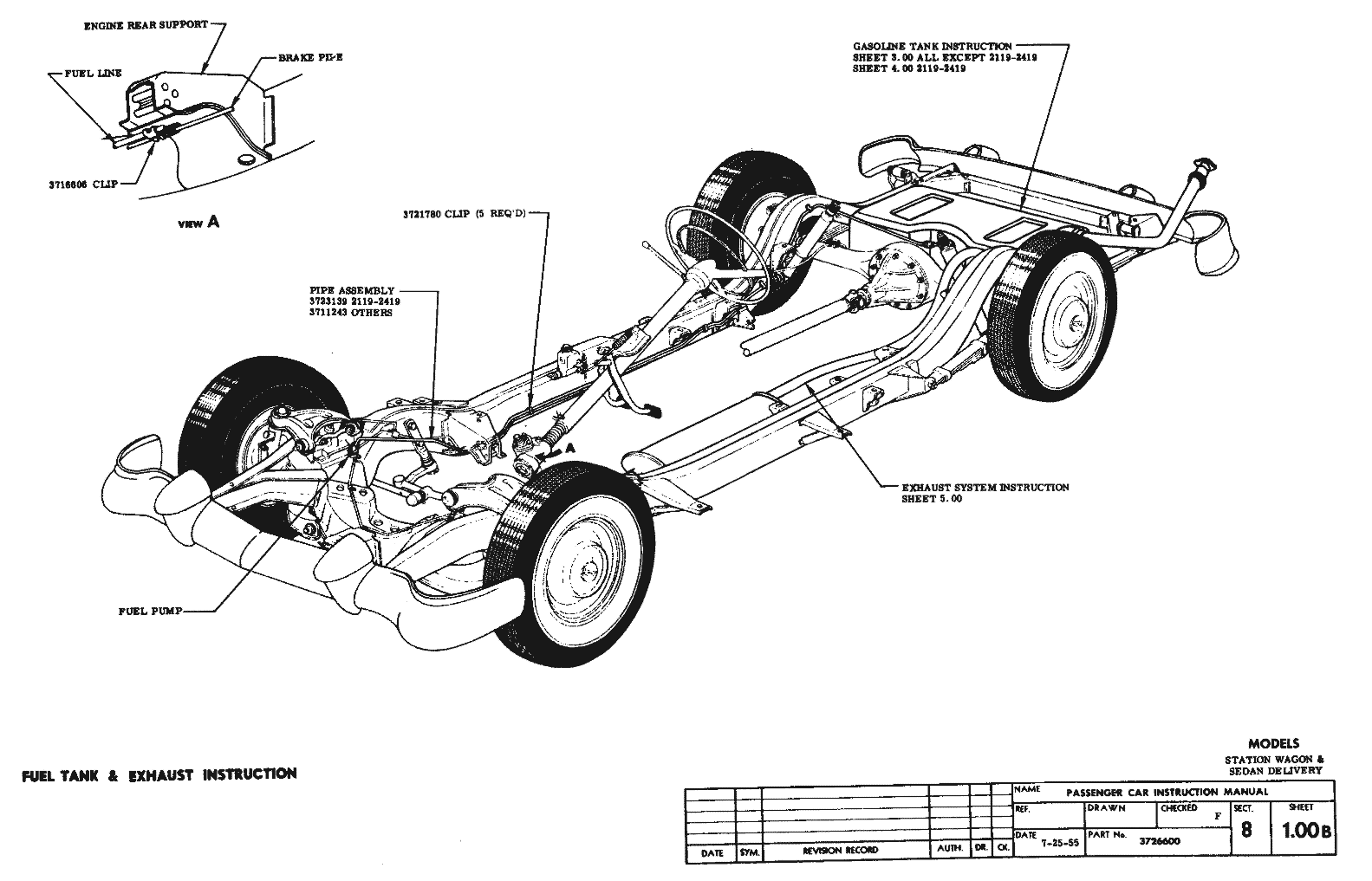

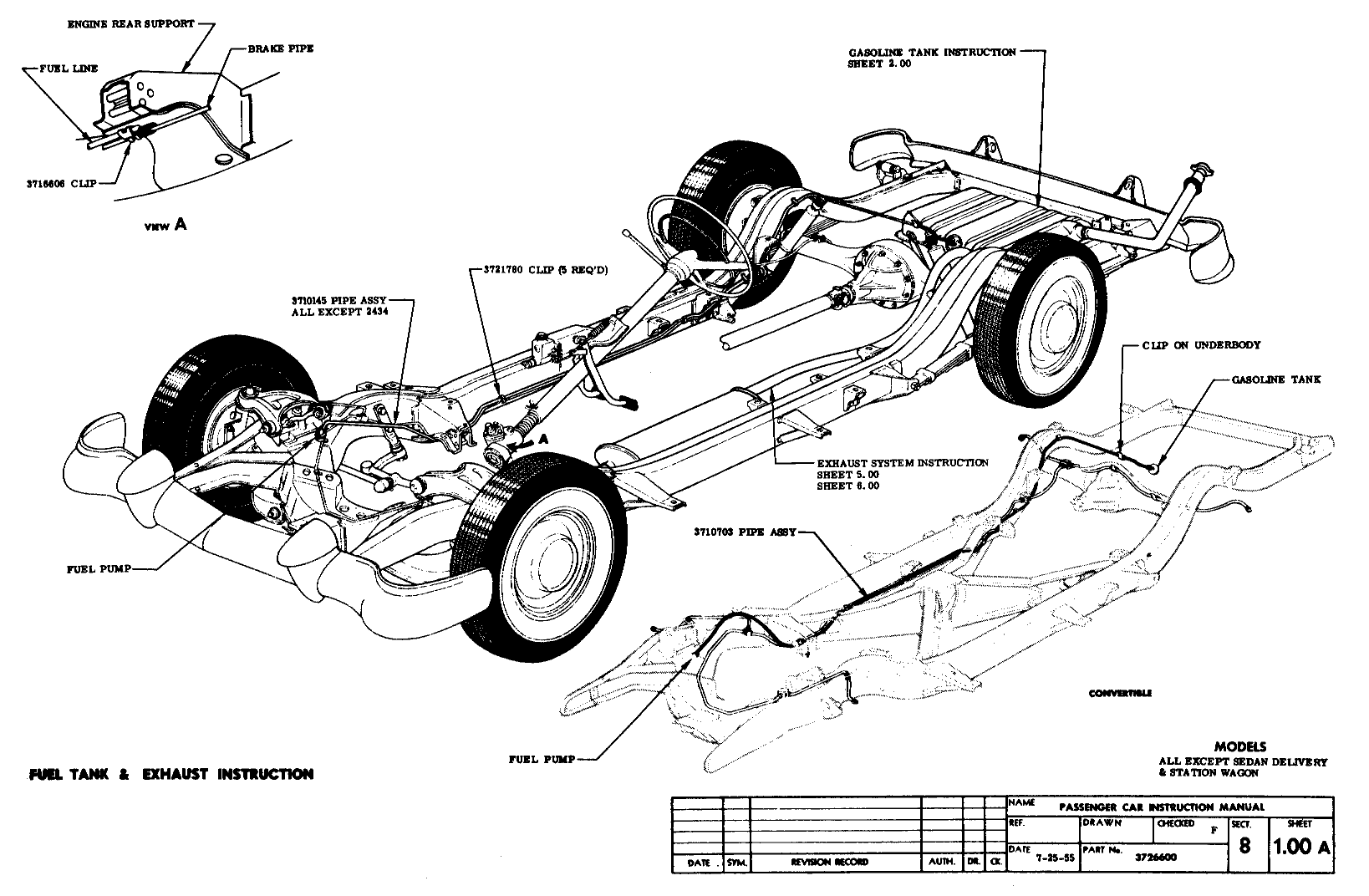

Fuel Tank & Exhaust (Except Sedan Delivery & Station Wagon) Sheet 1.00A
Fuel Tank & Exhaust (Sedan Delivery & Station Wagon) Sheet 1.00B

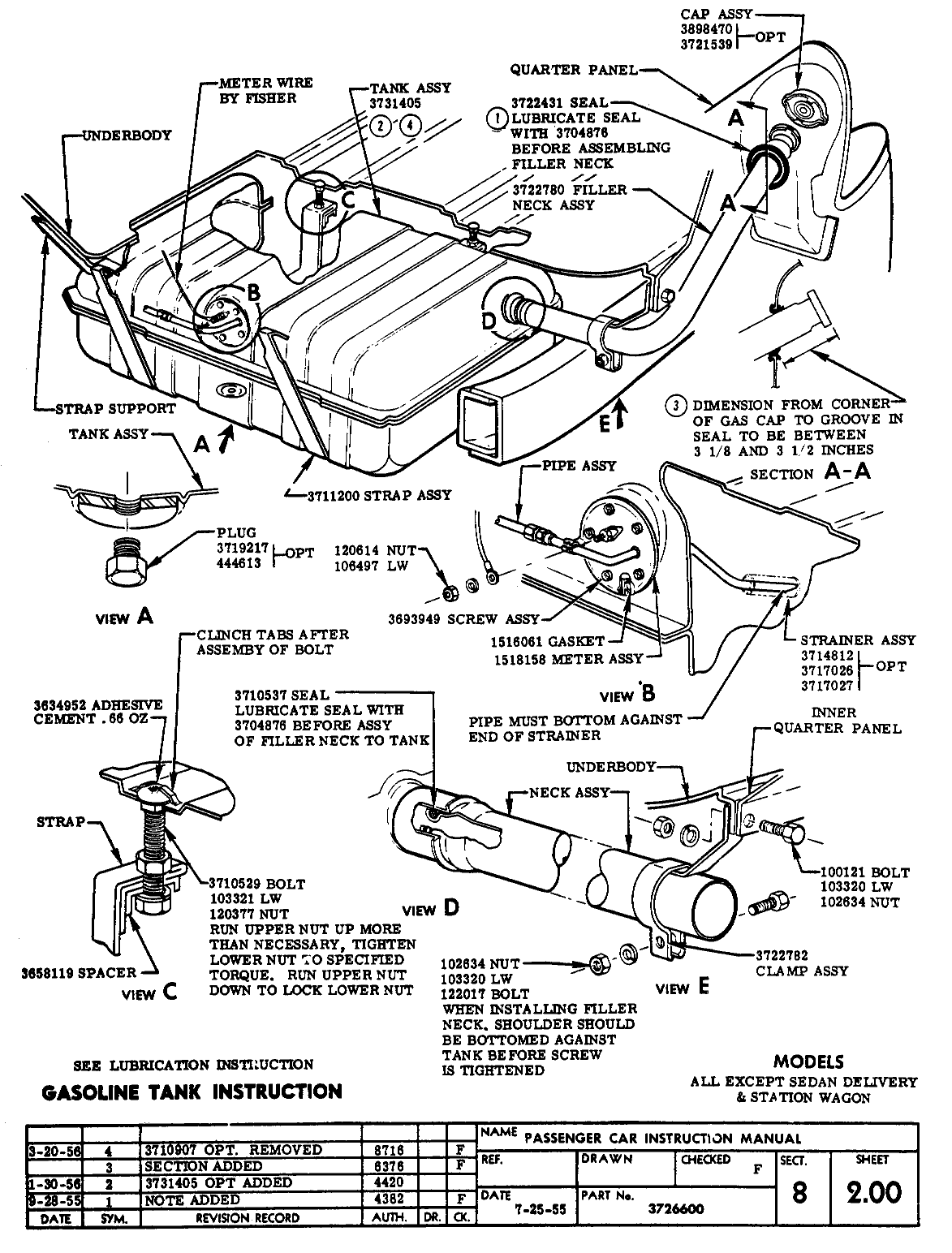

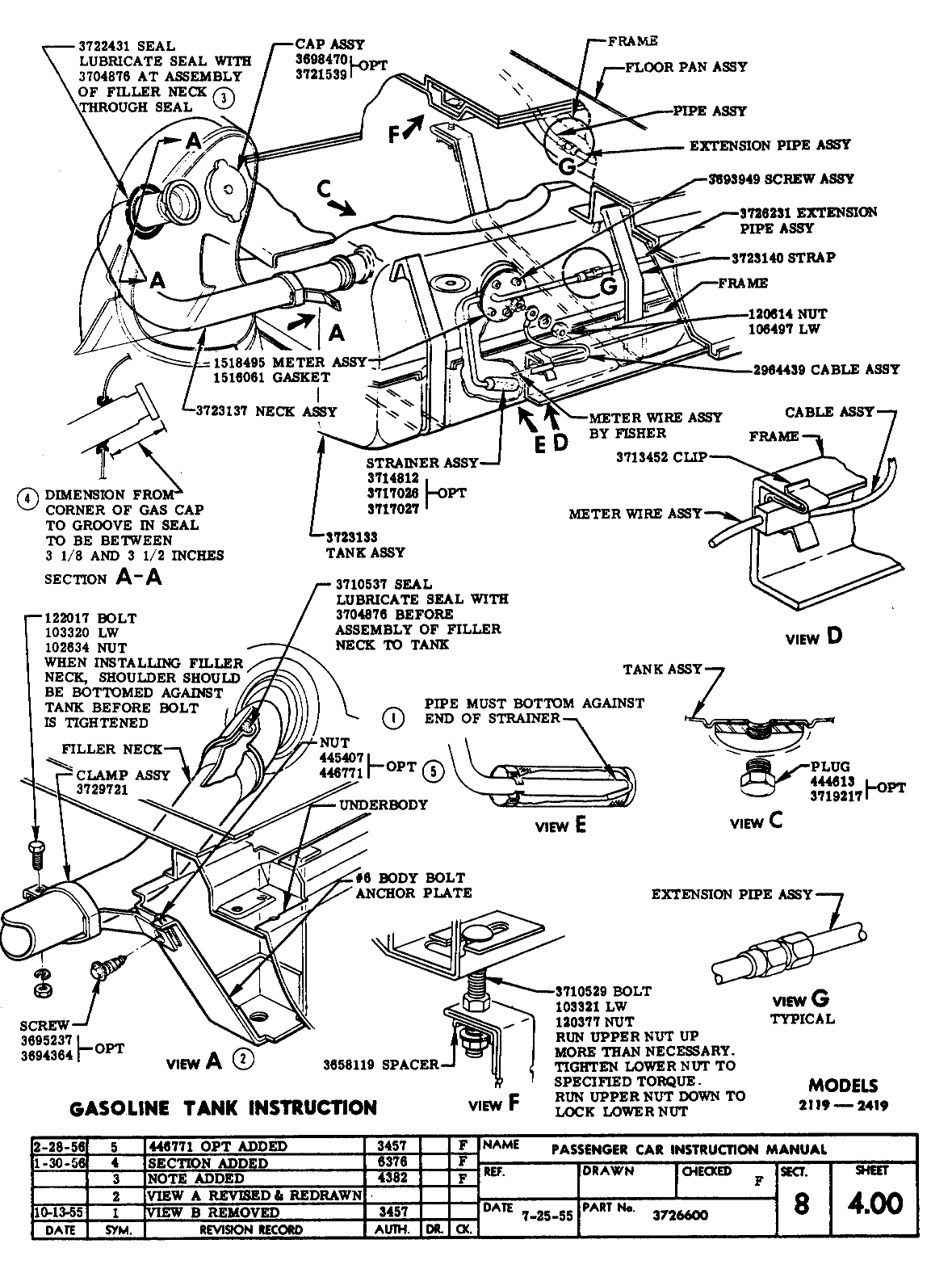

Gasoline Tank (Except Sedan Delivery & Station Wagon) Sheet 2.00

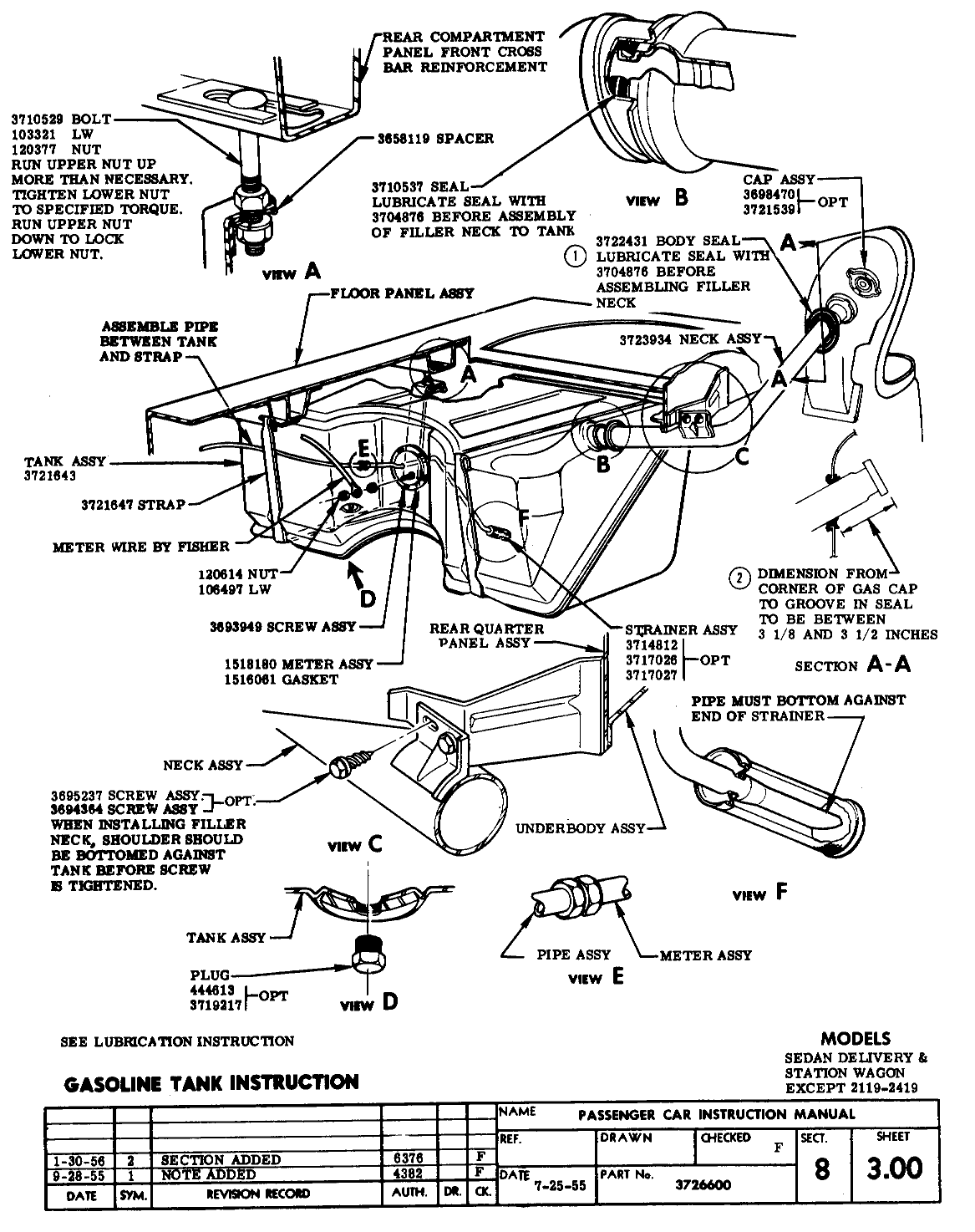

Gasoline Tank (Sedan Delivery & Station Wagon) Sheet 3.00
Exhaust System (2119-2419) Sheet 4.00

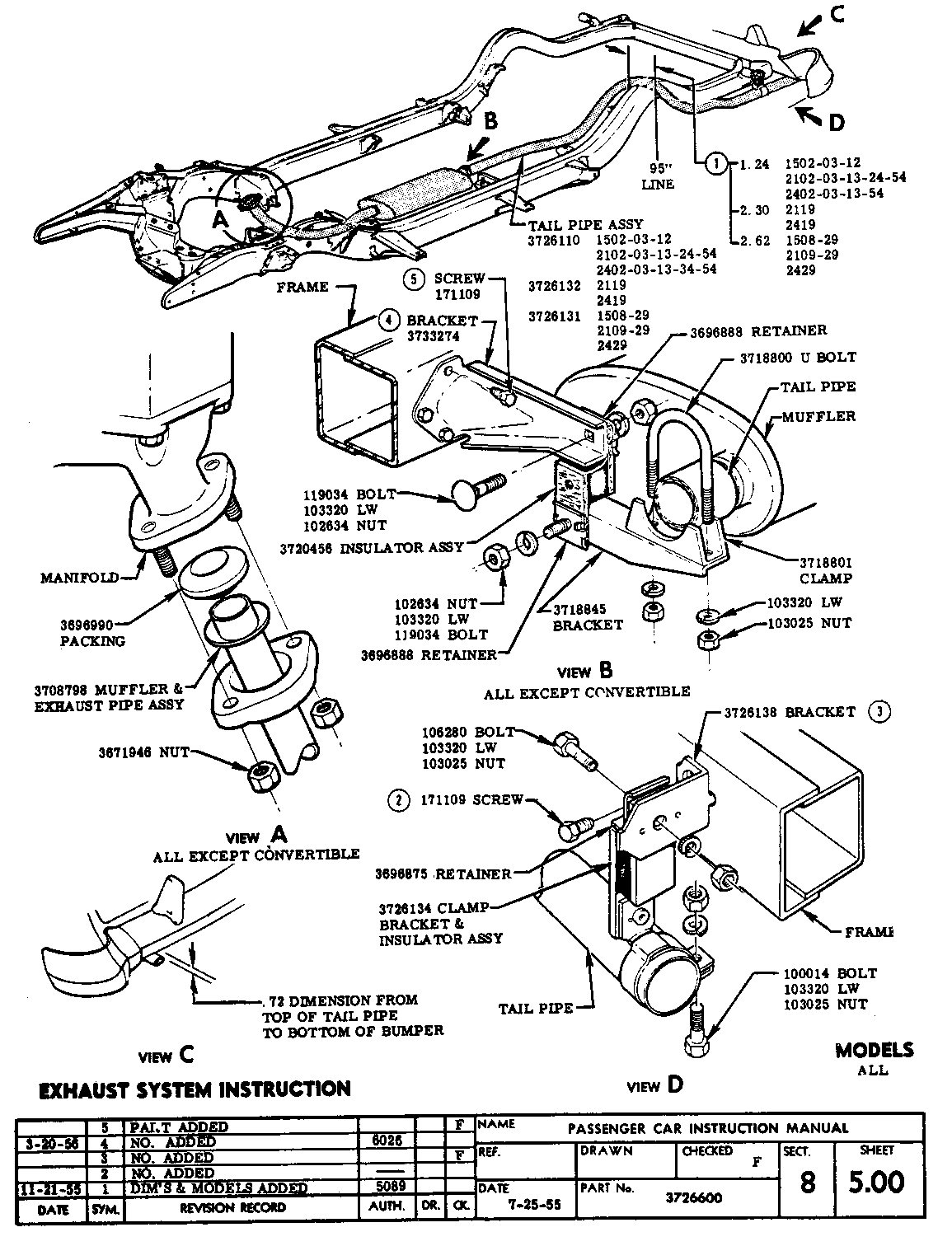

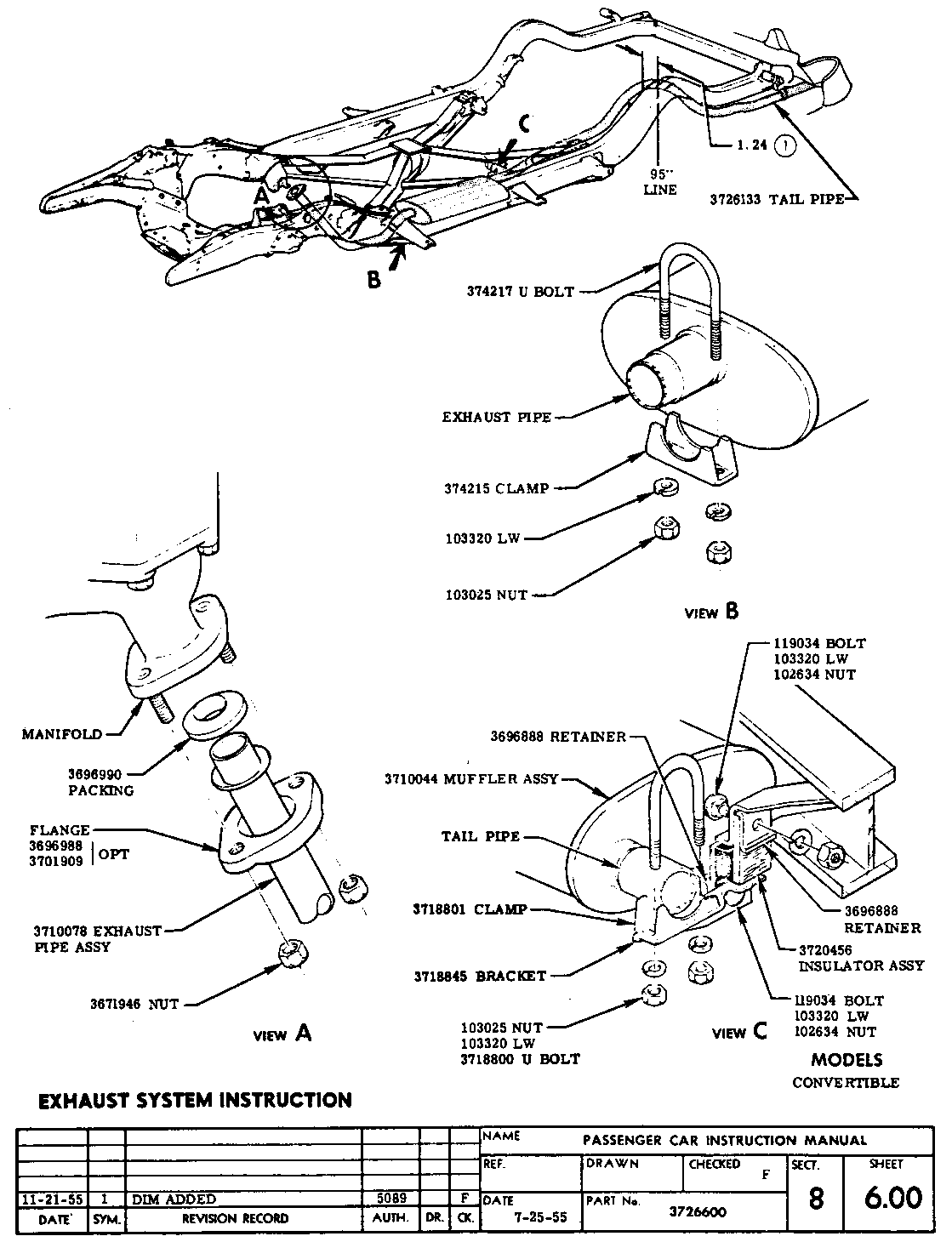

Exhaust System (Convertible) Sheet 6.00
Section 9 – Steering Mechanism Instruction

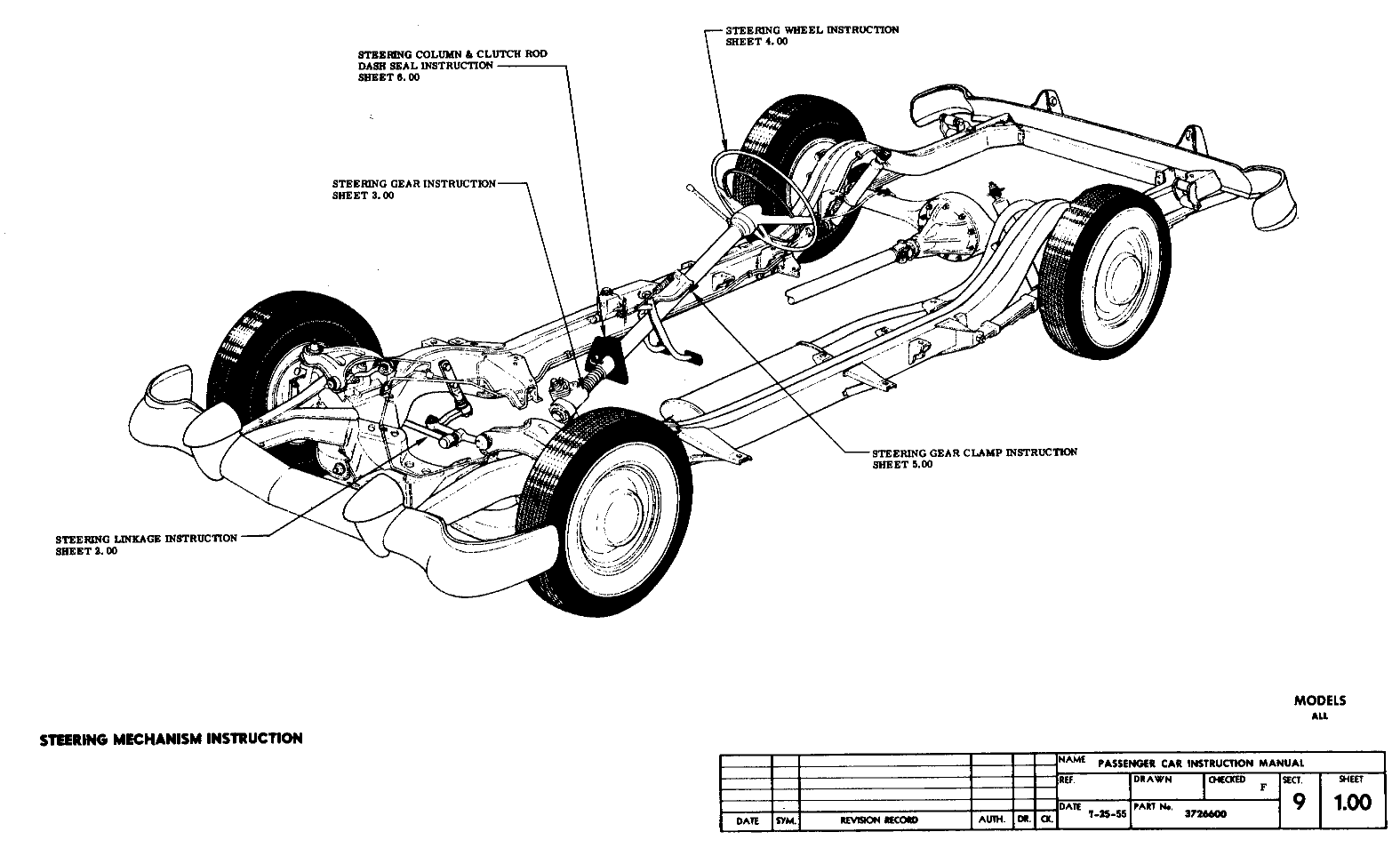

Steering Mechanism Index Sheet 1.00

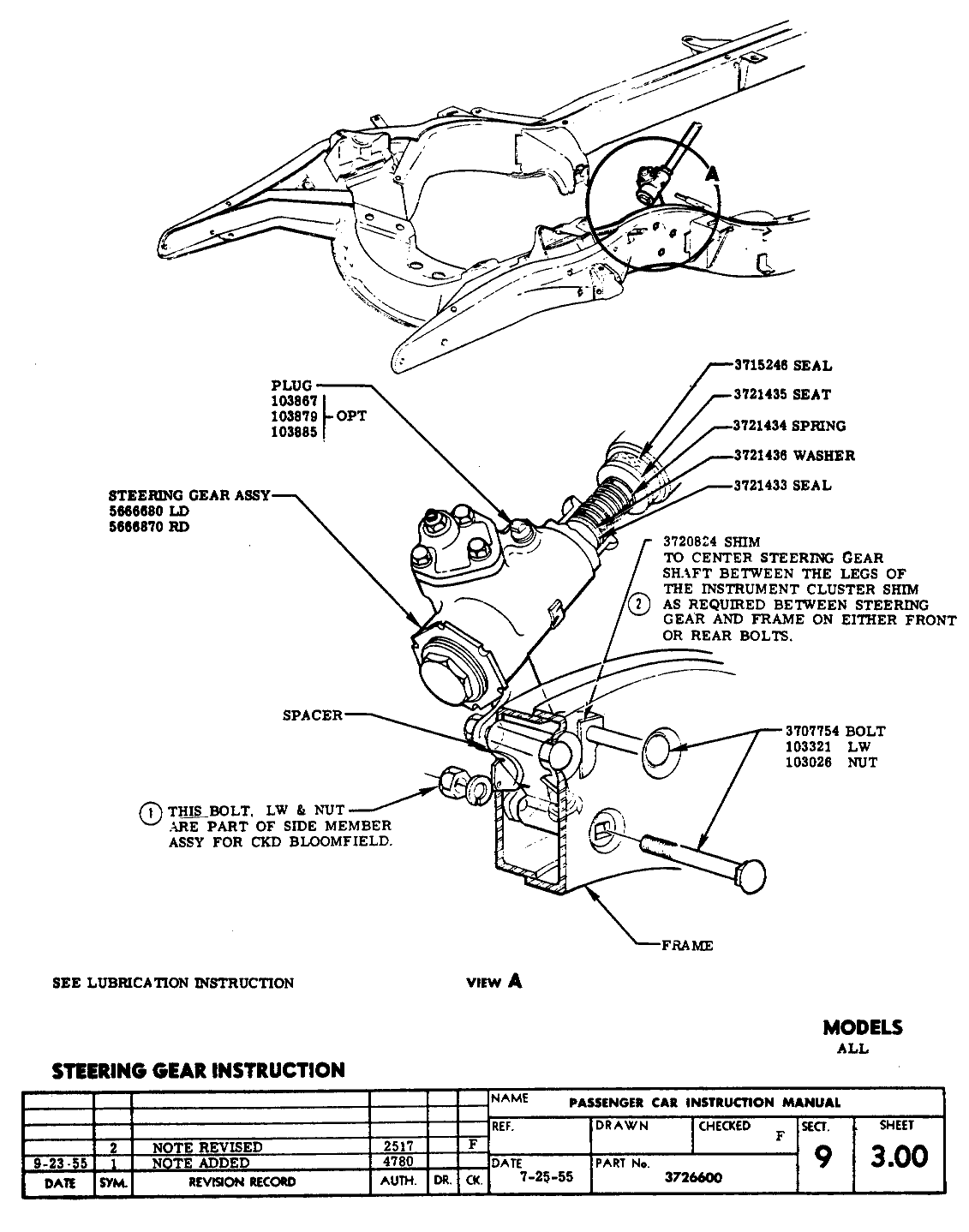

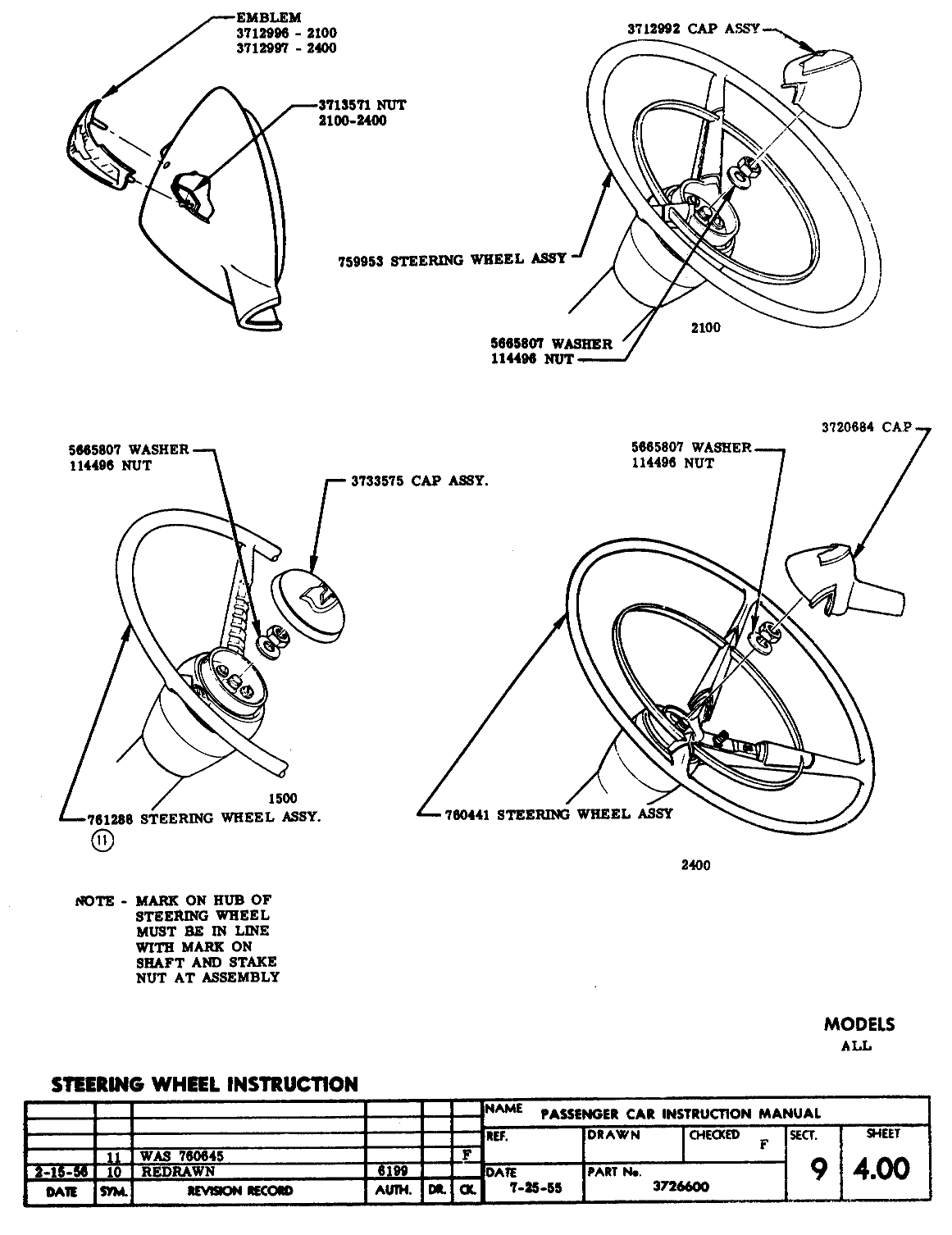

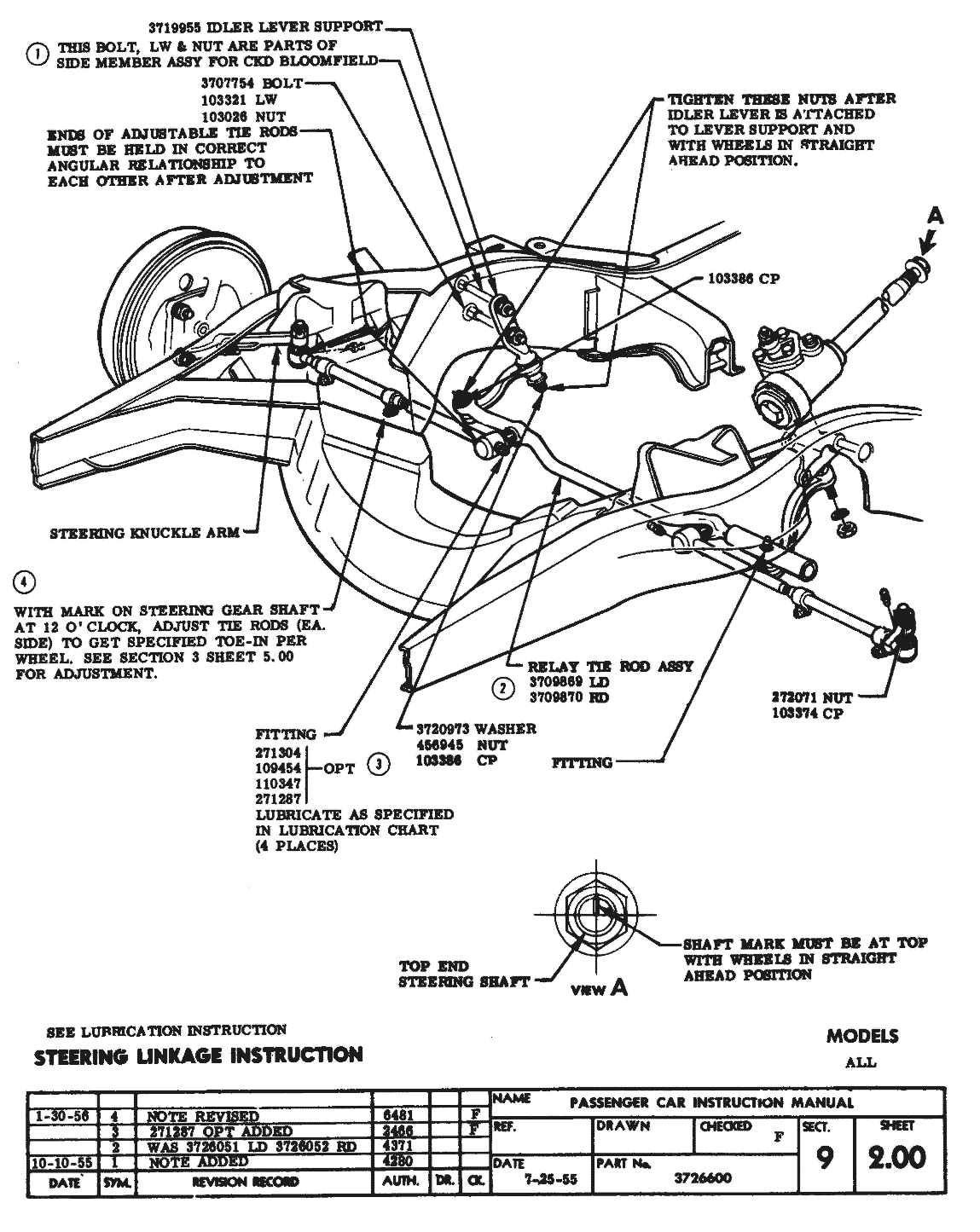

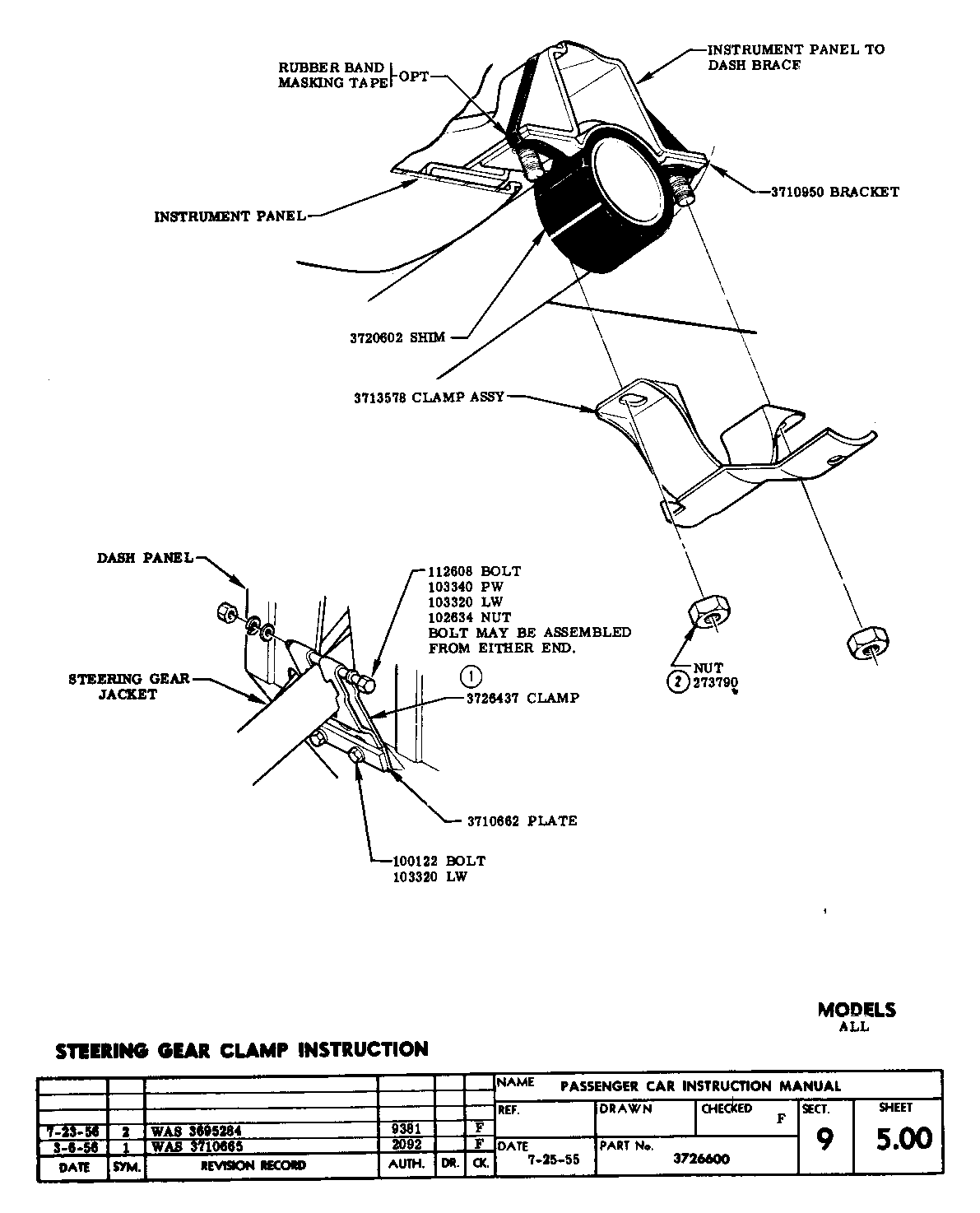

Steering Gear Clamp Sheet 5.00

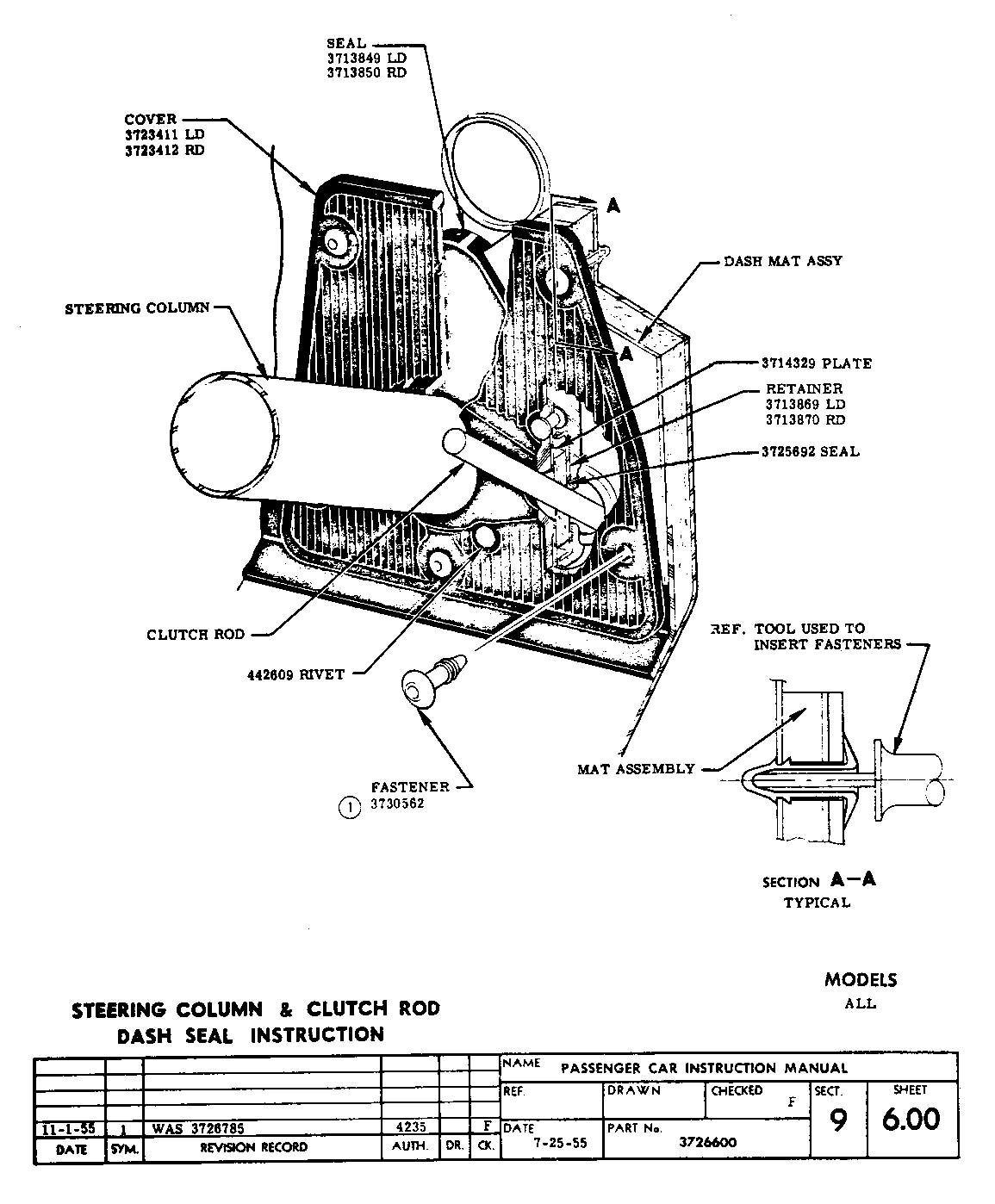

Steering Column & Clutch Rod Dash Seal Sheet 6.00

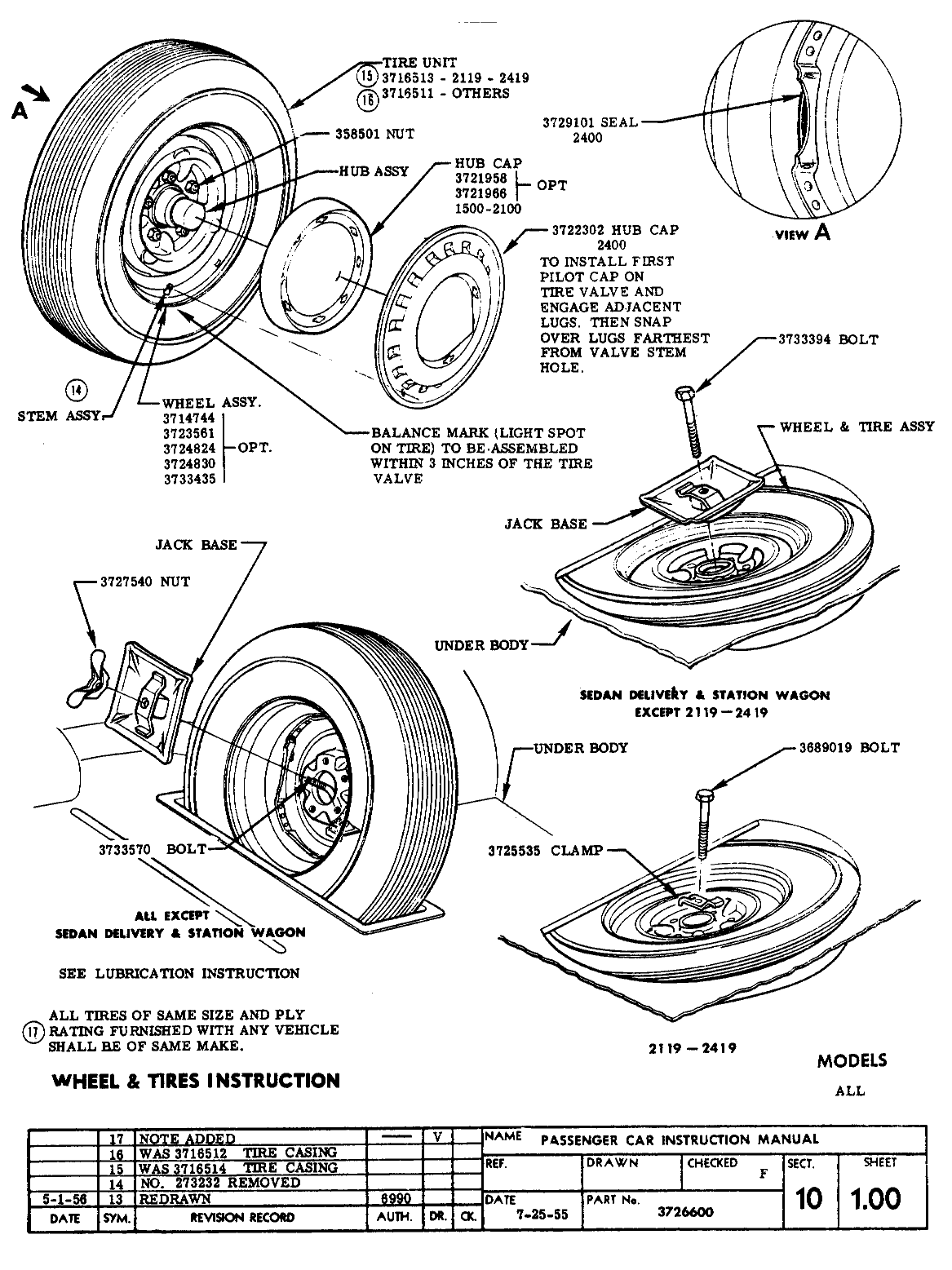

Section 10 – Tire and Wheel Instruction
Section 11 – Front End Sheet Metal Instruction

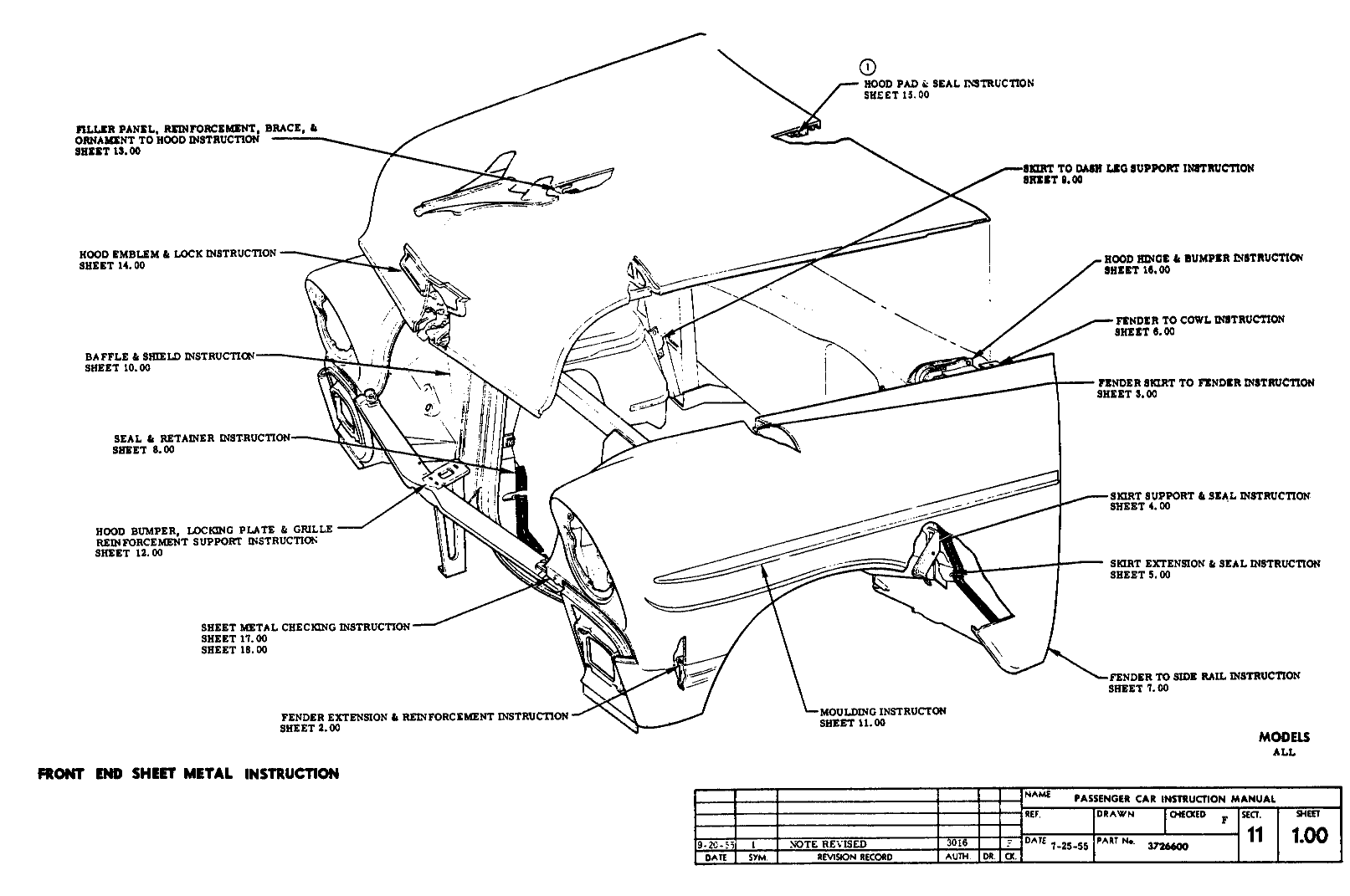

Front End Sheet Metal Index Sheet 1.00

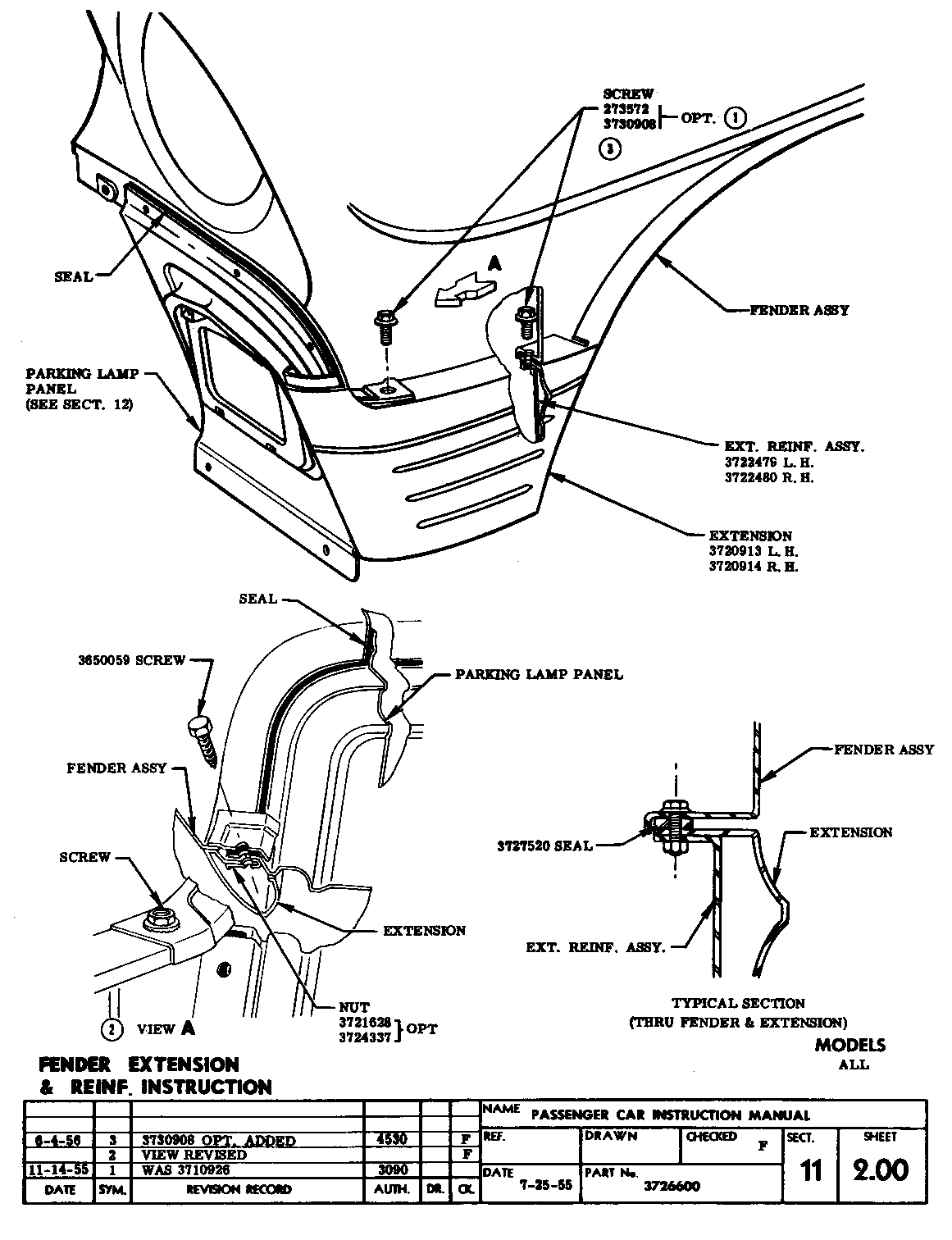

Extension & Reinforcement Sheet 2.00

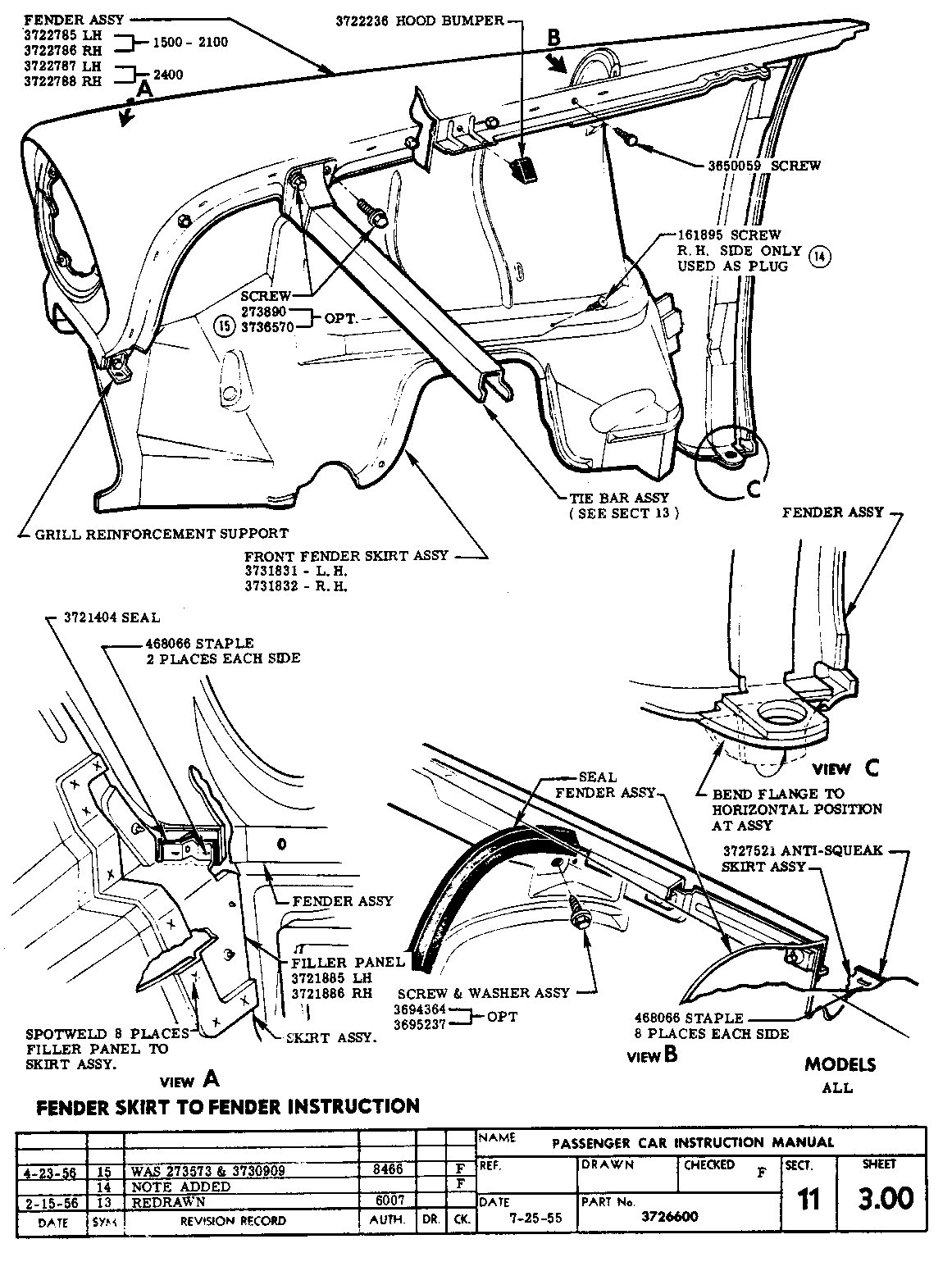

Fender Skirt to Fender Sheet 3.00

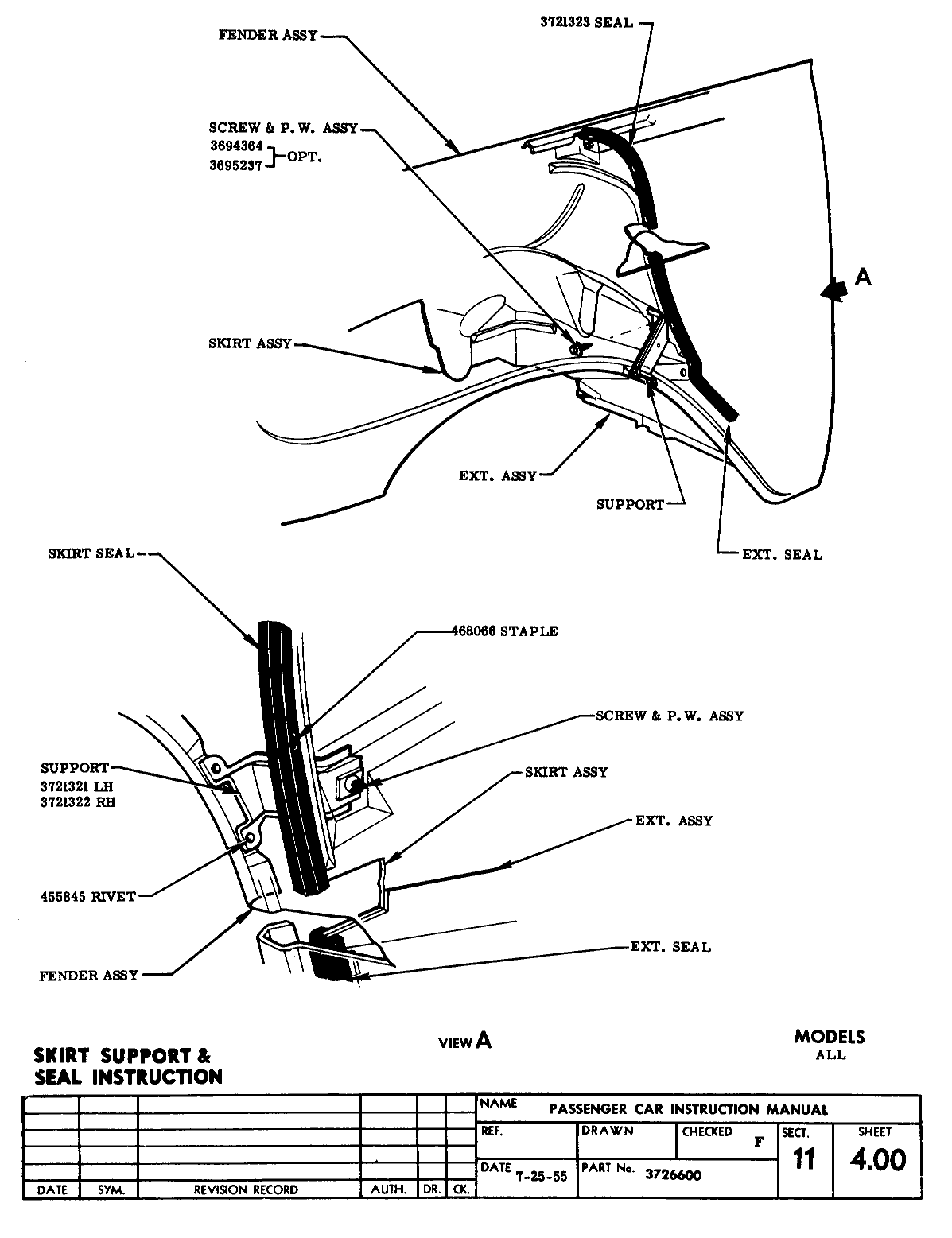

Skirt Support & Seal Sheet 4.00

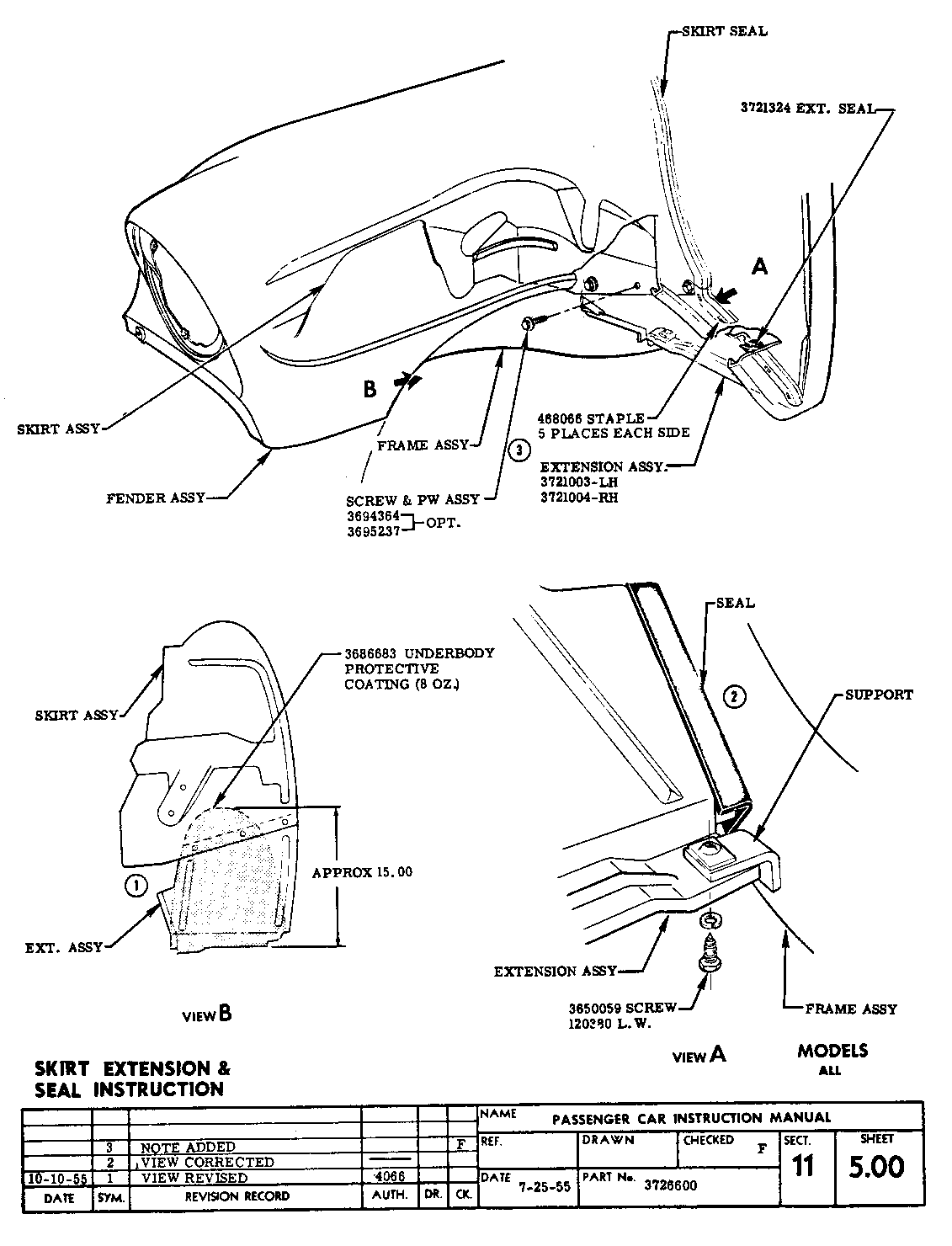

Skirt Extension & Seal Sheet 5.00

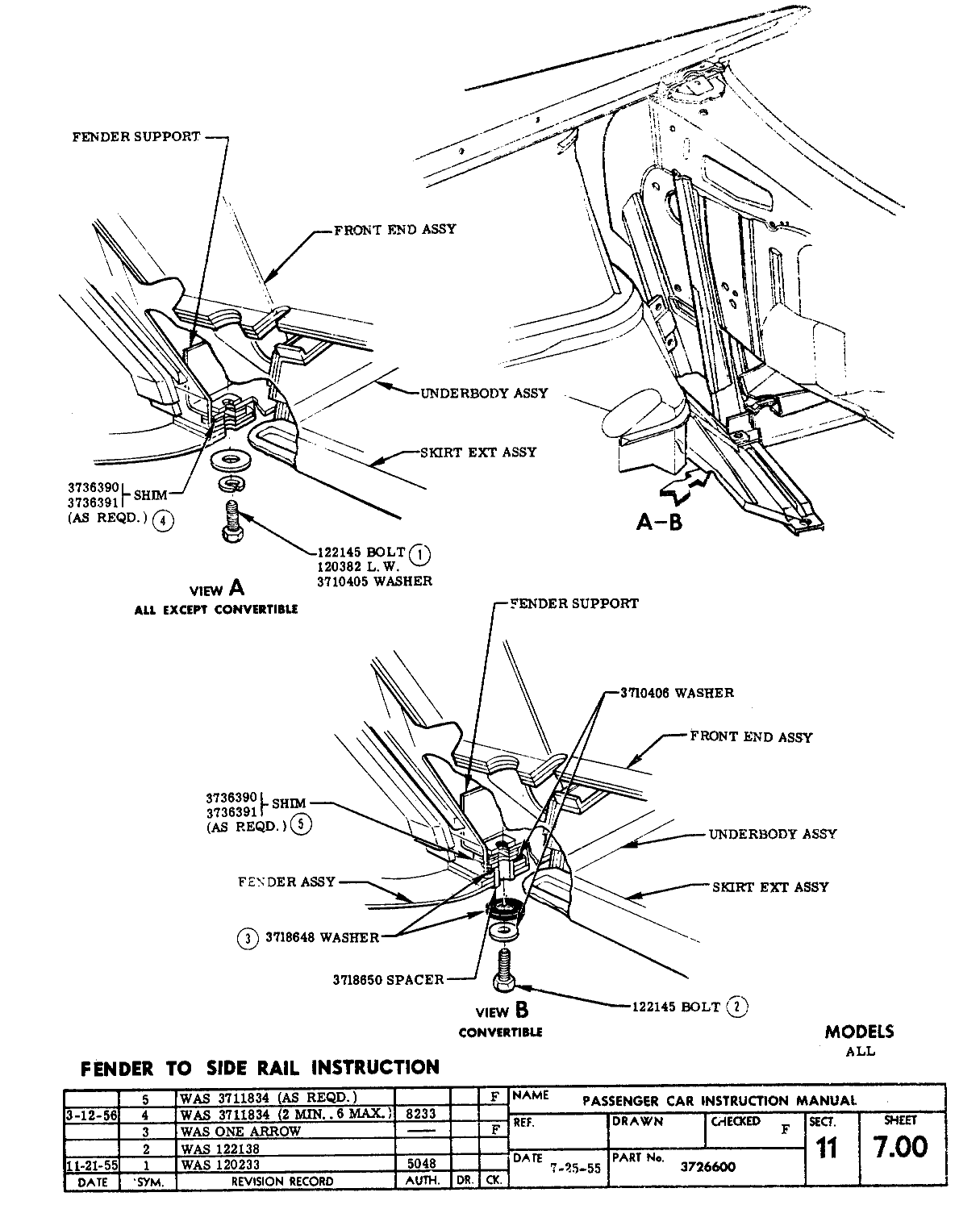

Fender To Side Rail Sheet 7.00

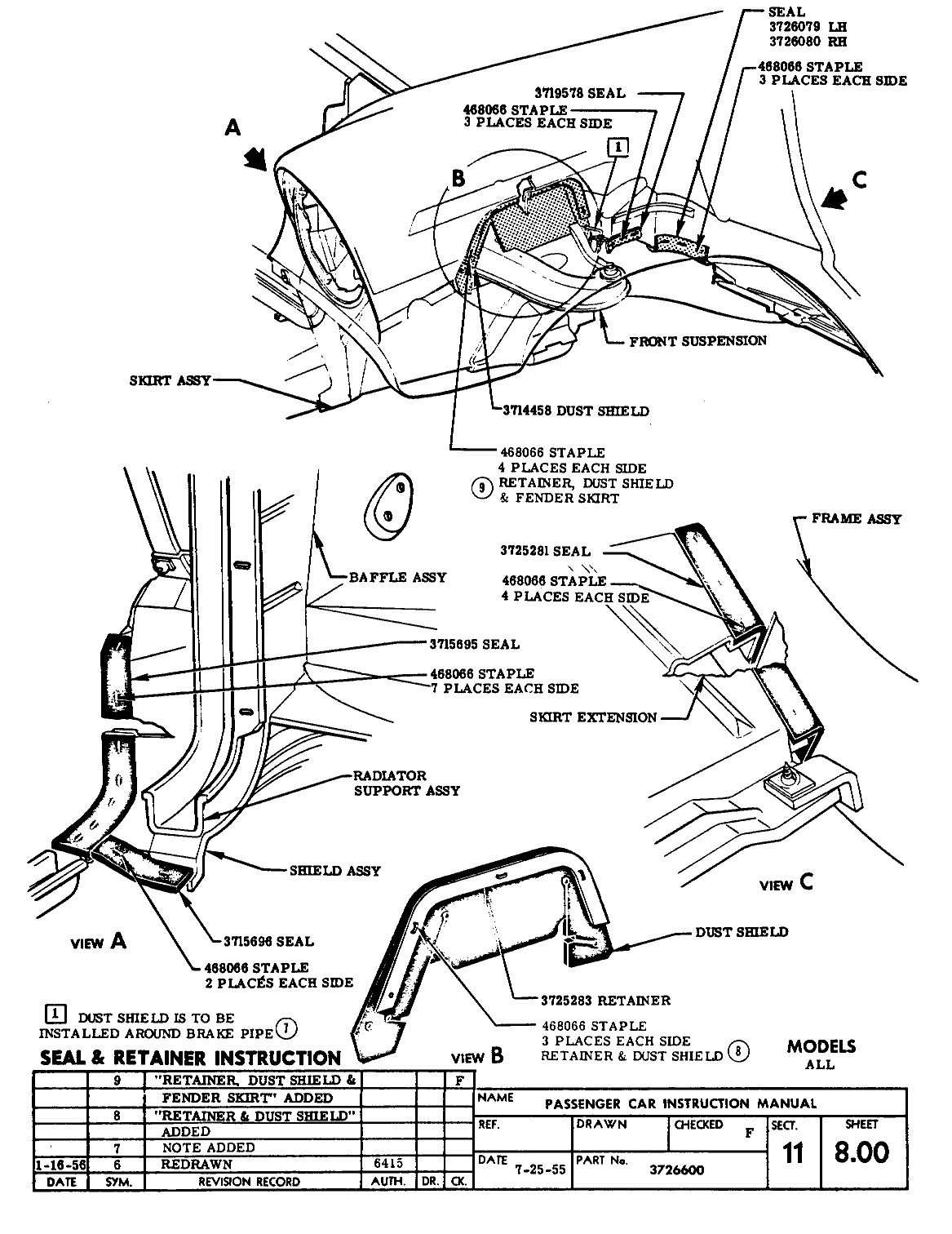

Seal A-Arm & Retainer Sheet 8.00

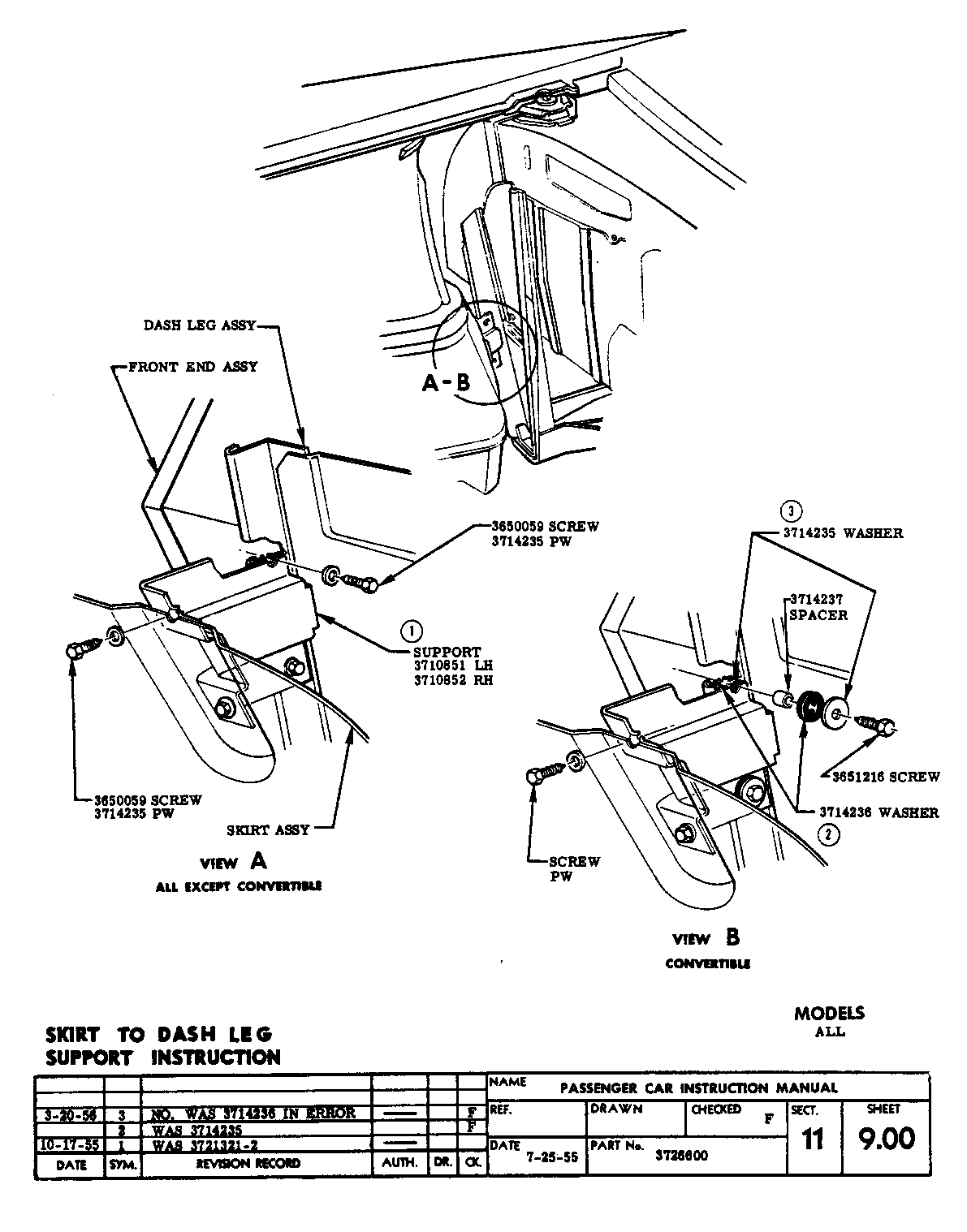

Skirt To Dash Leg Support Sheet 9.00

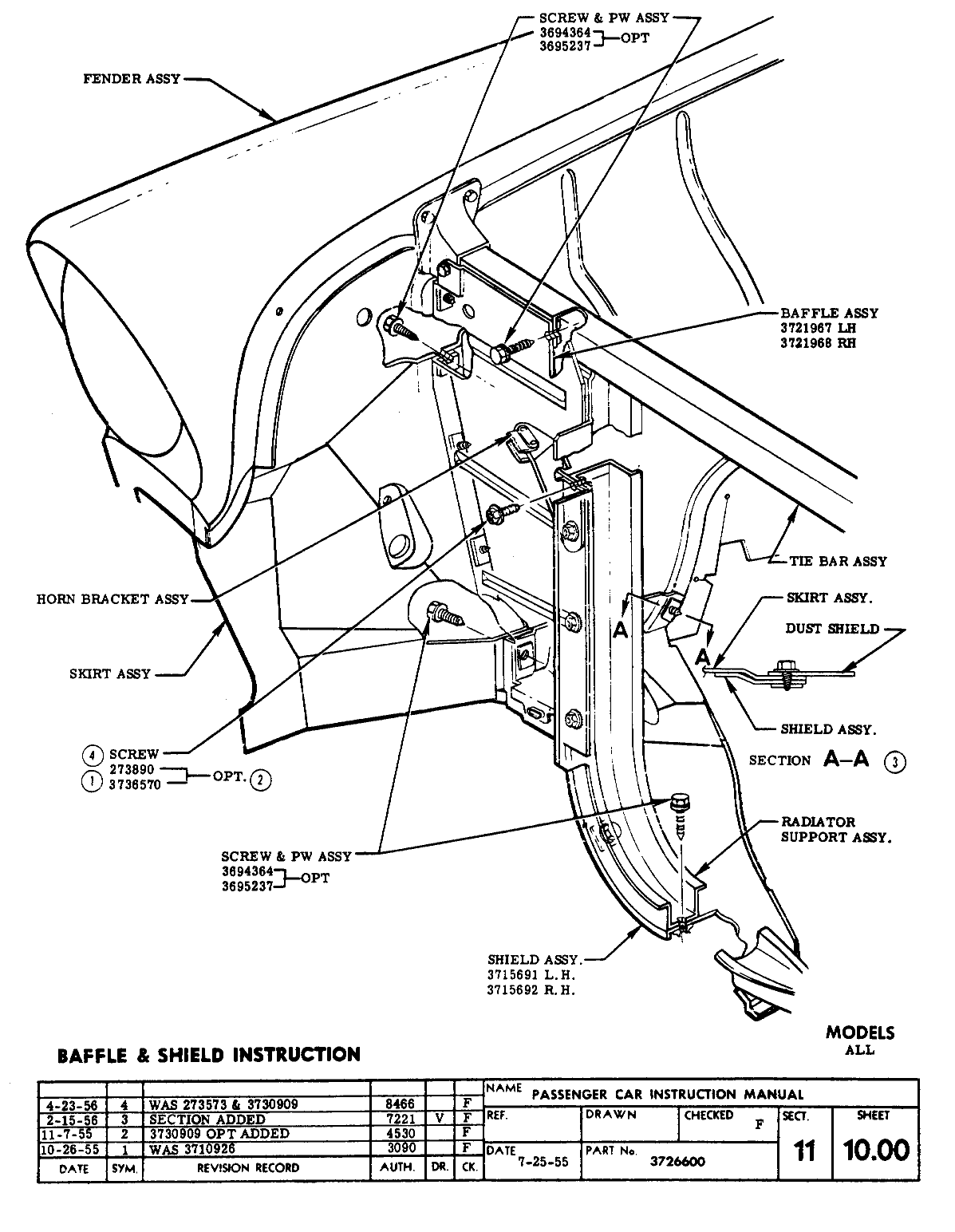

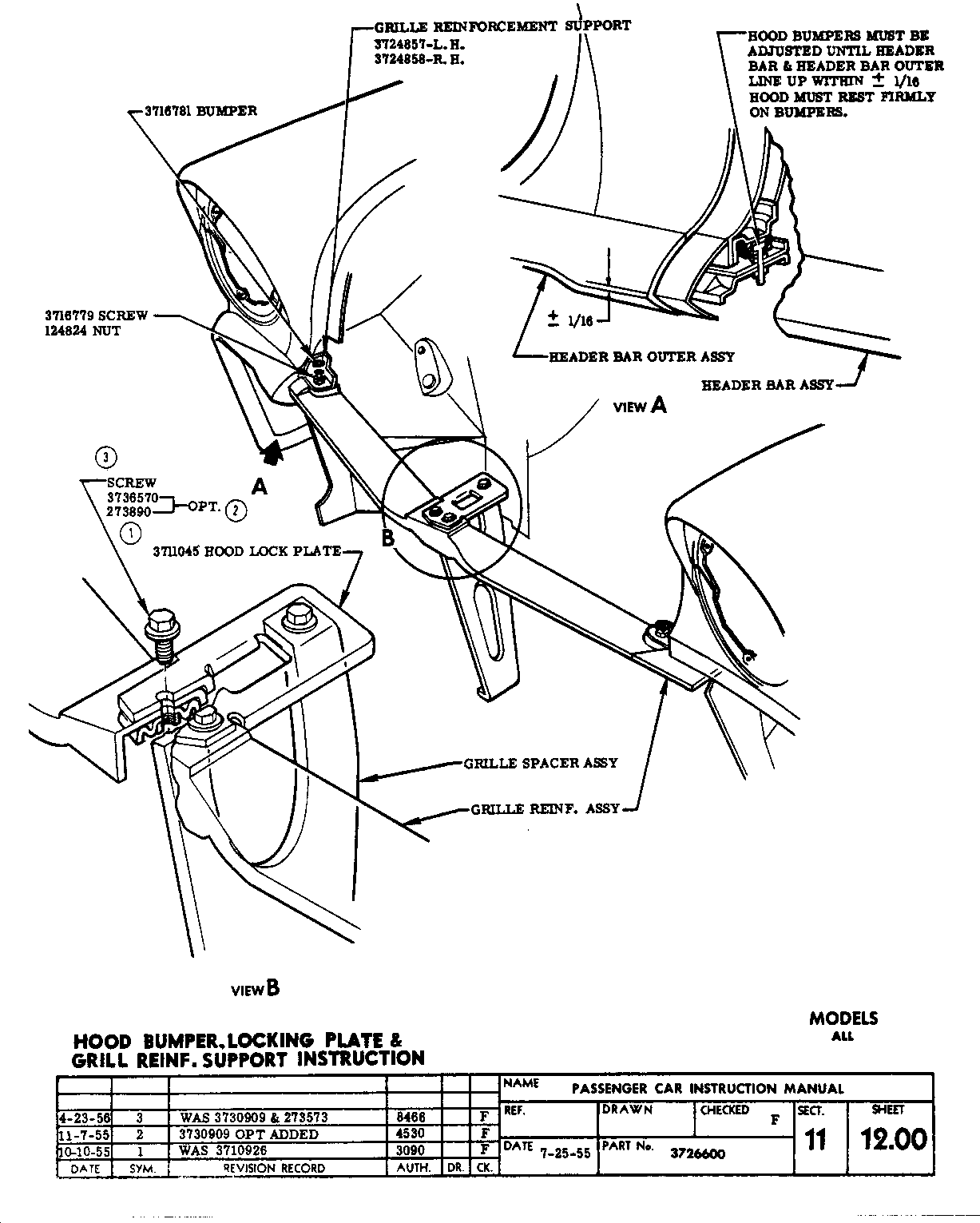

Grille Support, Spacer & Lock Plate Sheet 12.00

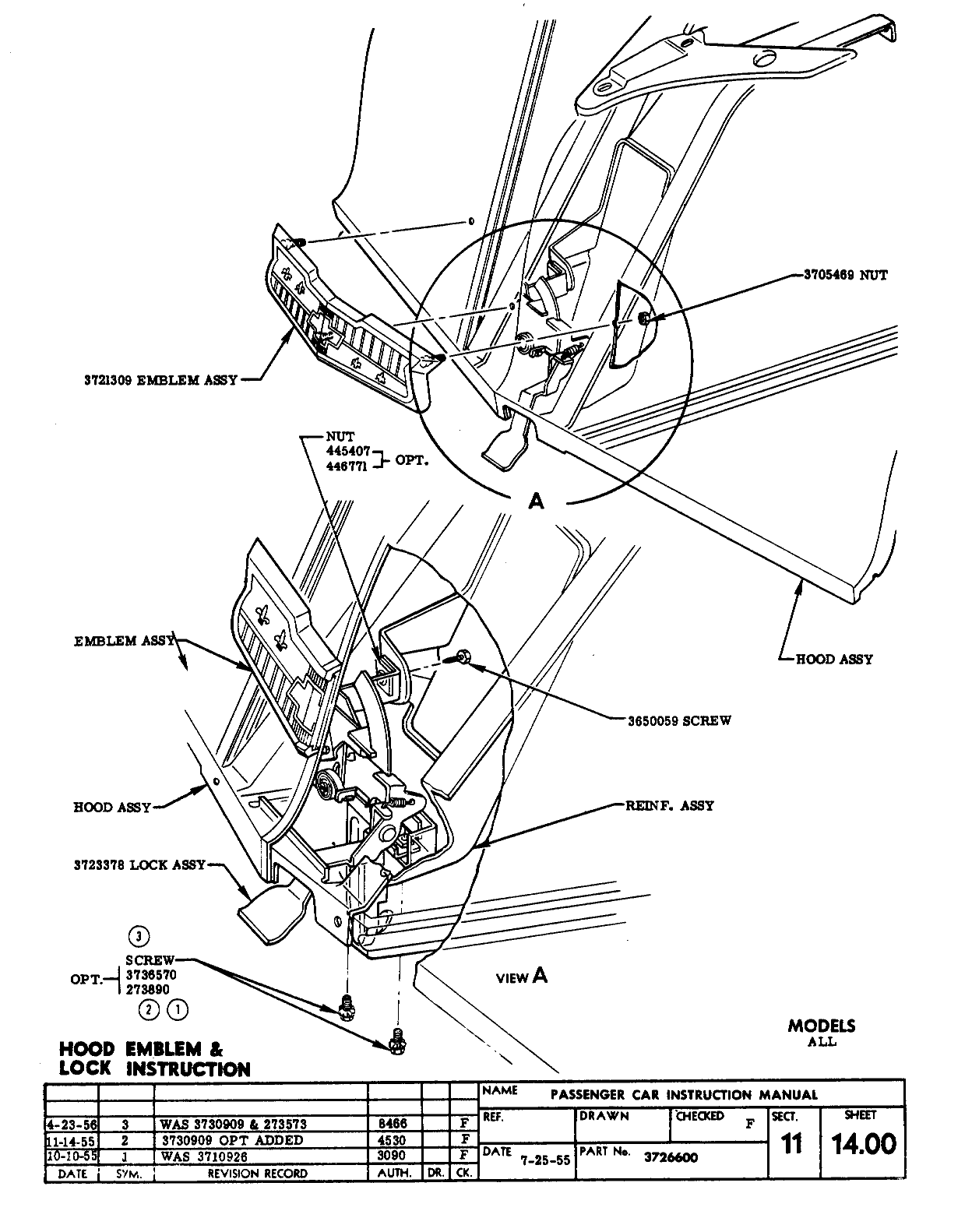

Hood Emblem & Lock Sheet 14.00

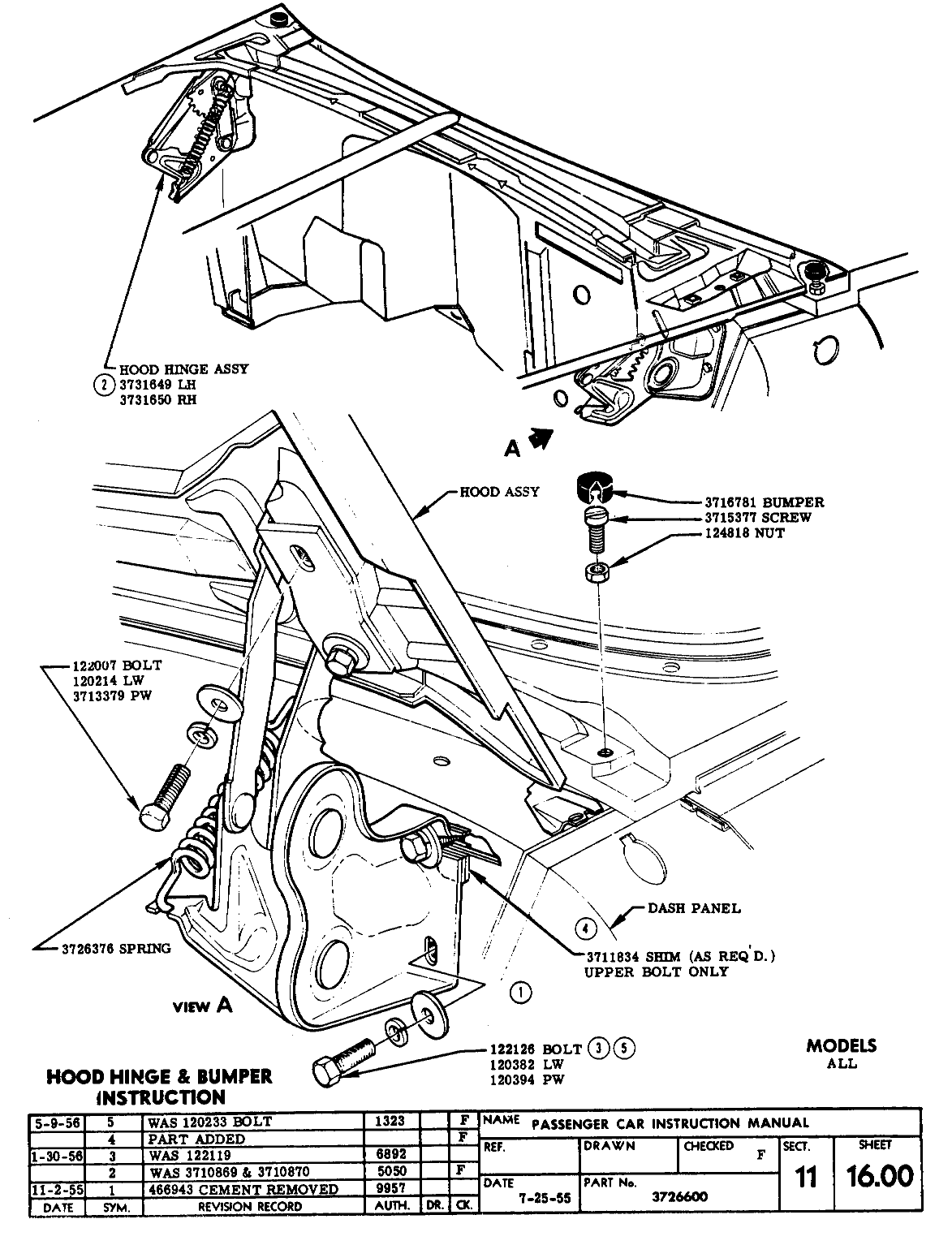

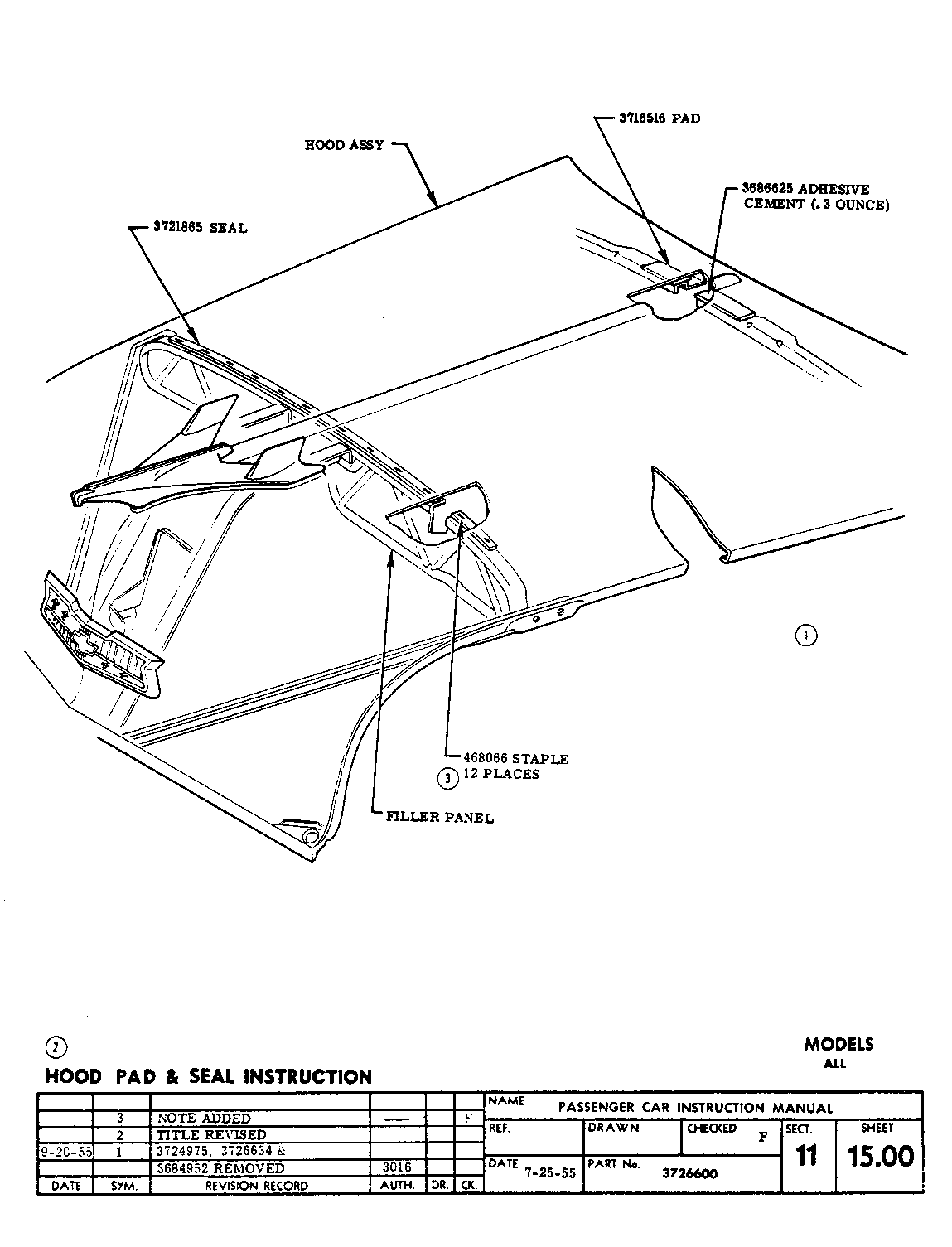

Hood Hinge & Bumper Sheet 16.00

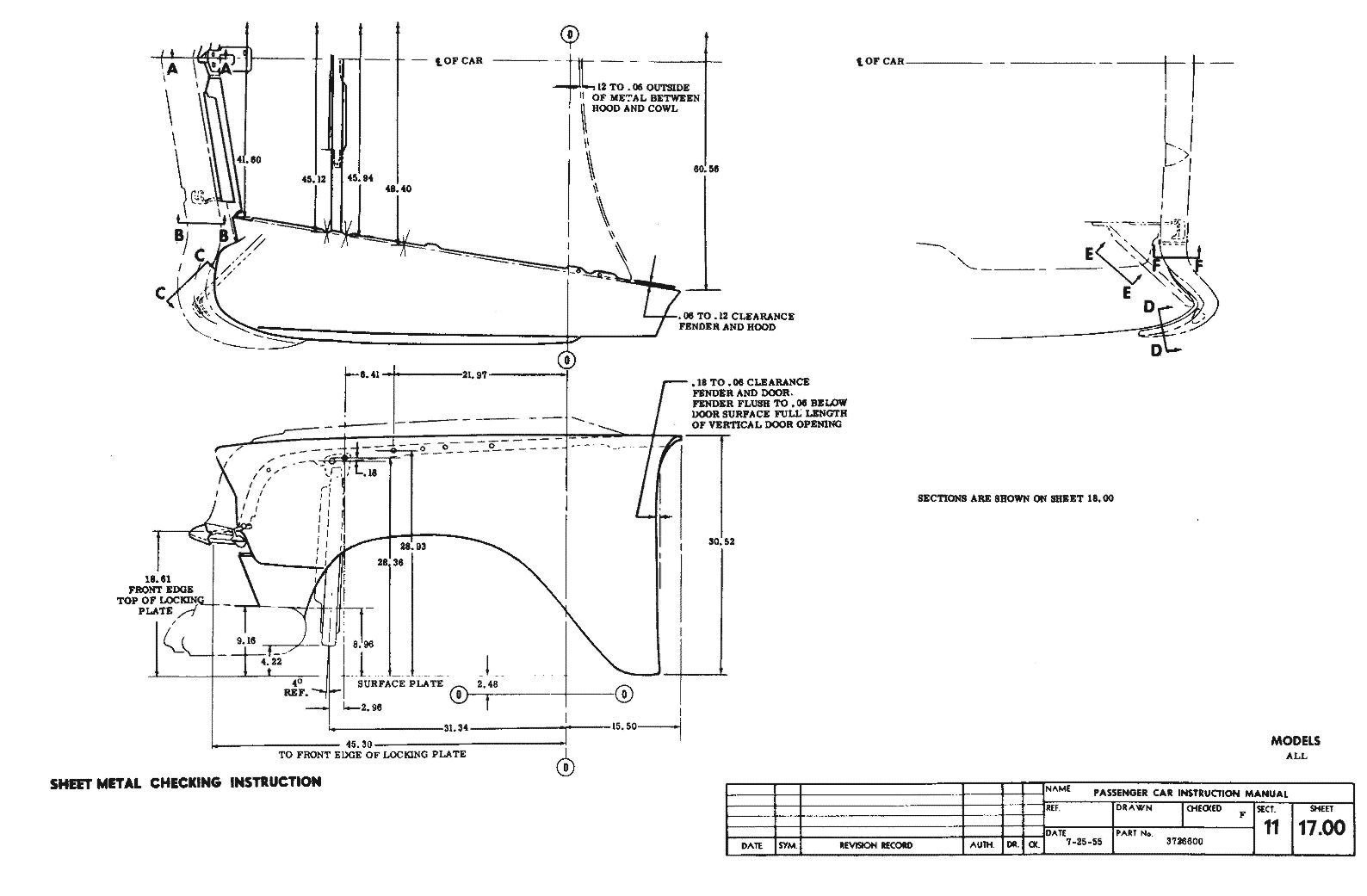

Sheet Metal Checking Sheet 17.00

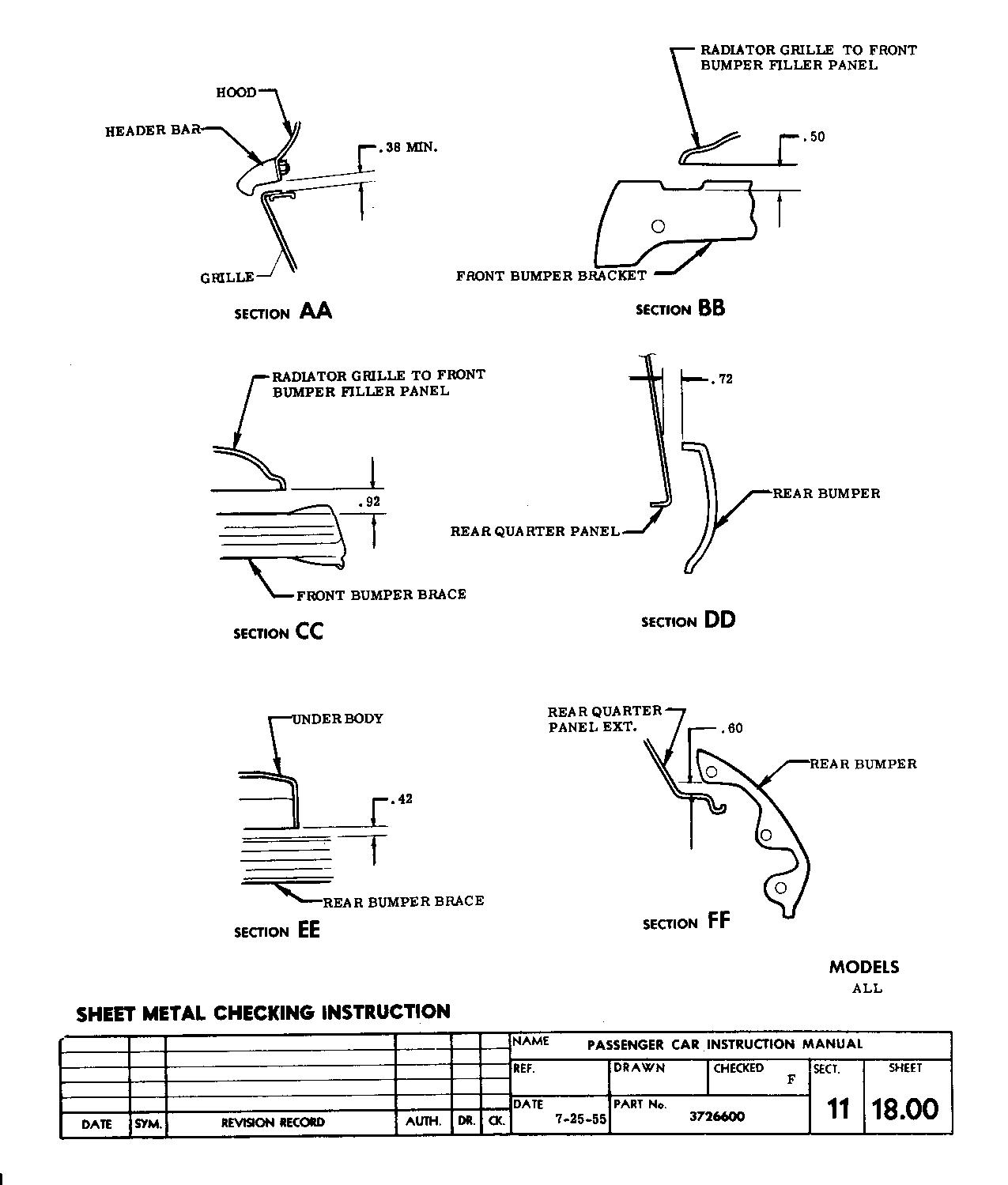

Sheet Metal Checking Sheet 18.00

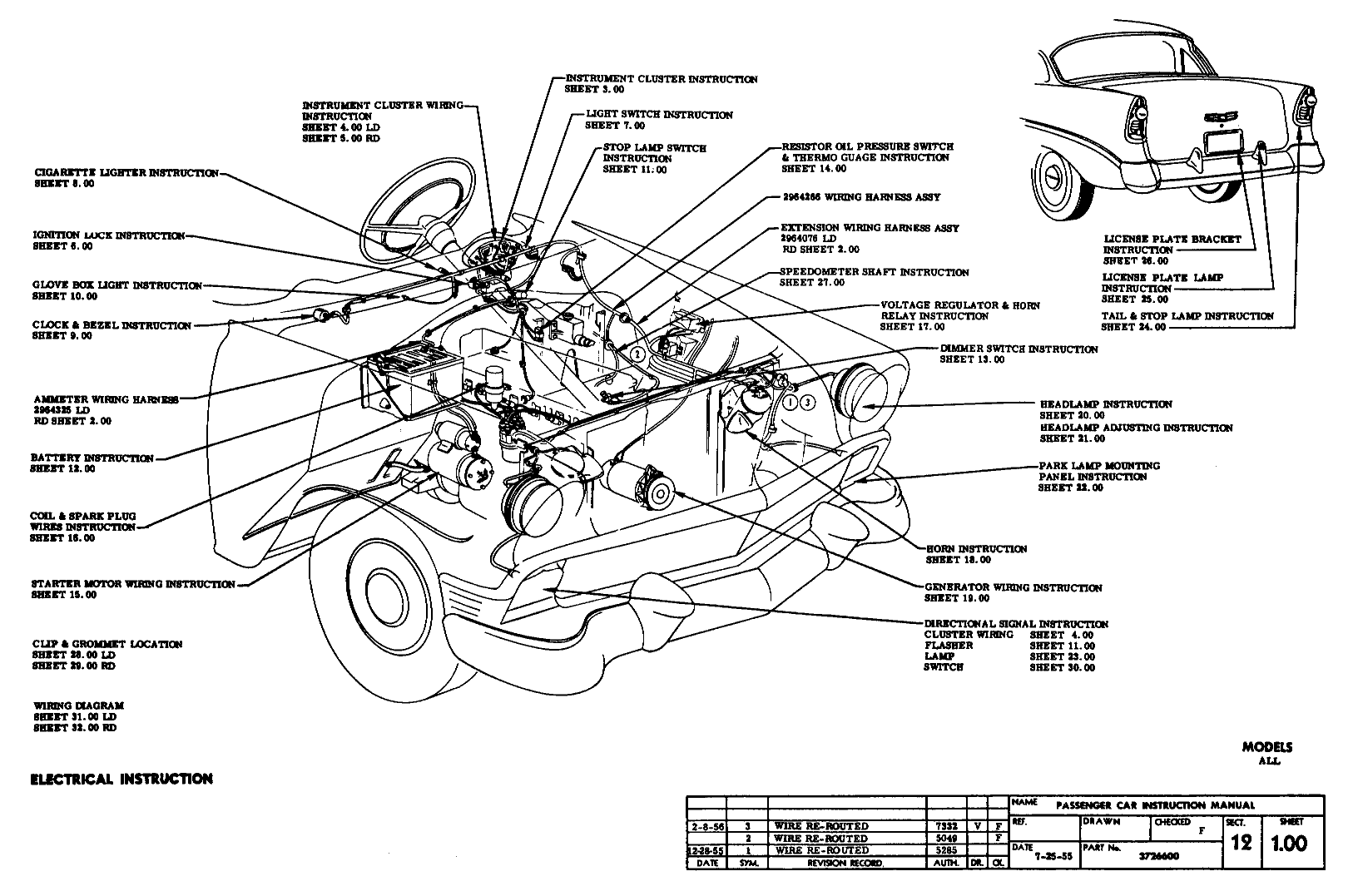

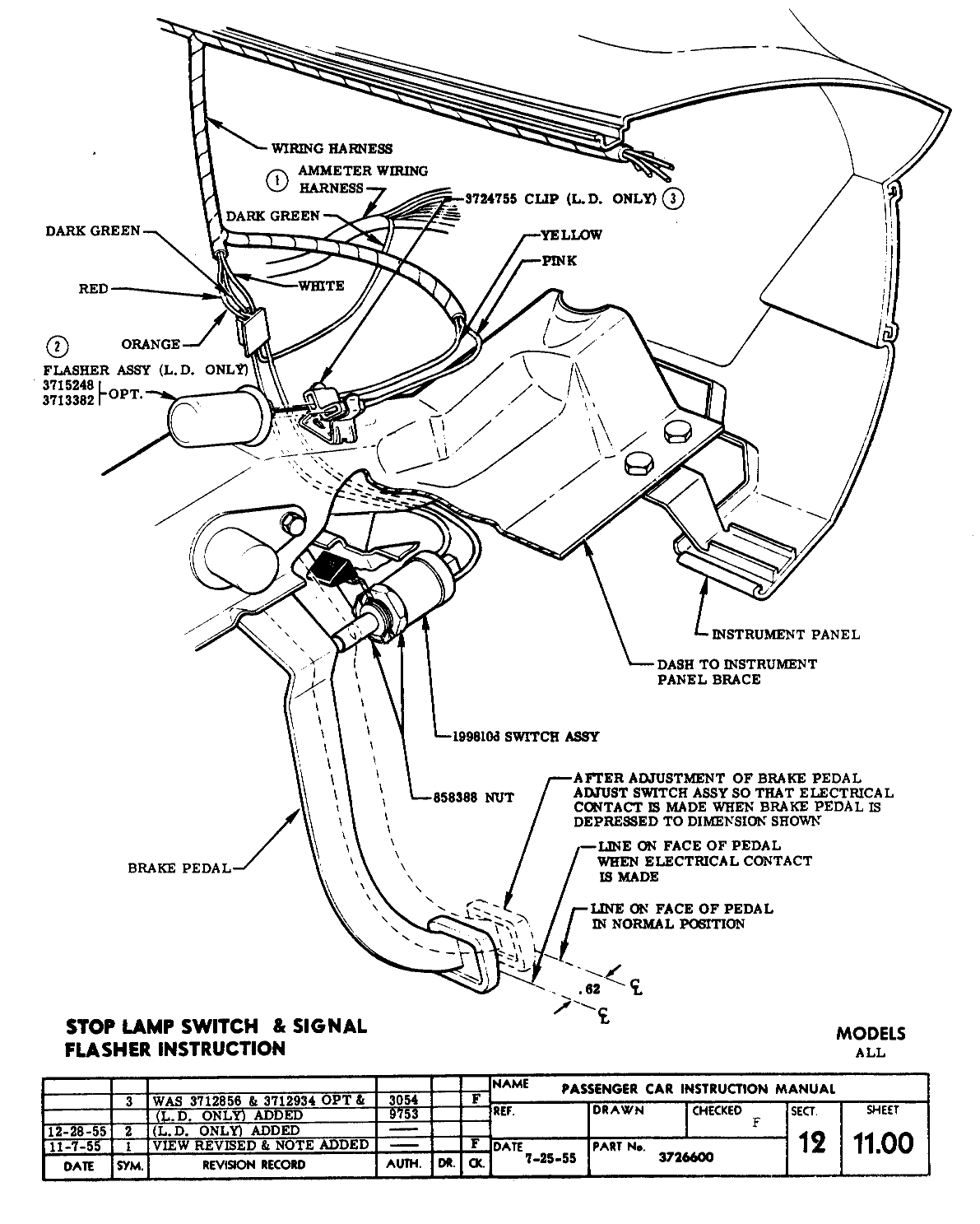

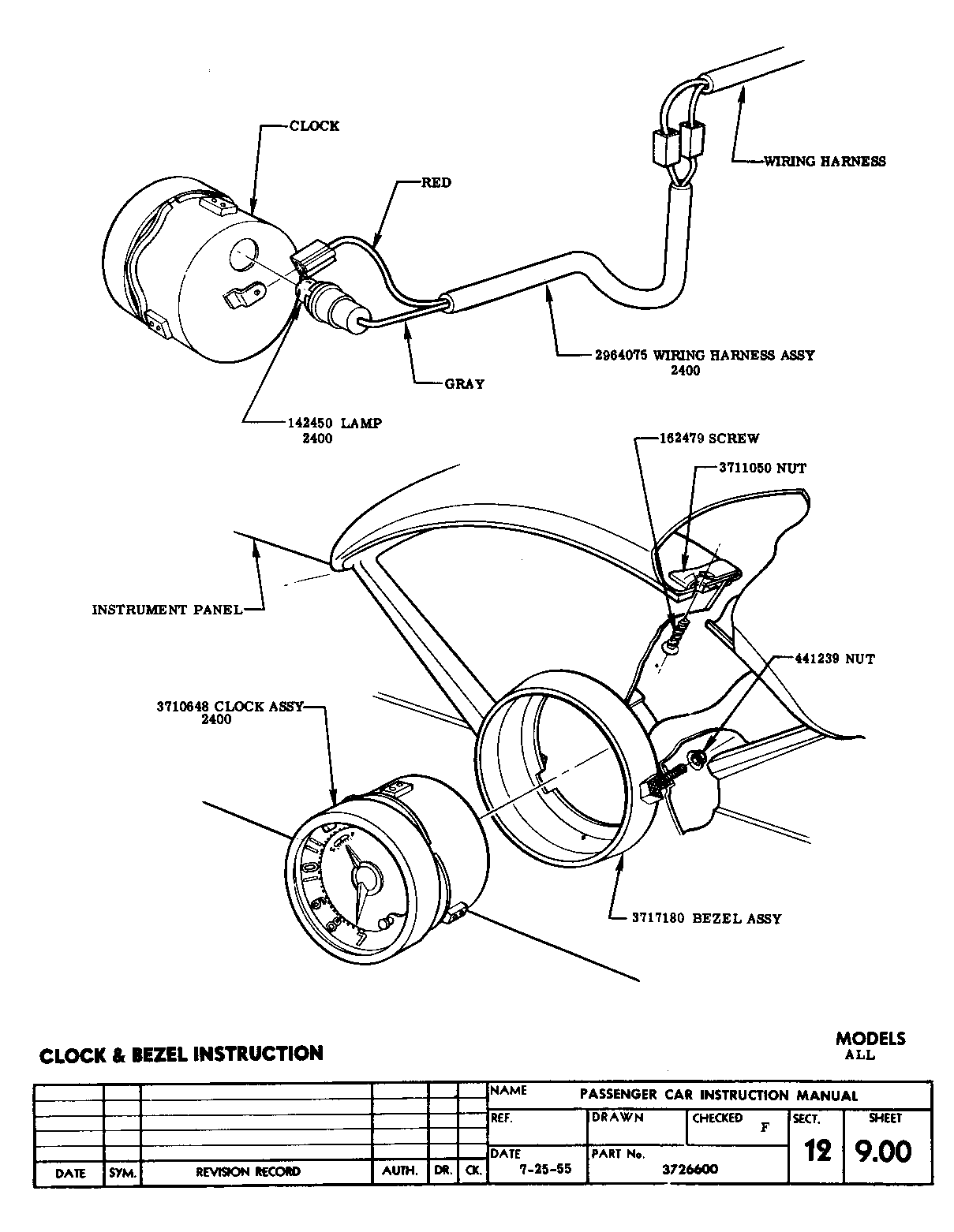

Section 12 – Electrical Instruction
Wiring (Right Drive) Sheet 2.00

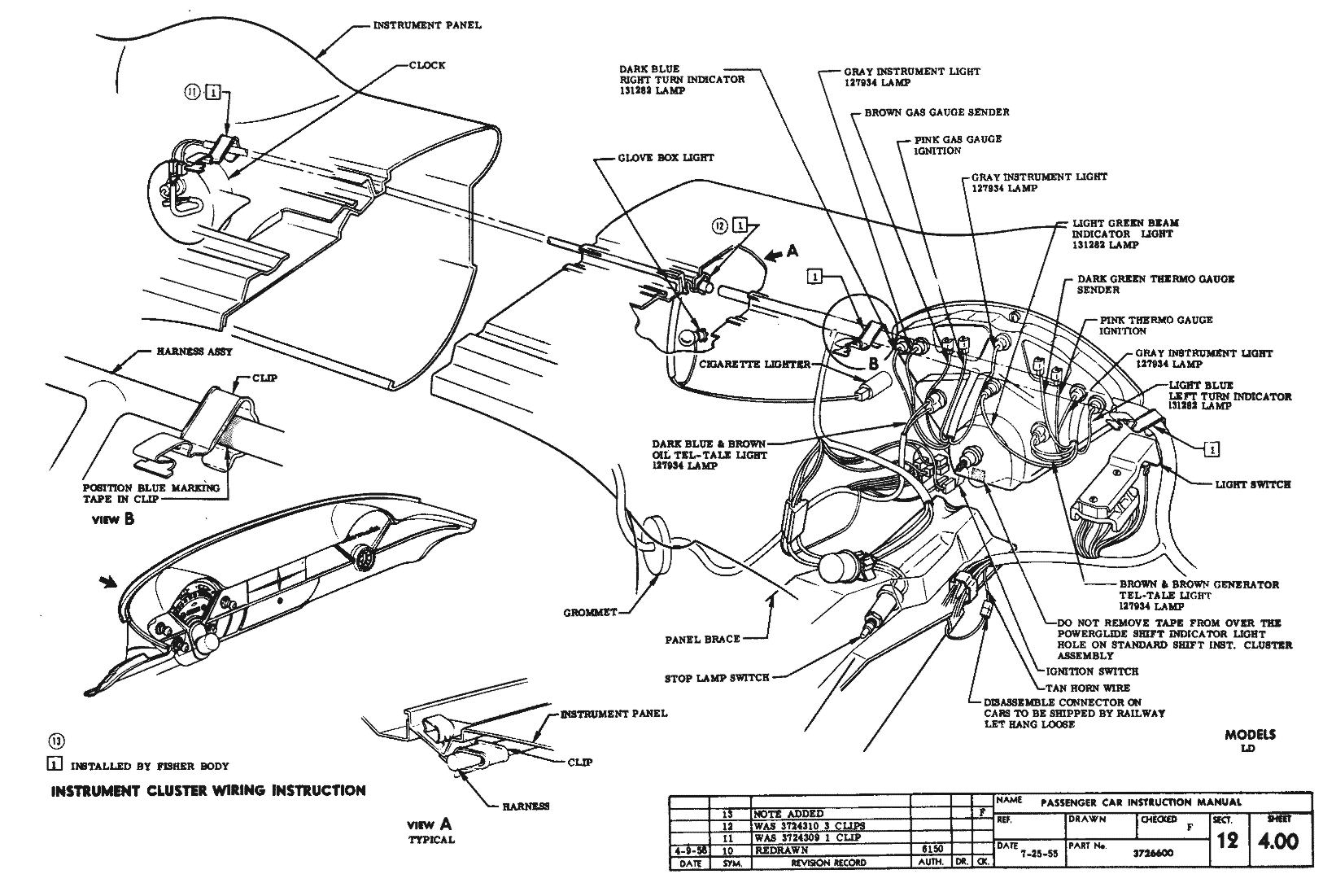

Instrument Cluster Wiring (Left Drive) Sheet 4.00

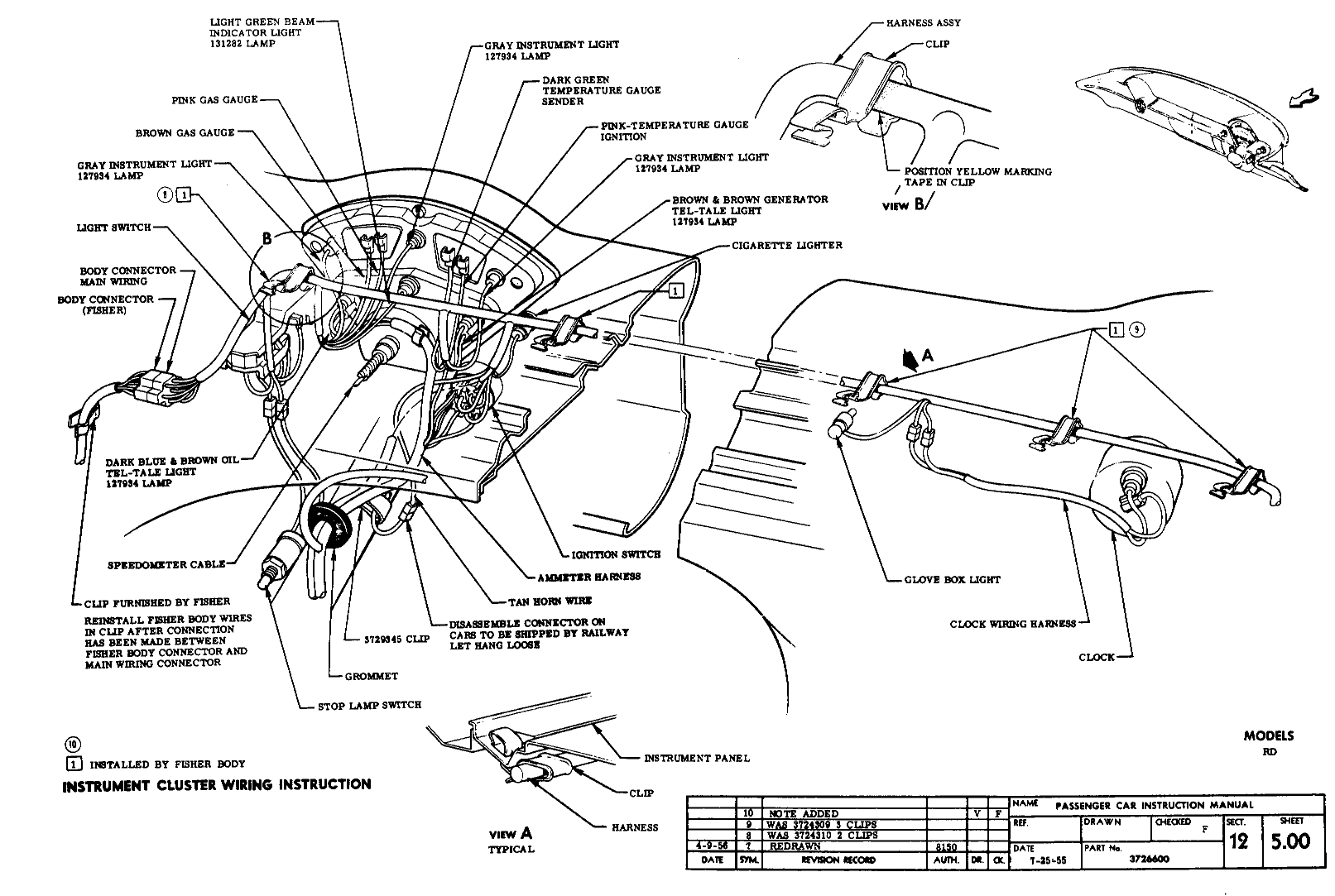

Instrument Cluster Wiring (Right Drive) Sheet 5.00

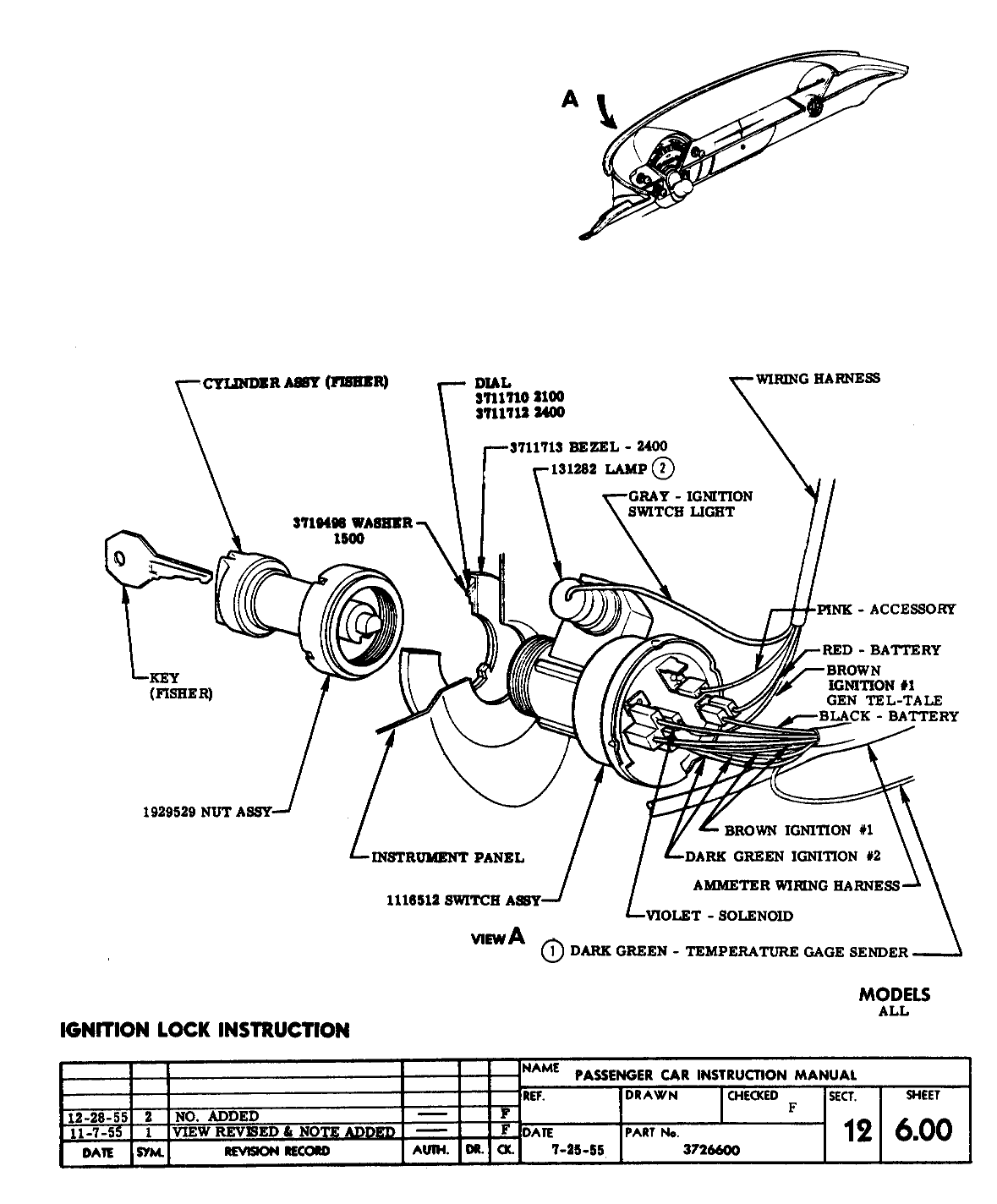

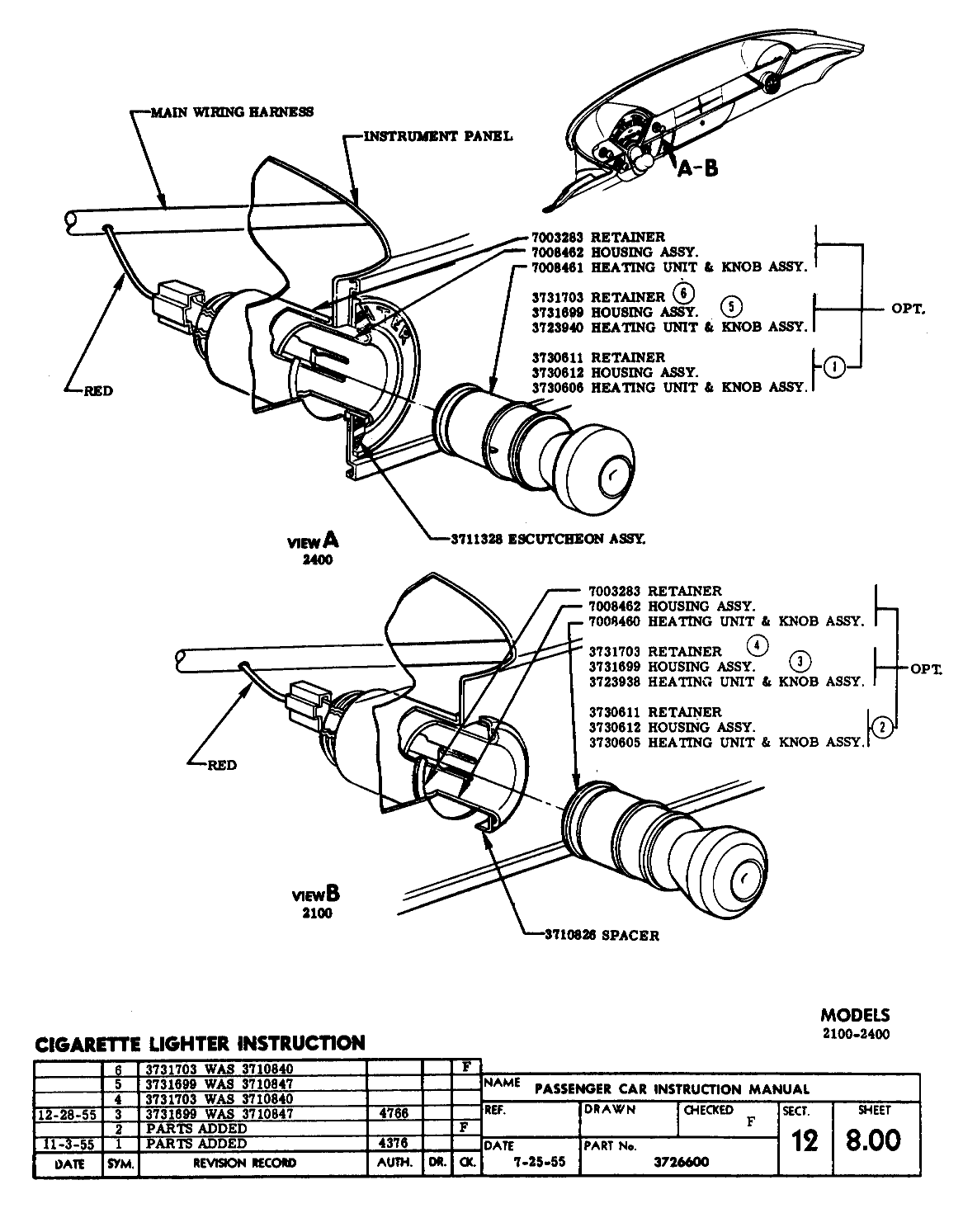

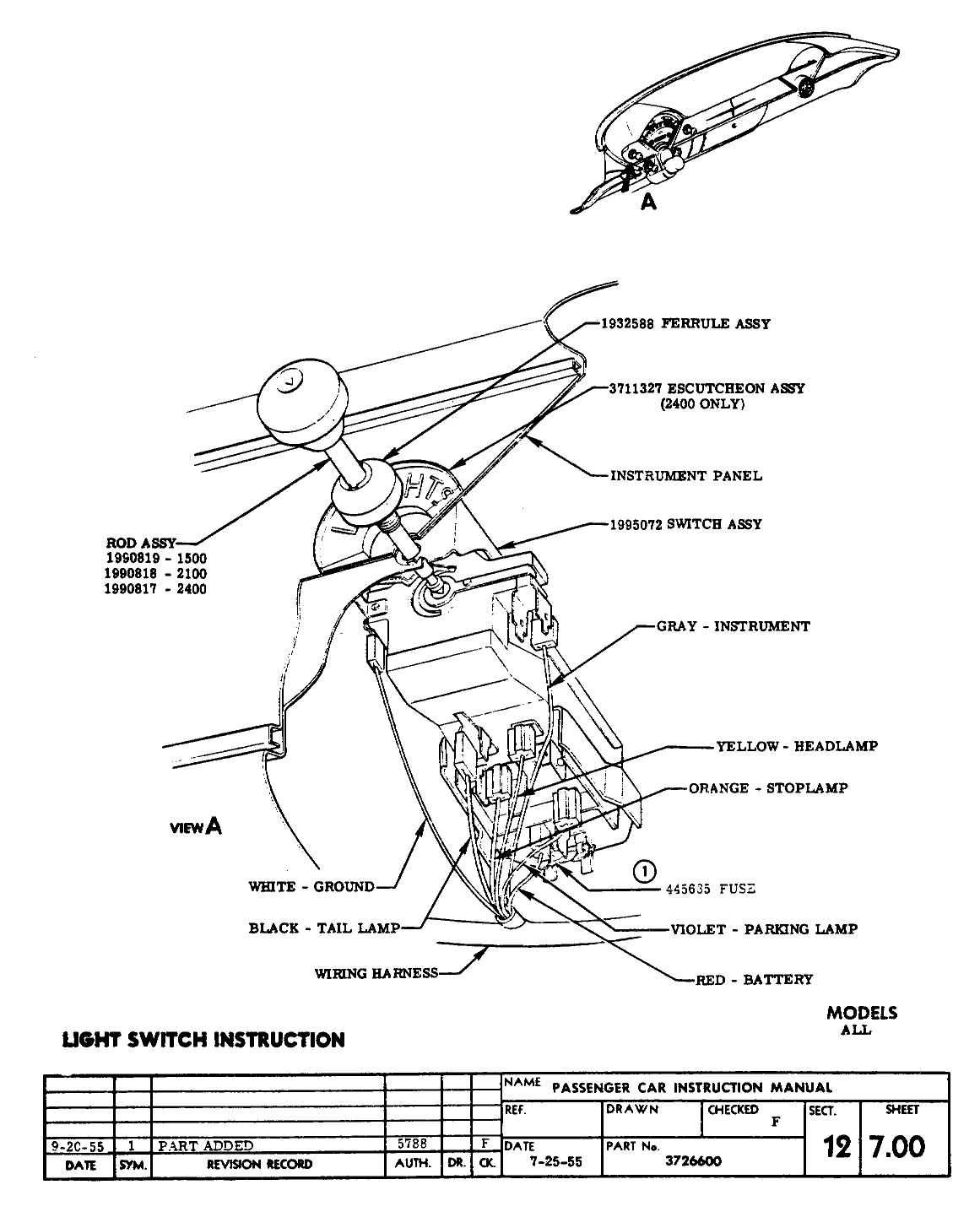

Cigarette Lighter (Models 2100-2400) Sheet 8.00

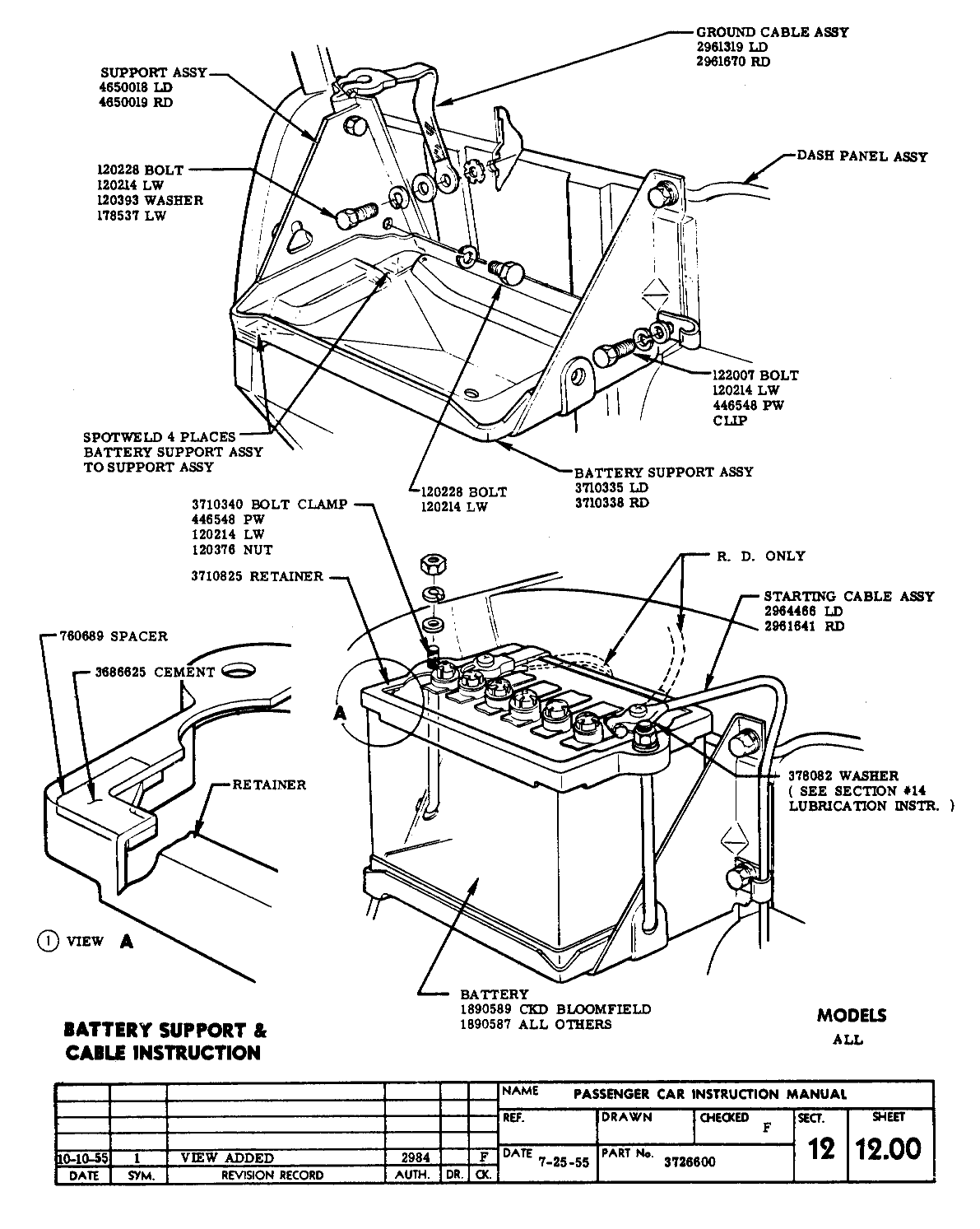

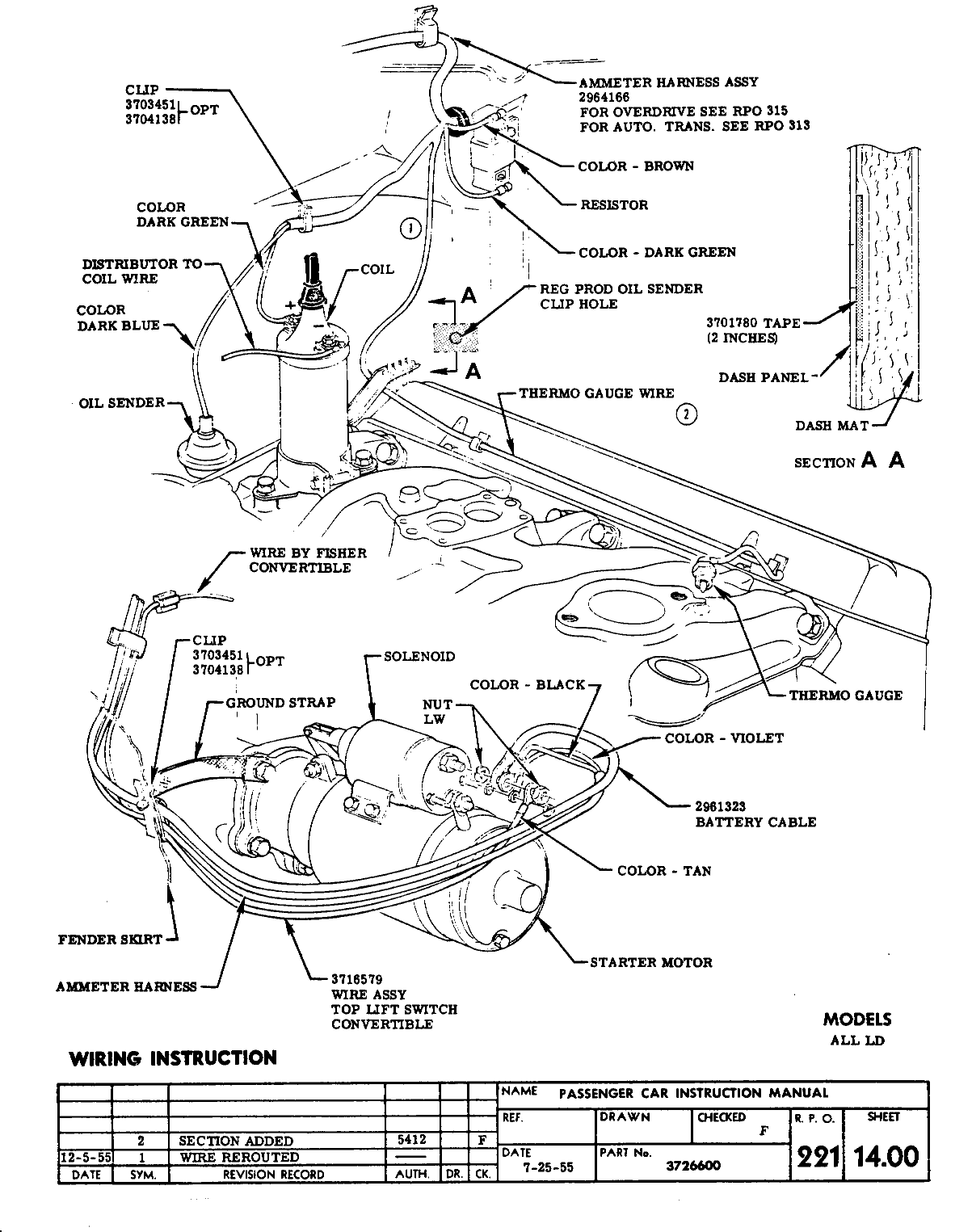

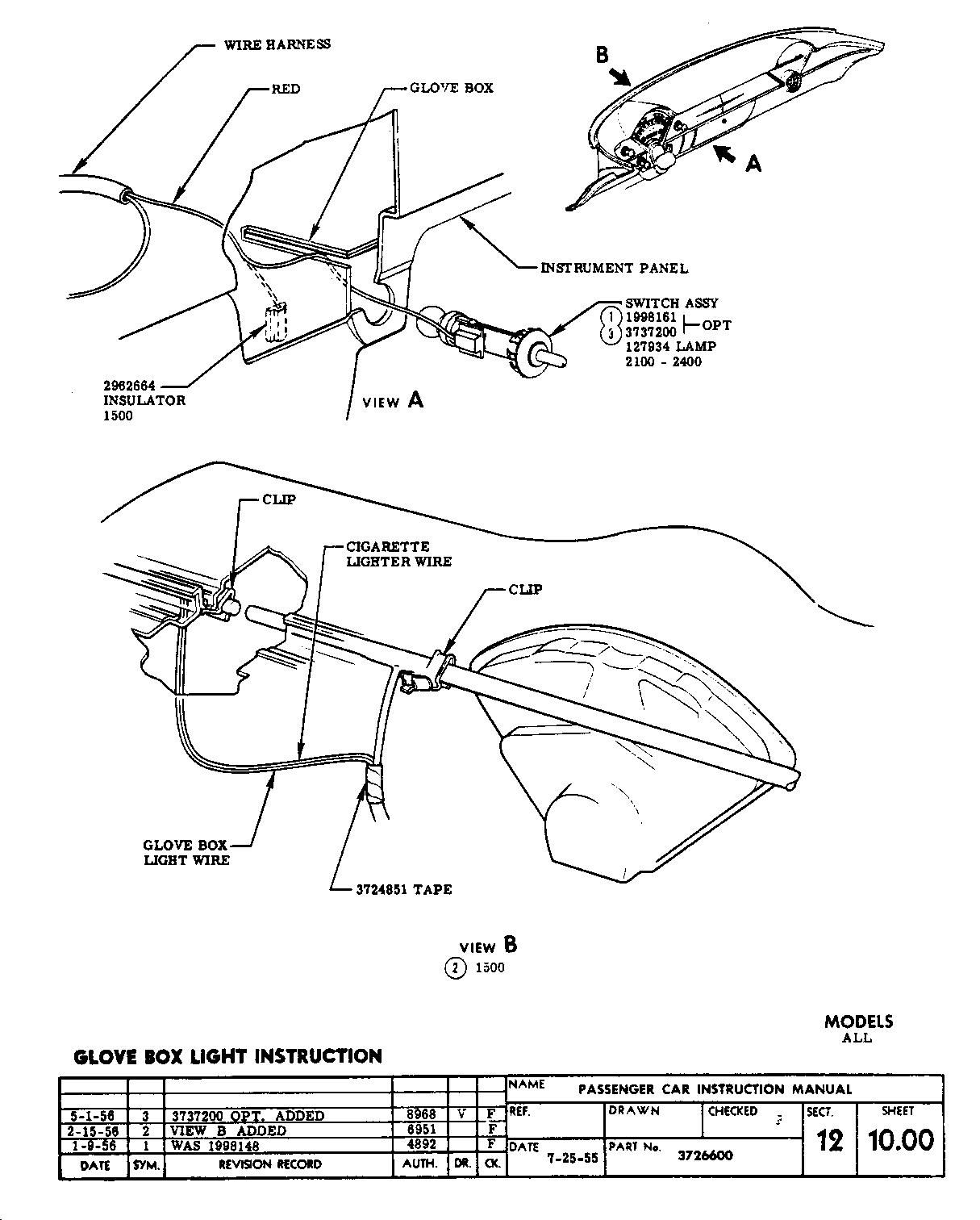

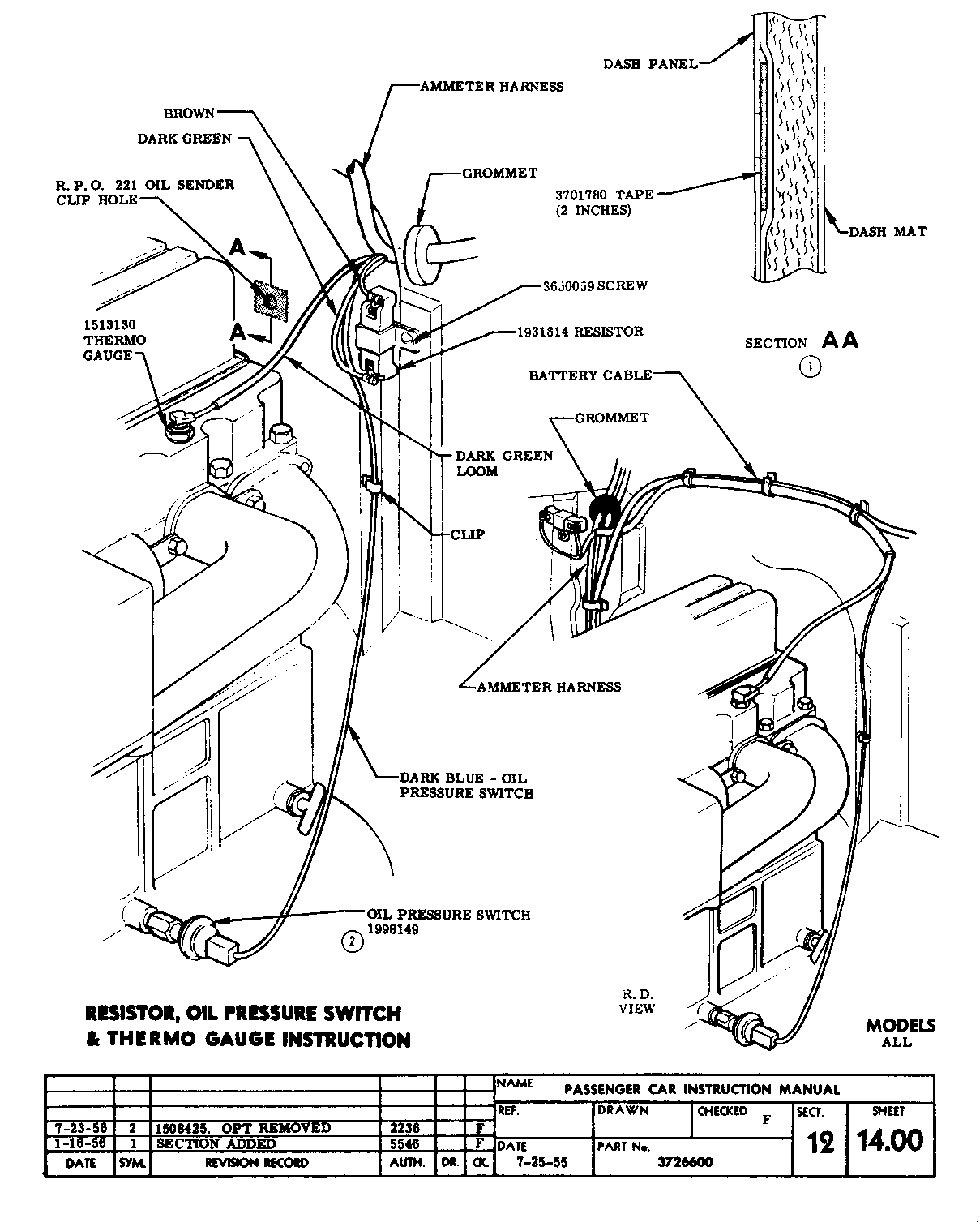

Resistor, Oil Pressure Switch & Capillary Tube Sheet 14.00

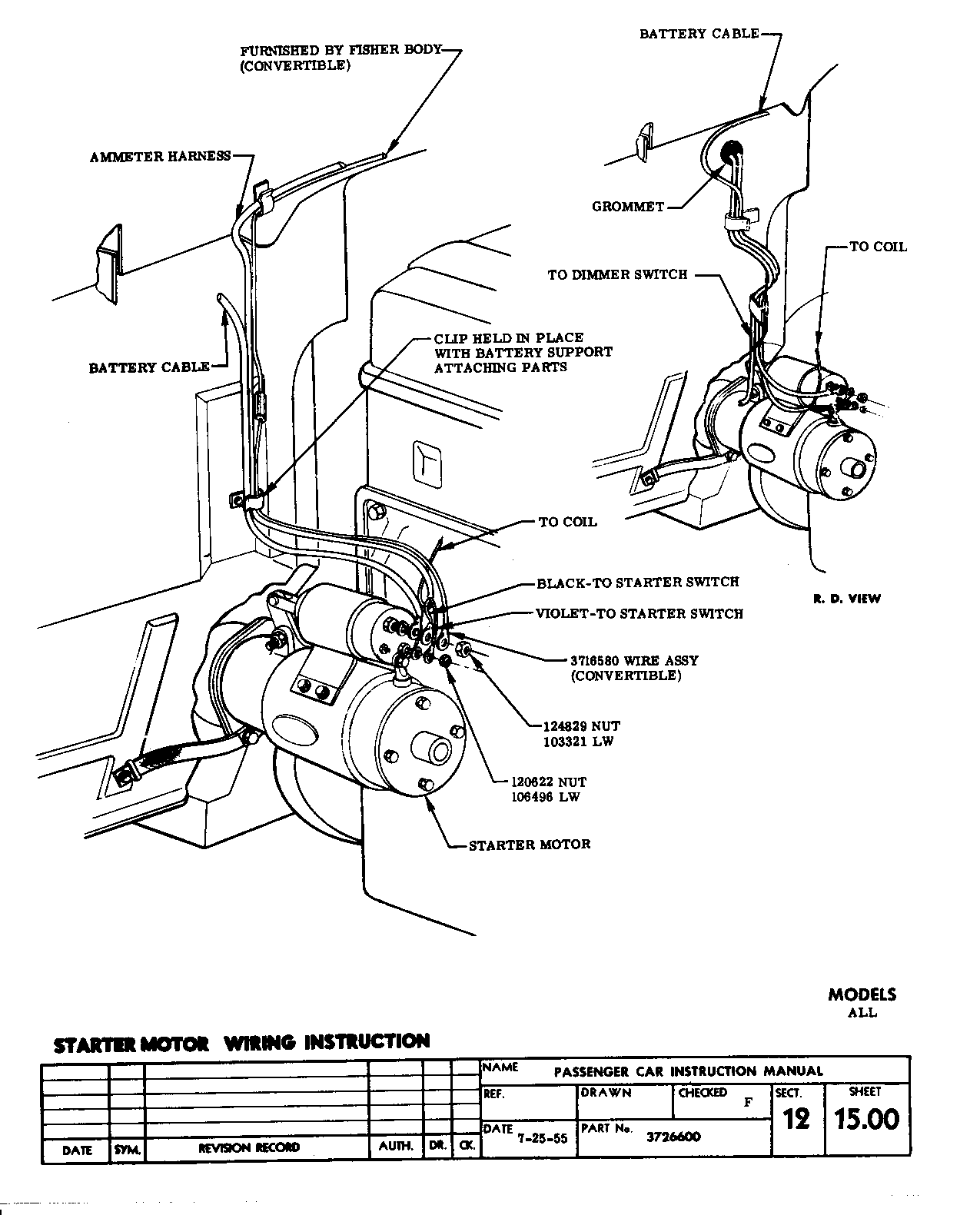

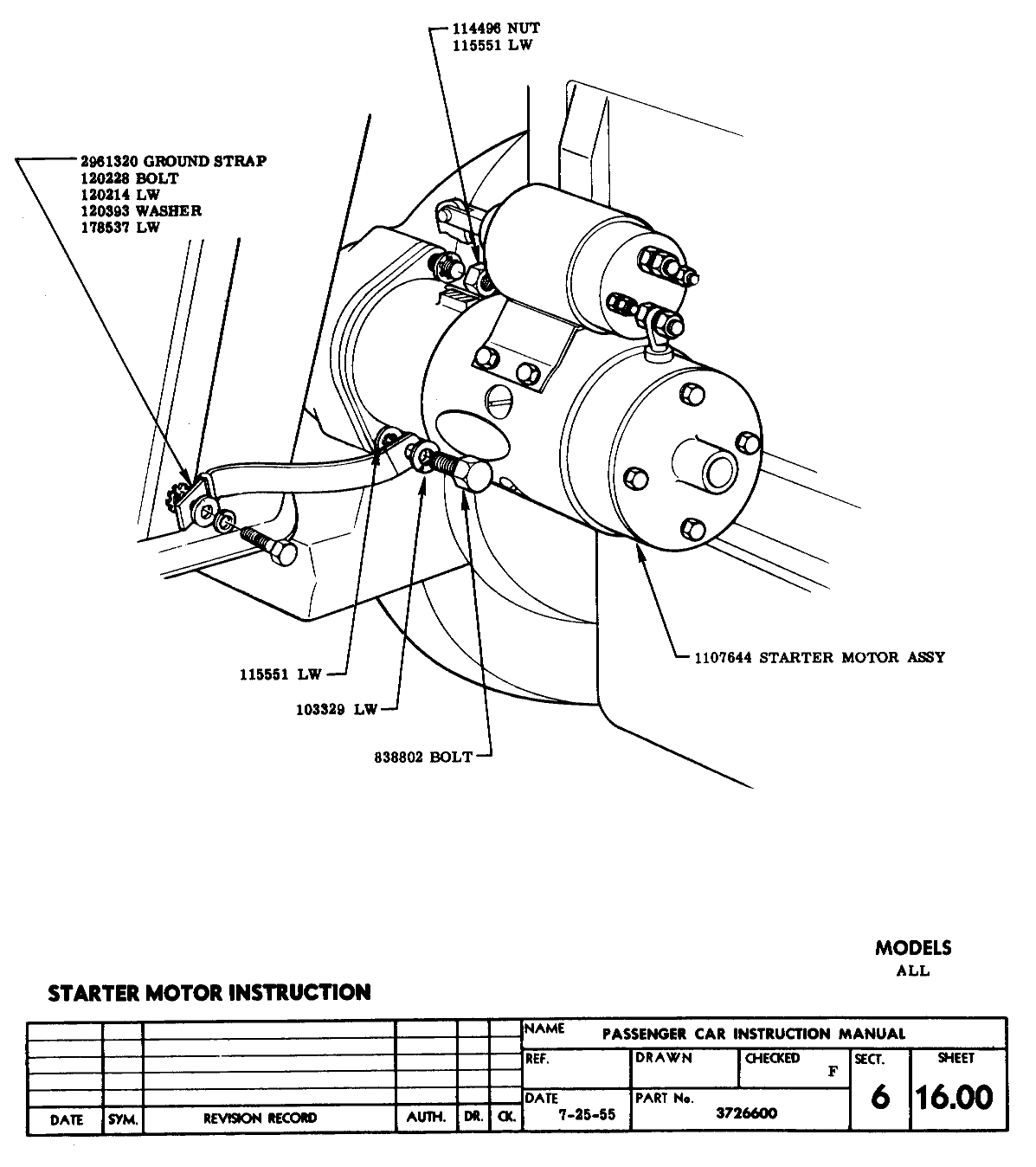

Starter Motor Wiring Sheet 15.00

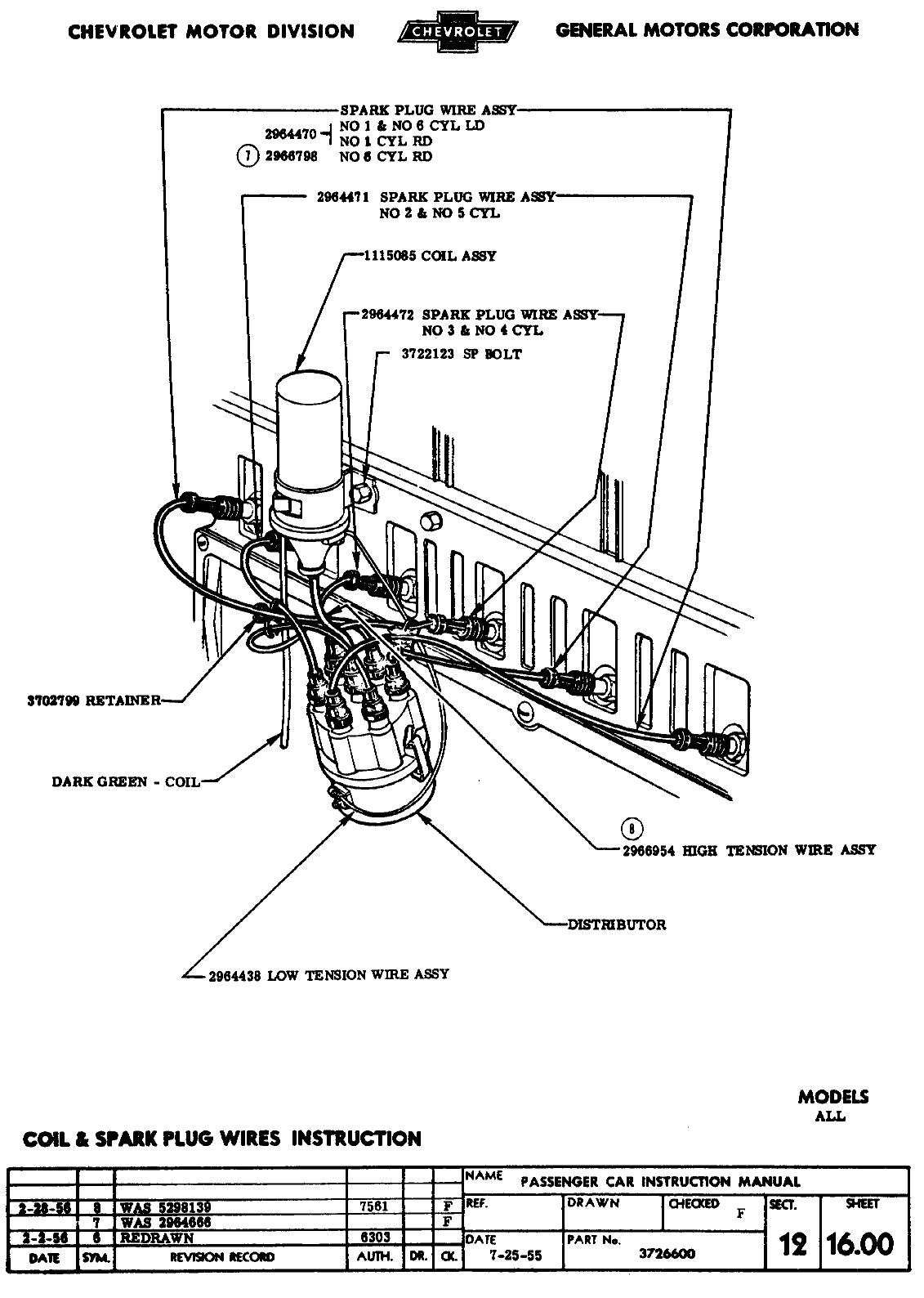

Coil & Spark Plug Wires Sheet 16.00

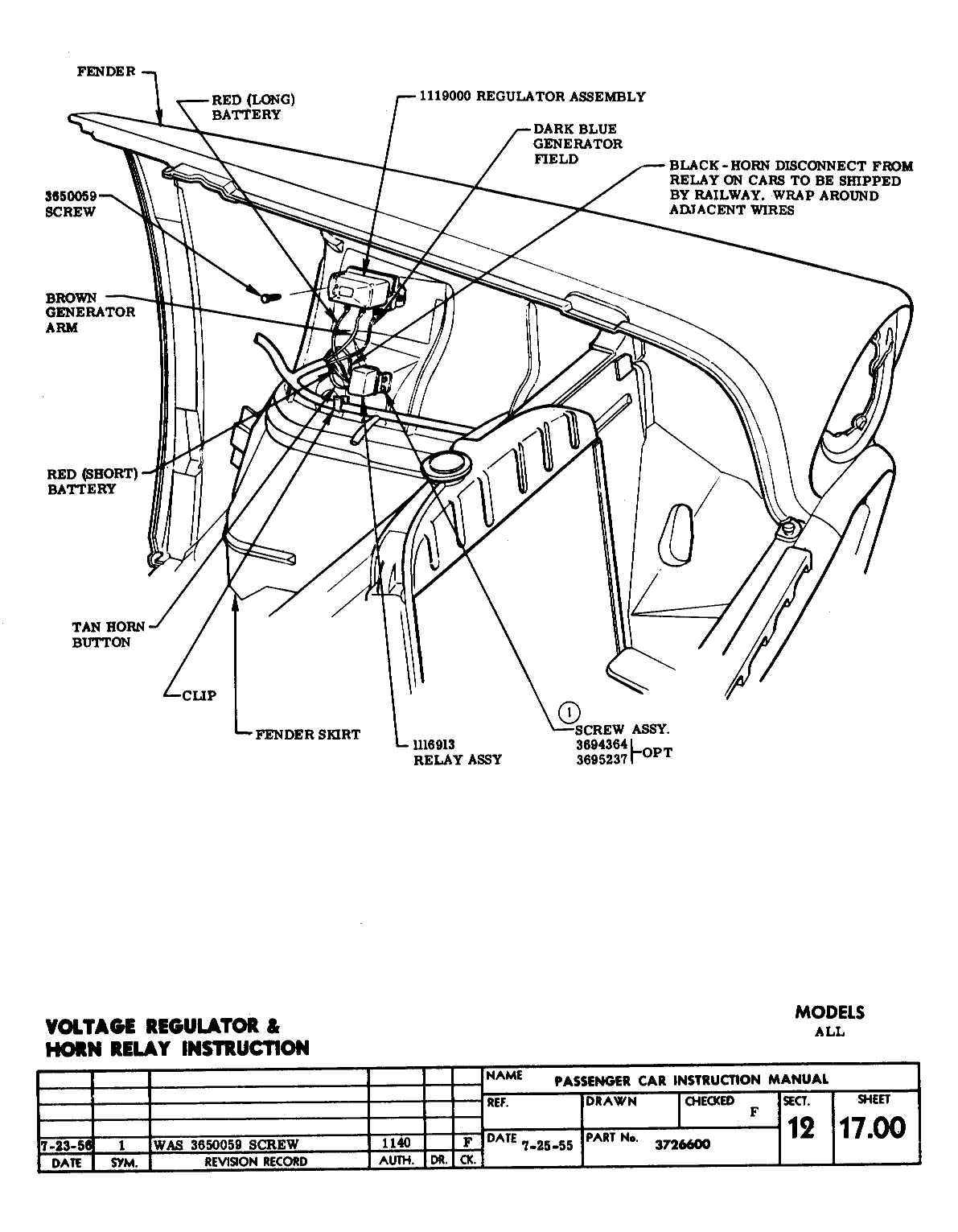

Voltage Regulator & Horn Relay Sheet 17.00

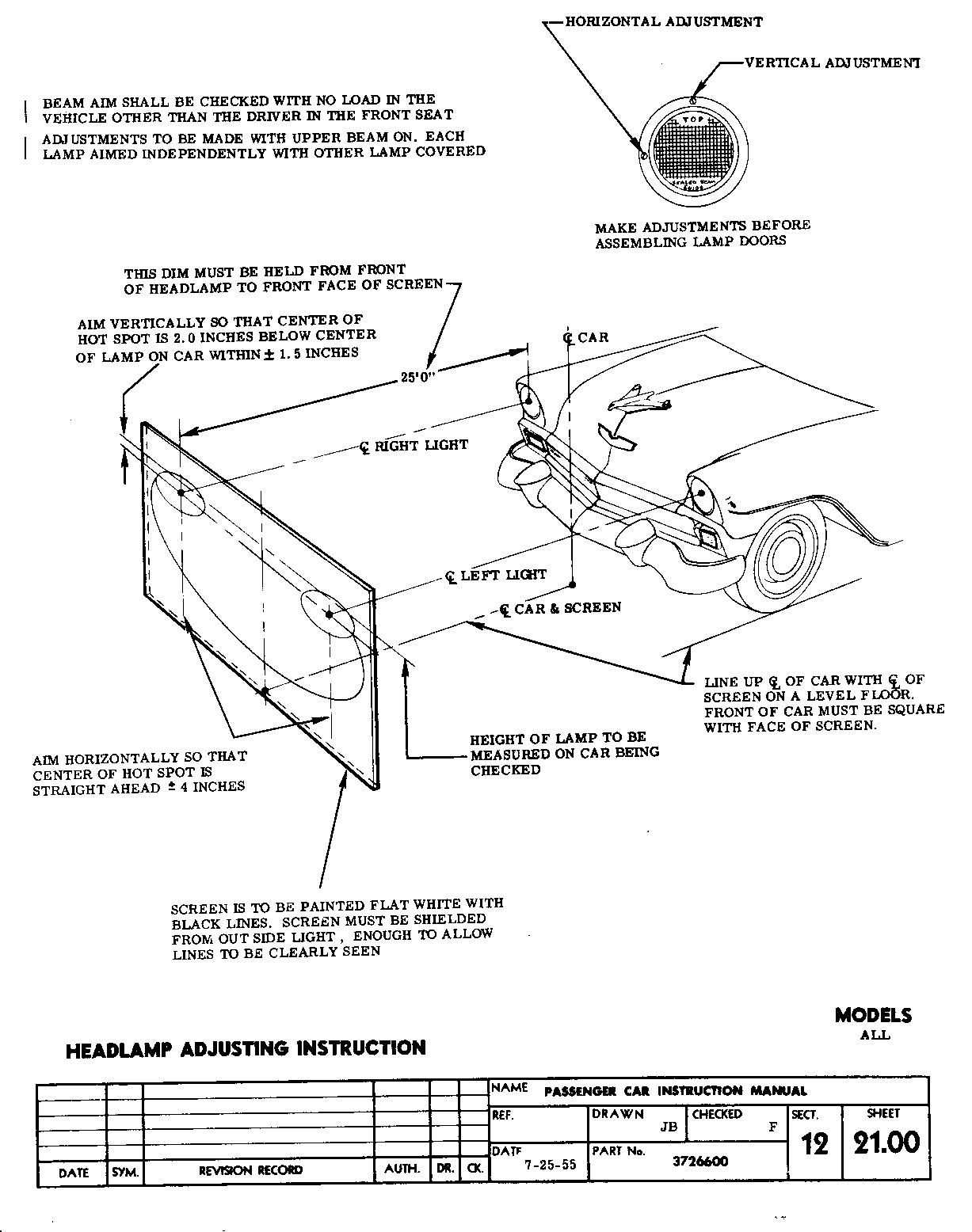

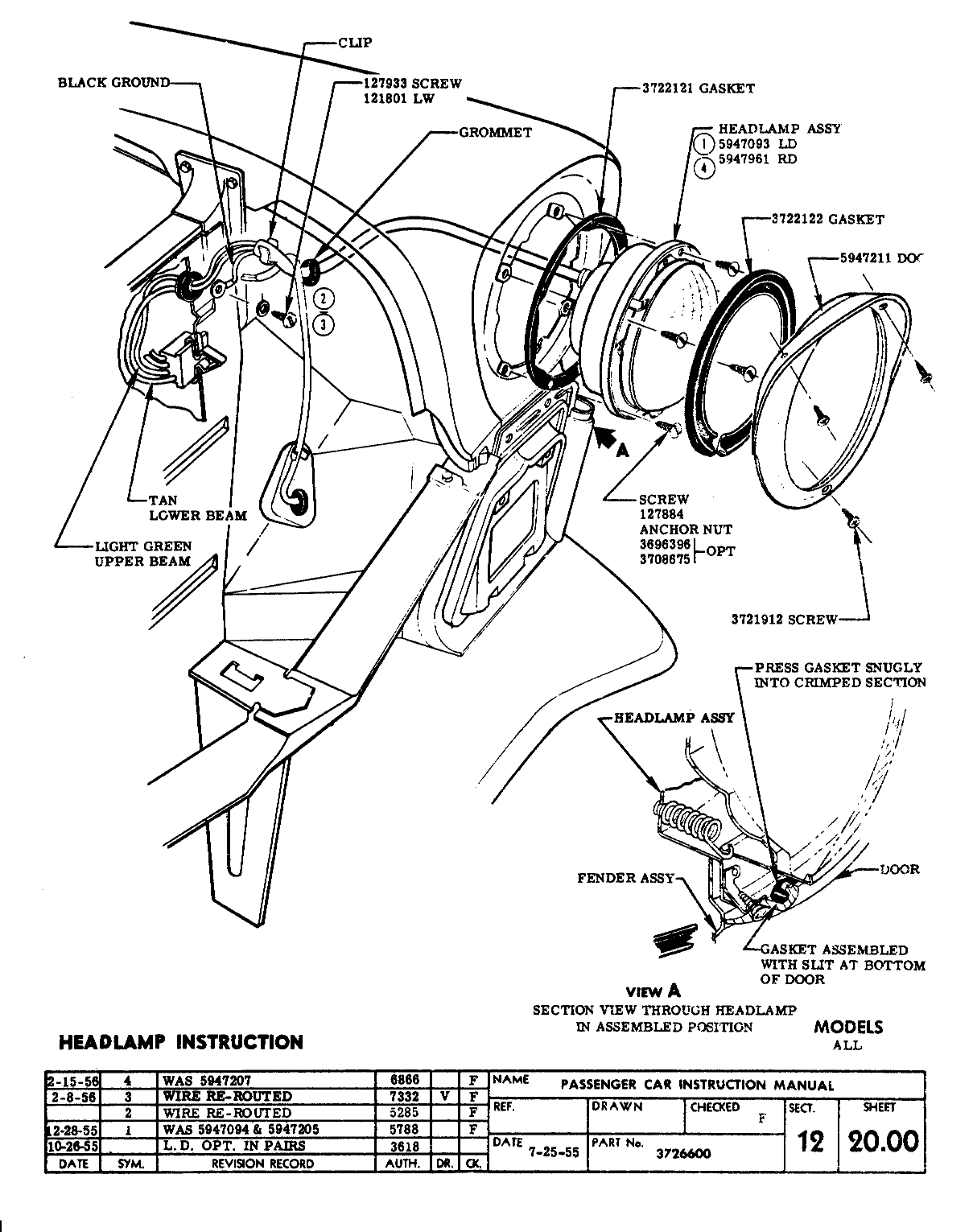

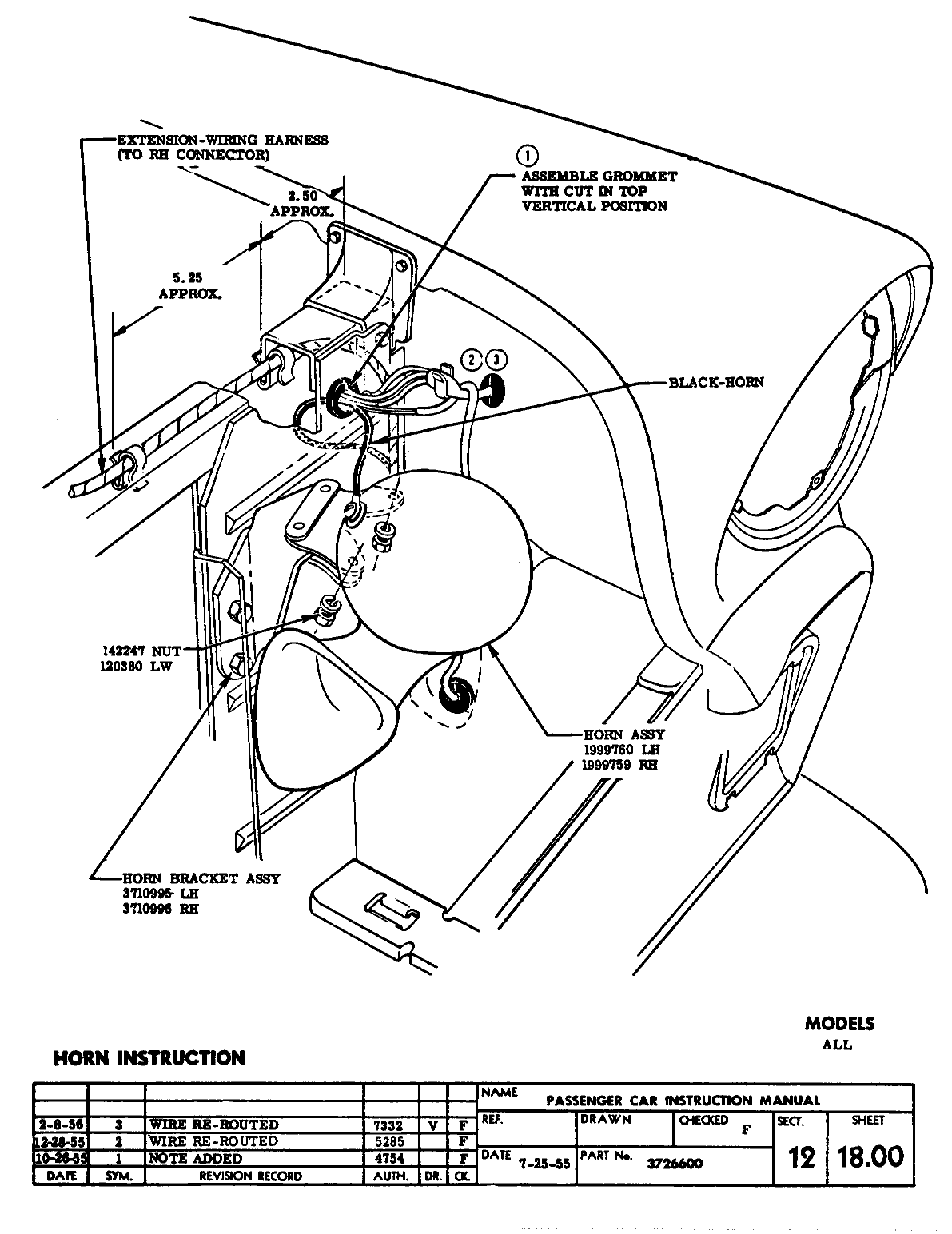

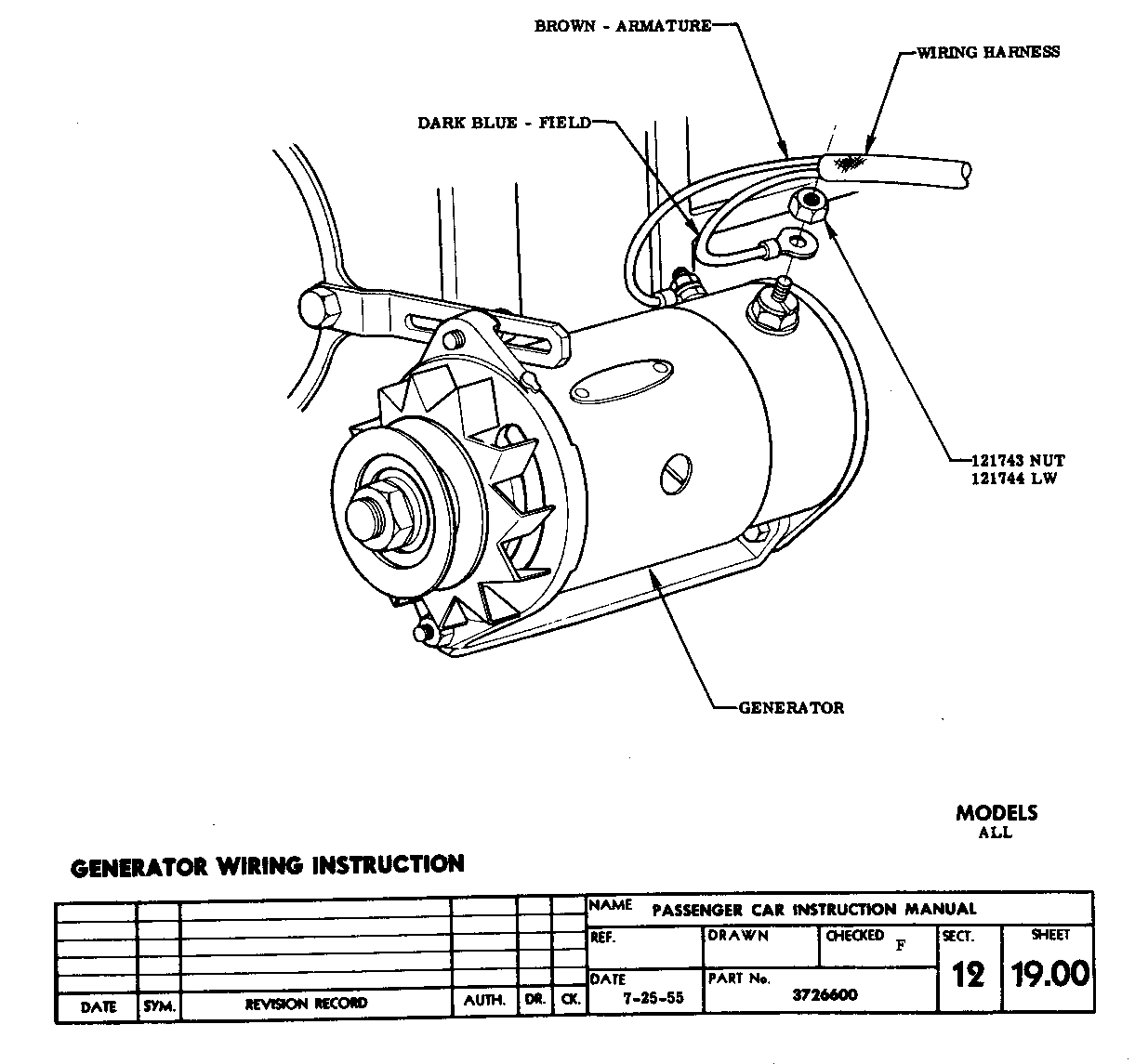

Headlamp Adjusting Sheet 21.00

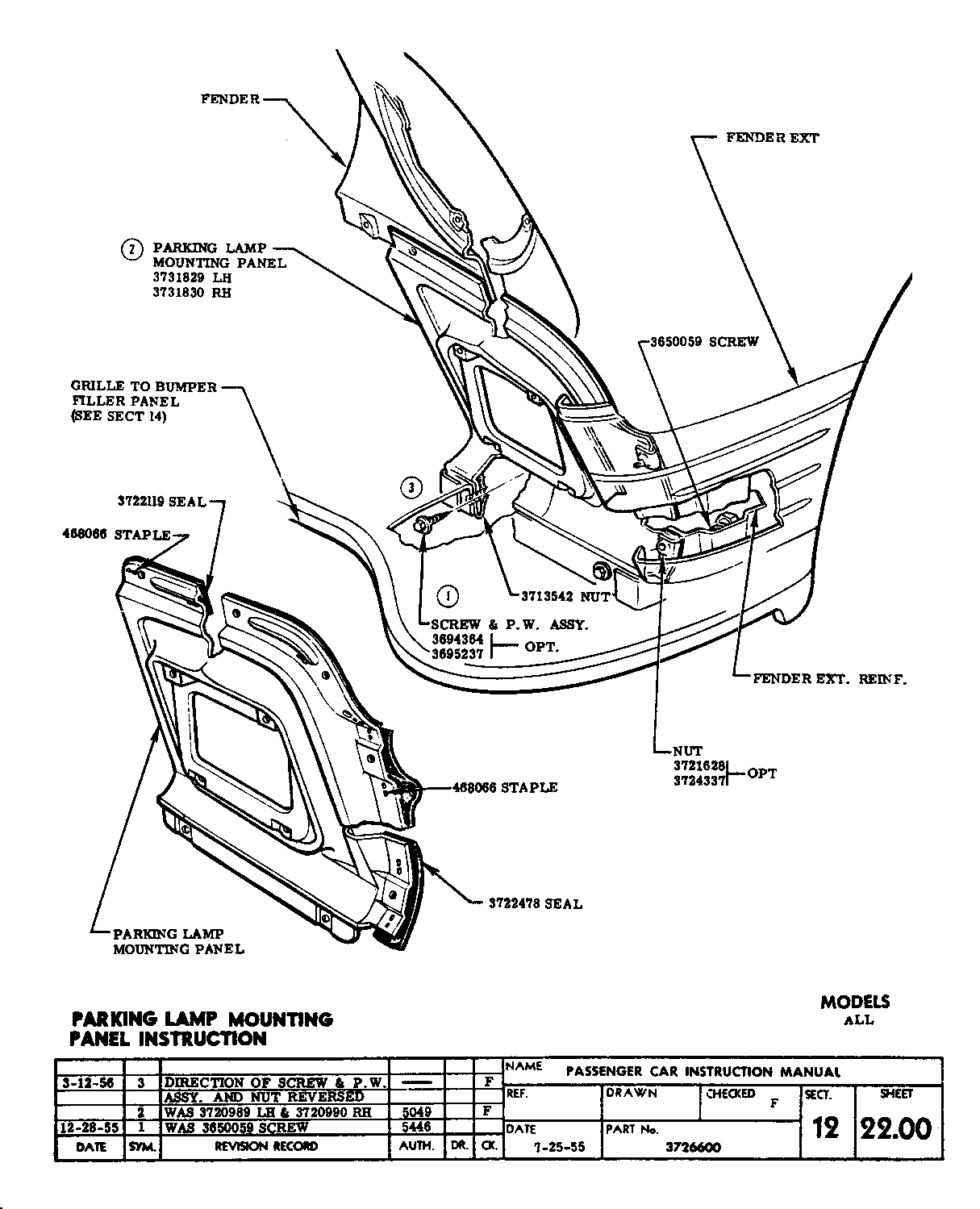

Parking Lamp Mounting Panel Sheet 22.00

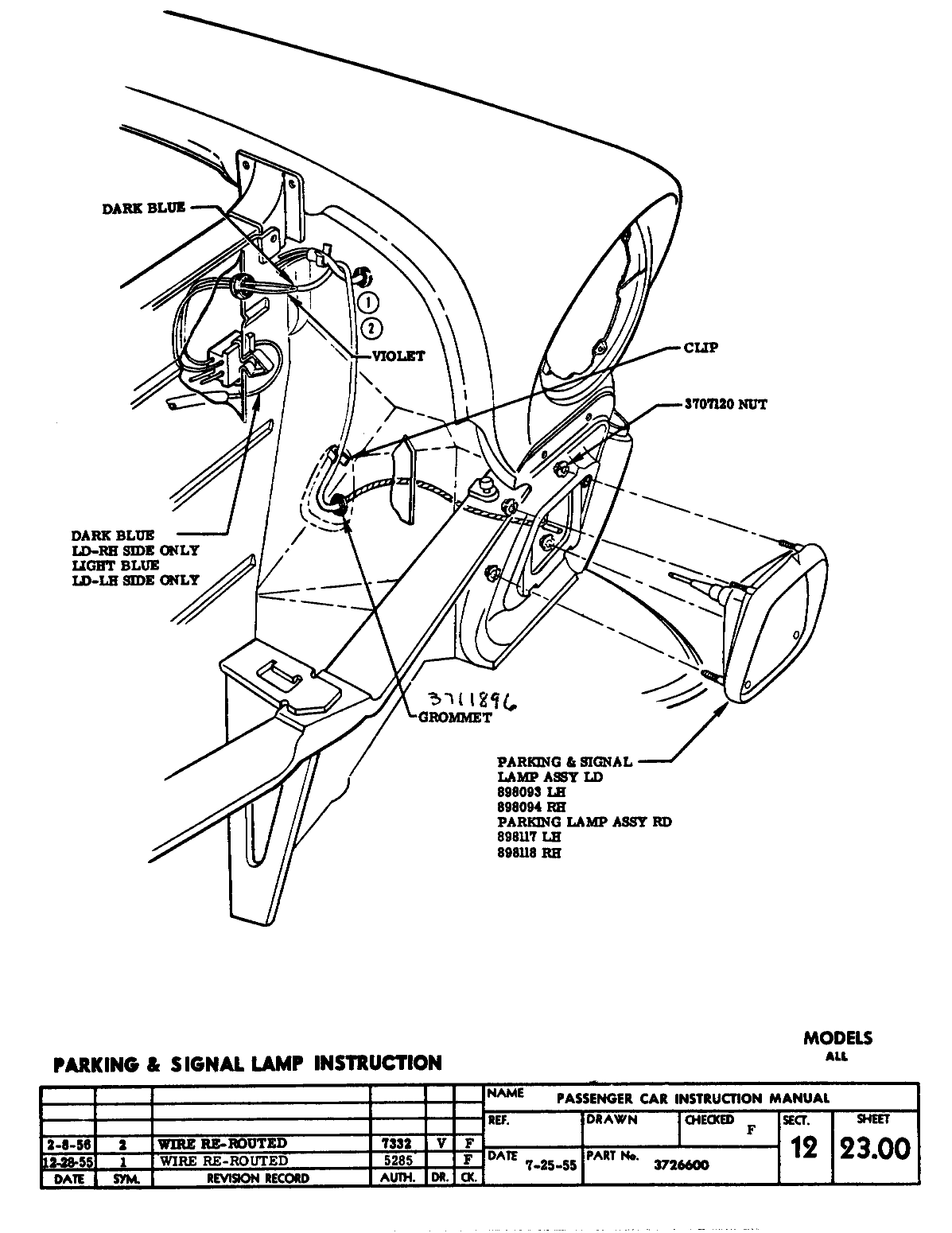

Parking & Signal Lamp Sheet 23.00

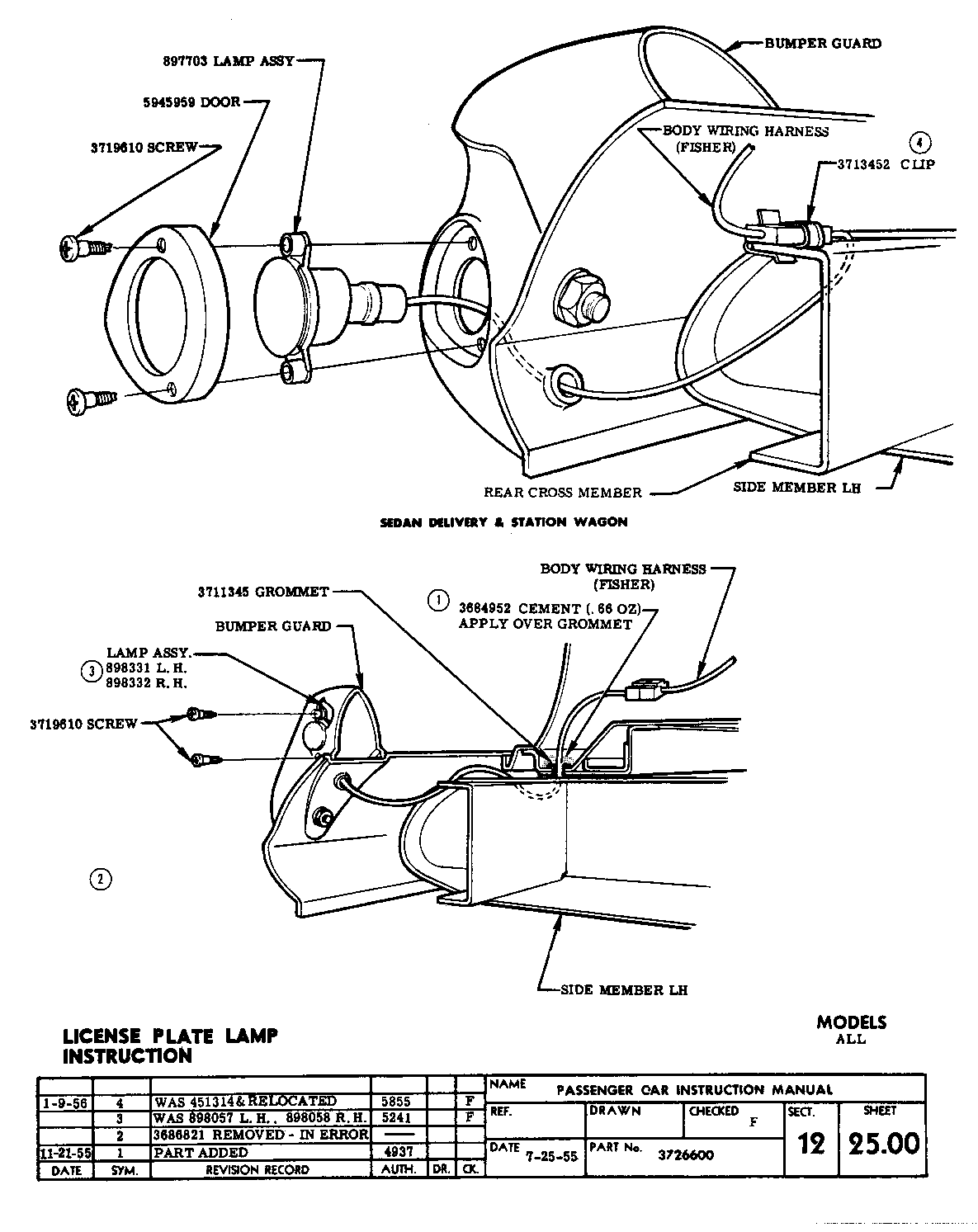

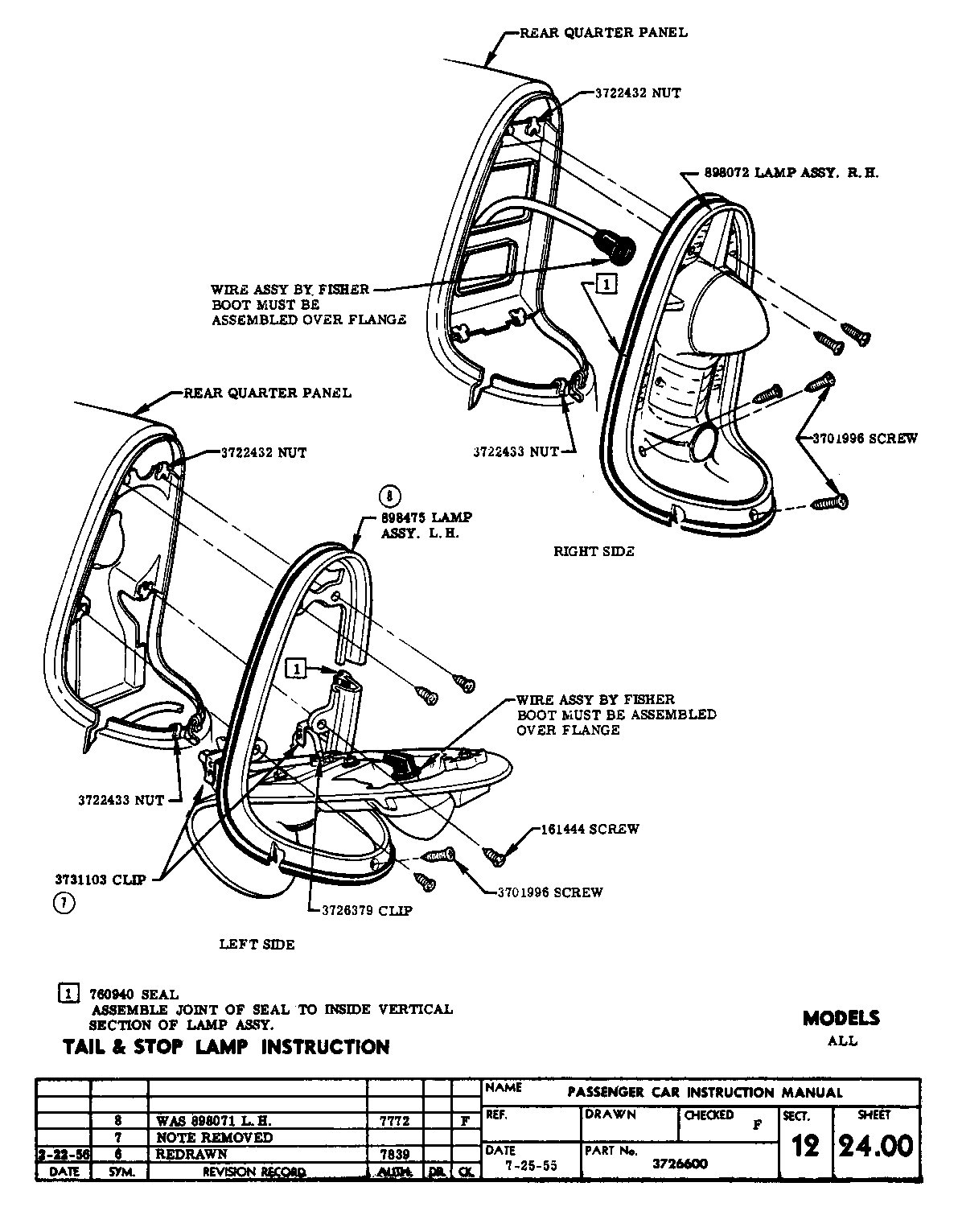

License Plate Lamp Sheet 25.00

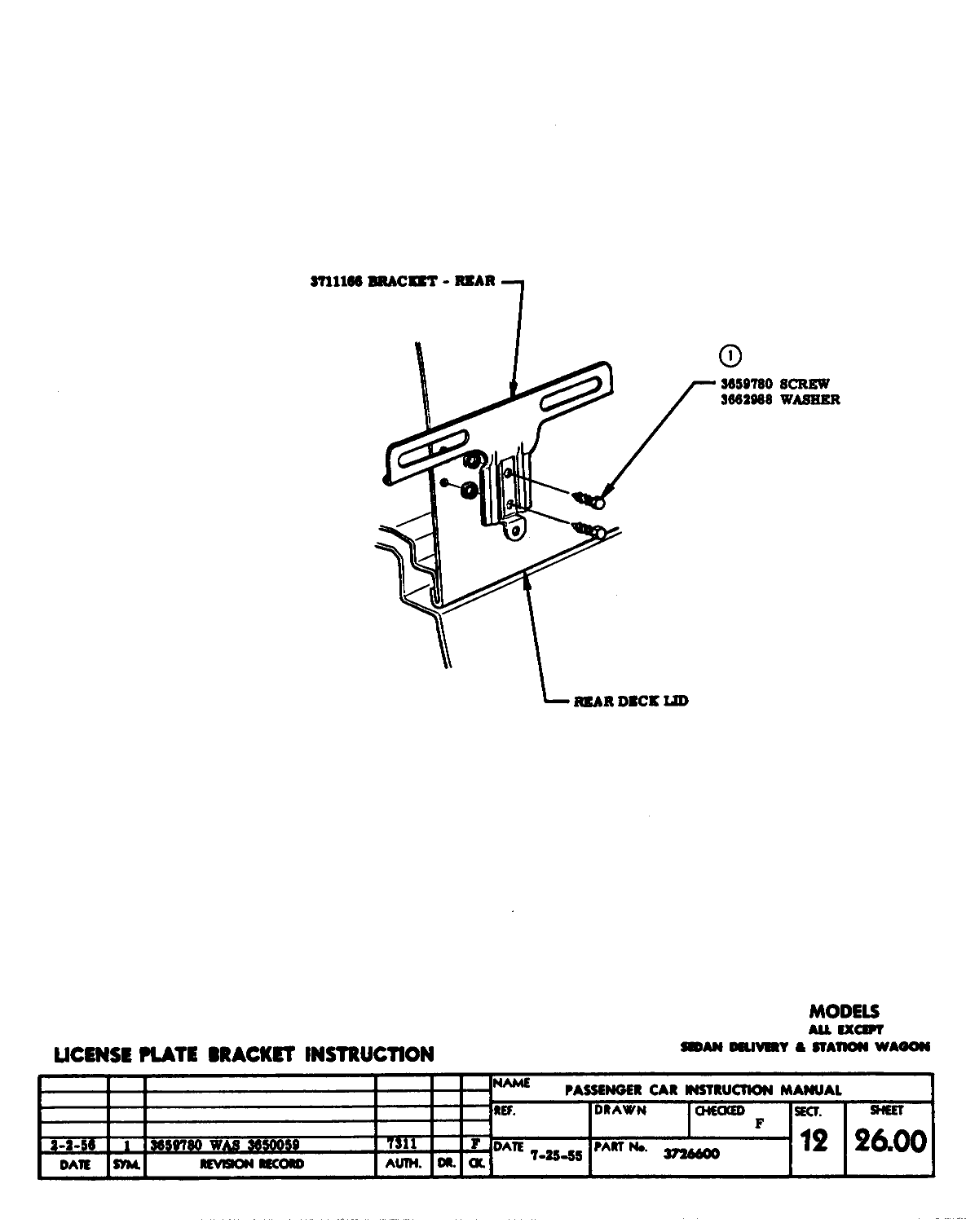

License Plate Bracket Sheet 26.00

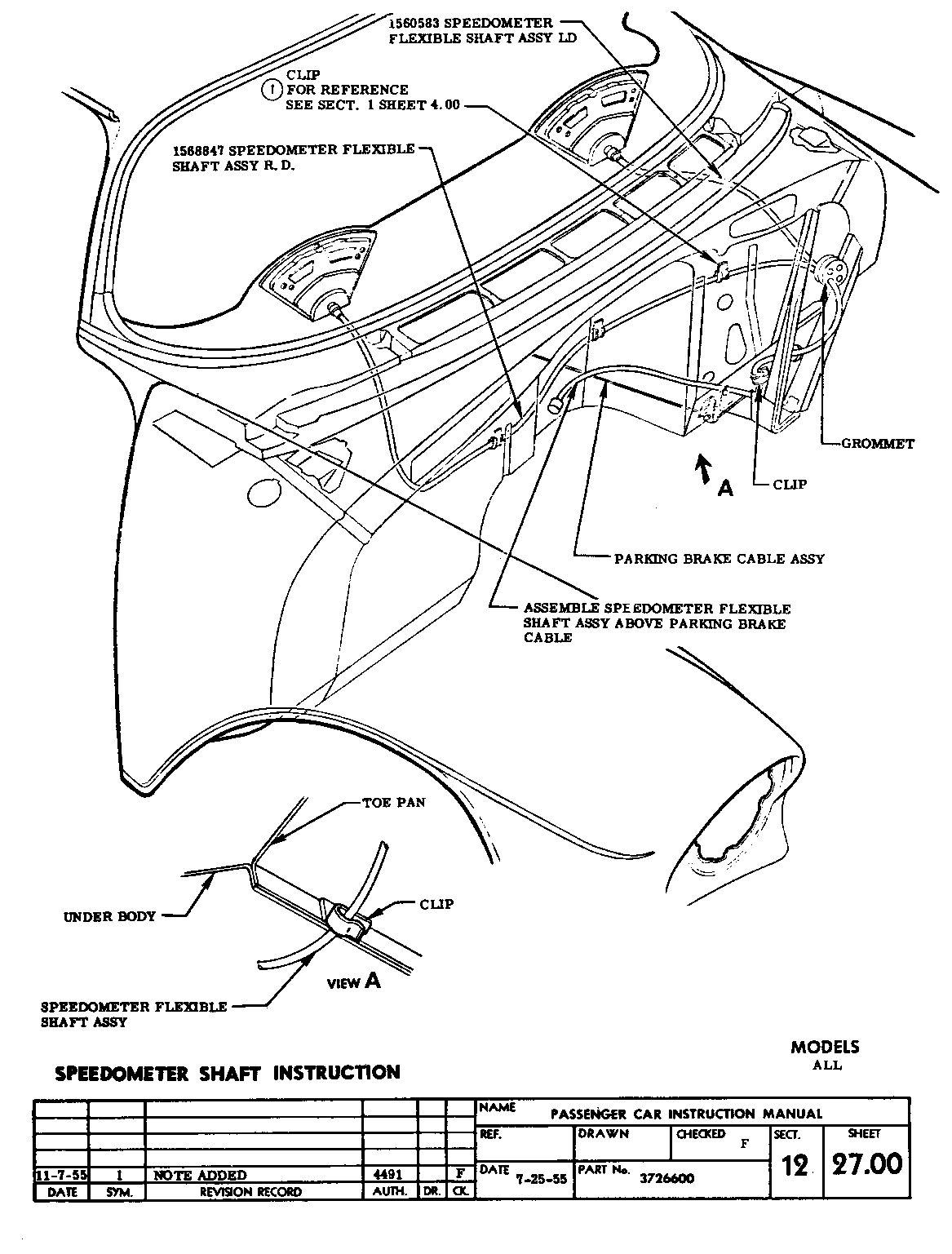

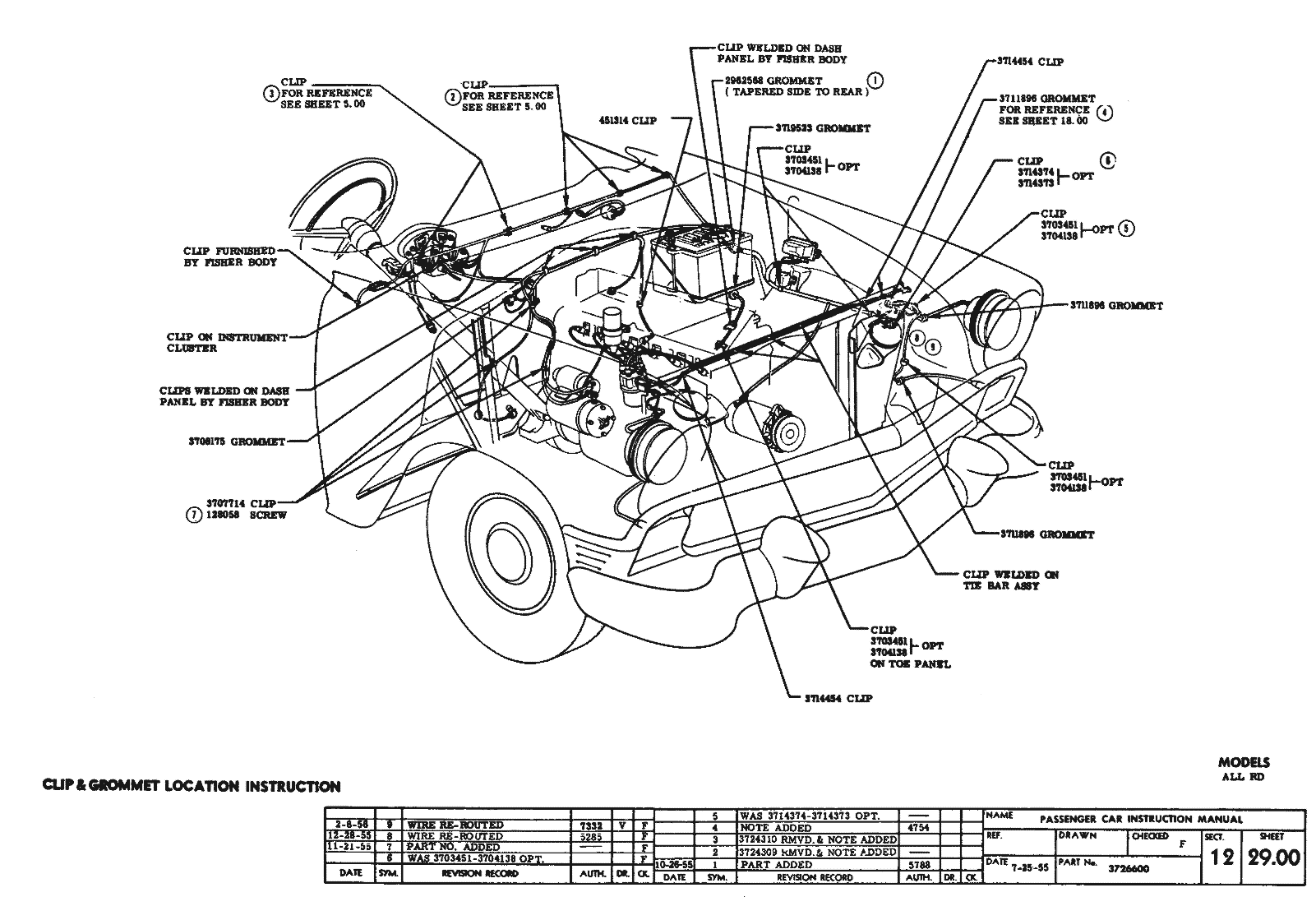

Clip & Grommet Location (Left Drive) Sheet 28.00
Clip & Grommet Location (Right Drive) Sheet 29.00

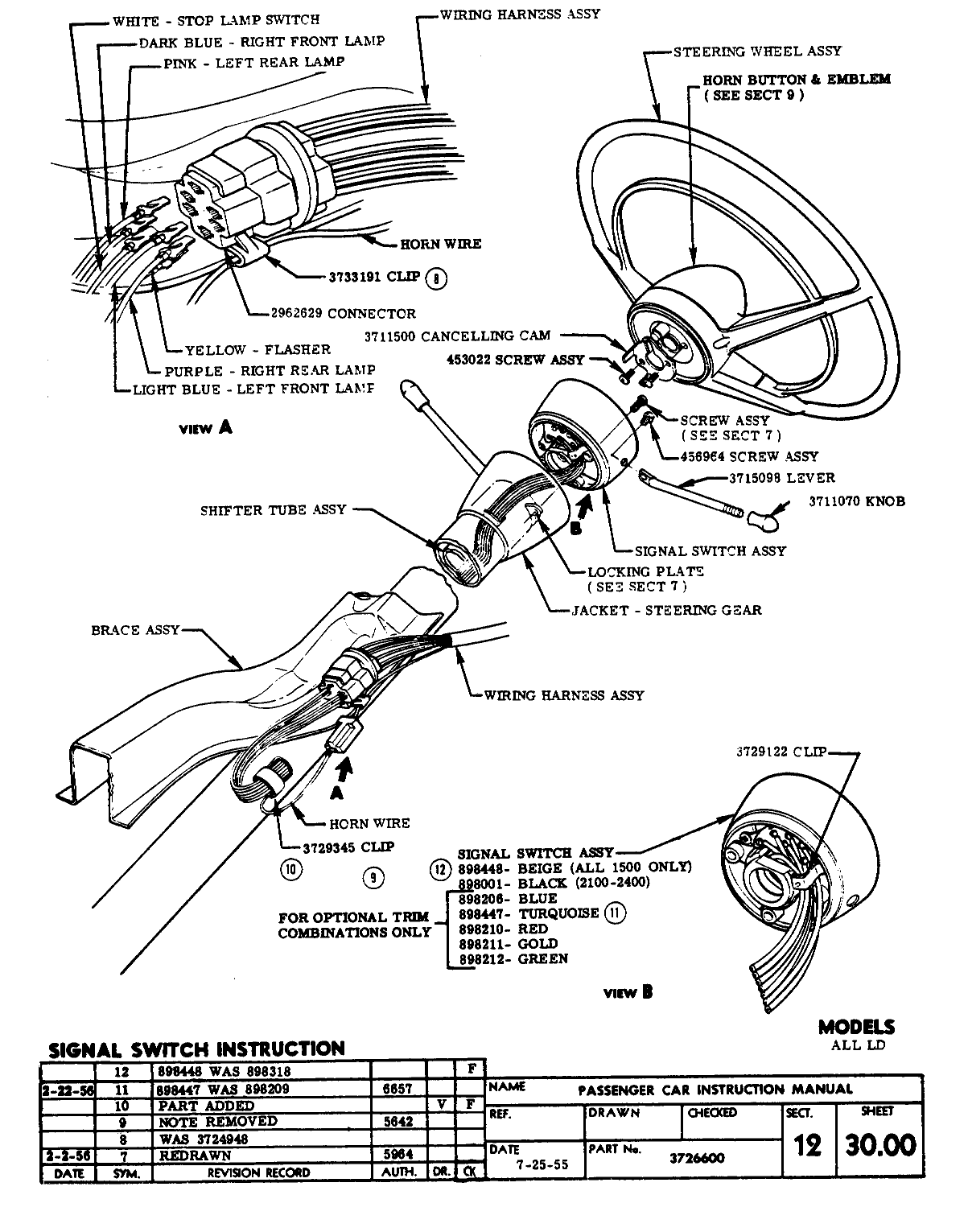

Signal Switch (Left Drive) Sheet 30.00

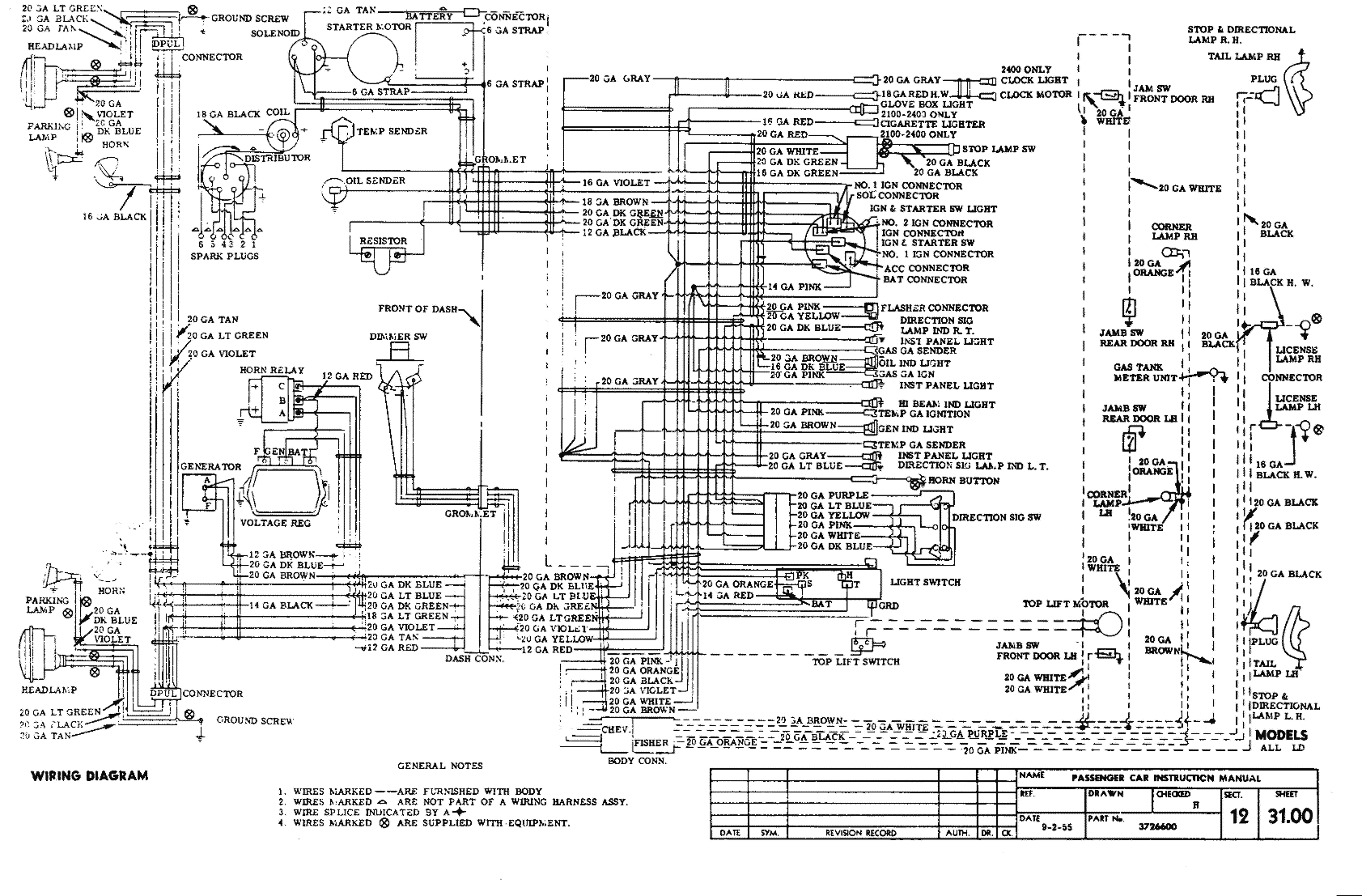

Wiring Diagram (Left Drive) Sheet 31.00
Wiring Diagram (Right Drive) Sheet 32.00
Section 13 – Radiator & Grill Instruction

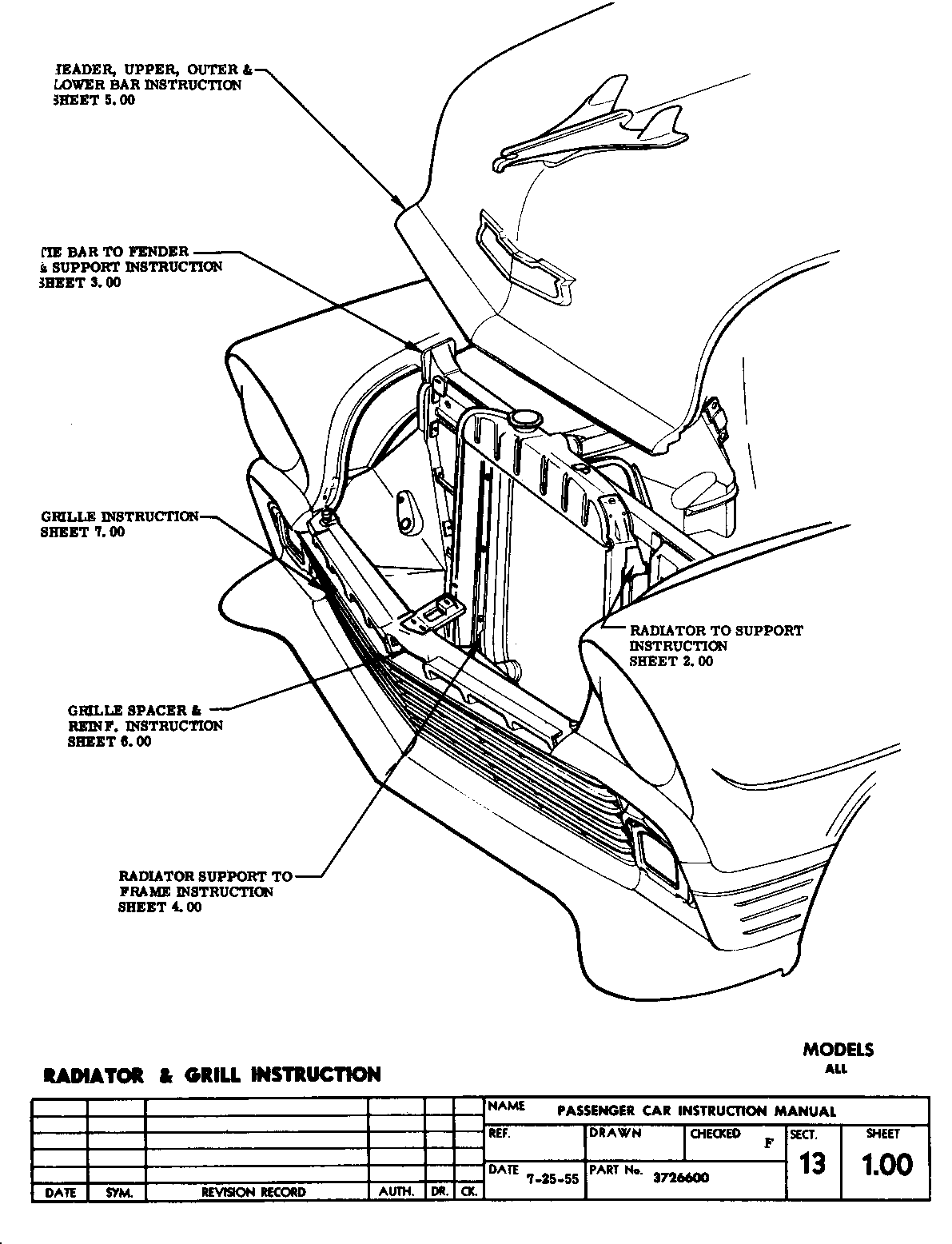

Radiator & Grill Index Sheet 1.00

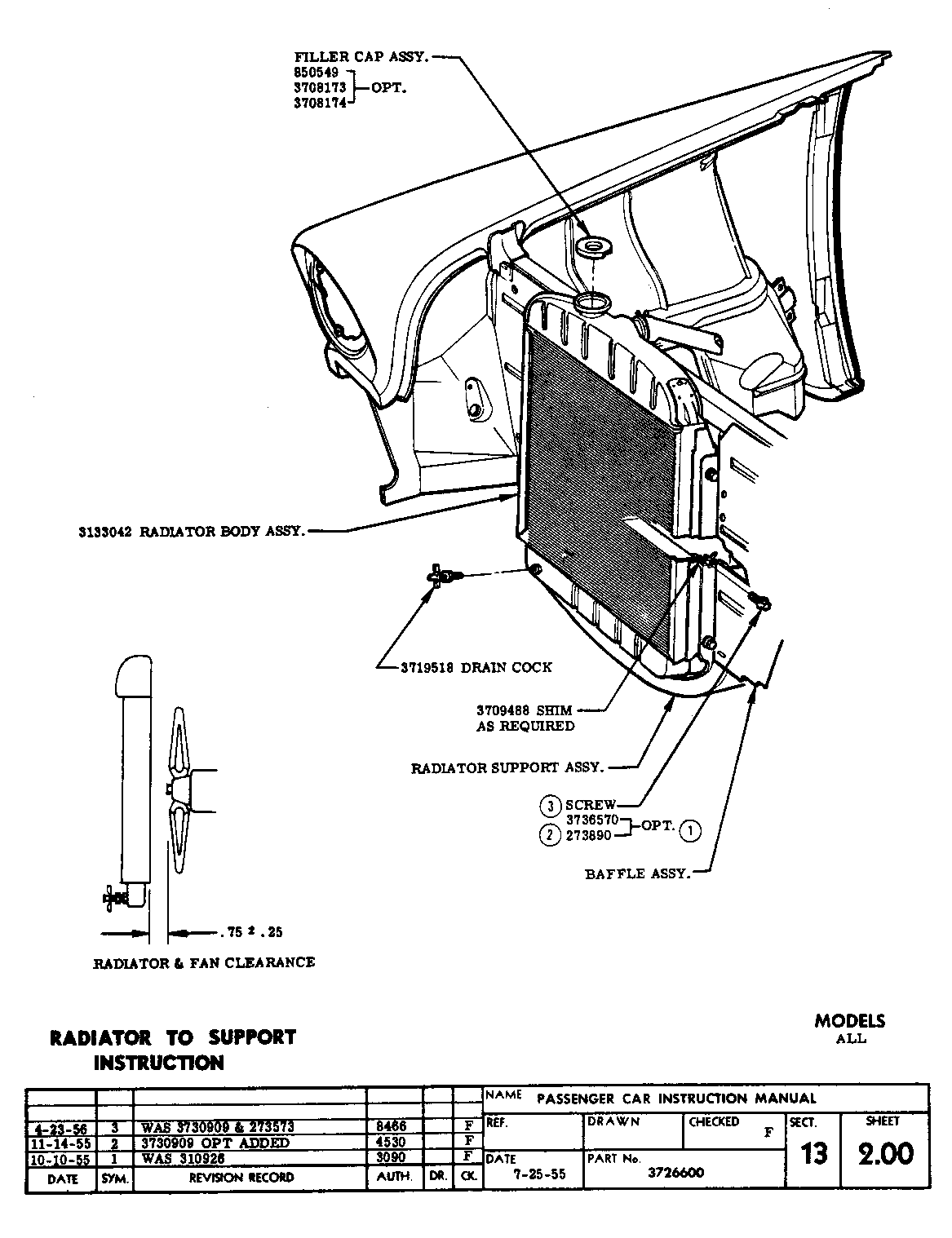

Radiator to Support Sheet 2.00

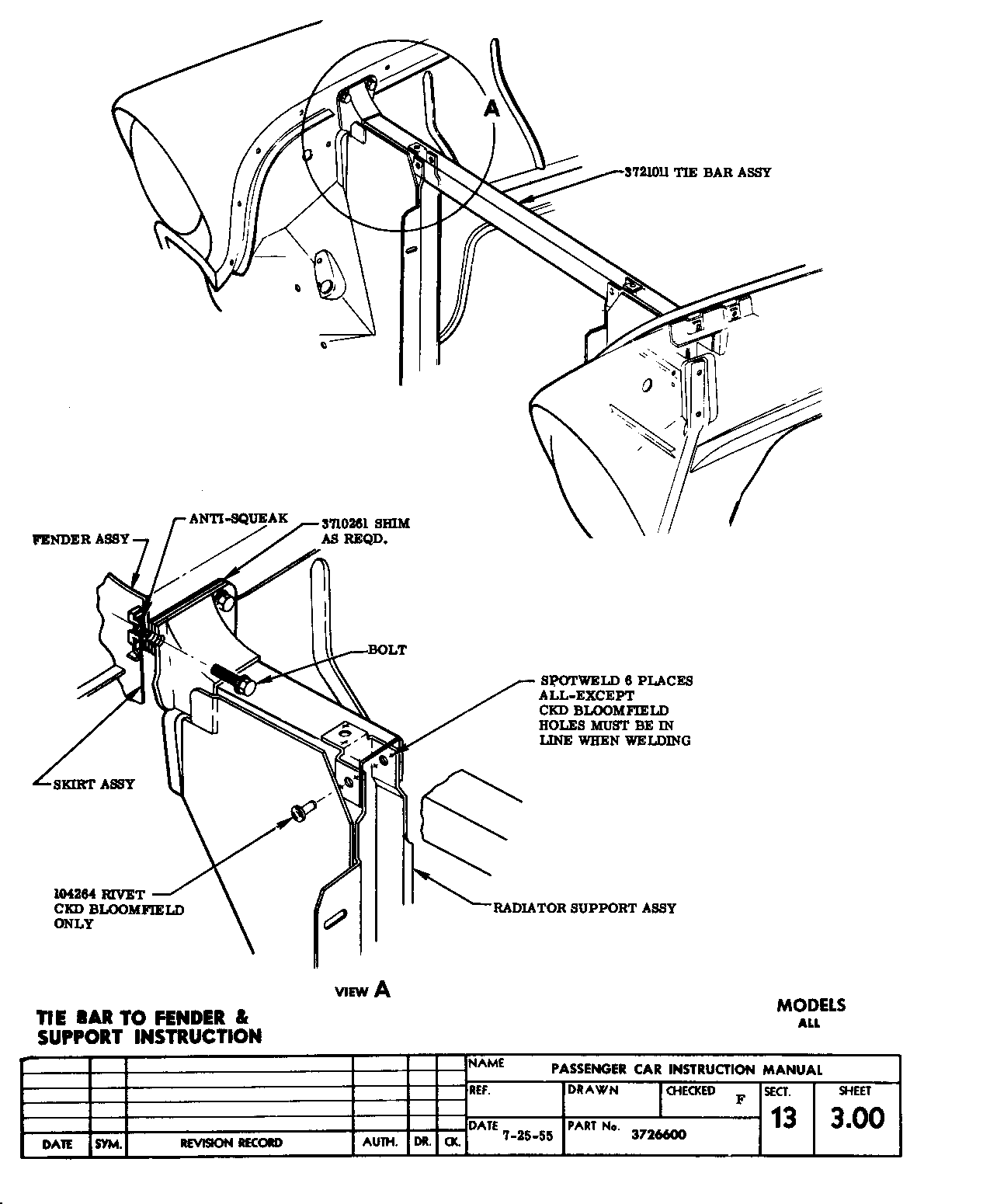

Tie Bar to Fender & Support Sheet 3.00

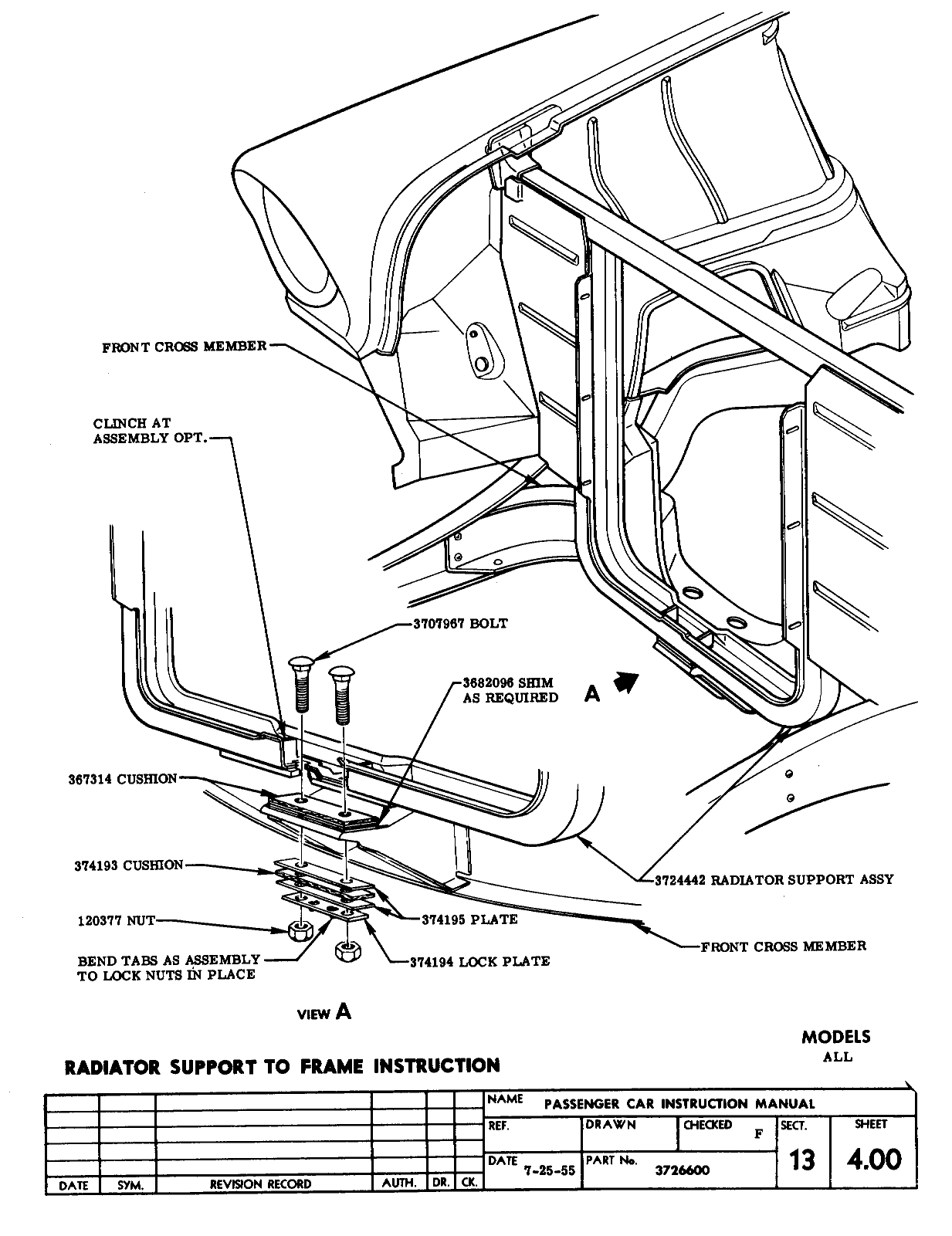

Radiator Support to Frame Sheet 4.00

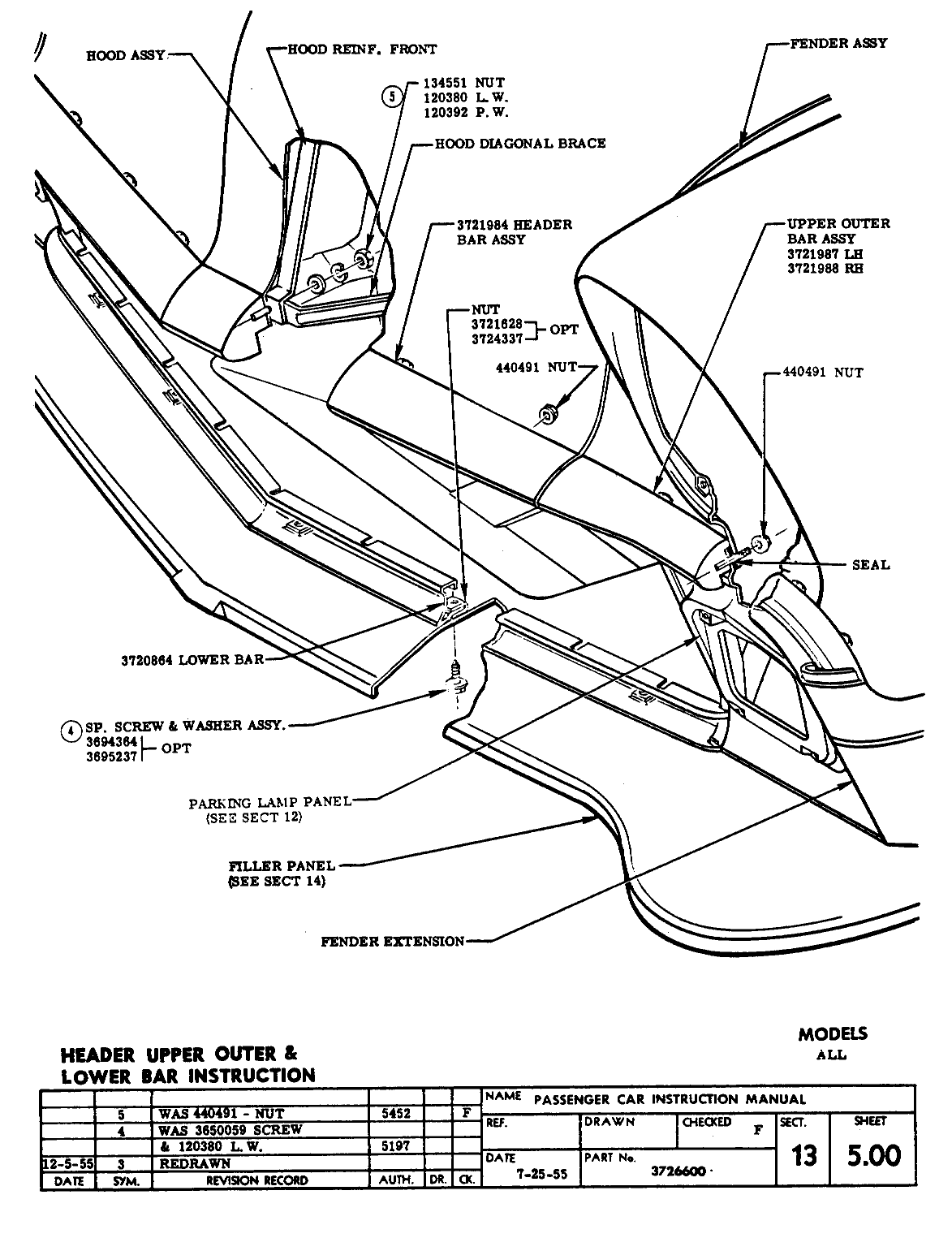

Header Upper Outer & Lower Bar Sheet 5.00

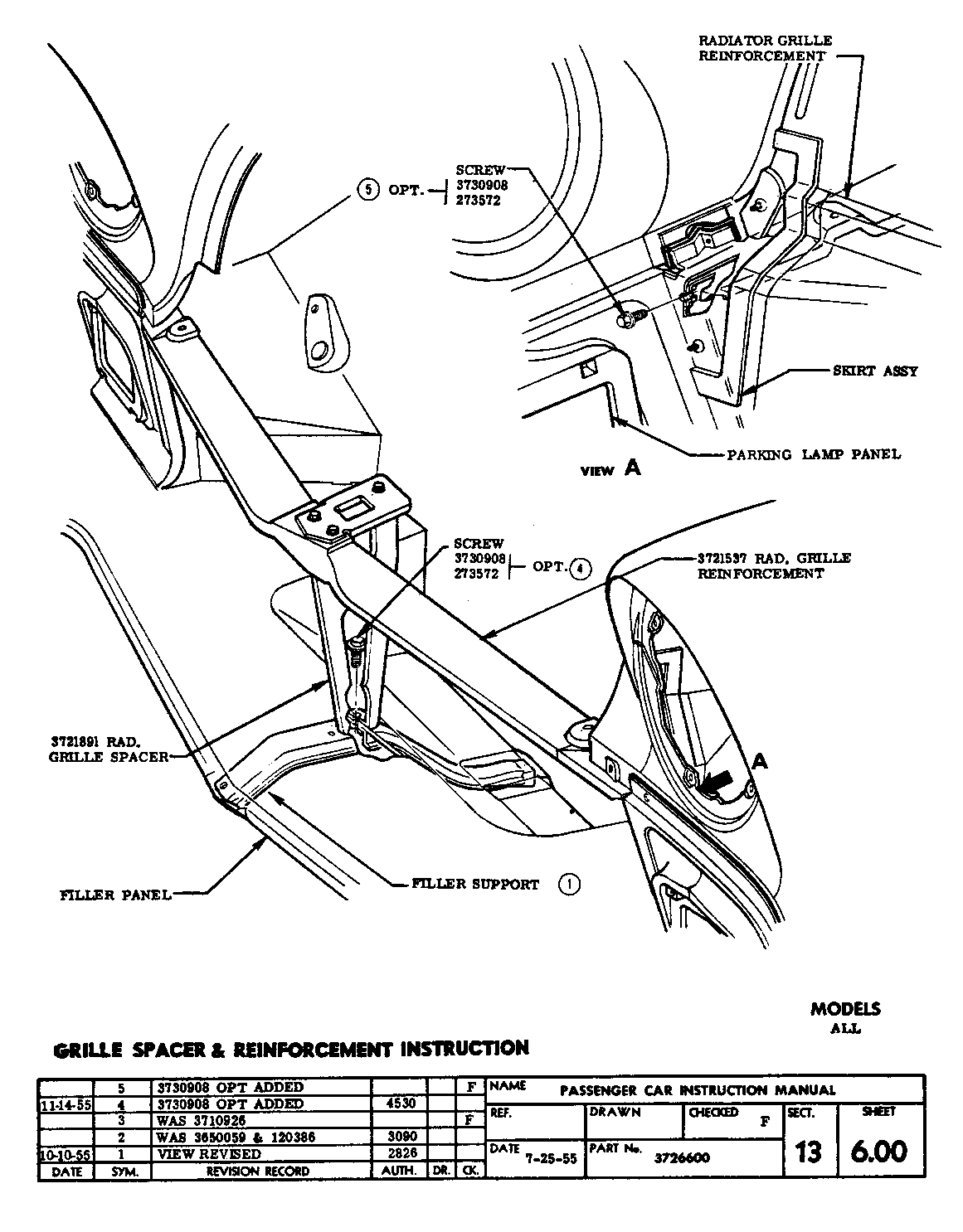

Grille Spacer & Reinforcement Sheet 6.00

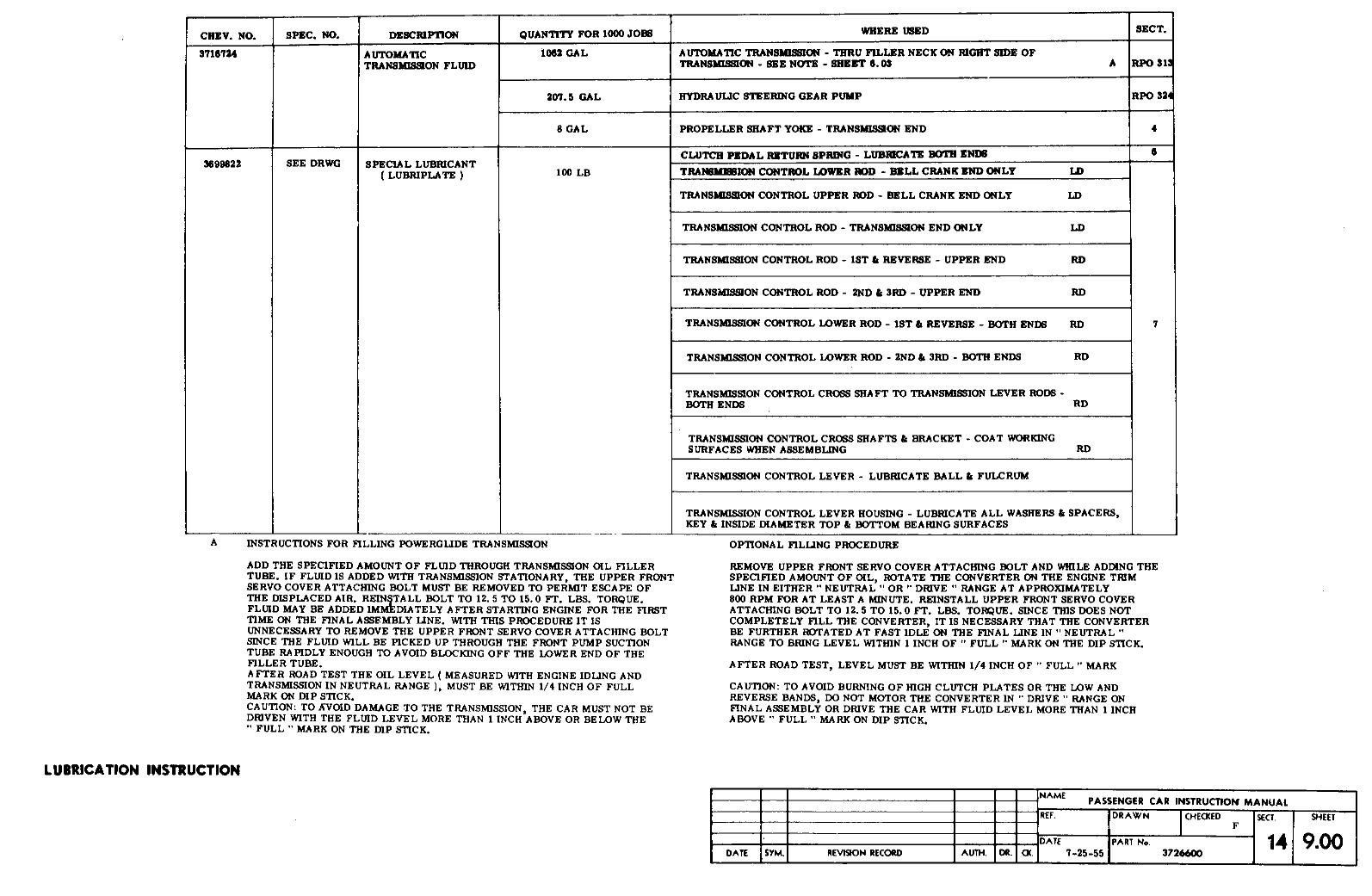

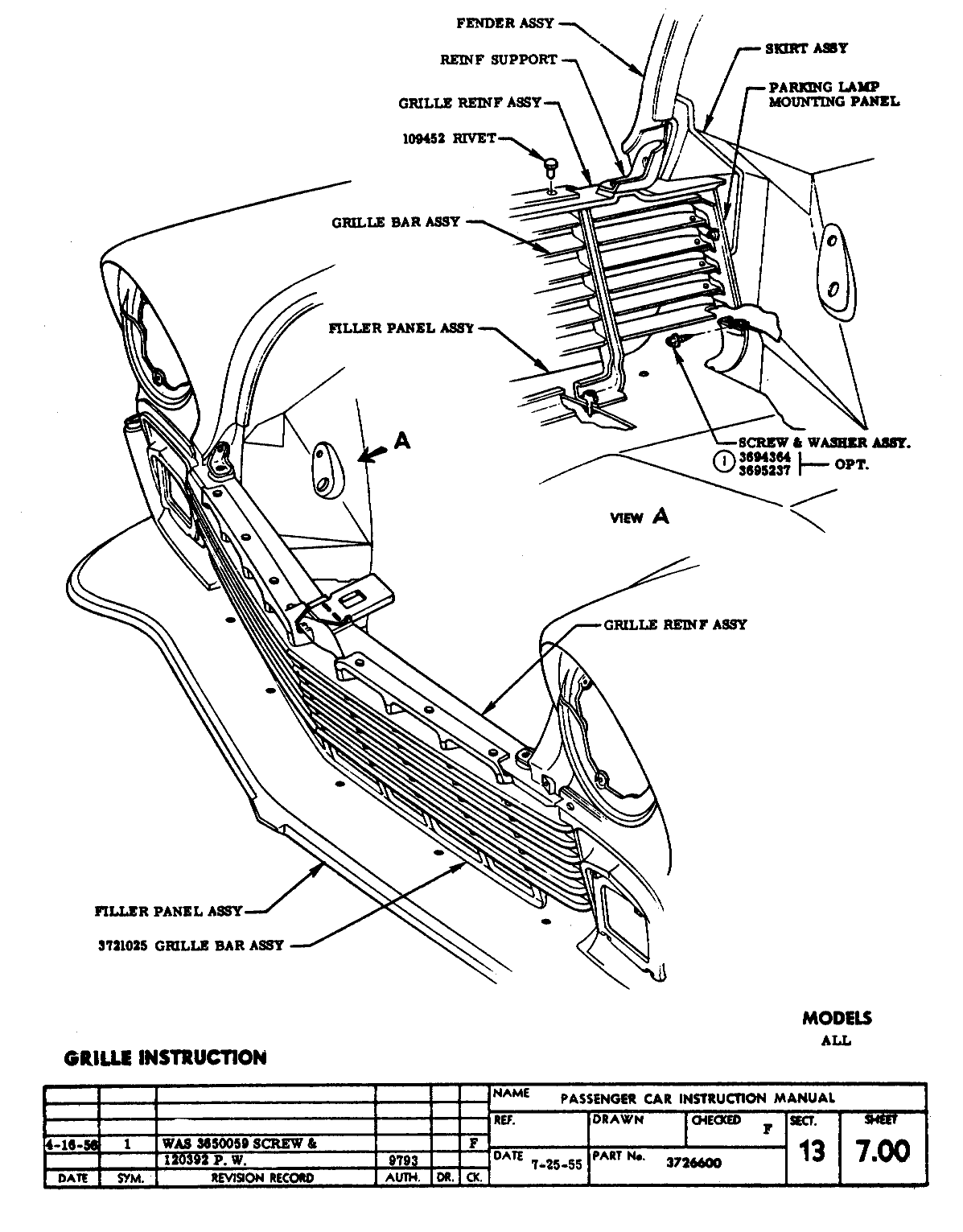

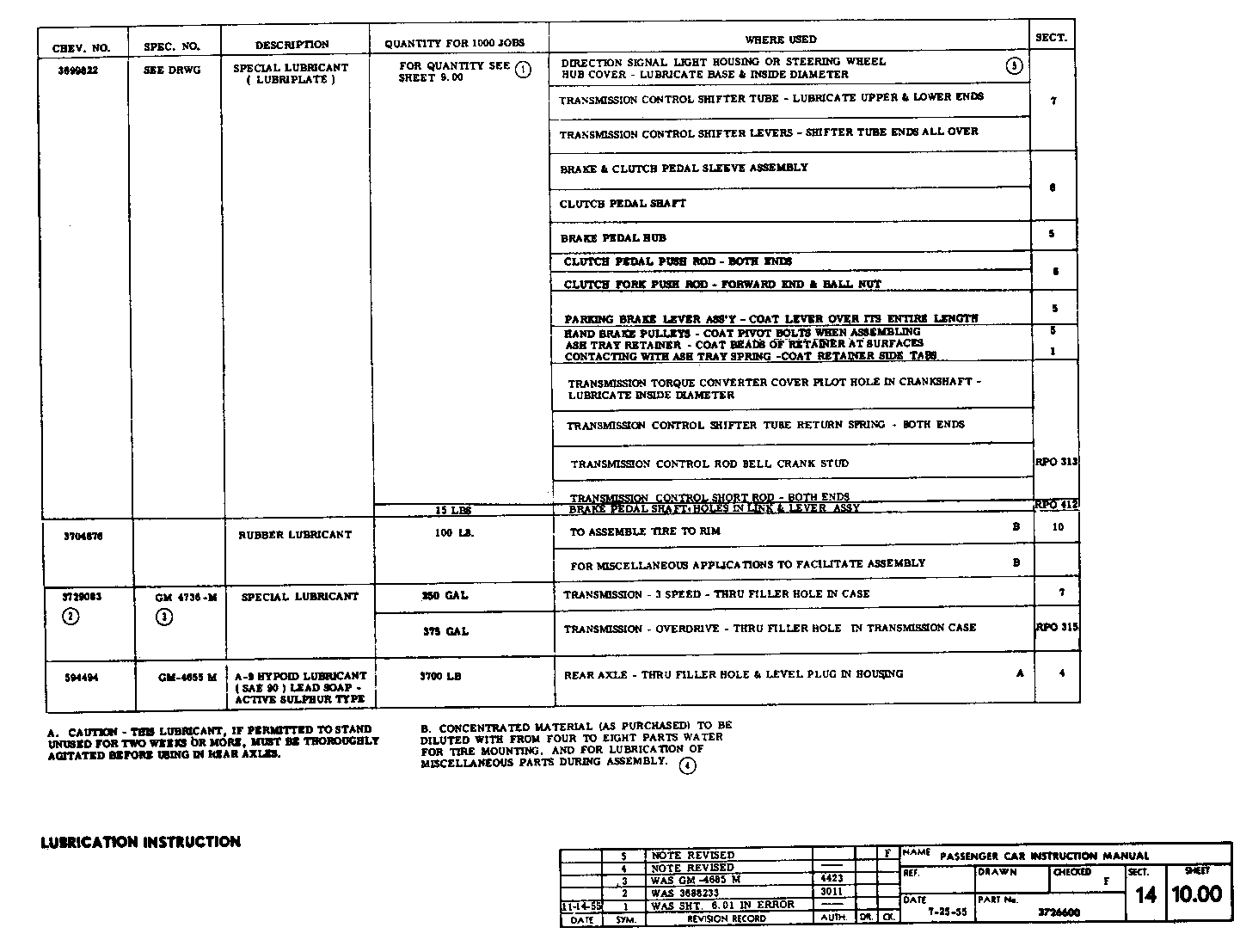

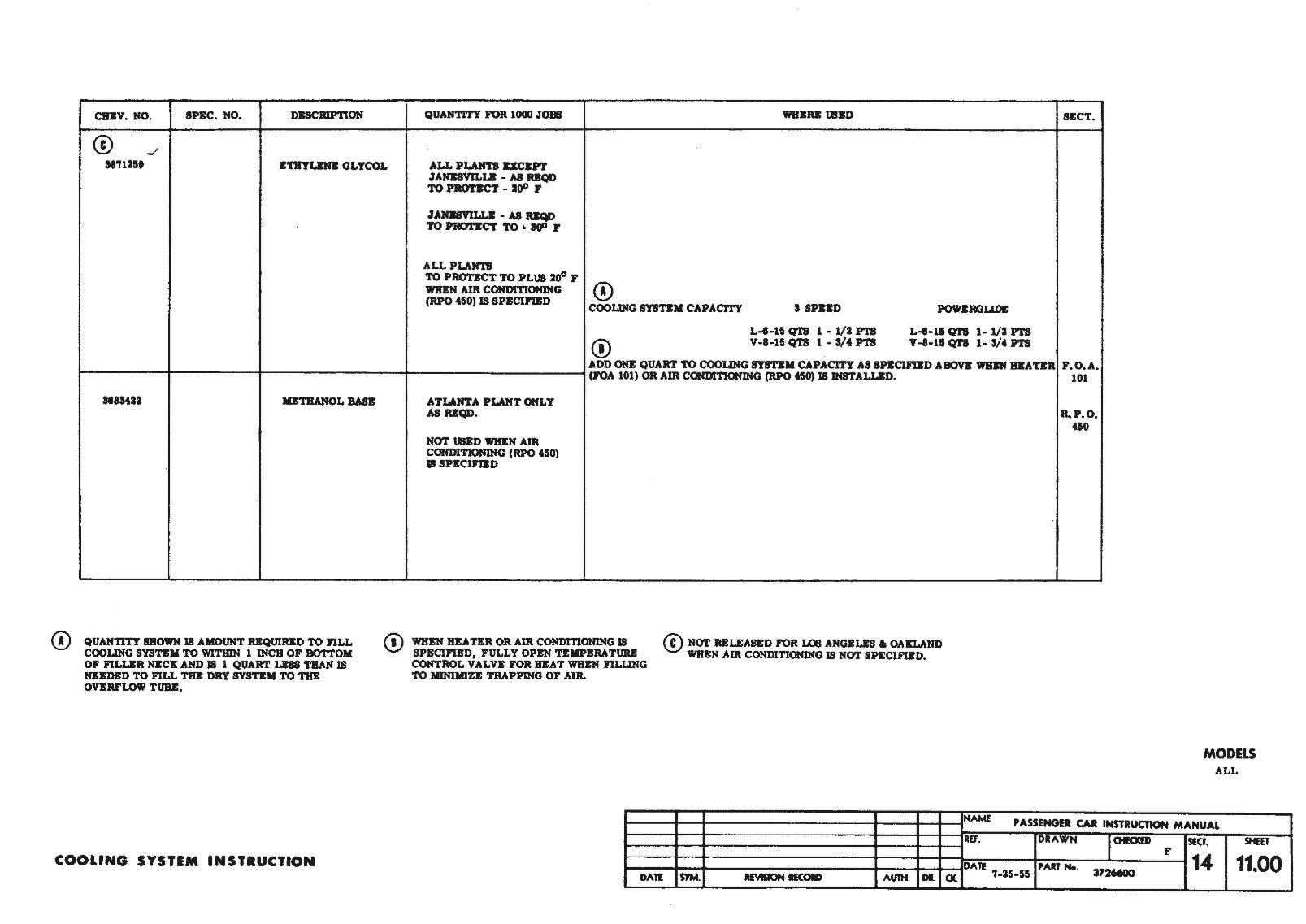

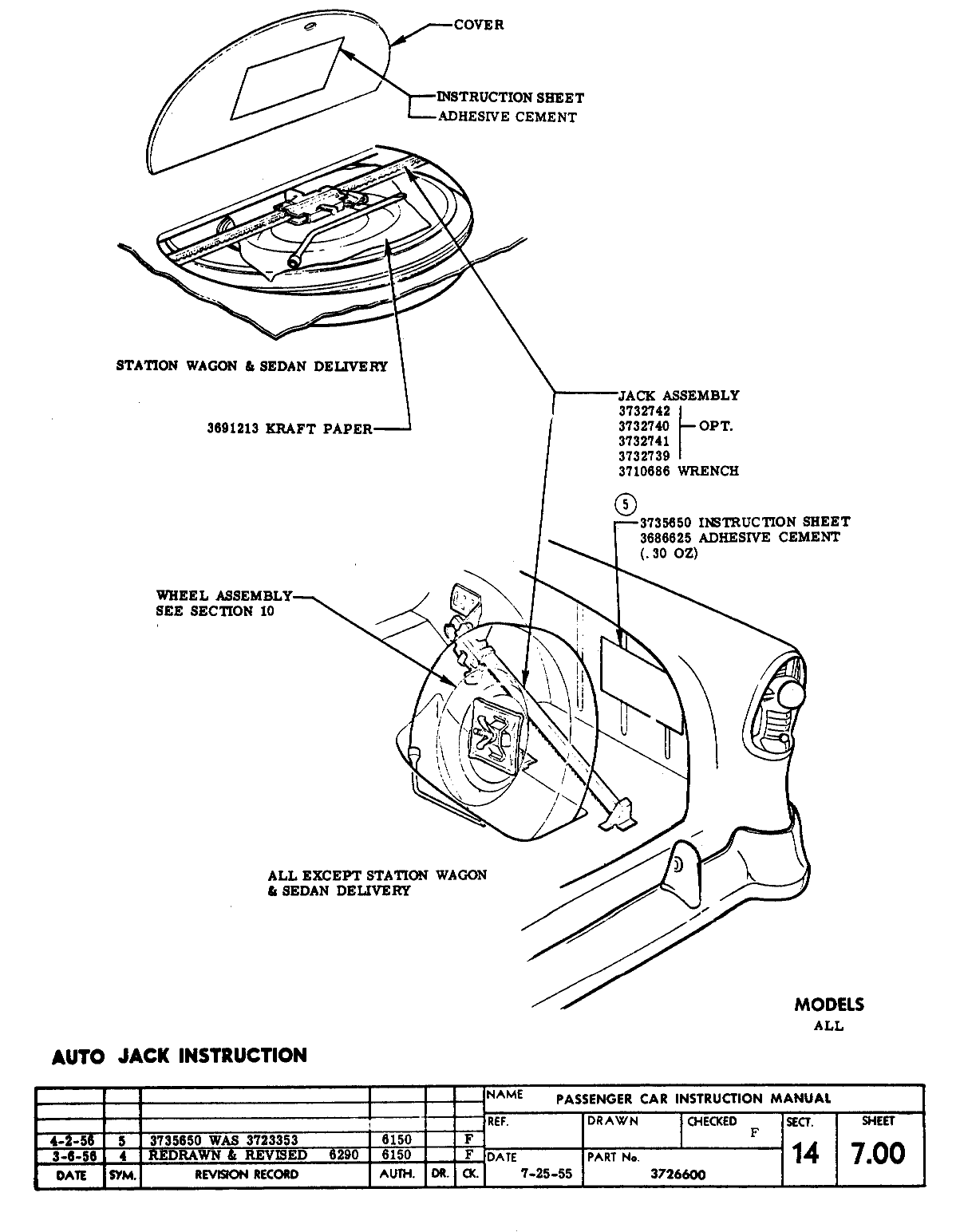

Section 14 – Bumper & Miscellaneous Instruction

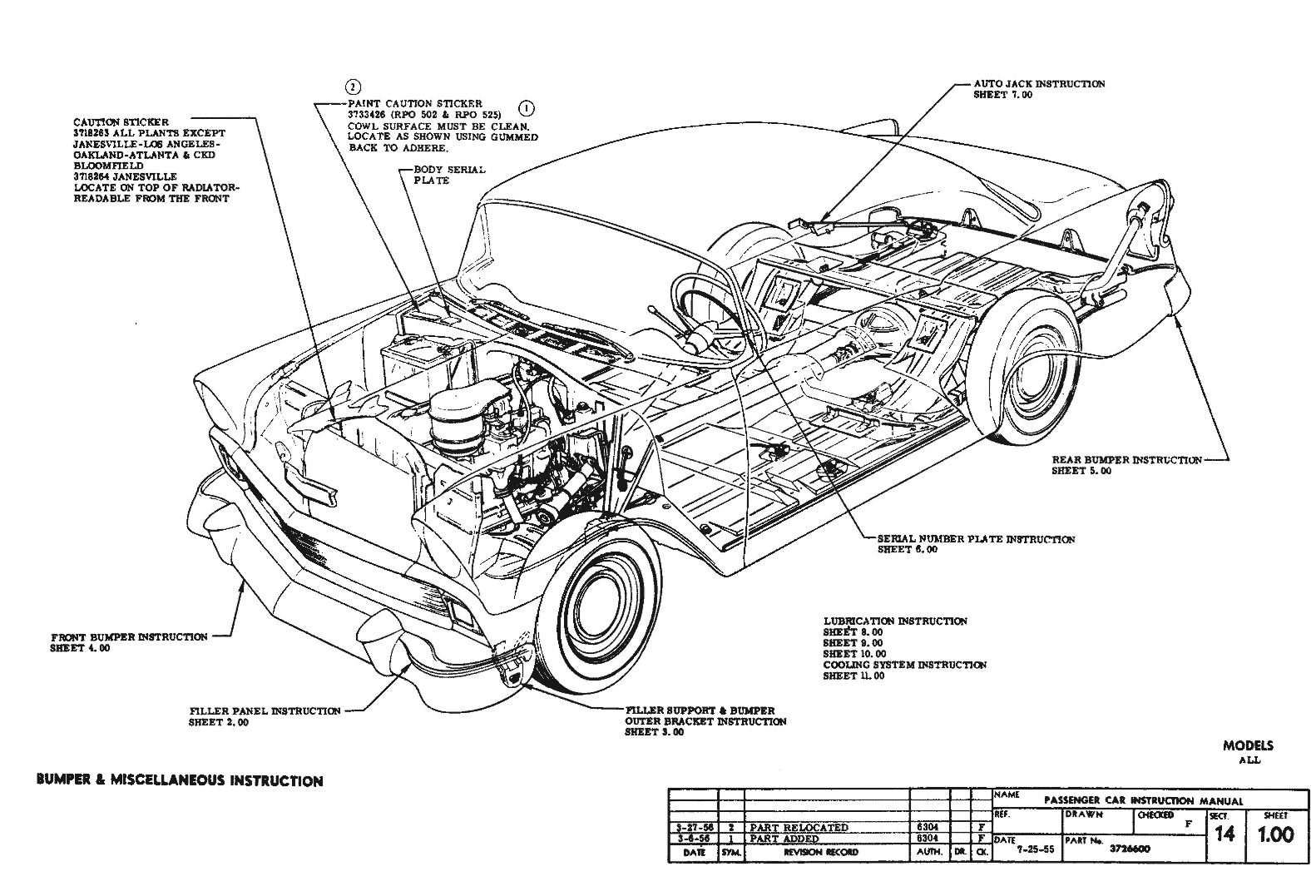

Bumper & Miscellaneous Index Sheet 1.00

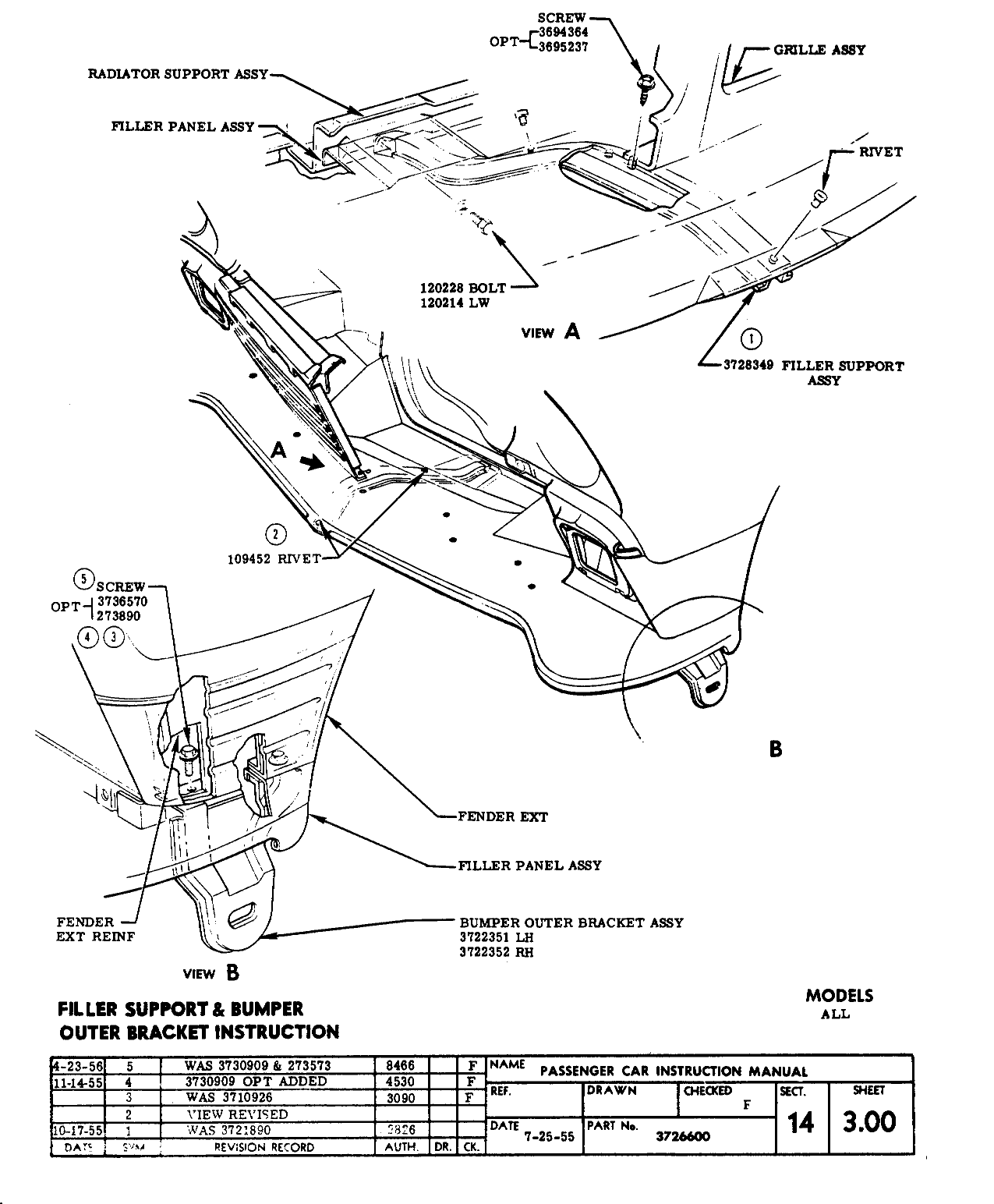

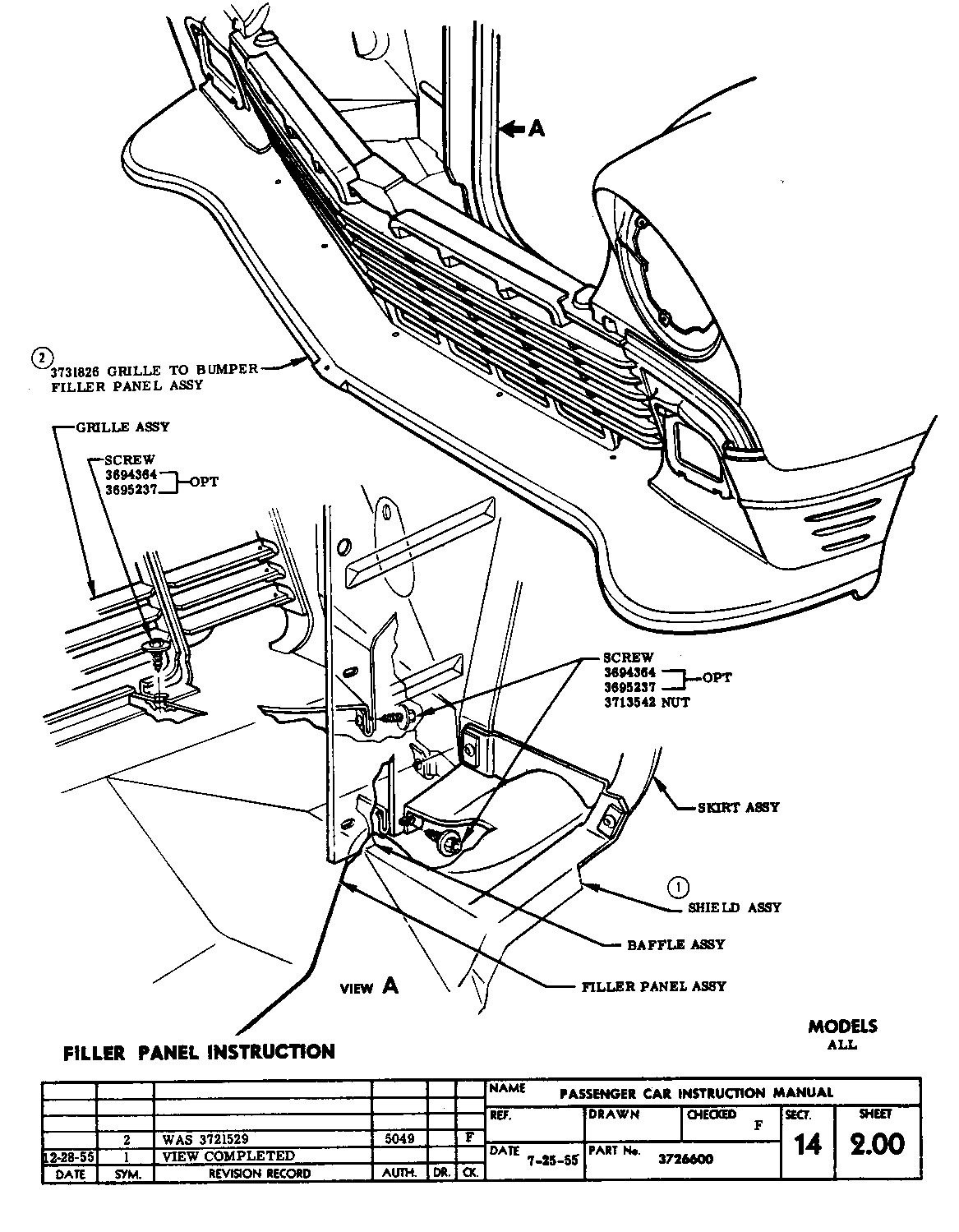

Filler Support & Bumper Outer Bracket Sheet 3.00

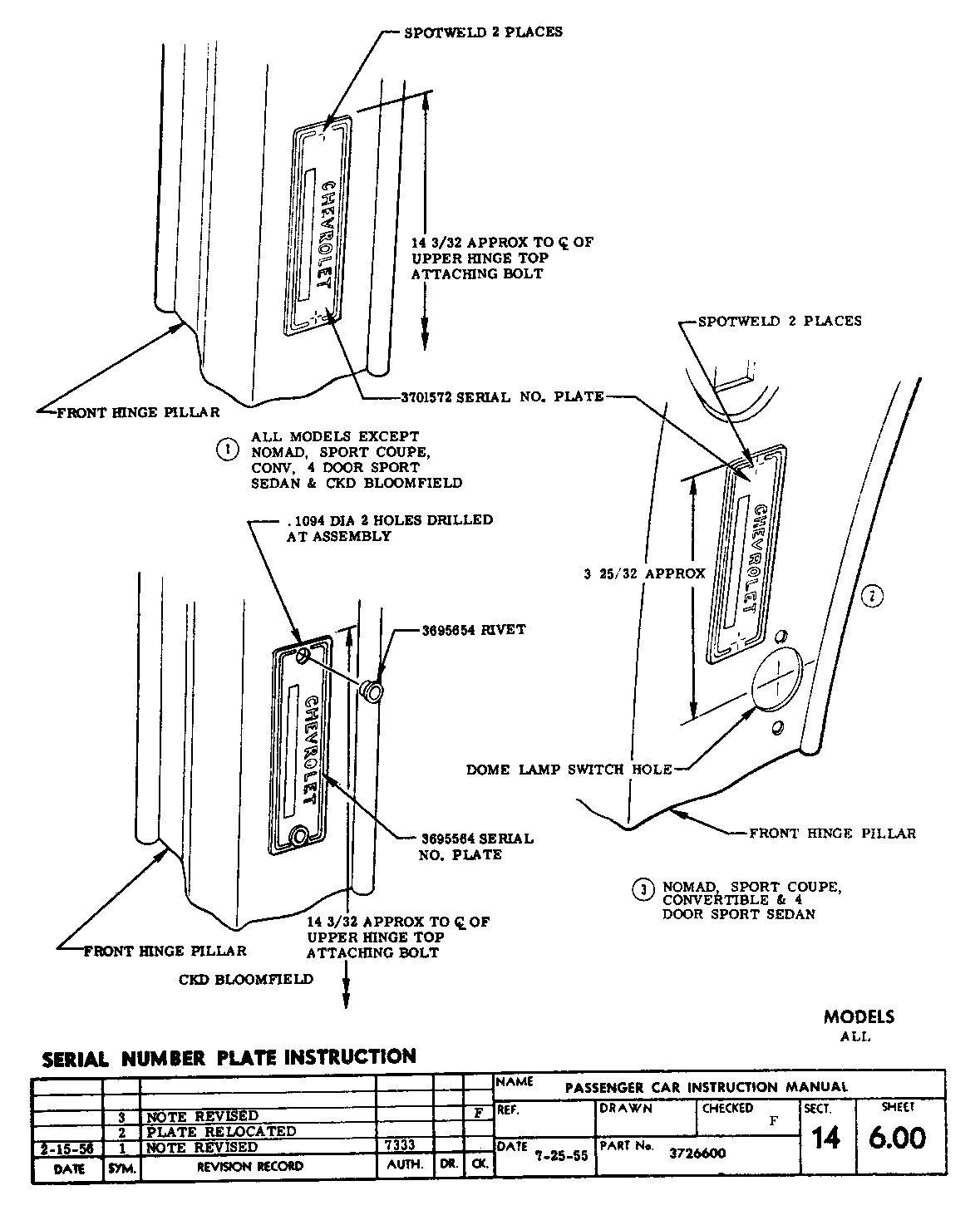

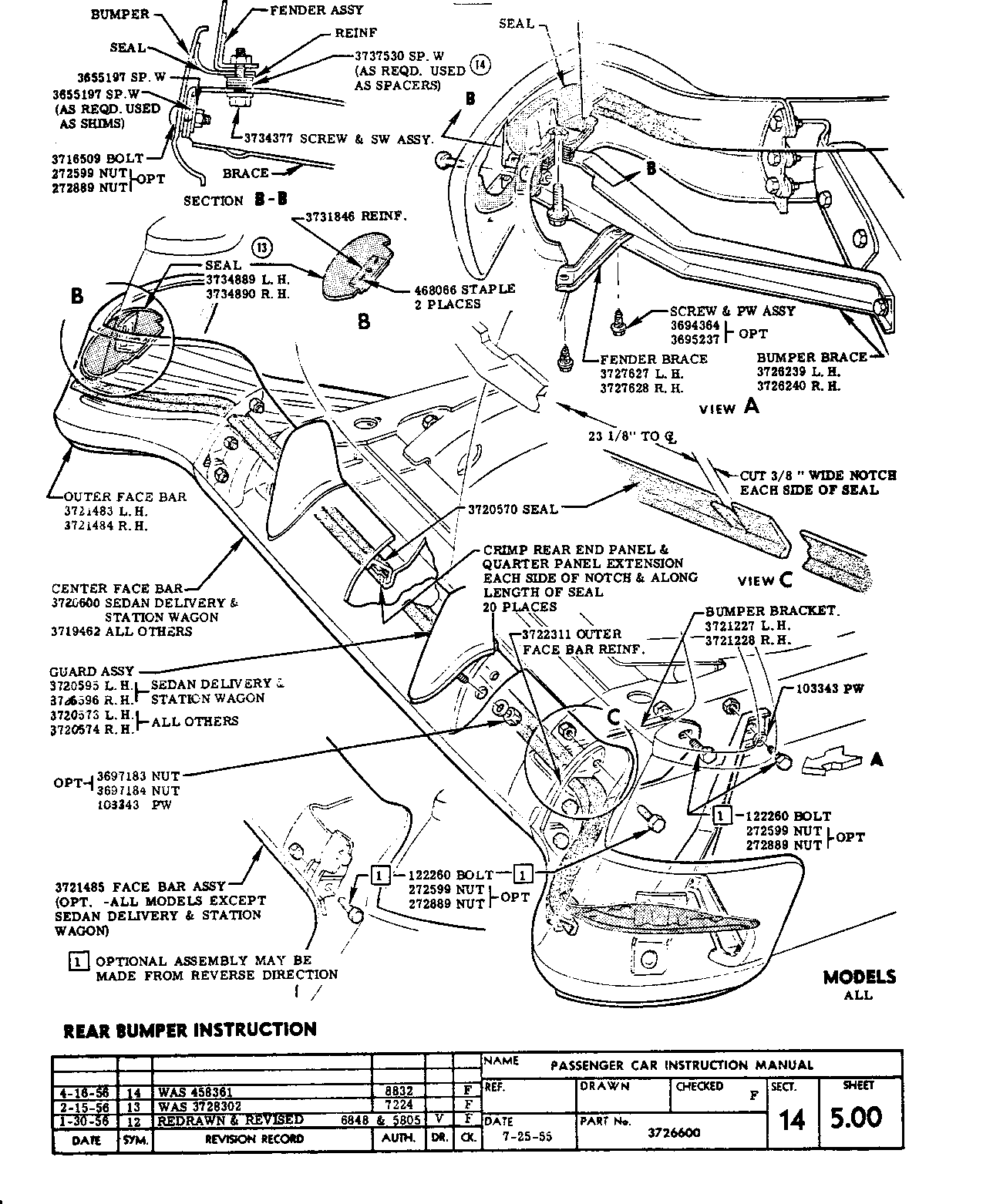

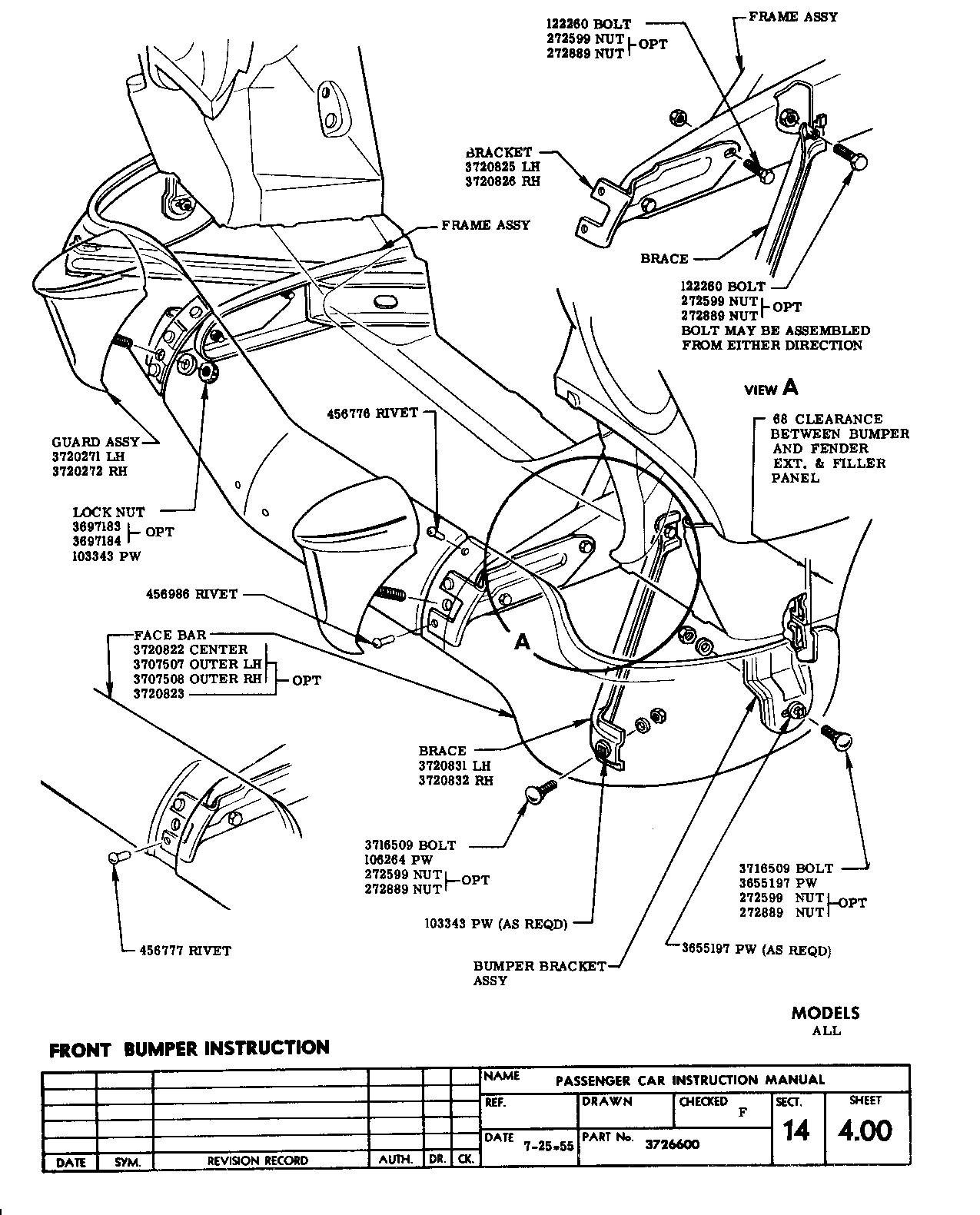

Serial Number Identification Plate Sheet 6.00

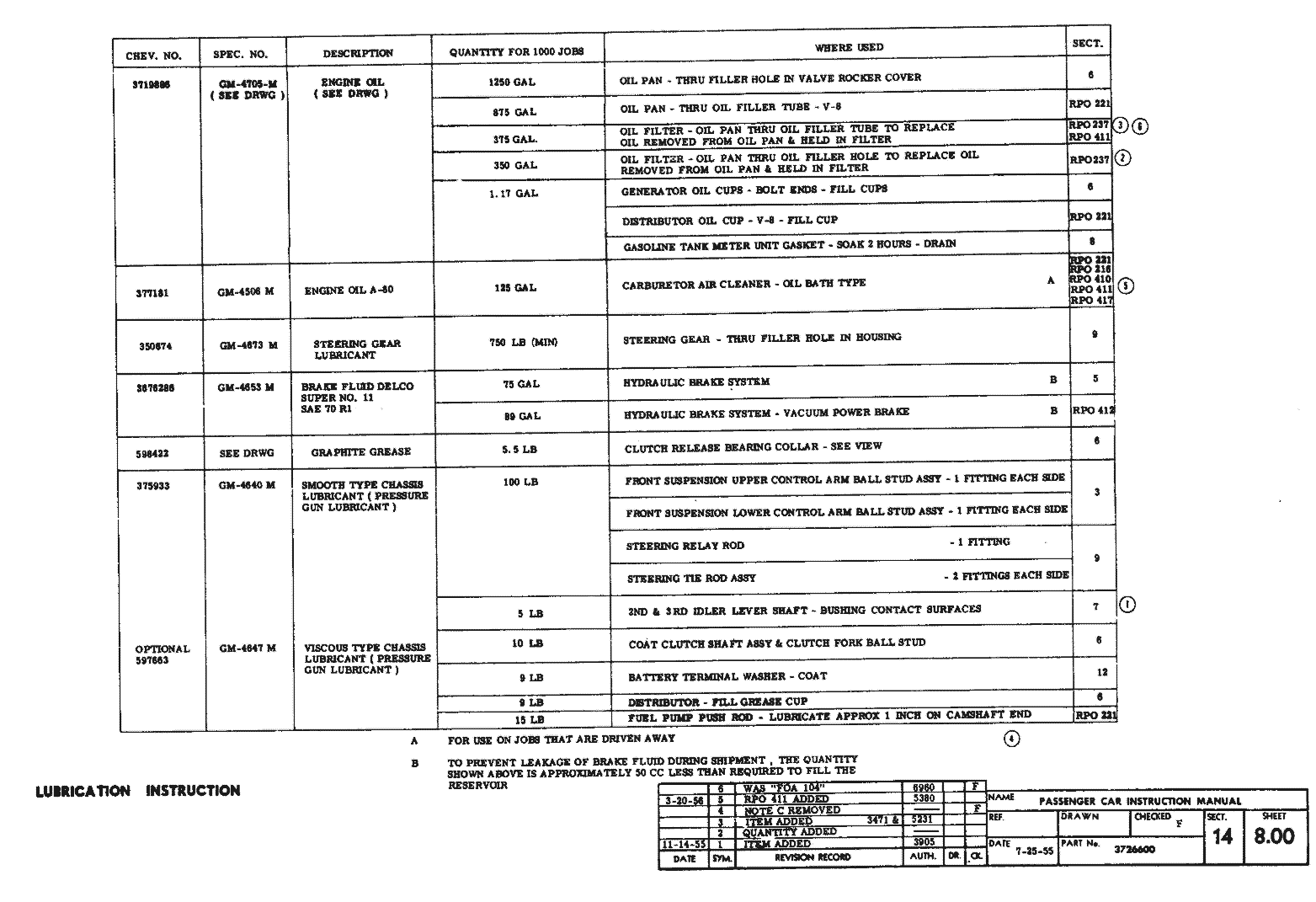

Factory Optional Accessories and Regular Production Options Index (FOA & RPO)

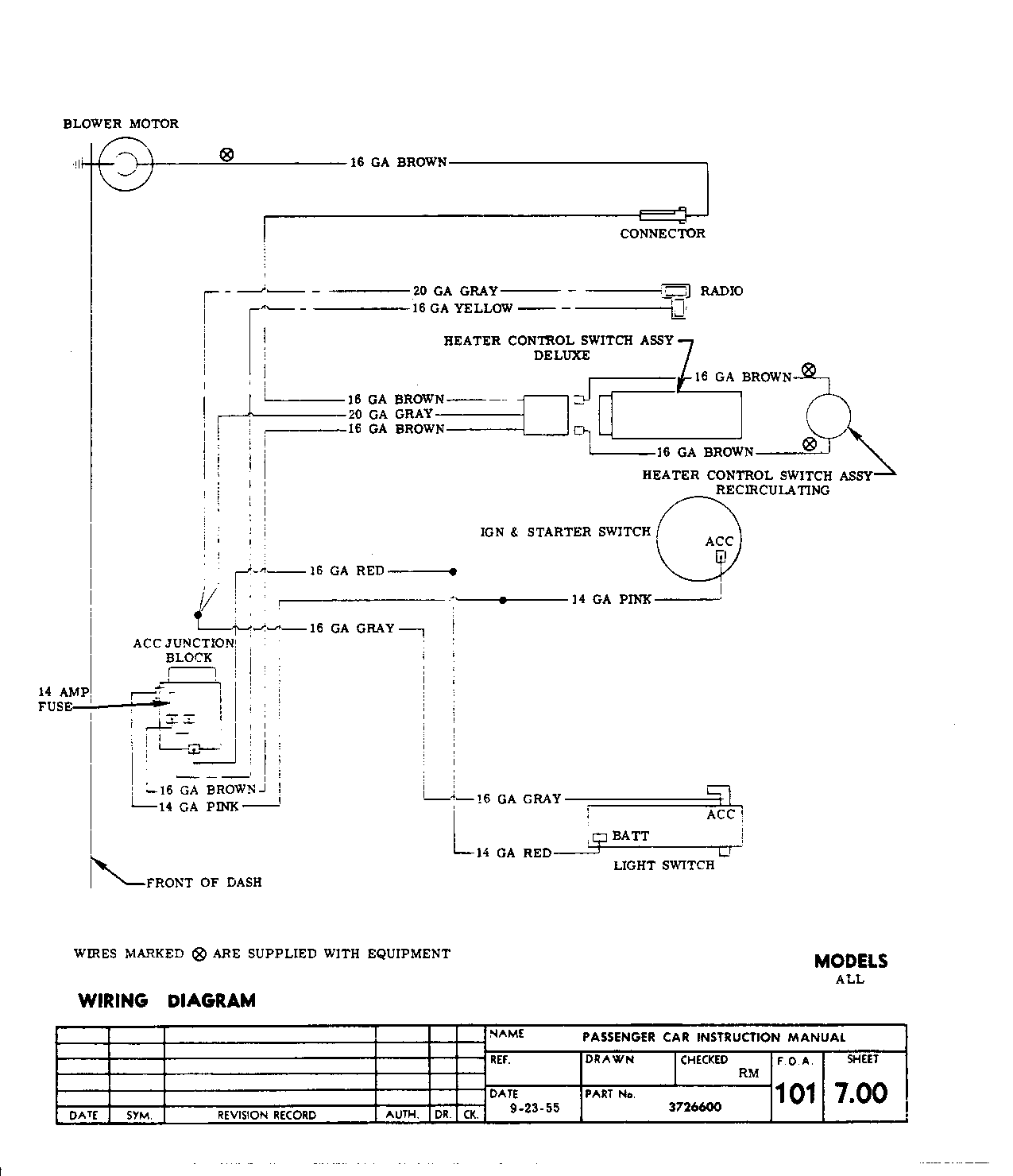

FOA 101 – Heater

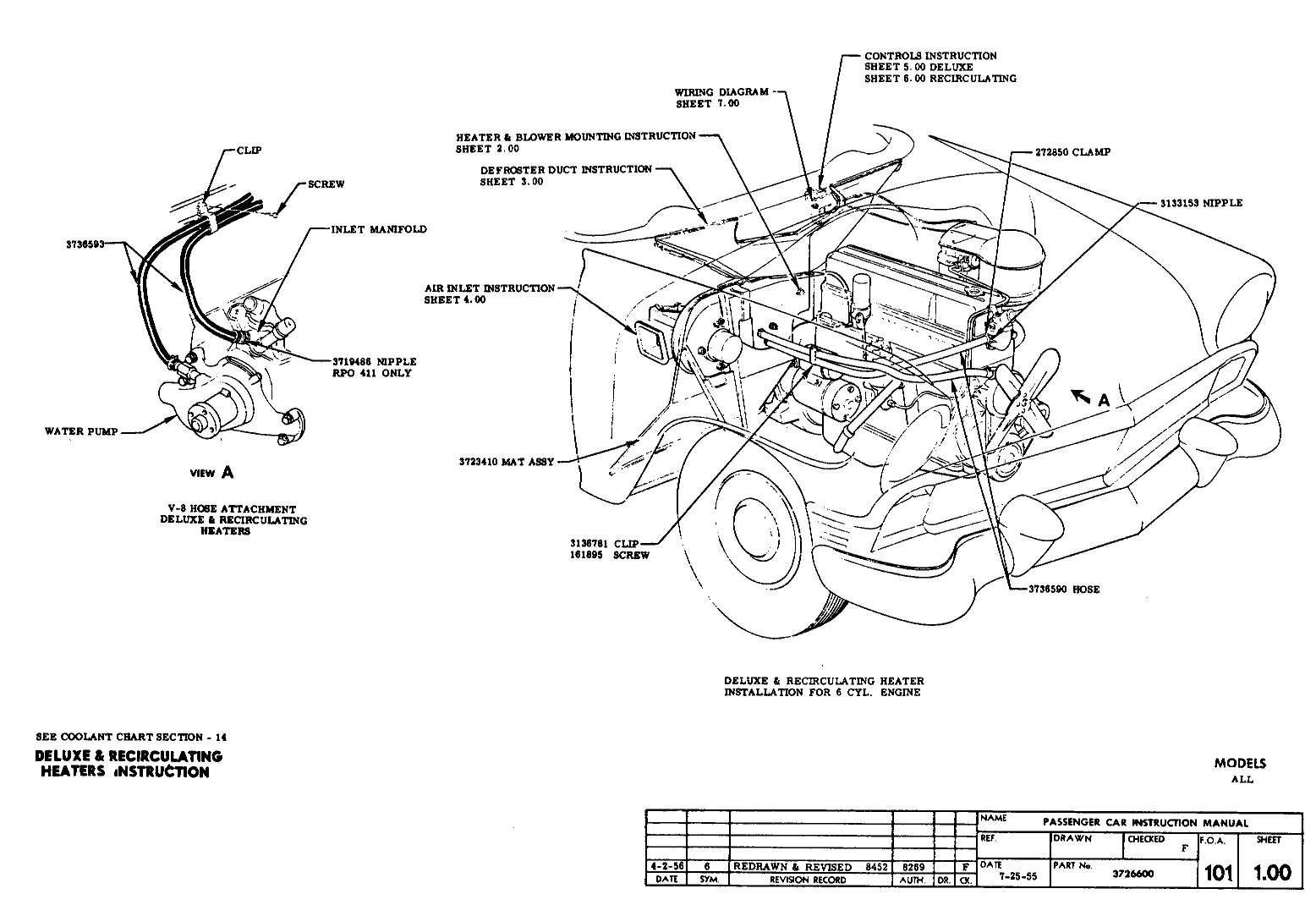

Deluxe & Recirculating Heaters Index Sheet 1.00

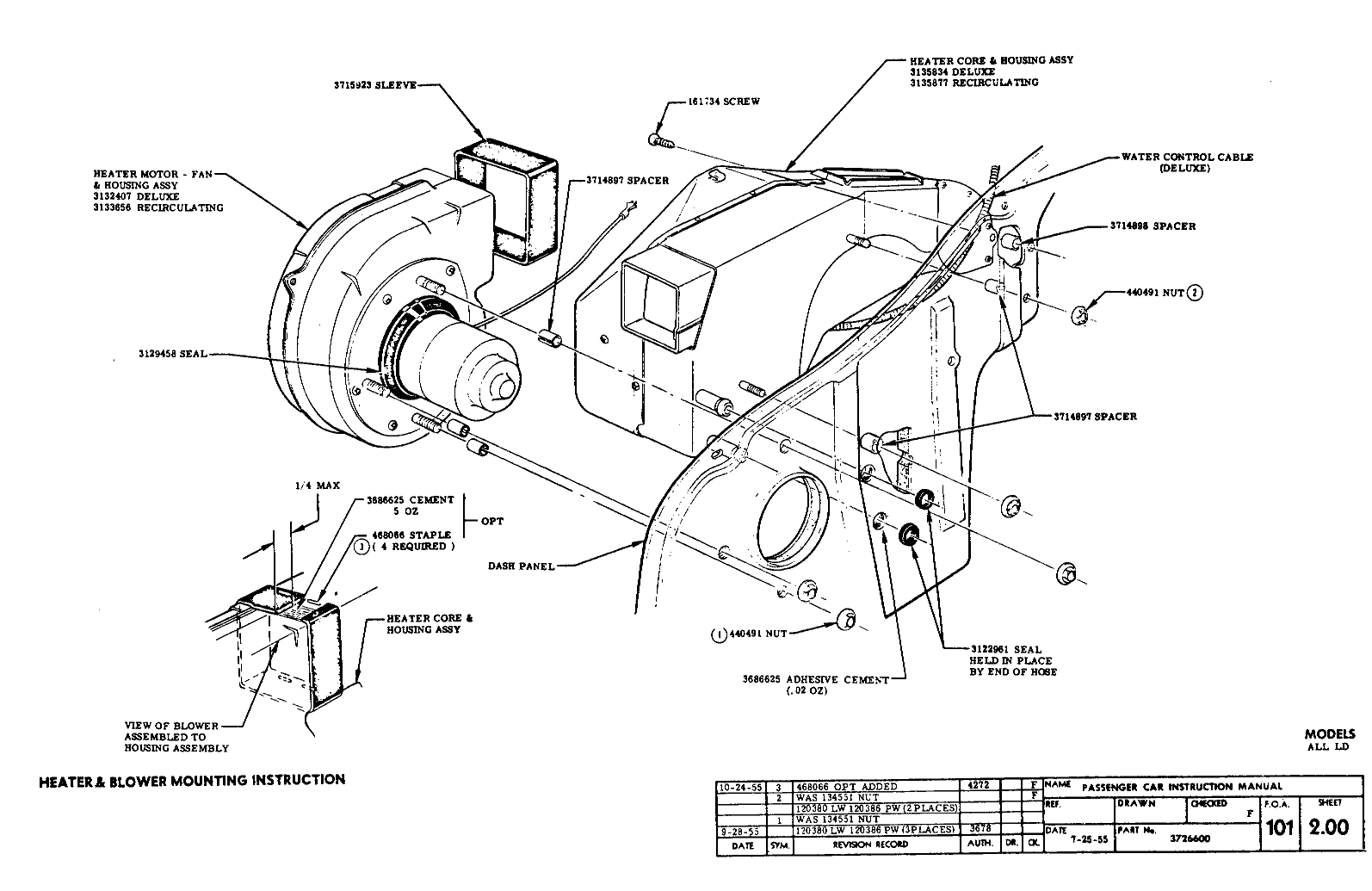

Heater and Blower Motor Mounting (Left Drive) Sheet 2.00
Defroster Duct (Left Drive) Sheet 3.00

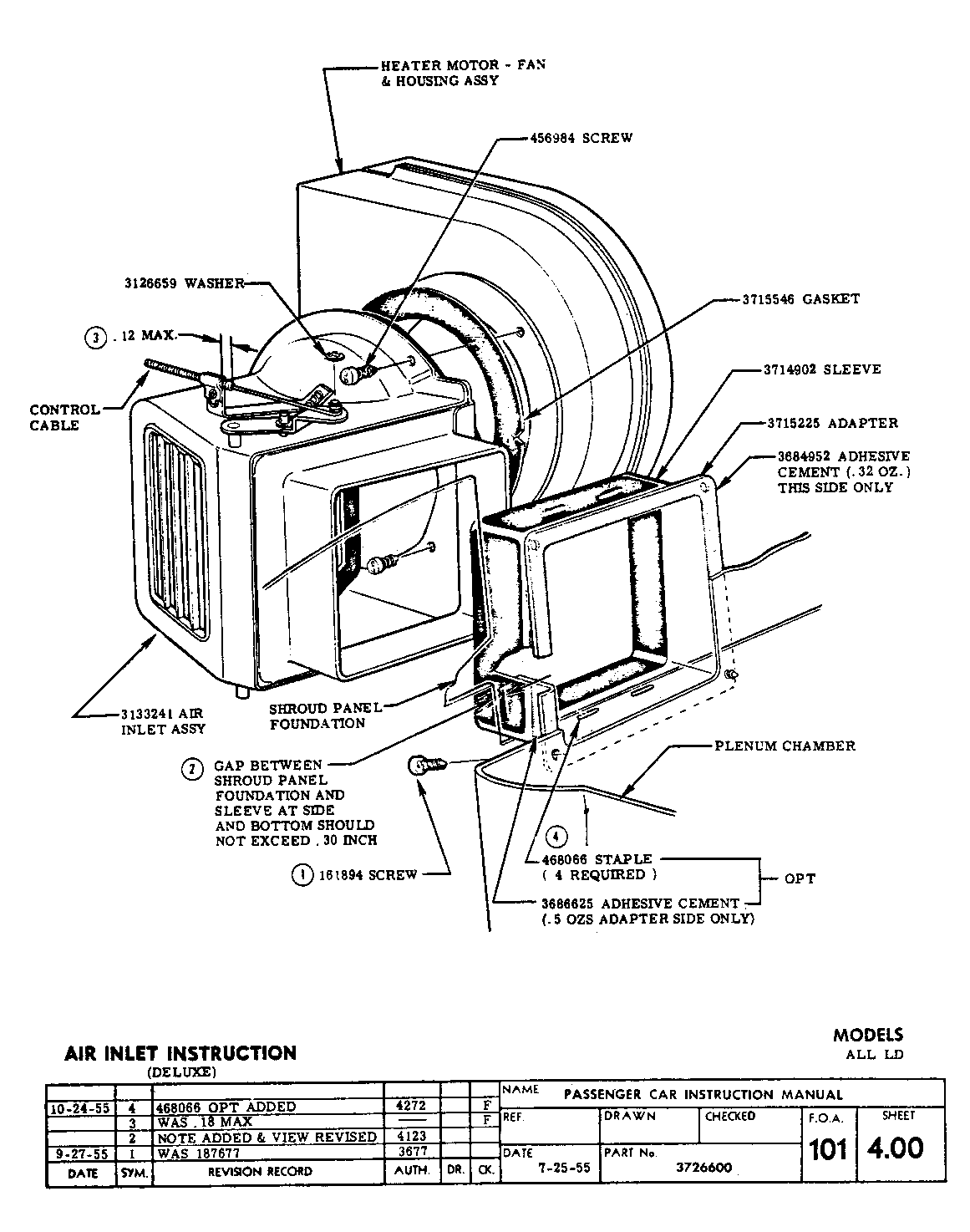

Air Inlet - Deluxe (Left Drive) Sheet 4.00

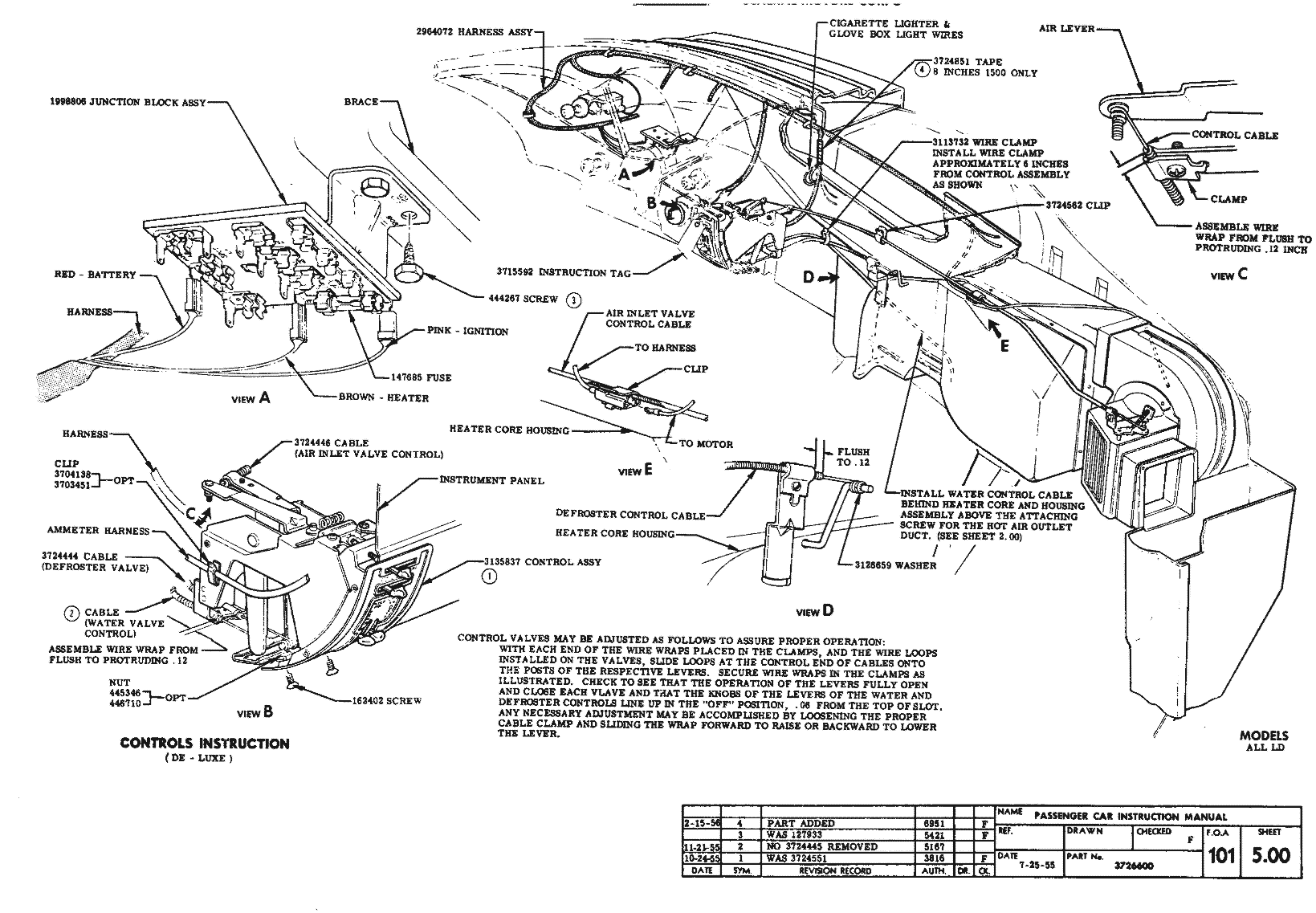

Controls – Deluxe (Left Drive) Sheet 5.00

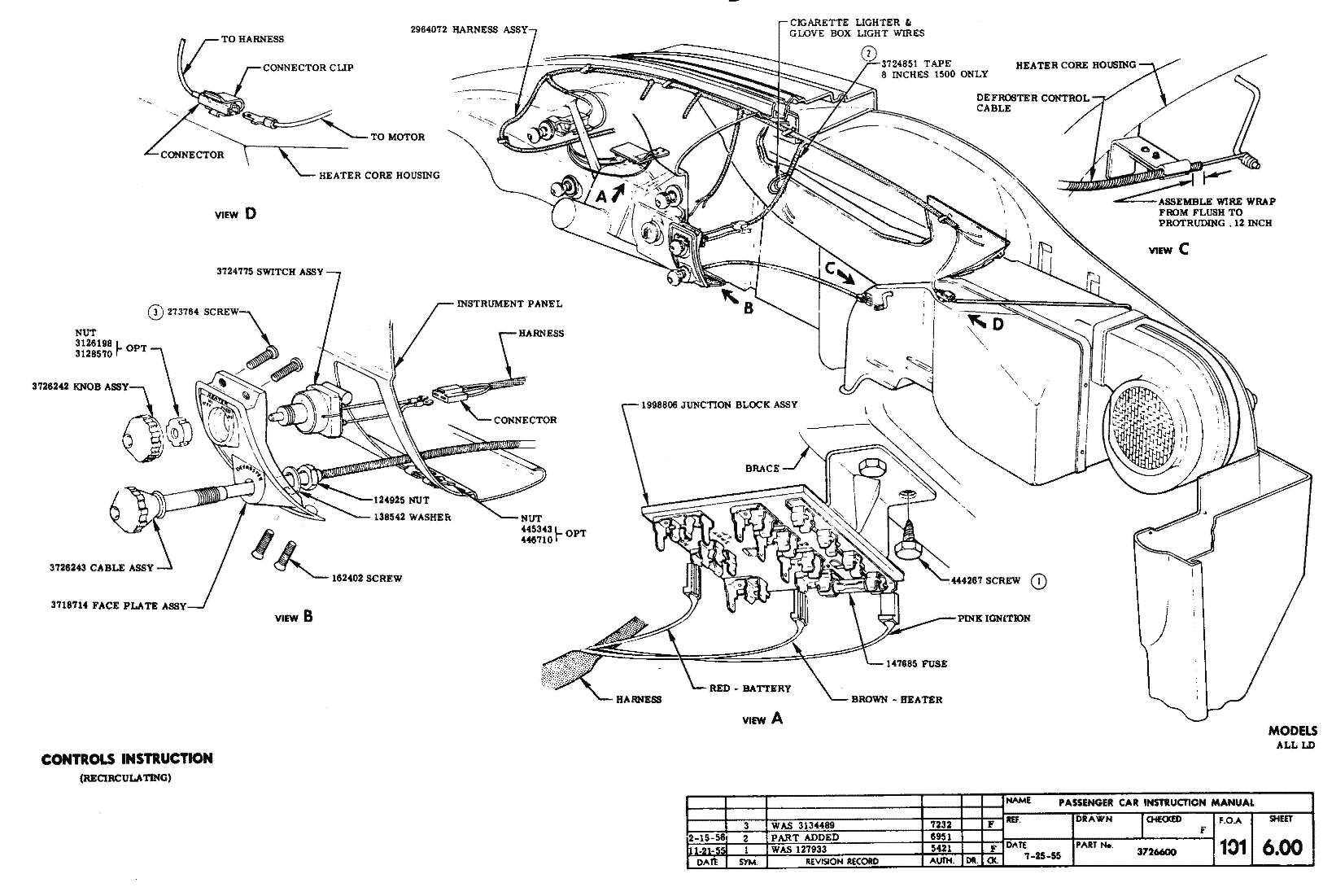

Controls – Recirculating (Left Drive) Sheet 6.00

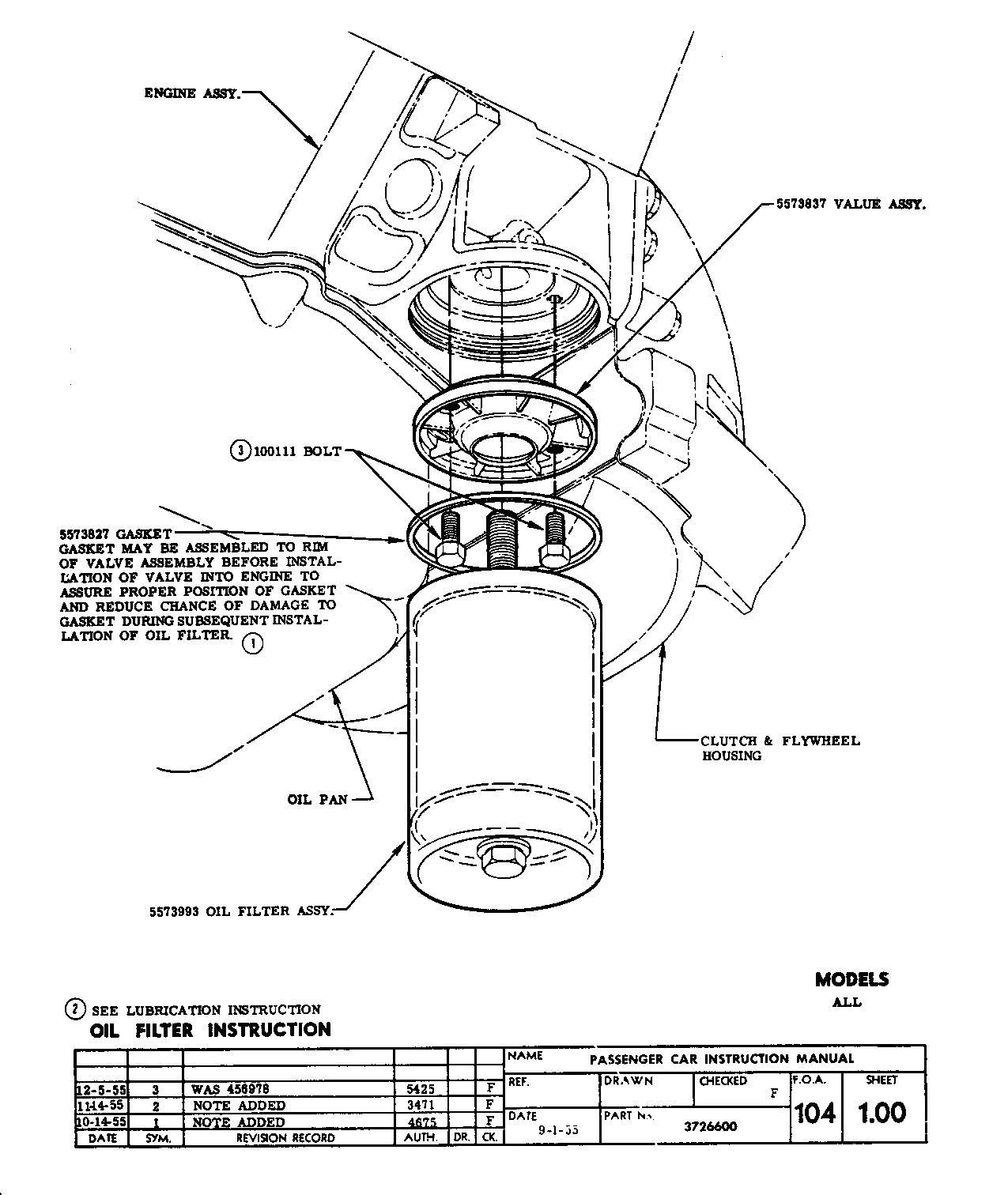

FOA 104 – Oil Filter Instruction

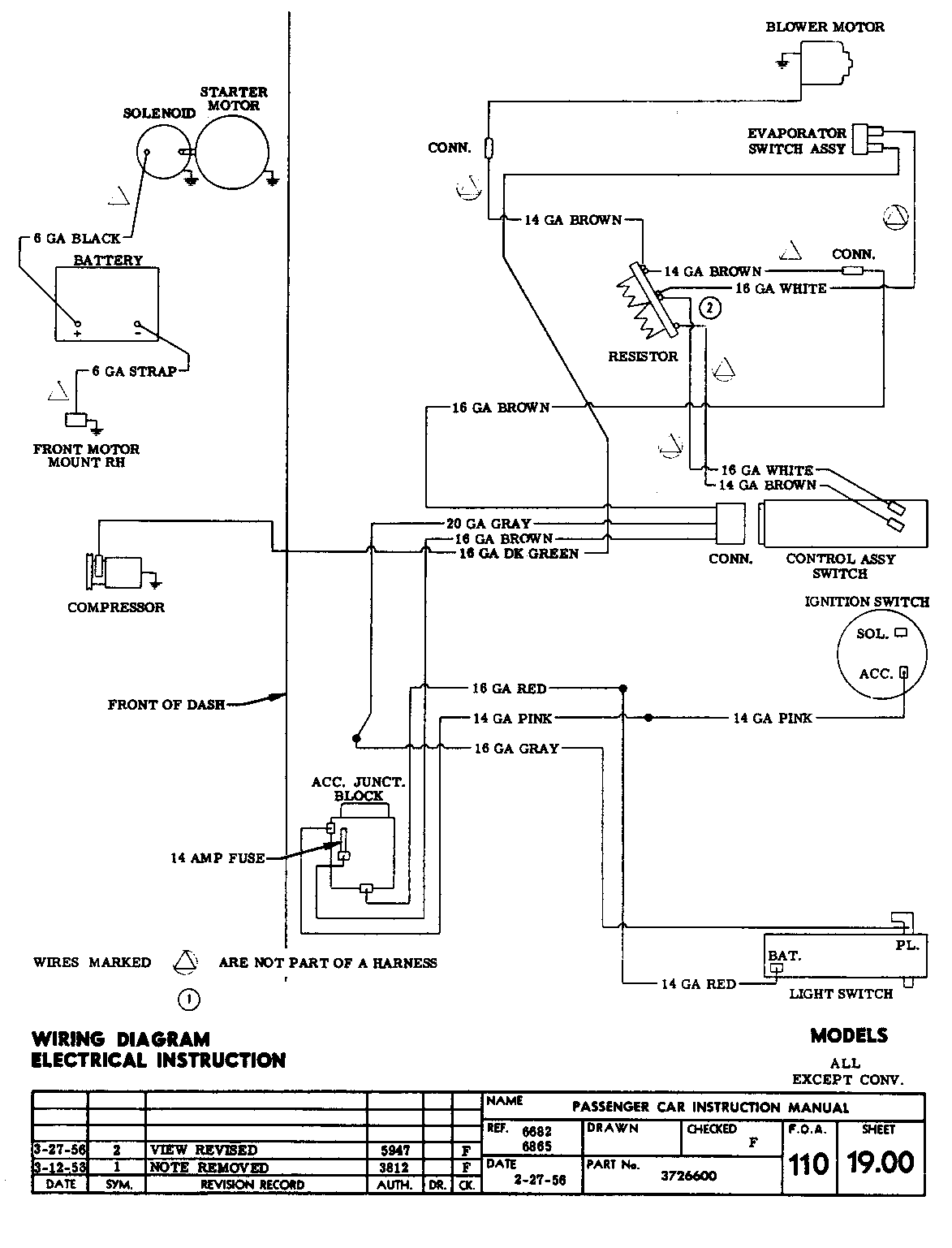

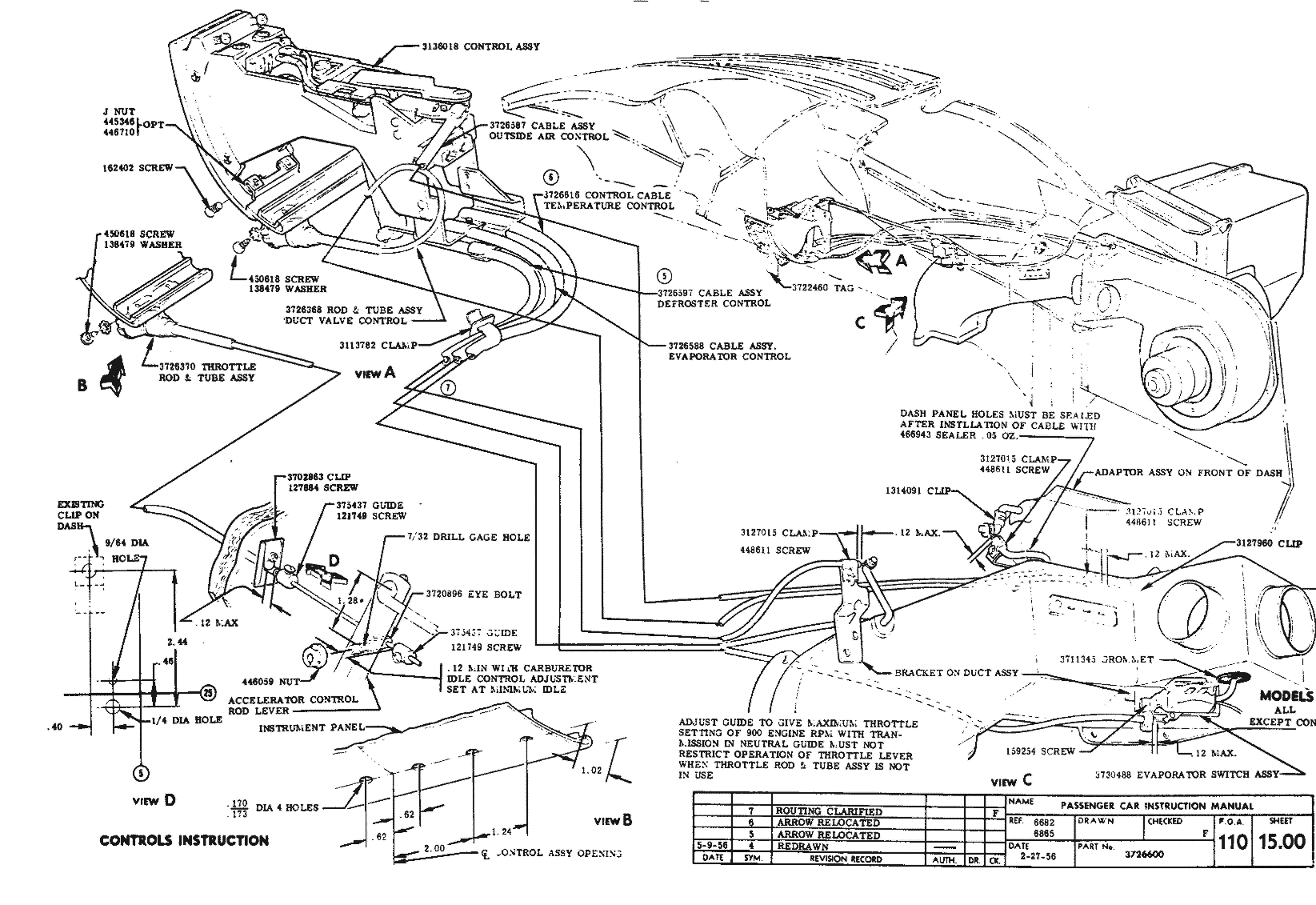

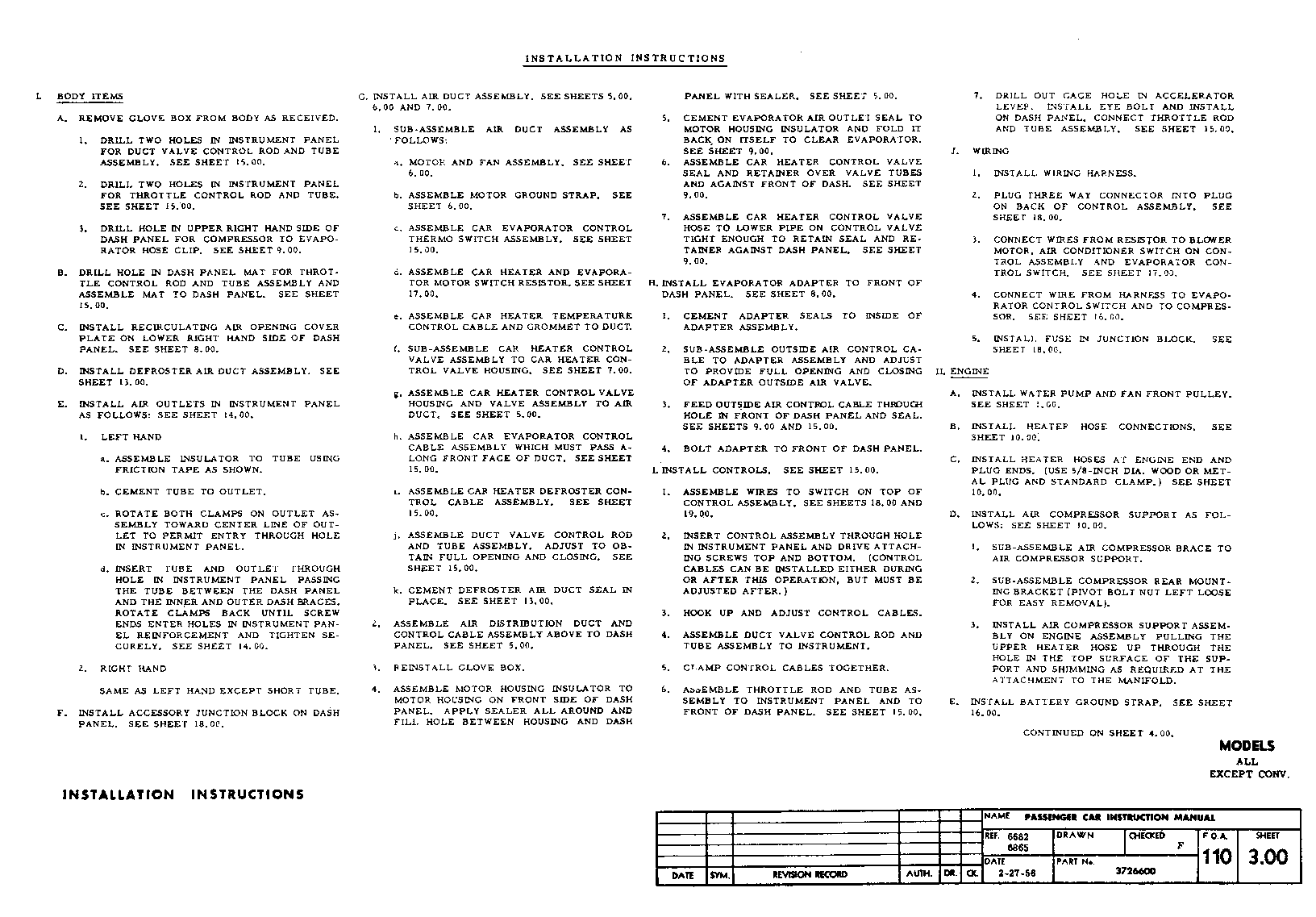

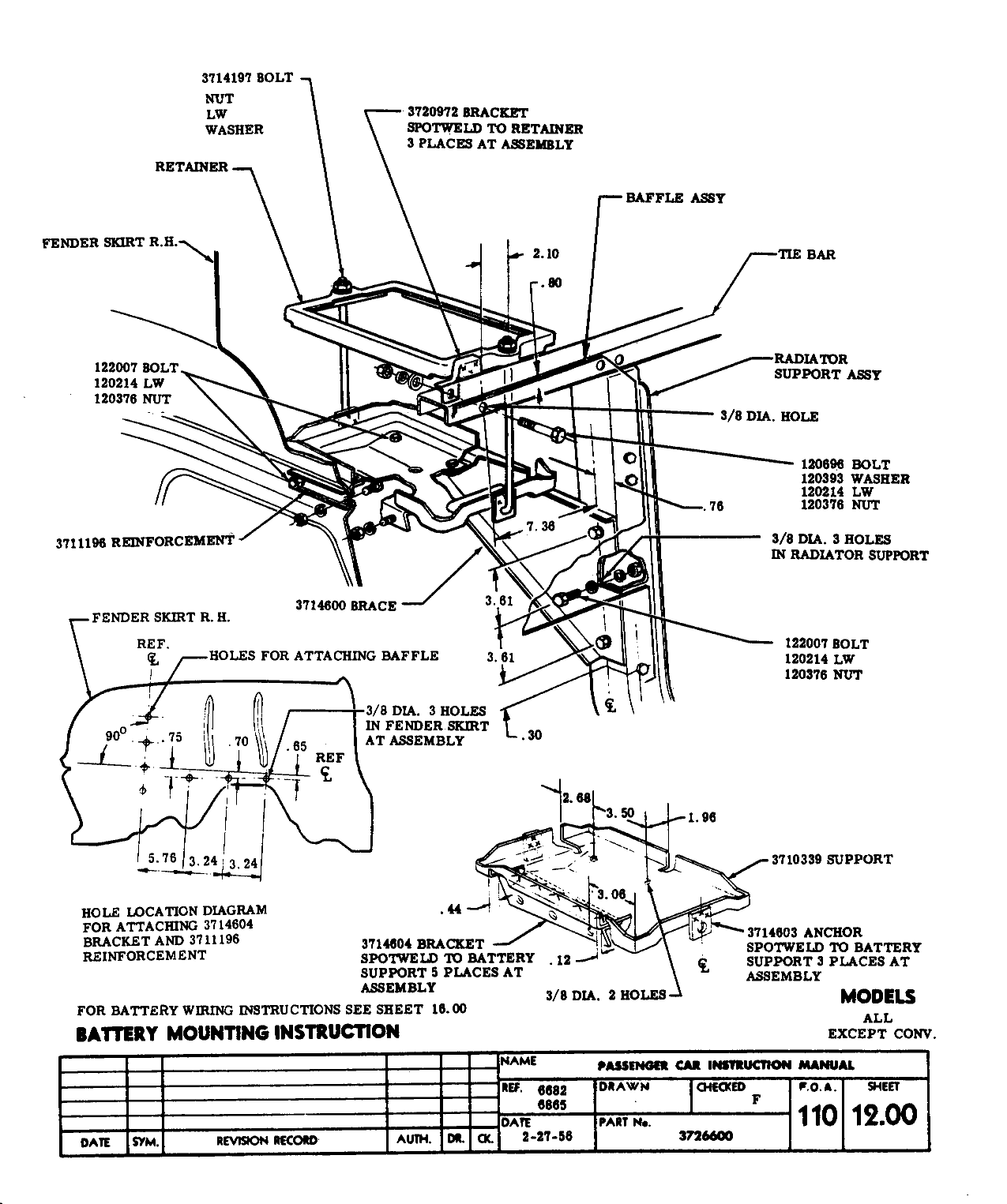

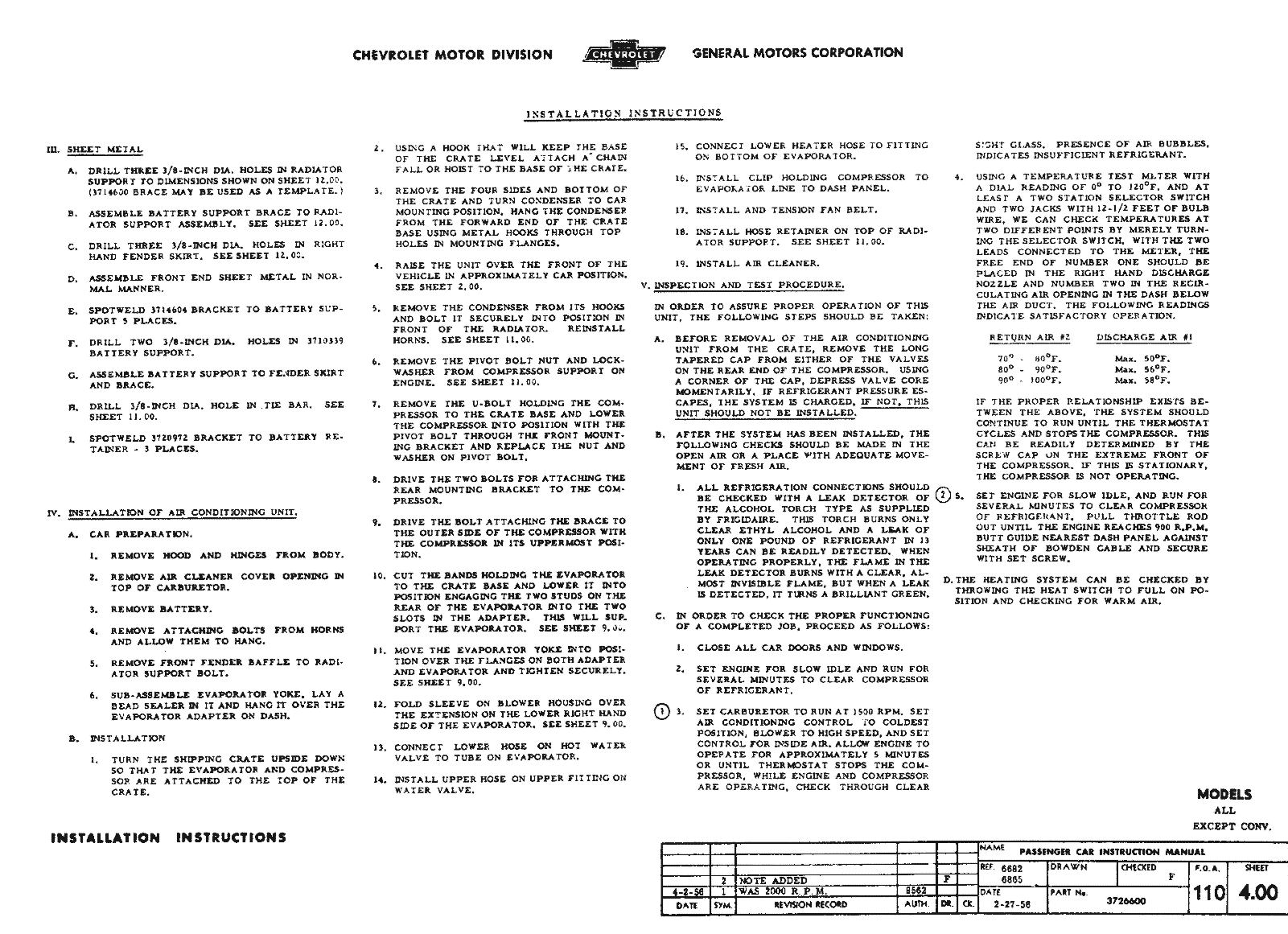

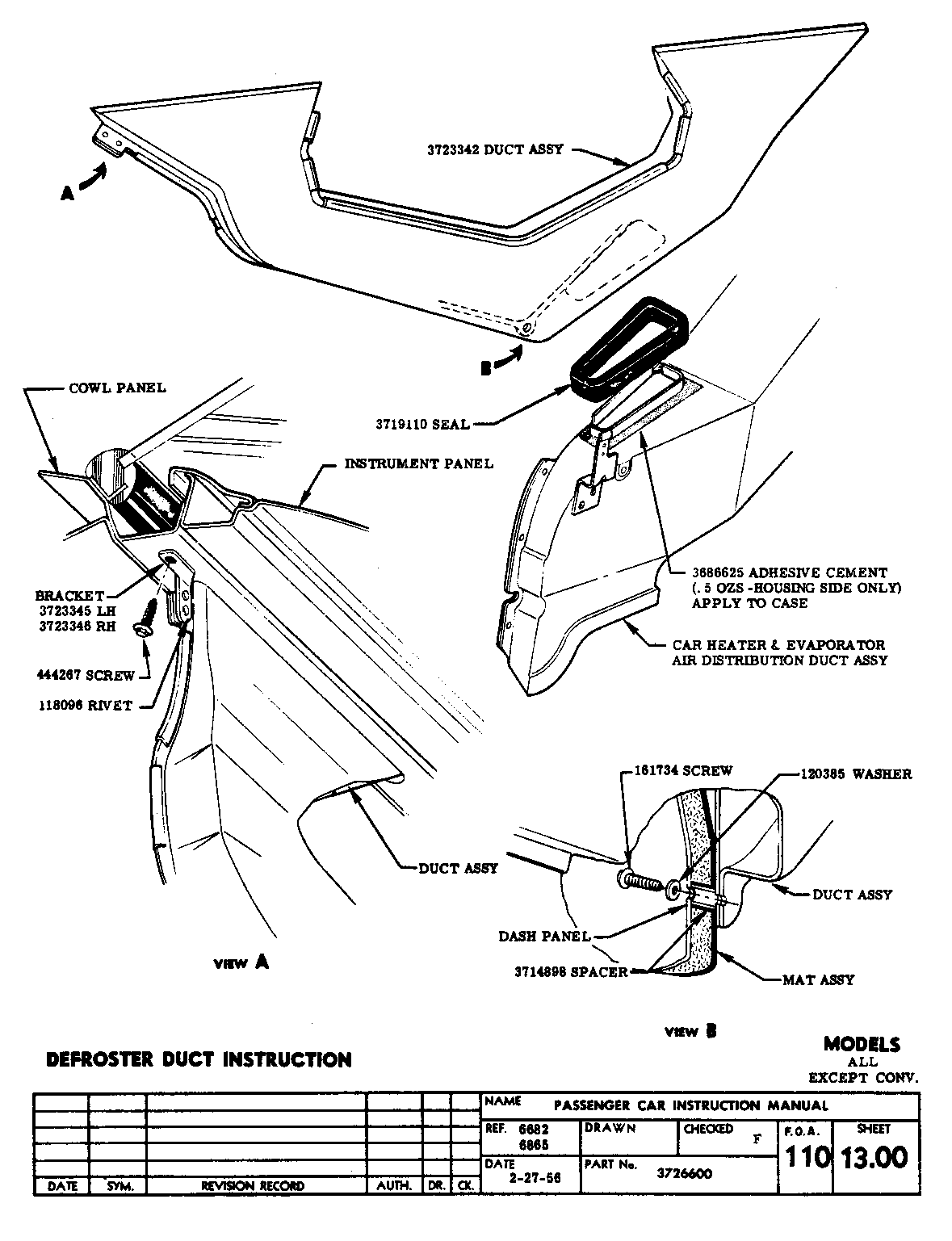

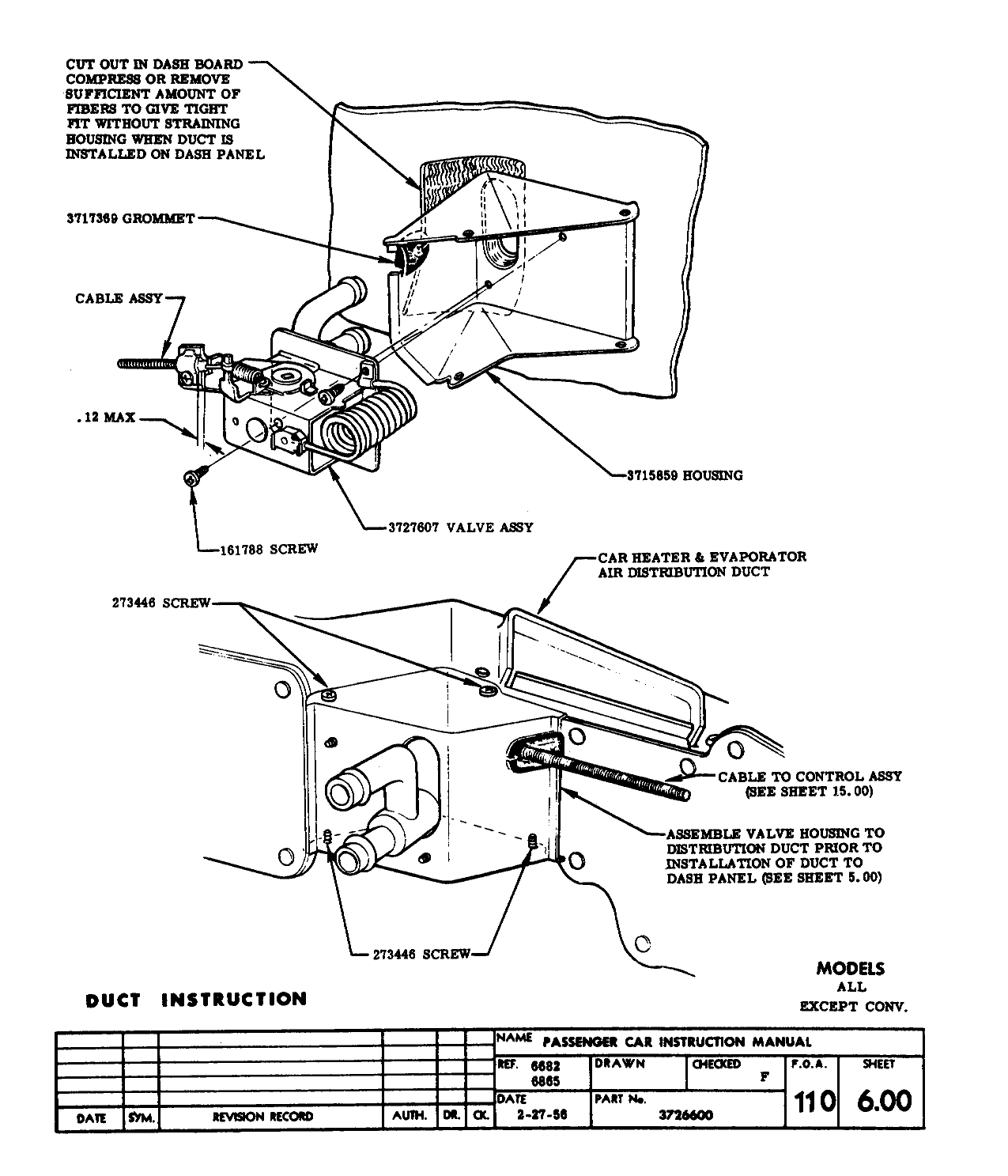

FOA110 – Air Conditioning Instruction

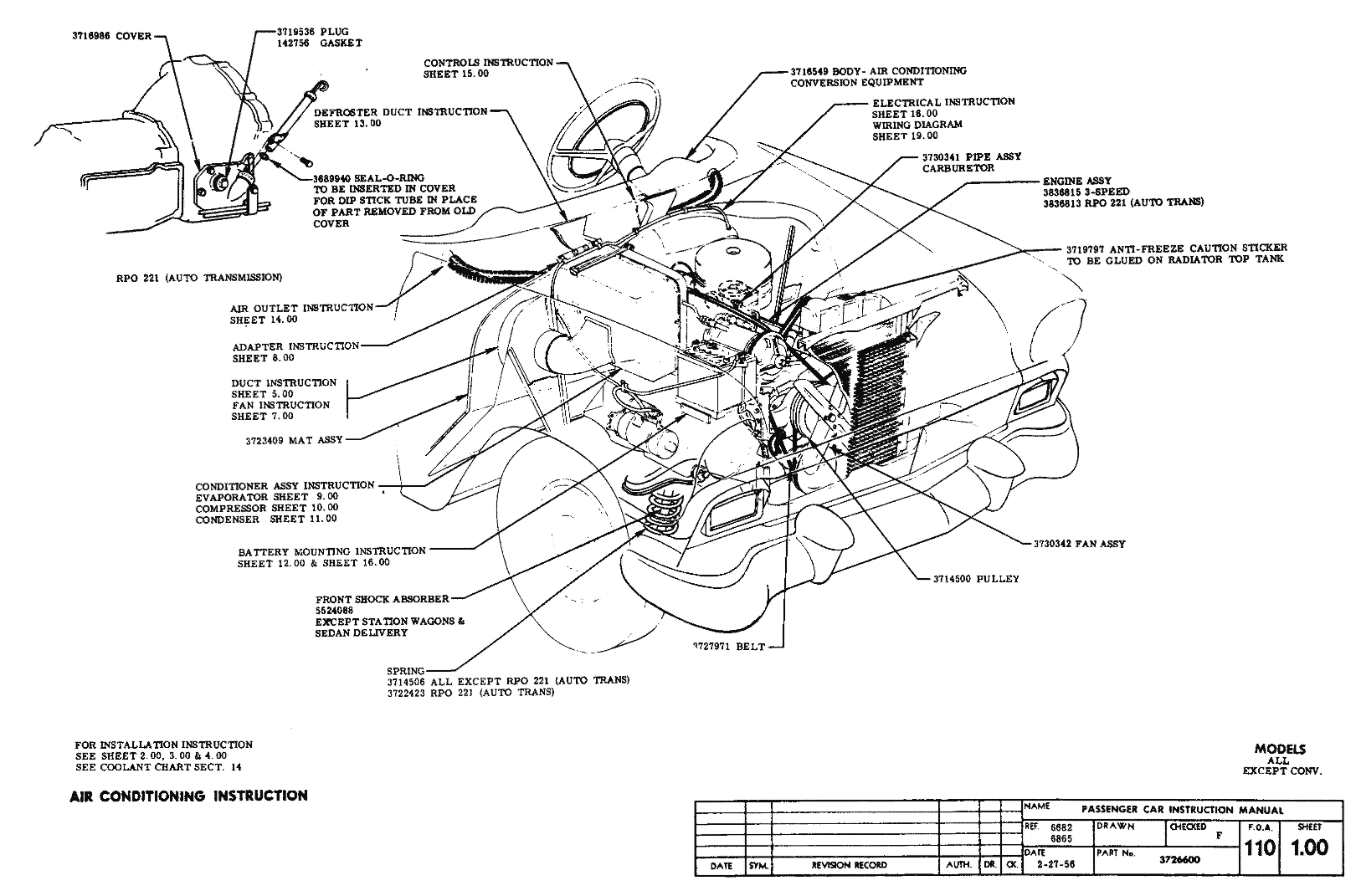

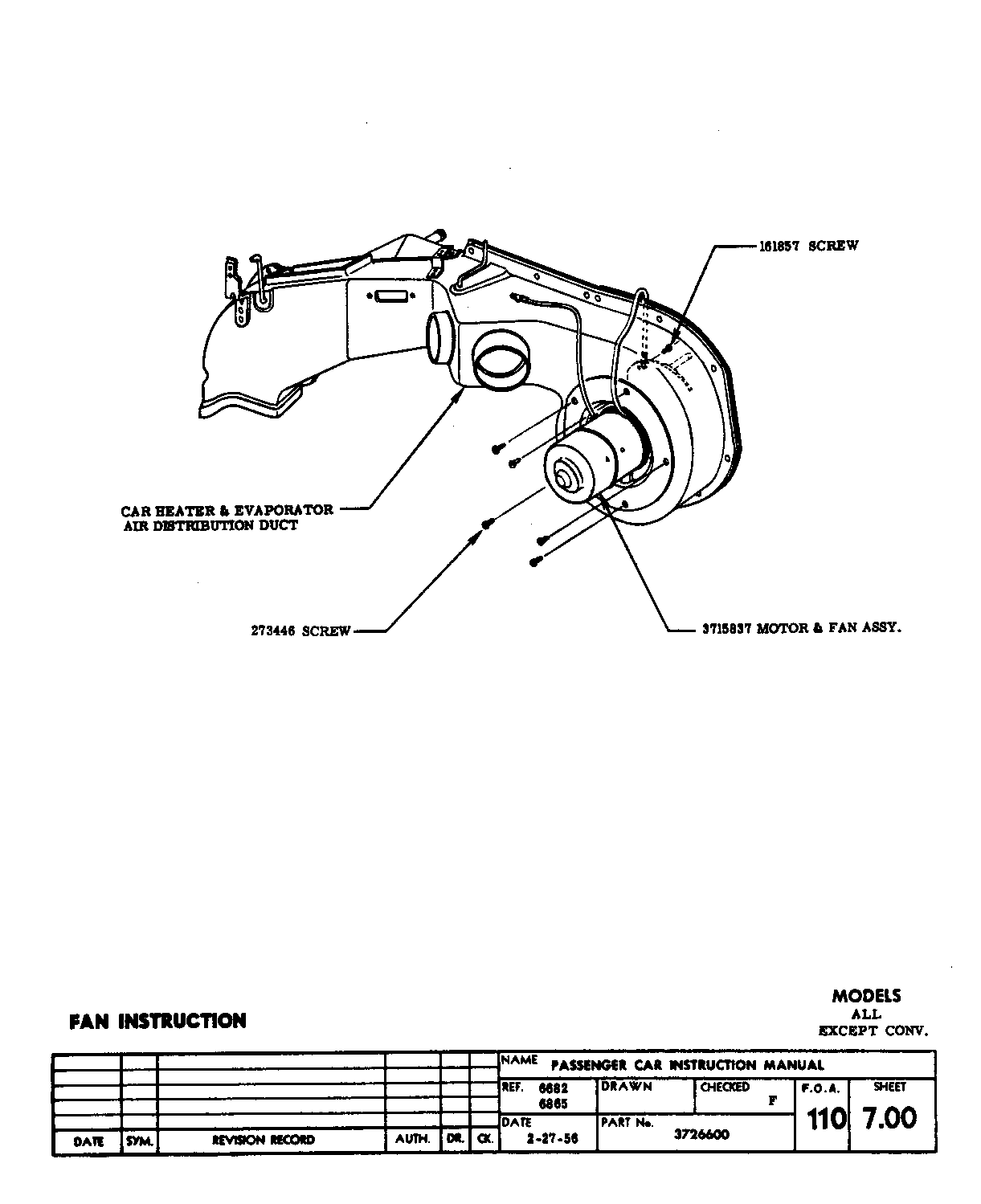

Air Conditioning Index Sheet 1.00

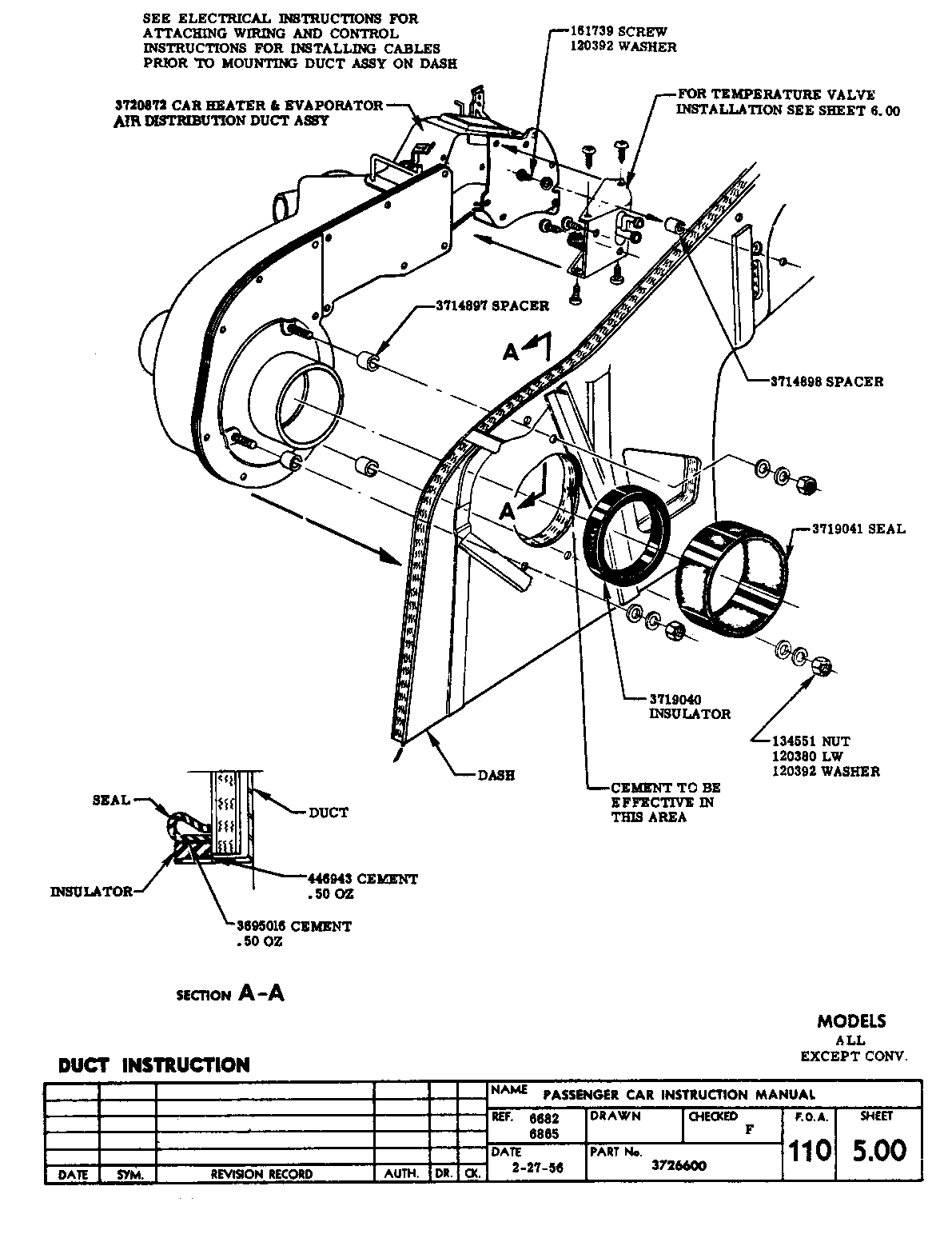

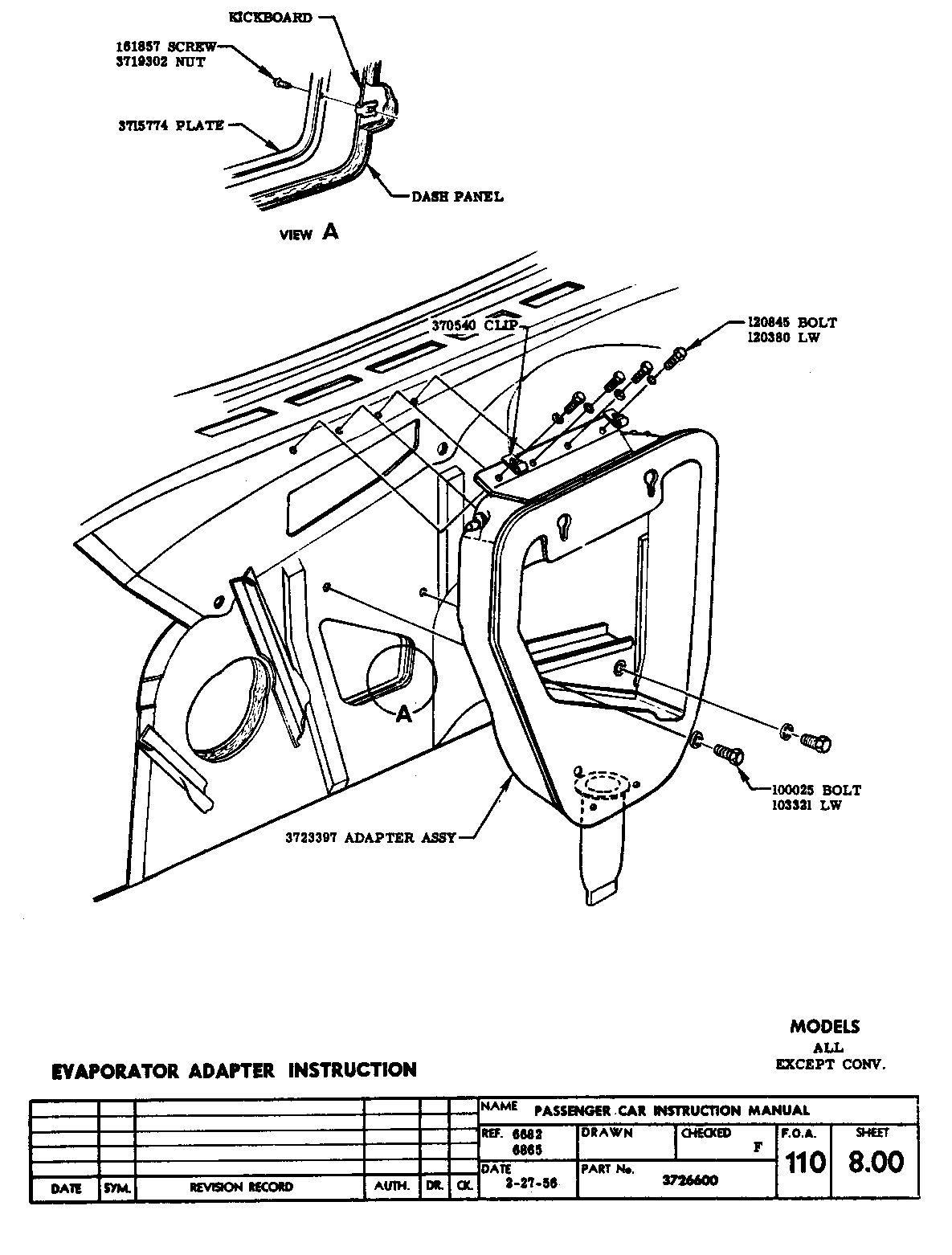

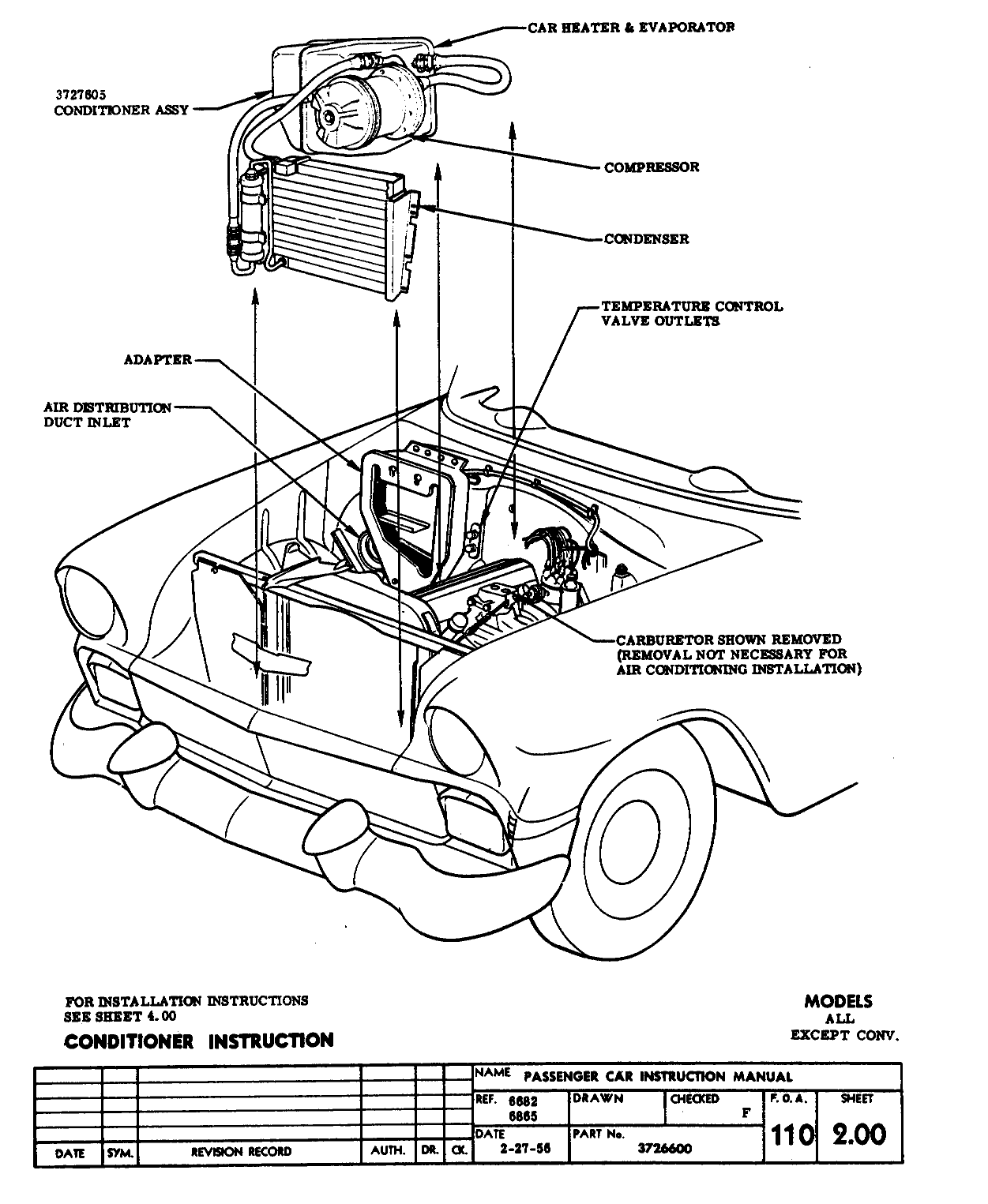

Car Heater & Evaporator Assembly Sheet 9.00

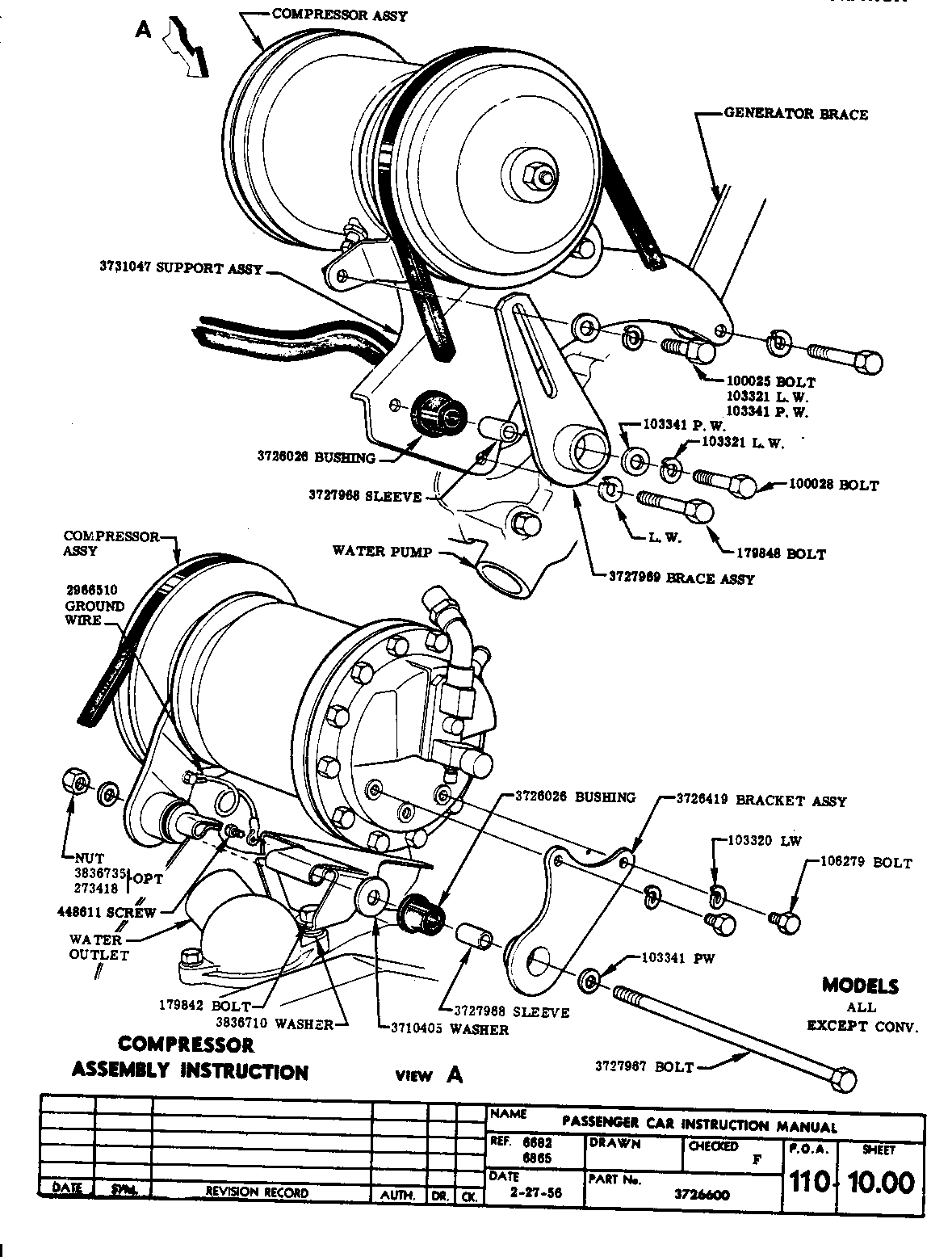

Compressor Assembly Sheet 10.00

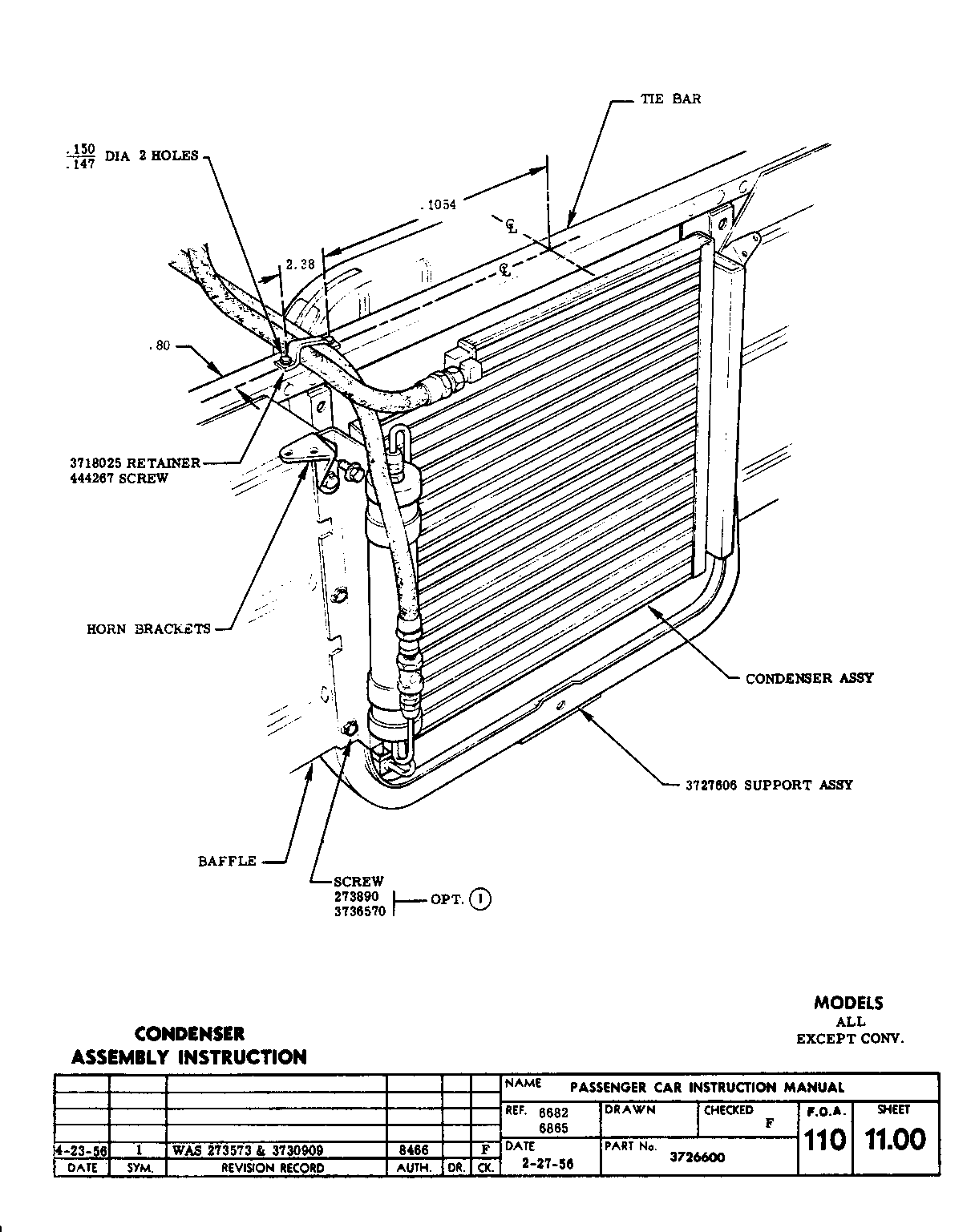

Condenser Assembly Sheet 11.00

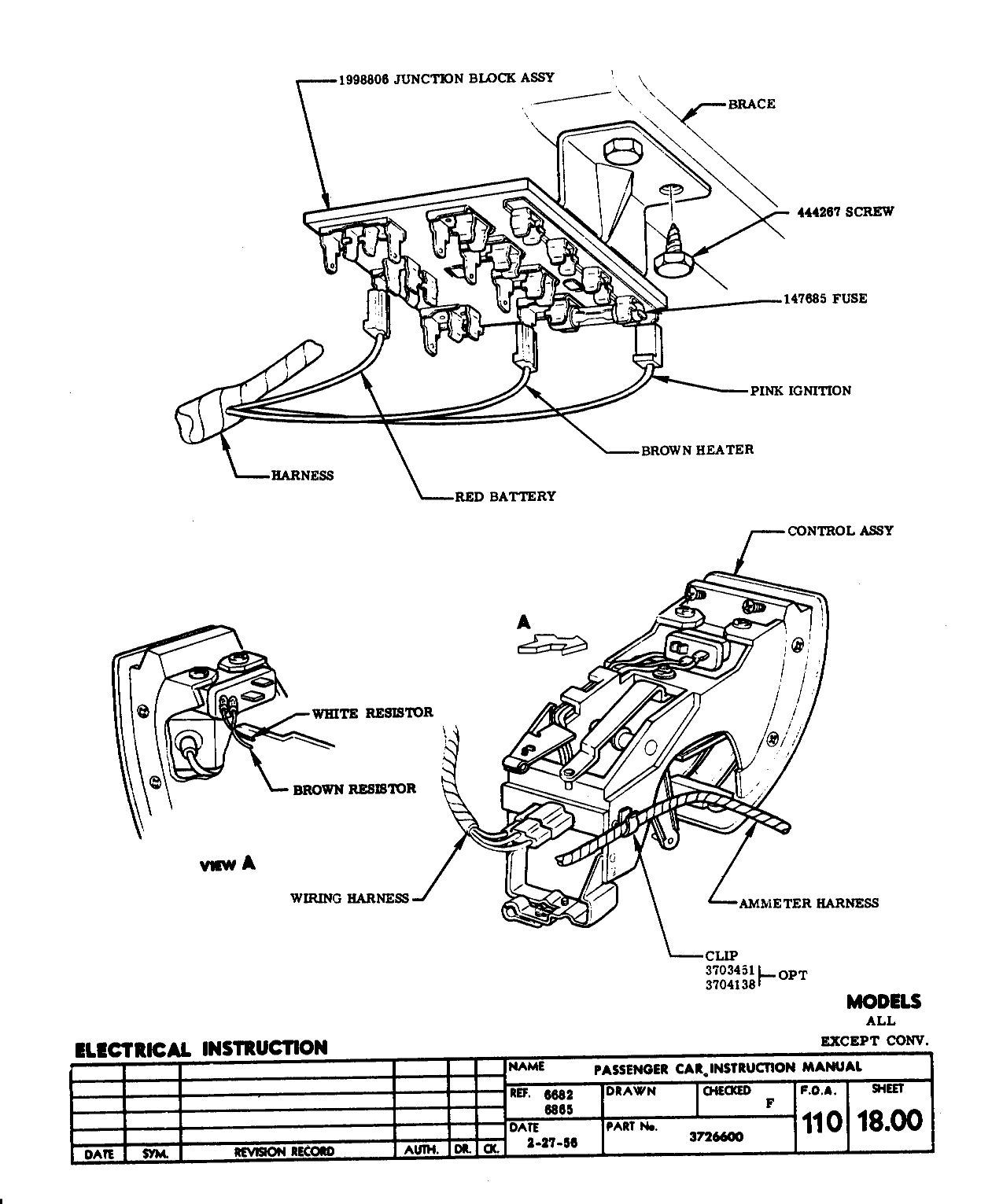

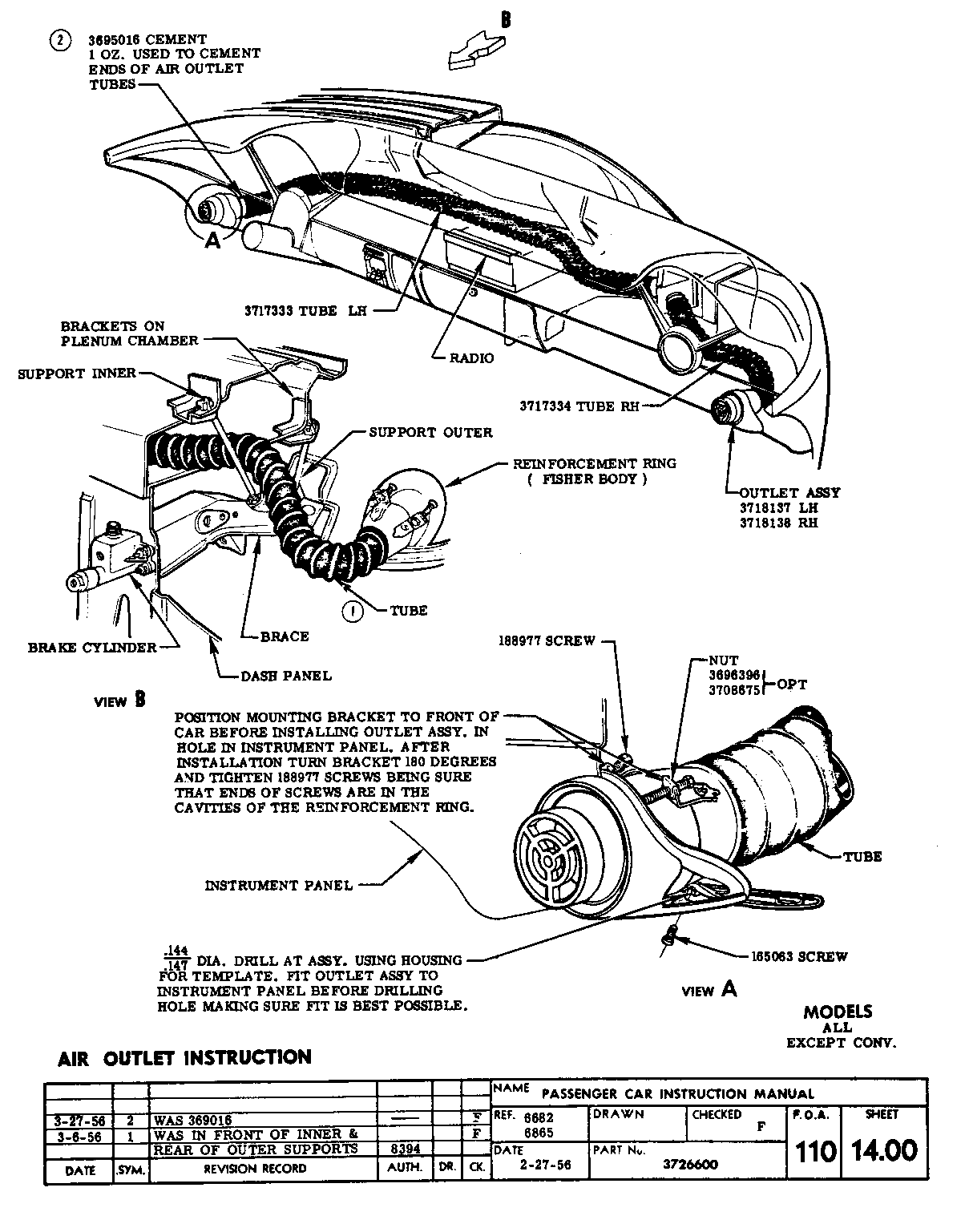

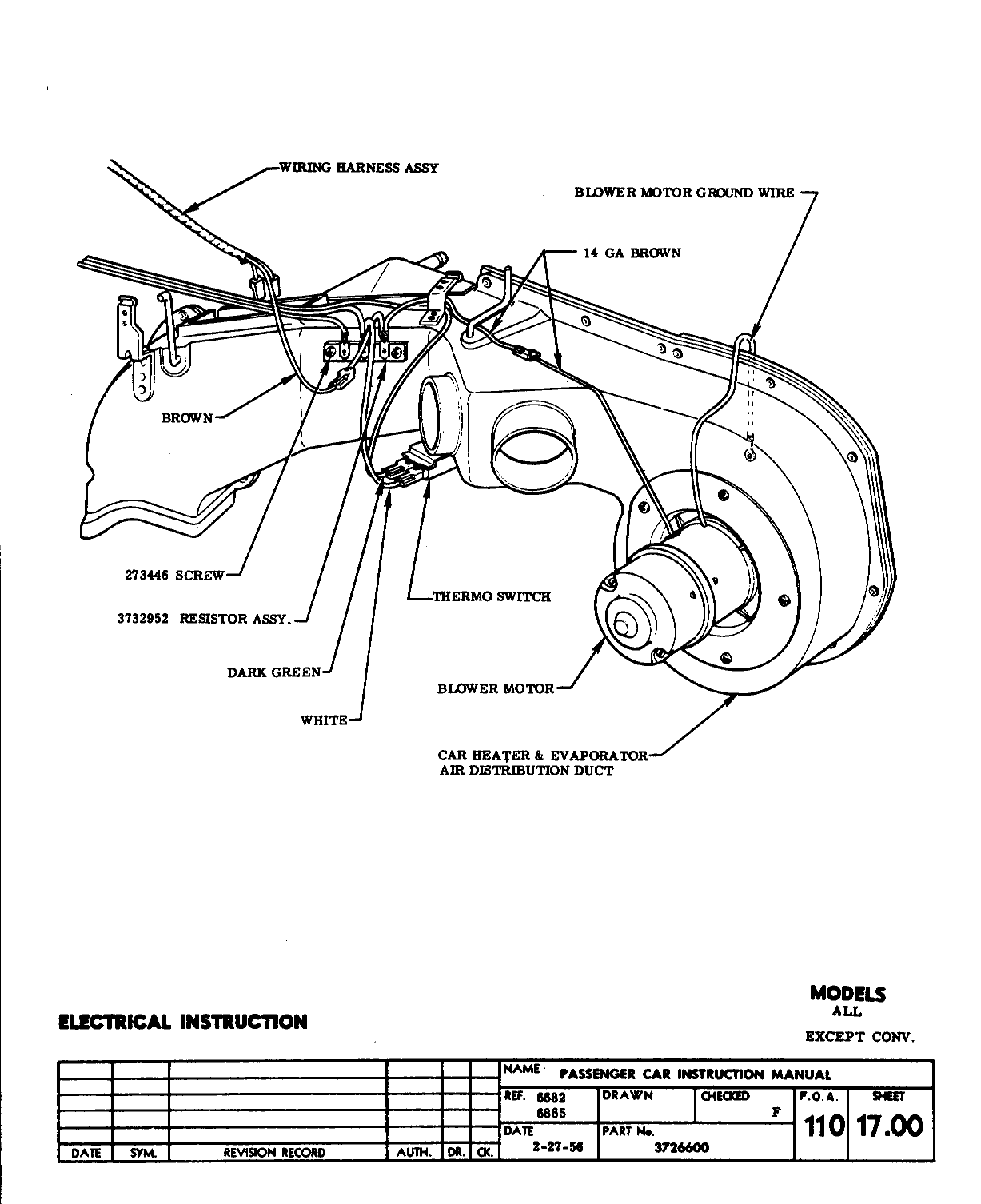

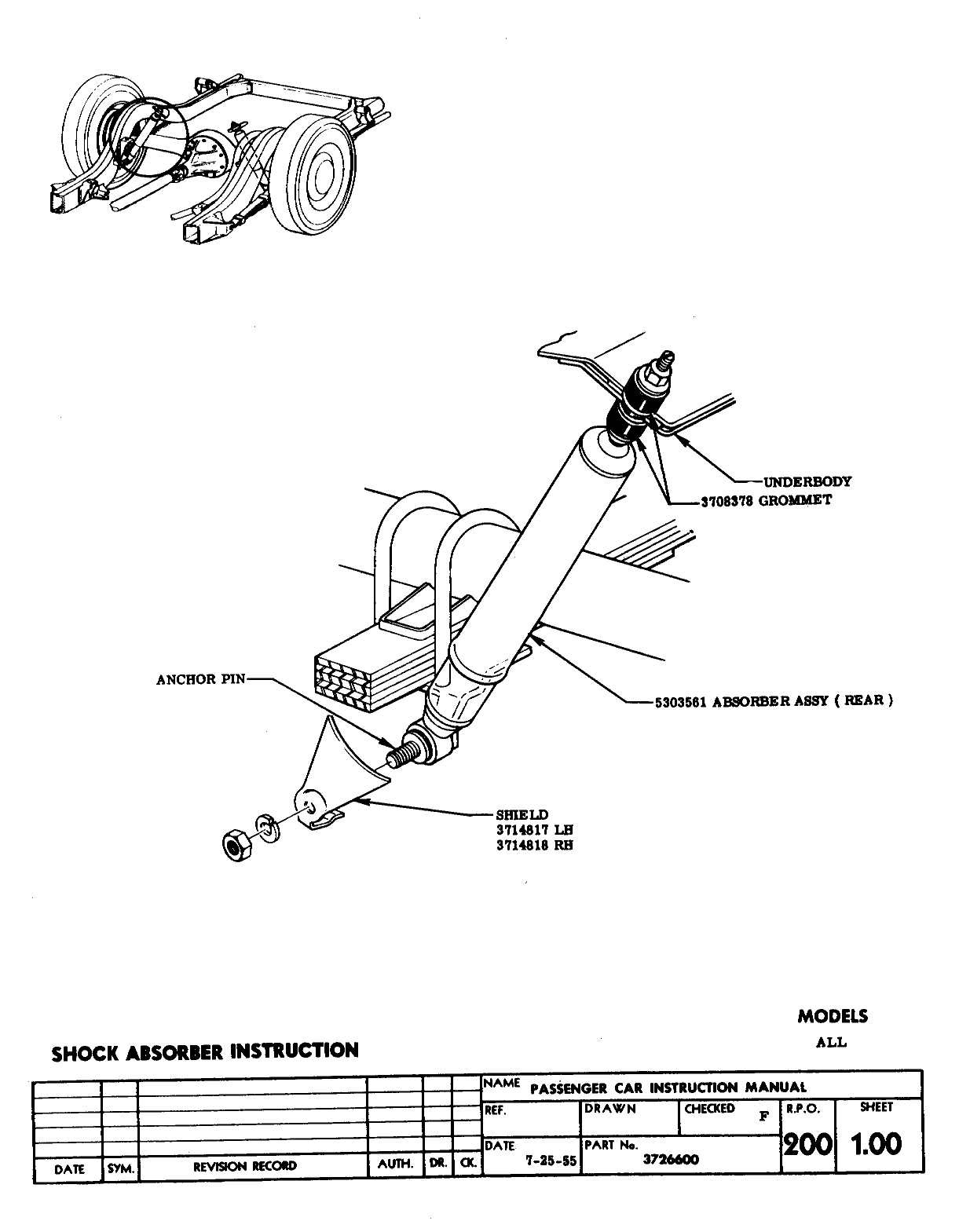

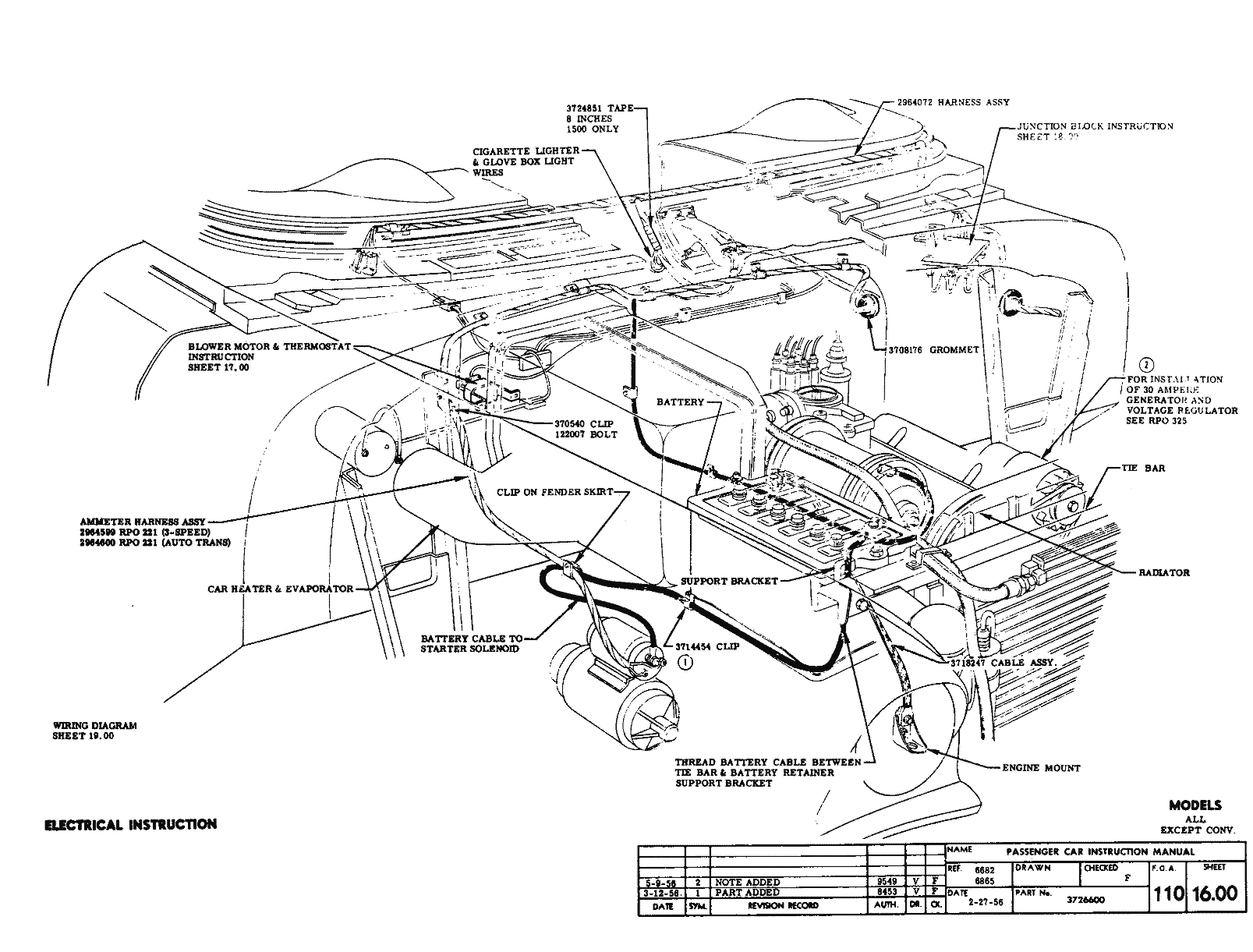

RPO 200 – Shock Absorber

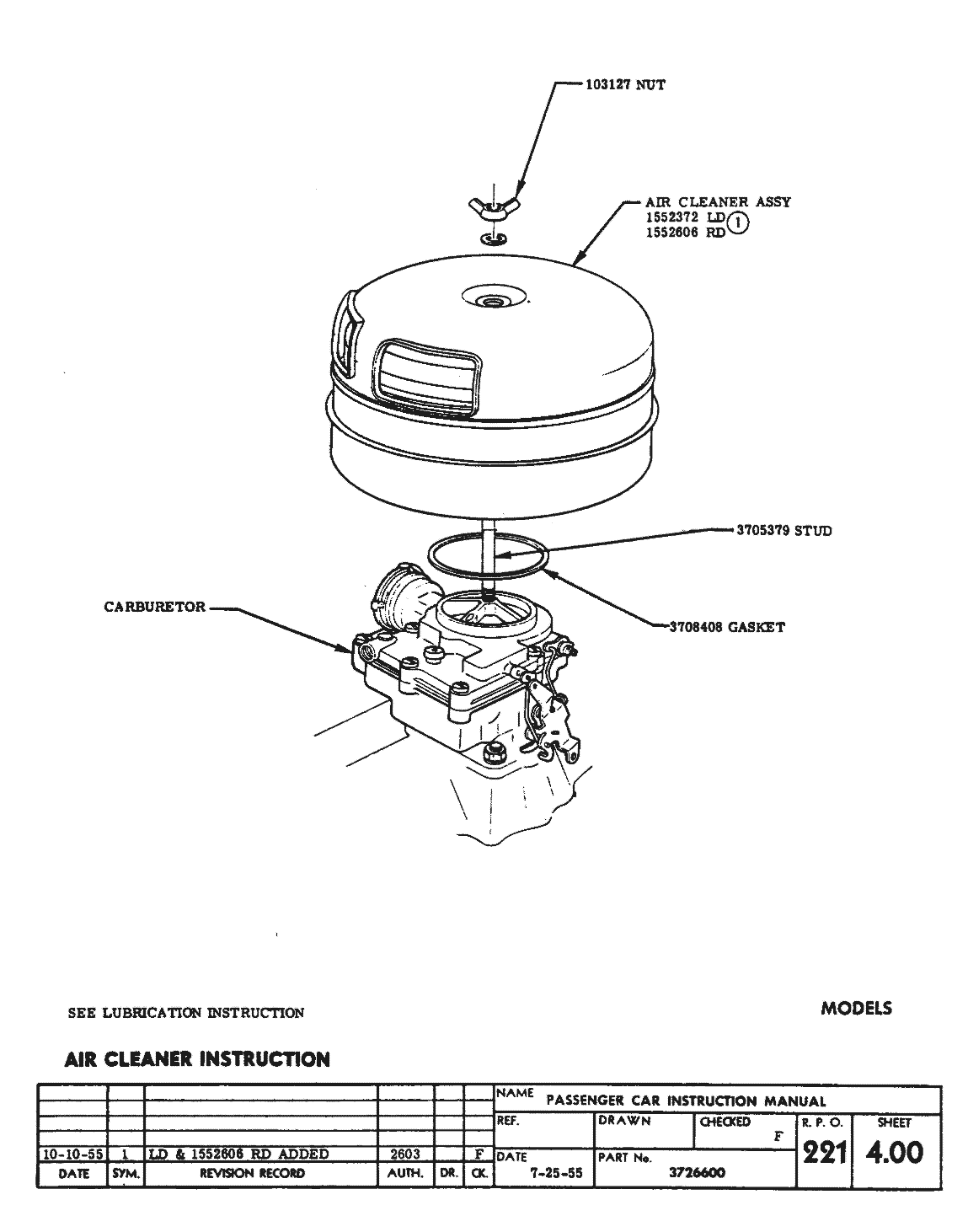

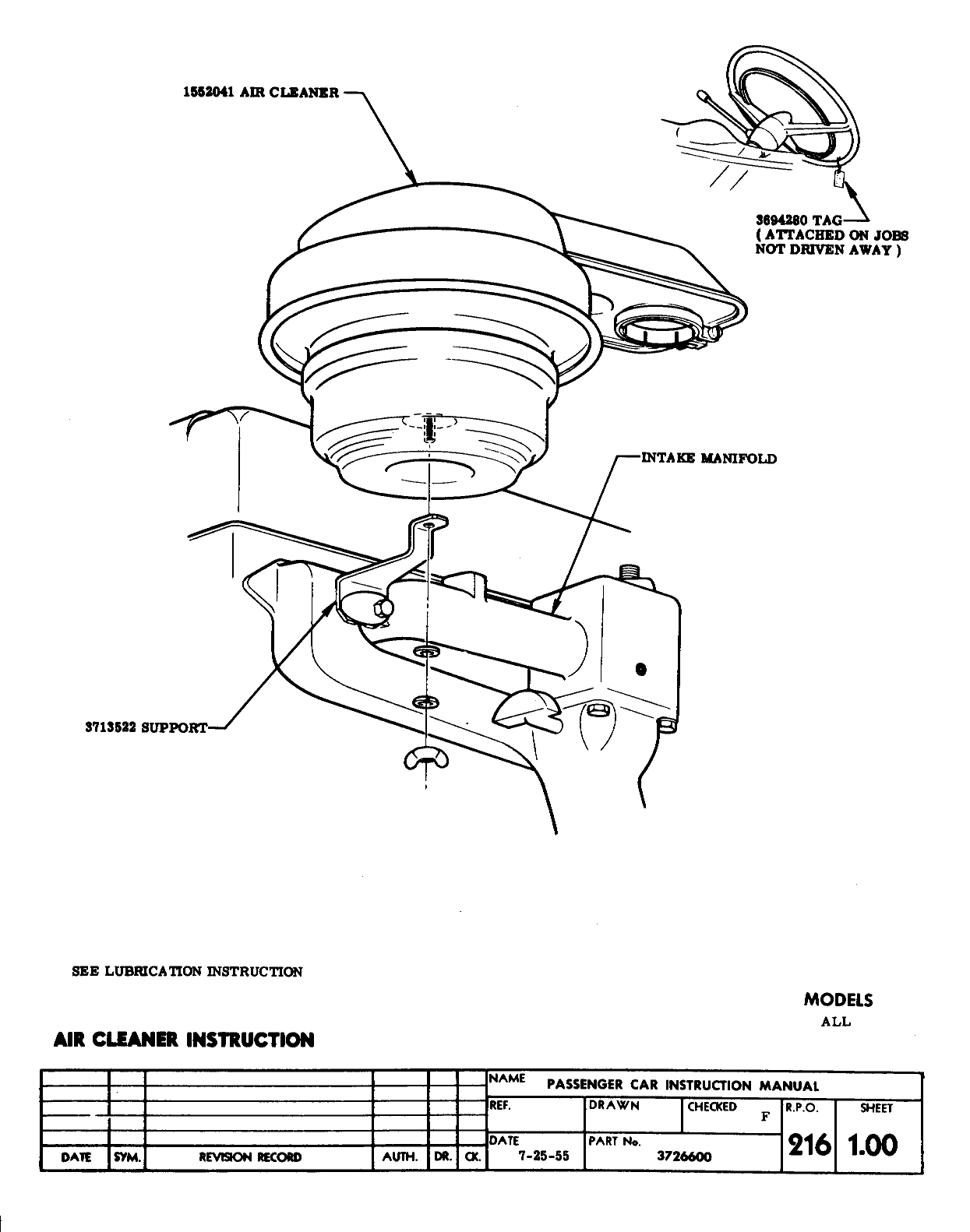

RPO 216 – Air Cleaner

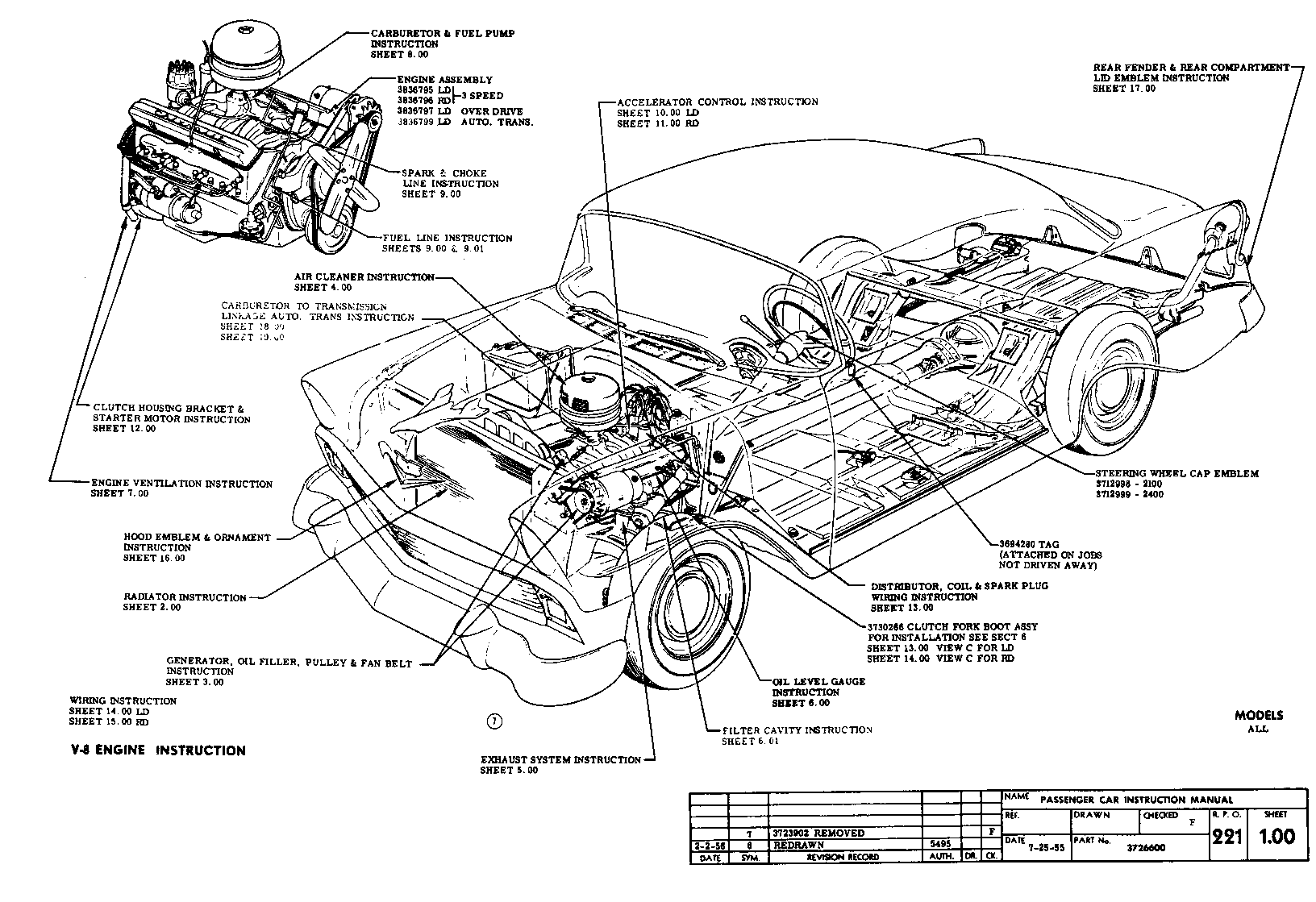

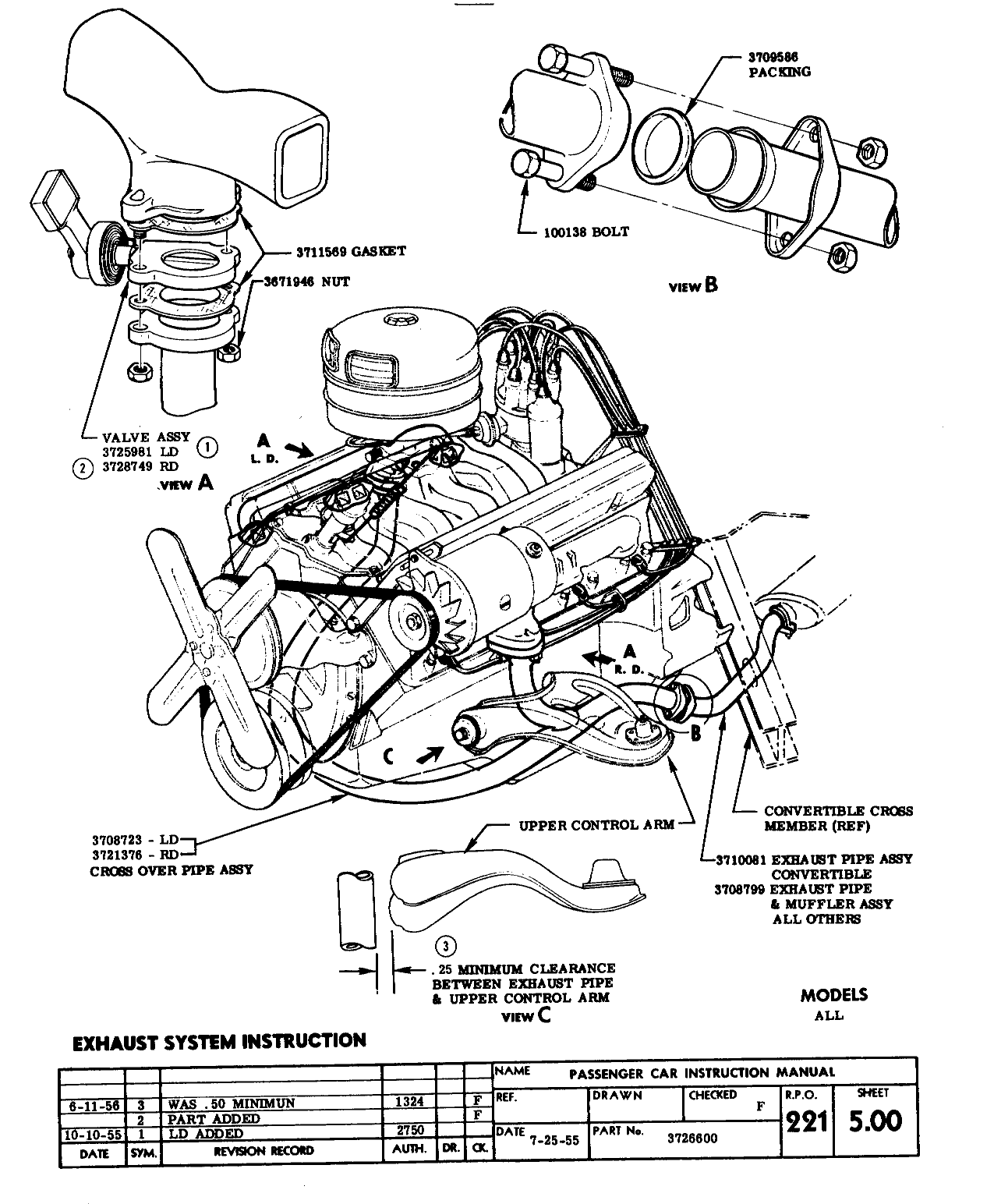

RPO 221 – V8 Engine

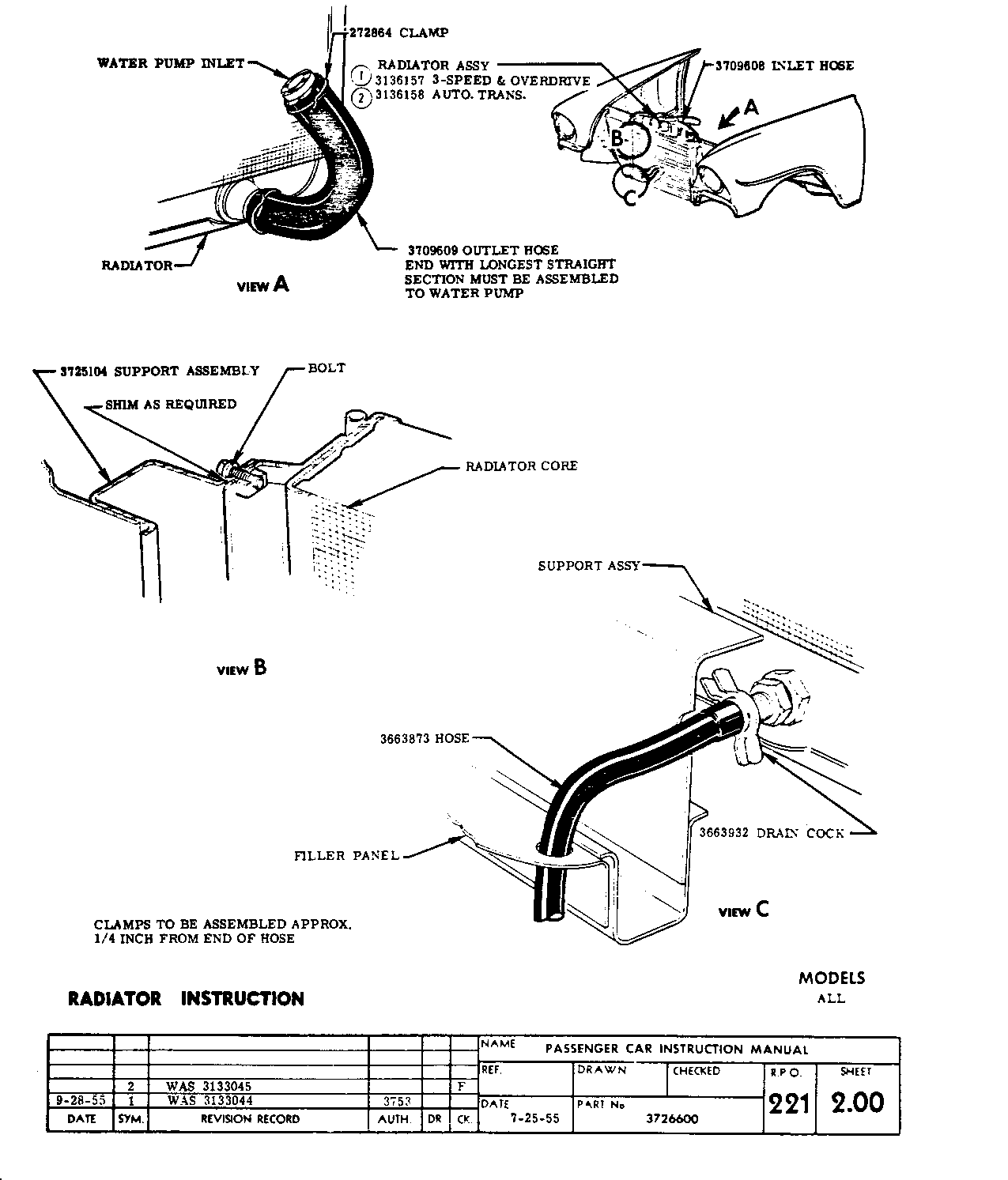

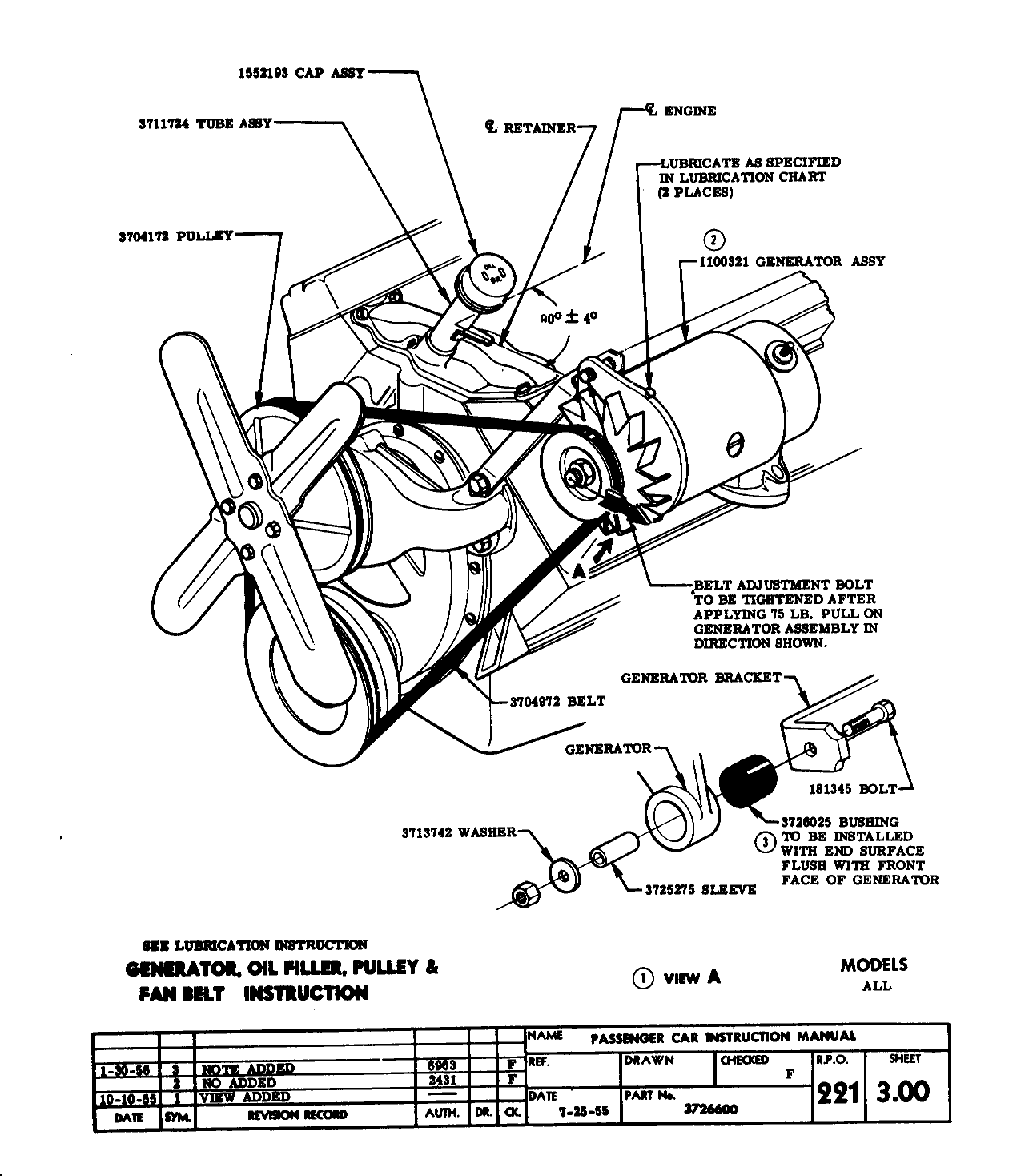

Generator, Oil Filter, Pulley & Fan Belt Sheet 3.00

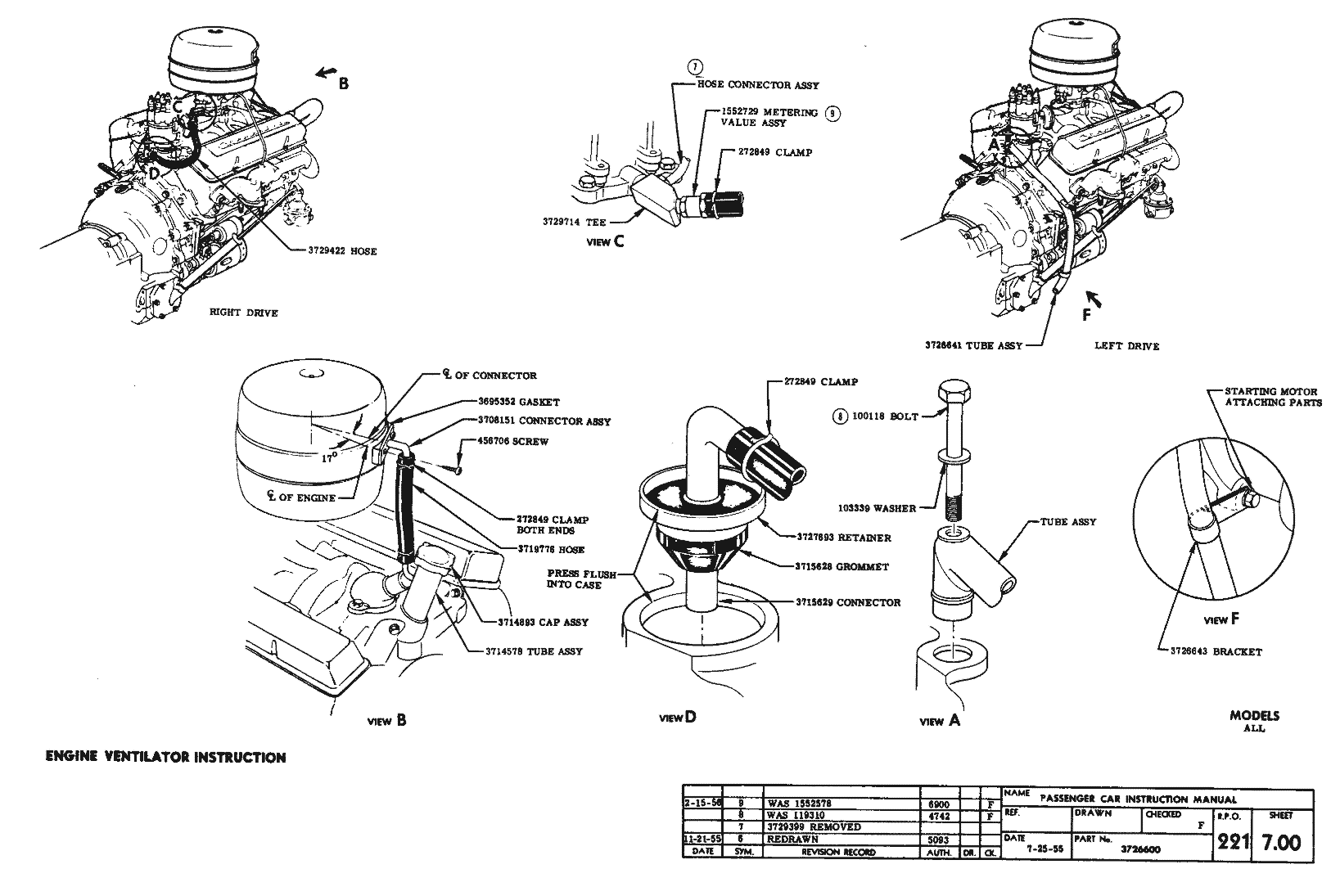

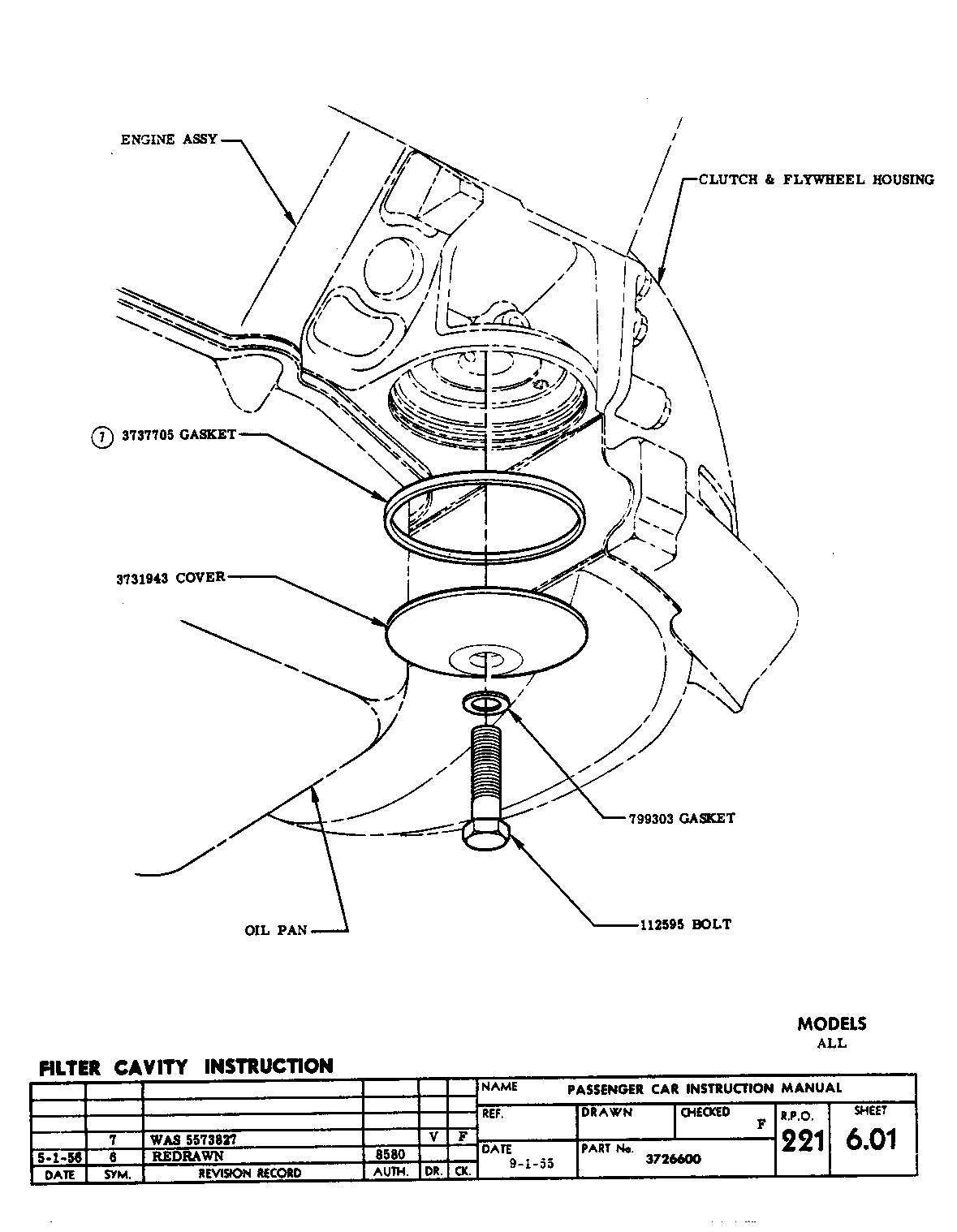

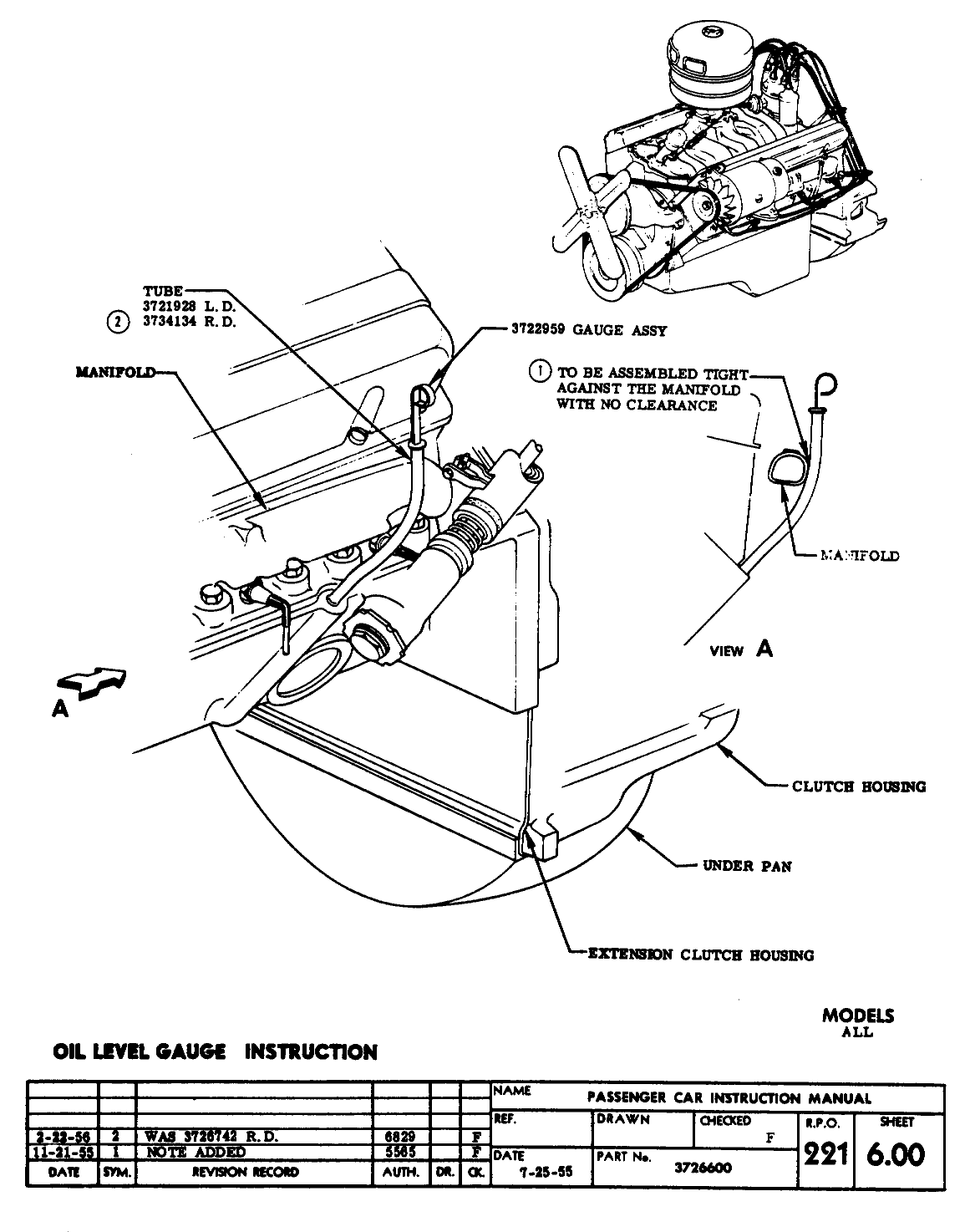

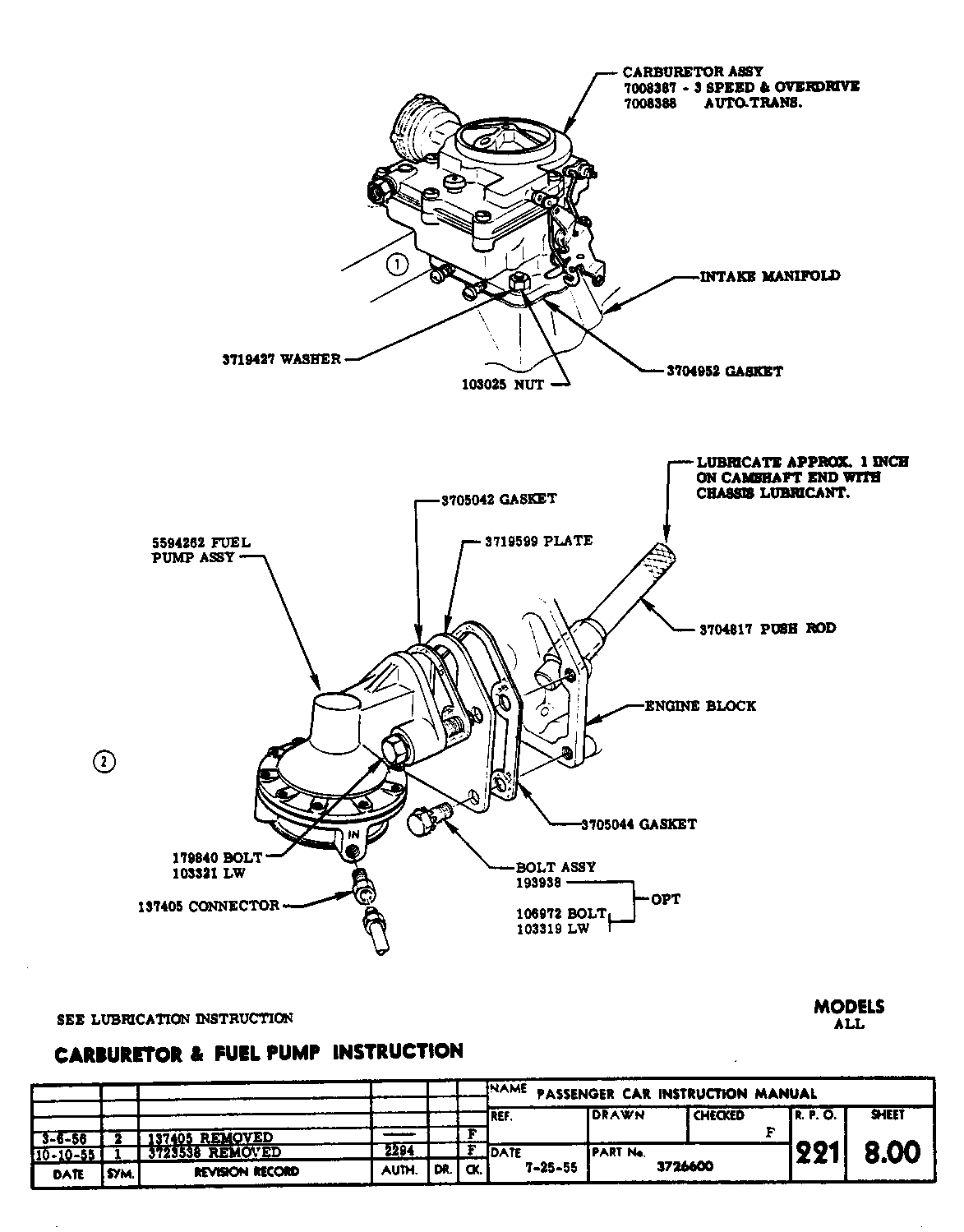

Carburetor & Fuel Pump Sheet 8.00

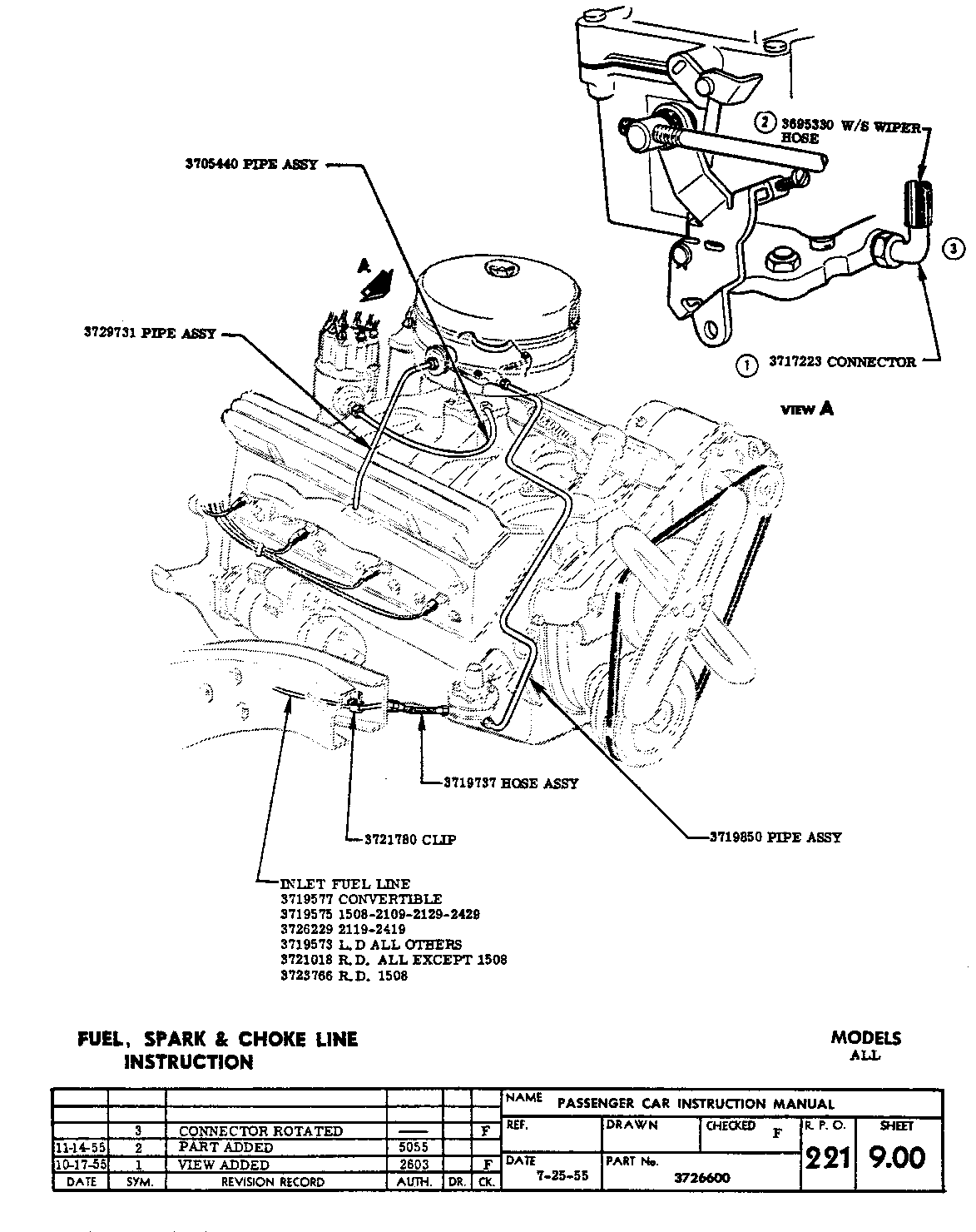

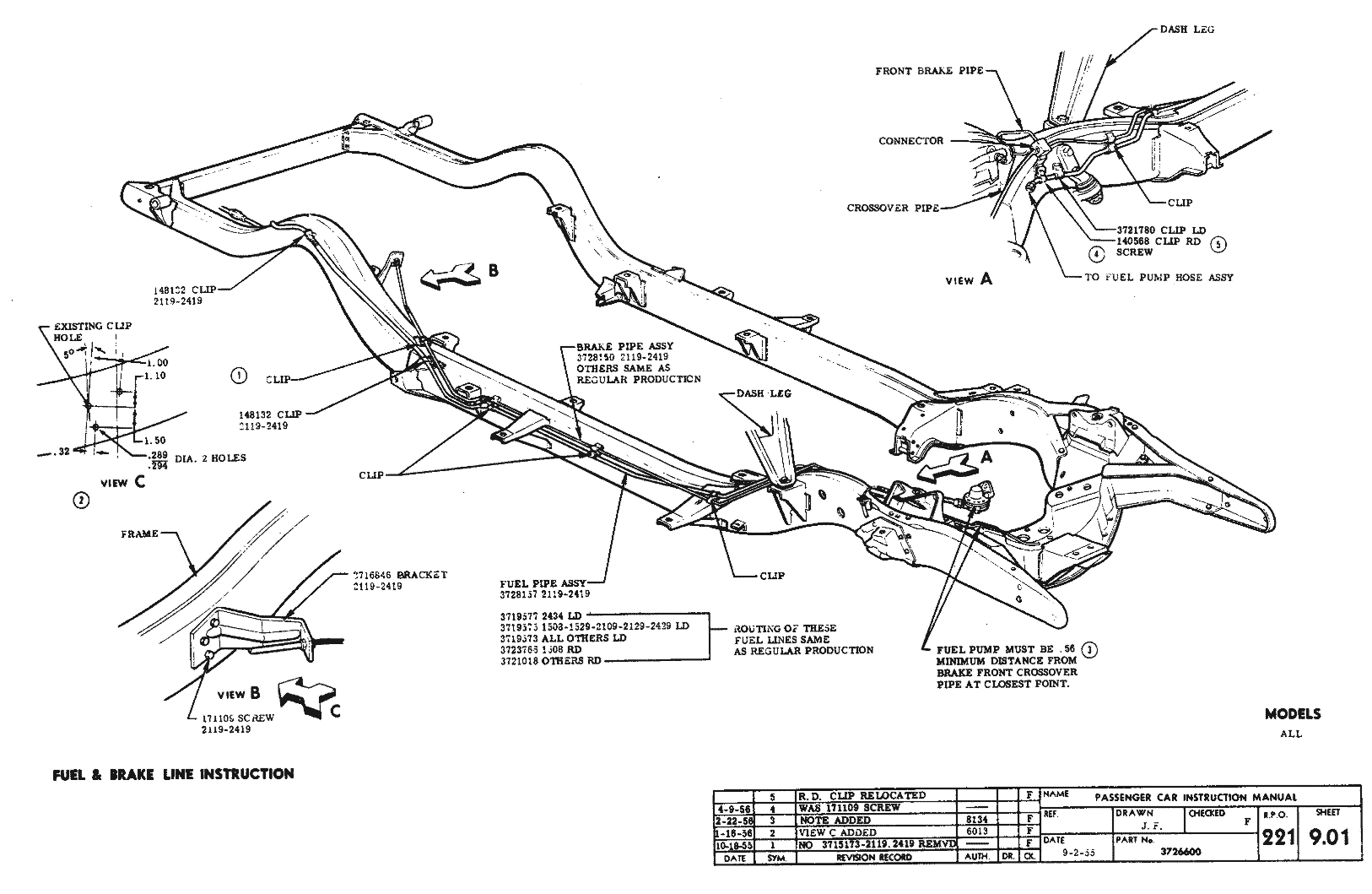

Fuel, Spark & Choke Line Sheet 9.00
Accelerator Control (Left Drive) Sheet 10.00

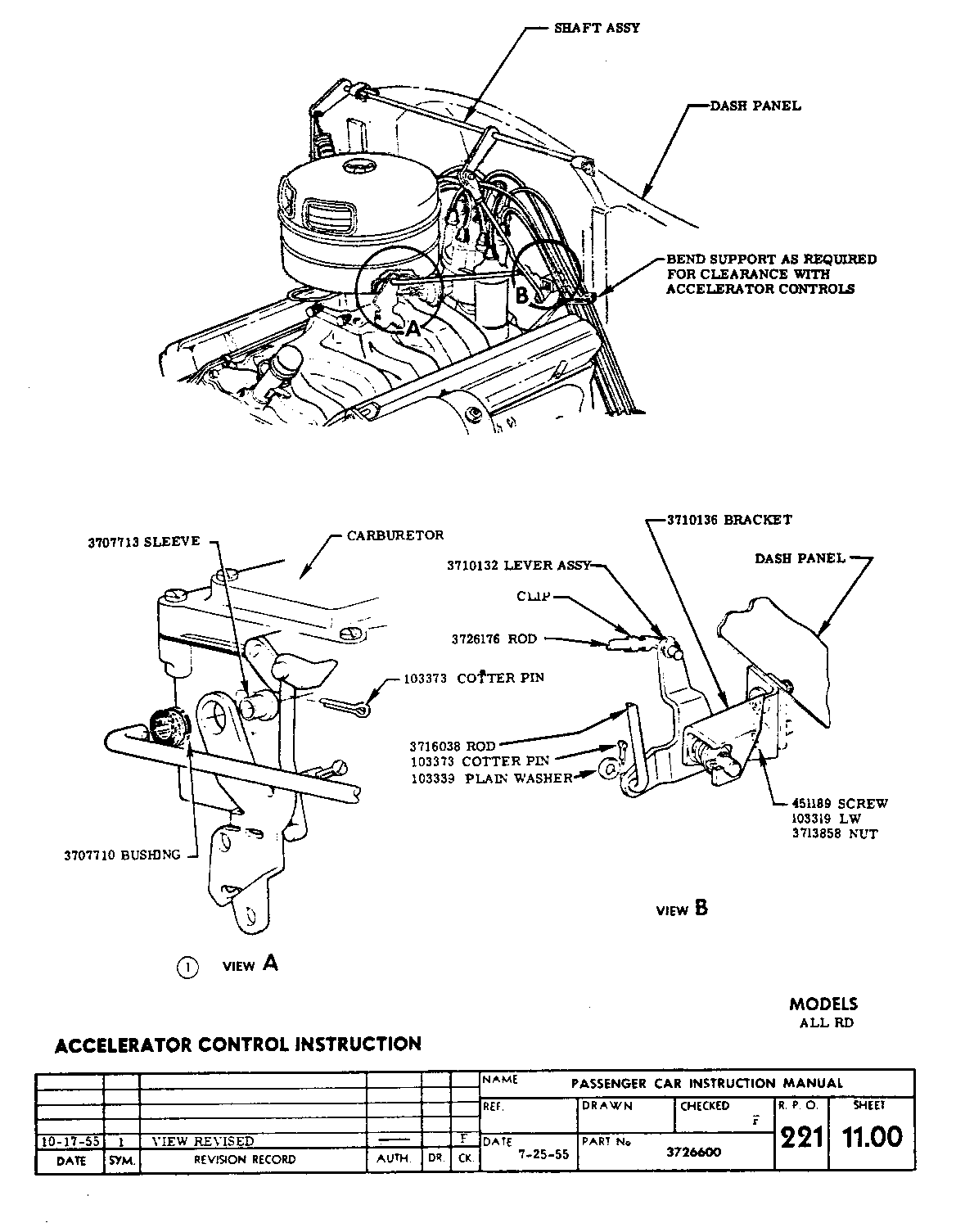

Accelerator Control (Right Drive) Sheet 11.00

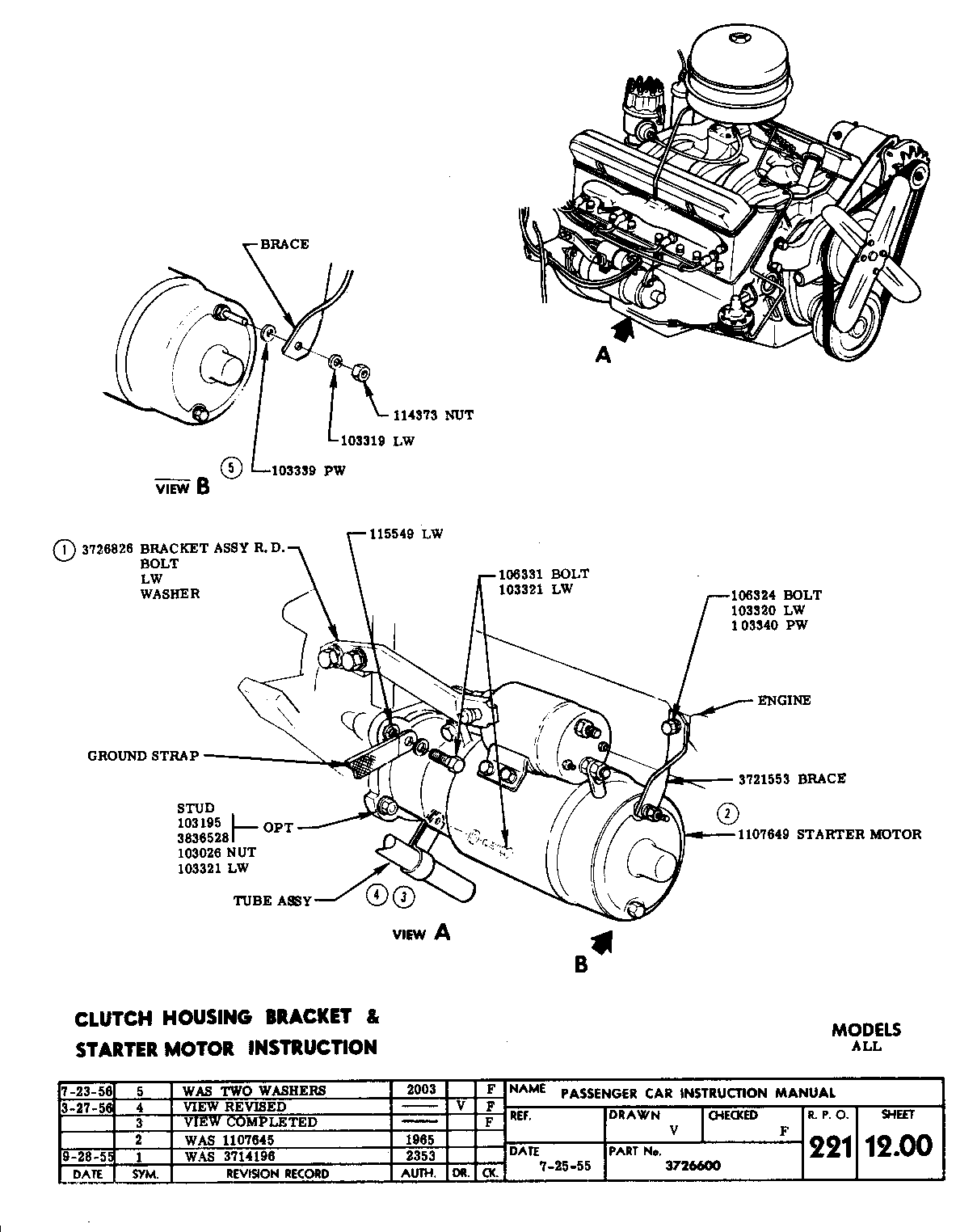

Clutch Housing Bracket & Starter Motor Sheet 12.00

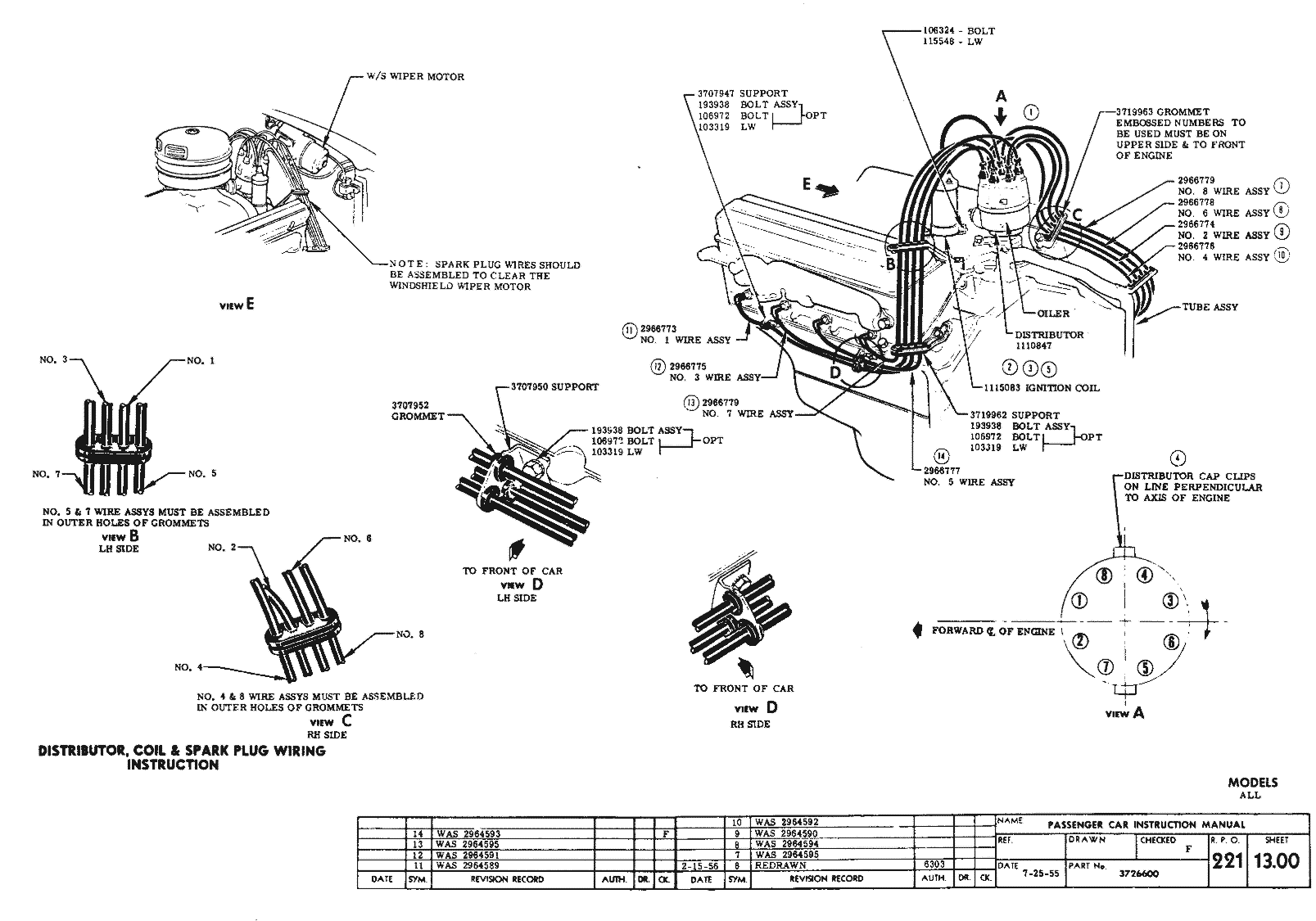

Distributor, Coil & Spark Plug Wire Sheet 13.00
Wiring (Left Drive) Sheet 14.00

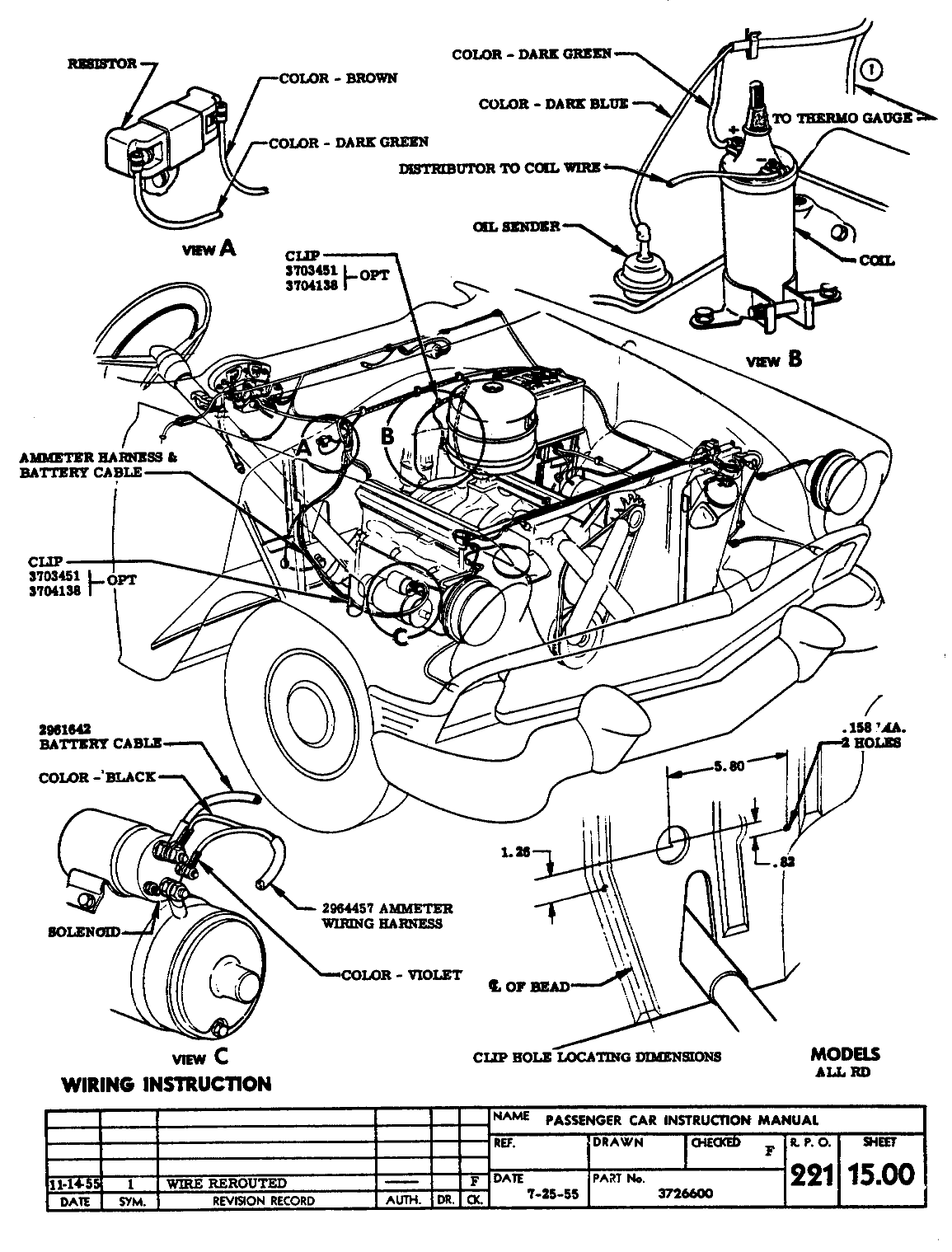

Wiring (Right Drive) Sheet 15.00

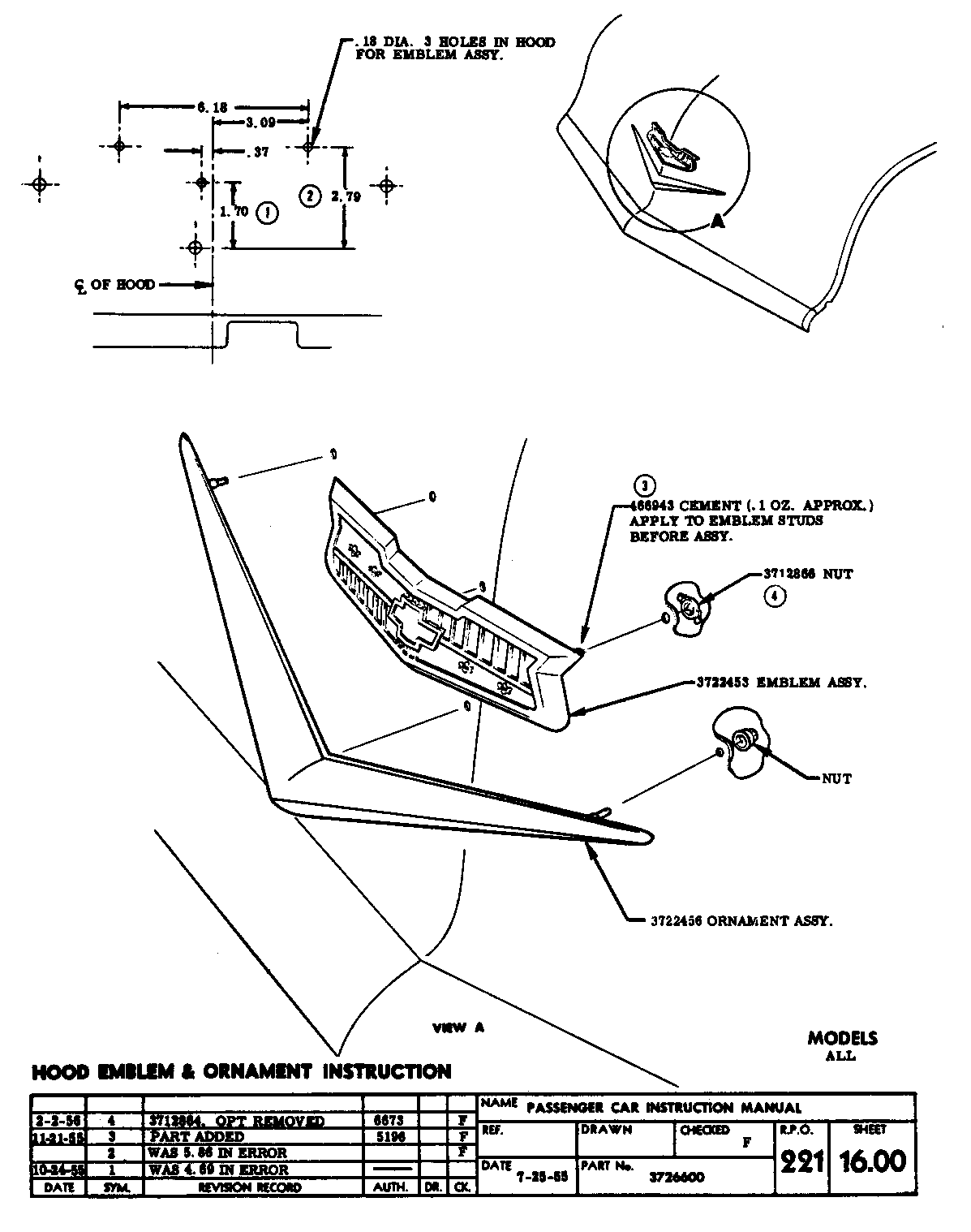

Hood Emblem & Ornament Sheet 16.00

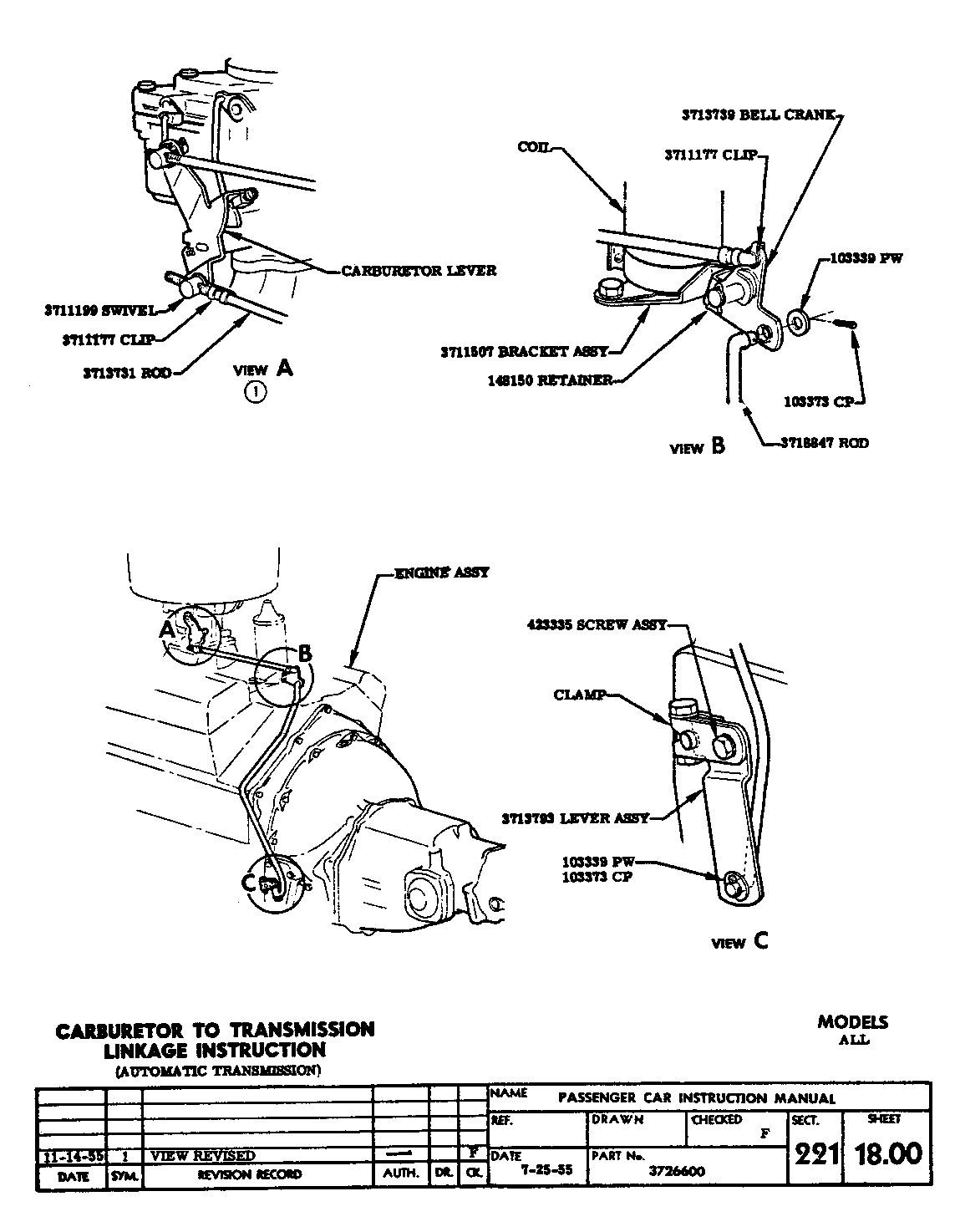

Carburetor to Transmission Linkage (Automatic) Sheet 18.00

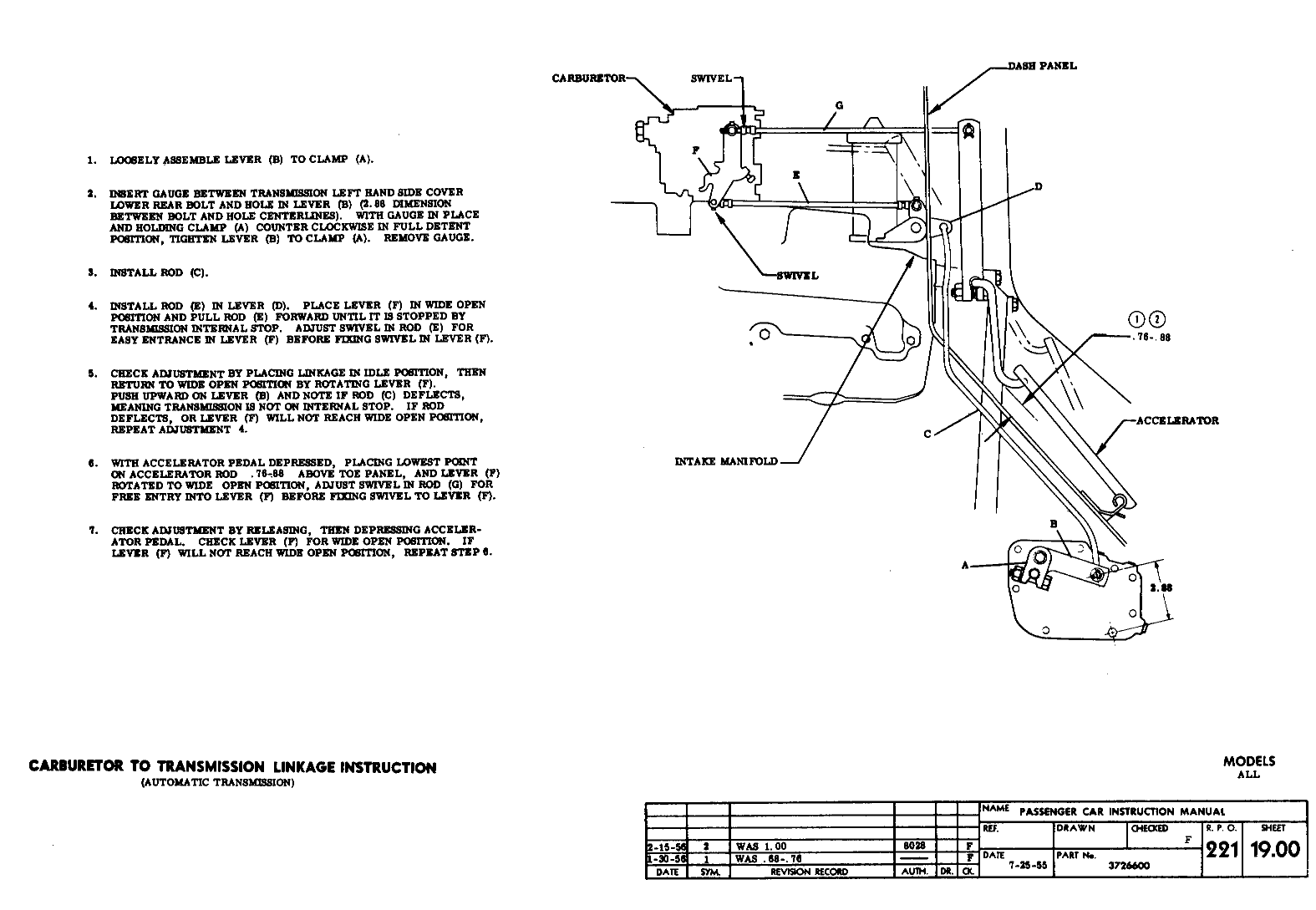

Carburetor to Transmission Linkage (Automatic) Sheet 19.00
RPO 237 – Oil Filter

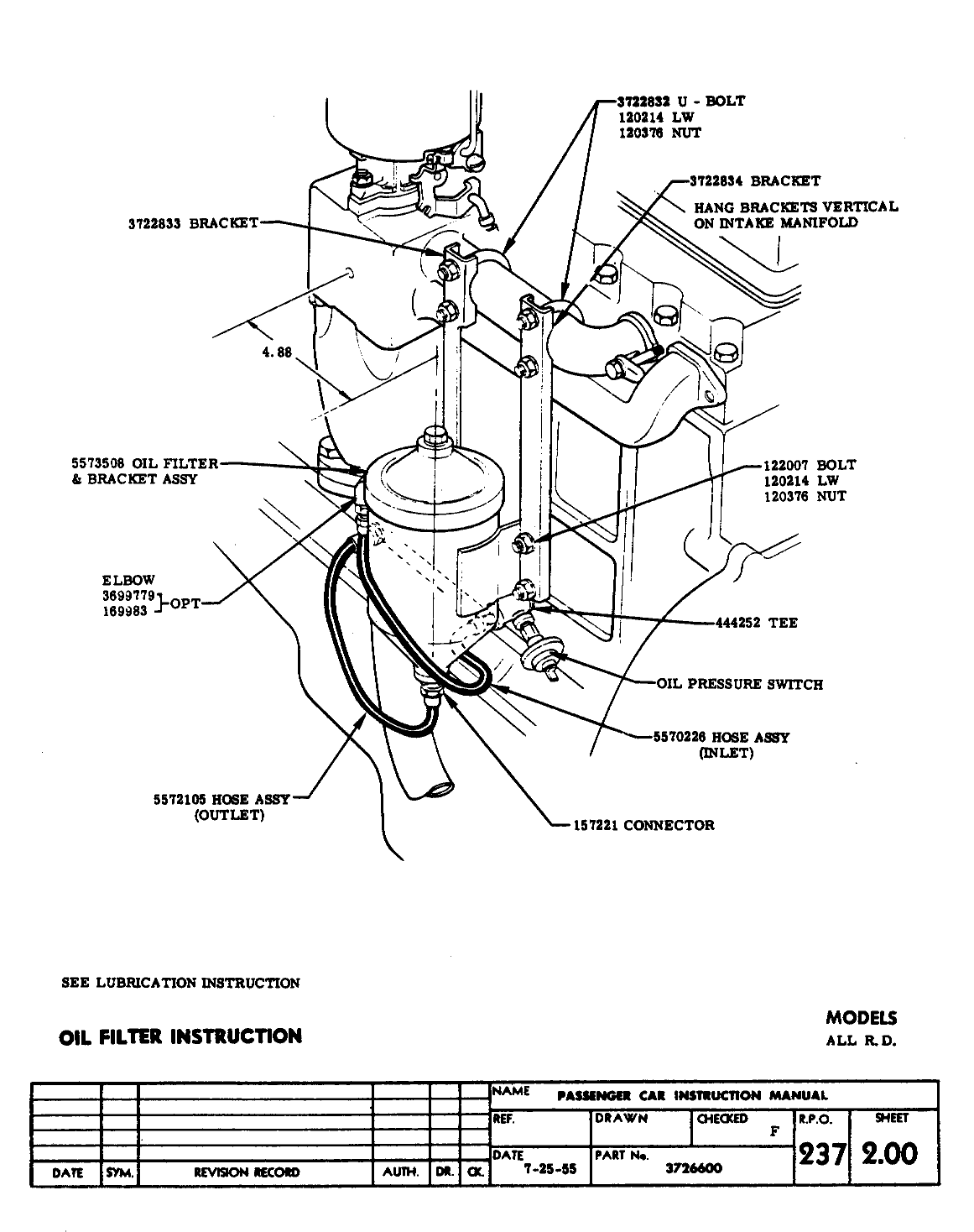

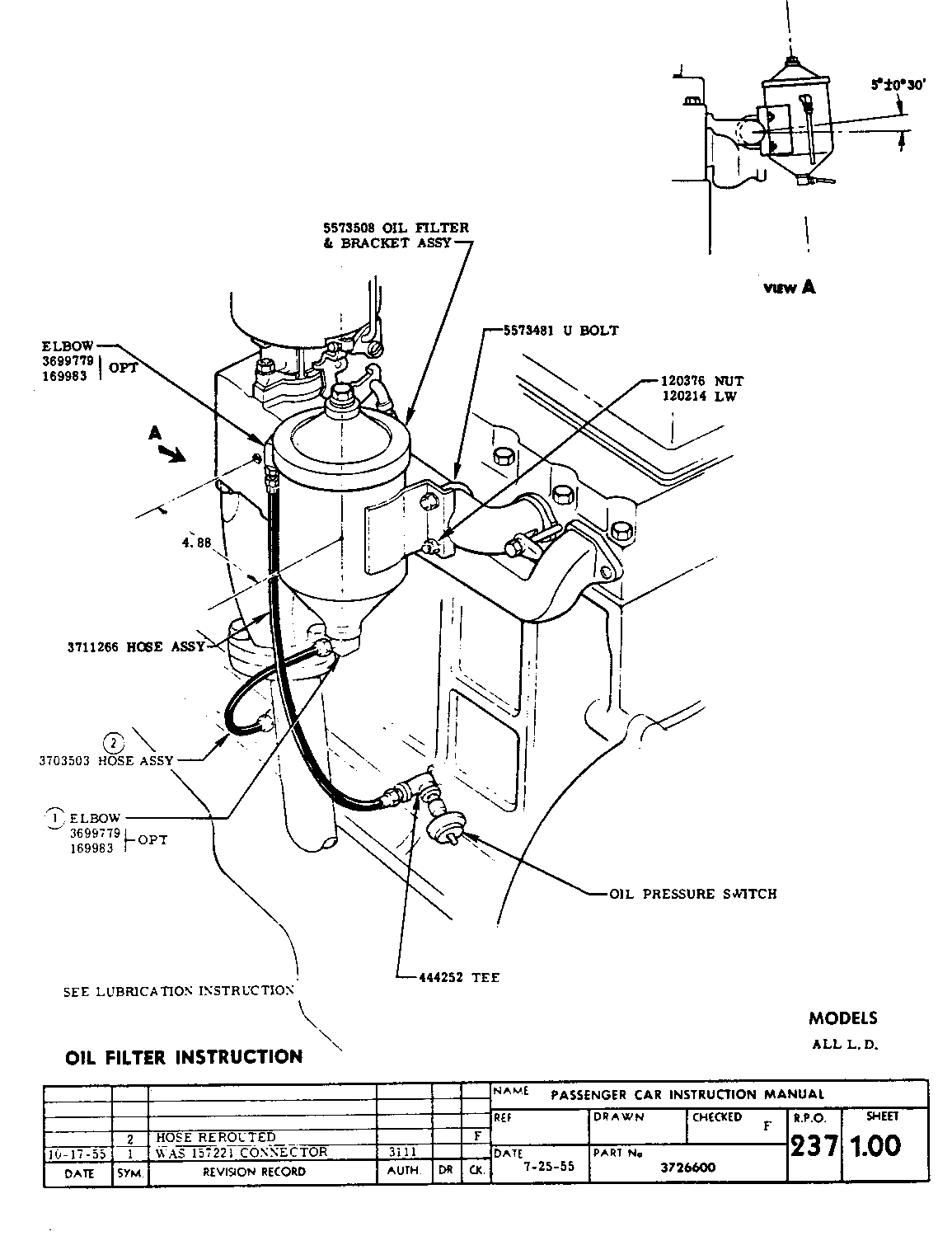

Oil Filter (All Left Drive) Sheet 1.00
Oil Filter (All Right Drive) Sheet 2.00

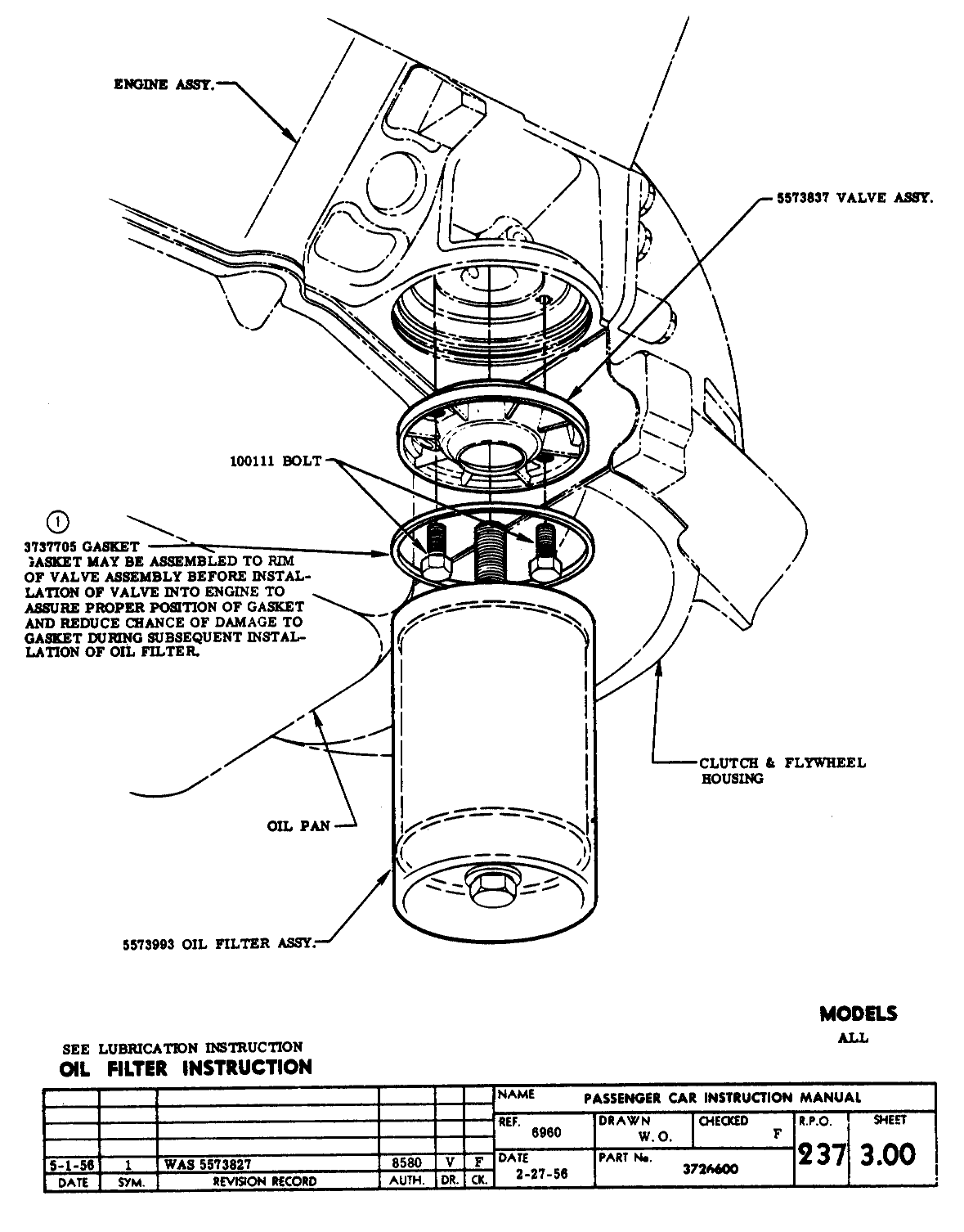

RPO 241 – Governor

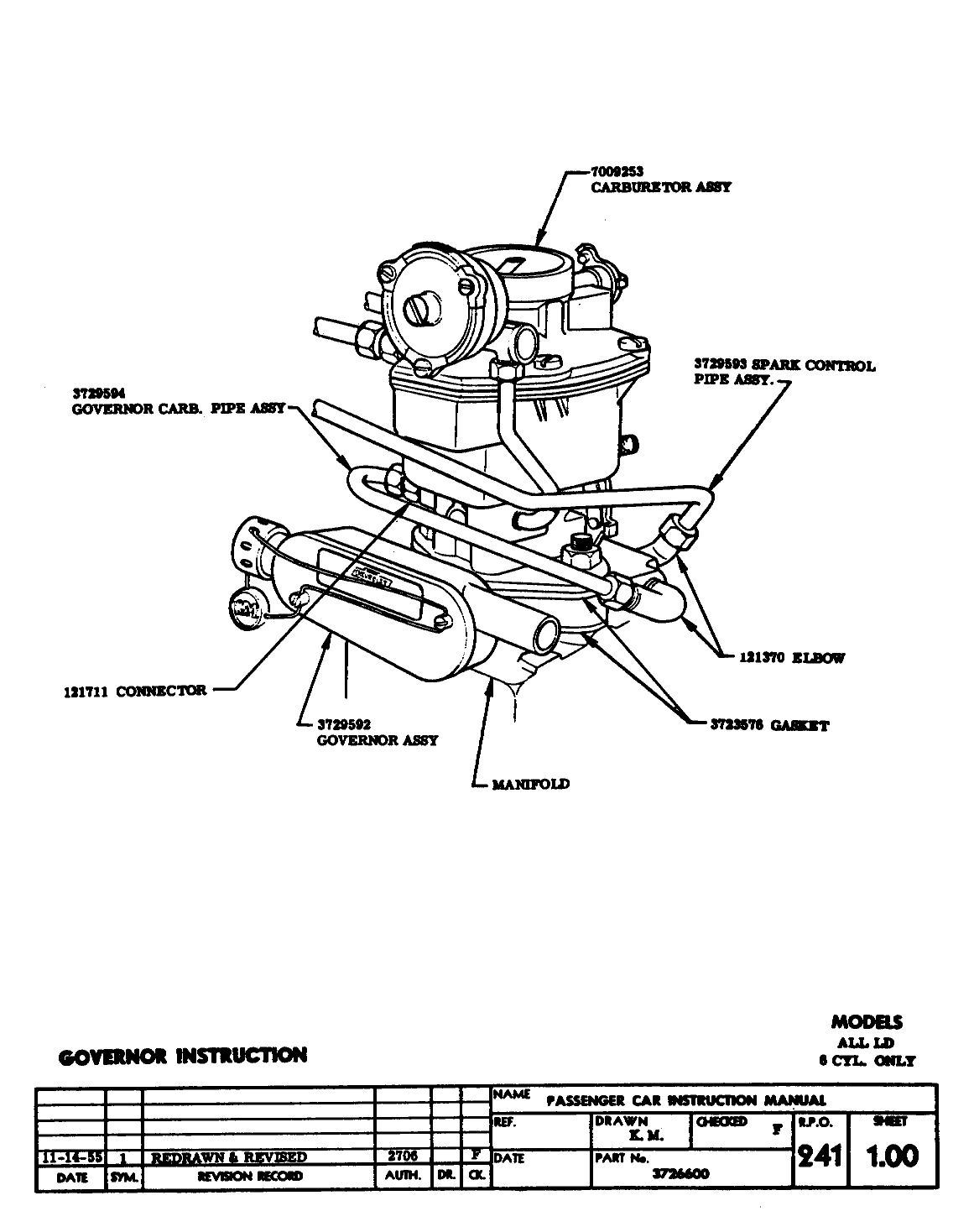

Governor (All Left Drive – 6 Cyl Only) Sheet 1.00

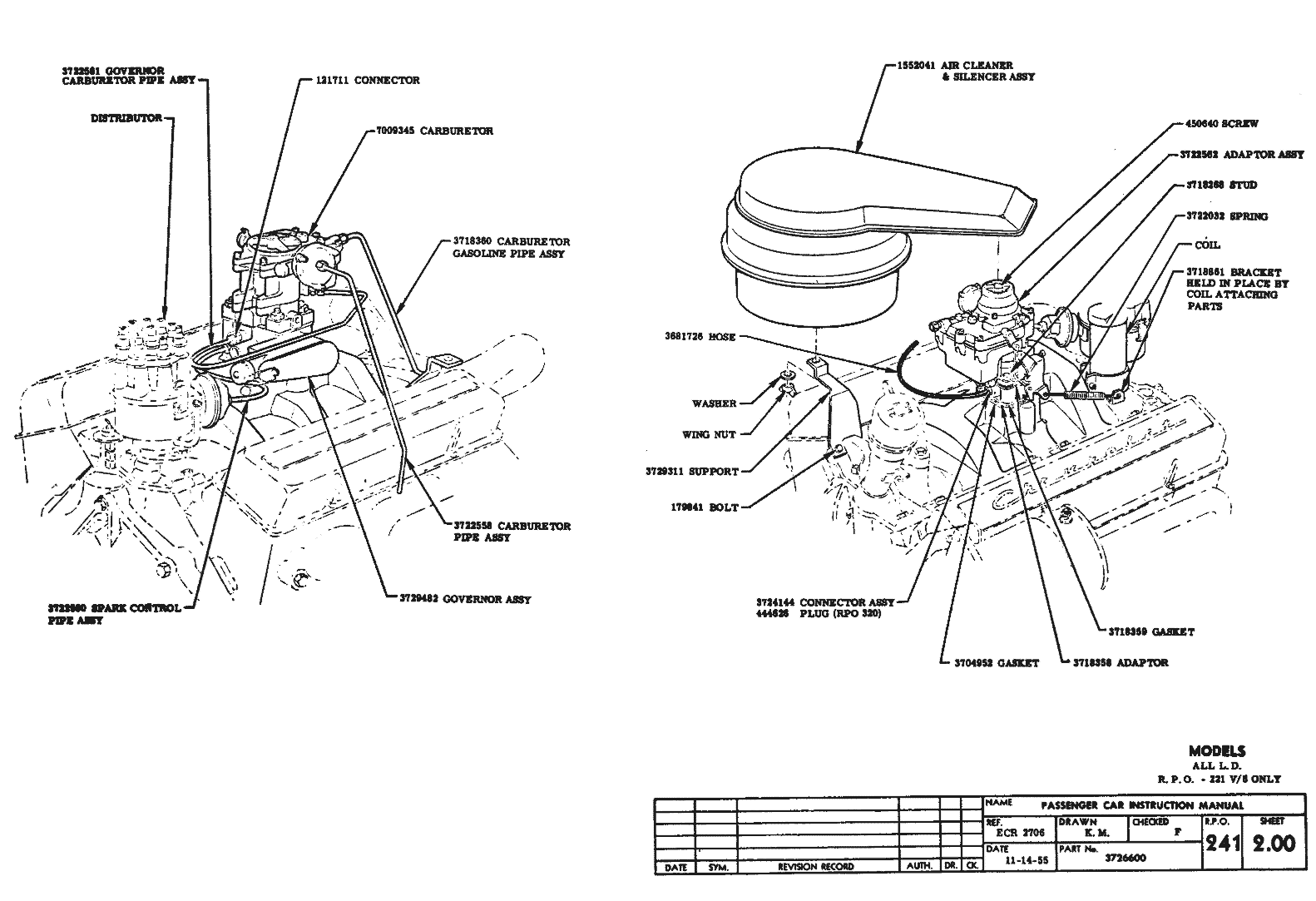

Governor (All Left Drive – V8 Only) Sheet 2.00
RPO 263 – Auxiliary Seat

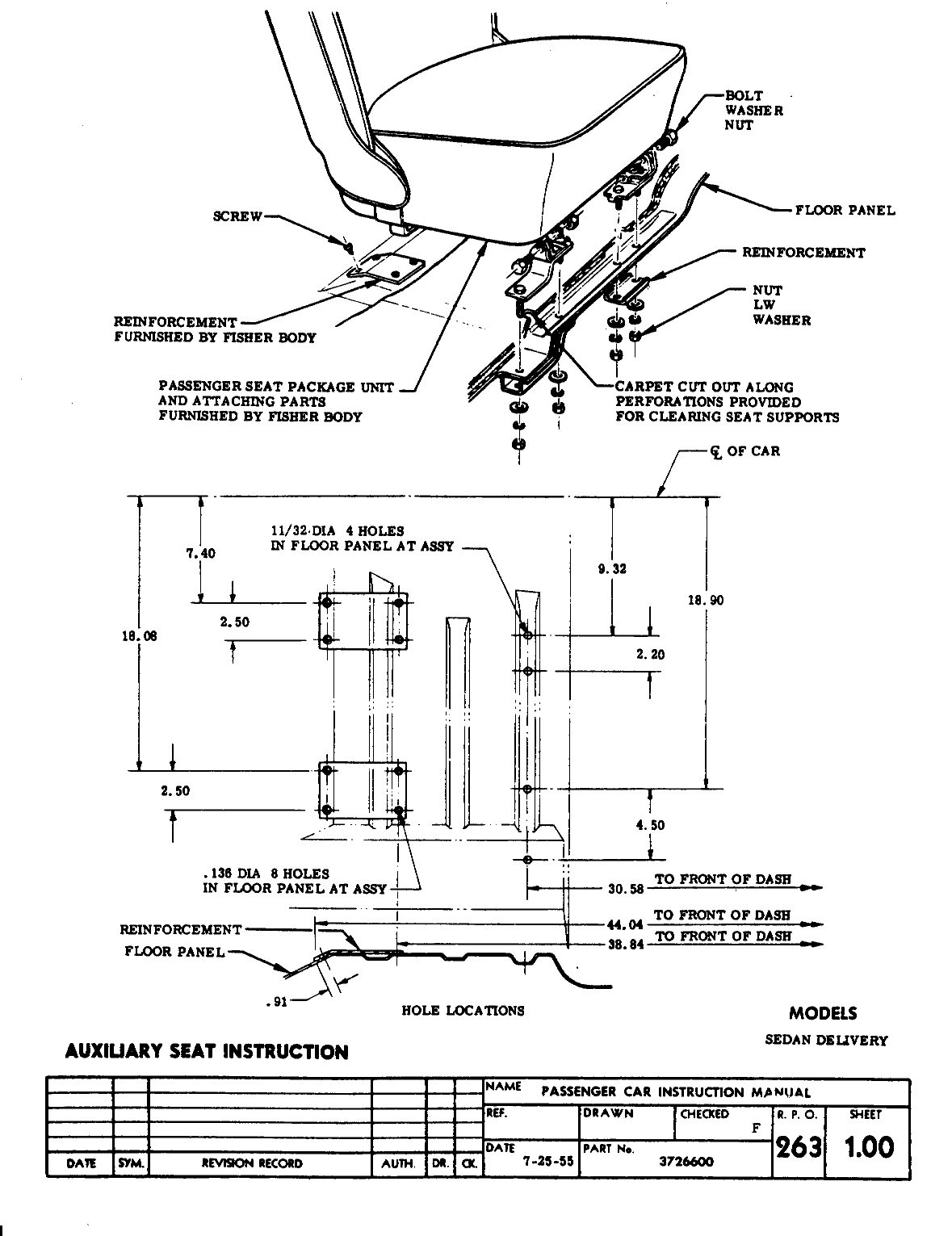

Auxiliary Seat (Sedan Delivery) Sheet 1.00
RPO 271 – Radiator Overflow Condenser

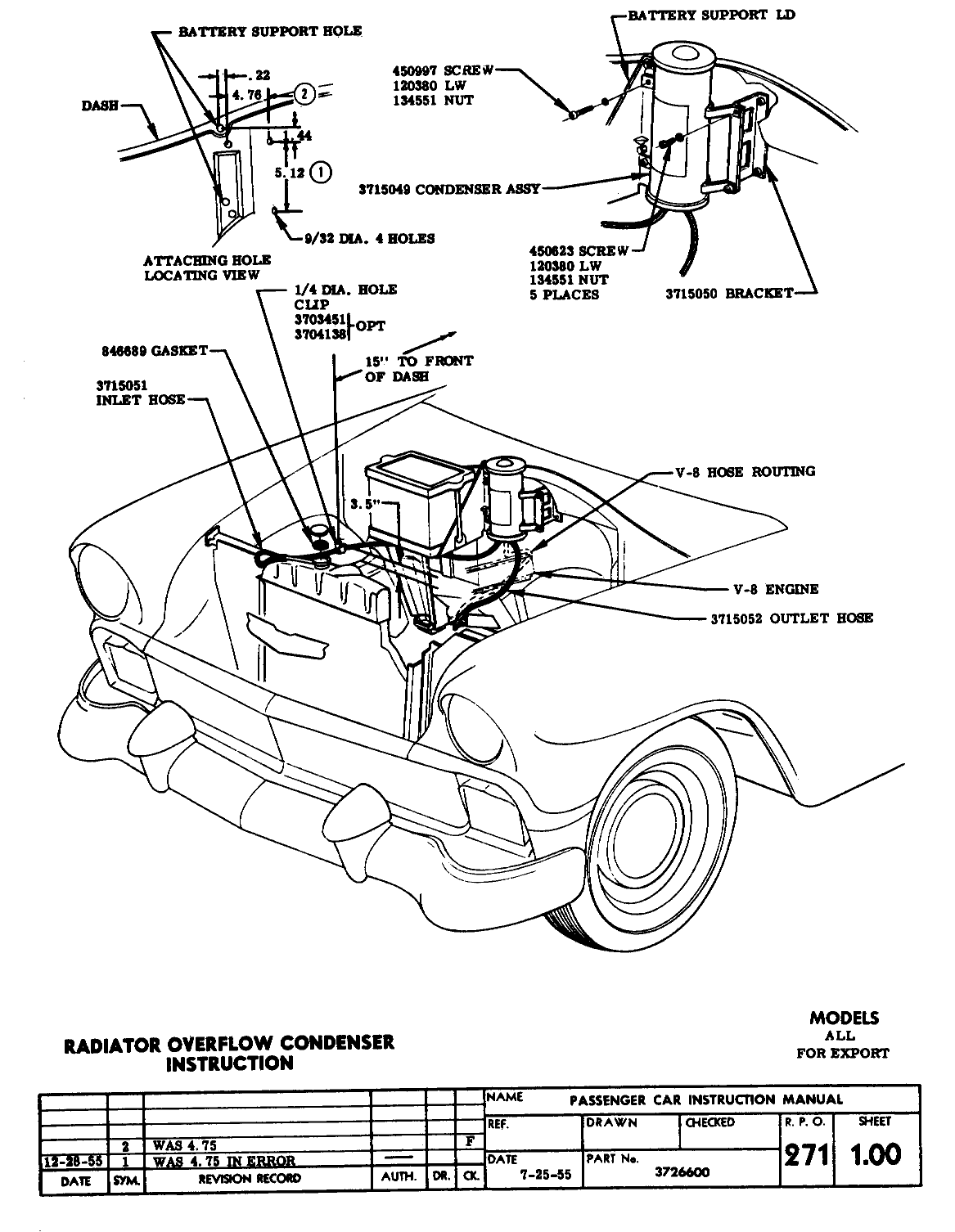

Radiator Overflow Condenser (All Export Cars) Sheet 1.00
RPO 313 – Automatic Transmission

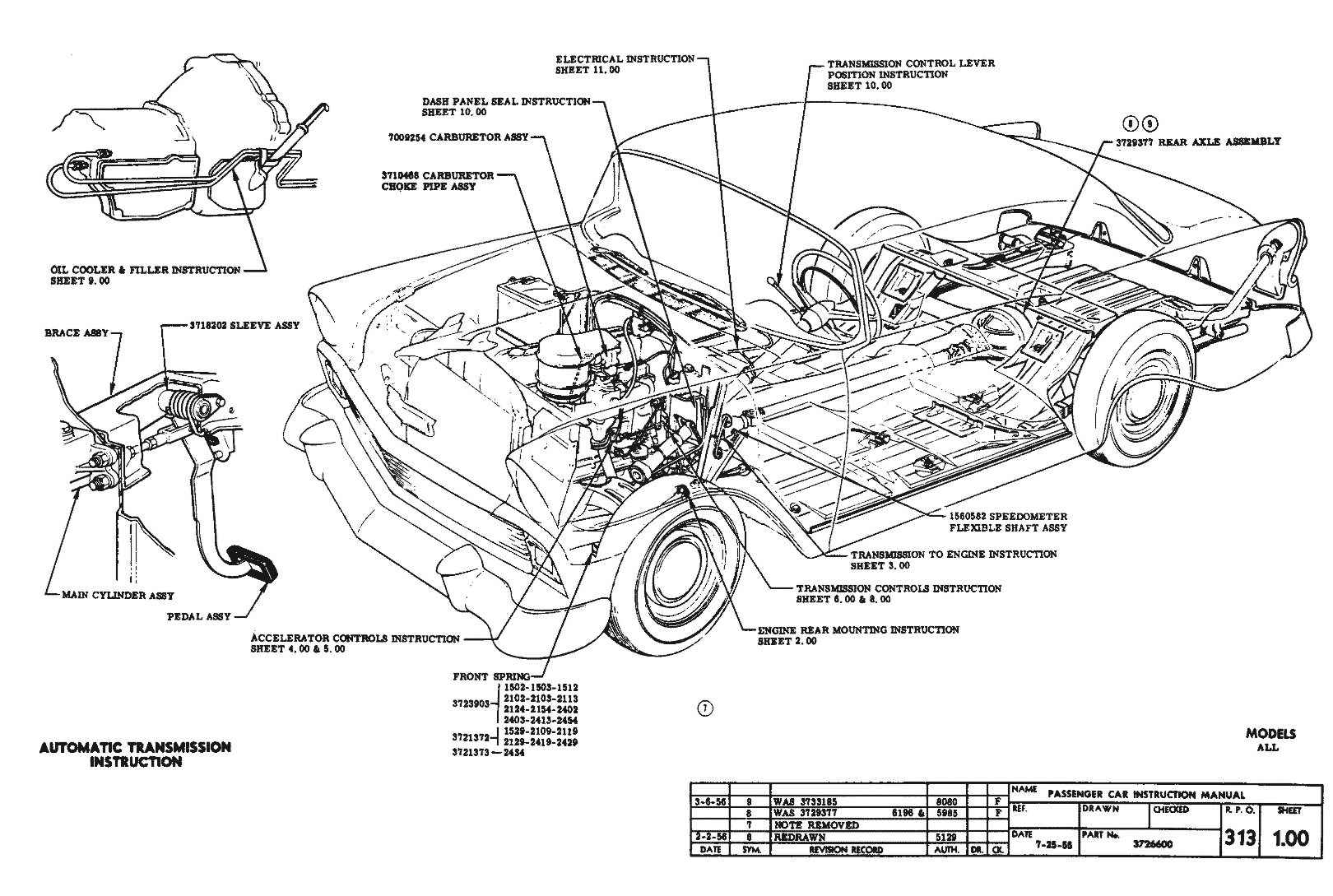

Automatic Transmission Index Sheet 1.00

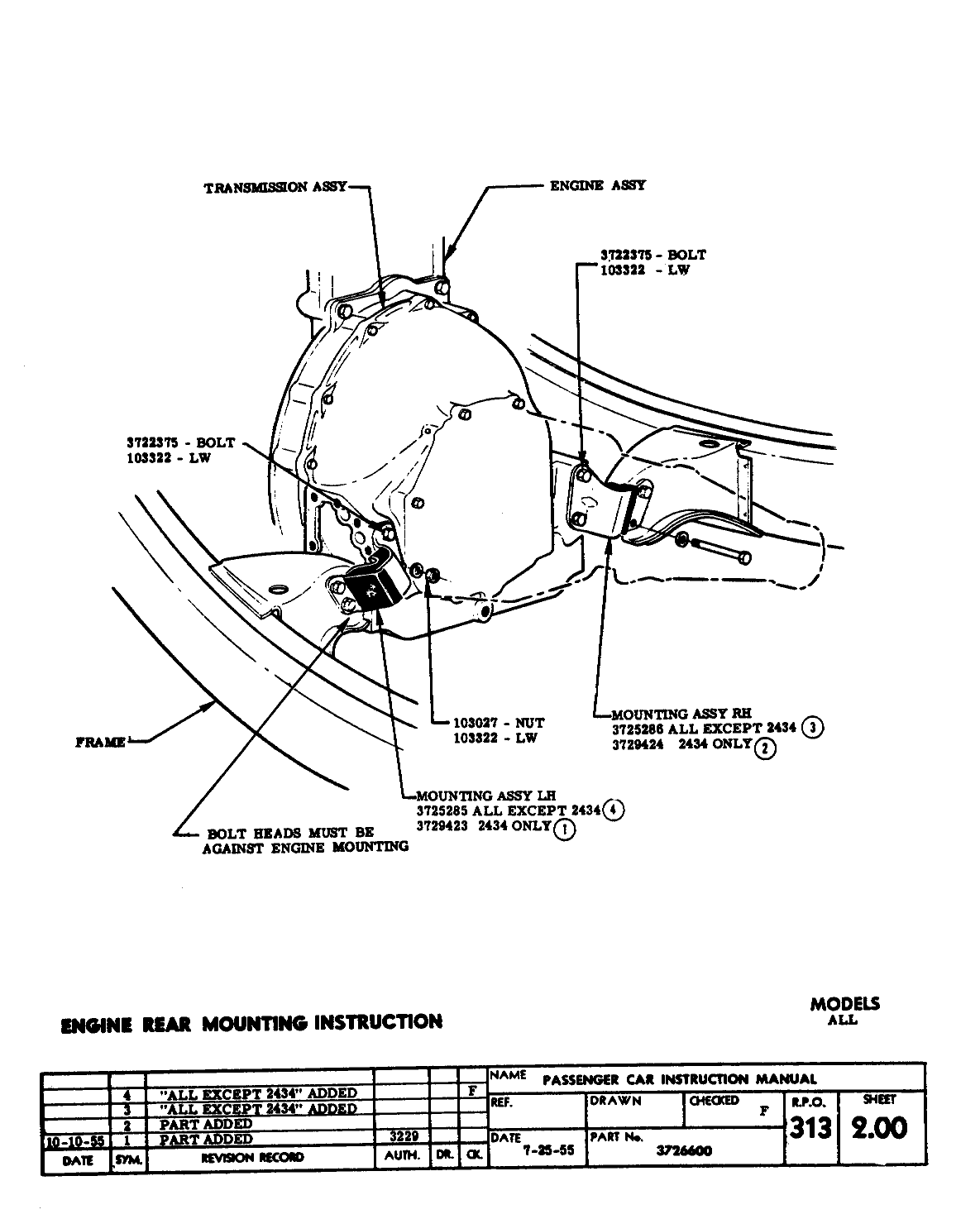

Engine Rear Mounting Sheet 2.00

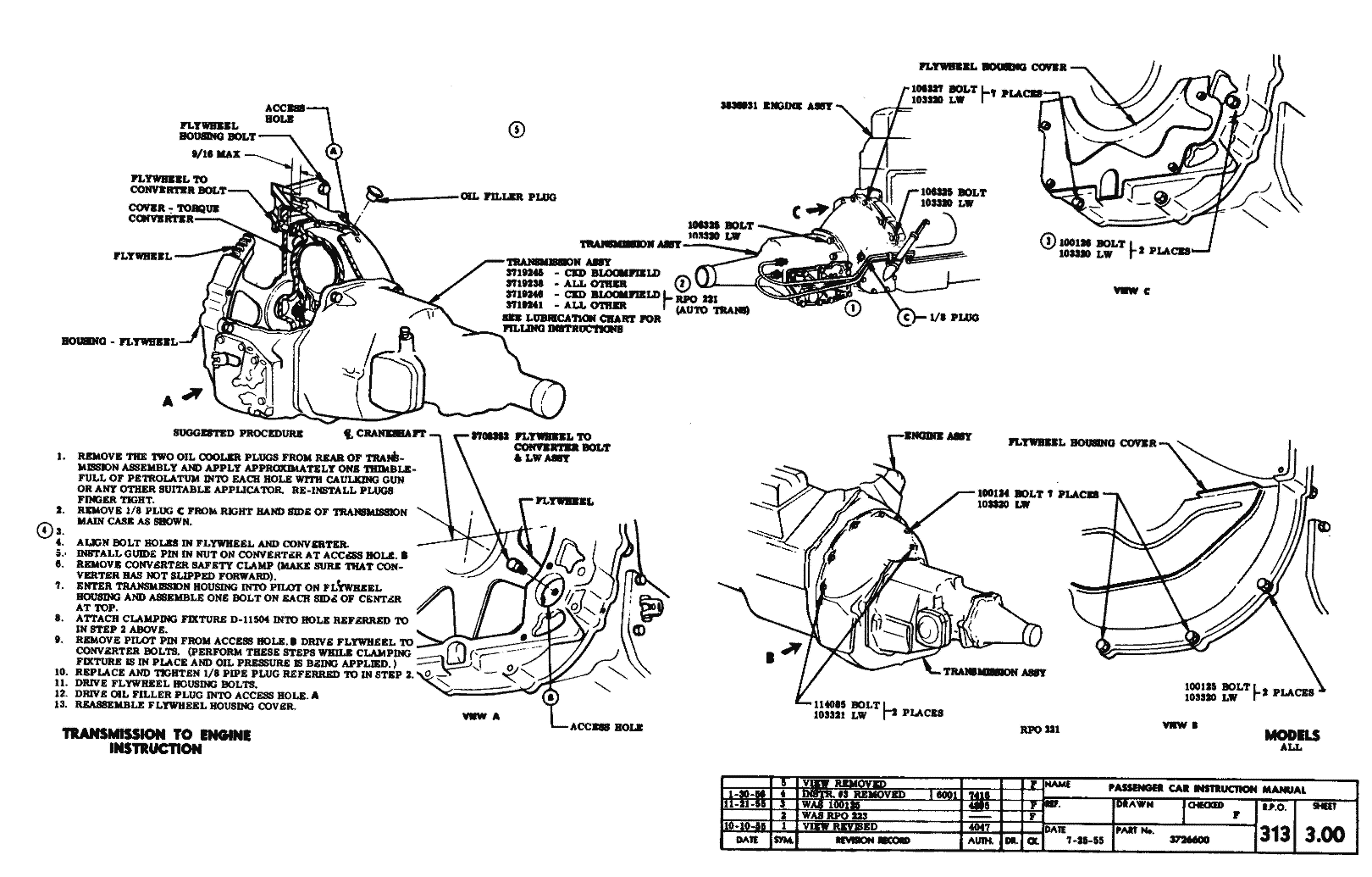

Transmission To Engine Sheet 3.00

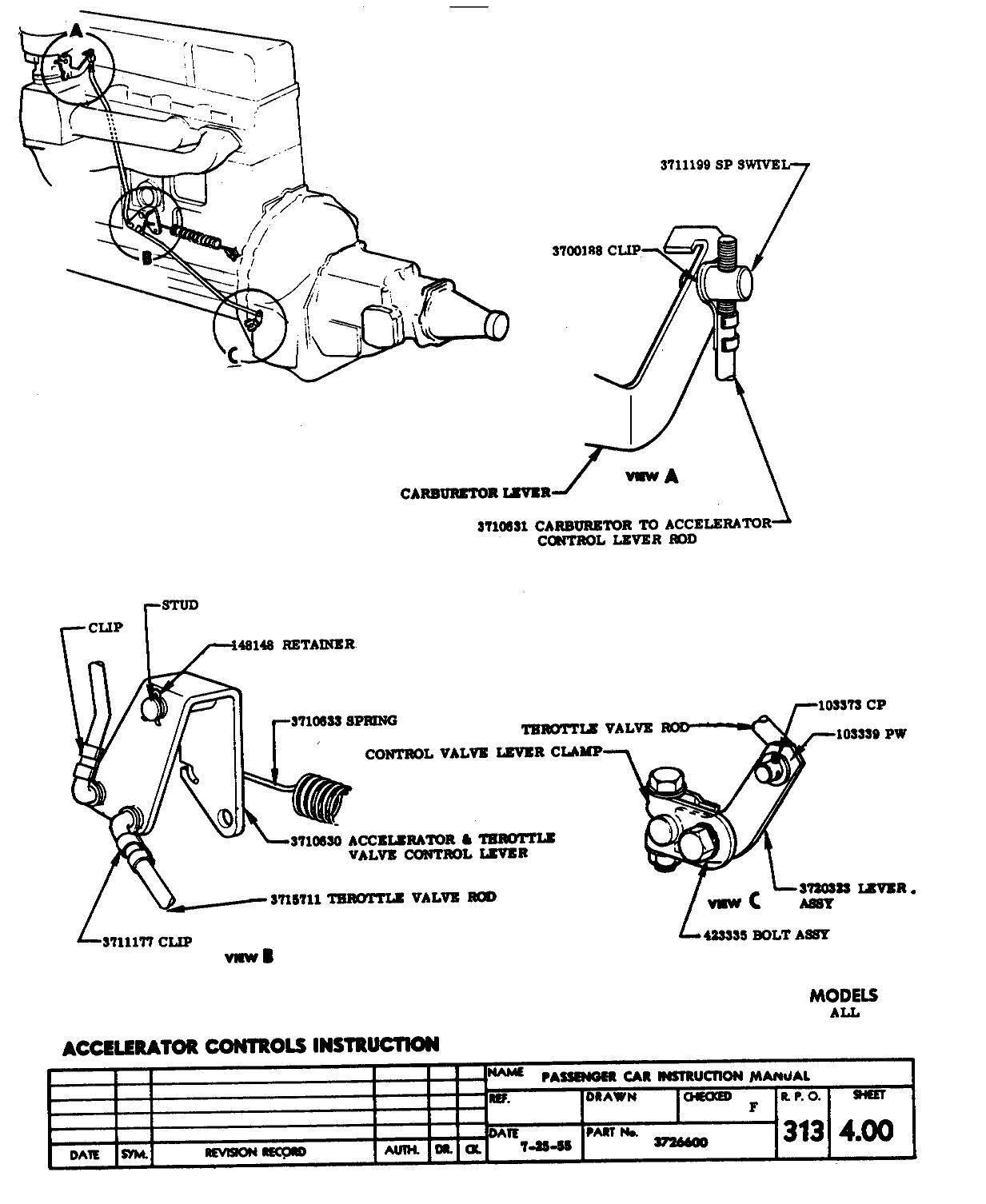

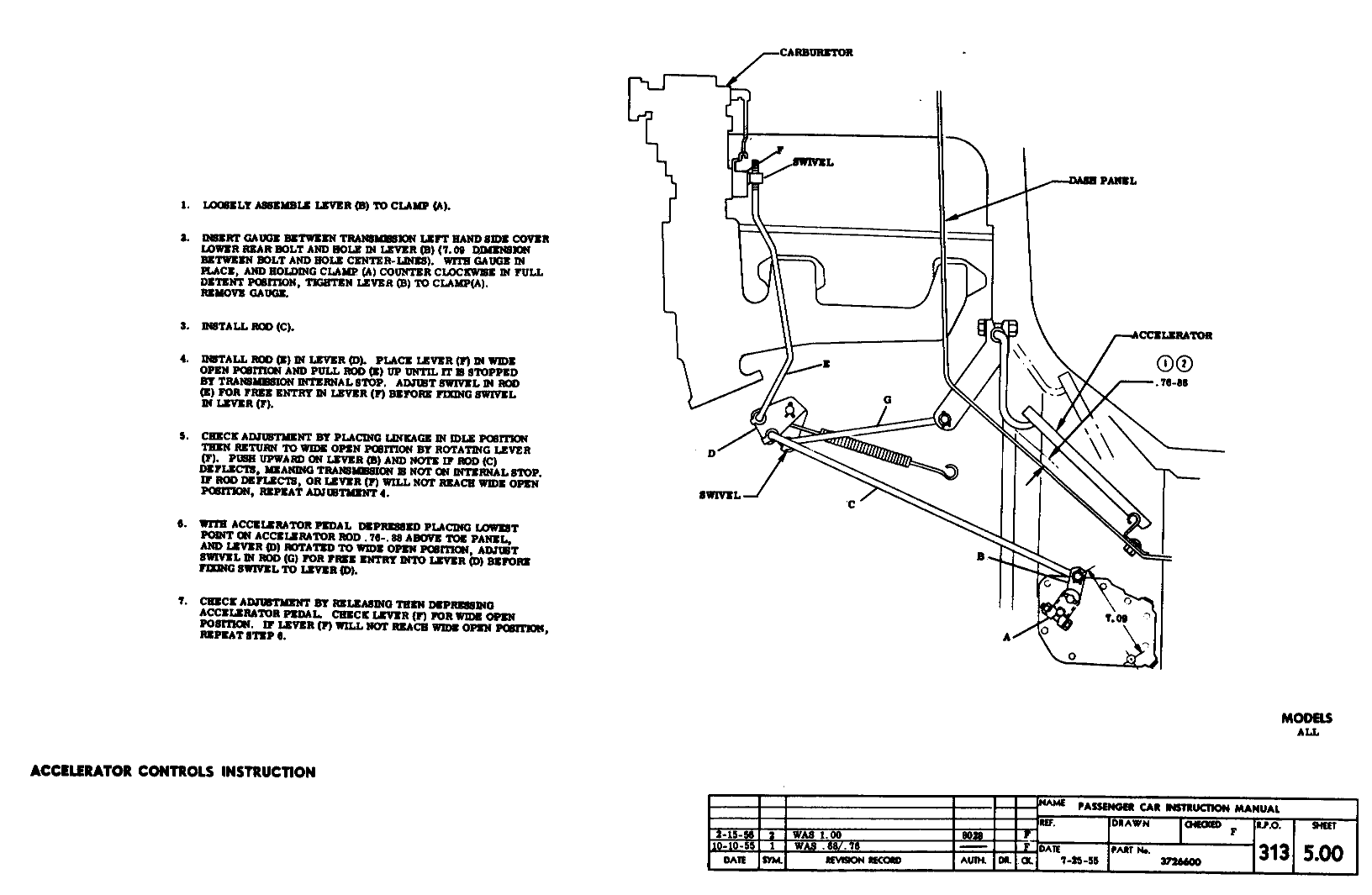

Accelerator Controls Sheet 4.00
Accelerator Controls Sheet 5.00

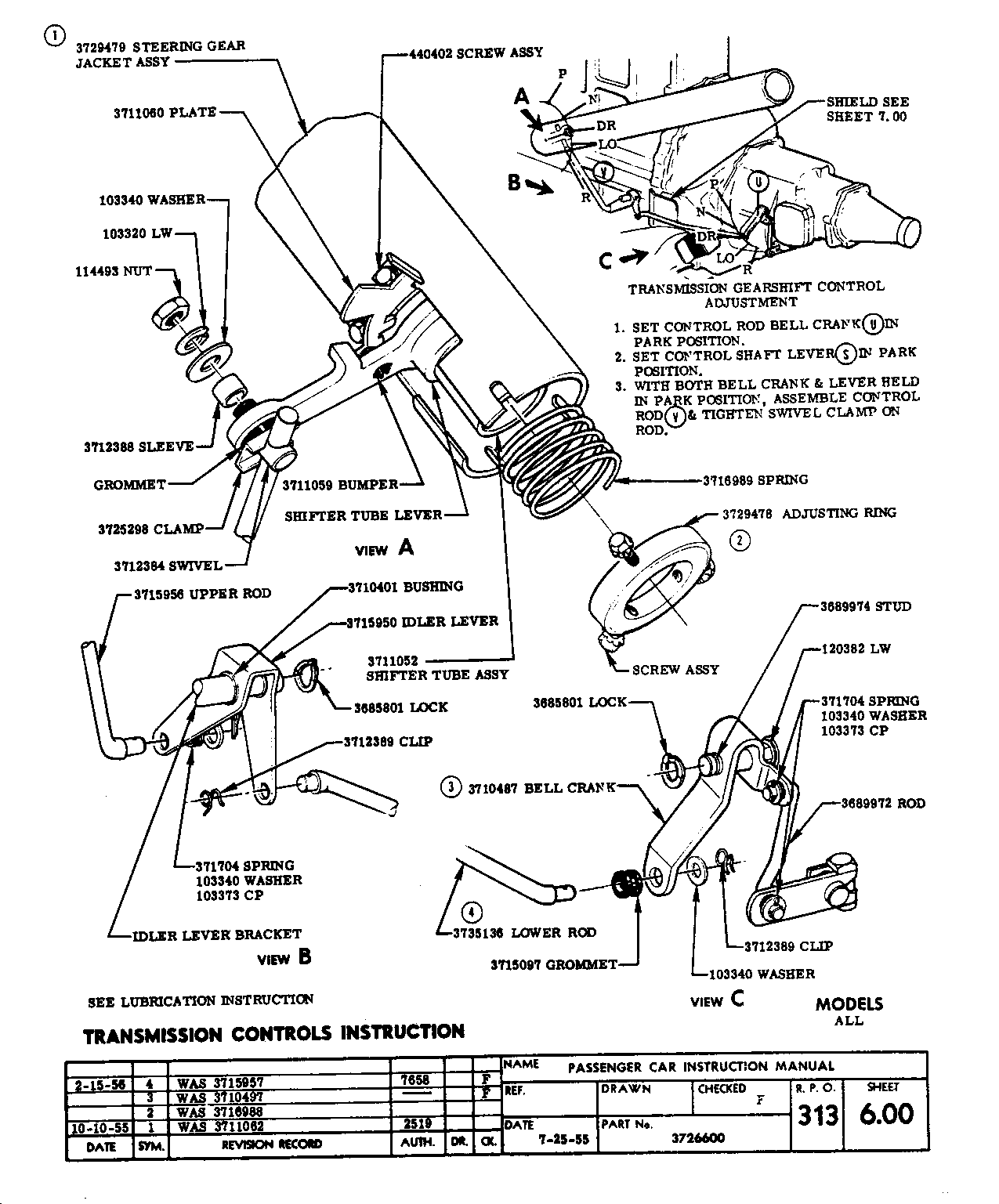

Transmission Controls Sheet 6.00

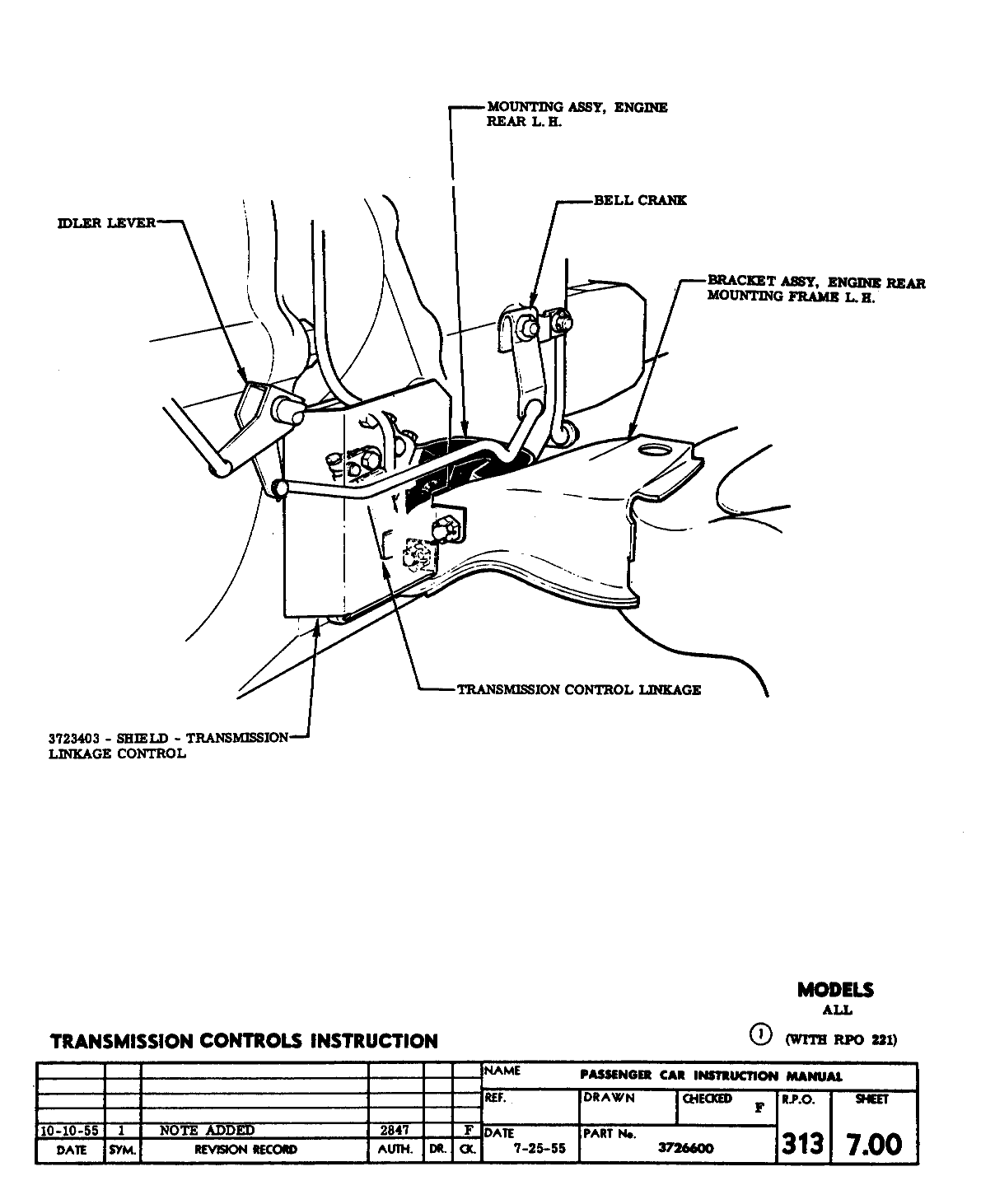

Transmission Controls Sheet 7.00

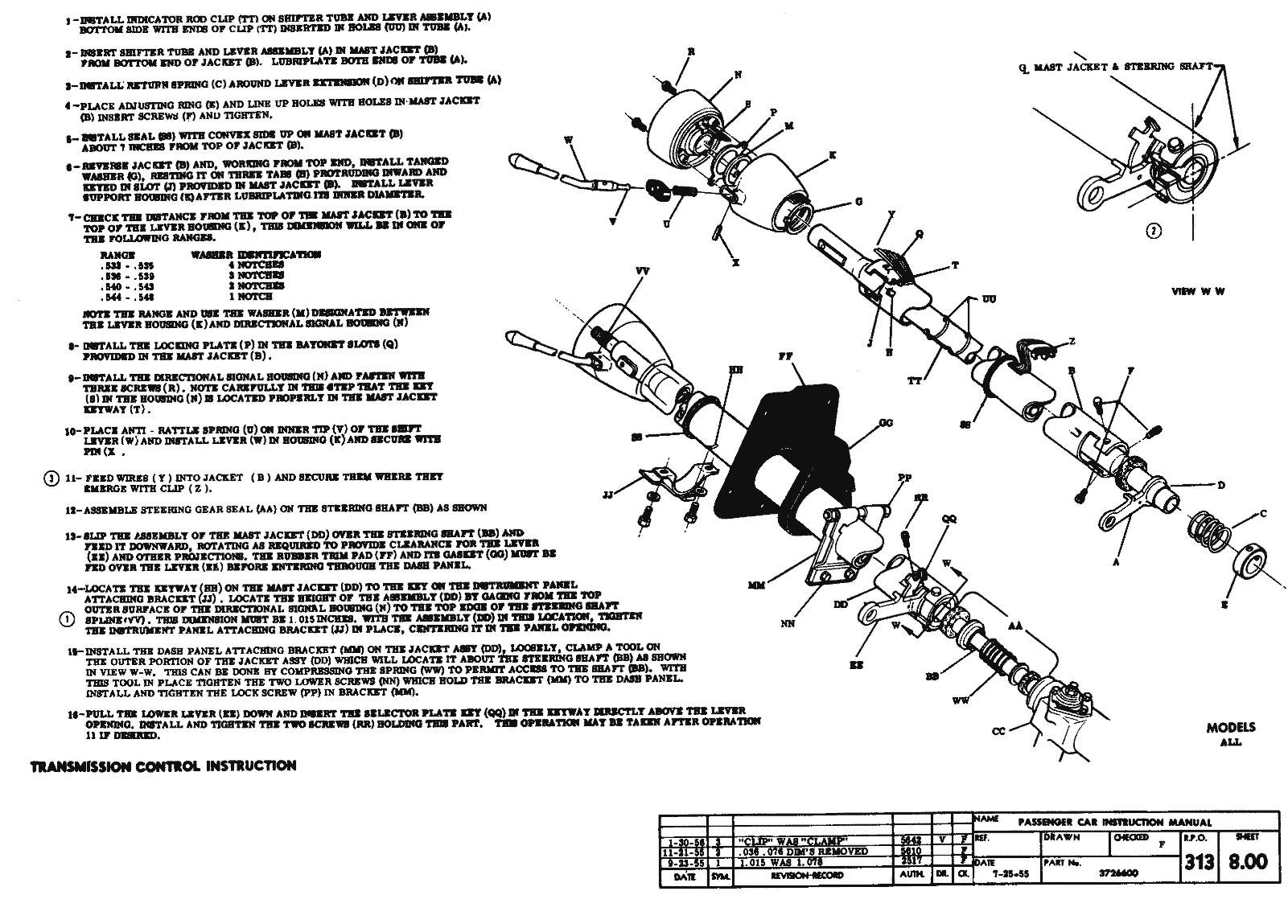

Transmission Controls Sheet 8.00

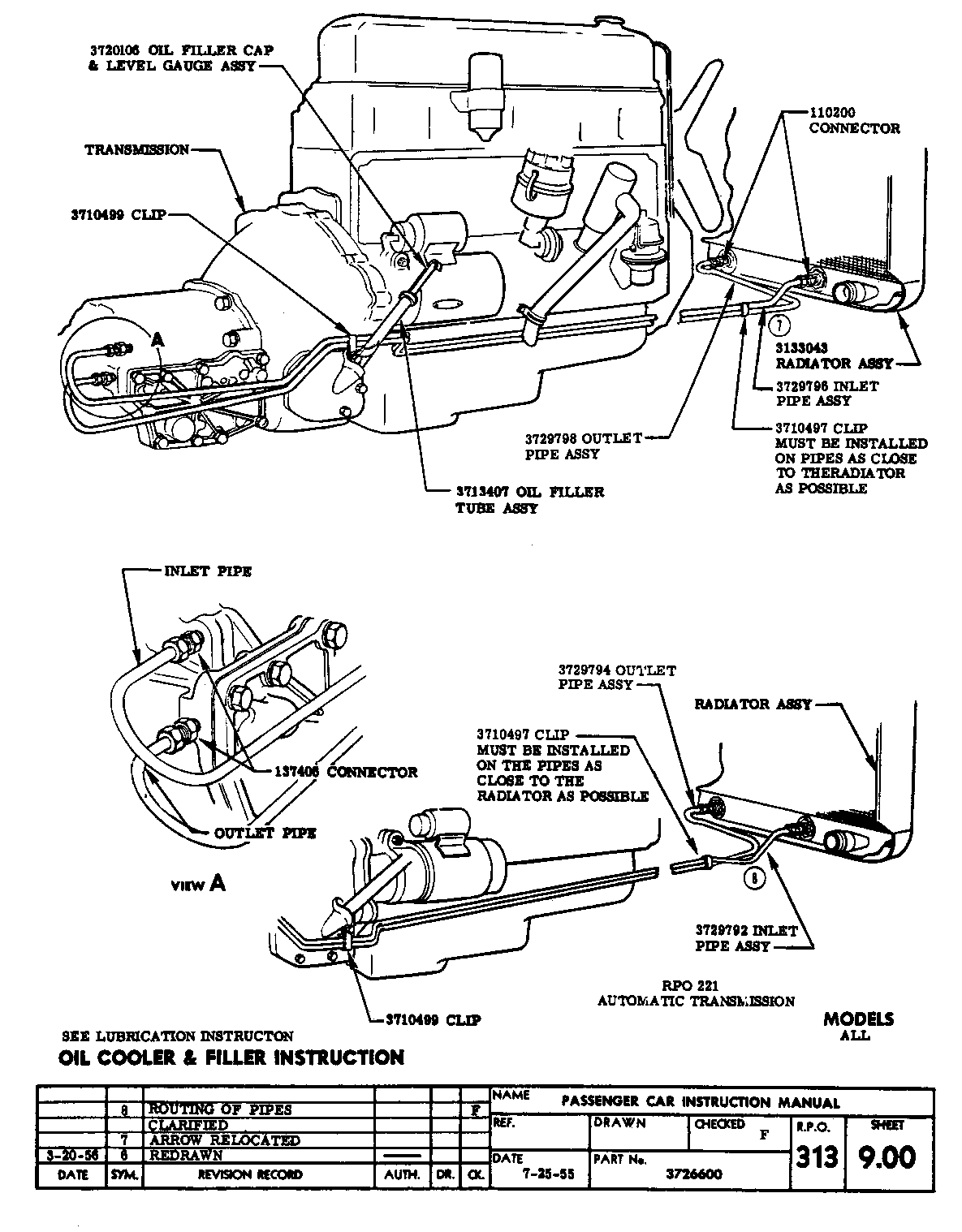

Oil Cooler & Filler Sheet 9.00

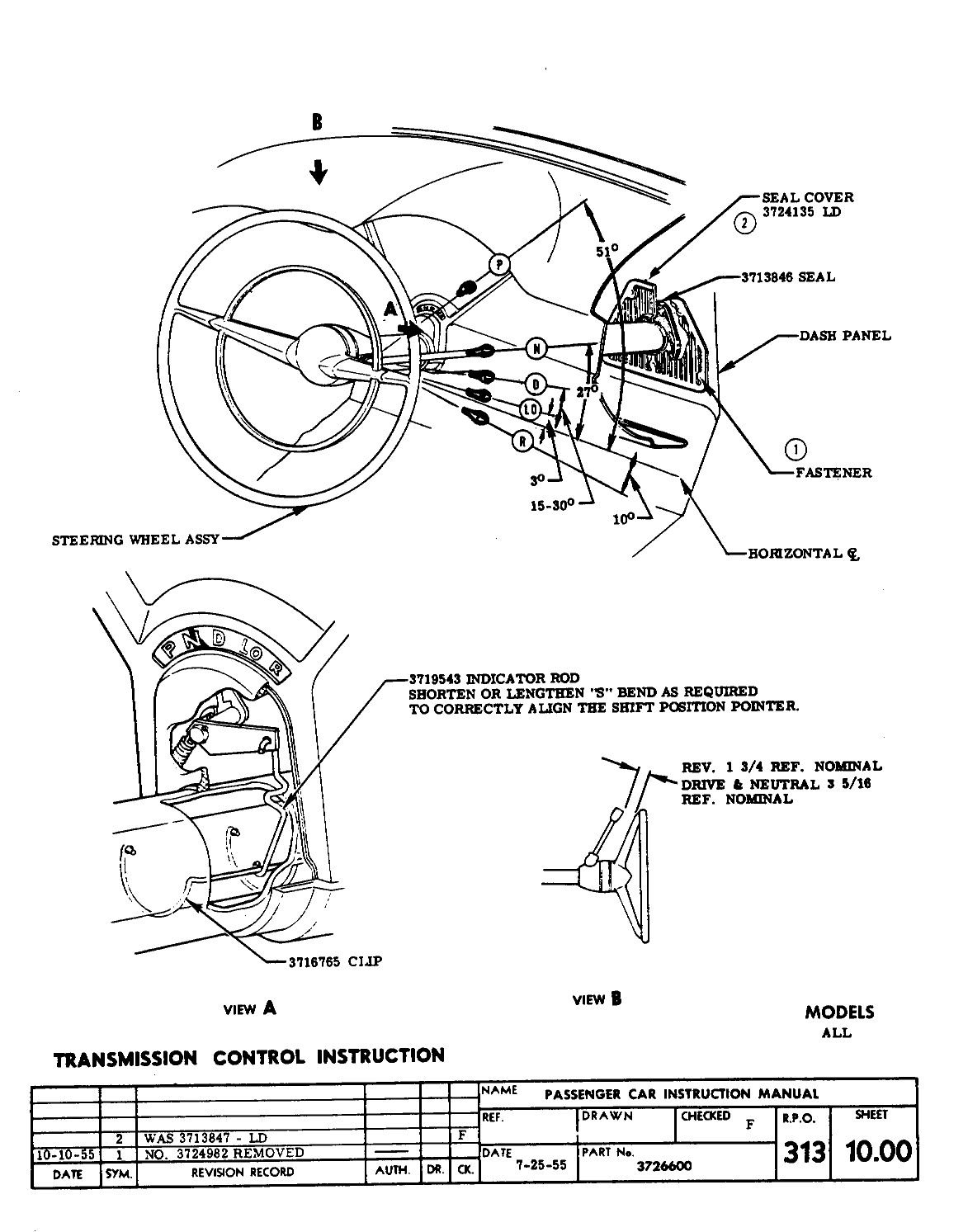

Transmission Control Sheet 10.00

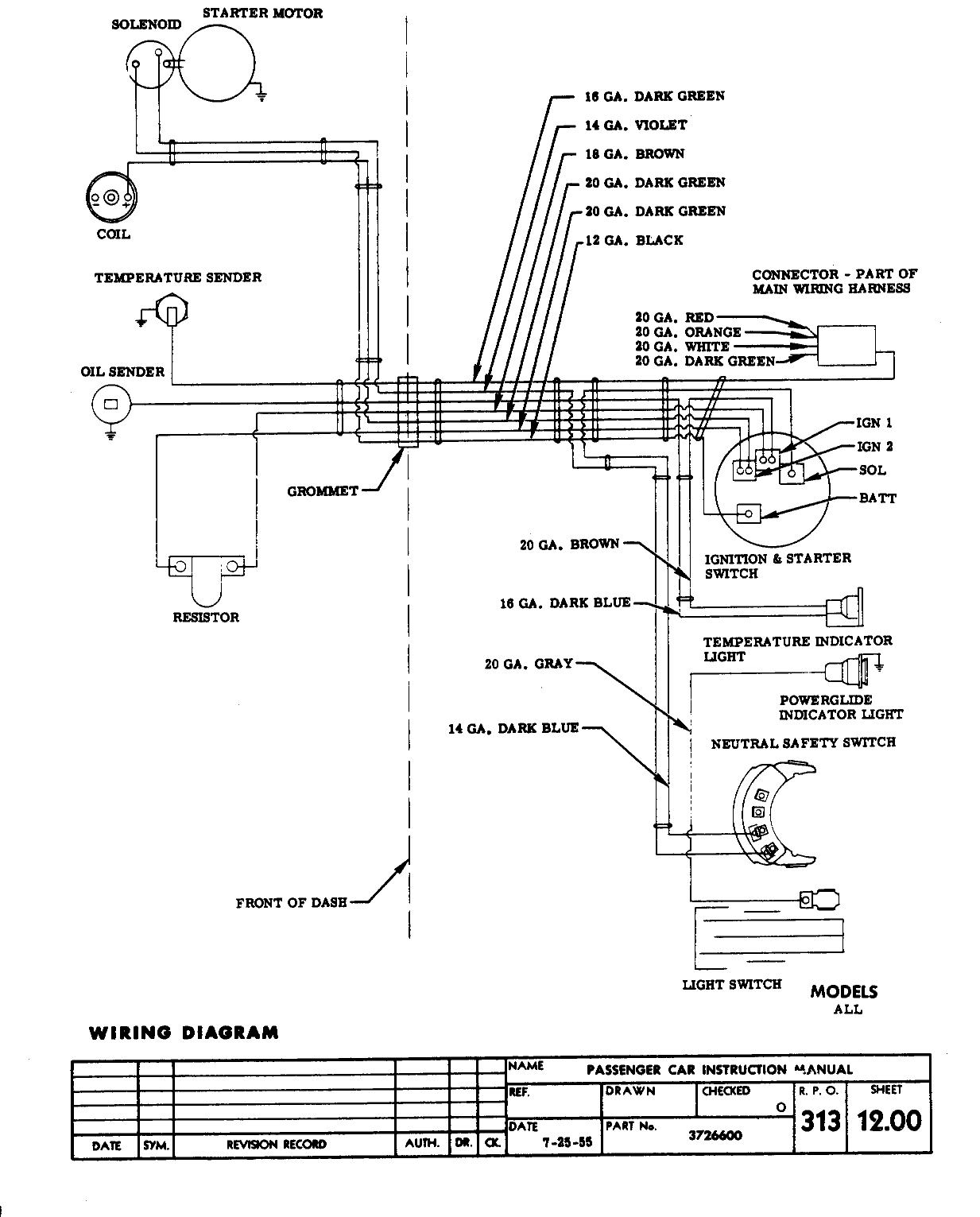

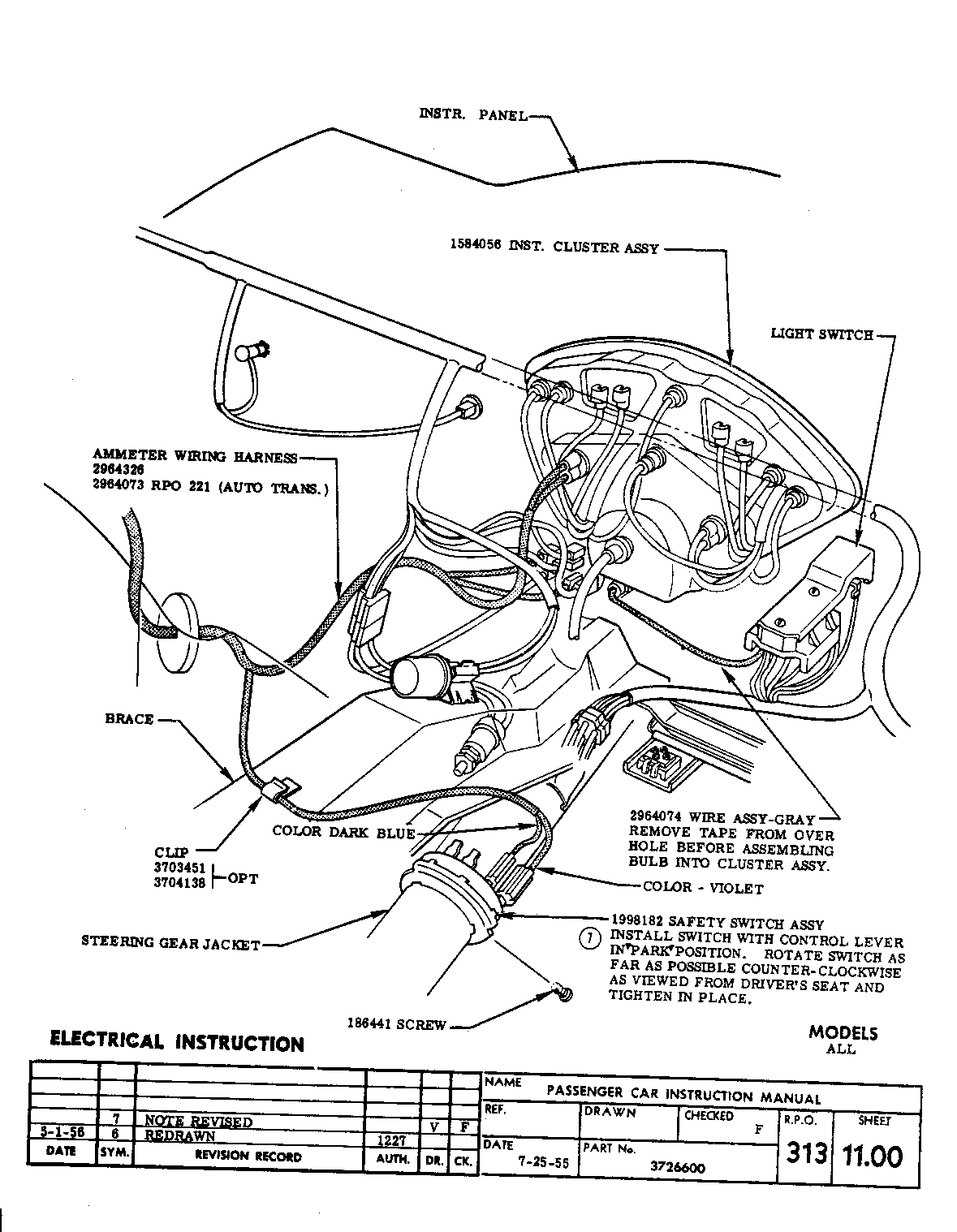

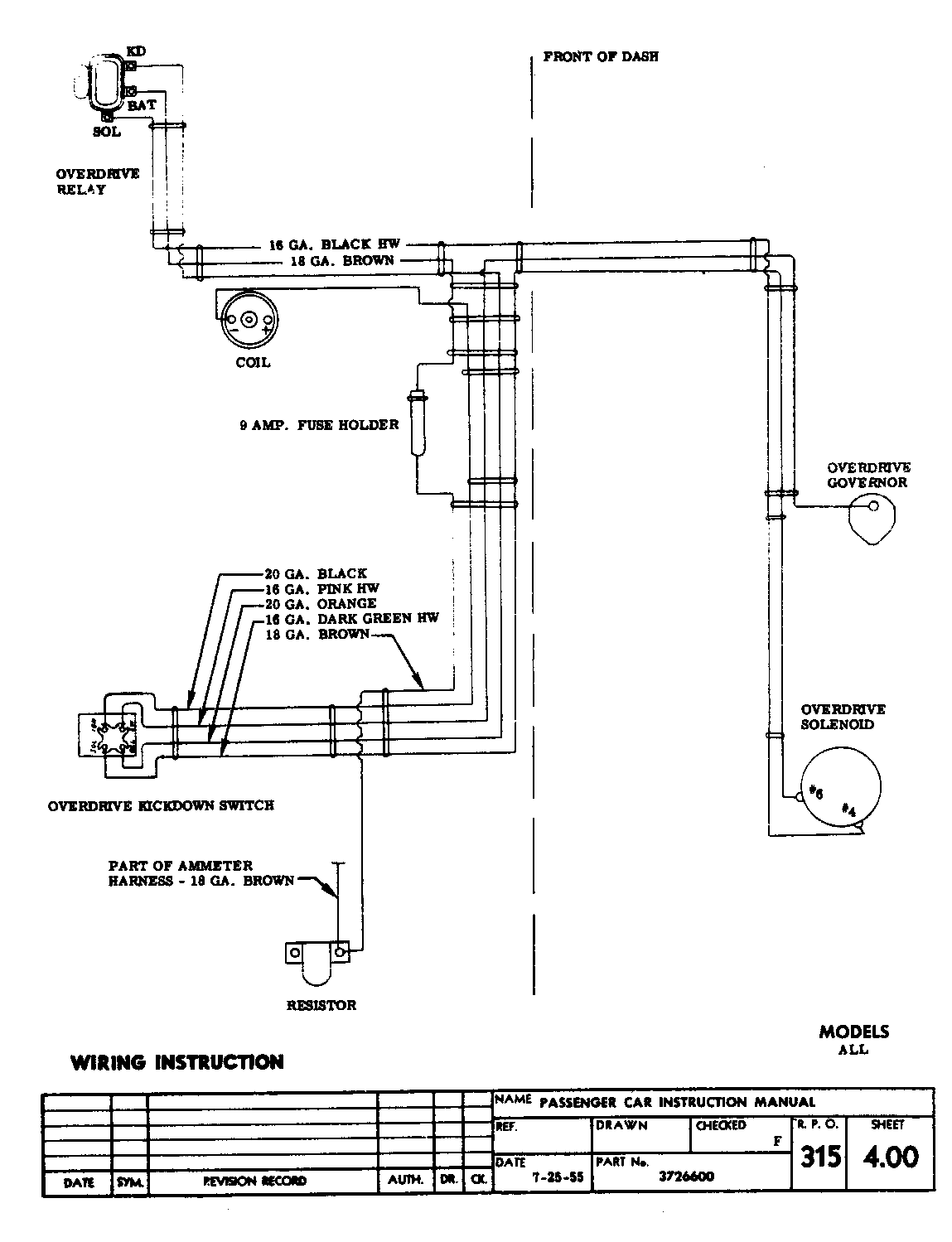

RPO 315 – Transmission Overdrive

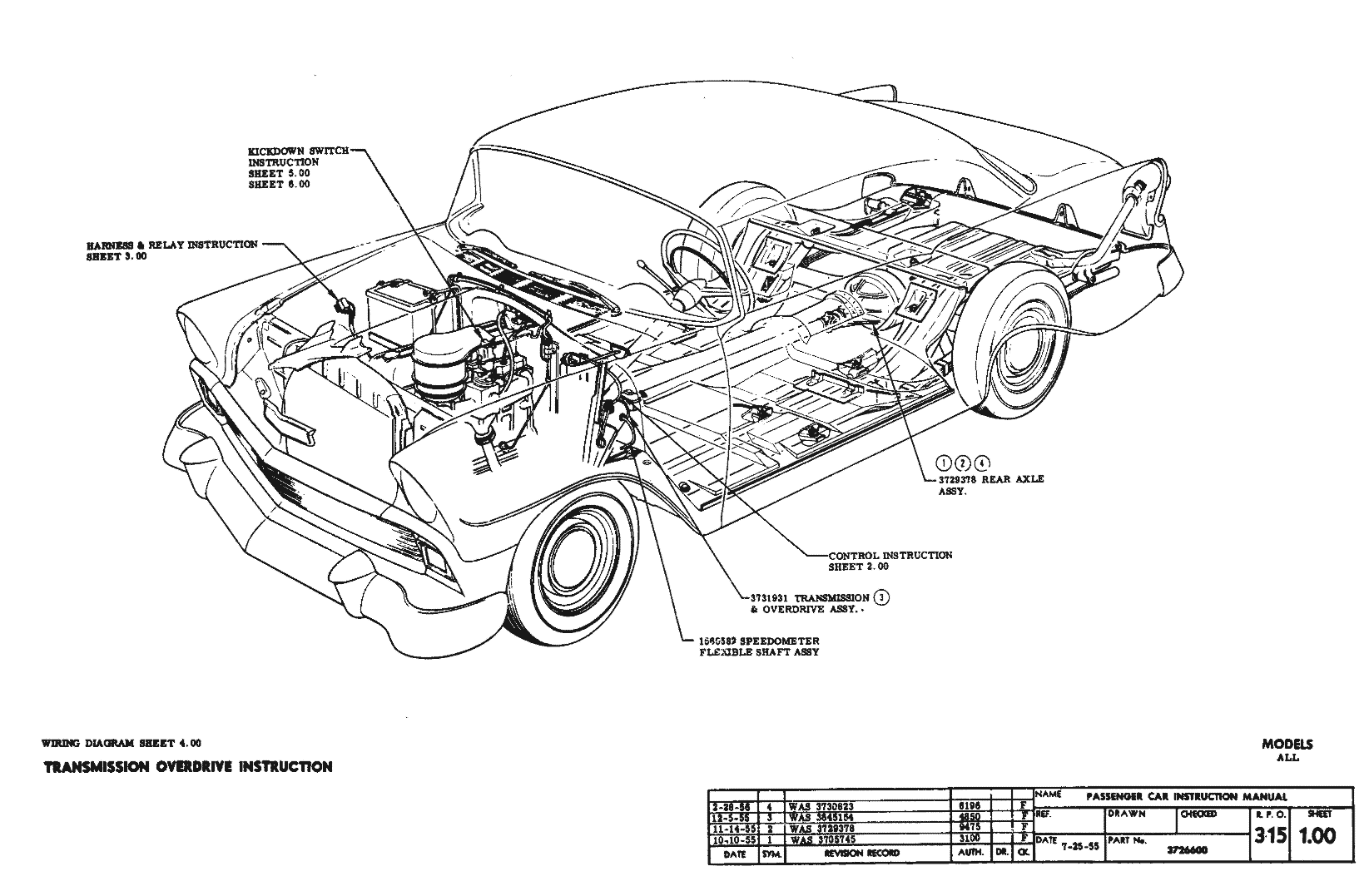

Transmission Overdrive Index Sheet 1.00

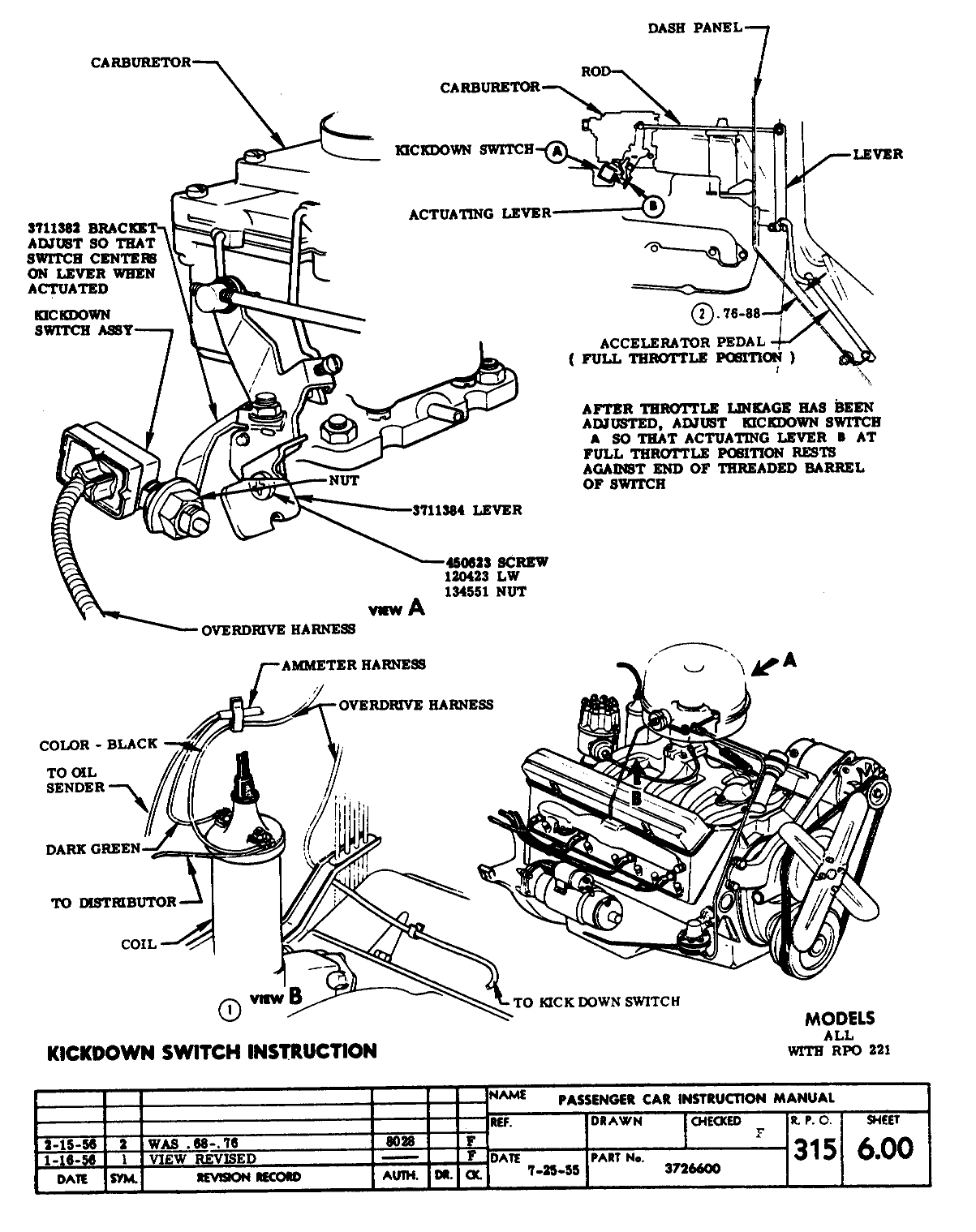

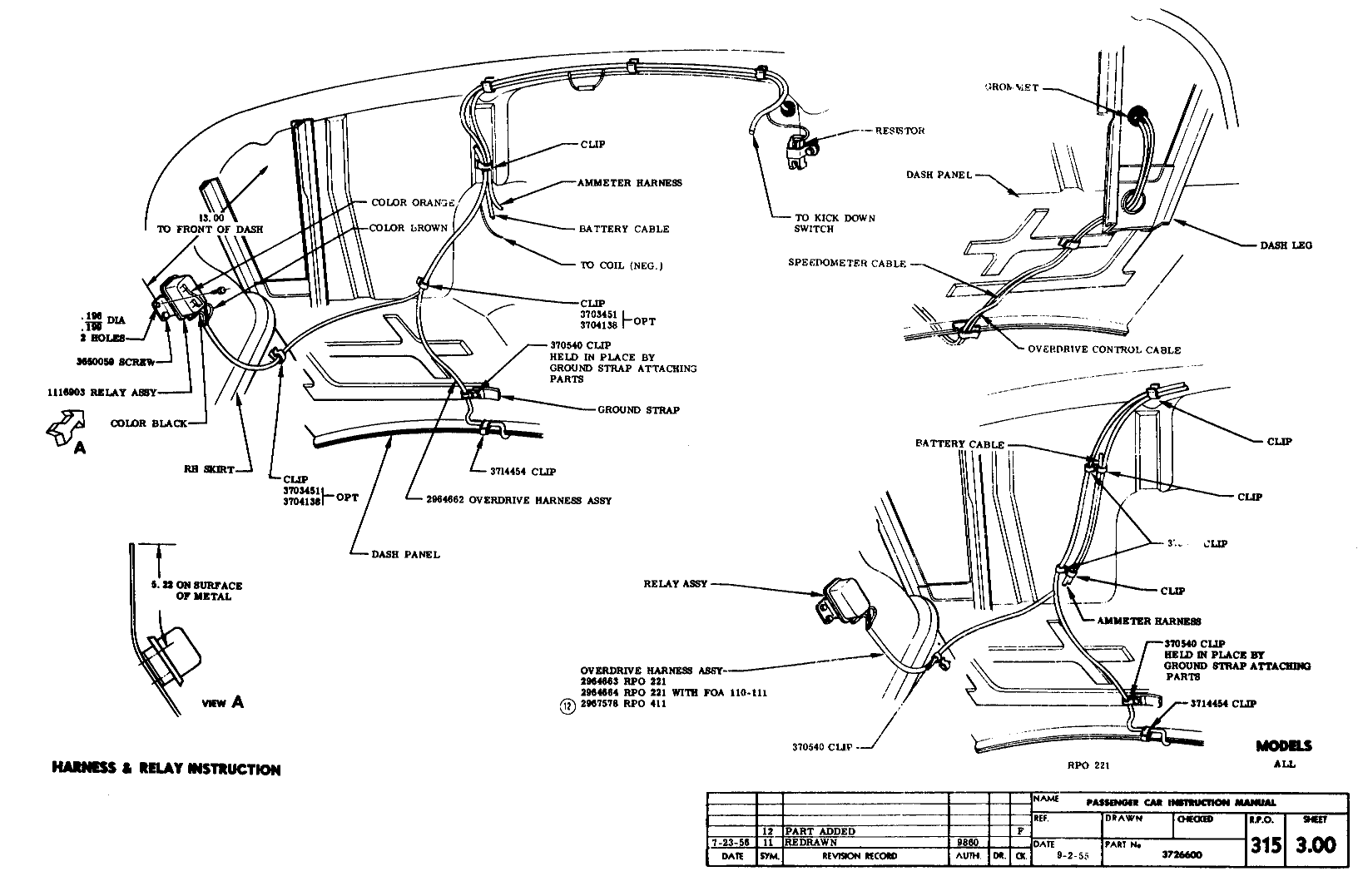

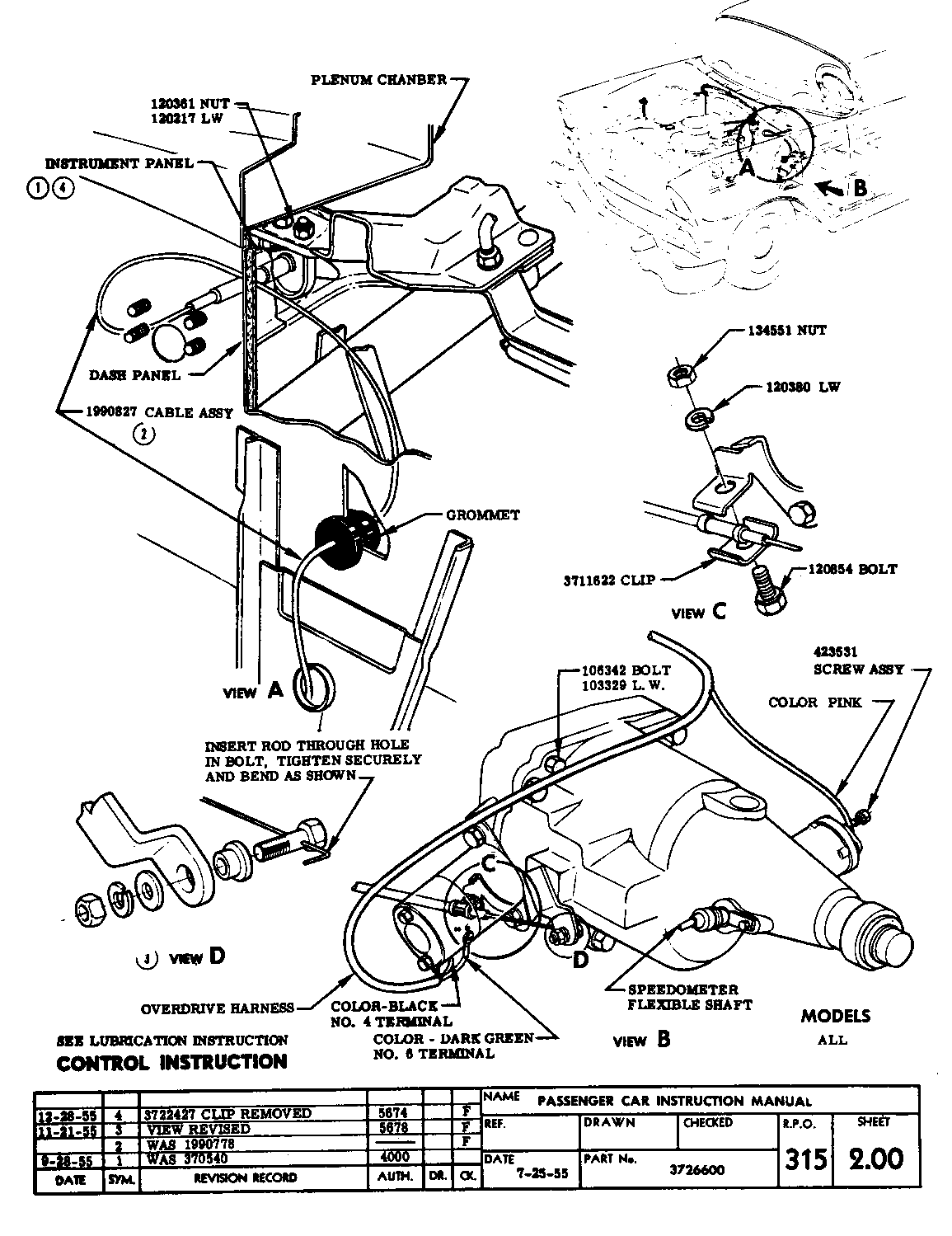

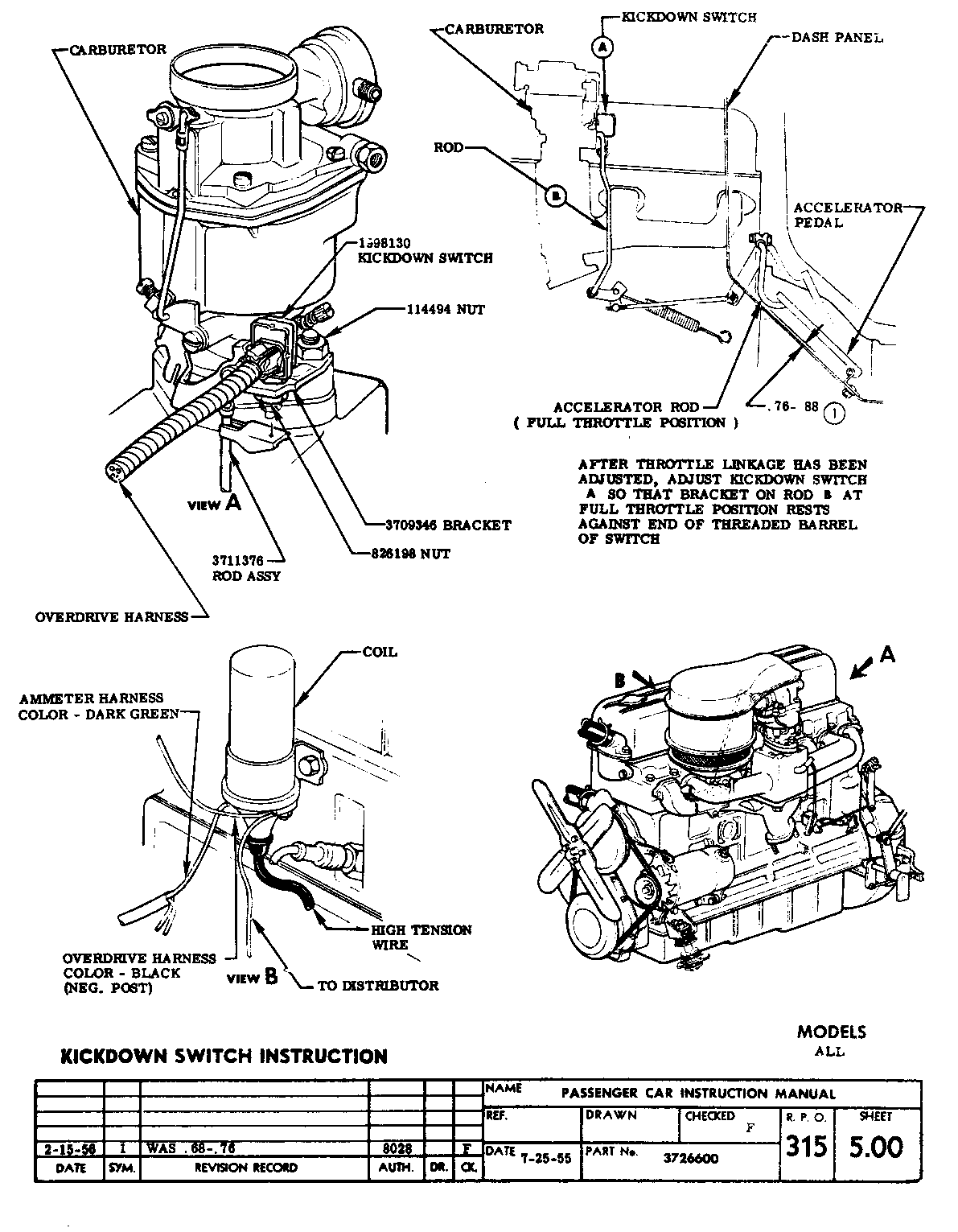

Kickdown Switch (6 cyl) Sheet 5.00
Kickdown Switch (V8) Sheet 6.00
RPO 320 – Electric Windshield Wiper

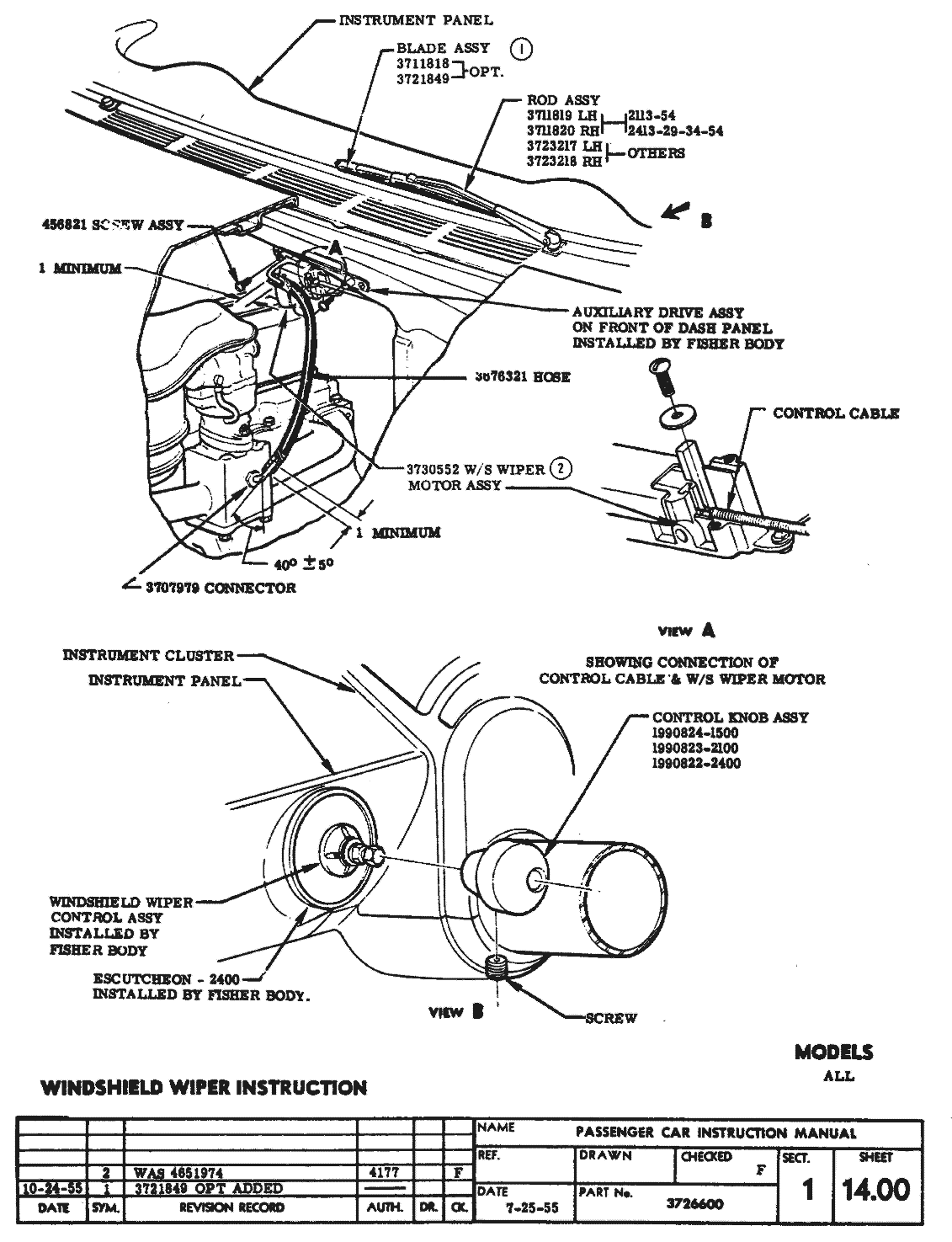

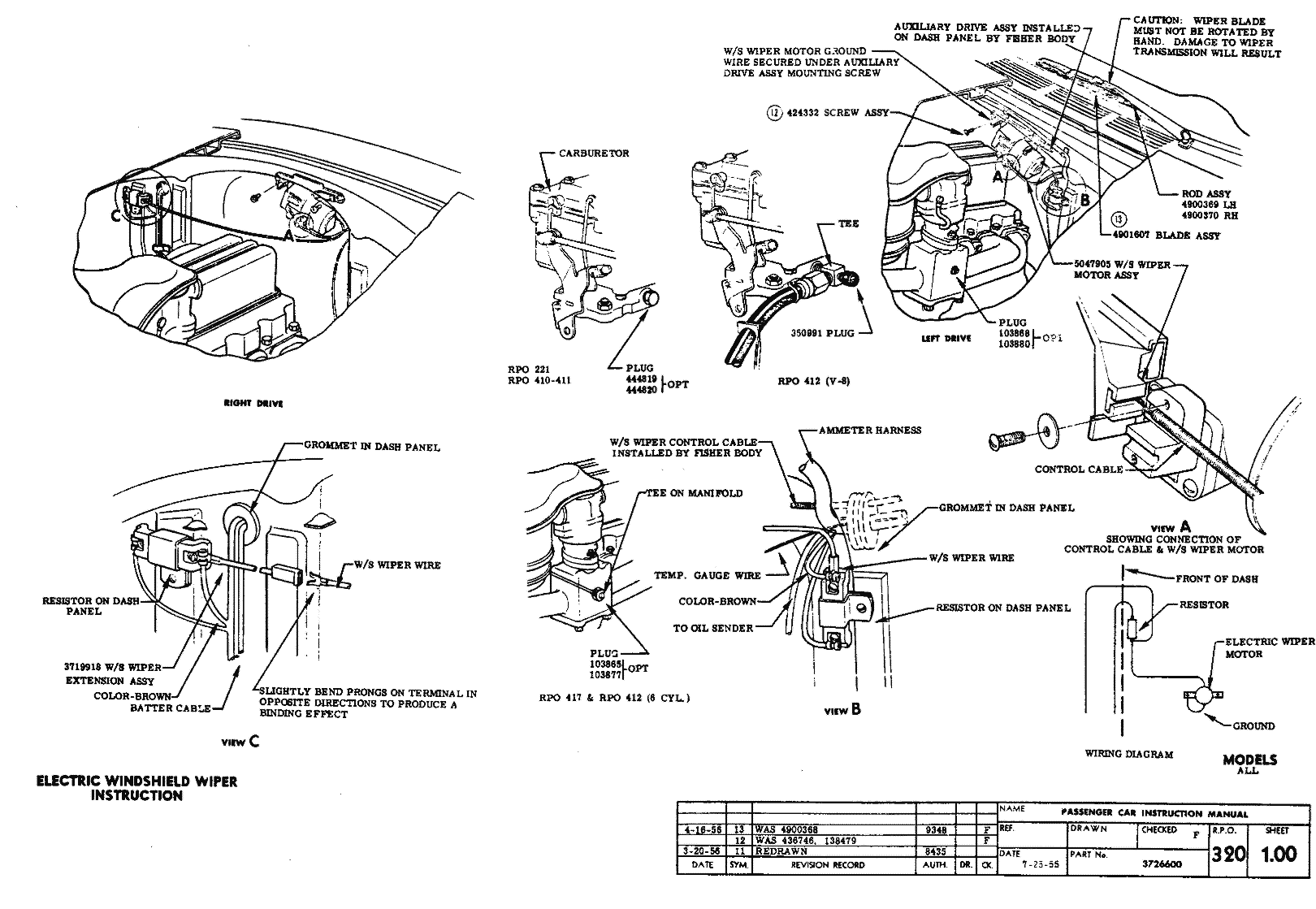

Electric Windshield Wiper Sheet 1.00

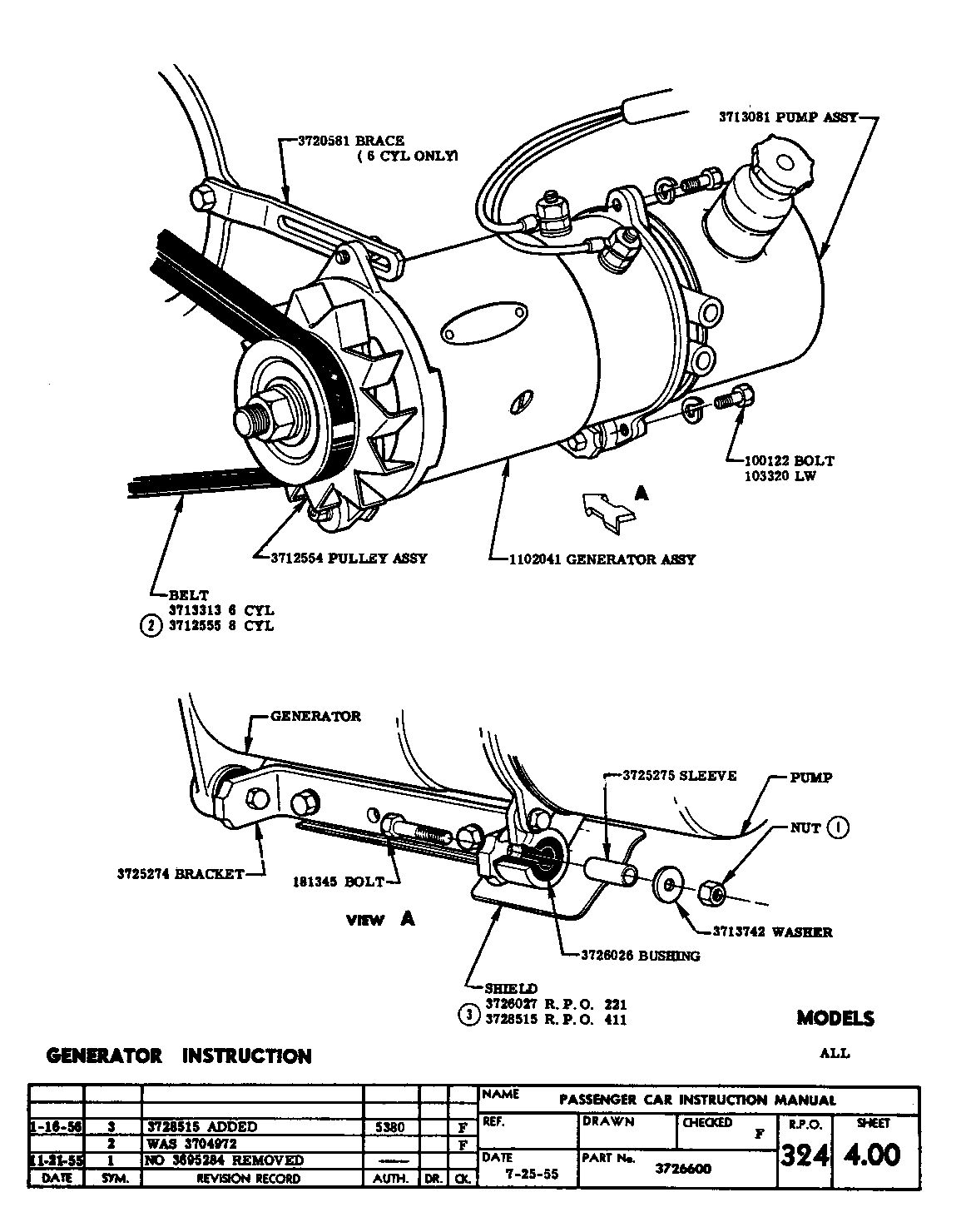

RPO 324 – Hydraulic Steering

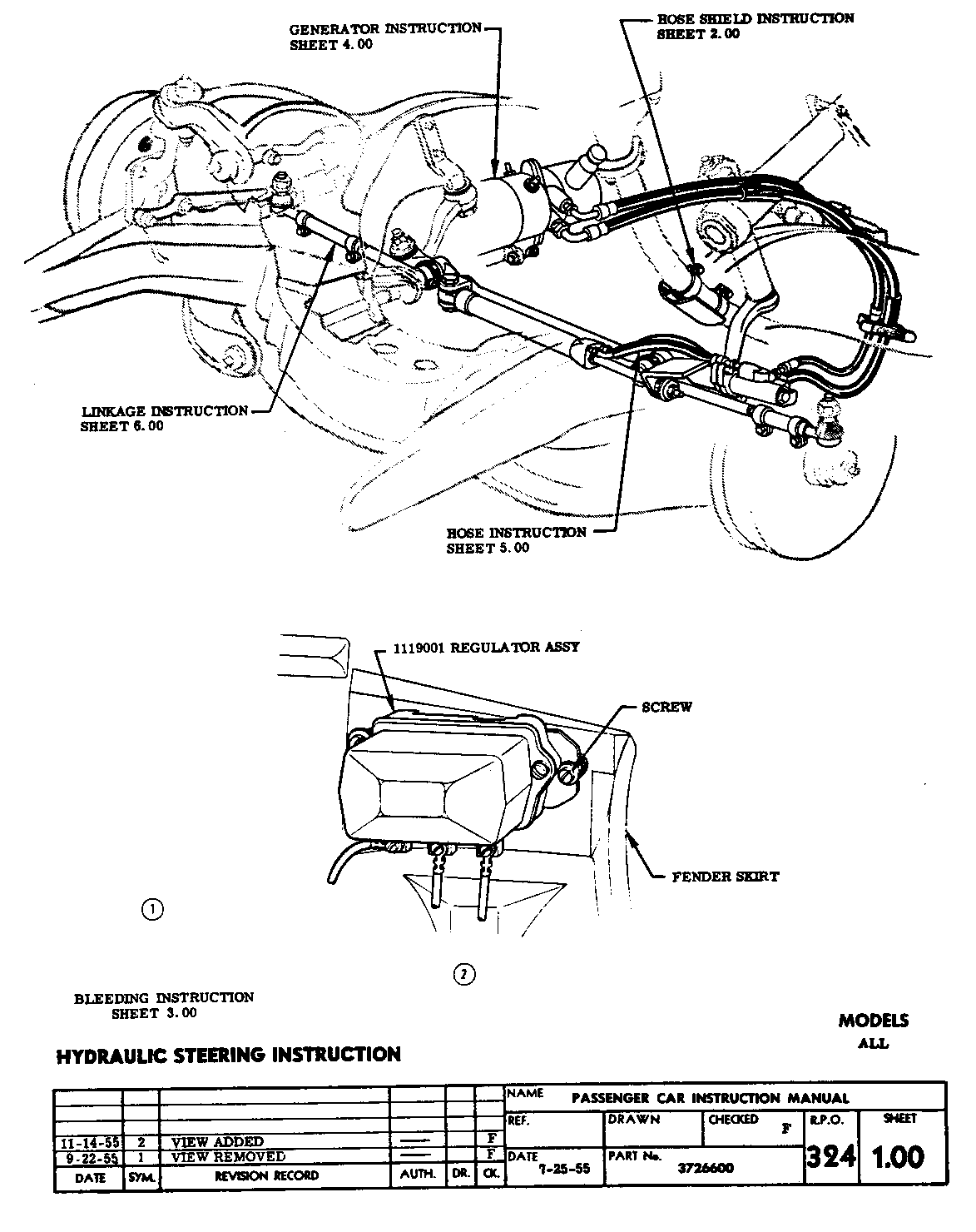

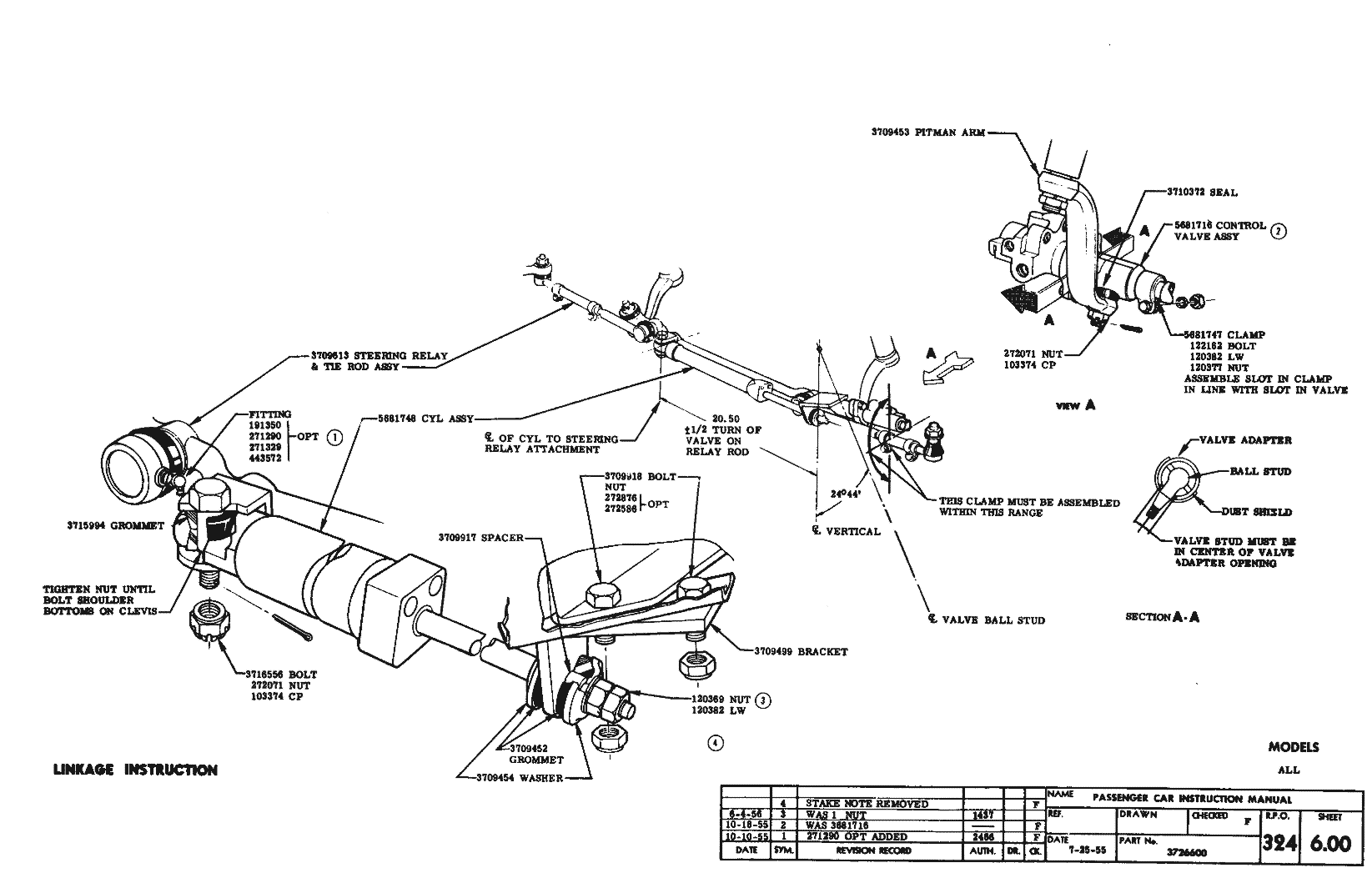

Hydraulic Steering Index Sheet 1.00

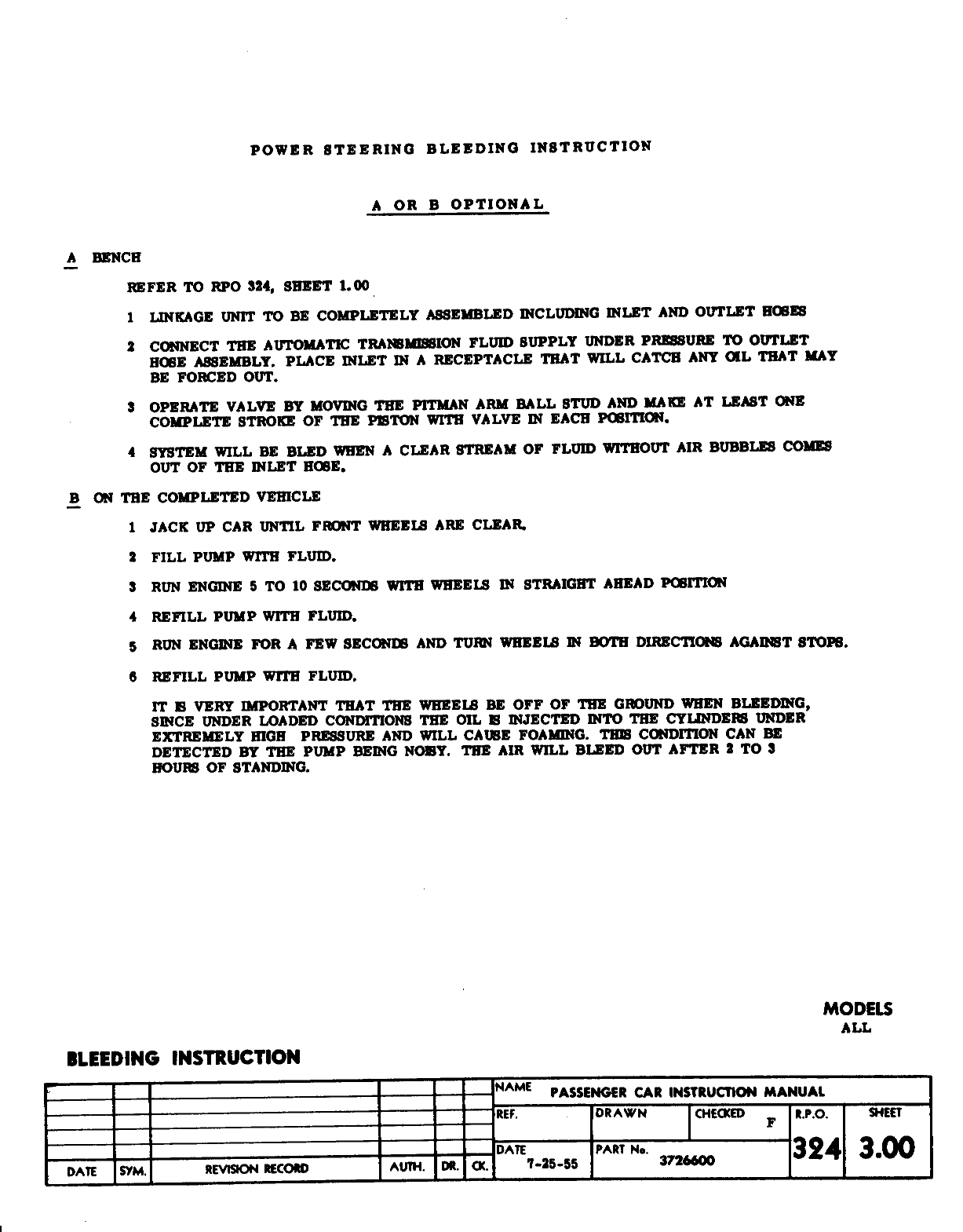

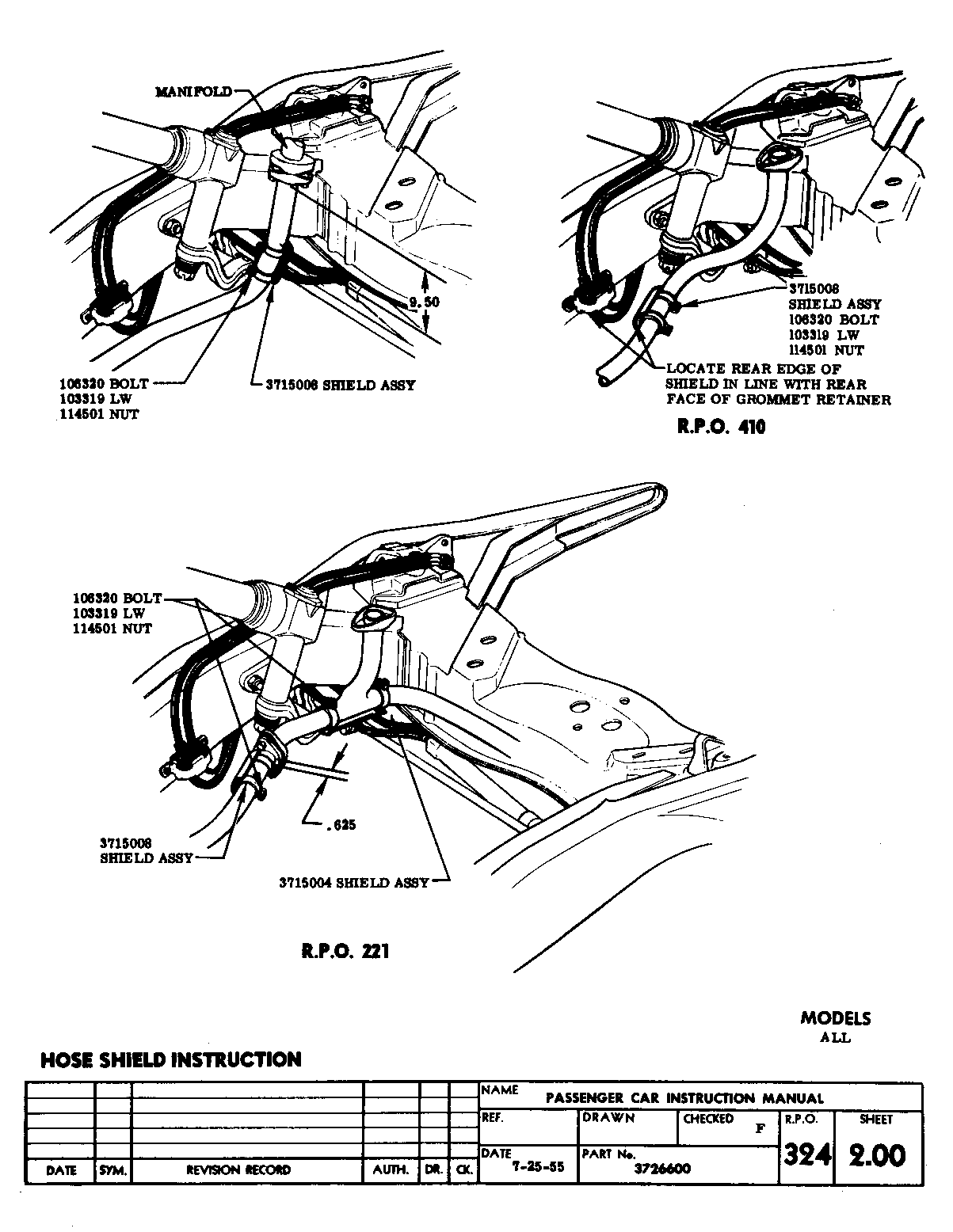

Bleeding Instructions Sheet 3.00

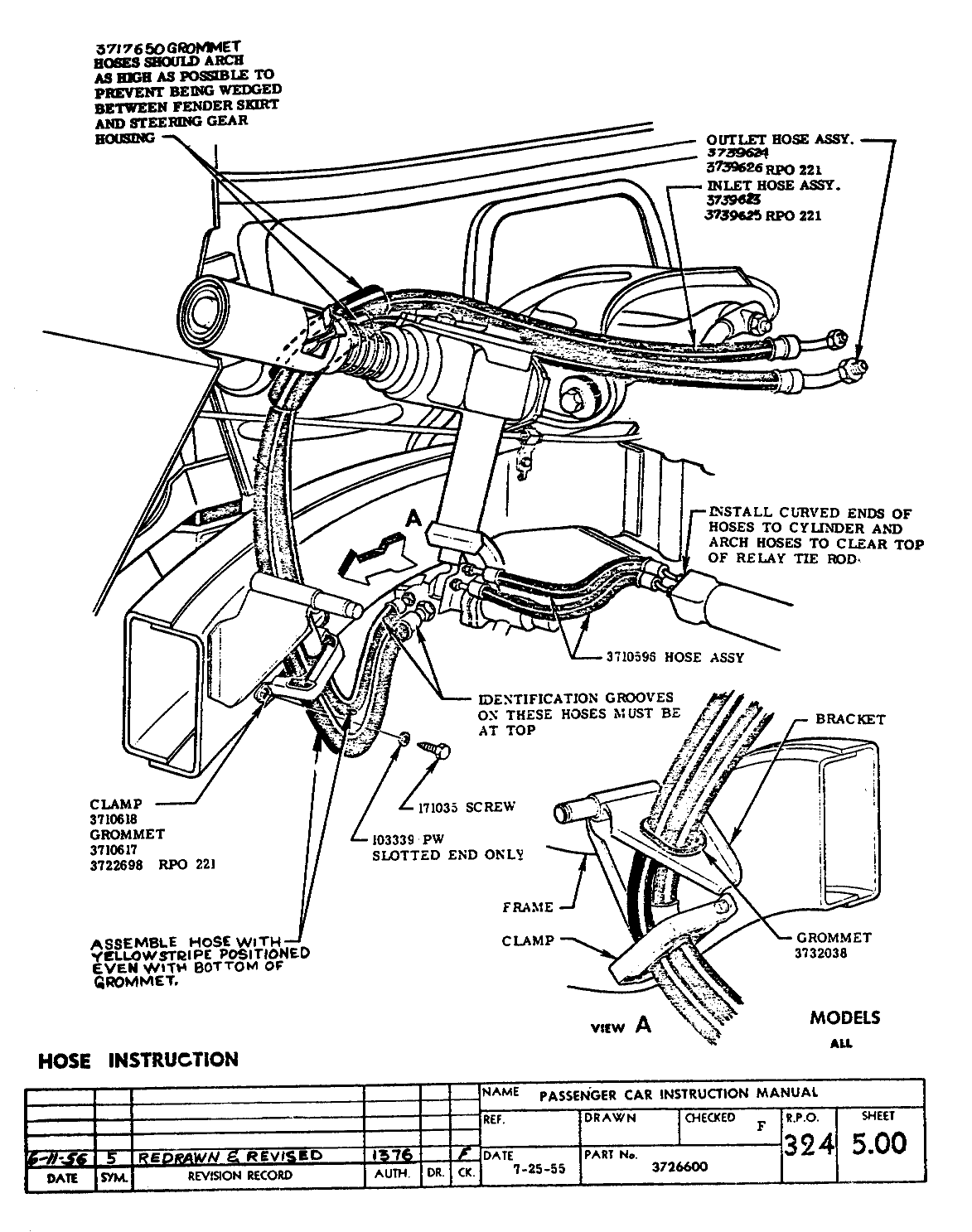

RPO 325 – Heavy Duty Generator

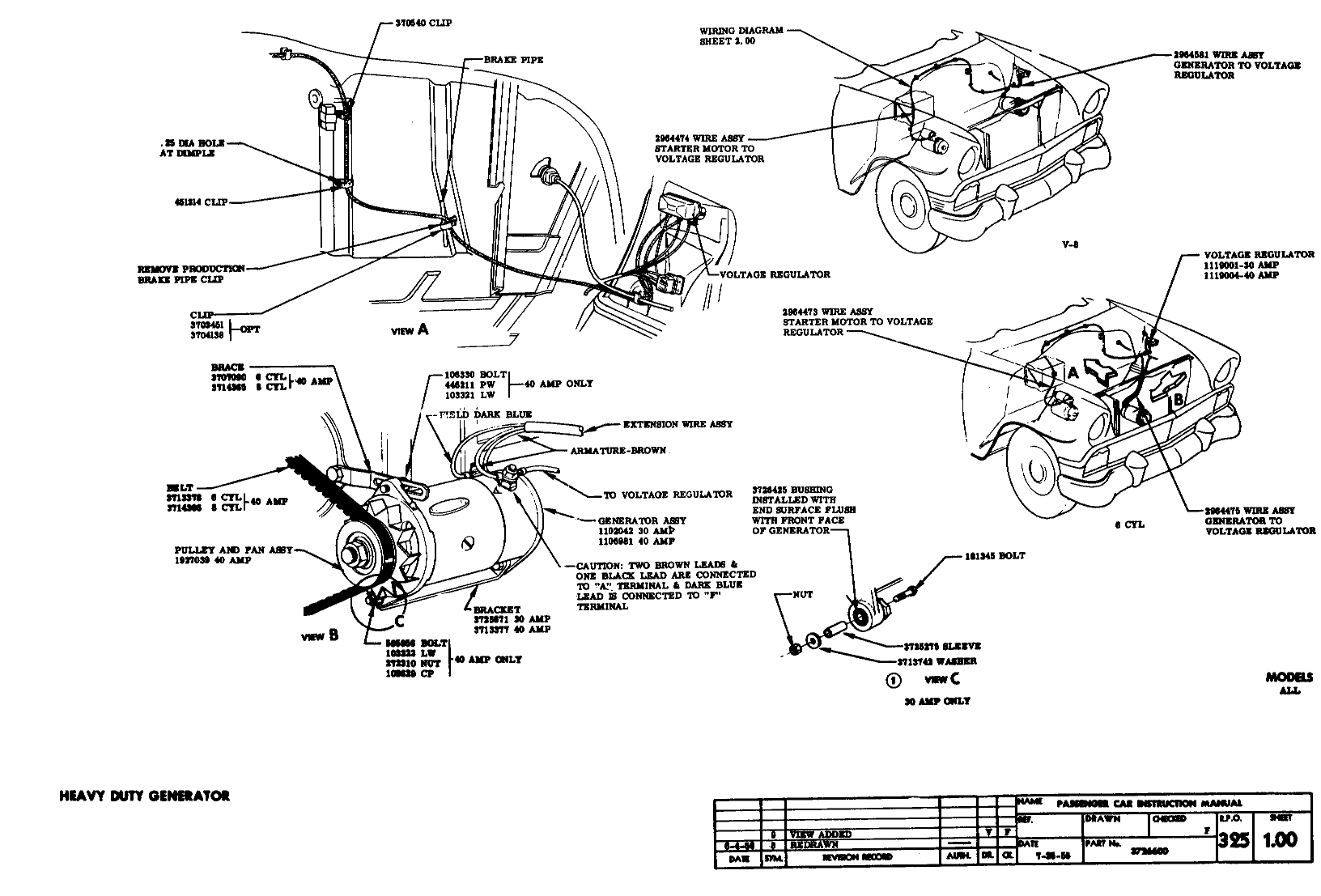

Heavy Duty Generator Sheet 1.00

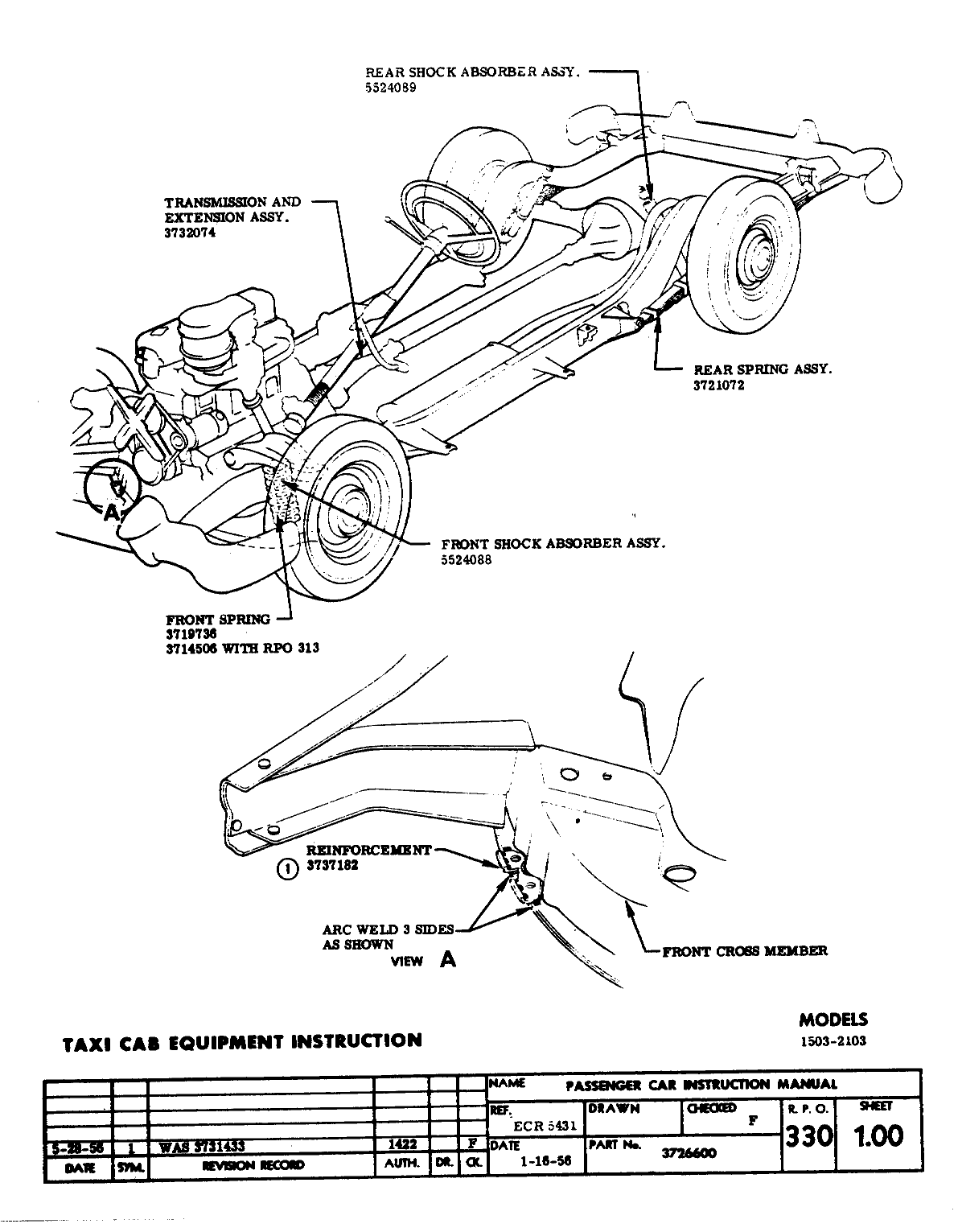

RPO 330 – Taxi Cab Equipment

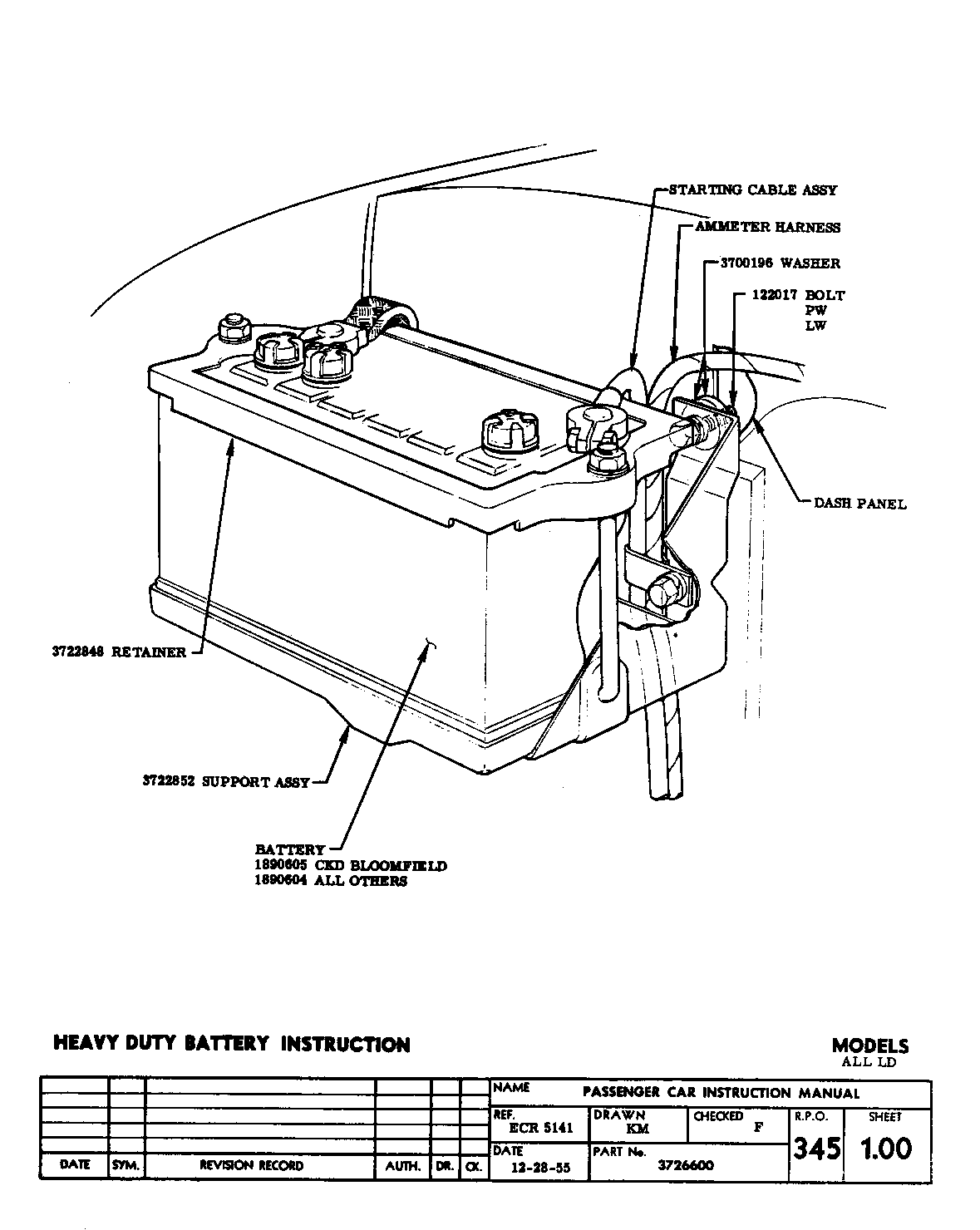

RPO 345 – Heavy Duty Battery
RPO 397 – Seat Electrical Control

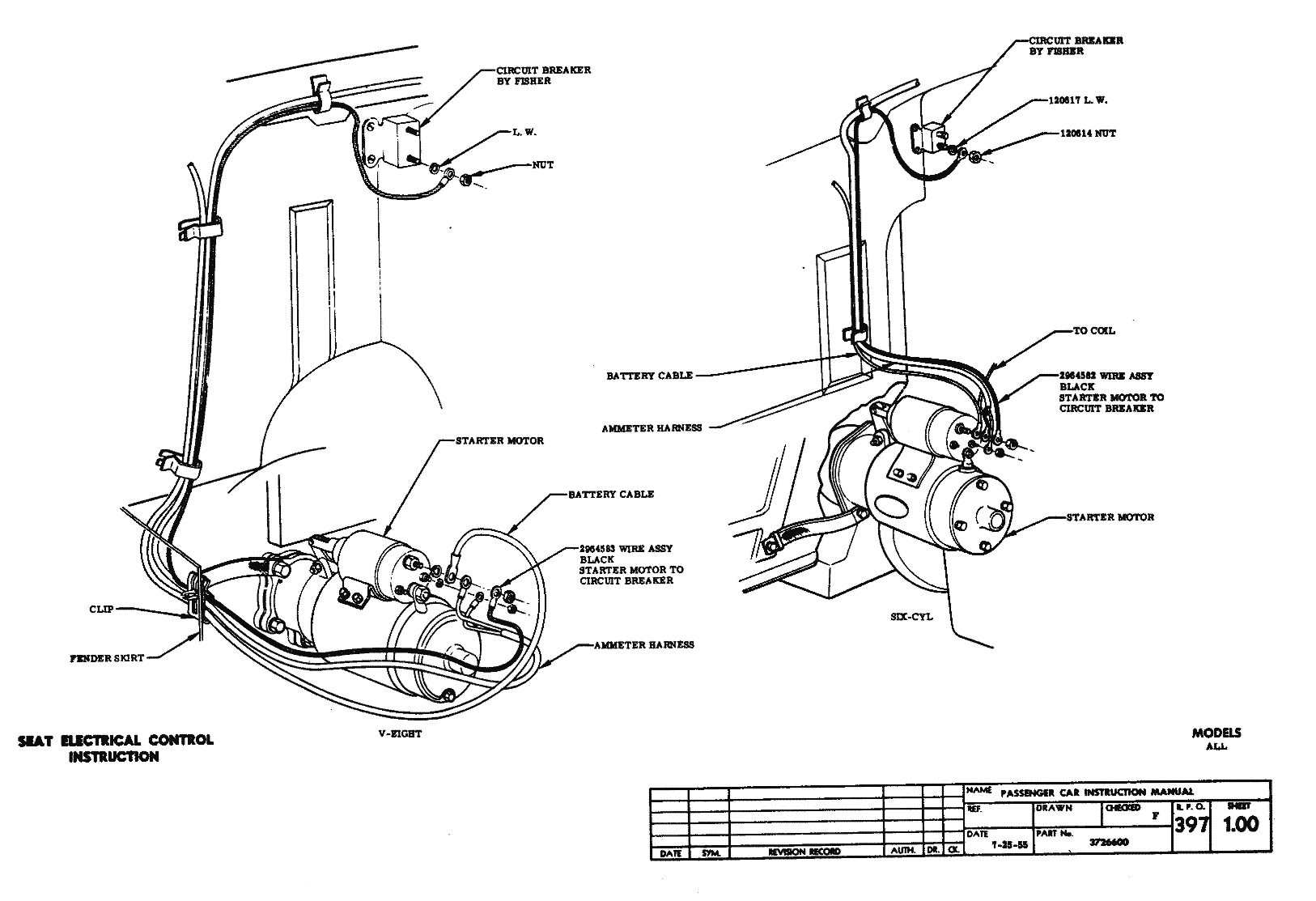

Seat Electrical Control Sheet 1.00

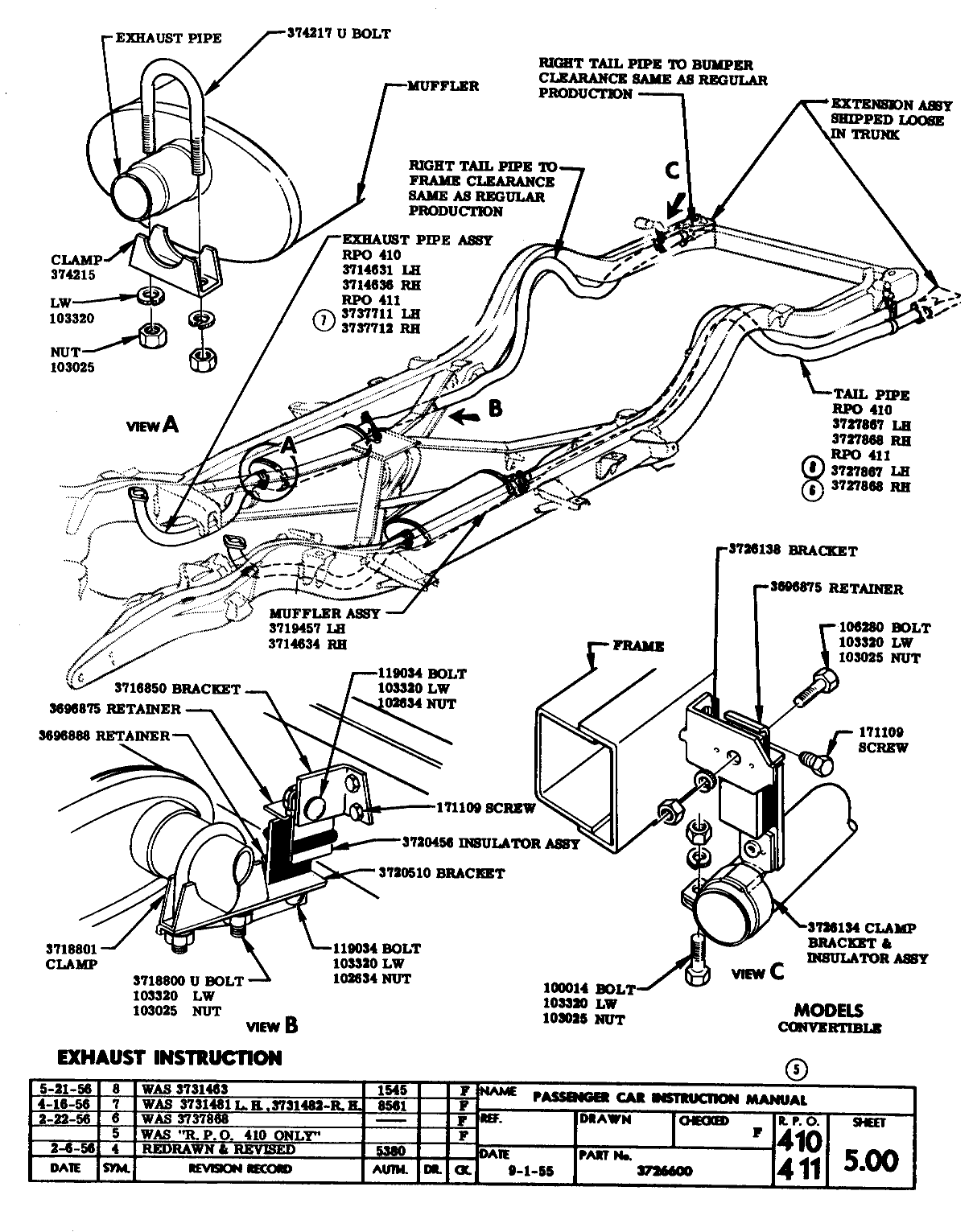

RPO 410 – Single & Dual Four Barrel Carburetor

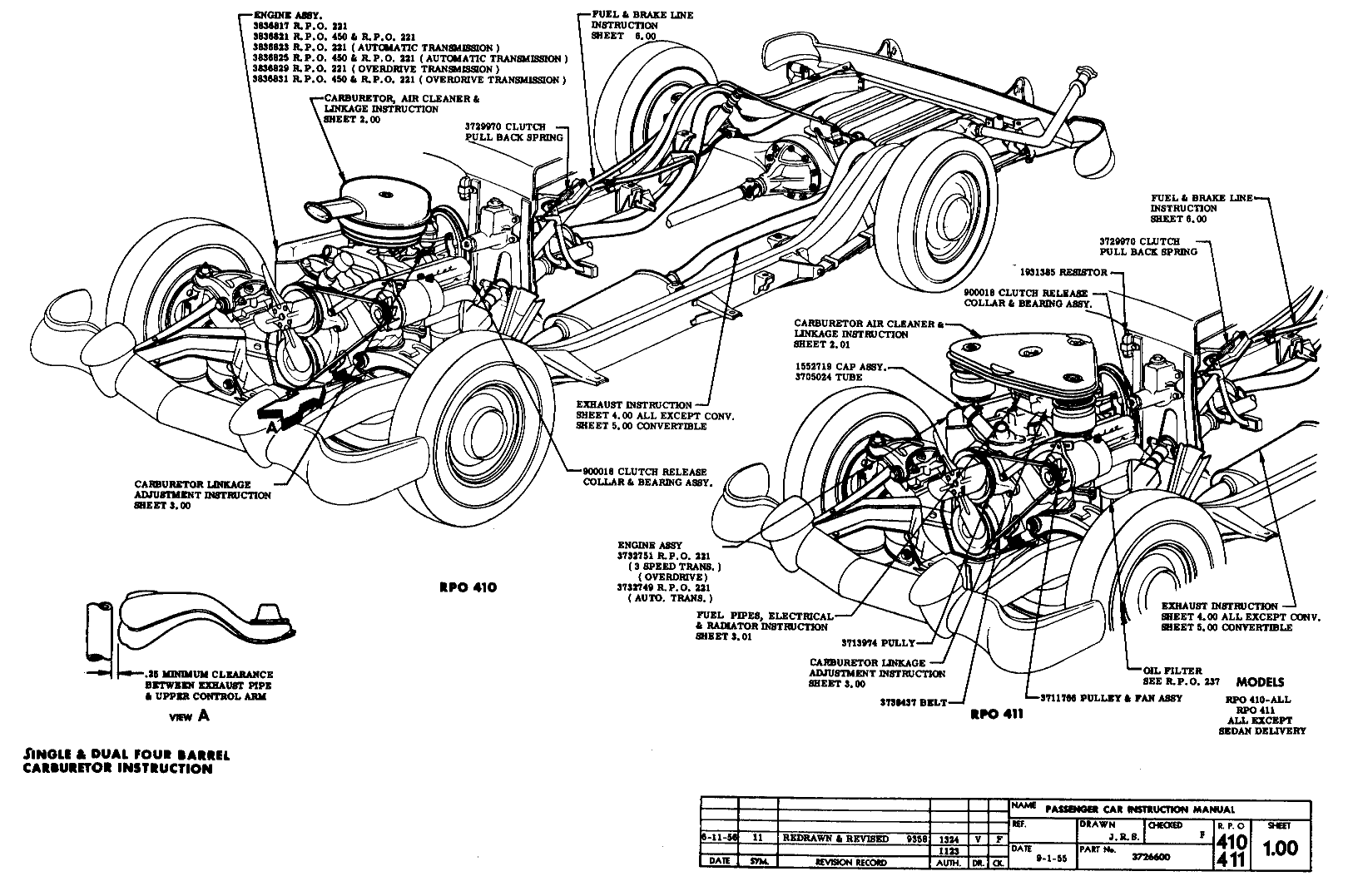

Single & Dual Four Barrel Carburetor Index Sheet 1.00

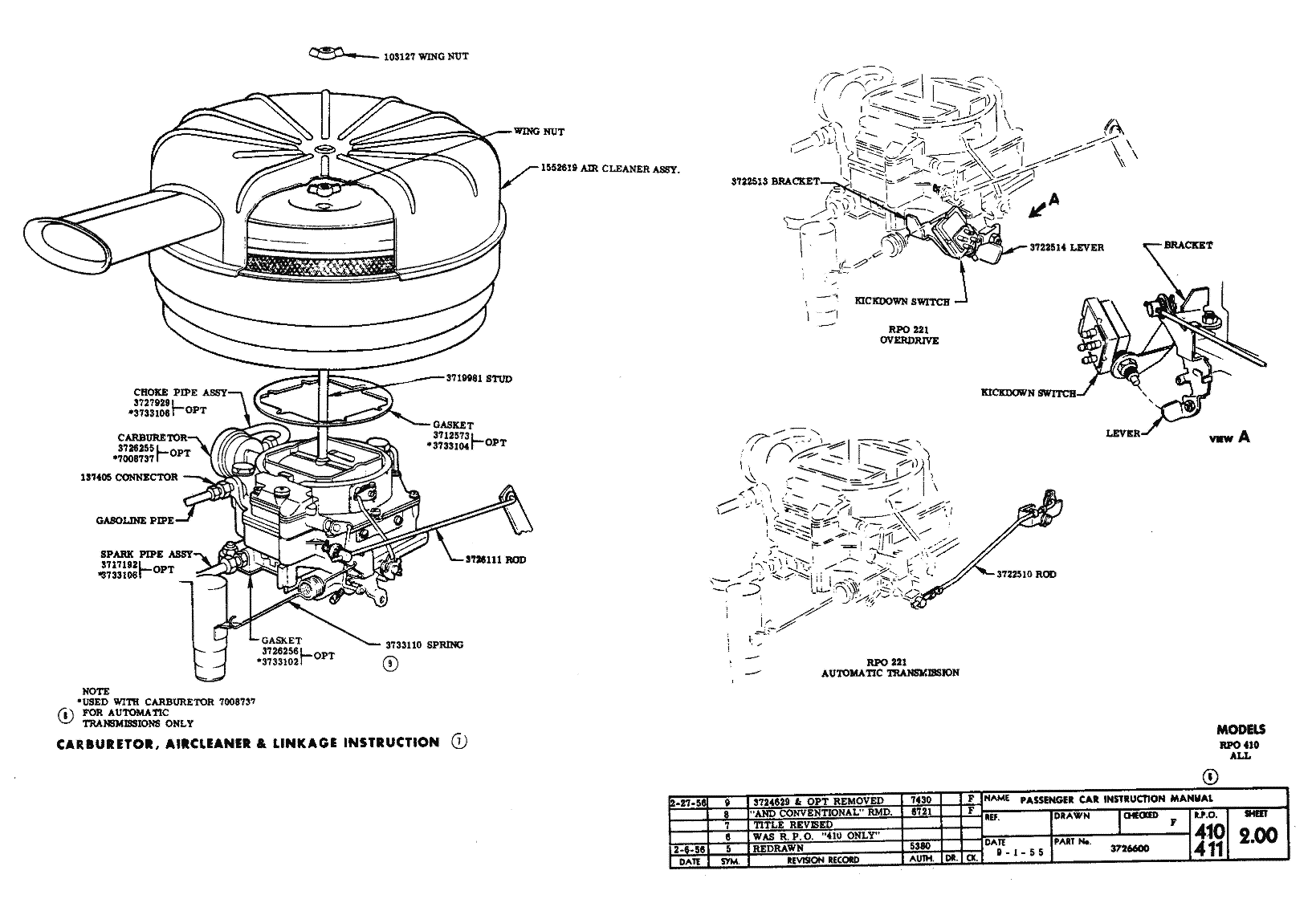

Cabruretor , Air Cleaner & Linkage Sheet 2.00

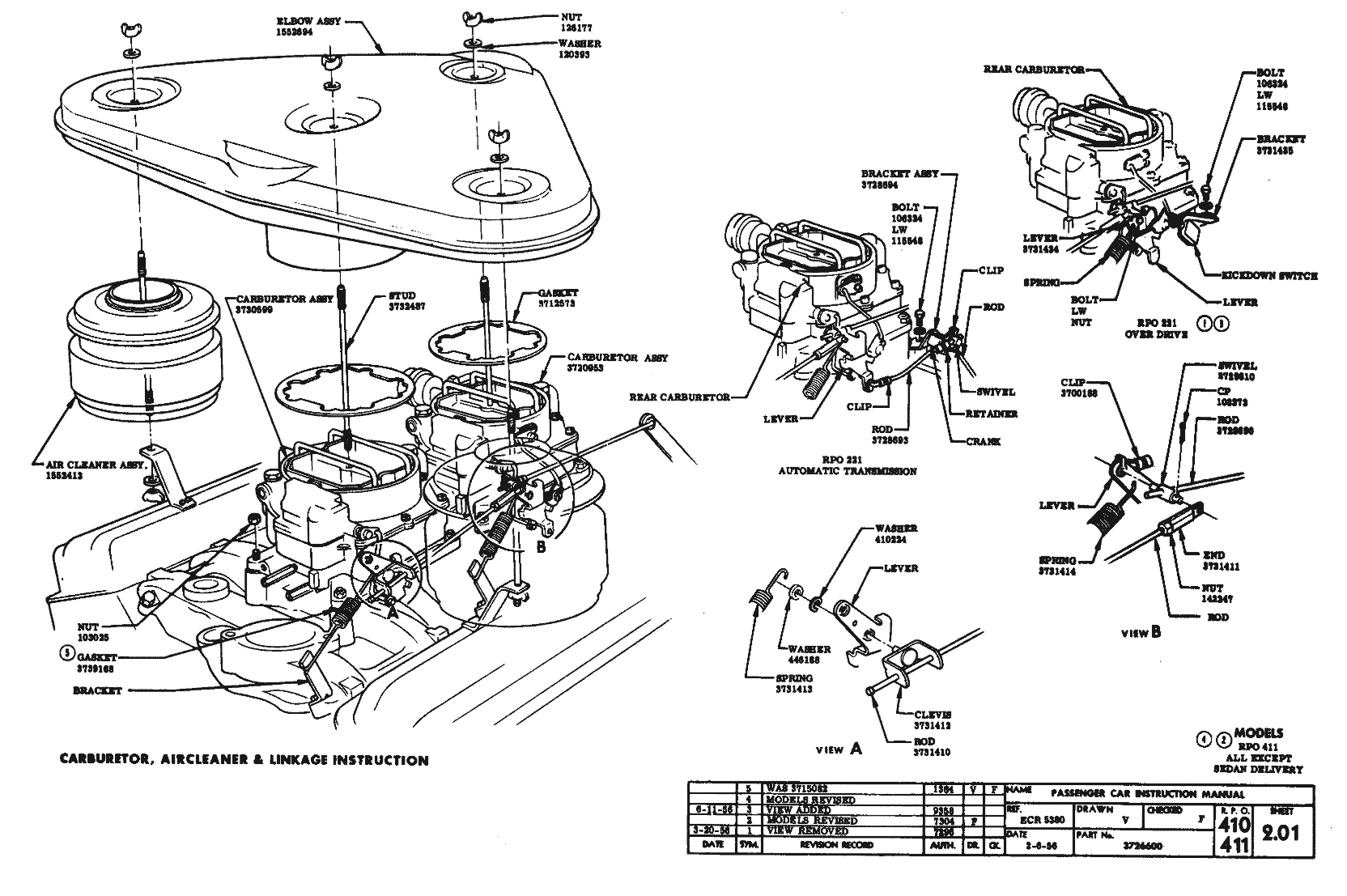

Cabruretor , Air Cleaner & Linkage Sheet 2.01

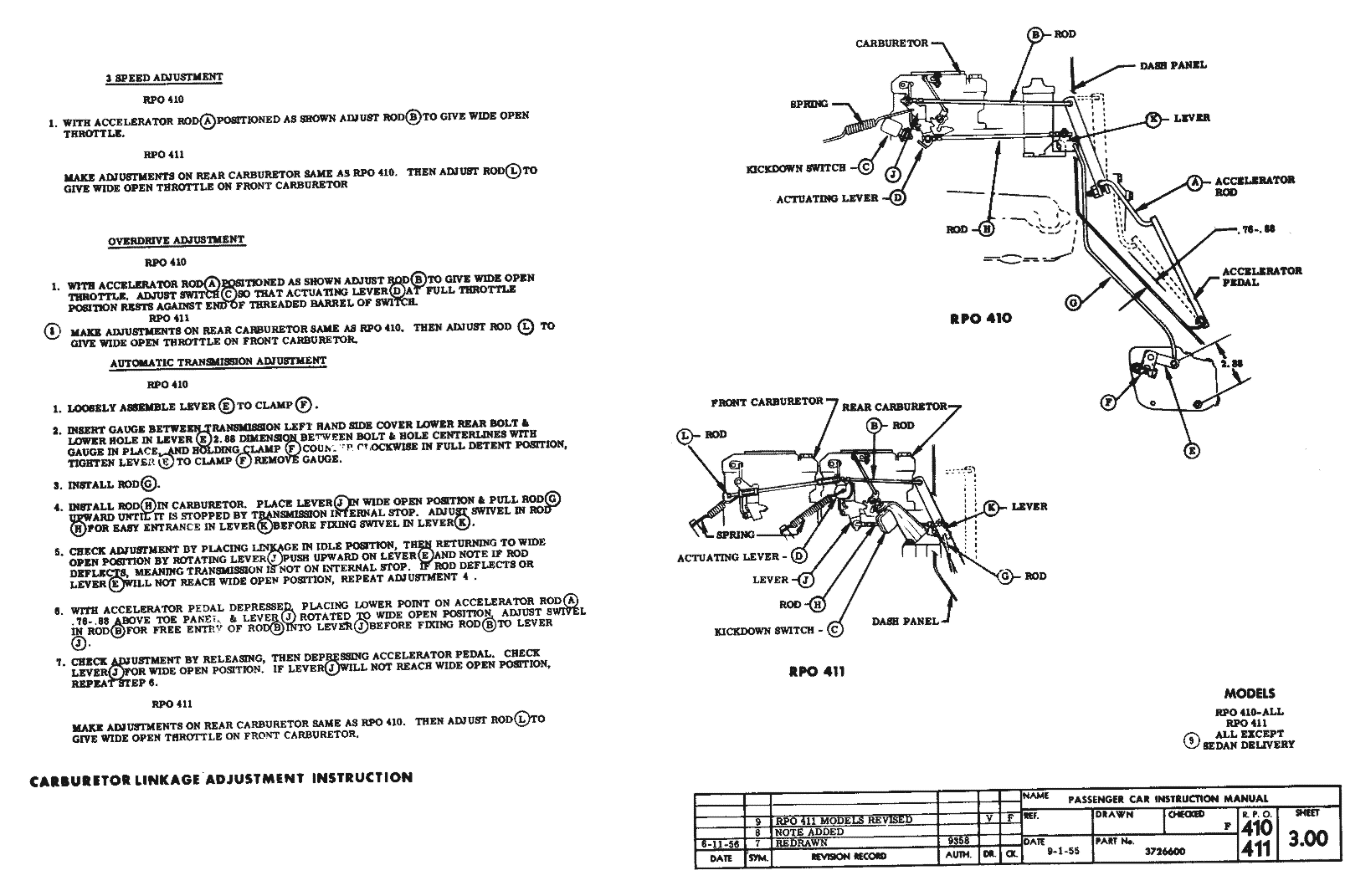

Carburetor Linkage Adjustment Sheet 3.00

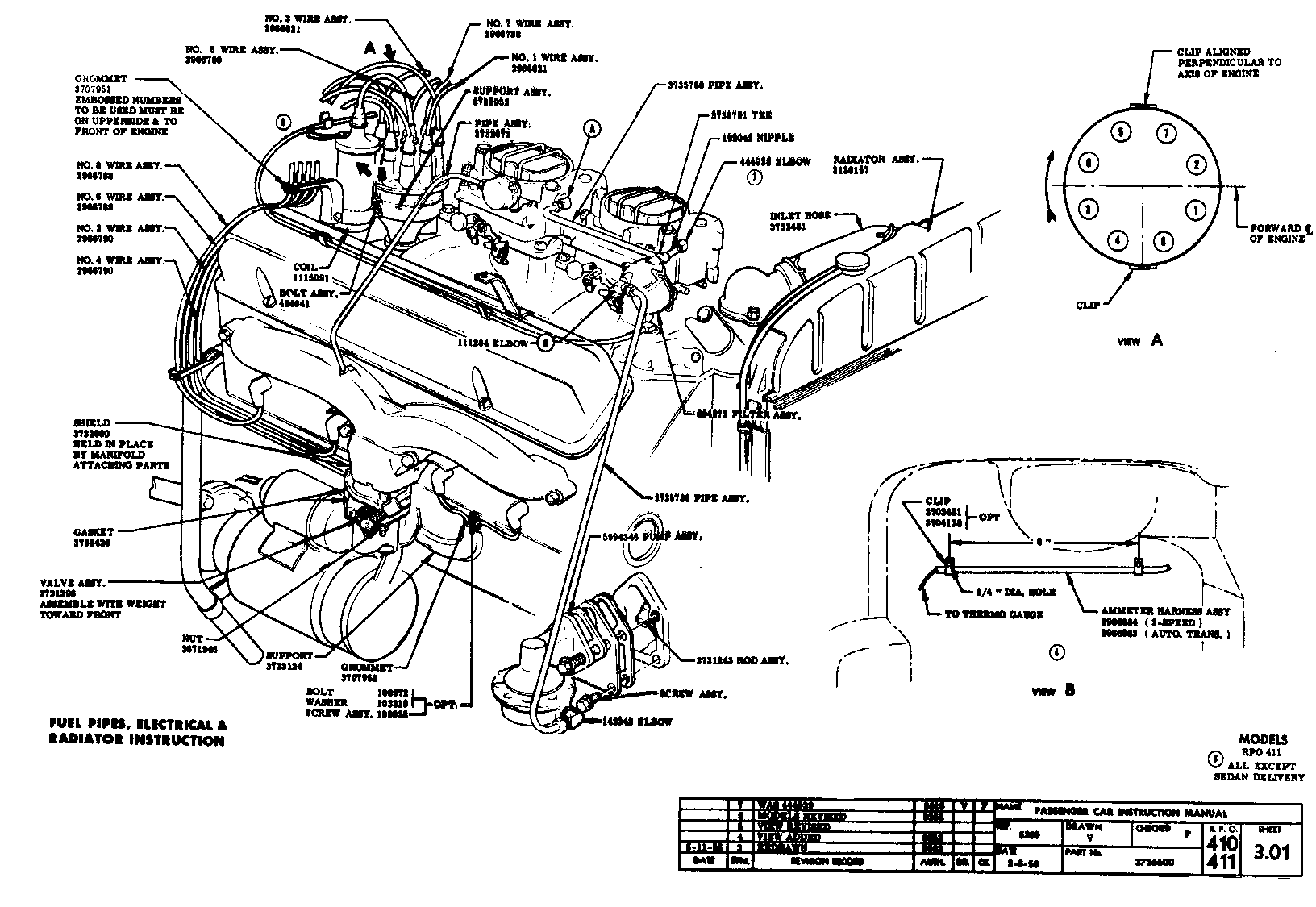

Fuel Pipes, Electrical & Radiator Sheet 3.01

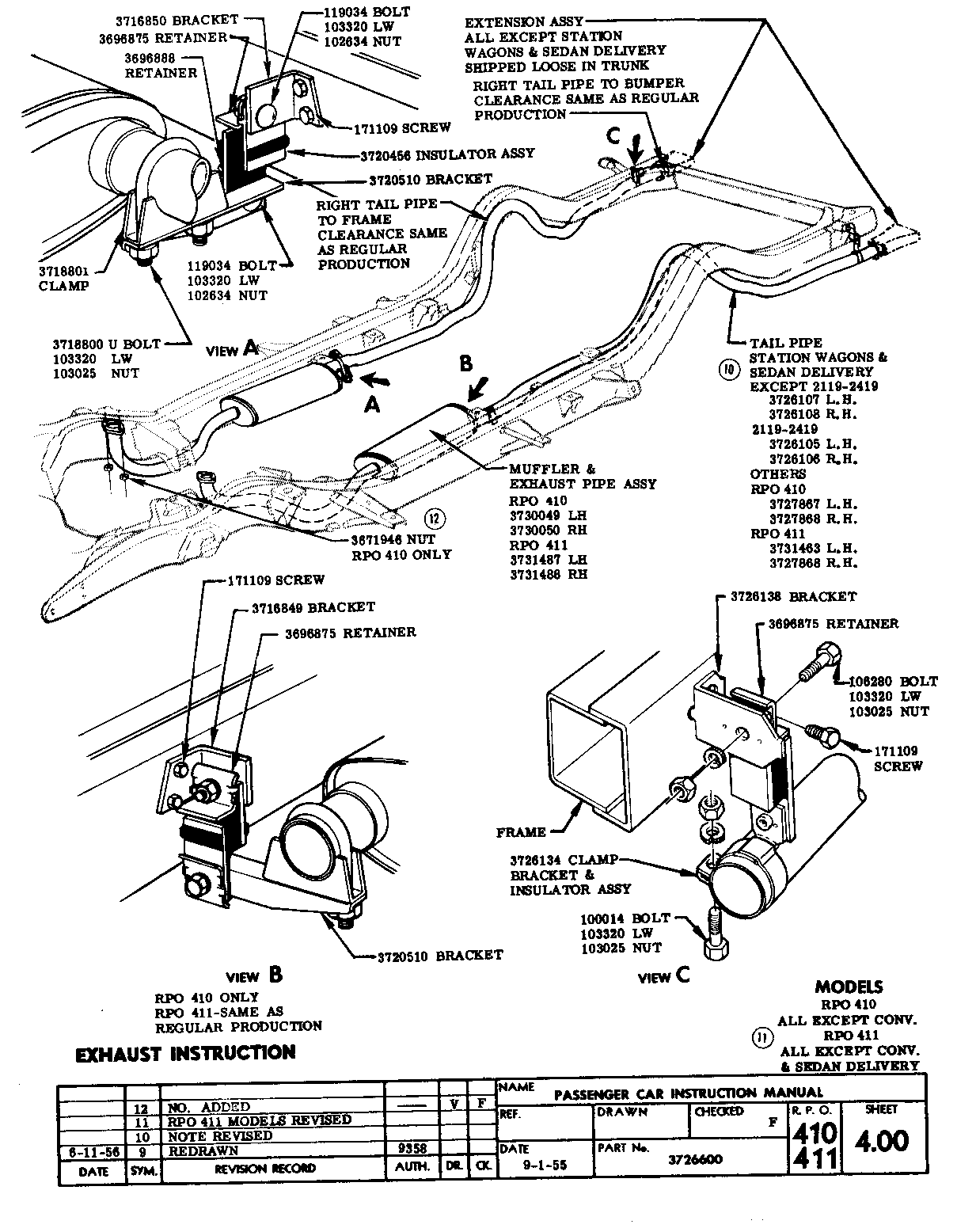

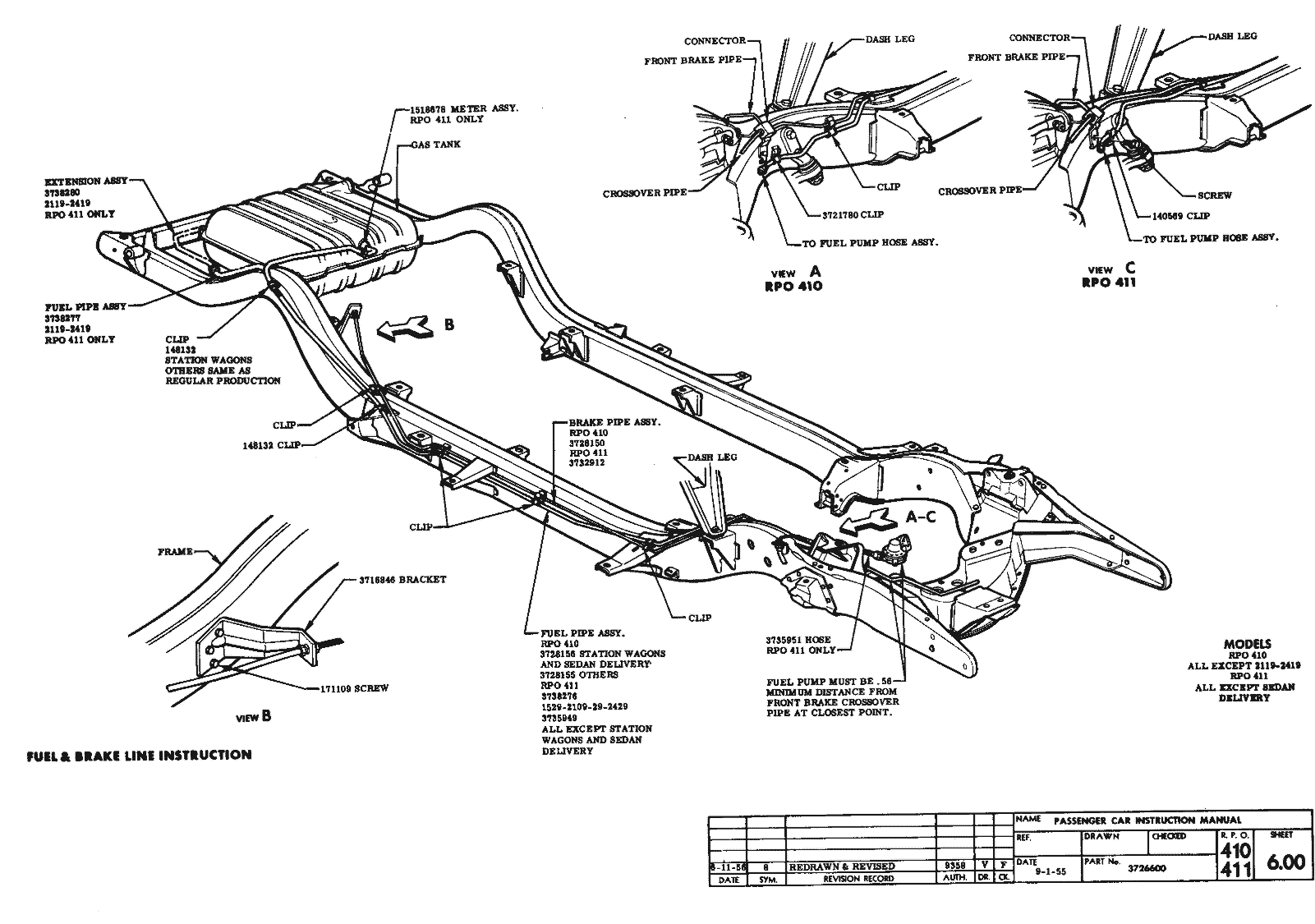

RPO 412 – Vacuum Power Brake

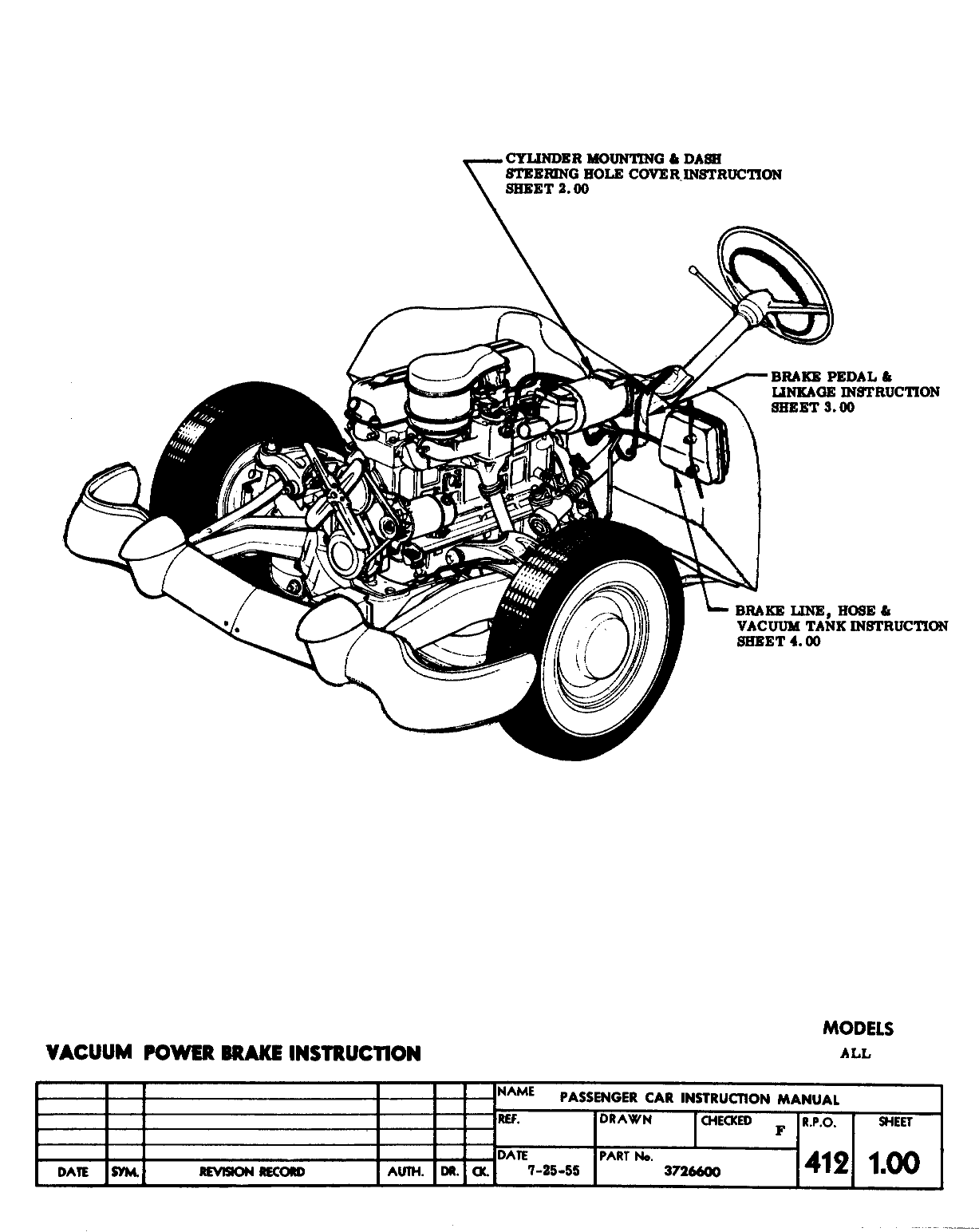

Vacuum power Brake index Sheet 1.00

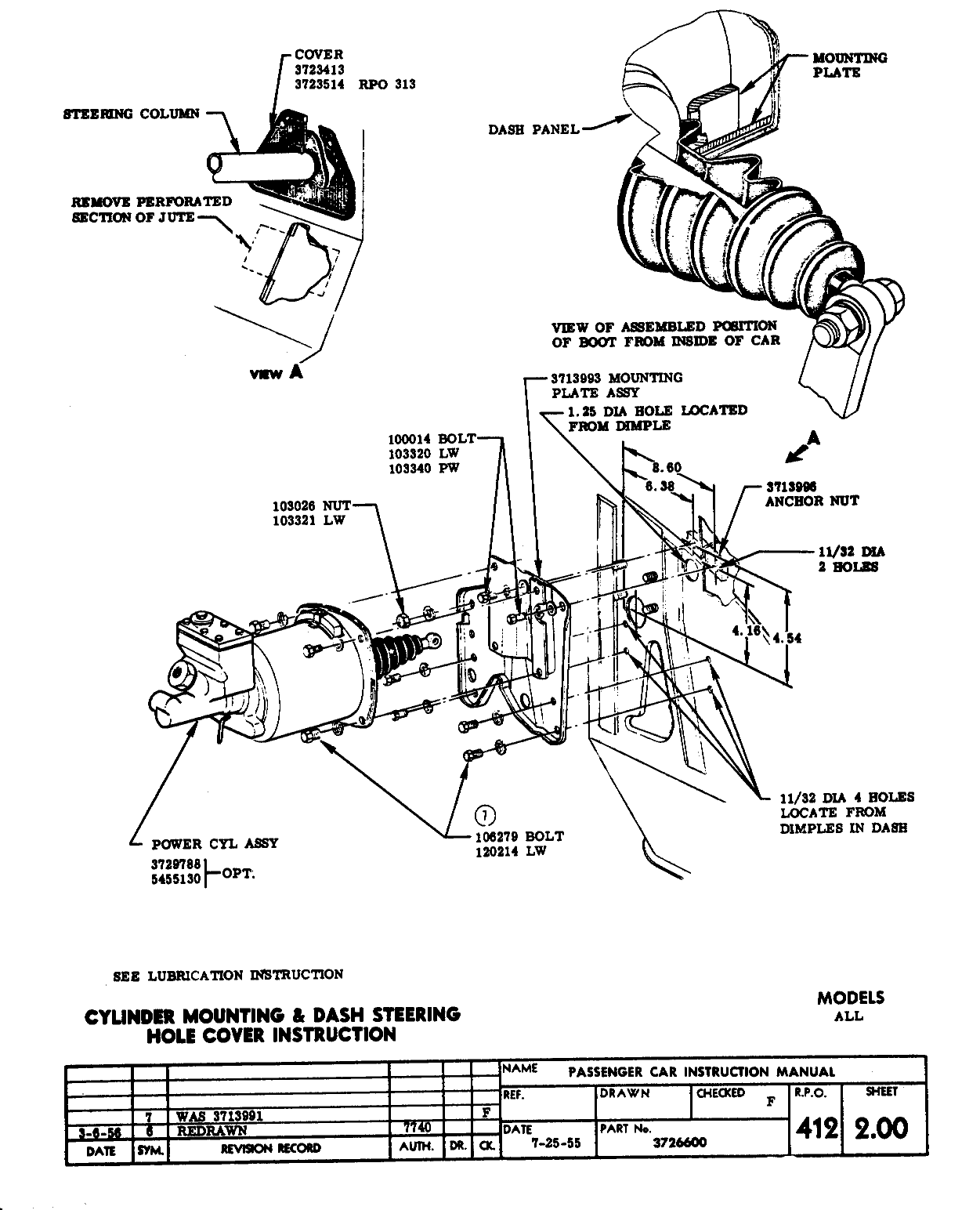

Cylinder Mounting & Dash Steering Hole Cover Sheet 2.00

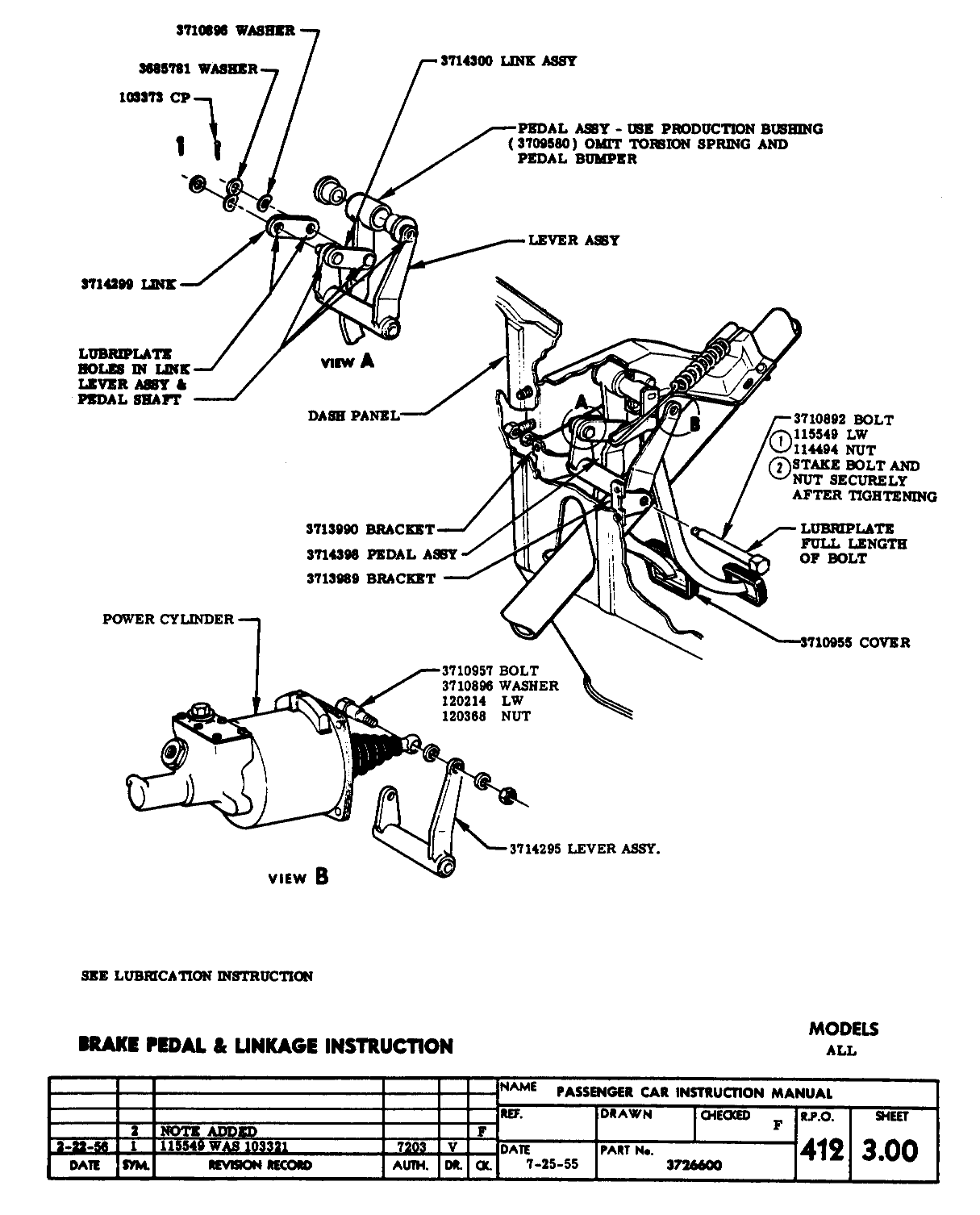

Brake Pedal & Linkage Sheet 3.00

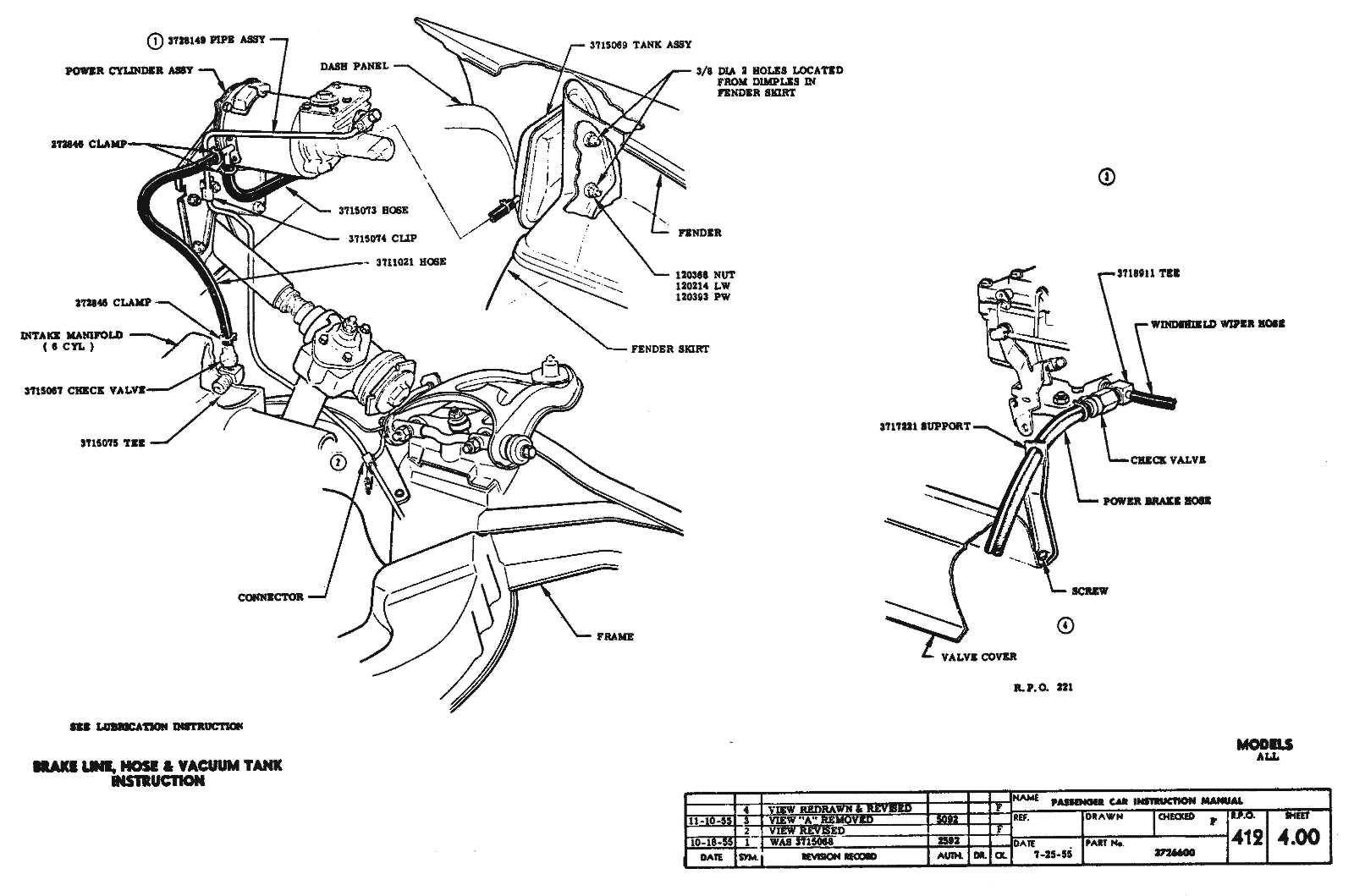

Brake Line, Hose & Vacuum Tank Sheet 4.00
RPO 417 – Engine Positive Ventilation

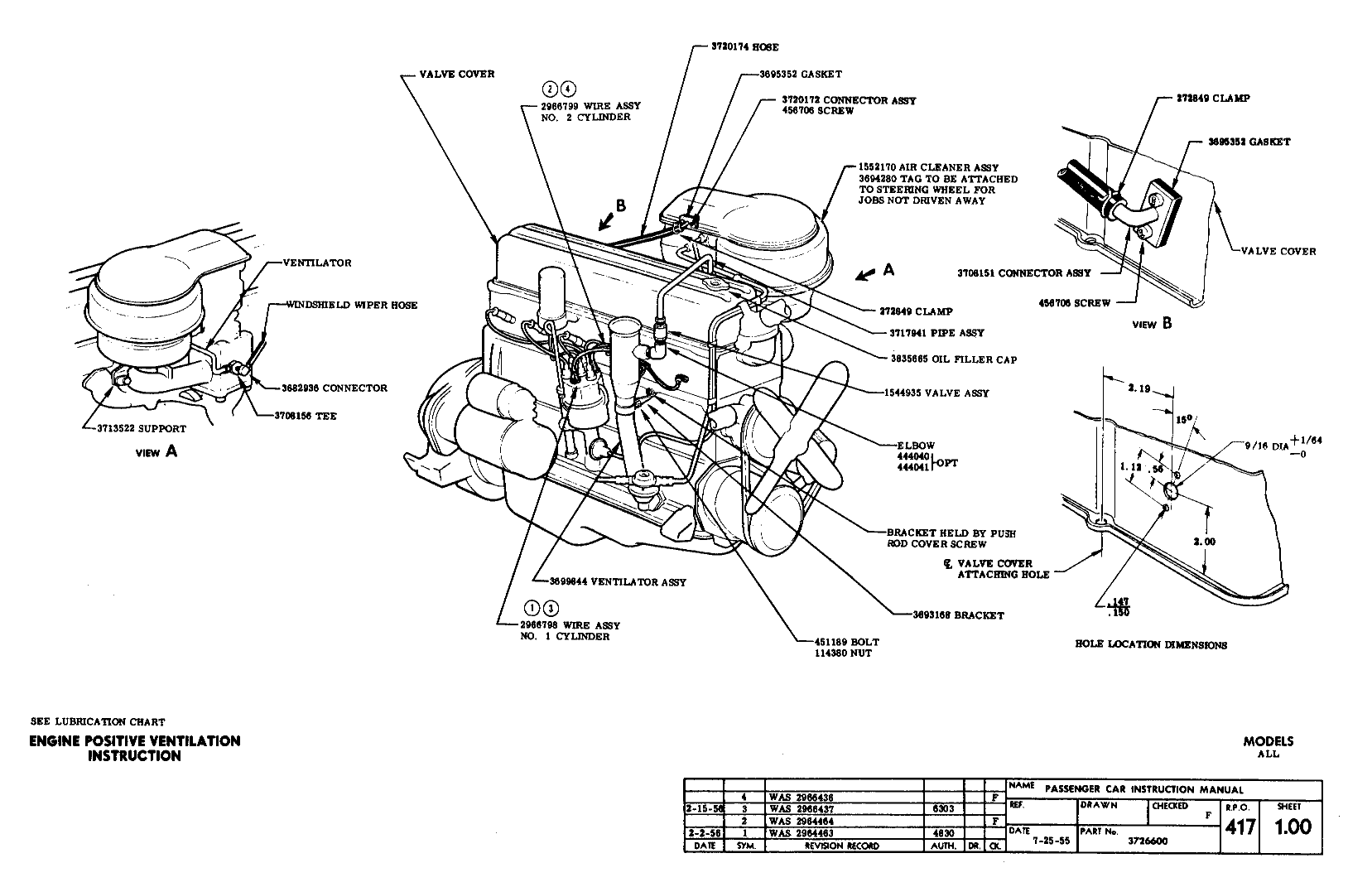

Engine Positive Ventilation Sheet 1.00
RPO 426 – Window Electrical Control

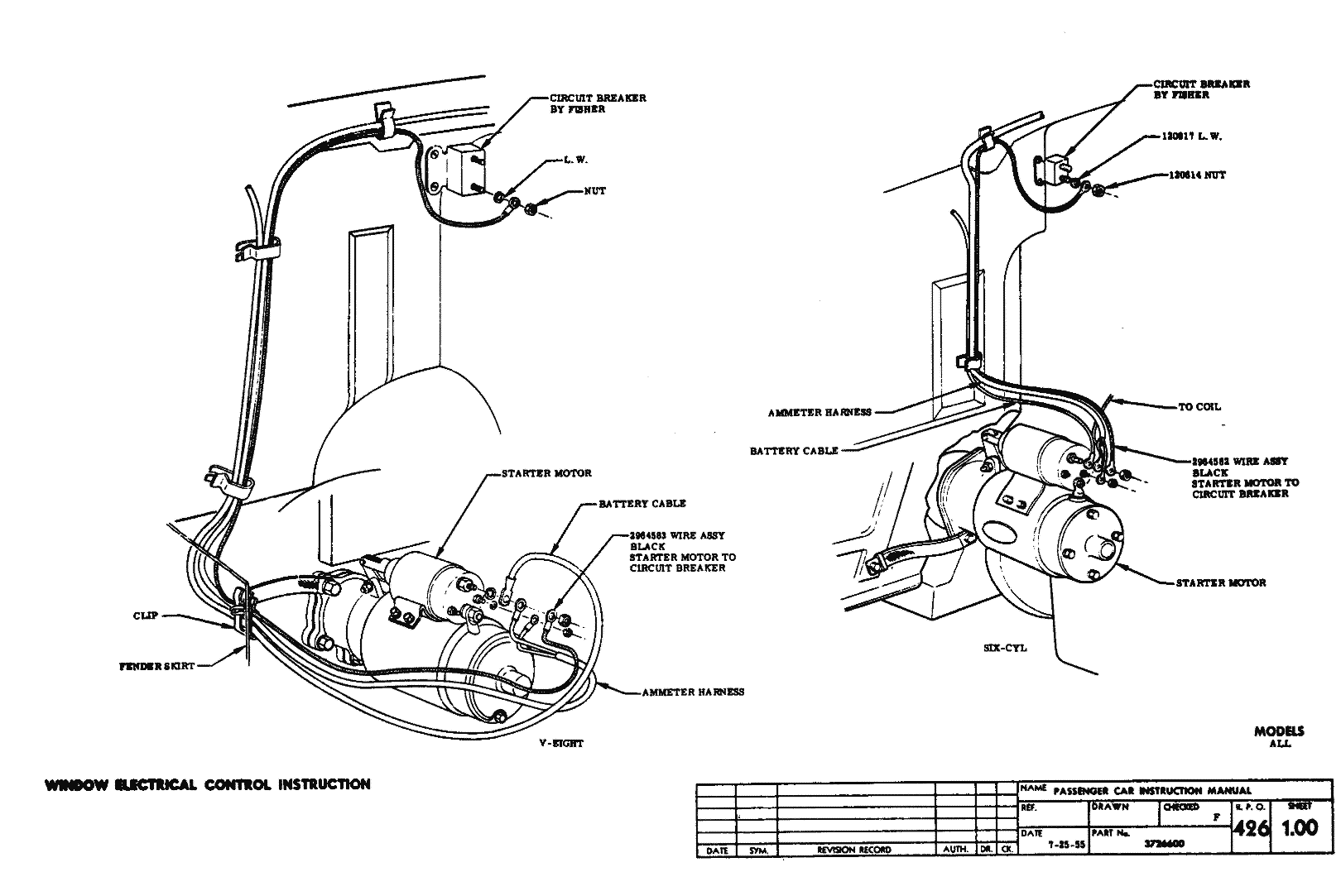

Window Electrical Control Sheet 1.00

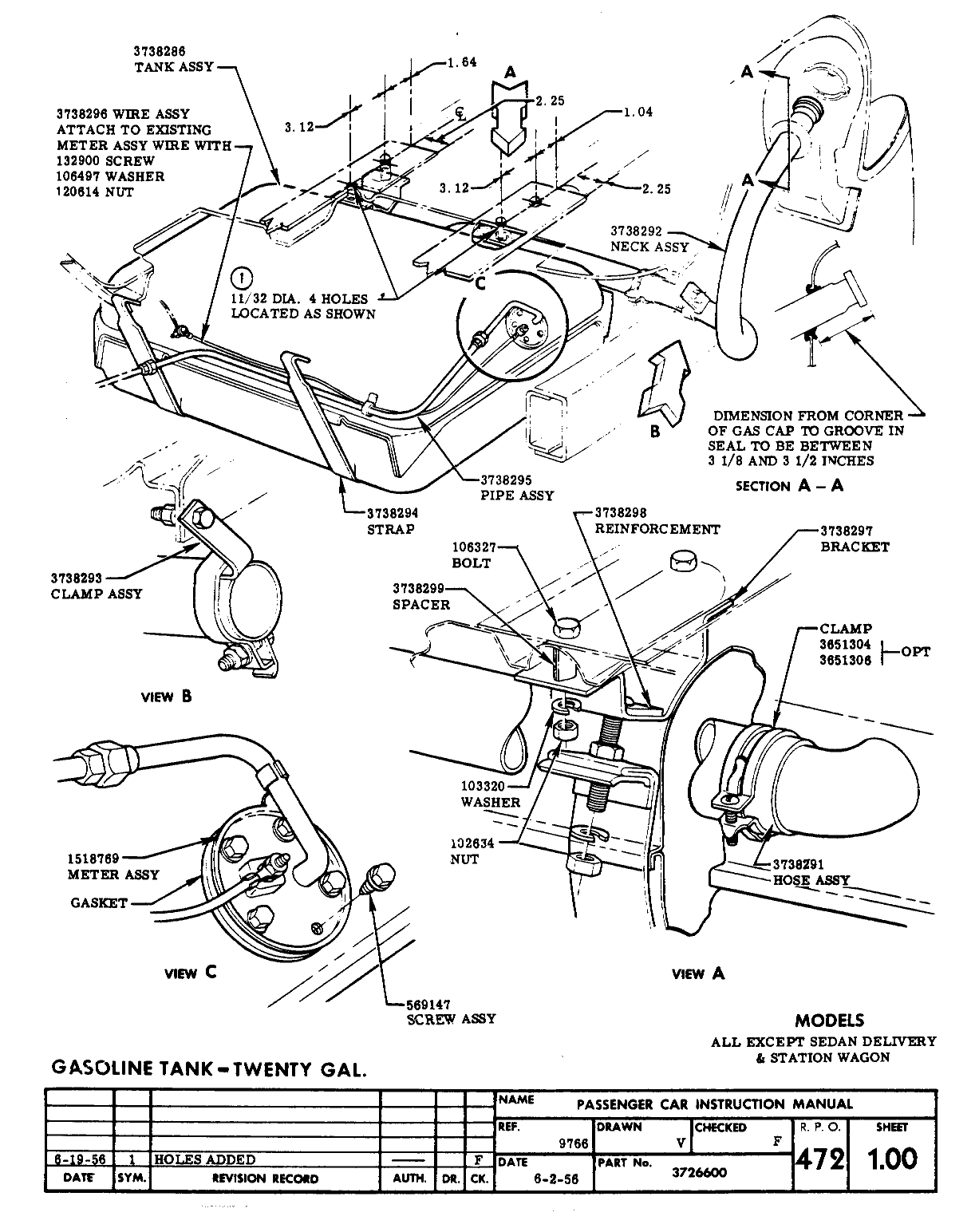

RPO 472 – Gasoline Tank – Twenty Gallon
